新型热铸铜覆钢复合金属材料在变电站接地系统中的应用研究 *

doi:10.11985/2021.01.011

电气工程学报 ›› 2021, Vol. 16 ›› Issue (1): 77-82.doi: 10.11985/2021.01.011

扫码分享

新型热铸铜覆钢复合金属材料在变电站接地系统中的应用研究 ^*

李扬森¹(), 张成炜²(), 柳松³(), 王鹏飞²

1.国网福建省电力有限公司福州 350003
2.国网福建省电力有限公司经济技术研究院福州 350012
3.中国电建集团福建省电力勘测设计院有限公司福州 350003

收稿日期:2020-08-28 修回日期:2021-01-27 出版日期:2021-03-25 发布日期:2021-03-25
作者简介:李扬森,男,1983年生,高级工程师。主要研究方向为输变电工程设计与施工。E-mail：703359503@qq.com
张成炜,男,1992年生,硕士。主要研究方向为电力系统分析。E-mail：alex191x@163.com
柳松,男,1989年生,硕士。主要研究方向为输变电工程设计。E-mail：fzuliusong@163.com
基金资助:
* 国网福建省电力有限公司科技项目“福建省沿海地区变电站防腐蚀、锈蚀技术研究与应用-1”资助项目(52130N190001)

Research on the Application of New Hot Cast Copper Clad Steel Composite Metal Material in Substation Grounding System

LI Yangsen¹(), ZHANG Chengwei²(), LIU Song³(), WANG Pengfei²

1. State Grid Fujian Electric Power Co., Ltd., Fuzhou 350003
2. State Grid Fujian Economic Research Institute, Fuzhou 350012
3. Powerchina Fujian Electric Power Engineering Co., Ltd., Fuzhou 350003

Received:2020-08-28 Revised:2021-01-27 Online:2021-03-25 Published:2021-03-25

摘要/Abstract

摘要：

阐述了变电站接地系统的原理及其重要性,针对国内外接地系统材料选择进行分析,归纳总结几种常用接地材料的优缺点,论证了变电站接地系统的基本条件;提出一种新型热铸铜覆钢复合金属材料,在高于1 150 ℃的高温无氧环境下,将液态铜通过独特热熔连铸技术铸在钢芯上,再经过特定的加工工艺,不仅具有良好的热稳定性能、过流能力和耐腐蚀性能,还具有极好的硬度和柔软度;以实际变电站接地工程为载体,从全寿命周期的角度分析其优越的经济特性能,并对其在电力系统接地中的进一步广泛应用研究提出建议。

关键词: 铜覆钢, 复合金属, 变电站, 接地系统, 全寿命周期

Abstract:

Firstly, the principle and importance of substation grounding system are discussed. Secondly, selections of grounding system materials both in domestic and overseas are analyzed. The advantages and disadvantages of several common grounding materials are summarized and concluded, the basic conditions of substation grounding system are demonstrated. Thirdly, a new hot cast copper clad steel composite metal material is presented, of which the liquid copper is cast on the steel core through the unique hot melt continuous casting technology in the high temperature of over 1 150 ℃ without oxygen environment, and then made through the specific processing technology, with not only good thermal stability, flow capacity and corrosion resistance, but also excellent hardness and softness. Fourthly, taking practical substation grounding project as the carrier, the superior economic characteristics are analyzed from the perspective of the whole life cycle. Last but not the least, some suggestions are put forward on its further extensive application in power system grounding.

Key words: Copper clad steel, composite metal, substation, grounding system, life cycle

中图分类号:

TM63
TM862

李扬森, 张成炜, 柳松, 王鹏飞. 新型热铸铜覆钢复合金属材料在变电站接地系统中的应用研究 ^*[J]. 电气工程学报, 2021, 16(1): 77-82.

LI Yangsen, ZHANG Chengwei, LIU Song, WANG Pengfei. Research on the Application of New Hot Cast Copper Clad Steel Composite Metal Material in Substation Grounding System[J]. Journal of Electrical Engineering, 2021, 16(1): 77-82.

图/表 4

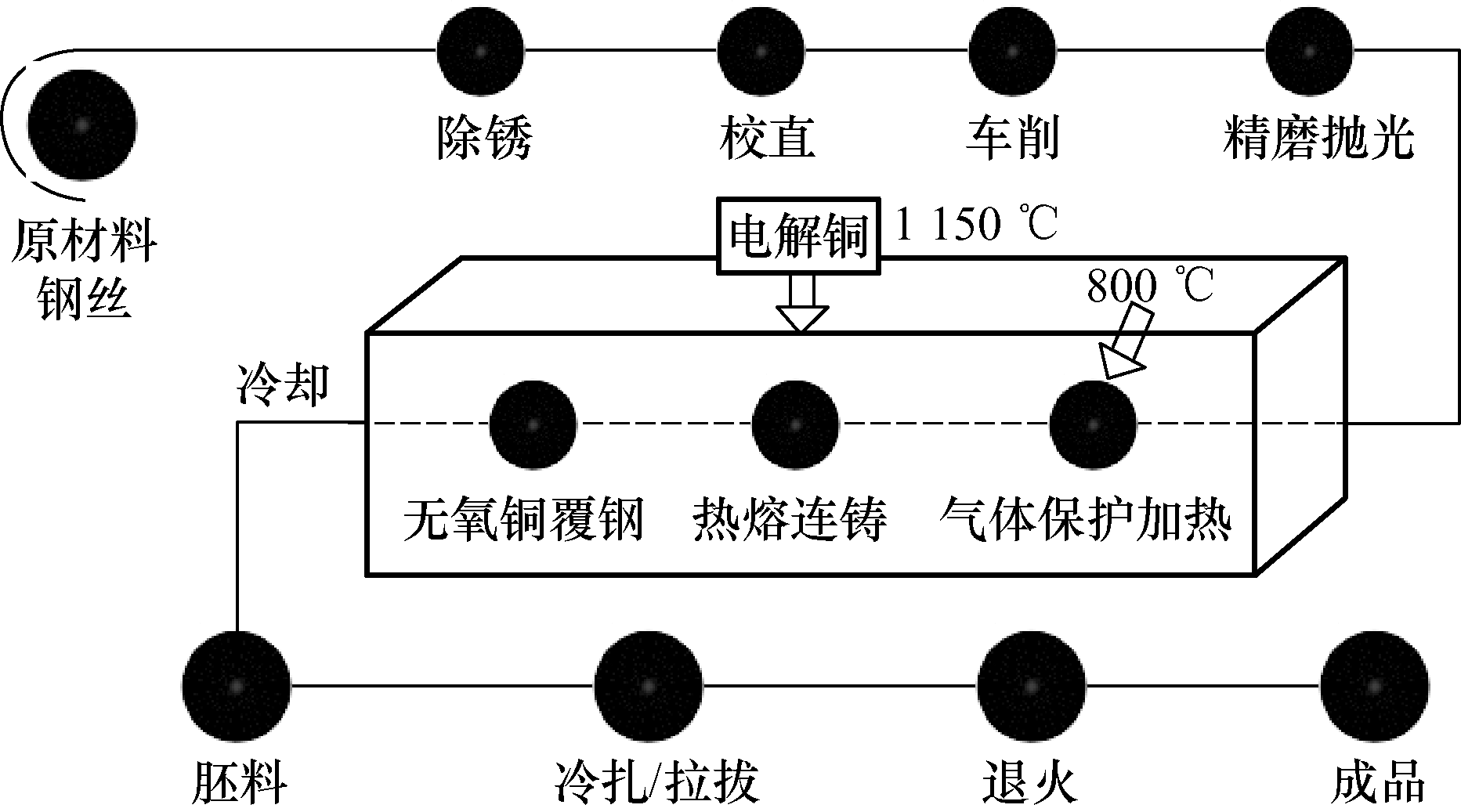

图1

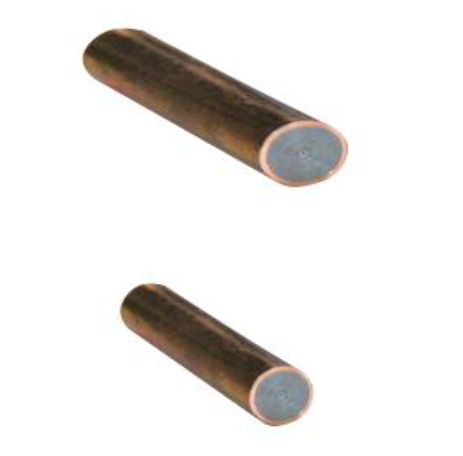

图2

表1

表2

参考文献 24

[1]	贾晓娟. 变电站接地网优化设计及安全性评估[D]. 北京:华北电力大学, 2016.
	JIA Xiaojuan. Optimization design and safety assessment of substation grounding grid[D]. Beijing:North China Electric Power University, 2016.
[2]	王龙宇, 王丙东, 蔡蕾, 等. 关于电力变电站接地若干问题的讨论[J]. 电气工程学报, 2019,14(1):89-94.
	WANG Longyu, WANG Bingdong, CAI Lei, et al. Discussion about several issues on substation grounding[J]. Journal of Electrical Engineering, 2019,14(1):89-94.
[3]	黄小琼. 接地网腐蚀速率弱极化检测及强极化状态评价方法研究[D]. 重庆:重庆大学, 2015.
	HUANG Xiaoqiong. The method of grounding grid corrosion rate detection of weak polarization and the corrosion state evaluation of strong polarization[D]. Chongqing:Chongqing University, 2015.
[4]	黄根. 基于多目标决策的电网限流优化方案研究[D]. 长沙:湖南大学, 2016.
	HUANG Gen. Research on limiting short-circuit circuit optimization of the power grid based on a multi-objective method[D]. Changsha:Hunan University, 2016.
[5]	吴荻. 限制大电网短路电流水平的措施的研究[D]. 杭州:浙江大学, 2005.
	WU Di. Research on measures to limit short circuit current level of large power network[D]. Hangzhou:Zhejiang University, 2005.
[6]	王凤杰. 地网接地阻抗测量的改进方法及其应用研究[D]. 北京:华北电力大学, 2015.
	WANG Fengjie. Improved method and application research on grounding impedance measurement of grounding systems[D]. Beijing:North China Electric Power University, 2015.
[7]	牛年增, 王志岗, 祁征. 高压输电系统对通信局(站)危险影响中地电流系数的确定[J]. 环境技术, 2014(z1):187-190.
	NIU Nianzeng, WANG Zhigang, QI Zheng. The determination of the ground currents coefficient in the dangerous effect of the high-voltage transmission system to the telecommunication bureaus(stations)[J]. Environmental Technology, 2014(z1):187-190.
[8]	彭迎, 周秋鹏, 黄道春. 柔性石墨接地体与金属接地体工频接地性能对比[J]. 湖北电力, 2016(9):6-10.
	PENG Ying, ZHOU Qiupeng, HUANG Daochun. Power frequency grounding performance comparison between flexible graphite grounding electrode and metal grounding electrode[J]. Hubei Electric Power, 2016(9):6-10.
[9]	邓少平, 康慨, 熊力, 等. 风电场接地系统辅助设计软件的研发[J]. 电气工程学报, 2018,13(3):42-48.
	DENG Shaoping, KANG Kai, XIONG Li, et al. Development of the computer aided design software of wind power grounding systems[J]. Journal of Electrical Engineering, 2018,13(3):42-48.
[10]	司文荣, 傅晨钊, 卞晓亮, 等. 变电站接地网缺陷诊断无损评价方法综述[J]. 电气工程学报, 2015,10(8):14-21.
	SI Wenrong, FU Chenzhao, BIAN Xiaoliang, et al. Overview of the nondestructive evaluation methods for substation grounding grids fault diagnosis[J]. Journal of Electrical Engineering, 2015,10(8):14-21.
[11]	谢晖. 高寒冻土地区铁路牵引变电所接地问题研究[J]. 电气化铁道, 2015(5):28-29.
	XIE Hui. Research on the grounding problem of railway traction substation in alpine permafrost regions[J]. Electric Railway, 2015(5):28-29.
[12]	林耿明. 接地网腐蚀与断点诊断技术探讨[J]. 科技资讯, 2011(14):137.
	LIN Gengming. Discussion on corrosion and breakpoint diagnosis technology of grounding grid[J]. Science & Technology Information, 2011(14):137.
[13]	乔政. 电力系统变电运行维护存在问题及对策[J]. 建筑工程技术与设计, 2018(12):5411.
	QIAO Zheng. Power system substation operation and maintenance problems and countermeasures[J]. Construction Engineering Technology and Design, 2018(12):5411.
[14]	李生林. 特高压接地系统优化设计及降阻措施的研究[D]. 成都:西南交通大学, 2008.
	LI Shenglin. Research on optimum design and resistance reducing measure of UHV grounding system[D]. Chengdu:Southwest Jiao Tong University, 2008.
[15]	耿焱炜, 斯琴高娃. 变电站铜材接地装置的应用[J]. 内蒙古石油化工, 2008(24):22-23.
	GENG Yanwei, SIQIN Gaowa. Application of copper grounding device in substation[J]. Inner Mongolia Petrochemical Industry, 2008(24):22-23.
[16]	王宏波. 变电站接地网设计与应用[D]. 南京:江苏大学, 2014.
	WANG Hongbo. Design and application of substation grounding grid[D]. Nanjing:Jiangsu University, 2014.
[17]	王剑英, 董男, 邓杰, 等. 热带沿海输变电引流板腐蚀形式及技术对策[J]. 广东化工, 2016(19):119-120.
	WANG Jianying, DONG Nan, DENG Jie, et al. Corrosion and solutions of drainage plates of power transmission and transformation in tropical coastland[J]. Guangdong Chemical Industry, 2016(19):119-120.
[18]	徐皇冈. 提高变电站建(构)筑物使用寿命措施[J]. 电网与清洁能源, 2013(6):61-66.
	XU Huanggang. Measures of improving the service life of building(structure) in substation[J]. Power System and Clean Energy, 2013(6):61-66.
[19]	王旭, 赵辛. 变电站接地典型设计的优化策略分析[J]. 科技创业家, 2013(24):121.
	WANG Xu, ZHAO Xin. Optimization strategy analysis of typical grounding design of substation[J]. Technological Pioneers, 2013(24):121.
[20]	李常春. 石油化工企业接地材料选择探讨[J]. 当代化工研究, 2018(10):53-54.
	LI Changchun. Discussion on the selection of ground materials in petrochemical enterprises[J]. Chenmical Intermediate, 2018(10):53-54.
[21]	辛玲玲, 李延伟, 姜炯挺, 等. 某变电站接地网铜覆钢绞线防腐性能测试研究[J]. 浙江电力, 2017(9):44-47.
	XIN Lingling, LI Yanwei, JIANG Jiongting, et al. Research on corrosion resistance performance of copper coatedsteel strand for substation earth mat[J]. Zhejiang Electric Power, 2017(9):44-47.
[22]	杨庆刚. 江苏电网接地问题探讨[J]. 江苏电机工程, 2015(12):82-84.
	YANG Qinggang. Analysis on the grounding issues in jiangsu power grid[J]. Jiangsu Electrical Engineering, 2015(12):82-84.
[23]	羌丁建, 熊静, 陈晋. 民用建筑合建变电站接地系统优化设计[J]. 电气技术, 2018(5):88-91.
	QIANG Dingjian, XIONG Jing, CHEN Jin. Optimum design of earthing system for substation joined with civil building[J]. Electric Engineering, 2018(5):88-91.
[24]	谢惠藩, 谭波, 潘卓洪, 等. 换流站接地网替代直流接地极运行的方案研究[J]. 电气工程学报, 2017,12(9):22-27.
	XIE Huifan, TAN Bo, PAN Zhuohong, et al. Application analysis on converter station grounding grid as DC grounding electrode[J]. Journal of Electrical Engineering, 2017,12(9):22-27.

材料类型	铜绞线 (120 mm²)			热铸铜覆钢(φ=14 mm,铜层厚度=0.8 mm)		热镀锌扁钢 (50 mm×8 mm)
材料类型	水平		接头	水平	接头	水平	接头
数量/(米/个)	1 800	120		1 800	120	1 800		400
单价/元	110	120		70	120	30		10
总价/×10³元	212.4			140.4		58.0
寿命/年	50			50		10
综合成本/×10³元	212.4			140.4		290.0
综合成本比较(%)	151			100		207

材料类型	纯铜材料	热铸铜覆钢材料	热镀锌钢材
柔软度	硬度小,柔软度强,基本无弹性	硬度适中,柔软度较强,基本无弹性	硬度大,弹性强
热稳定系数c	210	179	70
电阻率/×10^-8 (Ω·m)	1.72	4.00	9.78
过流能力	好	适中	差
施工便利性	施工简单	施工简单	效率低
使用寿命 (耐腐蚀性)	>50年	>50年	≤10年
