基于遗传二自由度的永磁同步直线电机PID控制参数优化研究

摘要/Abstract

摘要：

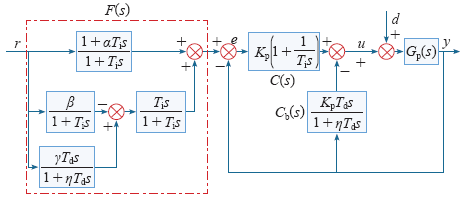

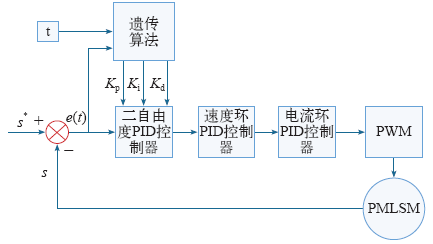

采用一种遗传二自由度的优化方法,研究了直线电机PID控制器参数的优化问题。首先,利用在传统PID控制器基础上增加目标设定值滤波器的方法,设计了一种二自由度PID控制器;采用遗传算法对二自由度PID控制器的参数进行优化,解决传统控制器在设定值跟随性能和干扰抑制特性不能达到共优的问题;将本文算法和传统PID算法进行仿真对比实验,结果证明,本文的参数优化方法具有调节时间短、设定值跟随特性优良且抗干扰性能好的特点。

关键词: 二自由度PID, 遗传算法, 设定值跟随性能, 干扰抑制特性

Abstract:

The optimization problem of PMSLM PID control parameters was studied by adopting the method of genetic two degree of freedom. First of all, a two degree of freedom PID controller was designed with the method of increasing a target value filter on the basis of traditional PID controller. Then, the two degree of freedom PID controller parameters was optimized with genetic algorithm for the sake of making the system set point tracking ability and anti-disturbance performance achieve optimality at the same time. At last, the contrast experiment was conducted between genetic two degree of freedom and traditional PID algorithm, the simulation experimental results show that the optimization method of PMSLM PID control parameters based on genetic algorithm two degree of freedom have some better advantages of quick response, excellent system set point tracking ability and anti-disturbance performance.

Key words: Two degree of freedom PID, genetic algorithm, system set point tracking ability, anti-disturbance performance

中图分类号:

TM359.4

盘真保,董菲,赵吉文,苏云升,李乐. 基于遗传二自由度的永磁同步直线电机PID控制参数优化研究[J]. 电气工程学报, 2015, 10(8): 50-55.

Pan Zhenbao,Dong Fei,Zhao Jiwen,Su Yunsheng,Li Le. Optimization Research of PMSLM PID Control Parameters Based on Genetic Two Degree of Freedom[J]. Journal of Electrical Engineering, 2015, 10(8): 50-55.

图/表 10

图1

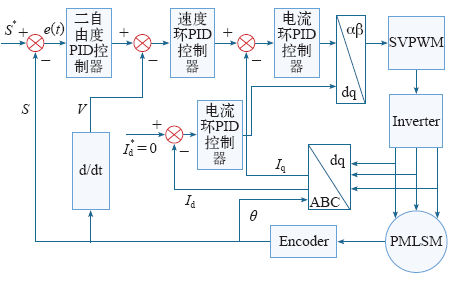

图2

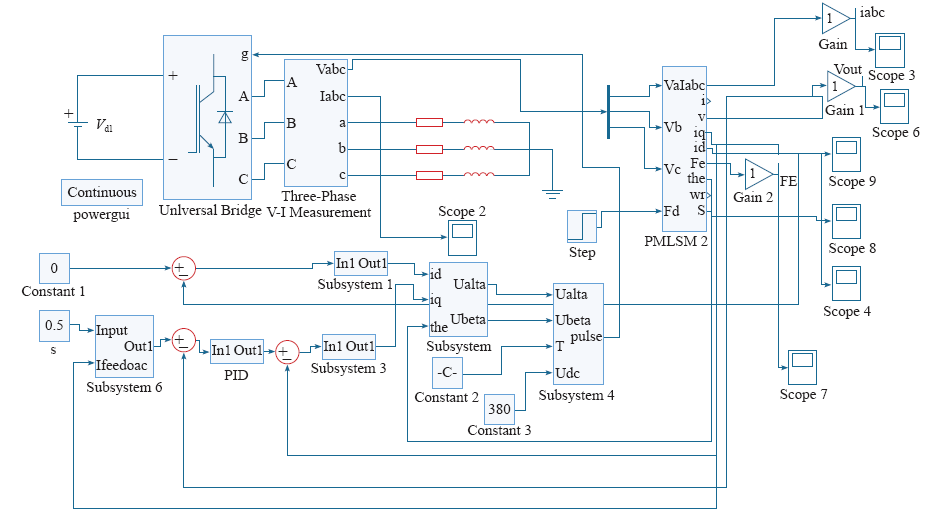

图3

表

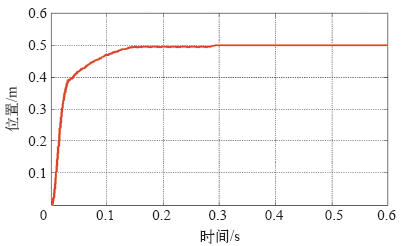

图4

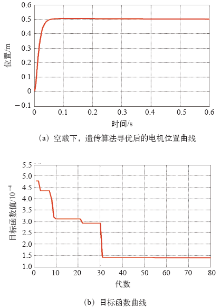

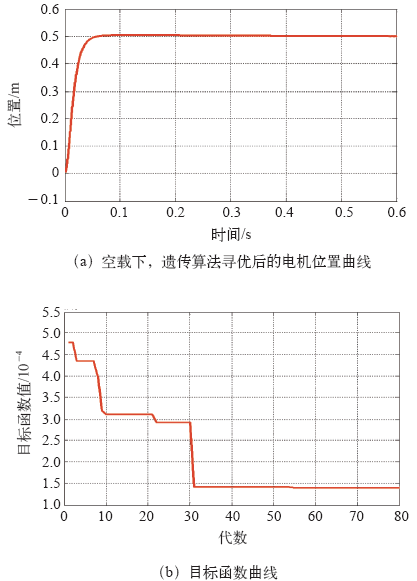

图5

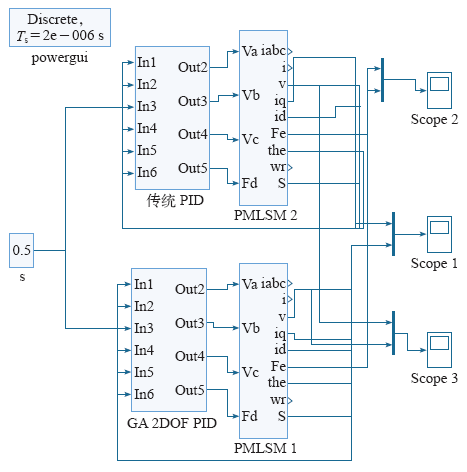

图6

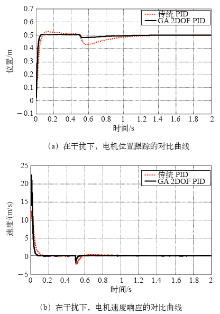

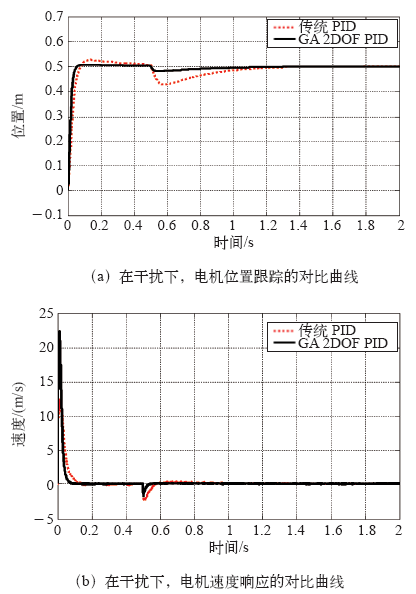

图7

图8

图9

参考文献 14

[1]	陆华才, 江明, 郭兴众 , 等. 永磁直线同步电机推力波动约束[J]. 电工技术学报, 2012,27(3):128-132.
	Lu Huacai, Jiang Ming, Guo Xingzhong , et al. Thrust ripple suppression for permanent magnet linear synchronous motor[J]. Transactions of China Electrotechnical Society, 2012,27(3):128-132.
[2]	杨立永, 张云龙, 陈智刚 , 等. 基于参数辨识的PMSM电流环在线自适应控制[J]. 电工技术学报, 2012,27(3):86-91.
	Yang Liyong, Zhang Yunlong, Chen Zhigang , et al. On-line adaptive control of PMSM current-loop based on parameter indentification[J]. Transactions of China Electrotechnical Society, 2012,27(3):86-91.
[3]	Barabones O, Alkorta P, Garrido A J . An adaptive sliding mode control scheme for induction motor drives[J]. International Journal of Circuits, Systems and Signal Processing, 2007,1(1):73-78. doi: 10.1016/j.isatra.2019.08.061 pmid: 31495590
[4]	辛平, 弭洪涛, 白晶 . PMSM伺服系统参数自适应全局滑模变结构位置控制器设计[J]. 冶金自动化, 2012,36(4):69-72.
	Xin Ping, Mi Hongtao, Bai Jing . Parameters adaptive global SMC position controller for PMSM servo system[J]. Metallurgical Industry Automation, 2012,36(4):69-72.
[5]	Yang Y . PMSM stabilizer design based on backstepping[C]. 2013 International Conference on Power, Energy and Control, 2013: 437-442.
[6]	王大彧, 郭宏, 刘治 , 等. 直驱阀用音圈电机的模糊非线性PID控制[J]. 电工技术学报, 2011,26(3):52-57.
	Wang Dayu, Guo Hong, Liu Zhi , et al. A fuzzy nonlinear PID control of voice coil motor used in direct drive valve[J]. Transactions of China Electrotechnical Society, 2011,26(3):52-57.
[7]	游江, 孟繁荣, 罗耀华 . 异步电动机间接磁场定向的二自由度鲁棒控制器[J]. 电工技术学报, 2009,24(5):19-23.
	You Jiang, Meng Fanrong, Luo Yaohua . Two degree of freedom robust controller of induction motor with indirect feild oriented[J]. Transactions of China Electrotechnical Society, 2009,24(5):19-23.
[8]	Tsai C C, Chang Y L . Two degree of freedom control using recurrent fuzzy neural networks for a class of nonlinear discrete time time delay systems[C]. International Conference System Science and Engineering, 2012: 85-89.
[9]	Zhang W D, Wang W, He X . Analytical formulas for the new two degree of freedom smith predictor[C]. Proceedings of the 4th World Congress on Intelligent Control and Automation, 2002: 569-572.
[10]	王贺超, 夏长亮, 阎彦 , 等. 基于谐振控制的表贴式永磁同步电机弱磁区电流谐波抑制[J]. 电工技术学报, 2014,29(9):83-91.
	Wang Hechao, Xia Changliang, Yan Yan , et al. Current harmonic suppression in the Flux-weakening control of surface permanent magnet synchronous motors using resonant controllers[J]. Transactions of China Electrotechnical Society, 2014,29(9):83-91.
[11]	Seilmeier M, Ebersberger S, Piepenbreier B . HF test current injection based self-sensing control of PMSM for low and zero speed rang using two-degree-of freedom current control[C]. IEEE International Symposium on Magnetics Control for Electrical Drives, 2014: 1-8.
[12]	张井岗 . 二自由度控制[M]. 北京: 电子工业出版社, 2012.
[13]	肖曦, 许青松, 王雅婷 , 等. 基于遗传算法的内埋式永磁同步电机参数辨识方法[J]. 电工技术学报, 2014,29(3):21-26.
	Xiao Xi, Xu Qingsong, Wang Yating , et al. Parameter identification of interior permanent magnet synchronous motors based on genetic algorithm[J]. Transactions of China Electrotechnical Society, 2014,29(3):21-26.
[14]	Toderici M, Toderici S, Imecs M . Optimization of induction motor control using genetic algorithms[C]. IEEE Conference on Automation Quality and Testing Robotics, 2010,3:1-6.

参数	数值
动子质量M_f /kg	0.17
永磁体产生的磁链Ψ_f/Wb	0.178
动子的绕组电阻R_s/Ω	8.4
交轴电感L_q/H	0.008
直轴电感L_d/H	0.008
电机极对数P	4
电机永磁体极距τ/m	0.001 58
持续电流I/A	1.8
峰值电流I/A	5.3
