基于粒子群算法的变压器油纸绝缘系统回复电压场路模拟研究

doi:10.11985/2017.12.001

摘要/Abstract

摘要：

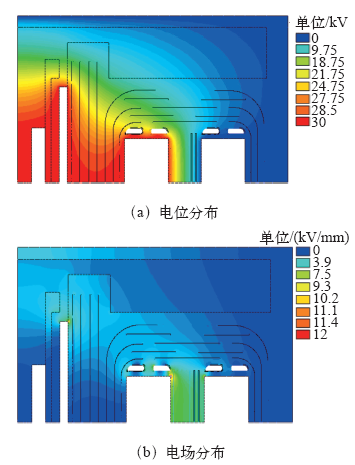

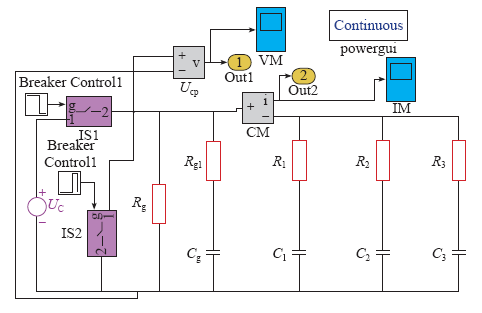

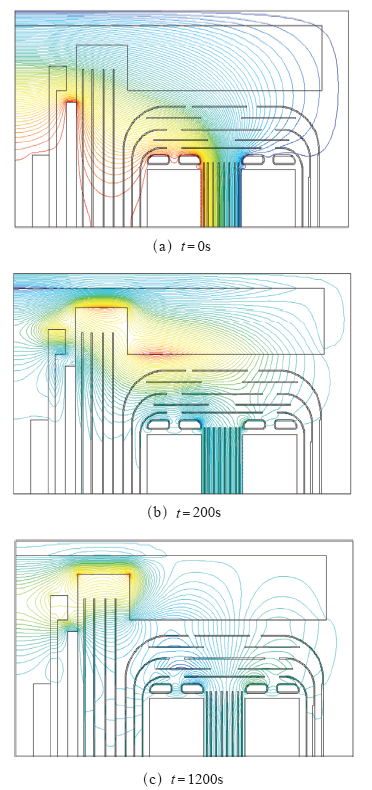

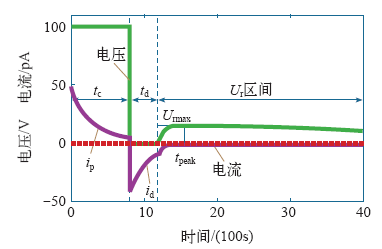

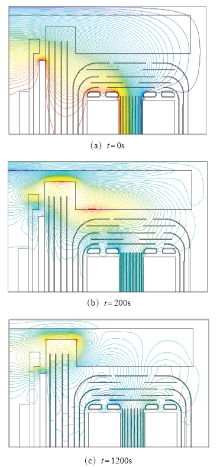

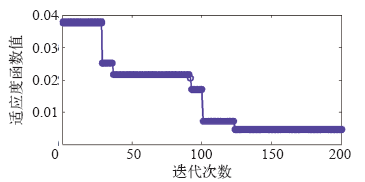

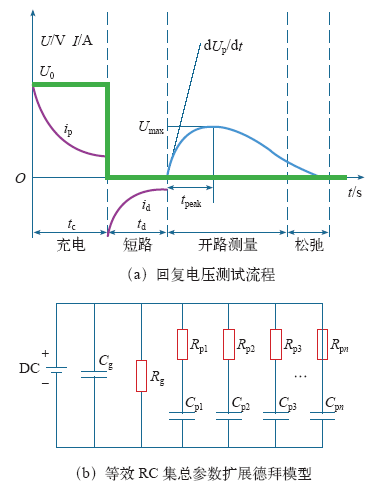

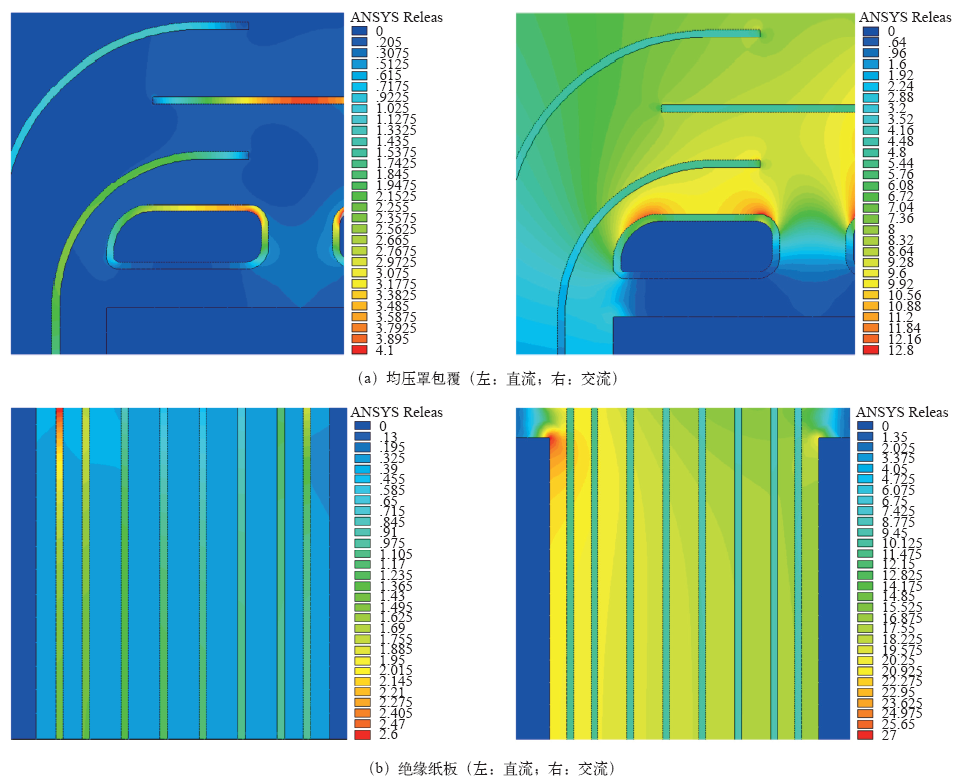

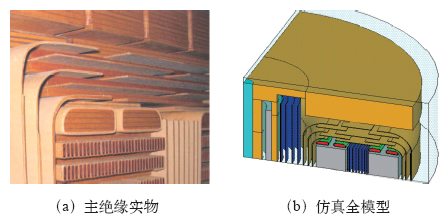

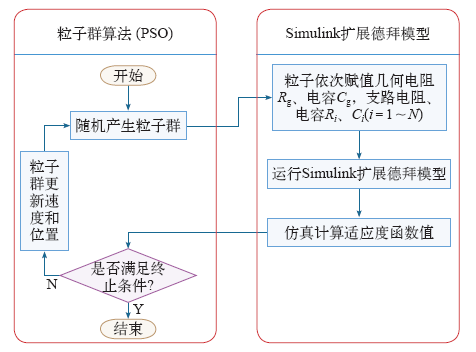

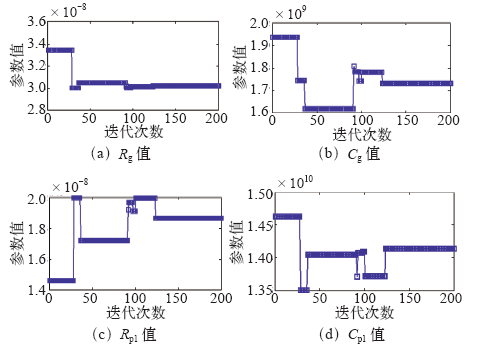

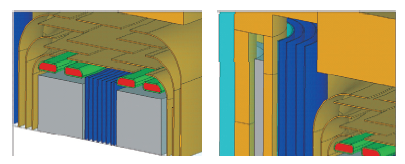

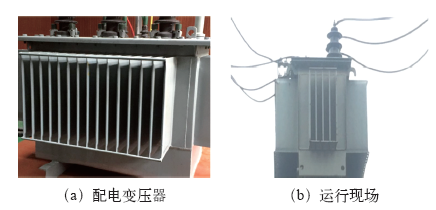

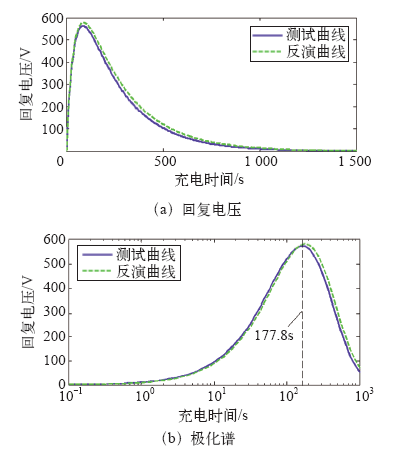

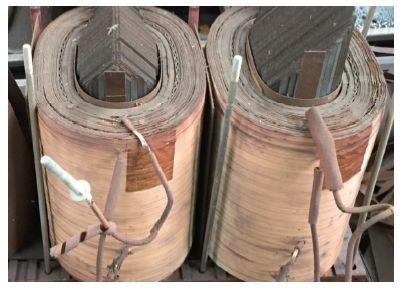

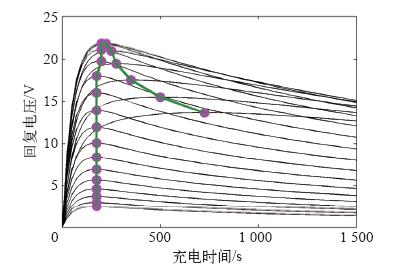

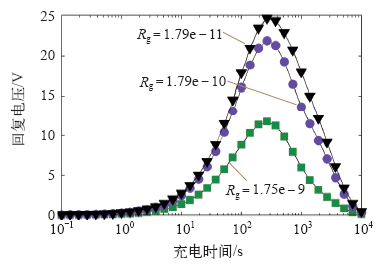

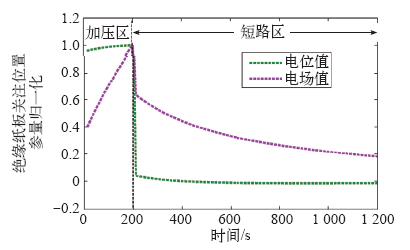

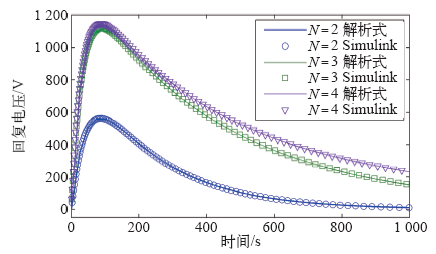

本文在ANSYS仿真计算环境下建立了配电变压器典型油纸绝缘系统模型,施加回复电压测量过程中的电压波形,分析了其在关键时间点的电场分布特征。应用集总电路分析了回复电压的产生原理,通过理论公式解析了多参数扩展德拜模型,并在Matlab/Simulink平台上将德拜参数模型推广至多支路集总参数电路。提出Simulink-PSO联合算法实现了德拜参数的非线性拟合,定量分析了集总参数对极化谱的影响规律。研究表明：场-路模拟分析发现回复电压测量中存在暂态变化过程,且油纸复合绝缘界面处电荷迁移是状态参量存在暂态过程的主要原因,为油浸式配电变压器绝缘状态监测提供了一定的理论指导。

关键词: 油浸式配电变压器, 回复电压法, Simulink-PSO联合算法, 扩展德拜模型

Abstract:

The typical oil-paper insulation system model of the distribution transformer is established in the ANSYS simulation environment in the paper. The voltage waveform during the recovery voltage measurement is applied to the model, the characteristics of the E-field distribution at critical time points are analyzed. The principle of recovery voltage is analyzed using lumped circuit. The multi-parameter extended Debye model is resolved by the theoretical formula. On the Matlab/Simulink platform, the Debye parameter model is extended to the lumped parameter circuit. The Simulink-PSO algorithm is used to realize the nonlinear fitting the Debye parameters, and the influence principle of the lumped parameters on the polarization spectrum is analyzed quantitatively. The study found that the field-circuit simulation analysis shows the transient process exists in the recovery voltage measurement. The charge transfer at the interface of oil-paper composite insulation is the main reason for the transient process. It provides the theoretical guidance for the insulation condition monitoring of oil immersed distribution transformer.

Key words: Oil immersed distribution transformer, recovery voltage method, Simulink-PSO combined algorithm, extended Debye model

中图分类号:

TM421

张施令. 基于粒子群算法的变压器油纸绝缘系统回复电压场路模拟研究[J]. 电气工程学报, 2017, 12(12): 1-10.

Zhang Shilling. The Simulation Analysis of Transformer Recovery Voltage by Field and Circuit Method Based on PSO Algorithm[J]. Journal of Electrical Engineering, 2017, 12(12): 1-10.

图/表 20

图1

图2

图3

图4

图5

表1

图6

图7

图8

表2

图9

图10

图11

图12

图13

图14

图15

图16

图17

图18

参考文献 19

[1]	梁旭明, 张平, 常勇 . 高压直流输电技术现状及发展前景[J]. 电网技术, 2012,36(4):1-9.
	Liang Xuming, Zhang Ping, Chang Yong . Recent advances in high-voltage direct-current power transmission and its developing potential[J]. Power System Technology, 2012,36(4):1-9.
[2]	谢恒堃 . 电气绝缘结构设计原理:下册[M]. 北京: 机械工业出版社, 1992.
[3]	周利军, 李先浪, 王晓剑 , 等. 基于回复电压曲线的油纸绝缘状态评估[J]. 高电压技术, 2014,40(2):489-496.
	Zhou Lijun, Li Xianlang, Wang Xiaojian , et al. Status assessment of oil-paper insulation based on recovery voltage method[J]. High Voltage Engineering, 2014,40(2):489-496.
[4]	孙长海, 张强, 吴彦 , 等. 基于回复电压法的高压套管绝缘状态评估[J]. 变压器, 2016,53(5):52-55.
	Sun Changhai, Zhang Qiang, Wu Yan , et al. Insulation condition evaluation of HV bushing based on RVM[J]. Trans-former, 2016,53(5):52-55.
[5]	王小健, 莫付江, 袁海蓉 , 等. 变压器油纸绝缘状况的等效仿真分析[J]. 绝缘材料, 2016,49(3):59-63.
	Wang Xiaojian, Mo Fujiang, Yuan Hairong , et al. Equivalent simulation analysis on insulation state of transformer oil-paper[J]. Insulating Materials, 2016,49(3):59-63.
[6]	黄云程, 蔡金锭 . 油纸绝缘系统回复电压函数建模及拓扑结构辨识[J]. 电力自动化设备, 2016,36(3):149-153.
	Huang Yuncheng, Cai Jinding . Return voltage function modeling and topology recognition of oil-paper insulation system[J]. Electric Power Automation Equipment, 2016,36(3):149-153.
[7]	廖瑞金, 孙会刚, 袁泉 , 等. 采用回复电压法分析油纸绝缘老化特征量[J]. 高电压技术, 2011,37(1):136-142.
	Liao Ruijin, Sun Huigang, Yuan Quan , et al. Analysis of oil-paper insulation aging characteristics using recovery voltage method[J]. High Voltage Engineering, 2011,37(1):136-142.
[8]	魏新劳, 李林骜, 聂洪岩 , 等. 500kV电力变压器匝间绝缘模型线圈的电老化特性[J]. 电机与控制学报, 2017,21(3):17-24.
	Wei Xinlao, Li Linao, Nie Hongyan , et al. Electrical aging characteristic of 500kV power transformer turn-to-turn insulation model coils[J]. Electric Machines and Control, 2017,21(3):17-24.
[9]	谢裕清, 李琳 . 基于本征正交分解的换流变压器极性反转电场降阶模型[J]. 中国电机工程学报, 2016,36(23):6544-6551.
	Xie Yuqing, Li Lin . A reduced order model via proper orthogonal decomposition for polarity reverse electric fields in converter transformers[J]. Proceedings of the CSEE, 2013,33(18):126-131.
[10]	张良县, 陈模生, 彭宗仁 , 等. 特高压换流变压器涡流损耗计算与屏蔽分析[J]. 变压器, 2013,50(3):15-21.
	Zhang Liangxian, Chen Mosheng, Peng Zongren , et al. Eddy current loss calculation and shield analysis of UHV converter transformer[J]. Transformer, 2013,50(3):15-21.
[11]	张卫纯, 潘风明, 张新根 , 等. 基于有限元法的电力变压器金属结构件损耗分析[J]. 高压电器, 2013,49(11):55-61.
	Zhang Weichun, Pan Fengming, Zhang Xingen , et al. Power loss analysis for structural parts in transformer based on finite element method[J]. High Voltage Apparatus, 2013,49(11):55-61.
[12]	吴广宁, 宋臻杰, 辛东立 , 等. 基于扩展Debye模型仿真的回复电压特征量分析[J]. 高压电器, 2017,53(1):8-13.
	Wu Guangning, Song Zhenjie, Xin Dongli , et al. Analysis of RVM characteristics based on the extended Debye model simulation[J]. High Voltage Apparatus, 2017,53(1):8-13.
[13]	姜惠英 . 变压器绝缘层数和温度对回复电压影响分析[J]. 变压器, 2016,53(11):53-56.
	Jiang Huiying . Analysis of effects of transformer insulation layers and temperature to return voltage[J]. Transformer, 2016,53(11):53-56.
[14]	王晓剑, 吴广宁, 李先浪 , 等. 酸值对变压器油纸绝缘系统回复电压参数影响规律研究[J]. 电力自动化设备, 2013,33(12):133-139.
	Wang Xiaojian, Wu Guangning, Li Xianlang , et al. Influence of acid value on recovery voltage parameters of transformer oil-paper insulation system[J]. Electric Power Automation Equipment, 2013,33(12):133-139.
[15]	金立军, 薛飞, 彭陈仡 , 等. 基于粒子群算法的变电站工频电场优化[J]. 高电压技术, 2017,43(4):1341-1347.
	Jin Lijun, Xue Fei, Peng Chenyi , et al. Optimization for substation power frequency electric field distribution based on particle swarm optimization[J]. High Voltage Engineering, 2017,43(4):1341-1347.
[16]	王智冬, 刘连光, 刘自发 , 等. 基于量子粒子群算法的风火打捆容量及直流落点优化配置[J]. 中国电极工程学报, 2014,34(13):2055-2062.
	Wang Zhidong, Liu Lianguang, Liu Zifa , et al. Optimal configuration of wind&coal power capacity and DC placement based on quantum PSO algorithm[J]. Proceeding of the CSEE, 2014,34(13):2055-2062.
[17]	党沙沙, 许洋, 张红松 . ANSYS12.0多物理耦合场有限元分析入门到精通[M]. 北京: 机械出版社, 2010: 254-311.
	Dang Shasha, Xu Yang, Zhang Hongsong. ANSYS12. 0 finite element analysis of multiphysics coupling field from start to master[M]. Beijing, China: China Mechanical Press, 2010: 254-311.
[18]	王小川, 史峰, 郁磊 . Matlab神经网络43个案例分析[M]. 北京: 北京航空航天大学出版社, 2013.
[19]	Jota P R S, Islam S M, Jota F G . Modeling the polarization spectrum in composite oil/paper insulation systems[J]. IEEE Transaction on Dielectrics and Electrical Insulation, 1999,6(2):145-151. doi: 10.1109/94.765903

材料名称	相对介电常数	电阻率/Ω·m
变压器油	2.2	3.588 6e-12
绝缘纸板	4.5	2.273 8e-15
金属部件	1e-10	1e-8

名称	参数	名称	参数
R_g/GΩ	1.75	C_g/NF	35.60
R₁/GΩ	5.41	C₁/NF	27.48
R₂/GΩ	4.36	C₂/NF	67.08
R₃/GΩ	13.78	C₃/NF	85.35
