基于开关磁阻电机的飞轮电池直流充放电控制

doi:11.11985/2016.03.004

电气工程学报 ›› 2016, Vol. 11 ›› Issue (3): 28-33.doi: 11.11985/2016.03.004

• • 上一篇

基于开关磁阻电机的飞轮电池直流充放电控制

方永旺¹,方红伟²,刘乙彤³

^1. 杭州古北电子科技有限公司杭州 310053
^2. 天津大学电气与自动化工程学院天津 300072

收稿日期:2015-06-17 出版日期:2016-03-25 发布日期:2020-01-07
作者简介:方永旺男 1984年生,学士,助理工程师,主要研究方向为无线通信、储能控制等。|方红伟男 1977年生,博士,副教授,主要研究方向为电机系统及其控制。
基金资助:
国家自然科学基金项目(51107088);国家自然科学基金项目(51577124);天津市自然科学基金应用基础与前沿技术研究计划项目(11JCYBJC07900);天津市自然科学基金应用基础与前沿技术研究计划项目(15JCZDJC32100);天津大学大学生创新创业项目(201510056456)

DC Current Charging and Discharging Control of a Flywheel Battery Driven by Switched Reluctance Machine

Fang Yongwang¹,Fang Hongwei²,Liu Yitong³

^1. Hangzhou Gubei Electronics Technology Co.Ltd Hangzhou 310053 China
^2. Tianjin University Tianjin 300072 China

Received:2015-06-17 Online:2016-03-25 Published:2020-01-07

摘要/Abstract

摘要：

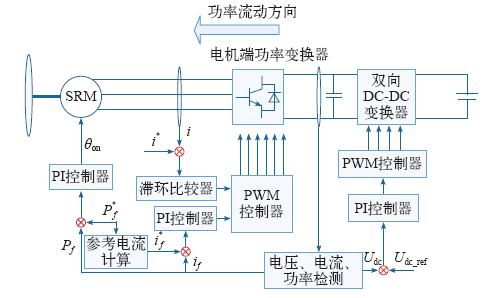

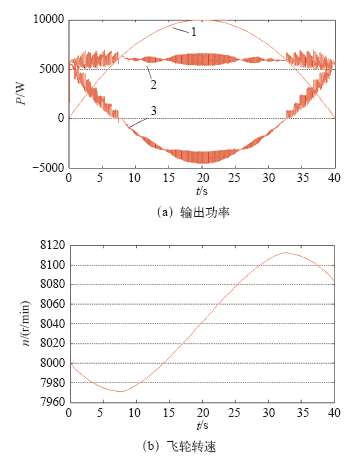

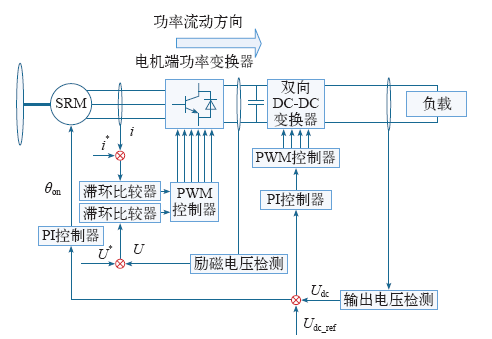

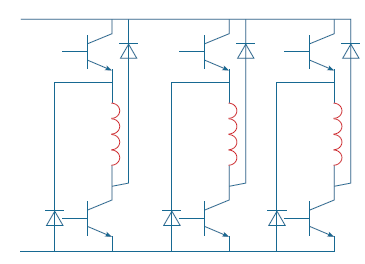

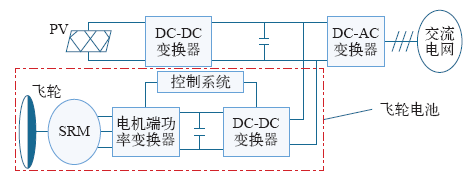

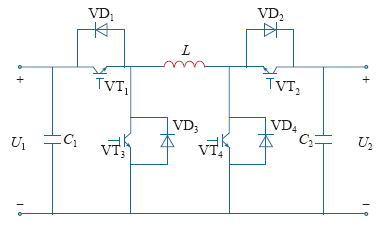

设计了一种飞轮电池系统,主要由五部分组成：电源端功率变换器、励磁电容、电机端功率变换器、集成飞轮的开关磁阻电机以及控制系统。为了增强系统的适用性,所设计的电源端功率变换器,在实现能量双向流动功能的同时,还可在两个方向均实现升降压功能,而且变换器中的一个电容充当电机的励磁电源功能,简化了系统的结构。充电时,使用电流斩波与角度位置两者结合的控制方式,实现了对飞轮电池输出功率的快速控制;放电时,使用角度位置与电压斩波相结合的控制方法,实现对输出电压和输出功率的控制。建立了相应的Matlab仿真模型,验证了所提出的飞轮电池储能/释能控制策略的有效性,及其在光伏发电站中用于功率平滑的可行性。

关键词: 飞轮电池, 开关磁阻电机, 双向DC-DC变换器, 充放电控制, 功率平滑

Abstract:

A flywheel battery system is designed which is mainly composed of five parts: power converter in power side, excitation capacitor, power converter in machine side, switched reluctance machine integrated with a flywheel and the control system. In order to enhance the suitability of the system, a new DC-DC converter is used which can realize bi-directional power flow and boost-buck function in both directions at the same time. Meanwhile, a capacitance in the converter acts as the excitation power of SRM, so that the structure of the system is simplified. In the charging stage, current chopping method and angle position control is used to achieve control of the flywheel battery output power. In the Discharging stage, angle position control method combined with voltage chopper control method is used to realize control of output voltage and output power. A simulation model is set up by Matlab to verify the effectiveness of the energy storage/release control strategy and its feasibility of power smoothing in the photovoltaic power station by using the flywheel battery.

Key words: Flywheel battery, switched reluctance machine, bidirectional DC-DC converter, charging and discharging control, power smoothing

中图分类号:

TM615

方永旺,方红伟,刘乙彤. 基于开关磁阻电机的飞轮电池直流充放电控制[J]. 电气工程学报, 2016, 11(3): 28-33.

Fang Yongwang,Fang Hongwei,Liu Yitong. DC Current Charging and Discharging Control of a Flywheel Battery Driven by Switched Reluctance Machine[J]. Journal of Electrical Engineering, 2016, 11(3): 28-33.

图/表 8

图1

图2

图3

图4

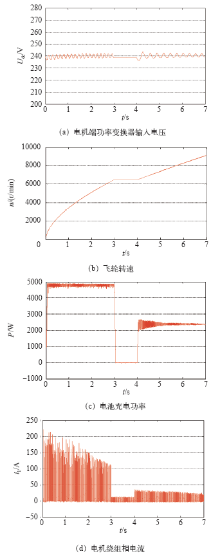

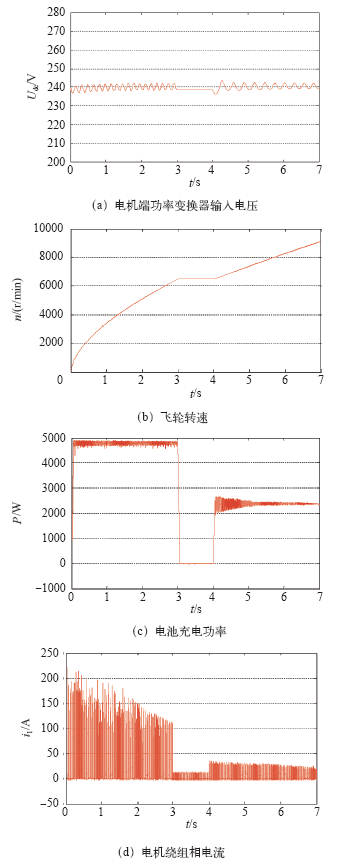

图5

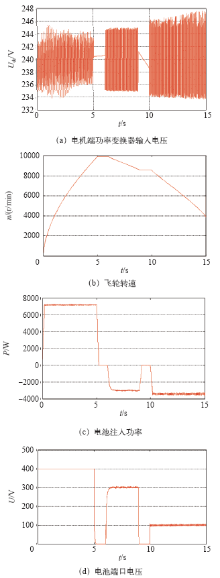

图6

图7

图8

参考文献 16

[1]	周篁 . 关于我国可再生能源发电的问题分析及对策研究[J]. 电网技术, 2010,25(7):1-3.
	Zhou Huang . Research on existing problems in power generation by generable energy source and its corresponding countermeasure[J]. Power System Technology, 2010,25(7):1-3.
[2]	张维煜, 朱烷秋 . 飞轮储能关键技术及其发展现状[J]. 电工技术学报, 2011,26(7):141-146.
	Zhang Weiyu, Zhu Huangqiu . Key technologies and development status of flywheel energy storage system[J]. Transactions of China Electrotechnical Society, 2011,26(7):141-146.
[3]	丁明, 陈忠, 苏建徽 , 等. 可再生能源发电中的电池储能系统综述[J]. 电力系统自动化, 2013,37(1):19-25.
	Ding Ming, Chen Zhong, Su Jianhui , et al. An overview of battery energy storage system for renewable energy generation[J]. Automation of Electric Power Systems, 2013,37(1):19-25.
[4]	Cárdenas R, Peña R, Pérez M , et al. Power smoothing using a flywheel driven by a switched reluctance machine[J]. IEEE Transactions on Industrial Electronics, 2006,53(4):1086-1093. doi: 10.1109/TIE.2006.878325
[5]	蒋书运, 卫海岗, 沈祖培 . 飞轮储能技术研究的发展现状[J]. 太阳能学报, 2000,21(4):427-433.
	Jiang Shuyun, Wei Haigang, Sheng Zupei . The situation of the flywheel energy storage research[J]. Acta Energiae Solaris Sinica, 2000,21(4):427-433.
[6]	程时杰, 李刚, 孙海顺 , 等. 储能技术在电气工程领域中的应用与展望[J].电网与清洁能源, 2009(2):1-8.
	Cheng Shijie, Li Gang, Sun Haishun , et al. Application and prospect of energy storage in electrical engineering[J]. Power System and Clean Energy, 2009(2):1-8.
[7]	李俊卿, 李和明 . 开关磁阻电机发展综述[J]. 华北电力大学学报, 2002,29(1):1-5.
	Li Junqing, Li Heming . Summary on development of switched reluctance machine[J]. Journal of North China Electric Power University, 2002,29(1):1-5.
[8]	张广明, 张龙, 梅磊 , 等. 飞轮储能系统用电动/发电机的研究[J]. 微特电机, 2012,40(8):75-77.
	Zhang Guanming, Zhang Long, Mei Lei , et al. Research on motor/generator for flywheel storage system[J]. Small & Special Electrical Machines, 2012,40(8):75-77.
[9]	高金萍 . 大功率双向DC/DC变换器的研究[D]. 武汉:华中科技大学, 2009.
[10]	Camara M B, Gualous H, Gustin F , et al. DC/DC converter design for supercapacitor and battery power management in hybrid vehicle applications—Polynomial control strategy[J]. IEEE Transactions on Industrial Electronics, 2010,57(2):587-597. doi: 10.1109/TIE.2009.2025283
[11]	Urakabe T, Fujiwara K, Kawakami T, et al. High efficiency power conditioner for photovoltaic power generation system [C]. IEEE Power Electronics Conference, Chennai, India, 2010.
[12]	陈炜, 艾欣, 吴涛 , 等. 光伏并网发电系统对电网的影响研究综述[J]. 电力自动化设备, 2013,33(2):26-32.
	Chen Wei, Ai Xin, Wu Tao , et al. Influence of grid-connected photovoltaic system on power network[J]. Electric Power Automation Equipment, 2013,33(2):26-32.
[13]	廖志凌, 阮新波 . 独立光伏发电系统能量管理控制策略[J]. 中国电机工程学报, 2009,29(21):46-52.
	Liao Zhiling, Ruan Xinbo . Energy management control strategy for stand-alone photovoltaic power system[J]. Proceedings of the CSEE, 2009,29(21):46-52.
[14]	张建成, 陈志业 . 飞轮储能系统及其运行控制技术研究[J]. 中国电机工程学报, 2003,23(3):108-111.
	Zhang Jiancheng, Chen Zhiye . Research on flywheel energy storage system and its controlling technique[J]. Proceedings of the CSEE, 2003,23(3):108-111.
[15]	Akagi H, Sato H . Control and performance of a doubly-fed induction machine intended for a flywheel energy storage system[J]. IEEE Transactions on Power Electronics, 2002,17(1):109-116. doi: 10.1109/TPEL.63
[16]	Husain I, Hossain S A . Modeling, simulation, and control of switched reluctance motor drives[J]. IEEE Transactions on Industrial Electronics, 2005,52(6):1625-1634. doi: 10.1016/j.isatra.2008.10.012 pmid: 19100982
