双层气隙永磁直线发电机的温度场和推力波动分析

doi:11.11985/2016.03.003

摘要/Abstract

摘要：

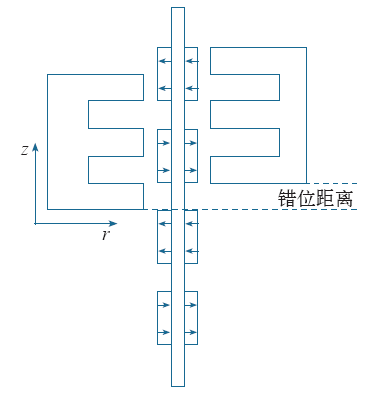

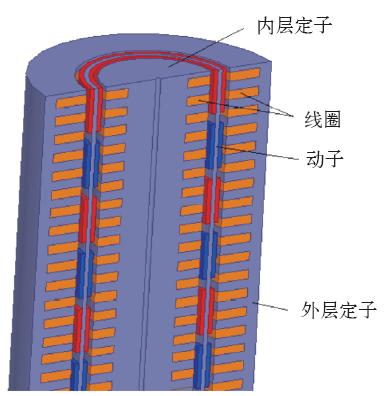

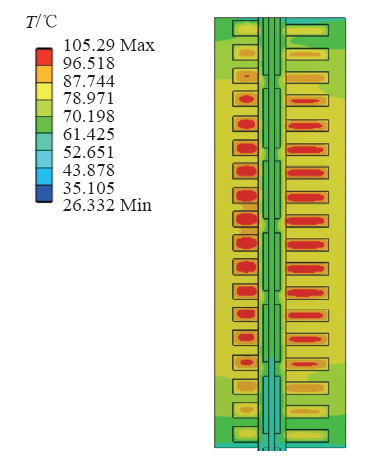

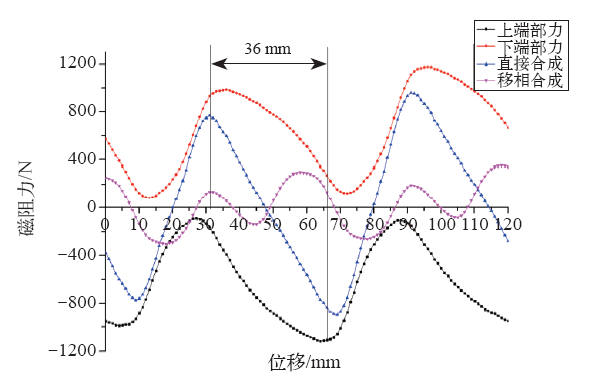

双层气隙圆筒型永磁直线发电机采用双层定子结构,与传统单层结构相比,结构更加紧凑,具有更高的功率密度和空间利用率。但同时双定子结构导致其推力波动较大,内层结构的散热受限导致其内部温升过高。对此本文基于电磁温度场耦合的有限元分析方法,对内层结构和内外层电流配置比例进行了改进,并在此基础上,针对该电机的双定子结构,提出了移相式定子铁心长度改变法和内外结构错位法优化电机的推力波动。研究结果表明,新的优化结构在保持发电机功率密度的基础上,有效降低了电机的温升和推力波动。

关键词: 双层气隙圆筒型直线发电机, 电磁温度耦合场, 推力波动

Abstract:

Compared with traditional single-sided construction, a double-sided tubular permanent magnet generator (DSTPMG) has higher power density and higher space utilization. But at the same time, the double-sided construction intensifies the force ripple, and the limited cooling conditions of the inner structure causes the excessively high temperature rise. In order to overcome the problems, an improved inner construction and the best ratio of external current to internal current were proposed in this paper by using electromagnetic and temperature field coupling finite element analysis method. Based on the new structure, the phase shifting stator length change method and the offset of the inside and outside structure method were used to optimize the force ripple. The analysis results prove that the optimized construction can reduce the temperature rise and force ripple effectively in keeping the power density constant.

Key words: Double-sided tubular generator, electromagnetic-temperature coupling field, force ripple

中图分类号:

TM359.4

郭亮,郑俊娜. 双层气隙永磁直线发电机的温度场和推力波动分析[J]. 电气工程学报, 2016, 11(3): 21-27.

Guo Liang,Zheng Junna. Analysis of the Temperature Field and Force Ripple of a Double-Sided Tubular Permanent Magnet Generator[J]. Journal of Electrical Engineering, 2016, 11(3): 21-27.

图/表 16

图1

表1

表2

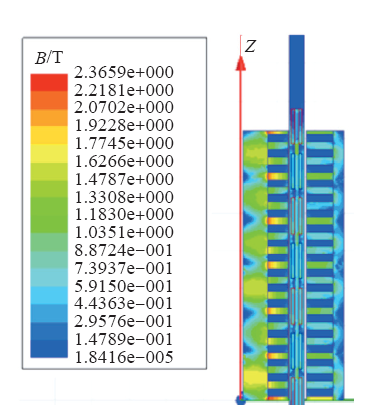

图2

图3

图4

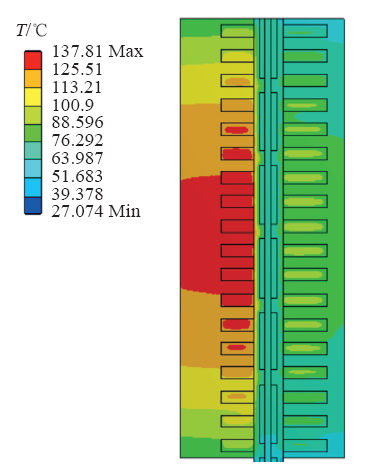

图5

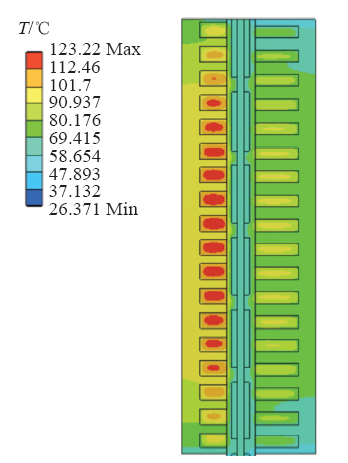

图6

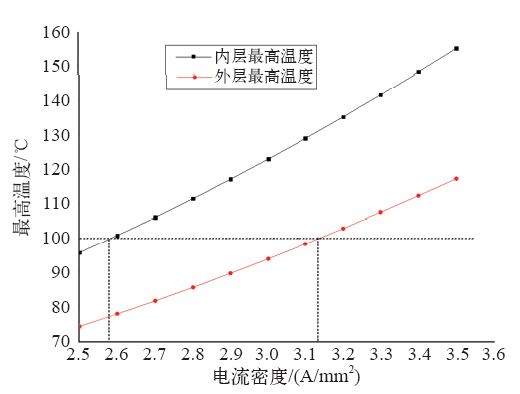

图7

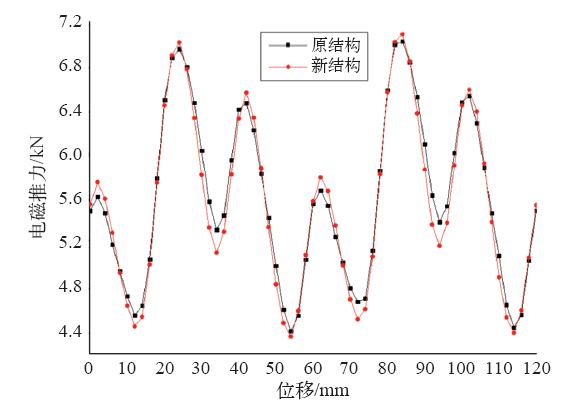

图8

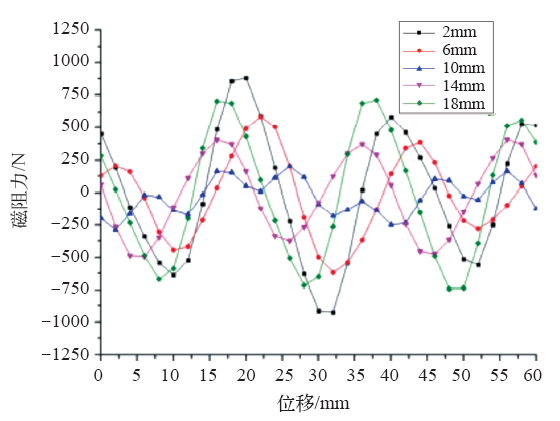

图9

图10

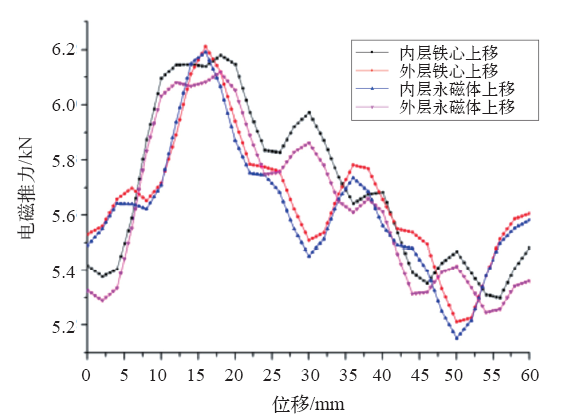

图11

表3

图12

图13

参考文献 15

[1]	Titah-Benbouzid H, Benbouzid M. Ocean wave energy extraction: up-to-date technologies review and evaluation [C]. IEEE International Electronics and Application Conference and Exposition, 2014: 338-342.
[2]	程友良, 党岳, 吴英杰 . 波力发电技术现状及发展趋势[J]. 应用能源技术, 2009,12(144):26-30.
	Cheng Youliang, Dang Yue, Wu Yingjie . Status and trends of the power generation from wave[J]. Applied Energy Technology, 2009,12(144):26-30.
[3]	Falcão A F D O . Wave energy utilization: a review of the technologies[J]. Renewable & Sustainable Energy Reviews, 2010,14(3):899-918. doi: 10.1002/adma.201905766 pmid: 31899829
[4]	肖曦, 摆念宗, 康庆 , 等. 波浪发电系统发展及直驱式波浪发电系统研究综述[J]. 电工技术学报, 2014,29(3):1-11.
	Xiao Xi, Bai Nianzong, Kang Qing , et al. A review of the development of wave power system and the research on direct-drive wave power system[J]. Transactions of China Electrotechnical Society, 2014,29(3):1-11.
[5]	刘春元, 余海涛, 胡敏强 , 等. 永磁直线发电机在直驱式波浪发电系统的应用[J]. 中国电机工程学报, 2013,33(21):90-98.
	Liu Chunyuan, Yu Haitao, Hu Minqiang , et al. Application of permanent magnet tubular linear generators using direct-driver wave power generation take-off systems[J]. Proceedings of the CSEE, 2013,33(21):90-98.
[6]	Shek J K H, Macpherson D E, Mueller M A. Phase and amplitude control of a linear generator for wave energy conversion [C]. 4th IET Conference on Power Electronics, Machines and Drives, 2008: 66-70.
[7]	Polinder H, Damen M, Gardner F . Linear pm generator system for wave energy conversion in the aws[J]. IEEE Transactions on Energy Conversion, 2004,19(3):583-589. doi: 10.1109/TEC.2004.827717
[8]	甘旭辉 . 轴向充磁式永磁直线发电机的研究[D]. 哈尔滨:哈尔滨工业大学, 2010.
[9]	Prudell J, Stoddard M, Amon E , et al. A permanent-magnet tubular linear generator for ocean wave energy conversion[J]. IEEE Transactions on Industry Applications, 2011,46(6):2392-2400. doi: 10.1109/TIA.2010.2073433
[10]	Joseph D M . A double-sided tubular linear synchronous generator for wave-energy conversion[D]. Johan-nesburg: University of the Witwatersrand, 2009.
[11]	师巍 . 轴向充磁永磁直线电机推力波动及温度场问题的研究[D]. 哈尔滨:哈尔滨工业大学, 2011.
[12]	马骏 . 圆筒型直线电机模型建立及其动态温度场研究[D]. 哈尔滨:哈尔滨理工大学, 2005.
[13]	陆华才, 江明, 郭兴众 , 等. 永磁直线同步电机推力波动约束[J]. 电工技术学报, 2012,27(3):128-132.
	Lu Huacai, Jiang Ming, Guo Xingzhong , et al. Thrust ripple suppression for permanent magnet linear synchronous motor[J]. Transactions of China Electrote-chnical Society, 2012,27(3):128-132.
[14]	Zhou Gan, Huang Xueliang, Zhou Qinbo, et al. Research on control methods of planar motors based on the modal forces [C]. The International Conference on Electromagnetic Field Problems and Applications, Chongqing, 2008: 2-5.
[15]	Huang W, Shi C, Xue Y, et al. Optimal design of permanent magnet linear motor for reducing cogging force [C]. IEEE Conference and Expo Transportation Electrification Asia-Pacific, 2014: 1-4.

参数	数值	参数	数值
极距	60	动子轴内径	73
永磁体轴向长	48	动子轴外径	78
动子轴长	1 000	内定子槽深	27
定子轴向长	360	内定子内径	3
极数	6	外定子槽深	33.5
永磁阵列轴向长	600	外定子外径	137.8

材料	导热系数/(W/m·K)
槽内混合材料	0.0638
硅钢片	轴向3.6,径向40.3
钕铁硼	9
空气	0.026

	推力值/N	推力波动(%)	初始相位角(°)
方案1	5708	7.72	7.5
方案2	5661	8.83	19.5
方案3	5623	9.07	-10.5
方案4	5643	7.74	-21
