新型孤岛微网主从控制策略研究

摘要/Abstract

摘要：

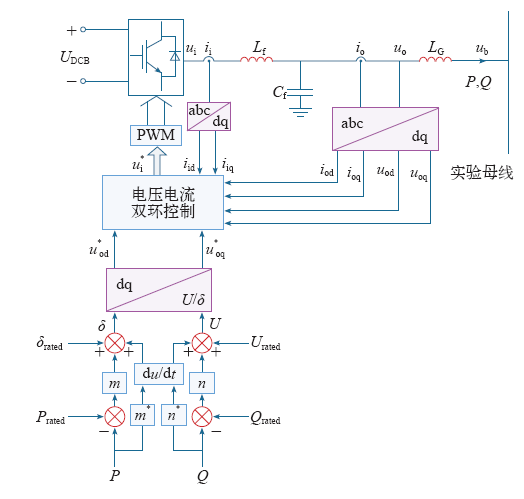

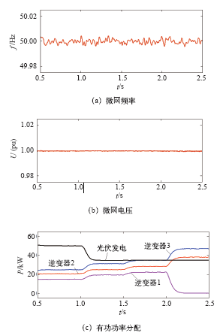

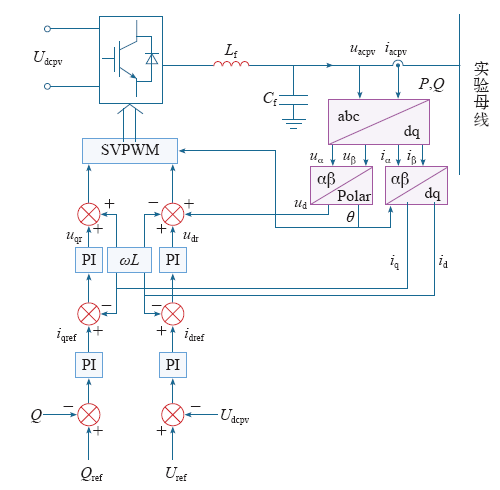

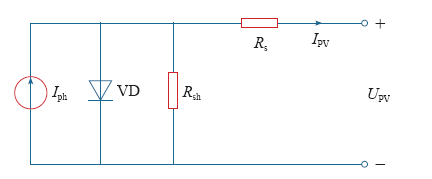

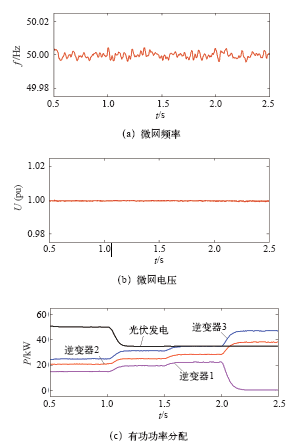

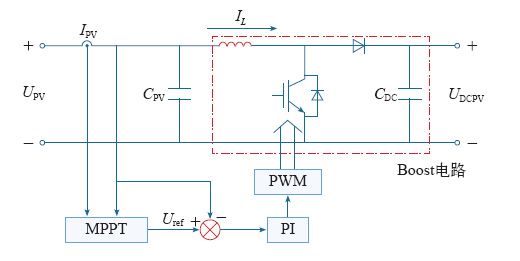

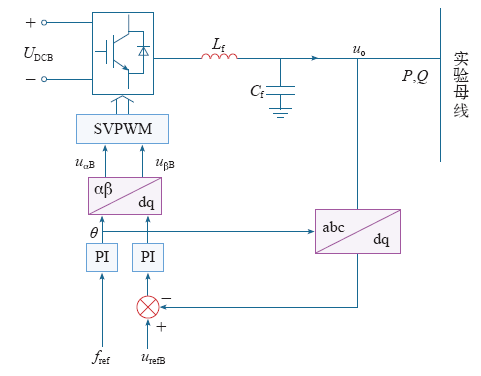

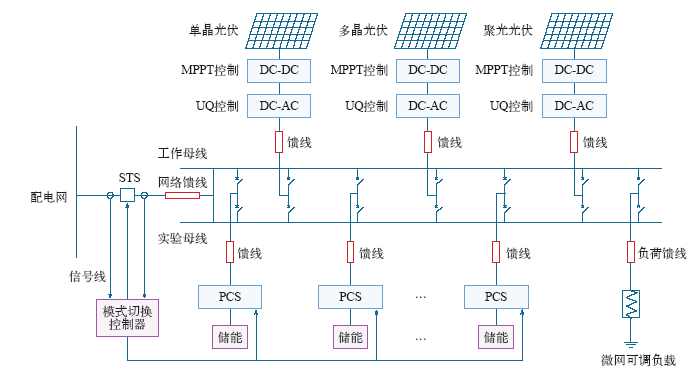

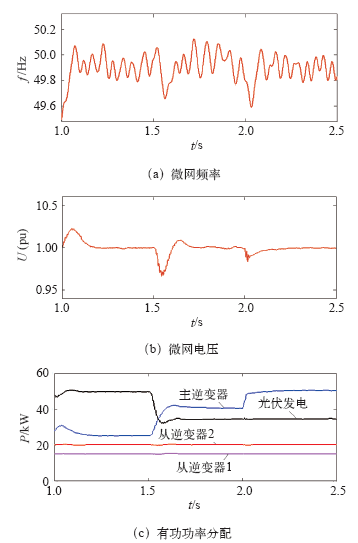

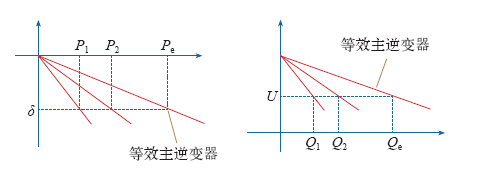

为降低传统主从控制中对主电源的依赖,提高微网功率调节能力,提出了采用对等控制的储能逆变器作为主电源,采用功率控制的分布式电源逆变器作为从电源的新型主从控制策略。搭建了光伏电池模型,设计了其接口变流器的控制策略,以保证光伏最大功率输出。给出了传统主从控制策略中主电源V/f及从电源PQ控制原理,并采用相角下垂控制对主电源控制方法进行改进,使储能逆变器共同作为主电源运行,最终形成新型主从控制策略。应用相角下垂控制有效克服了频率下垂控制频率偏差的问题。最后依据上海电气中央研究院微网一期工程搭建了微网仿真模型,在孤岛运行模式下进行传统主从控制和新型主从控制策略的对比仿真研究。结果表明,新型主从控制策略不仅可以保证微网稳定运行,而且相对于传统主从控制可有效降低对单台主电源的依赖,增强了微网的稳定性,同时提高了微网功率调节能力,更大范围平衡分布式电源和负载的波动。

关键词: 微网, 光伏电池, 新型主从控制, 下垂控制, 功率调节

Abstract:

To relieve the dependency on master sources of conventional master-slave control strategy and improve the system power adjustment ability, the novel master-slave control strategy is proposed. The droop control is used in the battery inverters which as the master sources and the power control is used in the distributed generation inverters which as the slave sources. The photovoltaic cell model is built and its converter is designed to ensure the maximum power output. The control block diagram of V/f and PQ control of the conventional master-slave control strategy is given and the angle droop control is adopted to improve the control effect. The angle deviation problem caused by frequency droop control is solved by using angle droop control. The simulation model is built and the comparison of conventional and novel master-slave control strategy is made. The results demonstrate that the novel control strategy maintains the stable operation of the microgrid system and effectively reduce the dependency on master sources. The proposed control strategy also enhances the power adjustment ability of the system to balance the larger fluctuation of distributed generations and loads.

Key words: Microgrid, photovoltaic cell, novel master-slave control strategy, droop control, power adjustment

中图分类号:

TM464
TM727

杜志超,欧阳丽,周春,胡娟. 新型孤岛微网主从控制策略研究[J]. 电气工程学报, 2015, 10(4): 53-61.

Du Zhichao,Ou yang Li,Zhou Chun,Hu Juan. Research on Novel Master-Slave Control Strategy of Islanded Microgrids[J]. Journal of Electrical Engineering, 2015, 10(4): 53-61.

图/表 13

图1

图2

图3

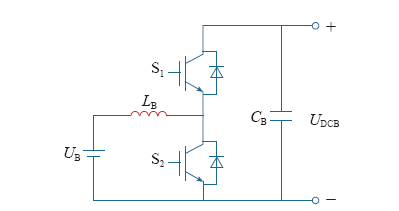

图4

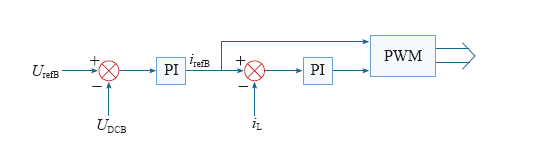

图5

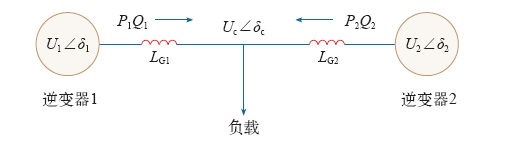

图6

图7

图8

图9

图10

表

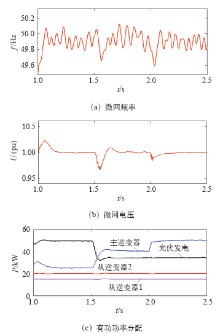

图11

图12

参考文献 22

[1]	鲁宗相, 王彩霞, 闵勇 , 等. 微电网研究综述[J]. 电力系统自动化, 2007,31(19):101-102 .
	Lu Zhongxiang, Wang Caixia, Min Yong , et al. Overview on micro-grid research[J]. Automation of Electric Power Systems, 2007,31(19):101-102.
[2]	王成山, 肖朝霞, 王守相 . 微电网综合控制与分析[J]. 电力系统自动化, 2008,32(7):98-103 .
	Wang Chengshan, Xiao Zhaoxia, Wang Shouxiang . Synthetical control and analysis of micro-grid[J]. Automation of Electric Power Systems, 2008,32(7):98-103.
[3]	杨新法, 苏剑, 吕志鹏 , 等. 微电网技术综述[J]. 中国电机工程学报, 2014,34(1):57-70. doi: 10.13334/j.0258-8013.pcsee.2014.01.007
	Yang Xinfa, Su Jian, Lv Zhipeng , et al. Overview on micro-grid technology[J]. Proceedings of the CSEE, 2014,34(1):57-70. doi: 10.13334/j.0258-8013.pcsee.2014.01.007
[4]	丁明, 林德根, 陈自年 , 等. 一种适用于混合储能系统的控制策略[J]. 中国电机工程学报, 2012,32(7):1-6.
	Ding Ming, Lin Degen, Chen Zinian , et al. A control strategy for hybrid energy storage system[J]. Proceedings of the CSEE, 2012,32(7):1-6.
[5]	徐少华, 李建林 . 光储微网系统并网/孤岛运行控制策略[J]. 中国电机工程学报, 2013,33(34):25-33.
	Xu Shaohua, Li Jianlin . Grid-connected/island operation control strategy for photovoltaic/battery micro-grid[J]. Proceedings of the CSEE, 2013,33(34):25-33.
[6]	张纯, 陈民铀, 王振存 . 微网运行模式平滑切换的控制策略研究[J]. 电力系统保护与控制, 2011,39(20):1-5.
	Zhang Chun, Chen Minyou, Wang Zhencun . Study on control scheme for smooth transition of micro-grid operation modes[J]. Power System Protection and Control, 2011,39(20):1-5.
[7]	肖朝霞, 方红伟 . 含多分布式电源的微网暂态稳定分析[J]. 电工技术学报, 2011,26(1):253-261.
	Xiao Zhaoxia, Fang Hongwei . Transient stability analysis of microgrids containing multiple micro sources[J]. Transactions of China Electrotechnical Society, 2011,26(1):253-261.
[8]	Yeong J C ,Sng E K K . A novel communic-ation strategy for decentralized control of paralleled multi-inverter systems[J]. IEEE Transactions on Power Electronics, 2006,21(1):148-156.
[9]	张新昌, 张项安, 孔波利 , 等. 微电网的多重主从控制策略研究[J]. 电力系统保护与控制, 2014,42(9):20-25.
	Zhang Xinchang , Zhang Xiang'an, Kong Boli, et al. Research on multiple master-slave control strategy of micro-grid[J]. Power System Protection and Control, 2014,42(9):20-25.
[10]	张项安, 张新昌, 唐云龙 , 等. 微电网孤岛运行的自适应主从控制技术研究[J]. 电力系统保护与控制, 2014,42(2):81-86.
	Zhang Xiang'an, Zhang Xinchang, Tang Yunlong , et al. Research on adaptive master-slave control of the islanded micro-grid[J]. Power System Protection and Control, 2014,42(2):81-86.
[11]	Guerrero J M , De Vicuna L G,Matas J, et al. Output impedance design of parallel-connected UPS inverters with wireless load-sharing control[J]. IEEE Transactions on Industrial Electronics, 2005,52(4):1126-1135.
[12]	Guerrero J M, Juan C Vasquez, Jose Matas , et al. Hierarchical control of droop-controlled AC and DC microgrids—A general approach toward standardization[J]. IEEE Transactions on Industrial Electronics, 2011,58(1):158-172.
[13]	He J W, Li Y W, Guerrero J M , et al. An islanding microgrid power sharing approach using enhanced virtual impedance control scheme[J]. IEEE Transactions on Power Electronics, 2013,28(11):158-172.
[14]	郑永伟, 陈民铀, 李闯 , 等. 自适应调节下垂系数的微电网控制策略[J]. 电力系统自动化, 2013,37(7):6-11.
	Zheng Yongwei, Chen Minyou, Li Chuang , et al. A microgrid control strategy based on adaptive drooping coefficient adjustment[J]. Automation of Electric Power System, 2013,37(7):6-11.
[15]	张明锐, 杜志超, 王少波 . 微网中下垂控制策略及参数选择研究[J]. 电工技术学报, 2014,29(2):136-144.
	Zhang Mingrui, Du Zhichao, Wang Shaobo . Research on droop control strategy and parameters selection fo microgrids[J]. Transactions of China Electrotechnical Society, 2014,29(2):136-144.
[16]	李福东, 吴敏 . 微网孤岛模式下负荷分配的改进控制策略[J]. 中国电机工程学报, 2011,31(13):18-25.
	Li Fudong, Wu Min . An improved control strategy of load distribution in an autonomous microgrid[J]. Proceedings of the CSEE, 2011,31(13):18-25.
[17]	Villalva M G, Gazoli J R, Filho E R . Comprehensive approach to modeling and simulation of photovoltaic arrays[J]. IEEE Transactions on Power Electronics, 2009,24(5):1198-1208.
[18]	Koutroulis E, Kalaitzakis K, Tzitzilonis V . Development of an FPGA-based system for real-time simulation of photovoltaic modules[J]. Microelectronics Journal, 2009,40(7):1094-1102. doi: 10.1016/j.mejo.2008.05.014
[19]	Guerrero J M De Vicuna L G, Matas J, et al. A wireless controller to enhance dynamic performance of parallel inverters in distributed generation systems[J]. IEEE Transaction on Power Systems, 2004,19(5):1205-1213.
[20]	Li Yunwei, Ching-Nan Kao . An accurate power control strategy for power-electronics-interfaced distributed generation units operating in a low-voltage multibus microgrid[J]. IEEE Transactions on Power Electronics, 2009,24(12):2977-2988.
[21]	Majumder R, Chaudhuri B, Ghosh A , et al. Improvement of stability of load sharing in an autonomous microgrid using supplementary droop control loop[J]. IEEE Transaction on Power Systems, 2010,25(2):796-808.
[22]	张明锐, 杜志超, 黎娜 , 等. 高压微网孤岛运行时频率稳定控制策略研究[J]. 中国电机工程学报, 2012,32(25):20-26.
	Zhang Mingrui, Du Zhichao, Li Na . Control strategies of frequency stability for islanding high-voltage microgrids[J]. Proceedings of the CSEE, 2012,32(25):20-26.

	参数	数值
光伏系统	N_p	11
	N_s	19
	I_ph/A	8.98
	R_s/Ω	0.889 2
	R_sh/Ω	415.4
	A	54
储能系统	L_G_i /mH	[3.20,2.40,1.92]
	m/(10^–4rad/kW)	[3.33,2.50,2.00]
	m^*/(10^–7rad/kW)	[3.33,2.50,2.00]
	n/ (10^–2V/kvar)	[6.67,5.00,4.00]
	n^*/ (10^–5V/kvar)	[6.67,5.00,4.00]
