前置滤波器永磁同步电机的电流环参数多目标优化设计

doi:10.11985/2023.03.018

摘要/Abstract

摘要：

前置LC滤波器是抑制永磁同步电机高频电流谐波的有效手段，其与无滤波器系统性能存在较大差异，也在更大程度上受电流环PI参数影响。为提高逆变器侧电流反馈控制系统性能，提出一种电流环PI参数的多目标优化设计方法。推导出逆变器侧电流反馈系统的电流环开环传递函数，在此基础上分析电流环参数对系统稳定性、动态性能、带宽及谐振峰值的影响。进而，确定出以带宽、超调量和谐振峰值为优化目标，给出其约束条件，并应用遗传算法求解电流环参数。基于设计的电流环参数进行系统仿真，并与两种传统设计方法的系统性能进行比较，仿真结果验证了所提方法的有效性。与传统方法相比，多目标优化方法可以降低超调量、谐振峰值及高频电流谐波，提高电流环带宽和电流跟踪能力。

关键词: 永磁同步电机, 滤波器, 电流环参数, 多目标优化

Abstract:

The LC filter is effective to reduce the high-frequency current harmonics of permanent magnet synchronous motor(PMSM), the performance of which differs from the system without filter and is also greatly affected by the current loop PI parameters. In order to improve the performance of the inverter side current feedback control system, a multi-objective optimization design method for the current loop PI parameters is proposed. The open loop transfer function of the current loop with the inverter side current feedback is derived, and the influences of the current loop parameters on the system stability, dynamic performance, bandwidth and resonant peak value are analyzed. Furthermore, the bandwidth, overshoot and resonance peak are determined as the optimization objectives, and their constraints are given. Moreover, the current loop parameters are solved by the genetic algorithm. The system simulation is carried out based on the designed current loop parameters, and the performance is compared with that of the two traditional design methods. The simulation results verify the proposed method. Compared with the traditional methods, the multi-objective optimization method can reduce the overshoot, resonance peak and high-frequency current harmonics, and improve the current loop bandwidth and current tracking capability.

Key words: Permanent magnet synchronous motor, filter, current loop parameters, multi-objective optimization

中图分类号:

TM351

许家群, 陈腾宇. 前置滤波器永磁同步电机的电流环参数多目标优化设计[J]. 电气工程学报, 2023, 18(3): 164-174.

XU Jiaqun, CHEN Tengyu. Current Loop Parameters Design for PMSM with Filter Based on Multi-objective Optimization Method[J]. Journal of Electrical Engineering, 2023, 18(3): 164-174.

图/表 21

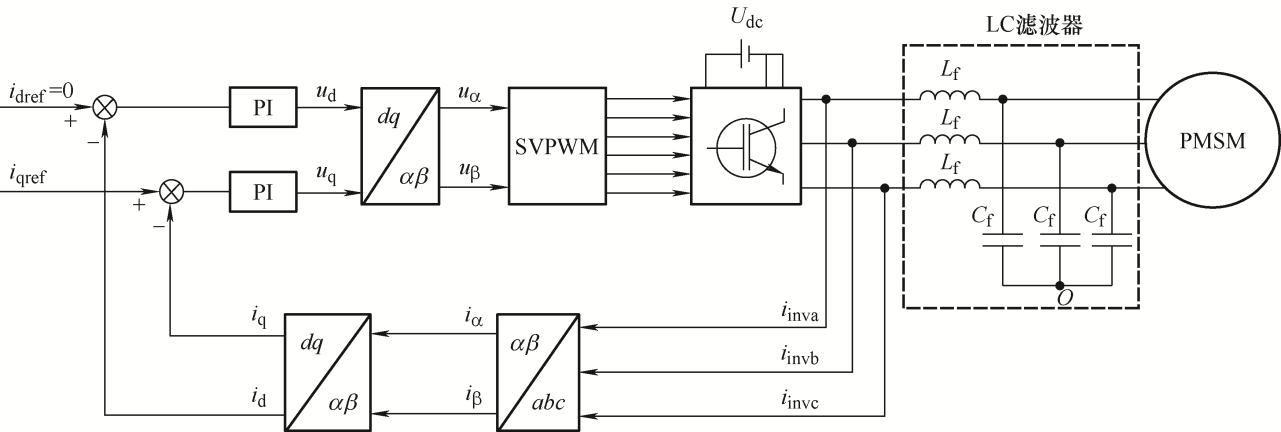

图1

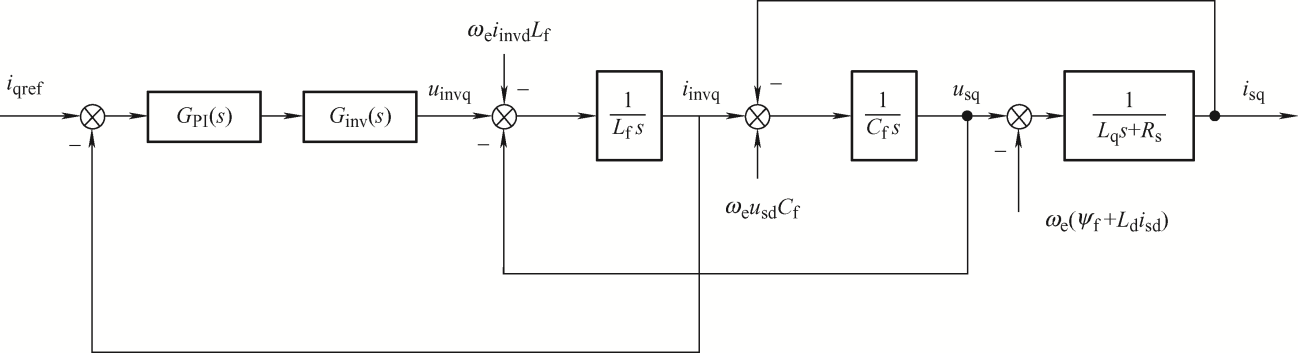

图2

表1

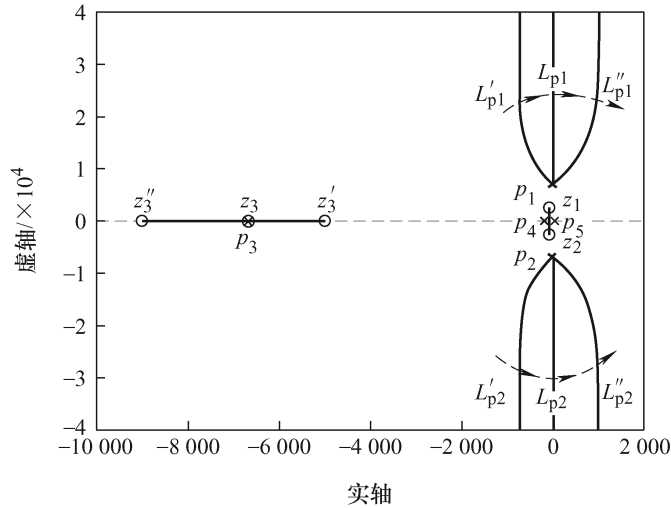

图3

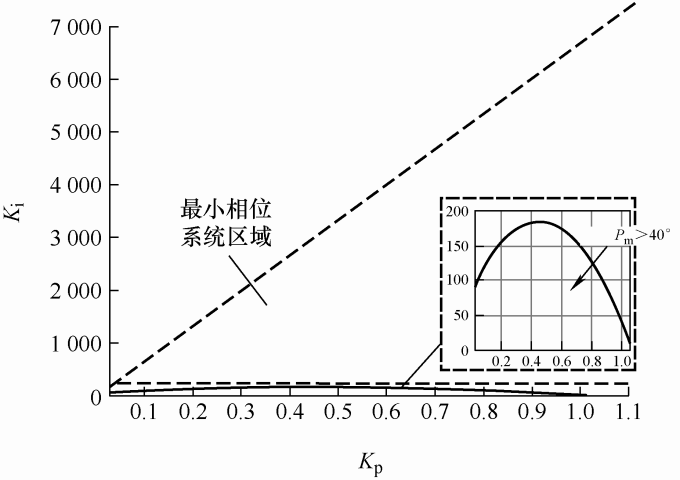

图4

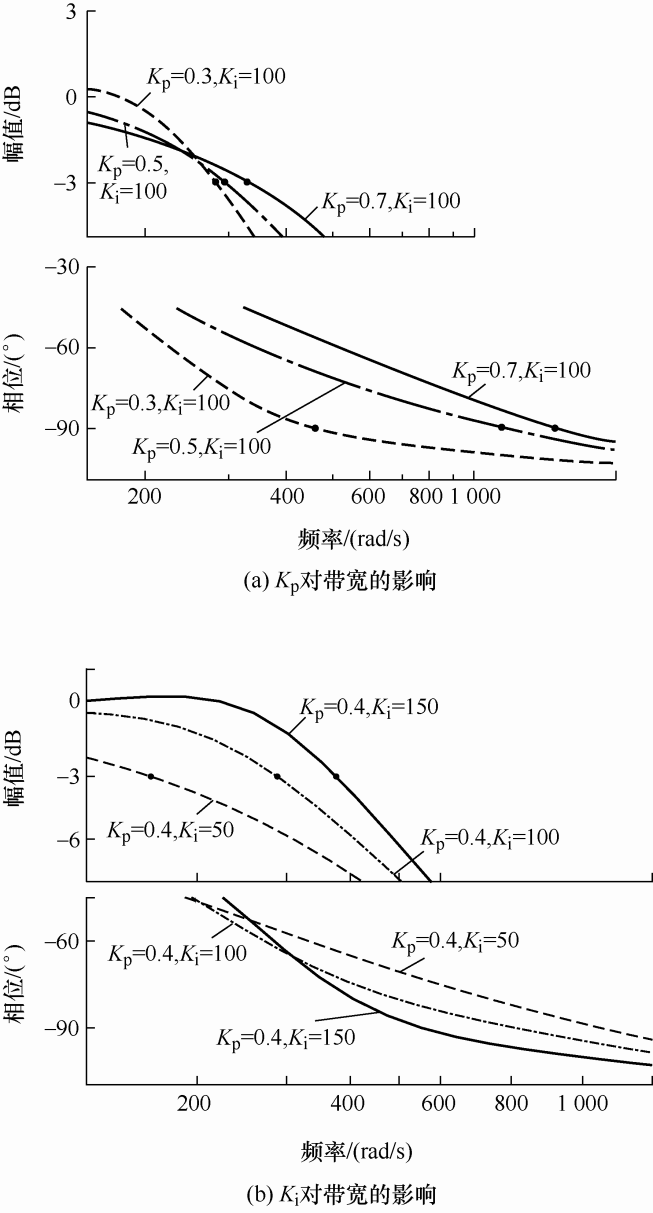

图5

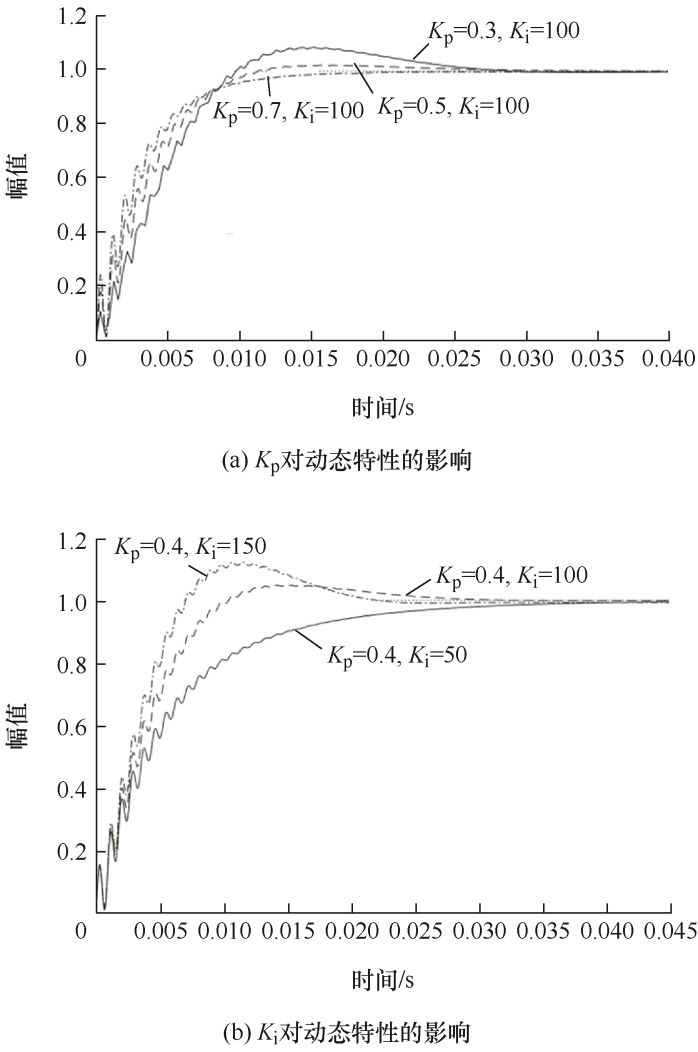

图6

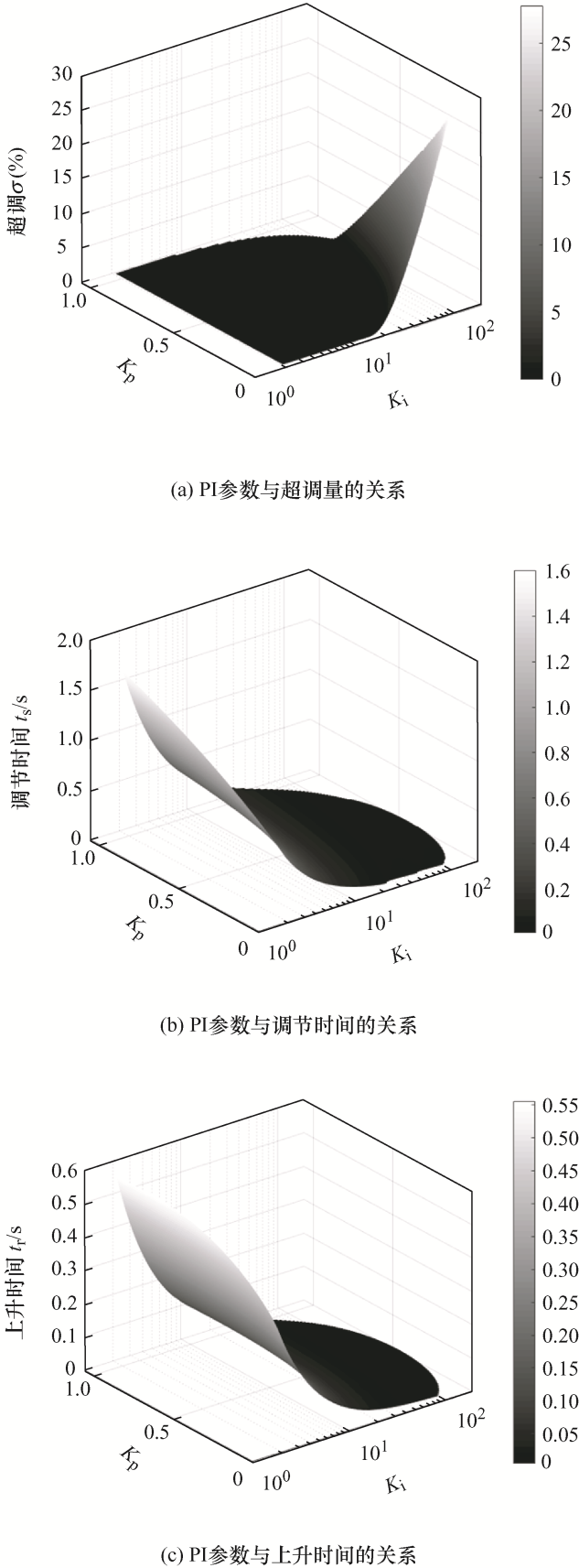

图7

图8

图9

图10

图11

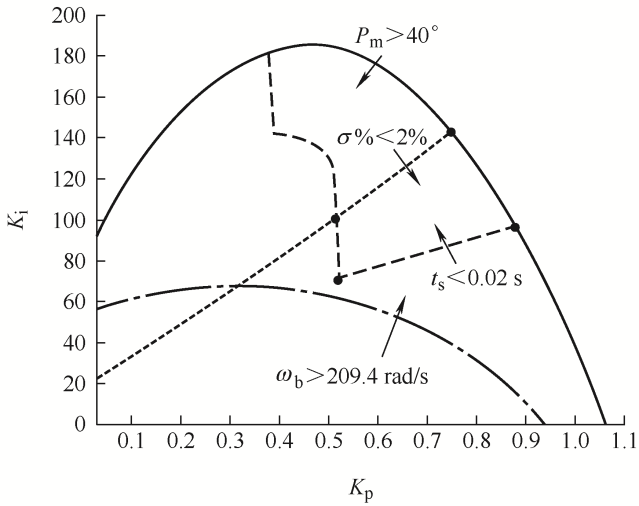

图12

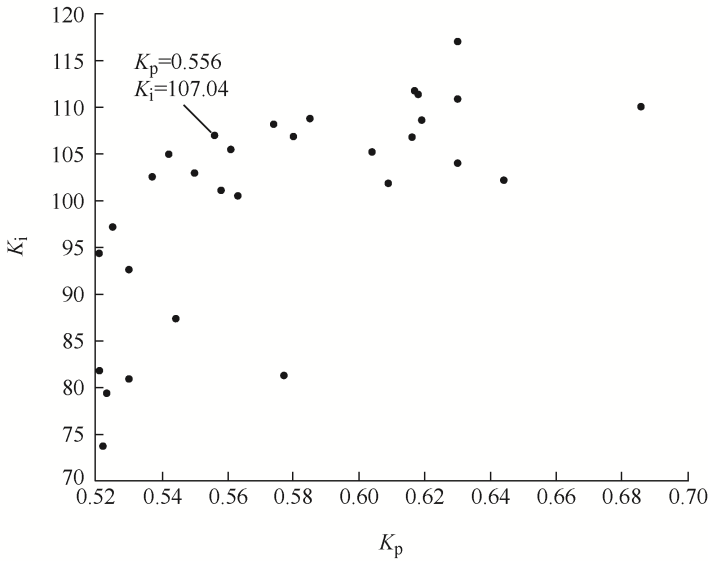

图13

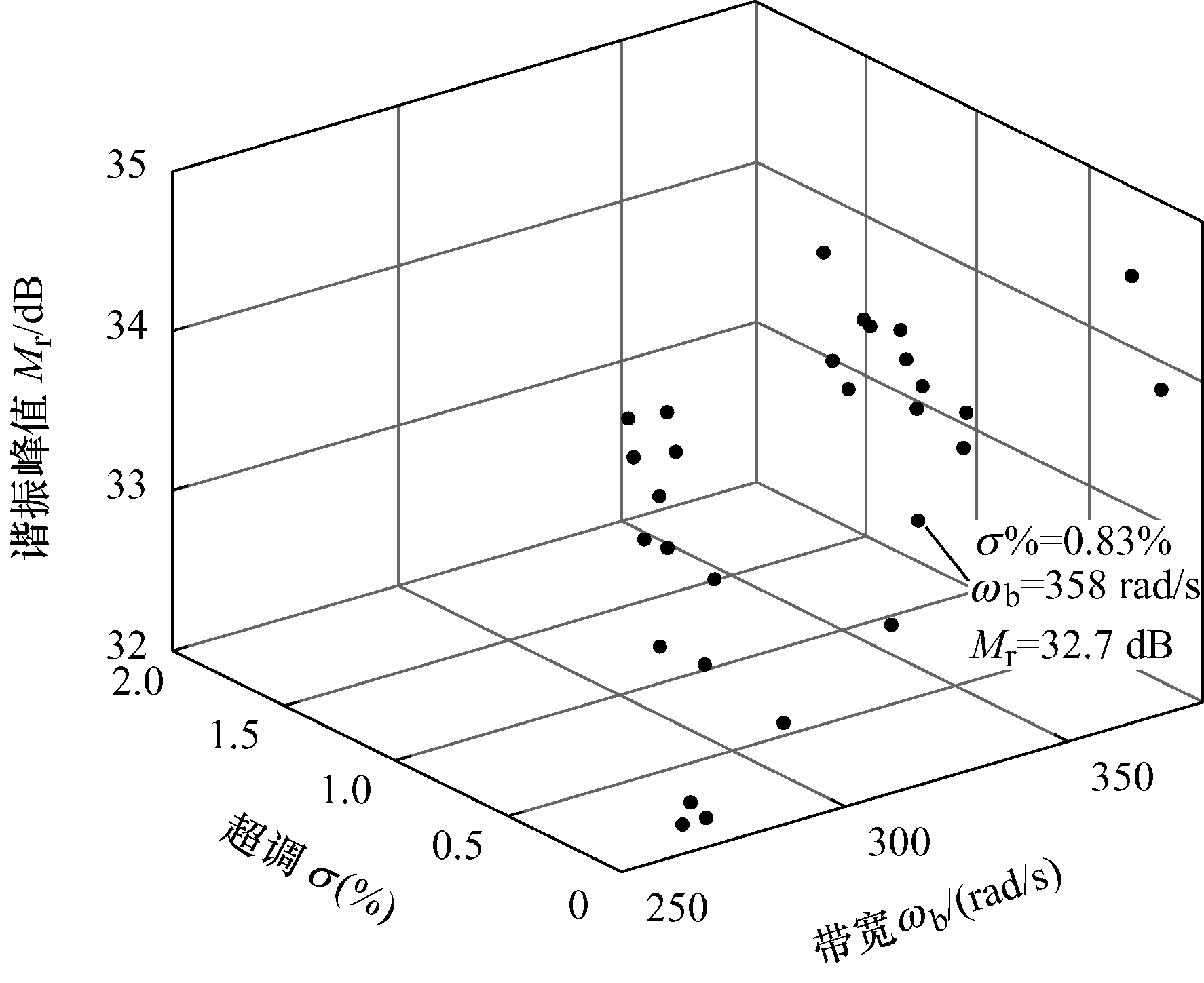

图14

表2

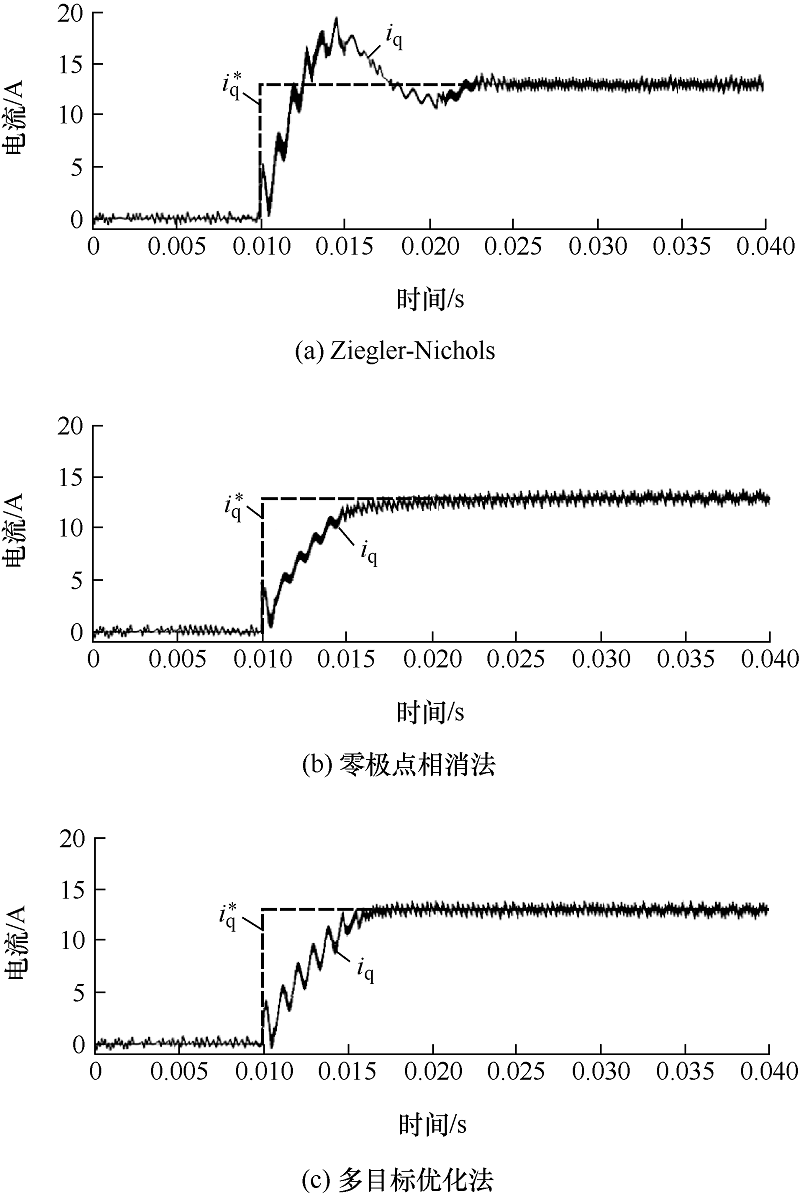

不同整定方法控制器性能"

性能指标	Ziegler-Nichols	零极点相消	多目标优化
	K_p=0.675	K_p=0.63	K_p=0.556
	K_i=810.3	K_i=96	K_i=107.04
相位裕度P_m/(°)	31.8	40.9	41
谐振峰值M_r/dB	34.5	33.8	32.7
超调σ(%)	37.72	0	0.83
上升时间t_r/ms	2.4	7.5	6.8
调节时间t_s/ms	17.4	12.7	9.5
带宽 $ω b$ /(rad/s)	721	305	358

表2

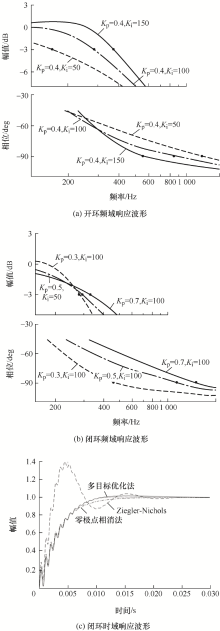

图15

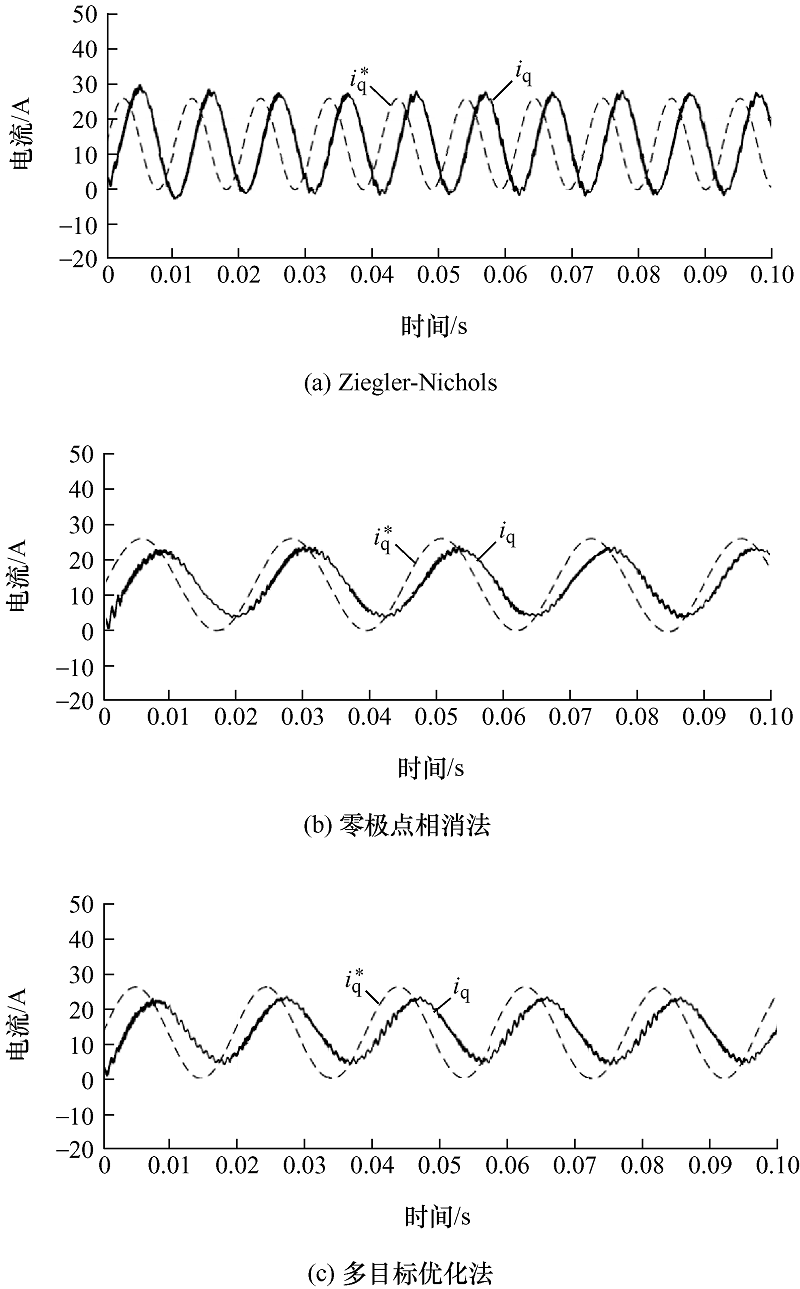

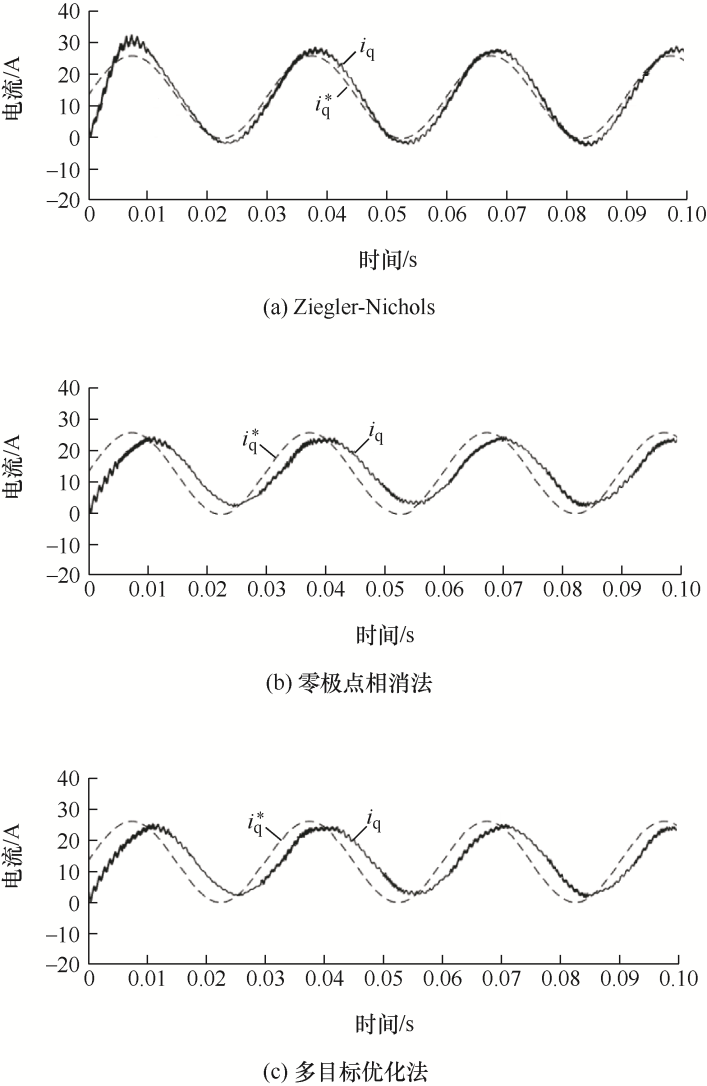

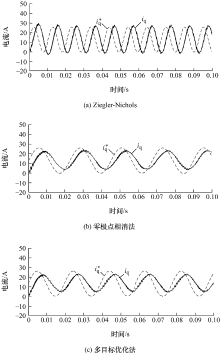

图16

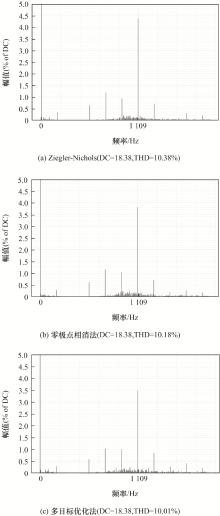

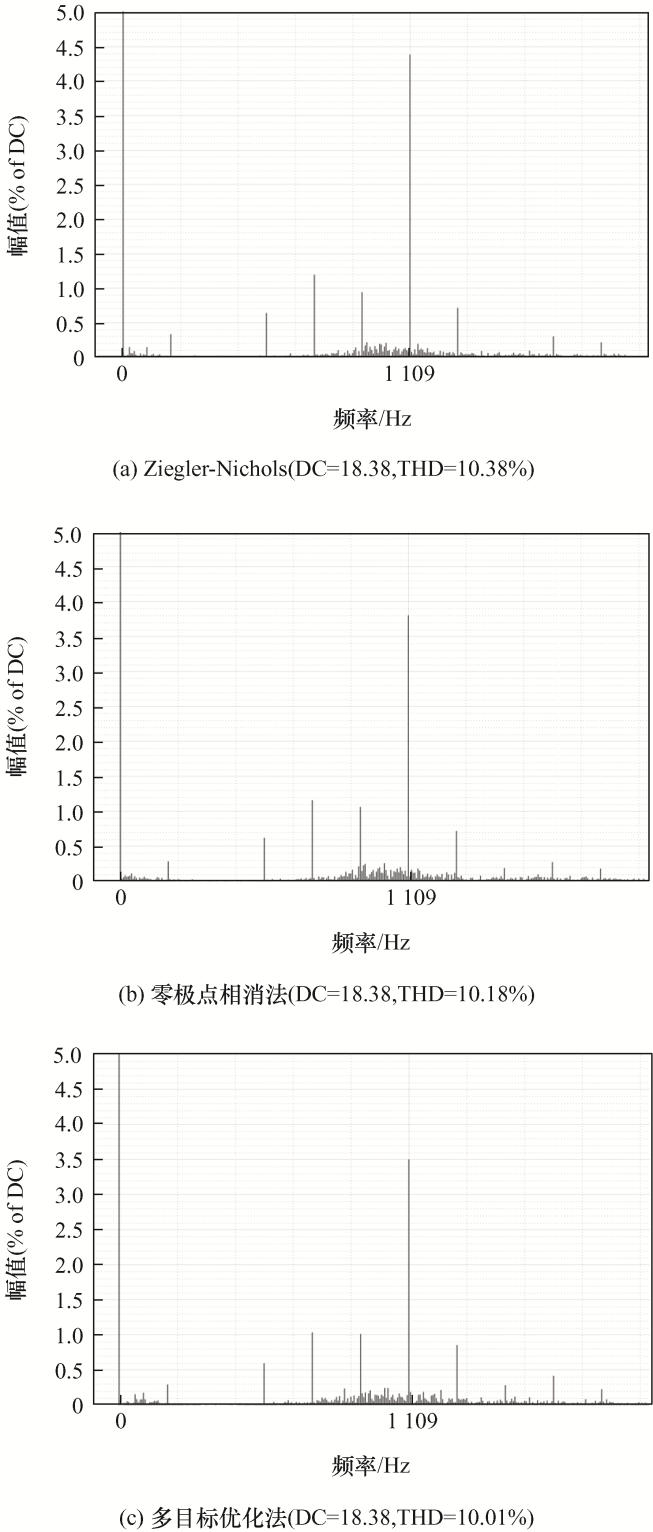

图17

图18

表3

参考文献 22

[1]	MISHRA P, MAHESHWARI R. Design, analysis, and impacts of sinusoidal LC filter on pulsewidth modulated inverter fed-induction motor drive[J]. IEEE Transactions on Industrial Electronics, 2020, 67(4):2678-2688. doi: 10.1109/TIE.41
[2]	赵仁德, 赵斌, 徐海亮, 等. 带LC滤波器的永磁同步电机控制系统及策略研究[J]. 电工技术学报, 2019, 34(S1):79-86.
	ZHAO Rende, ZHAO Bin, XU Hailiang, et al. Research on control method of permanent magnet synchronous motor with LC filter[J]. Transactions of China Electrotechnical Society, 2019, 34(S1):79-86.
[3]	TANG Yi, LOH P C, WANG Peng, et al. Exploring inherent damping characteristic of LCL-filters for three-phase grid-connected voltage source inverters[J]. IEEE Transactions on Power Electronics, 2012, 27(3):1433-1443. doi: 10.1109/TPEL.2011.2162342
[4]	刘飞, 查晓明, 周彦, 等. 基于极点配置与重复控制相结合的三相光伏发电系统的并网策略[J]. 电工技术学报, 2008, 23(12):130-136.
	LIU Fei, ZHA Xiaoming, ZHOU Yan, et al. Research on grid-connected strategy combining pole-assignment and repetitive control in three-phase photovoltaic system[J]. Transactions of China Electrotechnical Society, 2008, 23(12):130-136.
[5]	张宪平, 林资旭, 李亚西, 等. LCL滤波的PWM整流器新型控制策略[J]. 电工技术学报, 2007, 22(2):74-77.
	ZHANG Xianping, LIN Zixu, LI Yaxi, et al. A novel control strategy for PWM rectifier with LCL filter[J]. Transactions of China Electrotechnical Society, 2007, 22(2):74-77.
[6]	侯朝勇, 胡学浩, 惠东. 基于离散状态空间模型的LCL滤波并网变换器控制策略[J]. 中国电机工程学报, 2011, 31(36):8-15,237.
	HOU Chaoyong, HU Xuehao, HUI Dong. Control strategy of grid-connected converter with LCL filter based on discrete state-space model[J]. Proceedings of the CSEE, 2011, 31(36):8-15,237.
[7]	刘计龙, 马伟明, 肖飞, 等. 一种LCL滤波器有源阻尼策略与设计方法[J]. 电机与控制学报, 2013, 17(5):22-27.
	LIU Jilong, MA Weiming, XIAO Fei, et al. An active damping control strategy and design method for LCL filter[J]. Electric Machines and Control, 2013, 17(5):22-27.
[8]	MA Wenjie, GUAN Yuanpeng, ZHANG Bo, et al. Active disturbance rejection control based single current feedback resonance damping strategy for LCL-type grid-connected inverter[J]. IEEE Transactions on Energy Conversion, 2021, 36(1):48-62. doi: 10.1109/TEC.60
[9]	JAGANATHAN B, SHARANYA R, DEVI S K, et al. Ziegler-Nichol’s method of online tuning of PMSM for improved transient response[C]// 2010 International Conference on Power,Control and Embedded Systems, 2010:1-4.
[10]	LEE S B. Closed-loop estimation of permanent magnet synchronous motor parameters by PI controller gain tuning[J]. IEEE Transactions on Energy Conversion, 2006, 21(4):863-870. doi: 10.1109/TEC.2005.853742
[11]	王莉娜, 朱鸿悦, 杨宗军. 永磁同步电动机调速系统PI控制器参数整定方法[J]. 电工技术学报, 2014, 29(5):104-117.
	WANG Lina, ZHU Hongyue, YANG Zongjun. Tuning method for PI controllers of PMSM driving system[J]. Transactions of China Electrotechnical Society, 2014, 29(5):104-117.
[12]	王爽, 冯坚栋, 丁雪, 等. 基于最优开环截止频率学习的永磁伺服系统PI控制器参数整定方法[J]. 电工技术学报, 2017, 32(21):44-54.
	WANG Shuang, FENG Jiandong, DING Xue, et al. PI controllers tuning method of permanent magnet servo system based on optimal open-loop cut-off frequency learning[J]. Transactions of China Electrotechnical Society, 2017, 32(21):44-54.
[13]	肖海峰, 贺昱耀, 乔社娟. 永磁同步电机电流环频率响应改进策略研究[J]. 电机与控制学报, 2018, 22(6):107-113.
	XIAO Haifeng, HE Yuyao, QIAO Shejuan. Current loop frequency response improvement strategy research for permanent magnet synchronous motor control system[J]. Electric Machines and Control, 2018, 22(6):107-113.
[14]	王伟华, 肖曦. 永磁同步电机电流增量预测算法参数设计及性能分析[J]. 电机与控制学报, 2013, 17(12):98-105.
	WANG Weihua, XIAO Xi. Parameters design and performance analysis of current incremental predictive algorithm for PMSM[J]. Electric Machines and Control, 2013, 17(12):98-105.
[15]	刘景林, 公超, 韩泽秀, 等. 永磁同步电机闭环控制系统数字PI参数整定[J]. 电机与控制学报, 2018, 22(4):26-32.
	LIU Jinglin, GONG Chao, HAN Zexiu, et al. Tuning method for digital PI controllers of PMSM closed-loop driving system[J]. Electric Machines and Control, 2018, 22(4):26-32.
[16]	LI Haoyuan, ZHANG Xing, YANG Shuying, et al. Multi-objective controller design of IPMSM drives based on DTD D-partition method considering parameters uncertainties[J]. IEEE Transactions on Energy Conversion, 2019, 34(2):1052-1062. doi: 10.1109/TEC.60
[17]	YANG Ming, LYU Zekai, XU Donglin, et al. Resonance suppression and EMI reduction of GaN-based motor drive with sine wave filter[J]. IEEE Transactions on Industry Applications, 2020, 56(3):2741-2751. doi: 10.1109/TIA.28
[18]	MISHRA P, MAHESHWARI R. A simple feedforward approach to stabilize VSI-fed induction motor with filter in RFOC[J]. IEEE Transactions on Industrial Electronics, 2020, 67(12):10191-10201. doi: 10.1109/TIE.41
[19]	BAO Chenlei, RUAN Xinbo, WANG Xuehua, et al. Step-by-step controller design for LCL-type grid-connected inverter with capacitor-current-feedback active-damping[J]. IEEE Transactions on Power Electronics, 2014, 29(3):1239-1253. doi: 10.1109/TPEL.2013.2262378
[20]	鲍陈磊, 阮新波, 王学华, 等. 基于PI调节器和电容电流反馈有源阻尼的LCL型并网逆变器闭环参数设计[J]. 中国电机工程学报, 2012, 32(25):133-142.
	BAO Chenlei, RUAN Xinbo, WANG Xuehua, et al. Design of grid-connected inverters with LCL filter based on PI regulator and capacitor current feedback active damping[J]. Proceedings of the CSEE, 2012, 32(25):133-142.
[21]	王宏佳, 杨明, 牛里, 等. 永磁交流伺服系统电流环带宽扩展研究[J]. 中国电机工程学报, 2010, 30(12):56-62.
	WANG Hongjia, YANG Ming, NIU Li, et al. Current loop bandwidth expansion for permanent magnet AC servo system[J]. Proceedings of the CSEE, 2010, 30(12):56-62.
[22]	孙伟, 于泳, 王高林, 等. 基于矢量控制的异步电机预测电流控制算法[J]. 中国电机工程学报, 2014, 34(21):3448-3455.
	SUN Wei, YU Yong, WANG Gaolin, et al. A predictive current control scheme for induction motor with vector control[J]. Proceedings of the CSEE, 2014, 34(21):3448-3455.

参数	数值
额定功率P_n/kW	1.1
额定转速n/(r/min)	500
定子电感L_s/mH	1.8
相电阻R_s/Ω	0.32
开关周期T_s/ms	0.1
极对数p	4
滤波电感L_f/mH	0.3
滤波电容C_f/μF	80
