北京地区燃气机组热电解耦补偿机制初探*

doi:10.11985/2023.02.018

电气工程学报 ›› 2023, Vol. 18 ›› Issue (2): 183-191.doi: 10.11985/2023.02.018

扫码分享

北京地区燃气机组热电解耦补偿机制初探^*

滕苏郸¹(), 张璞¹(), 马彦虎²(), 张凯¹(), 孙志祥²(), 陈艳波²()

1.北京电力经济技术研究院有限公司北京 100055
2.华北电力大学新能源电力系统国家重点实验室北京 102206

收稿日期:2021-10-12 修回日期:2022-06-22 出版日期:2023-06-25 发布日期:2023-07-12
作者简介:滕苏郸，男，1986年生，高级工程师。主要研究方向为智能电网规划、设计。E-mail：1093307787@qq.com
张璞，女，1986年生，高级工程师。主要研究方向为智能电网规划、设计。E-mail：rubytu@126.com
马彦虎，男，1996年生，硕士研究生。主要研究方向为智能电网规划。E-mail：2292721416@qq.com
张凯，男，1989年生，教授级高级工程师。主要研究方向为智能电网规划、设计。E-mail：zhangkai@bj.sgcc.com.cn
孙志祥，男，1998年生，硕士研究生。主要研究方向为智能电网及环保技术。E-mail：pla000szx@163.com
陈艳波，男，1982年生，博士，教授，博士研究生导师。主要研究方向为电力系统优化与分析。E-mail：chenyanbo@ncepu.edu.cn
基金资助:
国网北京市电力公司科技资助项目(SGTYHT/20-JS-221)

Thermoelectric Decoupling Compensation Mechanism of Gas Turbine in Beijing Power Grid

TENG Sudan¹(), ZHANG Pu¹(), MA Yanhu²(), ZHANG Kai¹(), SUN Zhixiang²(), CHEN Yanbo²()

1. Beijing Electric Power Economic and Technological Research Institute Co., Ltd., Beijing 100055
2. State Key Laboratory of Alternate Electrical Power System with Renewable Energy Sources, North China Electric Power University, Beijing 102206

Received:2021-10-12 Revised:2022-06-22 Online:2023-06-25 Published:2023-07-12

摘要/Abstract

摘要：

冬季供暖期燃气热电机组采用“以热定电”运行方式极大地限制了燃气机组的调峰能力，热电解耦是解决这一问题的有效途径。为促进燃气热电厂开展热电解耦的积极性，在华北电力调峰辅助服务市场的基础上提出了北京地区燃气机组热电解耦补偿机制，从而提高燃气机组热电解耦动力，并以机组加装电锅炉辅助供热为例进行算例分析。根据所提热电解耦补偿机制，在燃气机组加装电锅炉热电解耦供热改造情况下，燃气机组供暖季调峰运行可获得补偿费用12 192.85万元。机组供暖季热电解耦压减电量及新增调节容量奖励电量与清洁能源替代发电可获得增量收益约4 348.3万元，一定程度上补偿了机组因深度调峰而减少的发电收益，能够缩短燃气机组热电解耦成本回收期限，提高燃机热电解耦改造的积极性。

关键词: 调峰辅助服务, 热电解耦, 补偿机制, 燃气机组

Abstract:

Thermoelectric decoupling is an effective way to solve this problem. The operation mode of the gas-fired thermoelectric unit in winter heating period greatly limits the peak regulating capacity of the gas-fired unit. In order to promote the enthusiasm of gas thermal power plant to carry out thermoelectric decoupling, a thermoelectric decoupling compensation mechanism for gas units in Beijing is proposed based on the peak regulating auxiliary service market of North China Electric Power plant, so as to improve the thermoelectric decoupling power of gas units. A case study is carried out with auxiliary heating of electric boiler installed in the unit. According to the proposed thermoelectric decoupling compensation mechanism, when the gas-fired unit is equipped with electric boiler thermoelectric decoupling heating transformation, the compensation cost of the gas-fired unit can be 121.928 5 million RMB during peak operation in the heating season. In the heating season of the unit, incremental income of about 434.83 million RMB can be obtained by thermoelectric decoupling reduced quantity and newly adjusted capacity incentive quantity and clean energy replacement generation, which compensates the generation income reduced by the unit due to deep peak regulation to some extent, can shorten the cost recovery period of the gas unit thermoelectric decoupling, and improve the enthusiasm of gas turbine thermoelectric decoupling transformation.

Key words: Peak shaving auxiliary services, thermoelectric decoupling, compensation mechanism, gas unit

中图分类号:

TM561

滕苏郸, 张璞, 马彦虎, 张凯, 孙志祥, 陈艳波. 北京地区燃气机组热电解耦补偿机制初探^*[J]. 电气工程学报, 2023, 18(2): 183-191.

TENG Sudan, ZHANG Pu, MA Yanhu, ZHANG Kai, SUN Zhixiang, CHEN Yanbo. Thermoelectric Decoupling Compensation Mechanism of Gas Turbine in Beijing Power Grid[J]. Journal of Electrical Engineering, 2023, 18(2): 183-191.

图/表 5

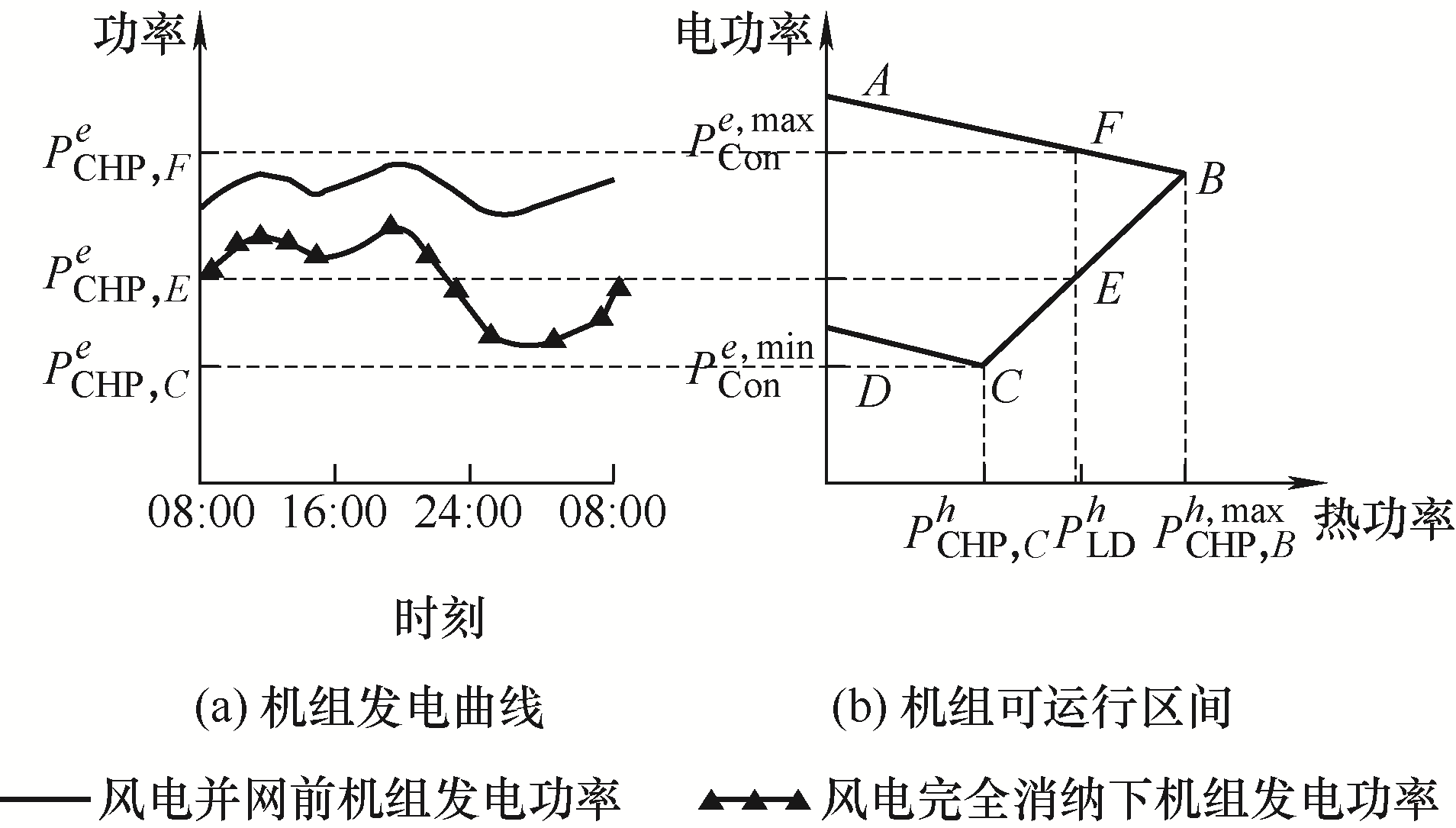

图1

表1

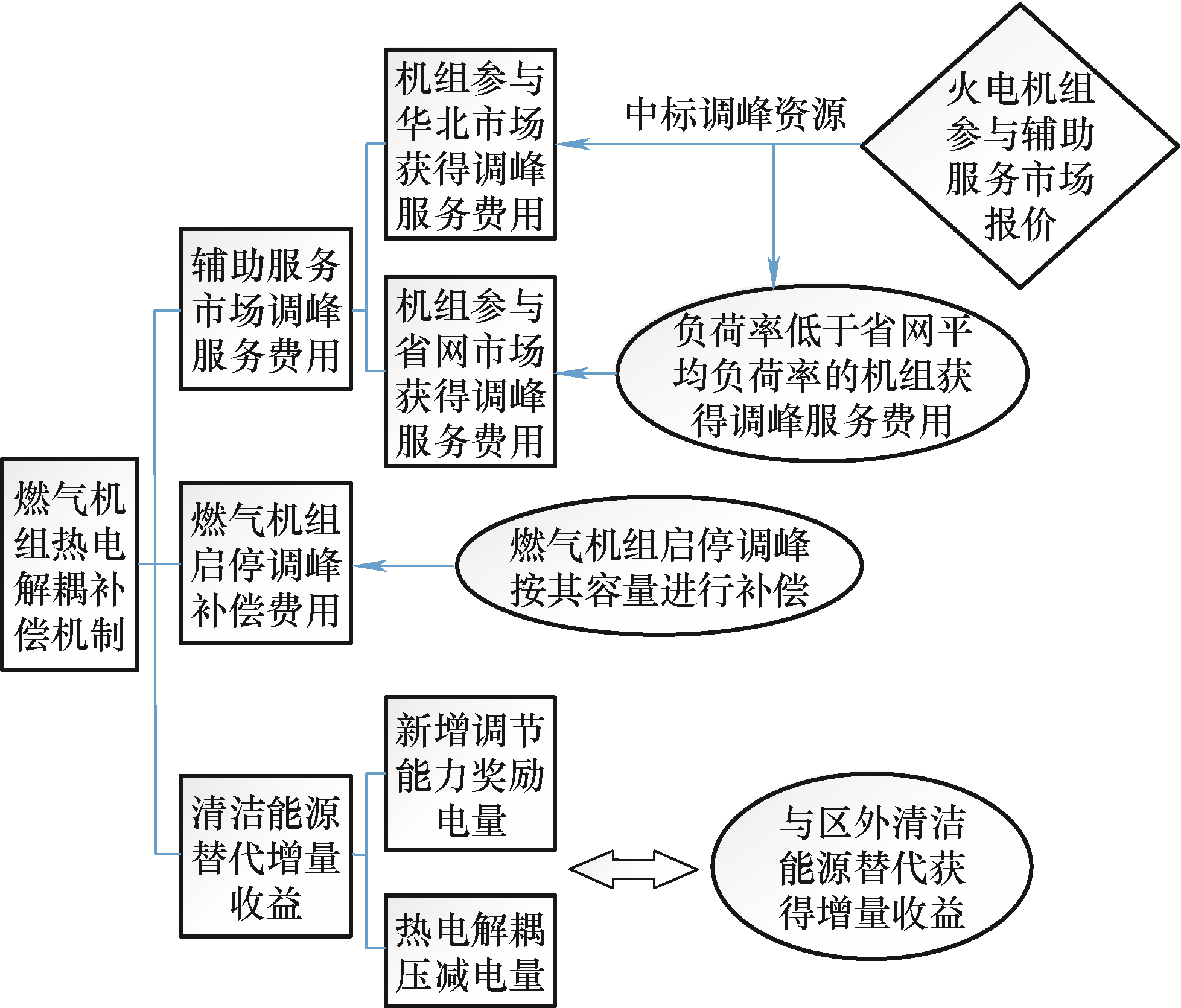

图2

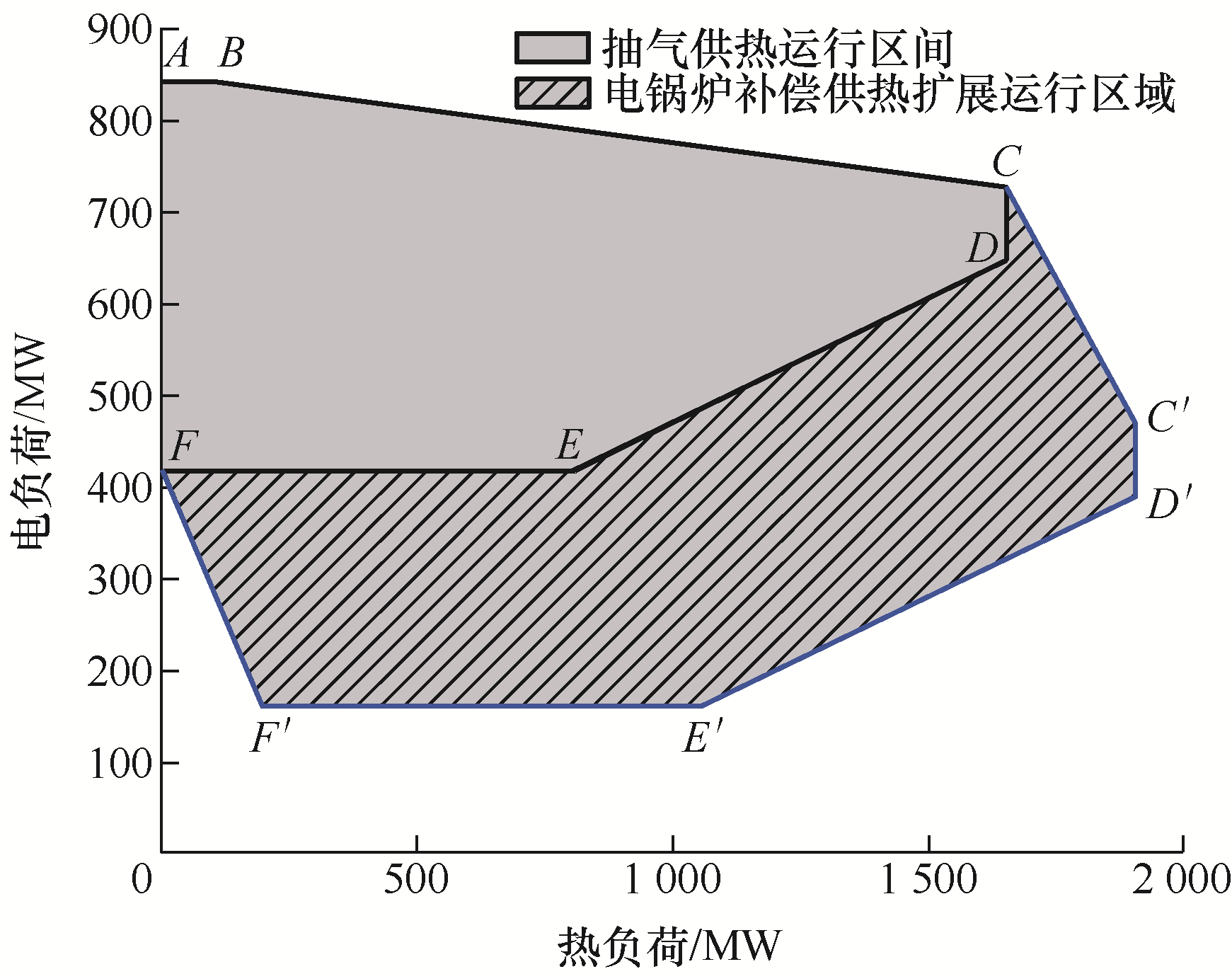

图3

表2

参考文献 25

[1]	白永秀, 鲁能, 李双媛. 双碳目标提出的背景、挑战、机遇及实现路径[J]. 中国经济评论, 2021(5):8-13.
	BAI Yongxiu, LU Neng, LI Shuangyuan. Background,challenge,opportunity and realization path of dual carbon goals[J]. China Economic Review, 2021(5):8-13.
[2]	陈建国, 谢争先, 付怀仁, 等. 300 MW机组汽轮机低压缸零出力技术[J]. 热力发电, 2018, 47(5):106-110.
	CHEN Jianguo, XIE Zhengxian, FU Huairen, et al. Zero output technology of steam turbine LP cylinder of 300 MW unit[J]. Thermal Power Generation, 2018, 47(5):106-110.
[3]	刘双白, 张晶, 吴昕, 等. 320 MW机组低压缸零出力性能分析及应用研究[J]. 中国电力, 2021, 54(5):213-220.
	LIU Shuangbai, ZHANG Jing, WU Xin, et al. Zero output performance analysis and application research of low pressure cylinder of 320 MW unit[J]. Electric Power, 2021, 54(5):213-220.
[4]	金国强, 高耀岿, 张丽霞. 储热罐改造对供热机组热电解耦及调峰能力的影响研究[J]. 汽轮机技术, 2021, 63(2):133-136,114.
	JIN Guoqiang, GAO Yaokui, ZHANG Lixia. Study on the influence of heat storage tank transformation on thermoelectric decoupling and peak shaving capacity of heating units[J]. Turbine Technology, 2021, 63(2):133-136,114.
[5]	郭良丹. 利用热网储热技术提高供热机组调峰能力研究[D]. 北京: 华北电力大学, 2019.
	GUO Liangdan. Research on improving peak shaving capacity of heat supply units by using heat storage technology of heat network[D]. Beijing: North China Electric Power University, 2019.
[6]	吕泉, 杜思瑶, 刘乐, 等. 东北辅助服务市场下热电厂配置电锅炉调峰的经济性分析[J]. 电力系统自动化, 2019, 43(20):49-56,81.
	LÜ Quan, DU Siyao, LIU Le, et al. Economic analysis on peak shaving of electric boilers in thermal power plants under northeast auxiliary service market[J]. Automation of Electric Power Systems, 2019, 43(20):49-56,81.
[7]	高耀岿. 火电机组灵活运行控制关键技术研究[D]. 北京: 华北电力大学, 2019.
	GAO Yaokui. Research on key technologies for flexible operation control of thermal power units[D]. Beijing: North China Electric Power University, 2019.
[8]	王硕. 基于吸收式热泵的热电联产机组调峰能力研究[D]. 吉林: 东北电力大学, 2018.
	WANG Shuo. Study on peak shaving capacity of cogeneration unit based on absorption heat pump[D]. Jilin: Northeast Electric Power University, 2018.
[9]	赵晓丽, 王玫, 赵越, 等. 基于火电机组容量差异的调峰辅助服务补偿机制改进模型[J]. 电力系统自动化, 2013, 37(4):57-61.
	ZHAO Xiaoli, WANG Mei, ZHAO Yue, et al. Improved model of peak shaving auxiliary service compensation mechanism based on thermal power unit capacity difference[J]. Automation of Electric Power Systems, 2013, 37(4):57-61.
[10]	胡建军, 胡飞雄. 节能发电调度模式下有偿调峰补偿新机制[J]. 电力系统自动化, 2009, 33(10):16-18.
	HU Jianjun, HU Feixiong. New mechanism of paid peak shaving compensation under energy-saving generation dispatching mode[J]. Automation of Electric Power Systems, 2009, 33(10):16-18.
[11]	周子程, 王海霞, 吕泉, 等. 计及主客体因素的火电机组深度调峰补偿模型[J]. 南方电网技术, 2017, 11(5):47-55.
	ZHOU Zicheng, WANG Haixia, LÜ Quan, et al. Deep peak shaving compensation model of thermal power units considering host and guest factors[J]. Southern Power System Technology, 2017, 11(5):47-55.
[12]	杨益晟, 张健, 冯天天. 我国核电机组调峰辅助服务经济补偿机制研究[J]. 电网技术, 2017, 41(7):2131-2138.
	YANG Yisheng, ZHANG Jian, FENG Tiantian. Study on economic compensation mechanism of peak shaving auxiliary service of nuclear power units in China[J]. Power System Technology, 2017, 41(7):2131-2138.
[13]	周子程. 火电机组深度调峰补偿模型的研究[D]. 大连: 大连理工大学, 2017.
	ZHOU Zicheng. Study on compensation model of deep peak shaving for thermal power units[D]. Dalian: Dalian University of Technology, 2017.
[14]	张晶, 张涛, 胡娱欧, 等. 火电机组灵活性改造的激励机制研究[J]. 中国能源, 2020, 42(10):21-26,31.
	ZHANG Jing, ZHANG Tao, HU Yuou, et al. Research on incentive mechanism of flexible transformation of thermal power units[J]. Energy of China, 2020, 42(10):21-26,31.
[15]	章艳, 吕泉, 李杨, 等. 四种热电厂电热解耦改造方案的运行灵活性剖析[J]. 电力系统自动化, 2020, 44(2):164-172.
	ZHANG Yan, LÜ Quan, LI Yang, et al. Analysis of operation flexibility of four electrothermal decoupling transformation schemes of thermal power plants[J]. Automation of Electric Power Systems, 2020, 44(2):164-172.
[16]	胡炳廷. “风热冲突”下热电厂供热策略研究[D]. 大连: 大连理工大学, 2017.
	HU Bingting. Research on heating strategy of thermal power plant under “wind heat conflict”[D]. Dalian: Dalian University of Technology, 2017.
[17]	国家能源局华北监管局. 华北电力调峰辅助服务市场运营规则[EB/OL]. [2022-10-25]. http://hbj.nea.gov.cn/frontIndex/index.do.
	North China Energy Regulatory Bureau of National Energy Administration of the People’s Republic of China. Operating rules of North China power peak shaving auxiliary service market[EB/OL]. [2022-10-25]. http://hbj.nea.gov.cn/frontIndex/index.do.
[18]	国家能源局华北监管局. 华北区域并网发电厂两个细则[EB/OL]. [2022-10-25]. http://hbj.nea.gov.cn/frontIndex/index.do.
	North China Energy Regulatory Bureau of National Energy Administration of the People’s Republic of China. Two rules for grid connected power plants in North China[EB/OL]. [2022-10-25]. http://hbj.nea.gov.cn/frontIndex/index.do.
[19]	田彦鹏. 燃气机组两部制电价机制[D]. 北京: 华北电力大学, 2017.
	TIAN Yanpeng. Two part tariff mechanism for gas turbine[D]. Beijing: North China Electric Power University, 2017.
[20]	田欣雨. 考虑火电深调的地区电力系统经济调度及效益研究[D]. 北京: 华北电力大学, 2018.
	TIAN Xinyu. Study on economic dispatching and benefit of regional power system considering deep thermal power dispatching[D]. Beijing: North China Electric Power University, 2018.
[21]	杨高强. 抽水蓄能机组与火电机组启停调峰过程的比较分析[D]. 长沙: 长沙理工大学, 2013.
	YANG Gaoqiang. Comparative analysis of peak shaving process between pumped storage units and thermal power units[D]. Changsha: Changsha University of Technology, 2013.
[22]	戈志华, 马立群, 何洁, 等. 燃气-蒸汽联合循环热电联产机组多种运行方式负荷特性研究[J]. 中国电机工程学报, 2020, 40(8):2587-2597.
	GE Zhihua, MA Liqun, HE Jie, et al. Study on load characteristics of multiple operation modes of gas steam combined cycle cogeneration units[J]. Proceedings of the CSEE, 2020, 40(8):2587-2597.
[23]	杜思瑶. 调峰市场下热电厂配置电锅炉的经济性研究[D]. 大连: 大连理工大学, 2019.
	DU Siyao. Research on the economy of thermal power plants equipped with electric boilers in the peak shaving market[D]. Dalian: Dalian University of Technology, 2019.
[24]	华北能源监管局. 华北能源监管局关于华北电力调峰辅助服务市场2019年运行情况的公告[EB/OL]. [2022-10-25]. http://hbj.nea.gov.cn/adminContent/initViewContent.do?pk=7c08008f-2678-4ed8-9a6c-233e389509e6.
	North China Energy Regulatory Bureau. Announcement of North China Energy Regulatory Bureau on the operation situation of North China electric power peak regulating auxiliary service market in 2019[EB/OL]. [2022-10-25]. http://hbj.nea.gov.cn/adminContent/initViewContent.do?pk=7c08008f-2678-4ed8-9a6c-233e389509e6.
[25]	刘福国, 蒋学霞, 李志. 燃煤发电机组负荷率影响供电煤耗的研究[J]. 电站系统工程, 2008, 24(4):47-49.
	LIU Fuguo, JIANG Xuexia, LI Zhi. Investigation on affects of generator load on coal consumption rate in fossil power plant[J]. Power System Engineering, 2008, 24(4):47-49.

报价挡位	负荷率(%)	报价上限	报价下限/ [元/(MW·h)]
第一档	70~100	0	0
第二档	60~70	0	300
第三档	50~60	0	300
第四档	40~50	—	400
第五档	30~40	—	500
第六档	30以下	—	600

月份	平均负荷率平均(%)	平均出清价格/ [元/(MW·h)]
1	61.95	105.632 3
2	61.34	118.101 6
3	62.38	99.238 94
4	66.34	134.63
