双边LCL无线供电系统恒流参数设计及特性研究*

doi:10.11985/2022.04.020

摘要/Abstract

摘要：

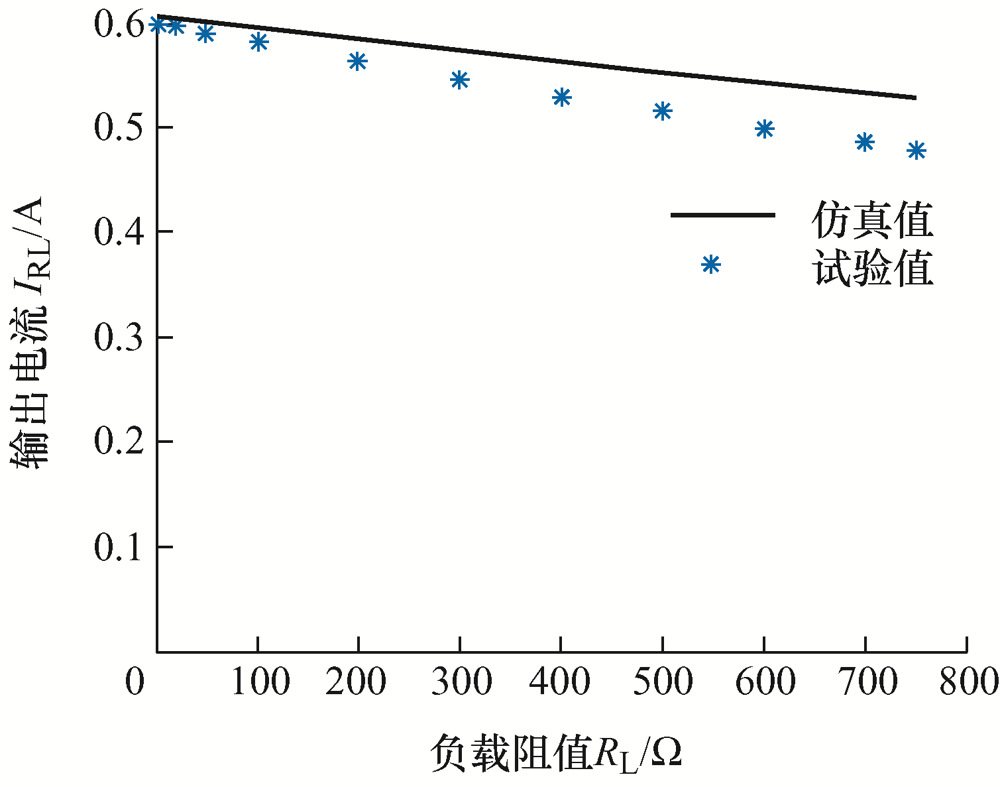

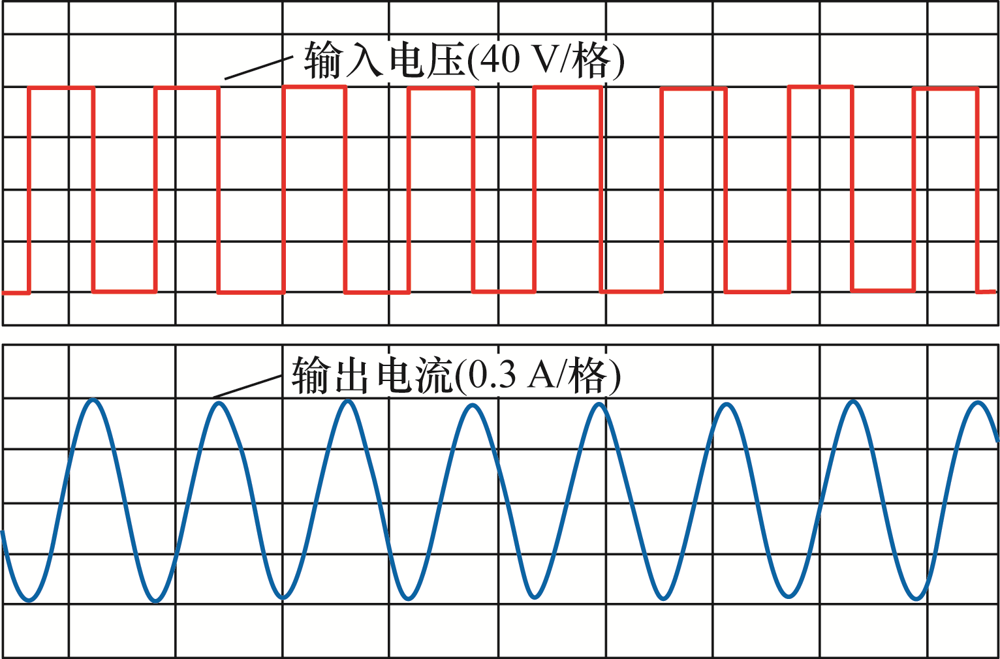

双边LCL补偿方式是无线电能传输系统的最常见的补偿方式，是当前该领域的研究热点。但随着运行条件的变化，系统参数、负载的变动，导致其恒流特性会发生改变，给实际的应用及控制带来了不少困难。从实际参数和影响特性等角度出发，对LCL补偿网络型系统恒流输出特性的影响因素进行了详细研究，建立了双边LCL补偿网络的实际电路参数模型，给出了系统恒流输出设计的负载参数约束条件，分析了损耗参数对系统的影响，提出了一种考虑元器件损耗参数的双边LCL补偿网络型无线供电系统设计方案。仿真与试验结果证明了该方案的有效性，系统输出电流波动率达到了预设的不高于10%的设计需求，同时对高次谐波具有良好的滤除效果，与理论设计一致。

关键词: 无线电能传输, LCL补偿网络, 恒流输出特性, 谐波

Abstract:

Bilateral LCL compensation method is the most common compensation method for wireless power transmission systems, and is a research hotspot in this field. However, with the change of operating conditions, the constant current characteristics vary with the system parameters and loads, which brings many difficulties to practical application and control. From the perspective of actual parameters and influence characteristics, the influencing factors of the constant current output characteristics of the LCL compensation network system are studied in detail. The actual circuit parameter model of the bilateral LCL compensation network is established, and the load parameter constraints for the constant current output design of the system are given. The influence of loss parameters on the system is analyzed as well. Considering the loss parameters of components, a design scheme of bilateral LCL compensation network wireless power supply system is proposed. The simulation and experimental results prove the effectiveness of the scheme. The system output current fluctuation rate reaches the preset design requirement of no more than 10%, and has a good filtering effect on high-order harmonics, which is consistent with the theoretical design.

Key words: Wireless power transmission system, LCL compensation network, constant current output characteristics, harmonic

中图分类号:

TM724

王玮, 鲍光婕, 孟涛, 谭林林. 双边LCL无线供电系统恒流参数设计及特性研究^*[J]. 电气工程学报, 2022, 17(4): 203-210.

WANG Wei, BAO Guangjie, MENG Tao, TAN Linlin. Constant Current Parameter Design and Characteristic Research of Bilateral LCL Wireless Power Transmission System[J]. Journal of Electrical Engineering, 2022, 17(4): 203-210.

图/表 11

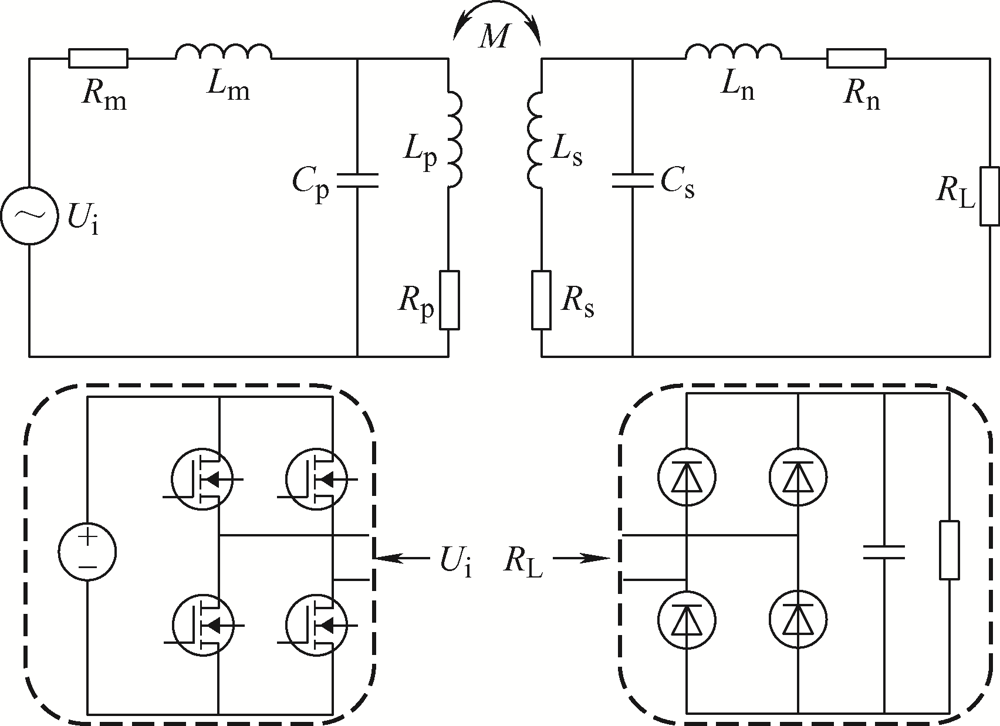

图1

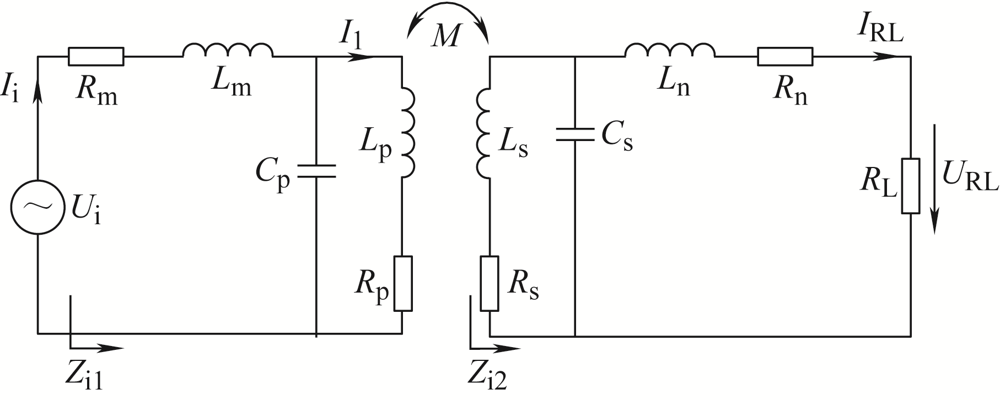

图2

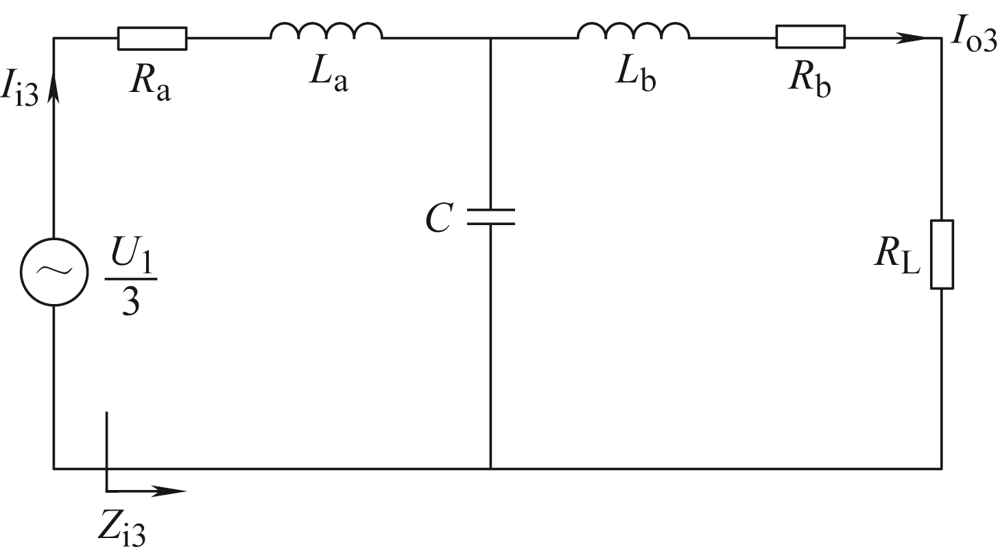

图3

表1

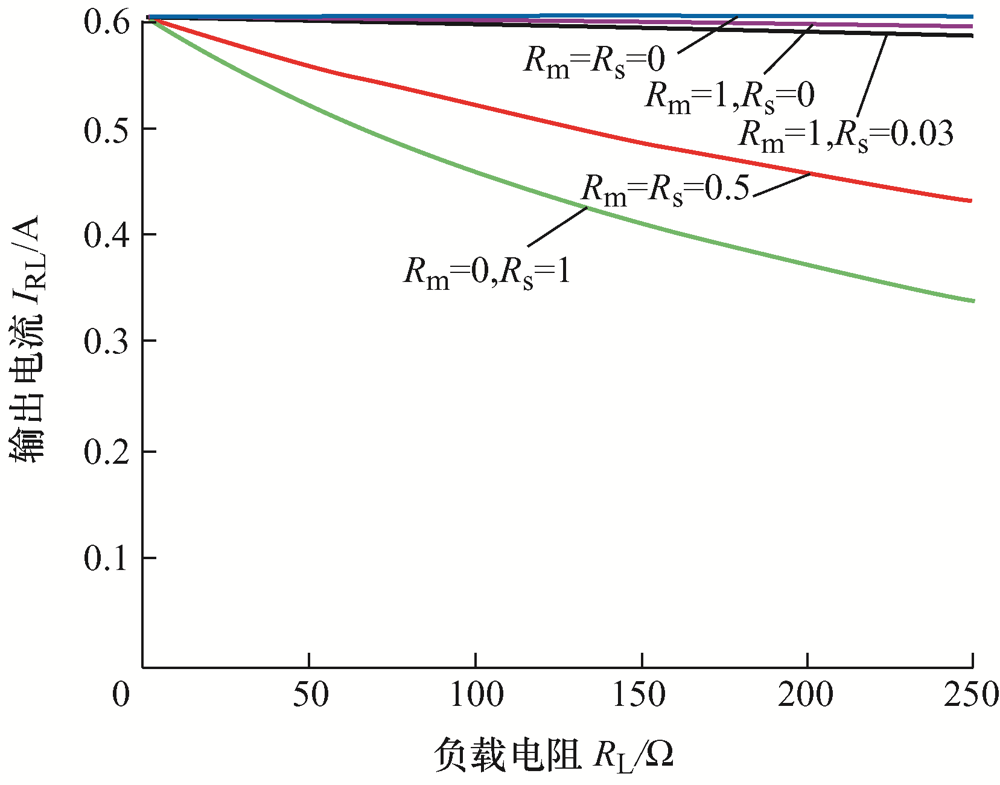

图4

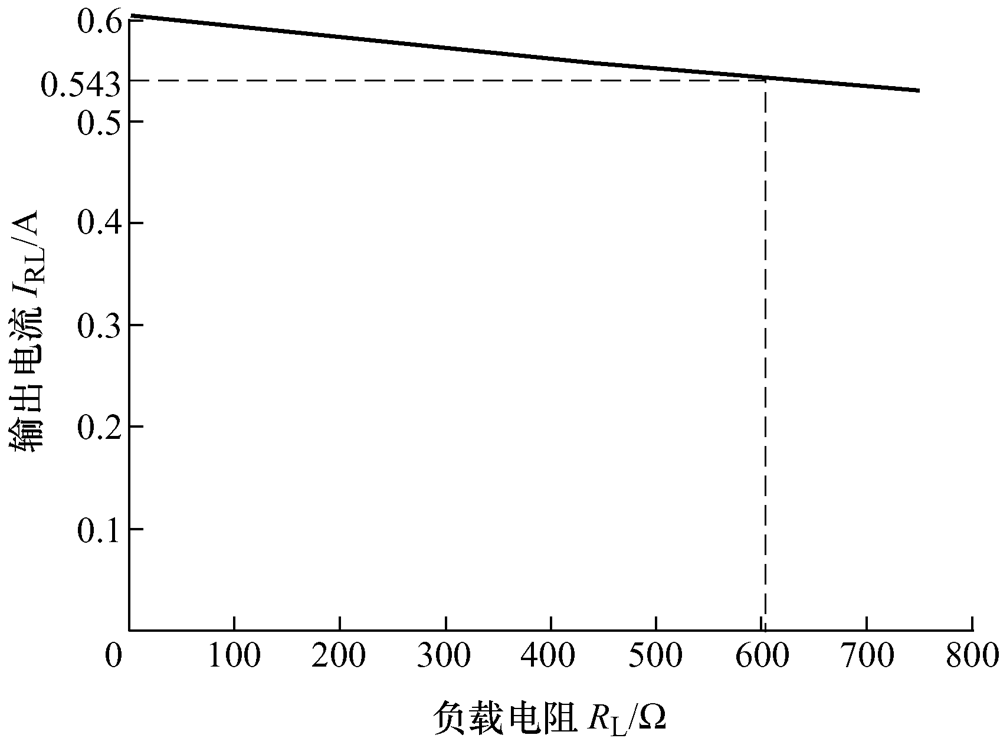

图5

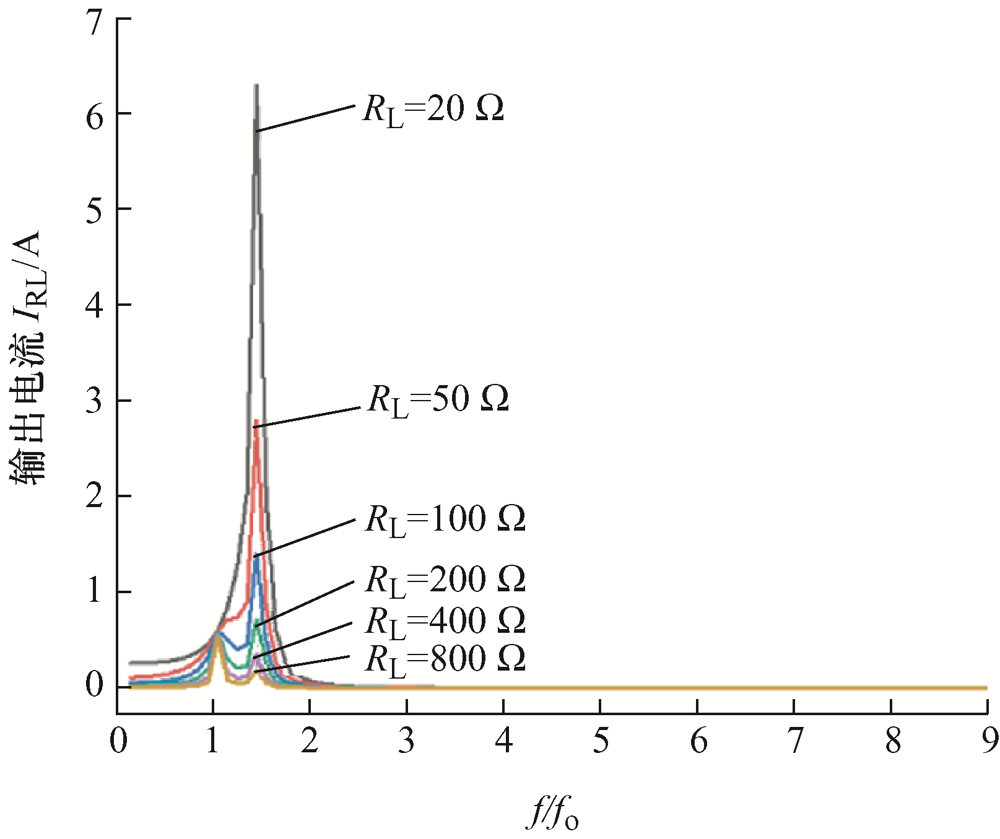

图6

图7

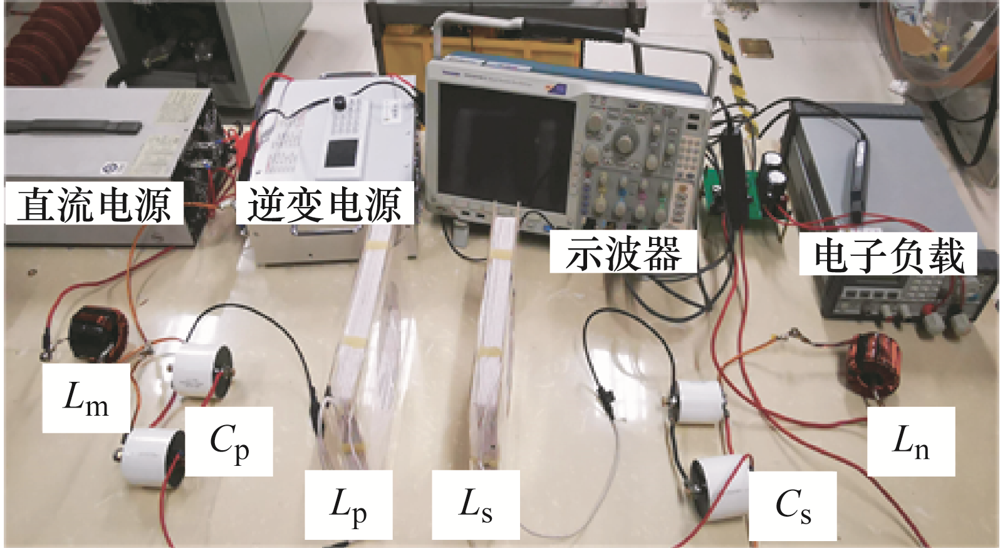

图8

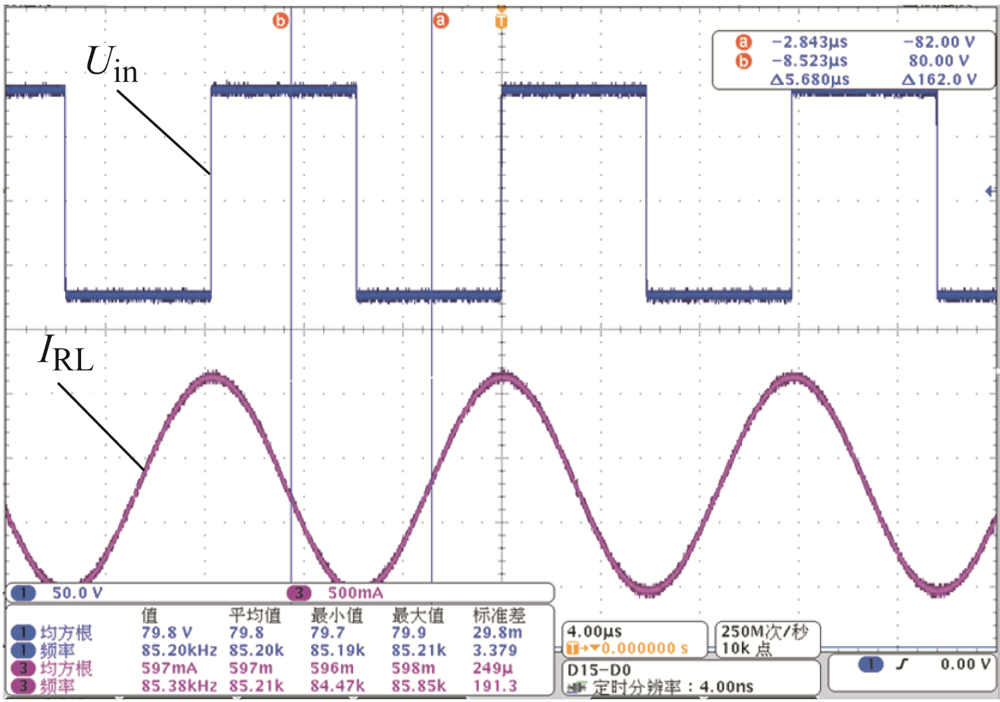

图9

图10

参考文献 20

[1]	张剑韬, 朱春波, 陈清泉. 应用于无尾家电的非接触式无线能量传输技术[J]. 电工技术学报, 2014, 29(9):33-37.
	ZHANG Jiantao, ZHU Chunbo, CHEN Qingquan. Contactless wireless energy transfer technology applied to tail-free household appliances[J]. Transactions of China Electrotechnical Society, 2014, 29(9):33-37.
[2]	LI S, MI C C. Wireless power transfer for electric vehicle applications[J]. IEEE Journal of Emerging & Selected Topics in Power Electronics, 2015, 3(1):4-17.
[3]	LI W, HAN Z, DENG J, et al. Comparison study on SS and double-sided LCC compensation topologies for EV/PHEV wireless chargers[J]. IEEE Transactions on Vehicular Technology, 2016, 65(6):4429-4439. doi: 10.1109/TVT.2015.2479938
[4]	张政, 张波. 移动负载的动态无线供电系统发展及关键技术[J]. 电力工程技术, 2020, 39(1):21-30.
	ZHANG Zheng, ZHANG Bo. Development and key technologies of dynamic wireless power supply system for moving loads[J]. Electric Power Engineering Technology, 2020, 39(1):21-30.
[5]	孙跃, 夏晨阳, 赵志斌, 等. 电压型ICPT系统功率传输特性的分析与优化[J]. 电工电能新技术, 2011(2):9-12,25.
	SUN Yue, XIA Chenyang, ZHAO Zhibin, et al. Analysis and optimization on power transmission characteristics for voltage-fed ICPT system[J]. Advanced Technology of Electrical Engineering and Energy, 2011(2):9-12,25.
[6]	周雯琪, 马皓, 何湘宁. 感应耦合电能传输系统不同补偿拓扑的研究[J]. 电工技术学报, 2009, 24(1):133-139.
	ZHOU Wenqi, MA Hao, HE Xiangning. Investigation on different compensation topologies in inductively coupled power transfer system[J]. Transactions of China Electrotechnical Society, 2009, 24(1):133-139.
[7]	杨阳, 王澍, 颜黎明, 等. 电动汽车无线充电系统双边LCC型谐振补偿网络及电磁安全性研究[J]. 西安交通大学学报, 2021, 55(5):171-180.
	YANG Yang, WANG Shu, YAN Liming, et al. Research on double-sided LCC resonant topology and electromagnetic safety for wireless charging system of electric vehicles[J]. Journal of Xi’an Jiaotong University, 2021, 55(5):171-180.
[8]	牟宪民, 刘华生, 陈希有, 等. 饱和电抗器LCL补偿感应式无线电能传输系统谐波特性分析[J]. 电工技术学报, 2019, 34(S02):465-473.
	MU Xianmin, LIU Huasheng, CHEN Xiyou, et al. Analysis of harmonic characteristics of inductive coupled power transfer based on saturated reactor LCL compensation[J]. Transactions of China Electrotechnical Society, 2019, 34(S02):465-473.
[9]	陆江华, 朱国荣, 黎文静, 等. 感应耦合能量传输系统中双边LCC谐振腔恒流和恒压模式的研究[J]. 中国电机工程学报, 2019, 39(9):2768-2778.
	LU Jianghua, ZHU Guorong, LI Wenjing, et al. Constant current and constant voltage outputs for double-sided LCC resonant tank in inductively coupled power transfer system[J]. Proceedings of the CSEE, 2019, 39(9):2768-2778.
[10]	石坤宏, 程志江, 陈星志, 等. 基于SiC的高频双边LCC无线能量传输装置的研究与实现[J]. 高电压技术, 2020, 46(9):3275-3284.
	SHI Kunhong, CHENG Zhijiang, CHEN Xingzhi, et al. Research and implementation of high frequency double-sided LCC wireless power transmission device based on SiC[J]. High Voltage Engineering, 2020, 46(9):3275-3284.
[11]	潘书磊. 基于多负载接入的无线电能传输系统的设计与研究[D]. 南京: 东南大学, 2018.
	PAN Shulei. Design and research of wireless power transfer system based on multiple loads access[D]. Nanjing: Southeast University, 2018.
[12]	王维, 黄学良, 谭林林, 等. 磁谐振式无线电能传输系统谐振器参数对传输性能的影响性分析[J]. 电工技术学报, 2015, 30(19):1-6.
	WANG Wei, HUANG Xueliang, TAN Linlin, et al. Effect analysis between resonator parameters and transmission performance of magnetic coupling resonant wireless power transmission system[J]. Transactions of China Electrotechnical Society, 2015, 30(19):1-6.
[13]	邹爱龙, 王慧贞, 华洁. 基于LCL补偿的多负载移动式感应非接触电能传输系统[J]. 中国电机工程学报, 2014, 34(24):4000-4006.
	ZOU Ailong, WANG Huizhen, HUA Jie. The movable ICPT system with multi-loads based on the LCL compensation circuit[J]. Proceedings of the CSEE, 2014, 34(24):4000-4006.
[14]	周继昆, 孙跃, 戴欣. LCL谐振型感应电能传输系统软开关方法研究[J]. 电源技术, 2016, 40(4):885-888.
	ZHOU Jikun, SUN Yue, DAI Xin. Study on soft-switch method of LCL resonant type IPT system[J]. Chinese Journal of Power Sources, 2016, 40(4):885-888.
[15]	王党树, 董振, 古东明, 等. 基于双边LCL变补偿参数谐振式无线充电系统的研究与分析[J]. 电工技术学报, 2022, 37(16):4019-4028.
	WANG Dangshu, DONG Zhen, GU Dongming, et al. Research and analysis of resonant wireless charging system based on bilateral LCL variable compensation parameters[J]. Transactions of China Electrotechnical Society, 2022, 37(16):4019-4028.
[16]	马皓, 俞宏霞, 严颖怡. 电流源型LCL谐振式变换器的研究[J]. 中国电机工程学报, 2009(9):28-34.
	MA Hao, YU Hongxia, YAN Yingyi. Investigation on LCL resonant converter as current source[J]. Proceedings of the CSEE, 2009(9):28-34.
[17]	夏晨阳, 解光庆, 林克章, 等. 双LCL补偿ICPT系统双谐振点特性及最大输出功率研究[J]. 中国电机工程学报, 2016, 36(19):5200-5208,5401.
	XIA Chenyang, XIE Guangqing, LIN Kezhang, et al. Study of dual resonance point characteristics and maximum output power of ICPT based on double LCL compensation[J]. Proceedings of the CSEE, 2016, 36(19):5200-5208,5401.
[18]	YAO Y, WANG Y, LIU X, et al. A novel parameter tuning method for a double-sided LCL compensated WPT system with better comprehensive performance[J]. IEEE Transactions on Power Electronics, 2018, 33(10):8525-8536. doi: 10.1109/TPEL.2017.2778255
[19]	吉莉, 王丽芳, 廖承林, 等. 基于LCL谐振补偿网络的副边自动切换充电模式无线电能传输系统研究与设计[J]. 电工技术学报, 2018, 33(z1):34-40.
	JI Li, WANG Lifang, LIAO Chenglin, et al. Research and design of automatic alteration between constant current mode and constant voltage mode at the secondary side based on LCL compensation network in wireless power tranfer systems[J]. Transactions of China Electrotechnical Society, 2018, 33(z1):34-40.
[20]	陈凯楠, 赵争鸣, 刘方, 等. 电动汽车双向无线充电系统谐振拓扑分析[J]. 电力系统自动化, 2017, 41(2):66-72.
	CHEN Kainan, ZHAO Zhengming, LIU Fang, et al. Analysis of resonant topology for bi-directional wireless charging of electric vehicle[J]. Automation of Electric Power Systems, 2017, 41(2):66-72.

参数	数值
基波输入电压U_i/V	80
系统工作频率f/kHz	85
发射线圈自感L_p/μH	33.61
接收线圈自感L_s/μH	33.62
发射端补偿电感L_m/μH	33.60
接收端补偿电感L_n/μH	33.62
发射端补偿电容C_p/nF	104.34
接收端补偿电容C_s/nF	104.34
互感M/μH	4.55
