面向分布式电源的改进GWO-GS电网承载力提升方法*

doi:10.11985/2021.02.018

摘要/Abstract

摘要：

分布式发电(Distributed generation, DG)单元高渗透性会造成各种电能质量问题,从而导致电网承载能力降低。为此,提出一种面向分布式电源的改进灰狼优化与引力搜索(Grey wolf optimization and gravity search,GWO-GS)电网承载力提升方法。提出一种谐波滤波器,大范围地抑制谐波并降低功率损耗,从而最大限度地提高谐波约束的随机性承载能力。利用控制系数的自适应调节和适应度值对权重的作用,同时采用改进灰狼算法进行优化,避免陷入局部最优。结合DG间歇输出功率、负载变化等不确定因素,构建基于改进GWO-GS的滤波器优化。利用Matlab仿真平台对所提优化算法进行验证,结果表明所提算法的收敛时间最短,性能优于其他算法。

关键词: 分布式发电, 改进灰狼优化, 引力搜索, 承载能力, 谐波滤波器

Abstract:

The high permeability of distributed generation (DG) units will cause various power quality problems, which will lead to the reduction of power grid carrying capacity. Therefore, a method to improve the load-carrying capacity of DG connected to power grid based on improved grey wolf optimization and gravity search (GWO-GS) is proposed. Firstly, a harmonic filter is proposed to suppress harmonics and reduce power loss, so as to maximize the random carrying capacity of harmonic constraints. Then, the adaptive adjustment of control coefficient and the effect of fitness value on weight are used, and the improved gray wolf algorithm is used to optimize to avoid falling into local optimum. Finally, combined with uncertain factors such as DG intermittent output power and load change, the filter optimization based on improved GWO-GS is constructed. In addition, Matlab simulation platform is used to verify the proposed optimization algorithm. The results show that the proposed algorithm has the shortest convergence time and better performance than other algorithms.

Key words: Distributed generation, improved gray wolf optimization, gravitational search, hosting capacity, harmonic filter

中图分类号:

TM73

许翰宸, 王立辉, 廖宇航. 面向分布式电源的改进GWO-GS电网承载力提升方法^*[J]. 电气工程学报, 2021, 16(2): 141-148.

XU Hanchen, WANG Lihui, LIAO Yuhang. Method of Improving Power Grid Hosting Capacity for Distributed Generation Based on Improved GWO-GS[J]. Journal of Electrical Engineering, 2021, 16(2): 141-148.

图/表 6

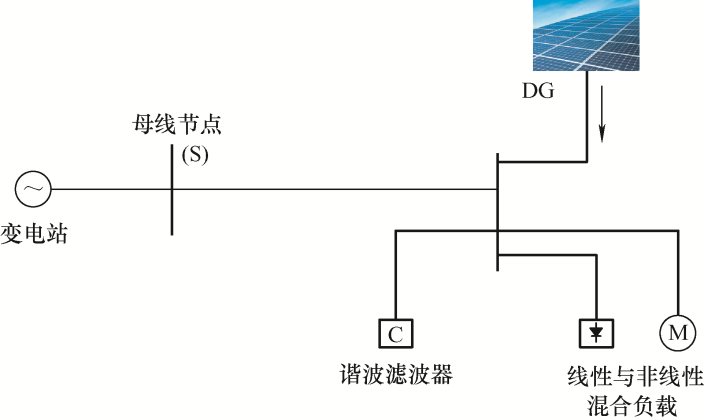

图1

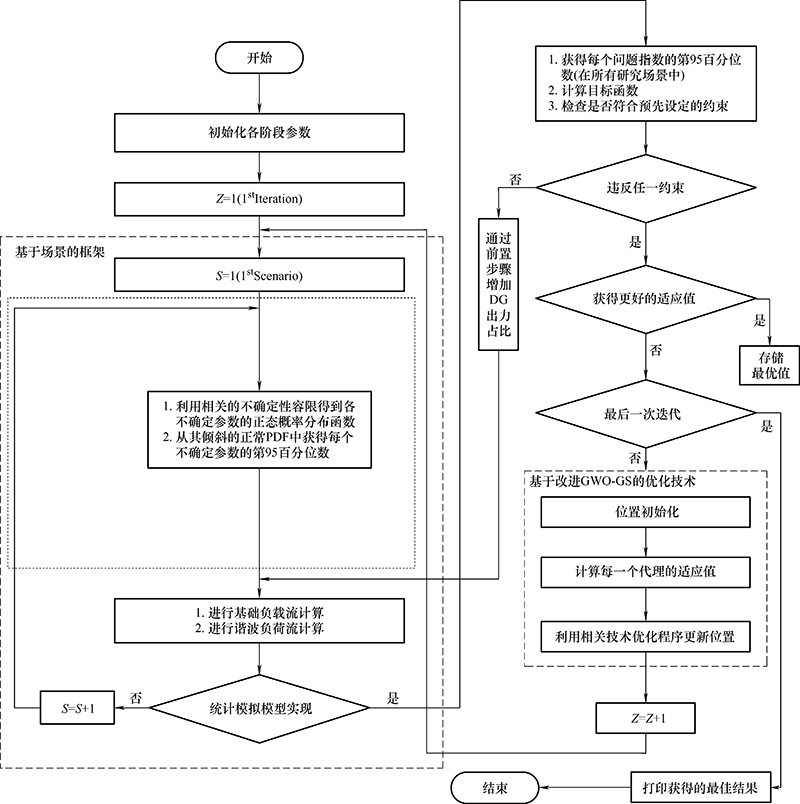

图2

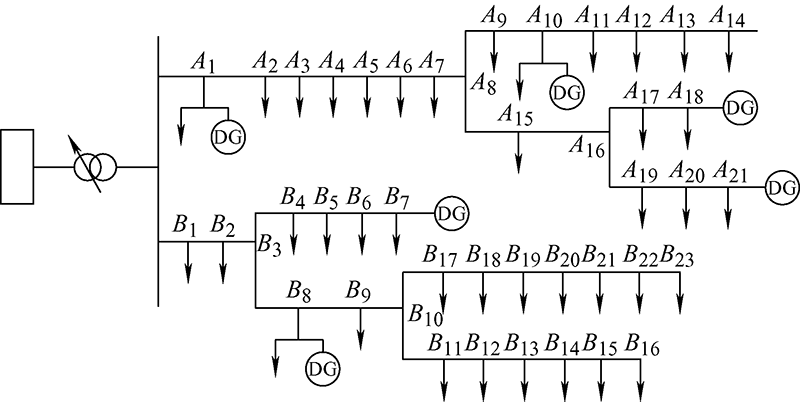

图3

表1

表2

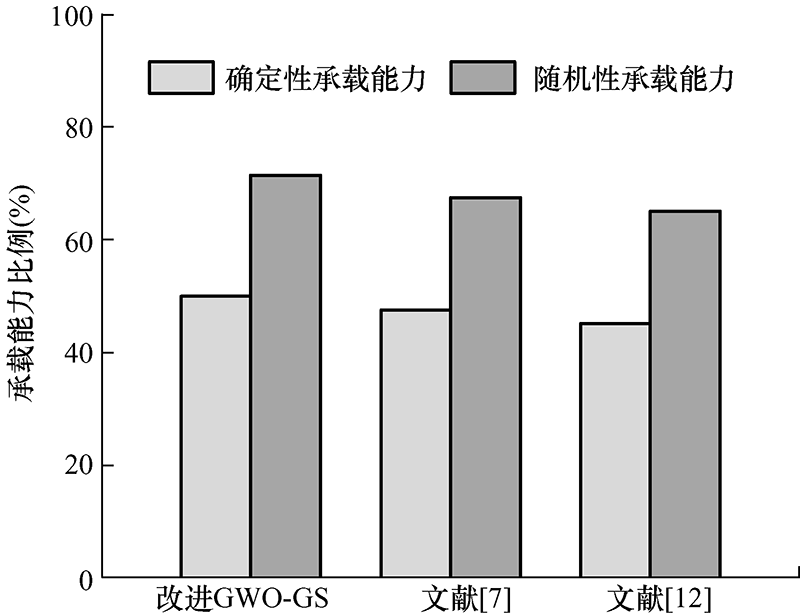

图4

参考文献 26

[1]	唐程辉, 张凡, 张宁, 等. 考虑可再生能源随机性和需求响应的电力系统日前经济调度[J]. 电力系统自动化, 2019, 43(15):18-25,26-28,63.
	TANG Chenghui, ZHANG Fan, ZHANG Ning, et al. Day ahead economic dispatch of power system considering randomness and demand response of renewable energy[J]. Automation of Electric Power Systems, 2019, 43(15):18-25,26-28,63.
[2]	PASHA A M, ZEINELDIN H H, EL-SAADANY E F, et al. Optimal allocation of distributed generation for planning master-slave controlled micro-grids[J]. IET Generation Transmission & Distribution, 2019, 13(16):3704-3712. doi: 10.1049/gtd2.v13.16
[3]	杨本臣, 苑齐鼎, 刘海权. 计及分布式发电预测的微电网孤岛供电可靠性评估[J]. 电力系统及其自动化学报, 2019(6):50-54.
	YANG Benchen, YUAN Qiding, LIU Haiquan. Reliability evaluation of micro-grid island power supply considering distributed generation prediction[J]. Proceedings of the CSU-EPSA, 2019(6):50-54.
[4]	李健康, 韦笃取, 罗晓曙, 等. 分布式发电系统与感性负载网络混沌同步控制[J]. 广西师范大学学报, 2019(3):33-41.
	LI Jiankang, WEI Duqu, LUO Xiaoshu, et al. Chaos synchronization control of distributed generation system and inductive load network[J]. Journal of Guangxi Normal University, 2019(3):33-41.
[5]	AHMADIPOUR M, HIZAM H, OTHMAN M L, et al. Islanding detection method using ridgelet probabilistic neural network in distributed generation[J]. Neurocomputing, 2019, 329:188-209. doi: 10.1016/j.neucom.2018.10.053
[6]	周礼来, 熊洁, 李稳国, 等. 微电网分布式发电模拟系统的设计[J]. 湖南城市学院学报, 2019, 28(4):52-56.
	ZHOU Lilai, XIONG Jie, LI Wenguo, et al. Design of microgrid distributed generation simulation system[J]. Journal of Hunan City University, 2019, 28(4):52-56.
[7]	MAHROO-BAKHTIARI R, IZADI M, SAFDARIAN A, et al. Distributed load management scheme to increase PV hosting capacity in LV feeders[J]. IET Renewable Power Generation, 2019, 14(1):125-133. doi: 10.1049/rpg2.v14.1
[8]	XU X, LI J, XU Z, et al. Enhancing photovoltaic hosting capacity:A stochastic approach to optimal planning of static var compensator devices in distribution networks[J]. Applied Energy, 2019, 238:952-962. doi: 10.1016/j.apenergy.2019.01.135
[9]	刘洪, 徐正阳, 葛少云, 等. 考虑储能调节的主动配电网有功-无功协调运行与电压控制[J]. 电力系统自动化, 2019, 43(11):51-62.
	LIU Hong, XU Zhengyang, GE Shaoyun, et al. Active reactive coordinated operation and voltage control of active distribution network considering energy storage regulation[J]. Automation of Electric Power Systems, 2019, 43(11):51-62.
[10]	常栋梁, 何立柱, 李洋, 等. 配电网功率平衡调节与无功补偿研究及装置[J]. 电力系统及其自动化学报, 2019(4):132-138.
	CHANG Dongliang, HE Lizhu, LI Yang, et al. Research and device of power balance regulation and reactive power compensation in distribution network[J]. Proceedings of the CSU-EPSA, 2019(4):132-138.
[11]	朱瑞金, 郭威麟, 龚雪娇. 基于自编码器和卷积神经网络的电能质量扰动分类[J]. 电力系统及其自动化学报, 2019, 31(7):70-75.
	ZHU Ruijin, GUO Weilin, GONG Xuejiao. Power quality disturbance classification based on self encoder and convolutional neural network[J]. Proceedings of the CSU-EPSA, 2019, 31(7):70-75.
[12]	ISMAEL S M, ALEEM S H E A, ABDELAZIZ A Y, et al. State-of-the-art of hosting capacity in modern power systems with distributed generation[J]. Renewable Energy, 2019, 130:1002-1020. doi: 10.1016/j.renene.2018.07.008
[13]	KRISTOV L. The bottom-up (R) evolution of the electric power system:The pathway to the integrated- decentralized system[J]. IEEE Power and Energy Magazine, 2019, 17(2):42-49. doi: 10.1109/MPE.2018.2885204
[14]	叶学顺, 何开元, 刘科研. 有源配电网重构与多级无功联动优化[J]. 电力系统保护与控制, 2019, 47(13):115-123.
	YE Xueshun, HE Kaiyuan, LIU Keyan. Active distribution network reconfiguration and multi-level reactive power linkage optimization[J]. Power System Protection and Control, 2019, 47(13):115-123.
[15]	LAKUM A, MAHAJAN V. Optimal placement and sizing of multiple active power filters in radial distribution system using grey wolf optimizer in presence of nonlinear distributed generation[J]. Electric Power Systems Research, 2019, 173:281-290. doi: 10.1016/j.epsr.2019.04.001
[16]	TEFEK M F, UĞUZ H, GÜÇYETMEZ M. A new hybrid gravitational search-teaching-learning-based optimization method for energy demand estimation of Turkey[J]. Neural Computing and Applications, 2019, 31(7):2939-2954. doi: 10.1007/s00521-017-3244-9
[17]	高飞, 方海莲. 基于引力搜索算法的分数阶变异时序回归GSA-TSGM(1,1)模型[J]. 计算机应用研究, 2019(6):1668-1672.
	GAO Fei, FANG Hailian. Fractional mutation time series regression GSA-TSGM(1,1) model based on gravitational search algorithm[J]. Application Research of Computers, 2019(6):1668-1672.
[18]	MOHANTY P, SAHU R K, PANDA S. A novel hybrid many optimizing liaisons gravitational search algorithm approach for AGC of power systems[J]. Automatika, 2020, 61(1):158-178. doi: 10.1080/00051144.2019.1694743
[19]	谭笑, 王主丁, 李强, 等. 计及多约束的多分布式电源接入配电网最大承载力分段算法[J]. 电力系统自动化, 2020, 44(4):72-80.
	TAN Xiao, WANG Zhuding, LI Qiang, et al. Segmentation algorithm for maximum hosting capacity of distributed generator accessing to distribution network considering multiple constraints[J]. Automation of Electric Power Systems, 2020, 44(4):72-80.
[20]	叶莘, 韦钢, 周利骏, 等. 含分布式电源配电网供电能力的概率评估[J]. 电力系统及其自动化学报, 2019, 31(4):99-105.
	YE Xin, WEI Gang, ZHOU Lijun, et al. Probabilistic evaluation on power supply capability of distribution system with distributed generations[J]. Proceedings of the CSU-EPSA, 2019, 31(4):99-105.
[21]	ALKANO D, SCHERPEN J M A. Distributed supply coordination for power-to-gas facilities embedded in energy grids[J]. IEEE Transactions on Smart Grid, 2018, 9(2):1012-1022. doi: 10.1109/TSG.2016.2574568
[22]	孙瑞松. 基于RT-LAB的微电网运行控制硬件在环仿真[J]. 电气工程学报, 2019, 14(4):95-102.
	SUN Ruisong. Hardware in the loop simulation on the operation control of microgrid based on RT-LAB[J]. Journal of Electrical Engineering, 2019, 14(4):95-102.
[23]	TONG Q, QI J, WANG Y, et al. Power cable ampacity and influential factors analysis under operation[J]. Journal of Information Processing Systems, 2018, 14(5):1136-1149.
[24]	张敬安, 王雷涛, 王鹏. 交直流混合配电网电能质量综合检测和补偿方法[J]. 电气工程学报, 2018, 13(9):38-43.
	ZHANG Jingan, WANG Leitao, WANG Peng. Power quality detection and compensation method of AC/DC hybrid distribution network[J]. Journal of Electrical Engineering, 2018, 13(9):38-43.
[25]	HE Y X, JIAO J, CHEN R J, et al. The optimization of Chinese power grid investment based on transmission and distribution tariff policy:A system dynamics approach[J]. Energy Policy, 2018, 113(6):112-122. doi: 10.1016/j.enpol.2017.10.062
[26]	卢志刚, 王文涛, 张丹, 等. 基于配电网可靠性的分布式电源与充换电站协同规划[J]. 太阳能学报, 2020, 41(4):354-362.
	LU Zhigang, WANG Wentao, ZHANG Dan, et al. DG and EVCS collaborative planning based on distribution network reliability[J]. Acta Solar Energy, 2020, 41(4):354-362.

参数	基准	补偿系统
参数	基准	改进GWO-GS	文献[7]	文献[12]
V_min/p.u.	0.958 3	0.935 3	0.978 5	0.987 2
TDD(%)	6.657 5	7.868 6	8.357 2	8.000 1
THDV(%)	5.454 3	4.042 2	4.123 3	4.145 1
滤波器损耗/p.u.	0.003 0	0.003 1	0.003 4	0.003 3
总功率损耗/p.u.	0.037 5	0.006 2	0.007 3	0.007 5
位移功率因素	0.921 3	0.998 2	0.953 6	0.975 2
功率因素	91.685 6	0.986 7	0.965 2	0.975 4
确定性承载能力(%)	50.00	56.51	50.72	49.18

参数	补偿系统
参数	改进GWO-GS	文献[7]	文献[12]
V_min/p.u.	0.994 3	0.988 5	0.987 2
TDD(%)	7.866 6	7.352 2	7.203 8
THDV(%)	4.432 1	4.191 3	4.143 1
滤波器损耗/p.u.	0.001 8	0.002 9	0.002 3
总功率损耗/p.u.	0.003 5	0.004 1	0.004 5
位移功率因素	0.999 2	0.972 6	0.961 4
功率因素	0.967 7	0.945 2	0.913 4
随机性承载能力(%)	74.05	70.38	69.98
