感应电机无速度传感器控制带速重投方法研究

doi:10.11985/2022.03.015

摘要/Abstract

摘要：

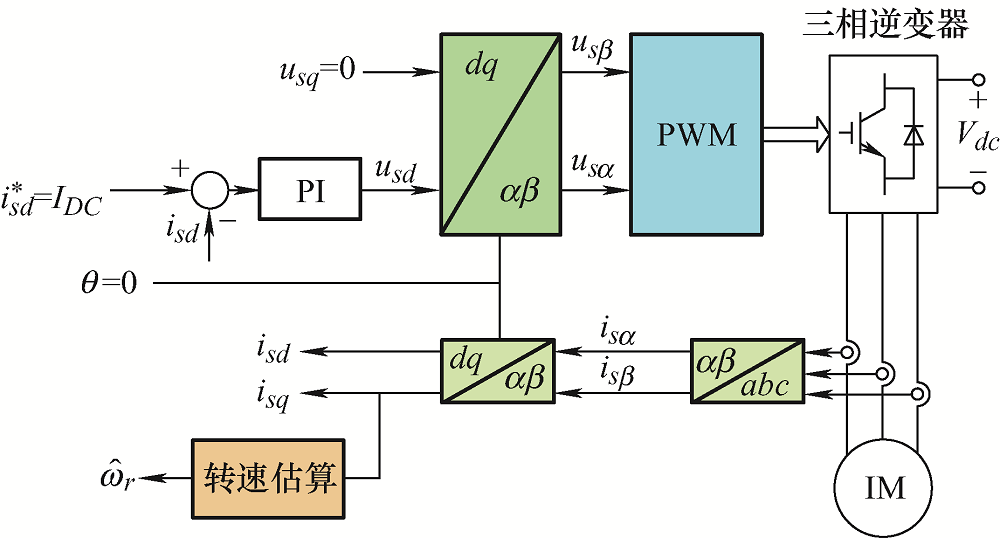

在一些特殊应用场合,在电力中断后旋转感应电机需要采取快速平滑重投方法继续投入运行。采用无速度传感器控制下带速重投时刻需要获取电机初始速度从而完成带速重投过程。为此,引入单电流闭环直流注入法快速获取感应电机的初始转速。分析了短时电力中断情况下旋转电机特性,建立了单电流闭环直流注入下旋转电机数学模型,分析了测量反馈电流频率估算电机转速的方法;同时研究了从单电流闭环直流注入切换到全阶转速估算的模式切换策略。最后,通过搭建仿真模型进行验证,仿真结果验证了基于单电流闭环直流注入带速重投方法的可行性。

关键词: 感应电机, 带速重投, 全阶转速估算, 直流注入

Abstract:

In some special applications, the free-running induction motor needs to be put into operation after short power interruption. In the case of speed-sensorless control, the initial speed of the motor is needed to realize the restarting procedure. Therefore, a single-current closed-loop DC injection method is introduced to obtain the initial speed of induction motor in a short time. The characteristics of free-running induction motor under power interruption are analyzed, the mathematical model of induction motor under signal-current closed-loop DC injection is established, and the method of measuring feedback current frequency to estimate initial speed is analyzed. At the same time, the switching strategy from single-current closed-loop DC injection to full-order adaptive observer is proposed. Finally, the effectiveness of the proposed method is demonstrated by simulation.

Key words: Induction motor, restarting strategy, full-order adaptive observer, DC injection

中图分类号:

TM921

尹少博. 感应电机无速度传感器控制带速重投方法研究[J]. 电气工程学报, 2022, 17(3): 130-137.

YIN Shaobo. Study on the Restarting Method of Induction Motor under Speed-sensorless Control[J]. Journal of Electrical Engineering, 2022, 17(3): 130-137.

图/表 10

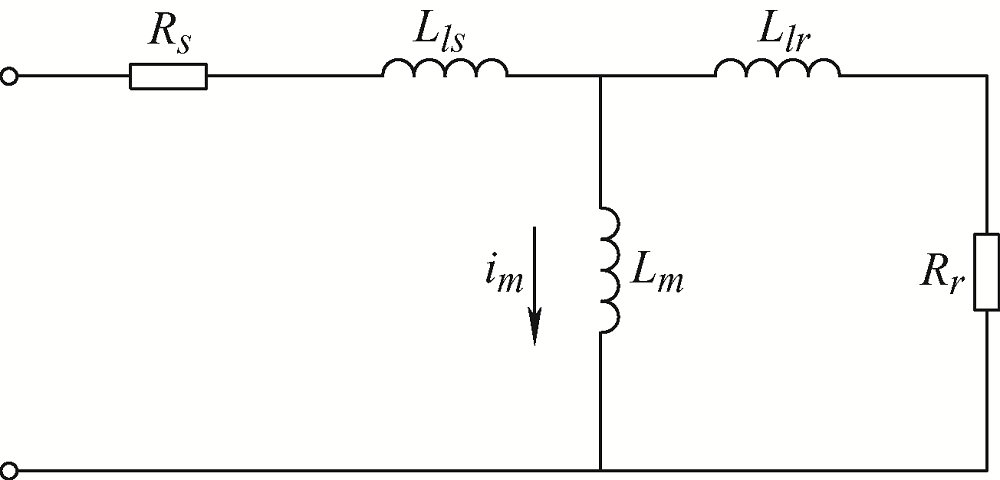

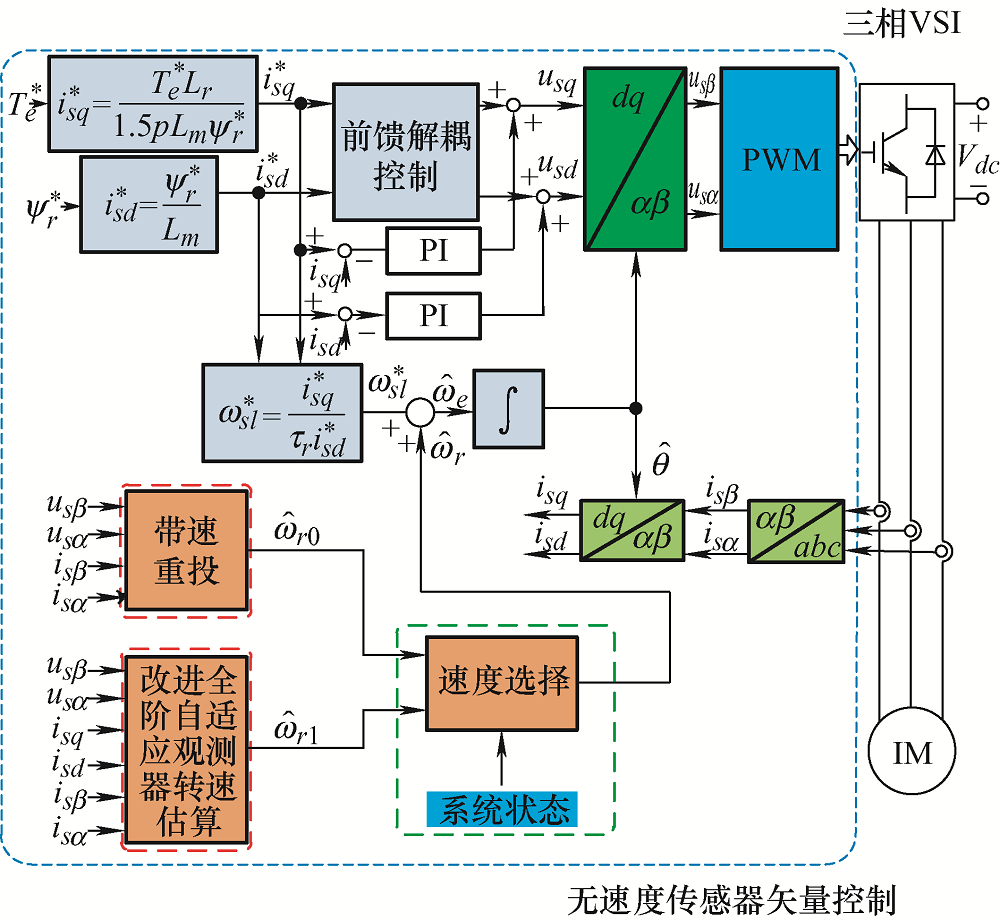

图1

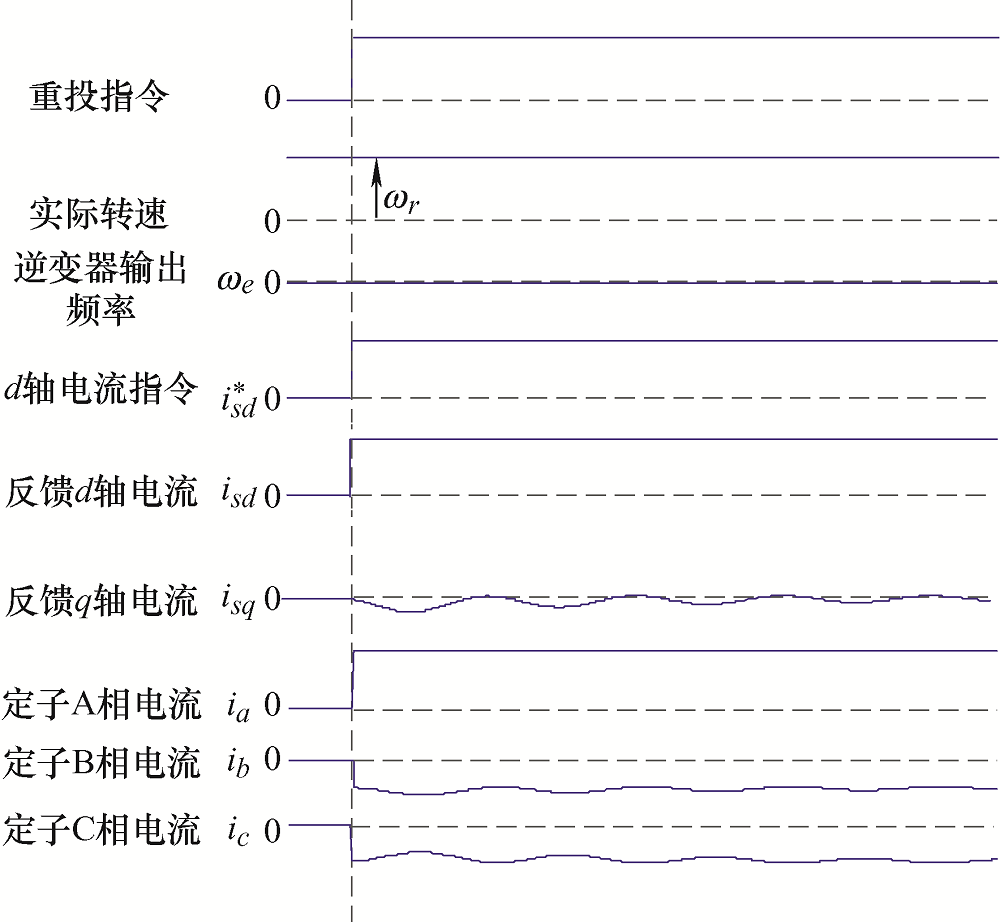

图2

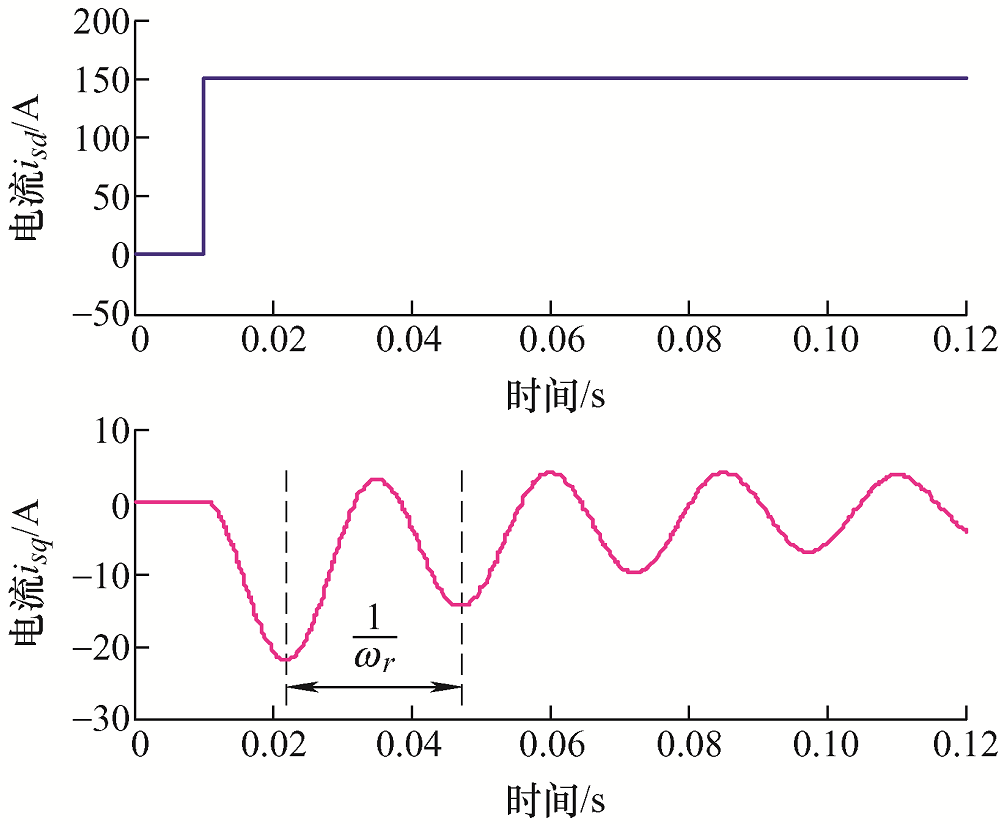

图3

图4

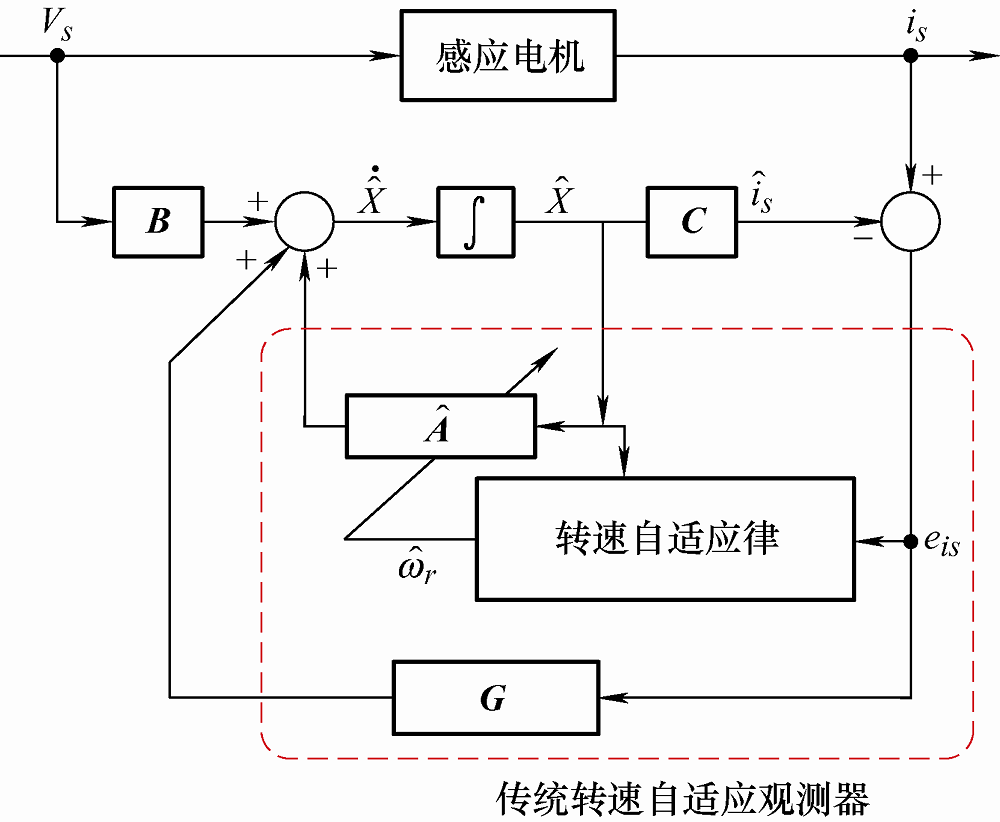

图5

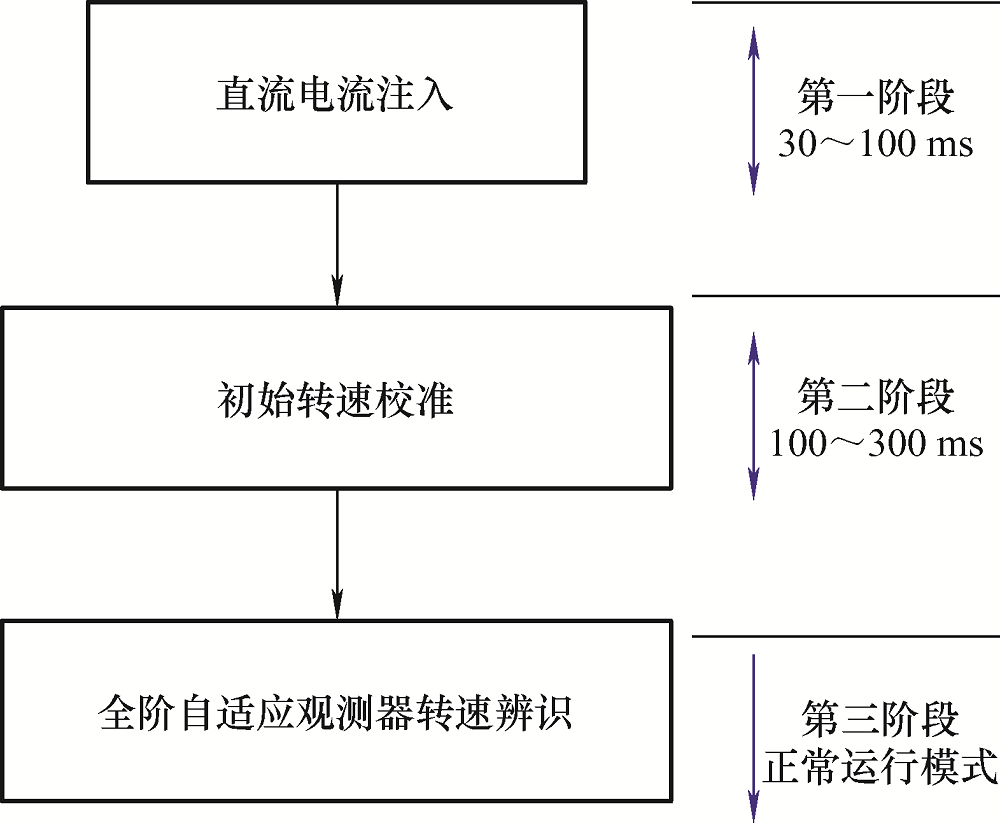

图6

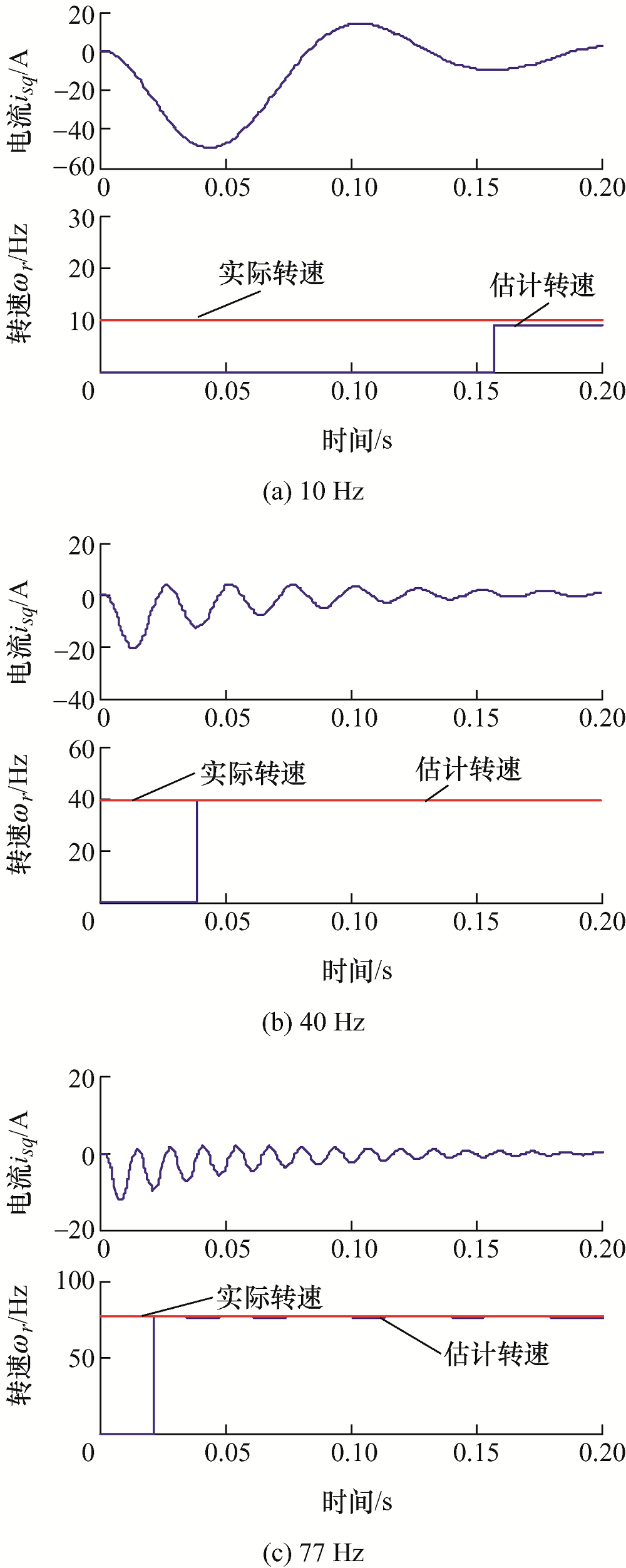

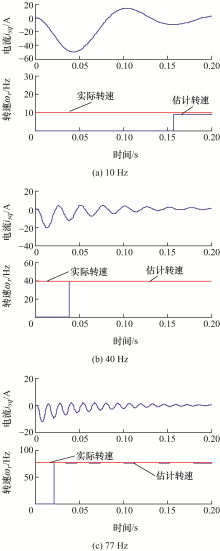

图7

图8

表1

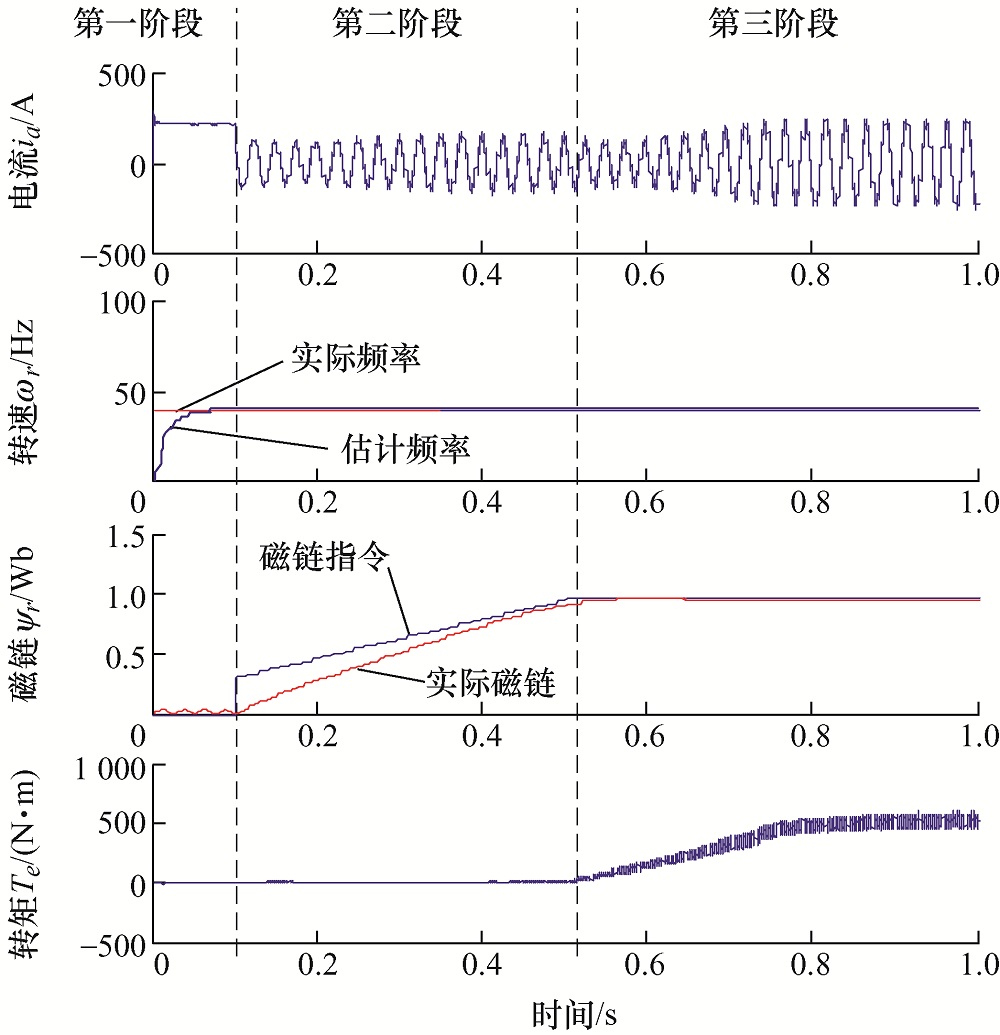

图9

参考文献 20

[1]	丁荣军, 桂卫华. 无速度传感器控制技术及其在大功率牵引传动中的应用研究[J]. 铁道学报, 2008, 30(1):75-81.
	DING Rongjun, GUI Weihua. Research of speed sensorless control technology and its application in high power AC traction drive[J]. Journal of the China Railway Society, 2008, 30(1):75-81.
[2]	LEE K, AHMED S, LUKIC S M. Universal restart strategy for scalar (V/f) controlled induction machines[J]. IEEE Transactions on Industry Applications, 2017, 53(6):5489-5495. doi: 10.1109/TIA.2017.2733497
[3]	PAN H, SPRINGOB L, HOLTZ J. Improving the start and restart behavior through state recognition of AC drives[C]//Proceedings of Power Conversion Conference-PCC'97. IEEE, 1997, 2:589-594.
[4]	廖永衡. 电力牵引传动系统直接转矩控制若干关键问题研究[D]. 成都: 西南交通大学, 2013.
	LIAO Yongheng. Research on key problems of direct torque in electric traction system[D]. Chengdu: Southwest Jiaotong University, 2013.
[5]	赵文才, 金富宽, 王傲能, 等. 一种异步电机再启动时转速估算方法[J]. 电气传动, 2012(9):11-15.
	ZHAO Wencai, JIN Fukuan, WANG Aoneng, et al. Speed estimation method for asynchronous motor restart[J]. Electric Drive, 2012(9):11-15.
[6]	尚敬, 刘可安, 年晓红, 等. 牵引电动机无速度传感器及带速度重投控制[J]. 中国电机工程学报, 2006, 26(15):118-123.
	SHANG Jing, LIU Kean, NIAN Xiaohong, et al. Speed sensorless control and restarting at unknown speed of traction motor[J]. Proceedings of the CSEE, 2006, 26(15):118-123.
[7]	尚敬, 刘可安. 电力牵引异步电动机无速度传感器间接定子量控制[J]. 电工技术学报, 2007, 22(2):22-27.
	SHANG Jing, LIU Kean. Speed sensorless indirect stator-quantities control of induction motor in electric traction[J]. Transactions of China Electrotechnical Society, 2007, 22(2):22-27.
[8]	丁荣军, 桂卫华, 尚敬. 感应电机无速度传感器控制带速重投研究[J]. 机车电传动, 2008(3):12-14.
	DING Rongjun, GUI Weihua, SHANG Jing. Study on restarting at unknown speed with speed-sensorless contorl of induction motor[J]. Electric Drive for Locomotives, 2008(3):12-14.
[9]	HOFFMANN F, KOCH S. Steady state analysis of speed sensorless control of induction machines[C]//IECON'98. Proceedings of the 24th Annual Conference of the IEEE Industrial Electronics Society (Cat. No. 98CH36200). IEEE, 1998, 3:1626-1631.
[10]	曹霄. 无速度传感器异步电动机直接转矩控制系统带速度重投控制的研究[D]. 长沙: 中南大学, 2007.
	CAO Xiao. Research on direct torque control system with restarting control for sensorless induction motor[D]. Changsha: Centrol South university, 2007.
[11]	KONDO K. Re-stating technologies for rotational sensorless controlled AC motors at the rotating status[C]//2015 10th Asian Control Conference (ASCC). IEEE, 2015:1-6.
[12]	KONDO K, YUKI K. An application of the induction motor speed sensor less control to railway vehicle traction system[C]//Conference Record of the 2002 IEEE Industry Applications Conference. 37th IAS Annual Meeting (Cat. No. 02CH37344). IEEE, 2002, 3:2022-2027.
[13]	KIM S H, PAR H K, YOO A, et al. Soft-restarting of free-run induction motors driven by small DC-link capacitor inverters[C]//2015 IEEE Energy Conversion Congress and Exposition (ECCE). IEEE, 2015:4441-4446.
[14]	曾令全, 王志霞, 刘耀年. 异步电动机无速度传感器再起动方法的研究[J]. 电工技术学报, 2003, 18(2):9-12.
	ZENG Lingquan, WANG Zhixia, LIU Yaonian. Research of speed sensorless restart method for asynchronous motor drive system[J]. Transactions of China Electrotechnical Society, 2003, 18(2):9-12.
[15]	HU W, WU Z, SUN L, et al. Strategy for restarting the free-running induction motor driven by a high-voltage inverter based on V/f fuzzy control[C]//2016 8th International Conference on Intelligent Human-Machine Systems and Cybernetics (IHMSC). IEEE, 2016, 1:99-102.
[16]	安亚刚. 基于高频注入法的异步电机无速度传感器控制[D]. 徐州: 中国矿业大学, 2014.
	AN Yagang. The speed sensorless control of asynchronous motor based on high frequency signal injection method[D]. Xuzhou: China University of Mining and Technology, 2014.
[17]	YANG H, ZHANG Y, WALKER P D, et al. A method to start rotating induction motor based on speed sensorless model-predictive control[J]. IEEE Transactions on Energy Conversion, 2016, 32(1):359-368. doi: 10.1109/TEC.2016.2614670
[18]	GOU L, YOU X, WANG C, et al. Integral sliding-mode method based on back-EMF for restarting speed sensorless controlled induction motor at free running status[C]// 2018 IEEE Energy Conversion Congress and Exposition (ECCE). IEEE, 2018:2382-2388.
[19]	PERNA D, DEL PIZZO A. An assisted speed-sensorless control of induction motor drives for railways applications[C]//2016 International Conference on Electrical Systems for Aircraft,Railway,Ship Propulsion and Road Vehicles & International Transportation Electrification Conference (ESARS-ITEC). IEEE, 2016:1-7.
[20]	熊成林, 冯晓云, 宋文胜. 牵引电动机无速度传感器带速重投解决方案[J]. 西南交通大学学报, 2012, 47(5):820-825.
	XIONG Chenglin, FENG Xiaoyun, SONG Wensheng. Solution for speed sensorless control system restarting at traction motor[J]. Journal of Southwest Jiaotong University, 2012, 47(5):820-825.

实际电机转速/Hz	观测转速/Hz	观测误差(%)
10	8.86	-11.4
20	19.16	-4.2
30	29.24	-2.5
40	39.37	-1.5
50	49.5	-1.0
60	58.82	-1.9
80	79.37	-0.78
100	98.04	-1.96
120	122	1.6
140	142.9	2.0
160	156.3	-2.3
