电气工程学报 ›› 2015, Vol. 10 ›› Issue (12): 7-12.doi: 10.11985/2015.12.002

• 理论研究 • 上一篇    下一篇

两自由度直驱感应电机耦合效应分析和矢量控制建模

司纪凯,韩俊波,谢璐佳,封海潮,许孝卓

  1. 河南理工大学电气工程与自动化学院 焦作 454000
  • 收稿日期:2015-08-28 出版日期:2015-12-25 发布日期:2020-04-09
  • 作者简介:司纪凯 男 1973年生,硕士生导师,主要研究方向为特种电机理论及控制系统。|韩俊波 男 1990年生,硕士研究生,主要研究方向为特种电机控制系统。
  • 基金资助:
    国家自然科学基金(51277054);河南理工大学中青年拔尖创新人才支持计划(HPU-SEEA001);河南省重点科技攻关计划(152102210101);河南理工大学创新团队资助项目(T2015-2)

Coupling Analysis and Field Orientation Control for Two Degree of Freedom Direct Drive Induction Motor

Jikai Si,Junbo Han,Lujia Xie,Haichao Feng,Xiaozhuo Xu

  1. Henan Polytechnic University Jiaozuo 454000 China
  • Received:2015-08-28 Online:2015-12-25 Published:2020-04-09

摘要:

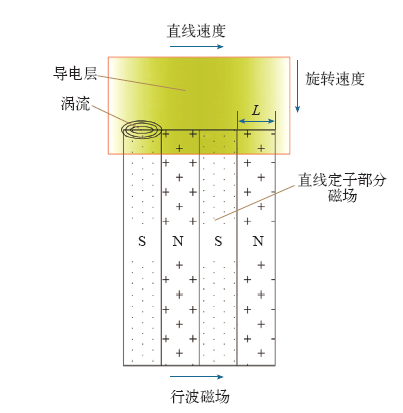

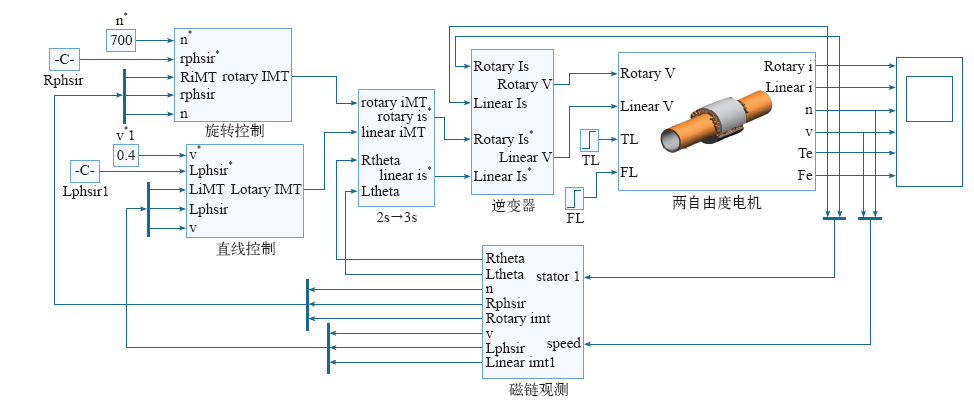

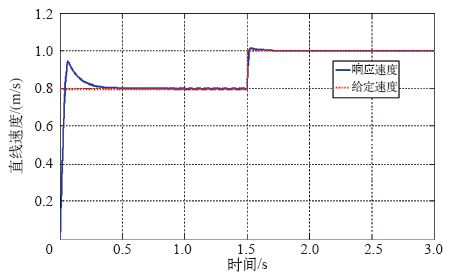

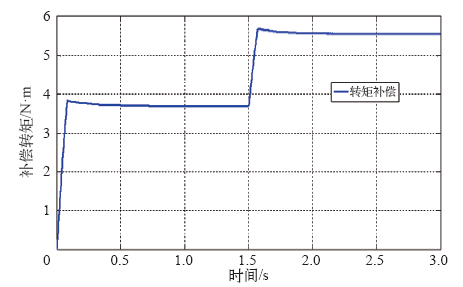

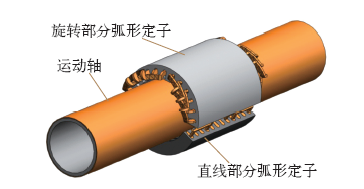

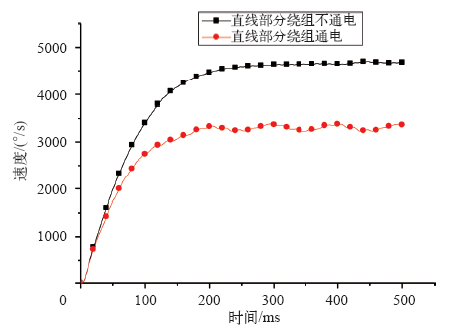

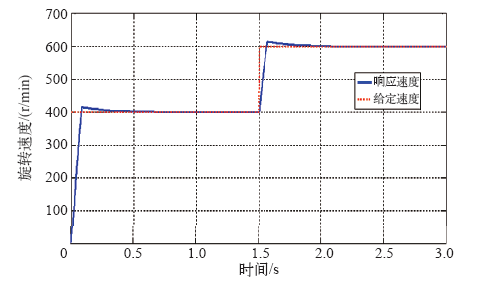

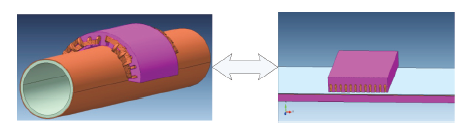

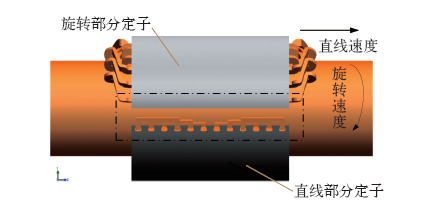

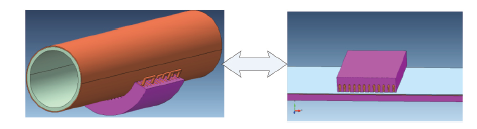

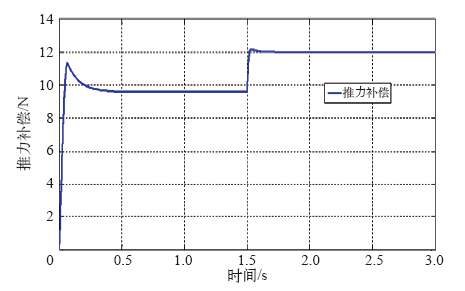

两自由度直驱感应电机轴端可以输出旋转运动、直线运动和螺旋运动。本文针对两自由度直驱感应电机的特殊结构与现象,建立耦合模型分析直线部分行波磁场对旋转运动的影响,修正了旋转部分转矩方程与直线部分推力方程。在两自由度直驱感应电机dq坐标系数学模型的基础上,建立该电机的转子磁场定向矢量控制模型,加入对直线部分与旋转部分耦合效应的动态补偿,在Matlab中搭建了该电机的矢量控制系统。仿真结果表明,旋转速度与直线速度能够快速跟踪给定速度,验证了考虑耦合效应动态补偿矢量控制模型的正确性。

关键词: 两自由度直驱感应电机, 耦合效应, 行波磁场, 动态补偿, 矢量控制

Abstract:

Two degree of freedom direct drive induction motor (2-DOFDDIM) can produce rotary motion, linear motion and helical motion. Aiming at the special structure and performance of 2-DOFDDIM, a coupled model is established to analyze the influence of traveling magnetic field on rotary motion. The torque equation of rotary part and thrust equation of linear part are corrected. A field orientation control scheme is developed which accounts for the coupling effects based on the mathematical model of 2-DOFDDIM and the field orientation control system is built in Matlab/Simulink. The result shows the rotary and linear speed can follows the given speeds rapidly, which verifies the field orientation control scheme considering coupling effect.

Key words: Two degree of freedom direct drive induction motor (2-DOFDDIM), coupling effect, traveling magnetic field, dynamic compensation, field orientation control
