牛从直流牛寨站典型故障仿真分析及保护改进建议

doi:10.11985/2021.02.022

电气工程学报 ›› 2021, Vol. 16 ›› Issue (2): 174-180.doi: 10.11985/2021.02.022

扫码分享

牛从直流牛寨站典型故障仿真分析及保护改进建议

代书龙(), 张锐()

中国南方电网超高压输电公司曲靖局曲靖 655000

收稿日期:2020-06-24 修回日期:2021-01-20 出版日期:2021-06-25 发布日期:2021-08-05
通讯作者: 代书龙 E-mail:951508268@qq.com;22121441@qq.com
作者简介:代书龙,男,1989年生,工程师。主要研究方向为高压直流输电系统电磁暂态仿真分析。E-mail： 951508268@qq.com
张锐,男,1974年生,高级工程师。主要研究方向为高压直流输电系统换流站运行与管理。E-mail： 22121441@qq.com

Typical Faults Simulation Analysis and Protection Improvement Suggestions of Niu-cong HVDC Niuzhai Station

DAI Shulong(), ZHANG Rui()

Qujing Bureau, CSG EHV Power Transmission Company, Qujing 655000

Received:2020-06-24 Revised:2021-01-20 Online:2021-06-25 Published:2021-08-05
Contact: DAI Shulong E-mail:951508268@qq.com;22121441@qq.com

摘要/Abstract

摘要：

为了研究牛从直流牛寨站发生各典型故障时的故障发展机理以及当前保护系统动作特性,以便为直流控制保护逻辑优化提供理论依据,在牛从直流PSCAD/EMTDC仿真模型中设置牛寨站各典型故障,研究发现牛寨站换流变网侧故障消除后直流系统可快速恢复正常。换流变阀侧及阀区接地故障均导致牛从直流牛寨侧接地极流过强电流,短路故障均导致交流侧发展为三相短路。指出当前牛从直流50 Hz保护存在的弊端,并提出改进措施。根据阀短路特性提出一种新型阀短路保护判据,可与当前保护原理构成双重化保护,为今后直流工程保护系统设计提供理论参考依据。

关键词: 牛从直流, 典型故障, PSCAD/EMTDC仿真, 50 Hz保护, 阀短路保护

Abstract:

In order to study the development mechanism of faults and the action characteristics of current protection system in Niu-cong HVDC Niuzhai station theoretical basis for HVDC control protection logic optimization is provided. The typical faults of Niuzhai station in the simulation model of Niu-cong HVDC PSCAD/EMTDC is set up. It is found that the HVDC system can return to normal quickly after eliminating the faults on the grid side of converter transformer of Niuzhai station. The grounding fault of valve side of converter transformer and valve area will results in strong current flowing through the grounding electrode of DC Niuzhai side, short circuit faults will leads to the development of three-phase short circuit in AC side. It points out the disadvantage of the current 50 Hz protection and puts forward the improvement measures. According to the characteristics of valve short-circuit, a new criterion of valve short-circuit protection is proposed, which can form dual protection with the current protection principle, and provide theoretical reference for the design of HVDC engineering protection system in the future.

Key words: Niu-cong HVDC, typical faults, simulation of PSCAD/EMTDC, 50 Hz protection, valve short circuit protection

中图分类号:

TM771

代书龙, 张锐. 牛从直流牛寨站典型故障仿真分析及保护改进建议[J]. 电气工程学报, 2021, 16(2): 174-180.

DAI Shulong, ZHANG Rui. Typical Faults Simulation Analysis and Protection Improvement Suggestions of Niu-cong HVDC Niuzhai Station[J]. Journal of Electrical Engineering, 2021, 16(2): 174-180.

图/表 10

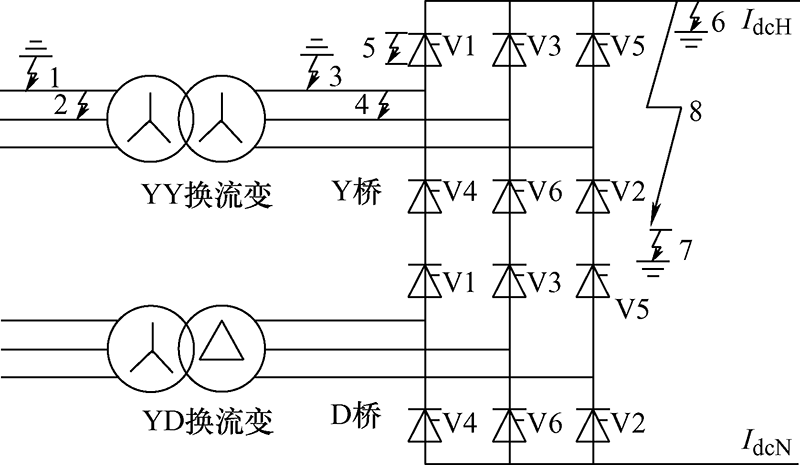

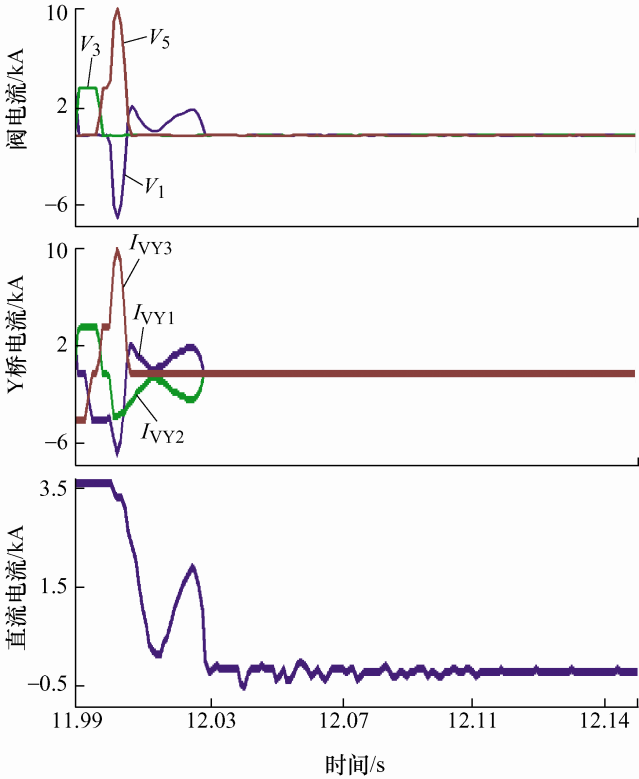

图1

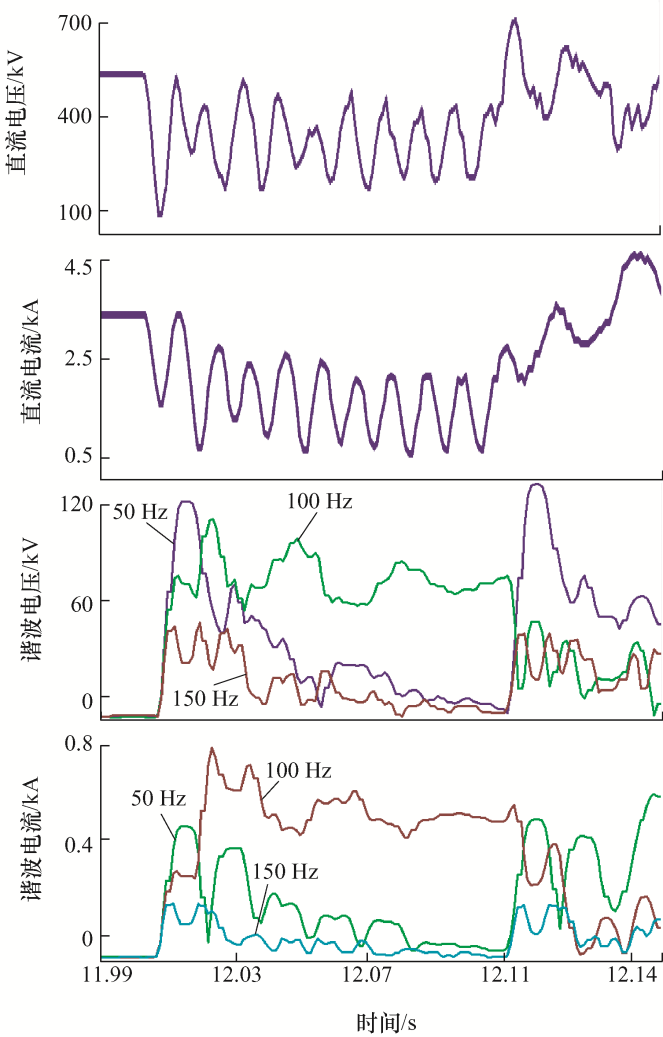

图2

表1

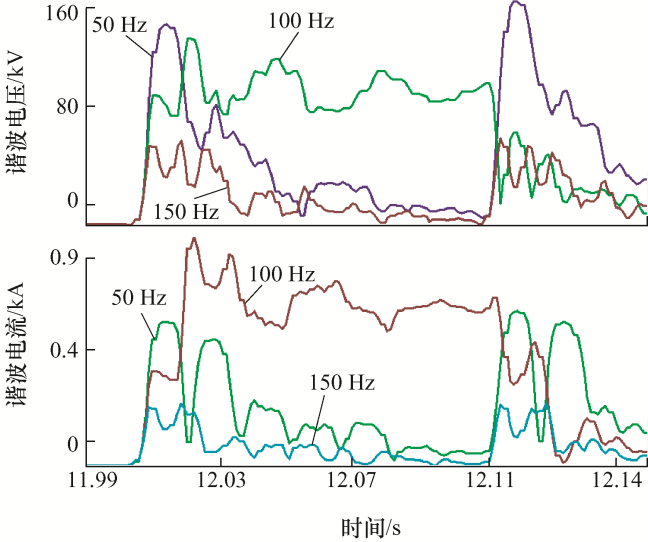

图3

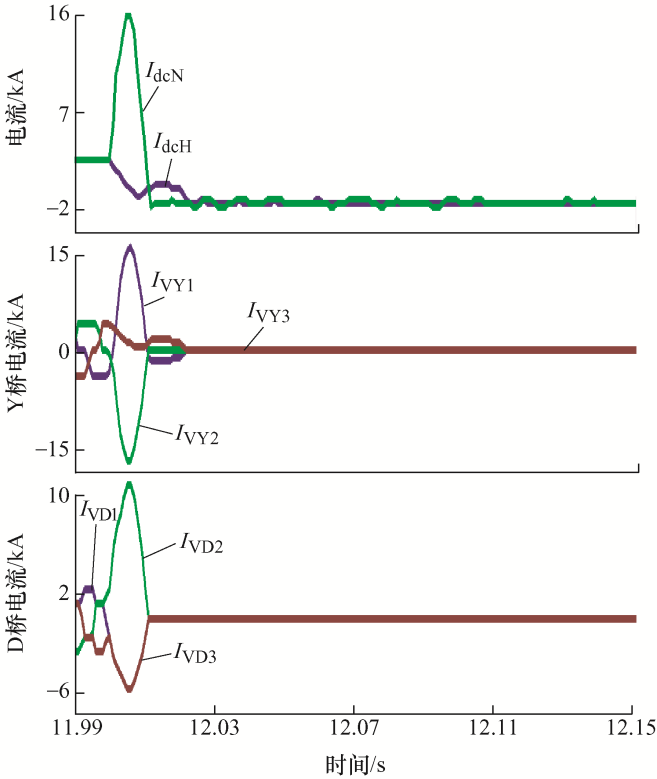

图4

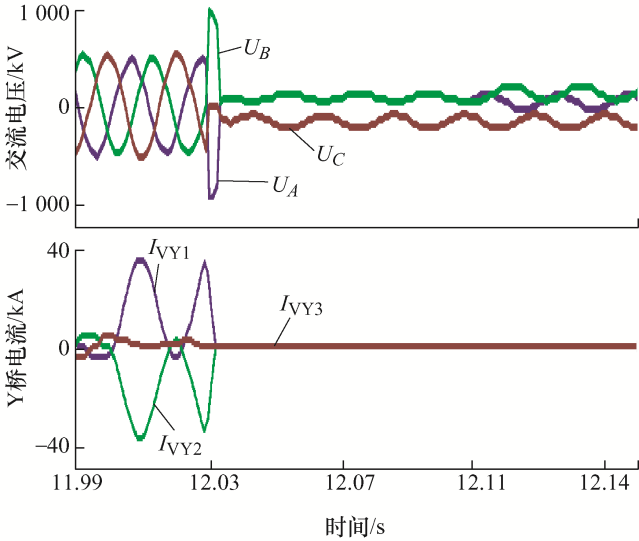

图5

图6

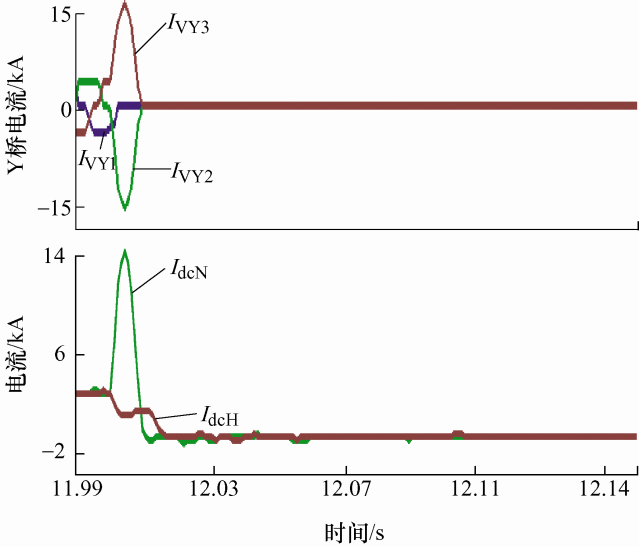

图7

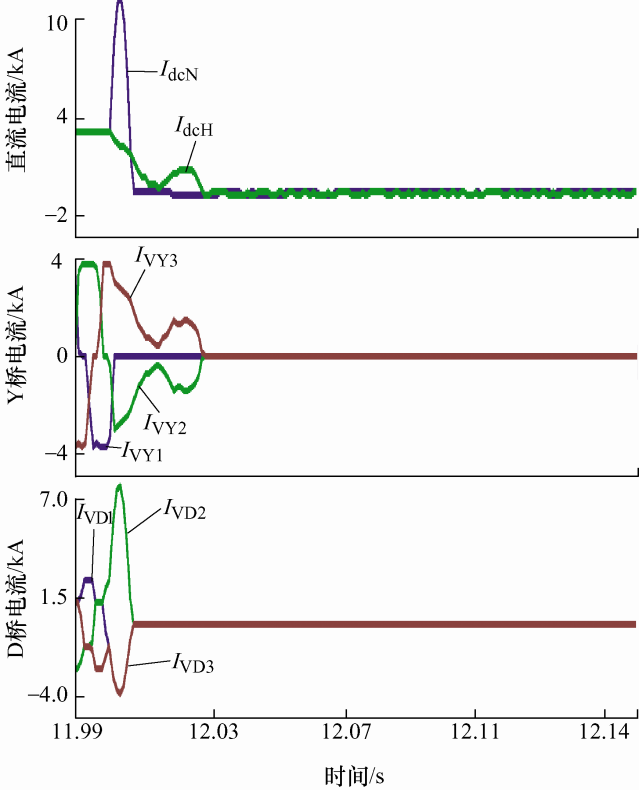

图8

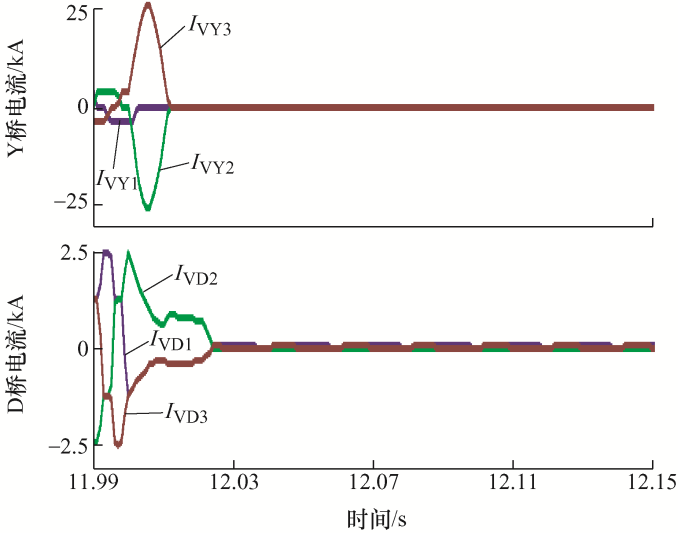

图9

参考文献 17

[1]	李道豫, 王圣平, 冯文昕, 等. 高压直流输电均压电极结垢的解析与改进[J]. 电气工程学报, 2019, 14(1):26-29.
	LI Daoyu, WANG Shengping, FENG Wenxin, et al. Analysis and improvement for scaling of grading electrodes in HVDC[J]. Journal of Electrical Engineering, 2019, 14(1):26-29.
[2]	严春香, 席颖颖, 翟鹏举, 等. 一起特高压直流输电工程控制保护装置通信故障的分析及处理[J]. 电气工程学报, 2019, 14(1):21-25.
	YAN Chunxiang, XI Yingying, ZHAI Pengju, et al. Analysis and treatment of communication faults of control and protection devices for HVDC transmission projects[J]. Journal of Electrical Engineering, 2019, 14(1):21-25.
[3]	李春华, 黄莹, 李明, 等. 一种抑制高压直流输电换相失败的优化控制策略[J]. 南方电网技术, 2017, 11(6):1-6.
	LI Chunhua, HUANG Ying, LI Ming, et al. An optimal control strategy to mitigate commutation failure of HVDC[J]. Southern Power System Technology, 2017, 11(6):1-6.
[4]	郭春义, 李春华, 刘羽超, 等. 一种抑制传统直流输电连续换相失败的虚拟电阻电流限制控制方法[J]. 中国电机工程学报, 2016, 36(18):4930-4937.
	GUO Chunyi, LI Chunhua, LIU Yuchao, et al. A DC current limitation control method based on virtual-resistance to mitigate the continuous commutation failure for conventional HVDC[J]. Proceedings of the CSEE, 2016, 36(18):4930-4937.
[5]	刘羽超, 郭春义, 许韦华, 等. 一种降低直流输电换相失败概率的控制方法[J]. 电网技术, 2015, 39(1):76-82.
	LIU Yuchao, GUO Chunyi, XU Weihua, et al. A control method to reduce commutation failure probability in HVDC power transmission[J]. Power System Technology, 2015, 39(1):76-82.
[6]	彭忠, 李少华, 李泰, 等. 高压直流输电系统抑制换相失败的最小关断面积控制策略[J]. 电力系统保护与控制, 2015, 43(17):75-80.
	PENG Zhong, LI Shaohua, LI Tai, et al. A minimum extinction area control strategy to suppress commutation failure in HVDC transmission system[J]. Power System Protection and Control, 2015, 43(17):75-80.
[7]	余江, 周红阳, 黄佳胤, 等. 影响直流100 Hz保护的交流系统故障范围分析[J]. 电力系统自动化, 2008, 32(3):48-51.
	YU Jiang, ZHOU Hongyang, HUANG Jiayin, et al. Impact of fault location in AC system to 100 Hz protection of HVDC[J]. Automation of Electric Power Systems, 2008, 32(3):48-51.
[8]	马玉龙, 肖湘宁, 江旭. 交流系统接地故障对 H VDC 的影响分析[J]. 中国电机工程学报, 2006, 26(11):144-149.
	MA Yulong, XIAO Xiangning, JIANG Xu. Analysis of the impact of AC single phase earth fault on HVDC[J]. Proceedings of the CSEE, 2006, 26(11):144-149.
[9]	汪隆君, 王刚, 李海锋, 等. 交流系统故障诱发多直流馈入系统换相失败风险评估[J]. 电力系统自动化, 2011, 35(3):8-13.
	WANG Longjun, WANG Gang, LI Haifeng, et al. Risk evaluation of commutation failure in multi-infeed HVDC systems under AC system fault conditions[J]. Automation of Electric Power Systems, 2011, 35(3):8-13.
[10]	朱韬析, 武诚, 王超. 交流系统故障对直流输电系统的影响及改进建议[J]. 电力系统自动化, 2009, 33(1):93-97.
	ZHU Taoxi, WU Cheng, WANG Chao. Influence of AC system fault on HVDC system and improvement suggestions[J]. Automation of Electric Power Systems, 2009, 33(1):93-97.
[11]	余江, 周红阳, 黄佳胤, 等. 交流系统故障导致直流线路保护动作的分析[J]. 南方电网技术, 2009, 3(3):20-23.
	YU Jiang, ZHOU Hongyang, HUANG Jiayin, et al. Analysis on HVDC line protection action due to AC system fault[J]. Southern Power System Technology, 2009, 3(3):20-23.
[12]	曾宪刚, 王志滨, 吕伟权. 交直流混合系统中交流故障对直流的影响分析[J]. 高电压技术, 2004, 30(3):60-62.
	ZENG Xiangang, WANG Zhibin, LÜ Weiquan. Analysis on influence of AC system fault in AC/DC hybrid system on HVDC[J]. High Voltage Engineering, 2004, 30(3):60-62.
[13]	邱伟. 溪洛渡右岸电站送电广东±500 kV同塔双回直流输电工程主回路参数[R]. 广州:中国南方电网科学研究院, 2012.
	QIU Wei. Xiluodu right station-Guangdong double line ±500 kV DC transmission project main circuit parameters[R]. Guangzhou:China Southern Power Grid Research Institute, 2012.
[14]	杨汾艳, 朱韬析, 丁晓兵, 等. 考虑涌流影响的直流线路50 Hz保护分量机理性研究[J]. 高电压技术, 2015, 41(10):3363-3371.
	YANG Fenyan, ZHU Taoxi, DING Xiaobing, et al. Research on 50 Hz component in HVDC transmission lines considering the influence of inrush current[J]. High Voltage Engineering, 2015, 41(10):3363-3371.
[15]	樊丽娟, 黄莹, 徐迪臻, 等. 送端励磁涌流对溪洛渡直流50 Hz保护的影响[J]. 南方电网技术, 2015, 9(6):34-38.
	FAN Lijuan, HUANG Ying, XU Dizhen, et al. Impact of magnetizing inrush current at sending end on 50 Hz protection of Xiluodu HVDC transmission project[J]. Southern Power System Technology, 2015, 9(6):34-38.
[16]	傅闯, 饶宏, 黎小林. 交直流混合电网中直流50 Hz和100 Hz保护研究[J]. 电力系统自动化, 2008, 32(12):57-60.
	FU Chuang, RAO Hong, LI Xiaolin. HVDC 50 Hz and 100 Hz protection of AC/DC hybrid transmission system[J]. Automation of Electric Power System, 2008, 32(12):57-60.
[17]	李晓华, 吴嘉琪, 丁晓兵, 等. 采用波形识别的直流50 Hz保护优化改进策略[J]. 电力系统自动化, 2017, 41(24):159-163.
	LI Xiaohua, WU Jiaqi, DING Xiaobing, et al. Optimization and improvement strategy for direct current 50 Hz protection using waveform recognition[J]. Automation of Electric Power Systems, 2017, 41(24):159-163.

时间	原因	50 Hz保护动作情况
2014年04月14日19:42	牛从乙直流极1换流变充电	从西站牛从甲双极切换控制系统,牛从甲直流功率由1 550 MW降至960 MW
2014年05月19日23:39	溪洛渡电厂17号主变充电	从西站牛从甲切换控制系统,牛从甲直流极2的50 Hz保护动作,该极转为备用状态,牛从甲直流极1功率回降
2014年06月02日00:43 2014年06月02日21:04	牛从乙直流极2换流变充电	从西站牛从甲双极切换控制系统,功率回降目标值为960 MW(充电前功率已调整为960 MW)
2014年06月02日20:45 2014年06月02日22:35 2014年06月02日22:51	牛从乙直流极2换流变充电	从西站牛从甲双极切换控制系统
