导线滑移导致的NXJ型耐张线夹失效原因分析及结构性优化 *

doi:10.11985/2021.01.019

摘要/Abstract

摘要：

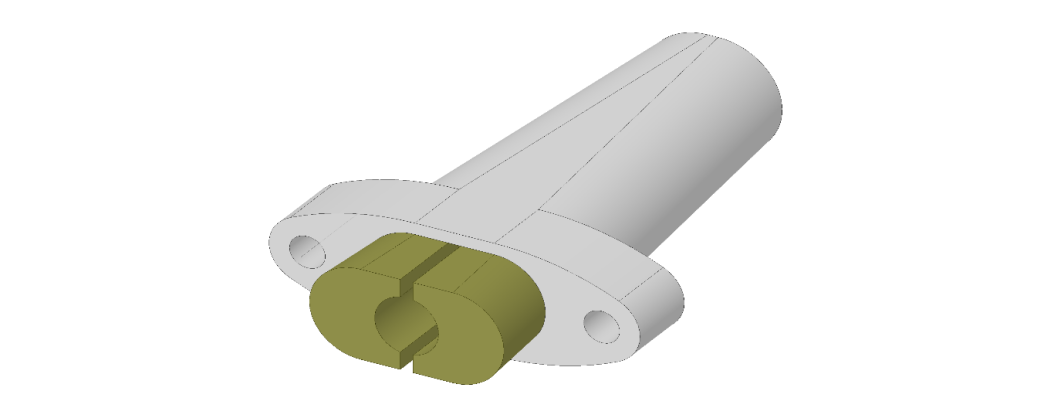

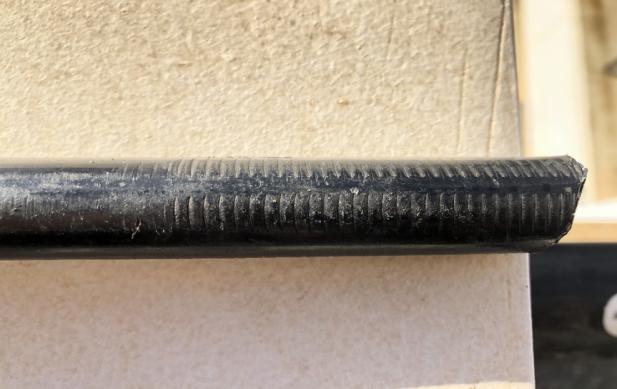

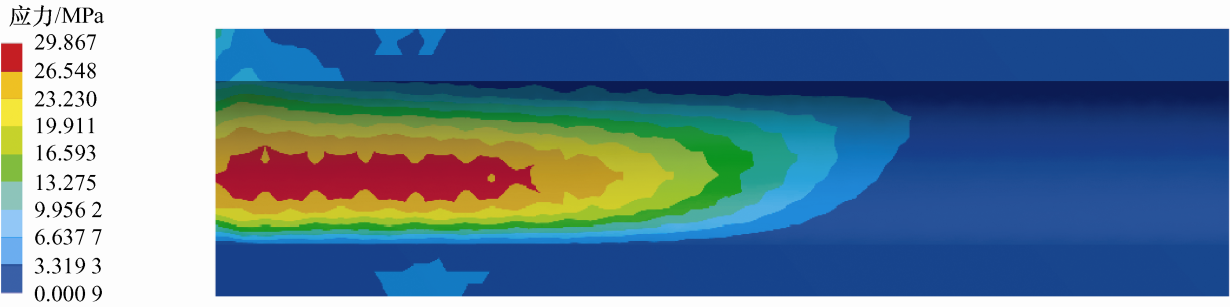

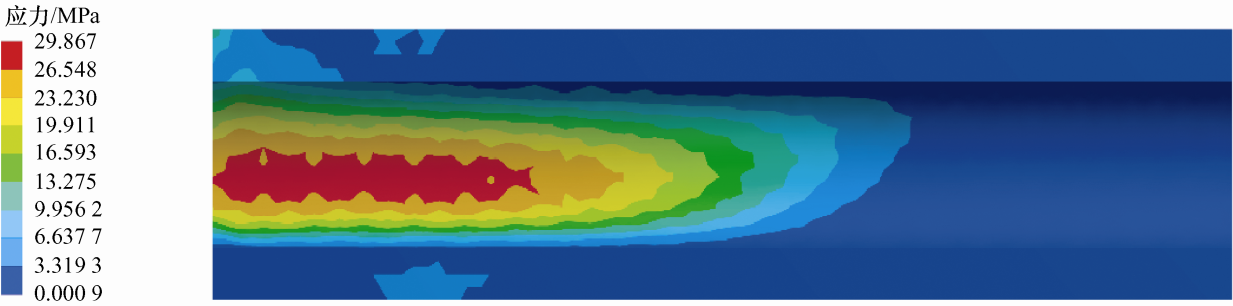

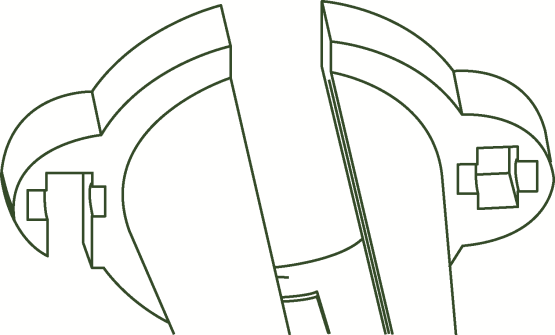

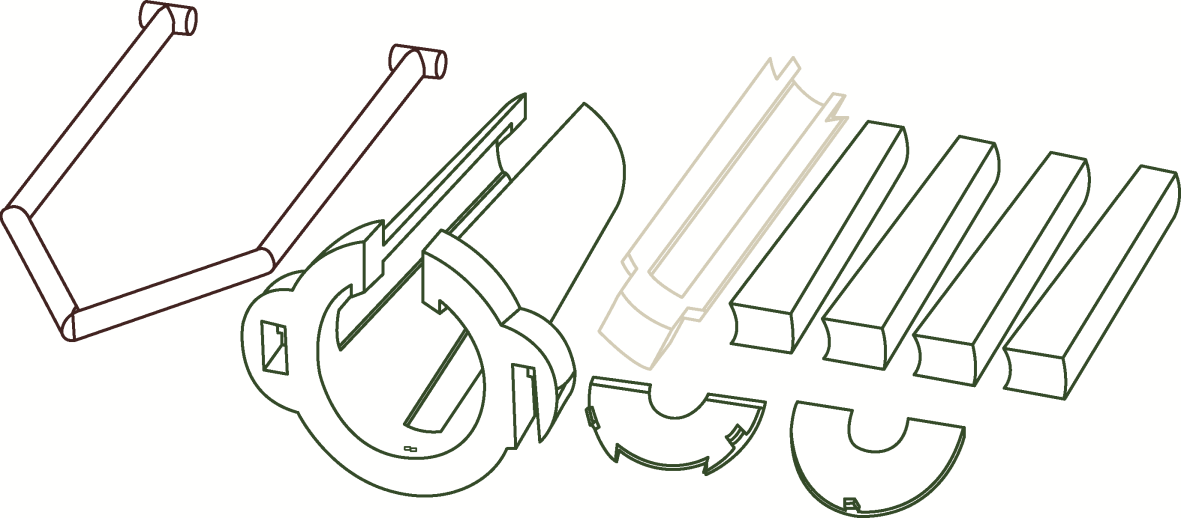

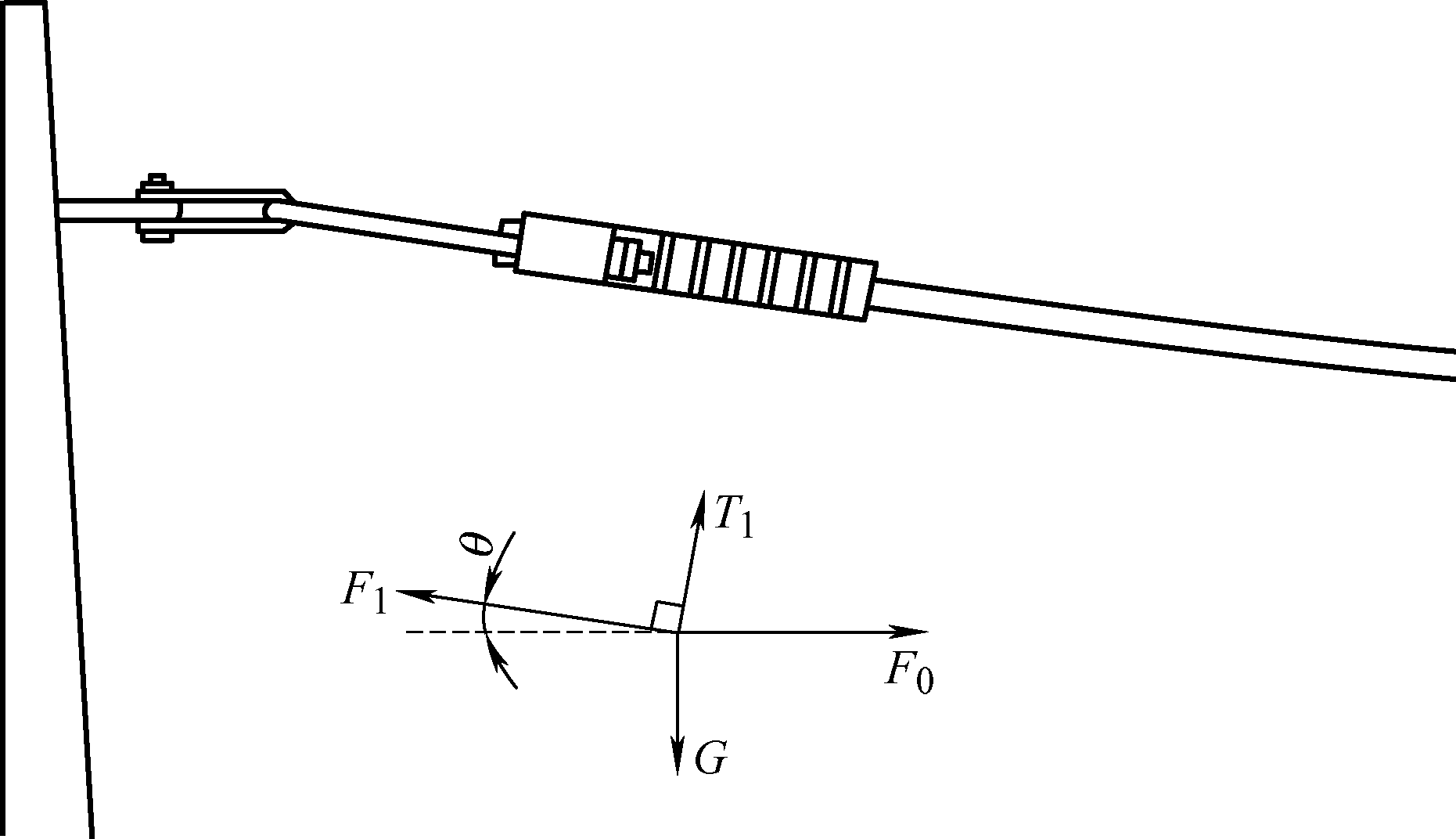

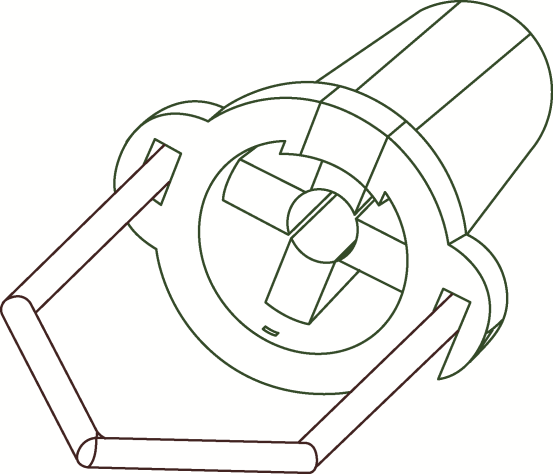

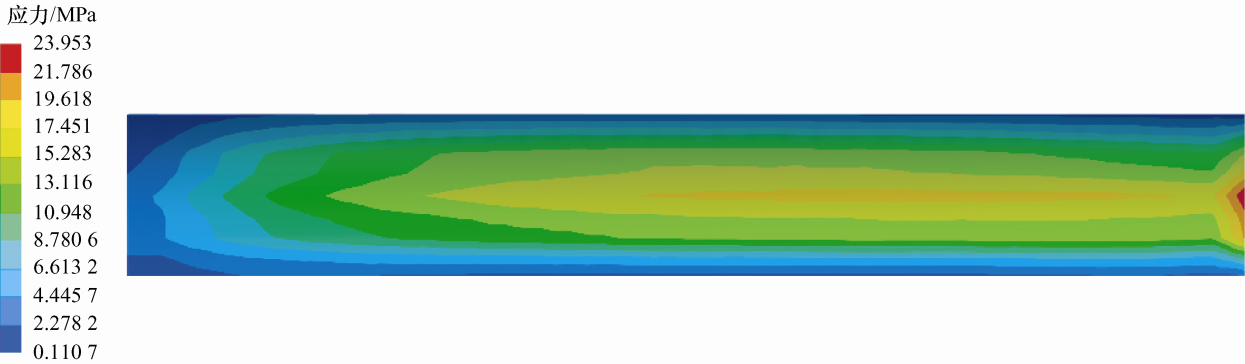

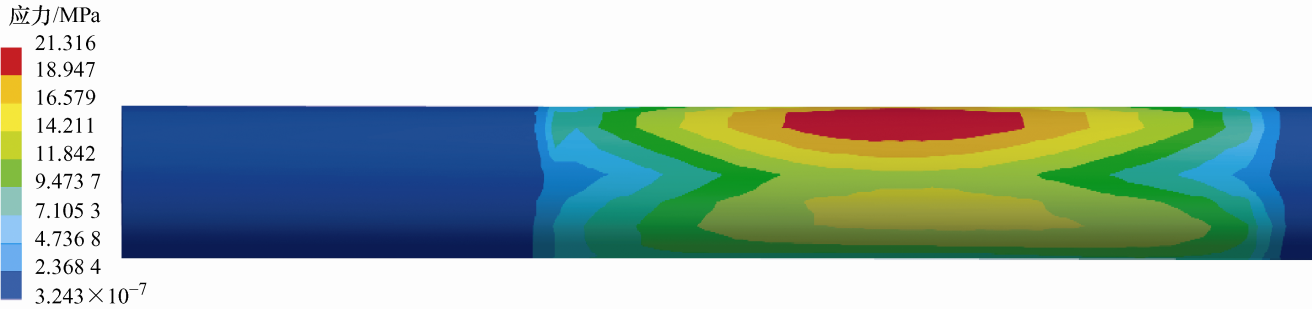

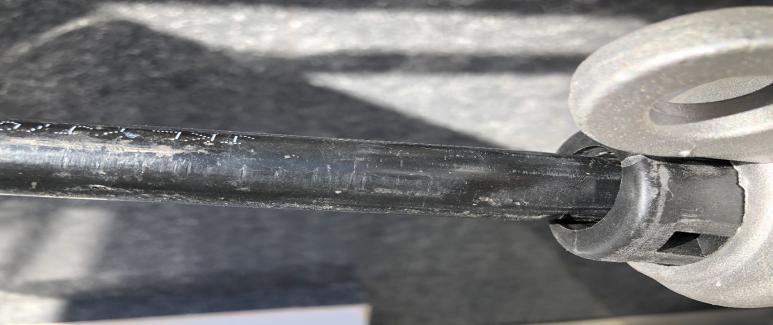

NXJ型耐张线夹在配电网架空线路中应用颇广,但随着使用年限增长,线夹握力下降、绝缘导线松动滑移等问题严重影响配电系统的安全性,这可能导致严重的后果。针对NXJ-185型耐张线夹,利用有限元软件建立三维模型并进行静力学仿真,模拟该型线夹在实际使用中的应力分布情况。仿真结果表明,线夹楔块弧槽侧应力的过于集中是导致NXJ型耐张线夹失效的重要原因。在此基础上提出优化方案,利用有限元软件仿真发现,优化方案能有效解决应力过于集中的问题。

关键词: NXJ型耐张线夹, 有限元仿真, 静力学, 失效原因, 结构性优化

Abstract:

NXJ-type strain clamps are widely used in overhead lines of distribution networks, but with the increase of service life, the decline of wire grip force, loosening and slippage of insulated wire and other problems seriously affect the safety of distribution system, which may lead to serious consequences. Aiming at the NXJ-185-type strain clamp, the three-dimensional model is established by using the finite element software to simulate the stress distribution of the clamp in actual use in the static simulation, the failure causes are analysed, and the structural optimization scheme is put forward. The simulation results show that the non-uniform stress on the groove side of clamp wedge is the main reason for the failure of the NXJ-type strain clamp. On this basis, the optimization scheme is put forward, and the finite element software simulation development shows that the optimization scheme can effectively solve the problem of excessive stress concentration.

Key words: NXJ-type strain clamp, finite element simulation, statics, reason for failure, structural optimization

中图分类号:

TM726

王云辉, 颜涛, 李学, 陈勇. 导线滑移导致的NXJ型耐张线夹失效原因分析及结构性优化 ^*[J]. 电气工程学报, 2021, 16(1): 149-156.

WANG Yunhui, YAN Tao, LI Xue, CHEN Yong. Analysis of Failure Caused by Wire Slippage and Structural Optimization of NXJ-type Strain Clamp[J]. Journal of Electrical Engineering, 2021, 16(1): 149-156.

图/表 14

表1

图1

表2

图2

图3

图4

表3

图5

图6

图7

图8

图9

图10

图11

参考文献 25

[1]	郑宇, 白雪松, 马鑫晟. 架空绝缘导线在网改工程中出现的问题及对策[J]. 华北电力技术, 2013(6):50-52,60.
	ZHENG Yu, BAI Xuesong, MA Xinsheng. The problems and countermeasures of overhead insulated conductors in the network reconstruction project[J]. North China Electric Power Technology, 2013 (6):50-52,60.
[2]	薛蓉, 付慧, 马勇, 等. 配网线路防雷措施分析与研究[J]. 高压电器, 2017,53(9):17-22.
	XUE Rong, FU Hui, MA Yong, et al. Analysis and research on lightning protection measures for distribution network lines[J]. High Voltage Electrical Apparatus, 2017,53(9):17-22.
[3]	路永玲. 10~20 kV架空配电线路跳闸故障及其防治对策分析[J]. 江苏电机工程, 2016,35(1):84-86.
	LU Yongling. 10-20 kV overhead distribution line tripping fault and its prevention countermeasure analysis[J]. Jiangsu Electrical Engineering, 2016,35(1):84-86.
[4]	屠荣平, 刘永丰. 10 kV架空绝缘导线雷击原因及防雷措施[J]. 中国电业, 2013(9):9-11.
	TU Rongping, LIU Yongfeng. Causes of lightning strikes and lightning protection measures for 10 kV overhead insulated conductors[J]. China Electric Industry, 2013(9):9-11.
[5]	陆干文, 李炳雄. 配网架空绝缘导线防雷技术研究[J]. 电气自动化, 2013,35(3):77-79,86.
	LU Ganwen, LI Bingxiong. Research on lightning protection technology for overhead insulated conductors in distribution networks[J]. Electrical Automation, 2013,35(3):77-79,86.
[6]	董选昌, 曲烽瑞, 李艳飞, 等. 架空线路耐张线夹三维温度场仿真分析及验证[J]. 西南交通大学学报, 2019,54(5):997-1004.
	DONG Xuanchang, QU Fengrui, LI Yanfei, et al. Simulation analysis and verification of the three-dimensional temperature field of the tension clamp of the overhead line[J]. Journal of Southwest Jiaotong University, 2019,54(5):997-1004.
[7]	胡加瑞, 刘纯, 欧阳克俭, 等. 500 kV直流输电线路耐张线夹断裂的原因分析[J]. 电力建设, 2012,33(7):82-85.
	HU Jiarui, LIU Chun, OUYANG Kejian, et al. Analysis of the causes of breakage of the strain clamp on 500 kV DC transmission lines[J]. Electric Power Construction, 2012,33(7):82-85.
[8]	刘纯, 陈红冬, 欧阳克俭, 等. 碳纤维复合芯导线耐张线夹断裂分析[J]. 中国电力, 2015,48(10):97-100,106.
	LIU Chun, CHEN Hongdong, OUYANG Kejian, et al. Fracture analysis of tensile clamp of carbon fiber composite core conductor[J]. China Electric Power, 2015,48(10):97-100,106.
[9]	王邦磊, 陈燕, 王军, 等. 架空线路从耐张线夹中脱落的原因分析[J]. 农村电气化, 2016(9):34-35.
	WANG Banglei, CHEN Yan, WANG Jun, et al. Analysis of the reason why the overhead line falls off from the strain clamp[J]. Rural Electrification, 2016(9):34-35.
[10]	秦力, 刘芳卉, 宋阳. 碳纤维复合芯导线股线应力有限元分析[J]. 水电能源科学, 2017,35(5):182-186.
	QIN Li, LIU Fanghui, SONG Yang. Finite element analysis of strand stress of carbon fiber composite core wire[J]. Hydropower Energy Science, 2017,35(5):182-186.
[11]	秦力, 张超. 分裂导线-间隔棒体系扭转刚度的计算[J]. 东北电力大学学报, 2014,34(1):73-79.
	QIN Li, ZHANG Chao. Calculation of torsional stiffness of split conductor-spacer rod system[J]. Journal of Northeast Dianli University, 2014,34(1):73-79.
[12]	朱宽军, 刘超群, 任西春. 架空输电线路舞动时导线动态张力分析[J]. 中国电力, 2005(10):40-44.
	ZHU Kuanjun, LIU Chaoqun, REN Xichun. Analysis of dynamic tension of conductors when overhead transmission lines galloping[J]. China Electric Power, 2005(10):40-44.
[13]	邵天晓. 架空送电线路的电线力学计算[M]. 北京: 中国电力出版社, 2003.
	SHAO Tianxiao. Calculation of wire mechanics for overhead transmission lines[M]. Beijing: China Electric Power Press, 2003.
[14]	闻邦椿. 机械设计手册第1卷:常用设计资料[M]. 5版. 北京: 机械工业出版社, 2014.
	WEN Bangchun. Mechanical design handbook,Volume 1:Common design information[M]. 5th ed. Beijing: China Machine Press, 2014.
[15]	中华人民共和国国家能源局. DL/T 757—2009,中华人民共和国电力行业标准:耐张线夹[S]. 北京: 中国电力出版社, 2009.
	National Energy Administration of the People’s Republic of China. DL/T 757—2009,Standard of the Electric Power Industry of the People’s Republic of China:Strain clamp[S]. Beijing: China Electric Power Press, 2009.
[16]	兰逢涛, 陈新, 王英男, 等. 新型输电线路用碳纤维复合芯蠕变行为预测[J]. 玻璃钢/复合材料, 2014(3):31, 41-44.
	LAN Fengtao, CHEN Xin, WANG Yingnan, et al. Prediction of creep behavior of carbon fiber composite core for new transmission lines[J]. Fiberglass/Composite Materials, 2014(3):31, 41-44.
[17]	余虹云, 王梁, 李瑞, 等. 架空导线用碳纤维复合芯棒拉伸破坏形式分析[J]. 中国电力, 2014,47(1):49-52.
	YU Hongyun, WANG Liang, LI Rui, et al. Analysis of tensile failure mode of carbon fiber composite mandrel for overhead conductor[J]. China Electric Power, 2014,47(1):49-52.
[18]	毛先胤, 盛戈皞, 刘亚东, 等. 架空输电线路暂态载流能力的计算和评估[J]. 高压电器, 2011,47(1):70-74.
	MAO Xianyin, SHENG Gehao, LIU Yadong, et al. Calculation and evaluation of transient current-carrying capacity of overhead transmission lines[J]. High Voltage Apparatus, 2011,47(1):70-74.
[19]	ZHOU Yutong, ZHOU Zhengqiang, WANG Jionggeng, et al. Study on cracking of aluminum alloy strain clamps for 500 kV transmission line[J]. Solid State Phenomena, 2018: 10-15.
[20]	SUN Mingcheng, TAN Che, ZHANG Chaoqun, et al. Analysis of strain clamp failure on 500 kV transmission line[J]. Journal of Materials Science and Chemical Engineering, 2018,6(4):47-56.
[21]	钱诗林, 张远, 王飞, 等. 220 kV输电线路耐张线夹断裂初步分析及运维建议[J]. 河南科技, 2015(22):80-81.
	QIAN Shilin, ZHANG Yuan, WANG Fei, et al. Preliminary analysis and operation suggestions of tension clamp fracture in 220 kV transmission line[J]. Henan Science and Technology, 2015(22):80-81.
[22]	冯爱军, 金榕. 影响导线压接握着力的因素分析[J]. 电力建设, 2011,32(11):85-88.
	FENG Aijun, JIN Rong. Analysis of factors affecting the grip strength of wire crimp[J]. Electric Power Construction, 2011,32(11):85-88.
[23]	LIU Rong, HU Xiaoli, ZHANG Hao, et al. Research on detection technology of wire clamp on overhead lines[J]. The Journal of Engineering, 2019(16):872-875.
[24]	LÜ Zhanjie, LIU Guanchen, WANG Meng, et al. Research on the relationship between steel core and tubes of clamp crimped size and tensile capacity of overhead wires based on X‐ray[J]. Science Technology and Engineering, 2015,15(5):243-247.
[25]	XU Xuexia, FENG Yanting, KE Hao, et al. Failure analysis on strain clamp on 220 kV transmission line[J]. Advanced Materials Research, 2013: 1405-1409.

名称	材料	密度/(g·cm^-3)	弹性模量/MPa	泊松比
线夹主体	铝合金	2.77	71 000	0.33
楔块	高密度聚乙烯	0.965	950	0.41
