模块化细轭部磁通切换永磁直线电机及其控制 *

doi:10.11985/2021.01.001

摘要/Abstract

摘要：

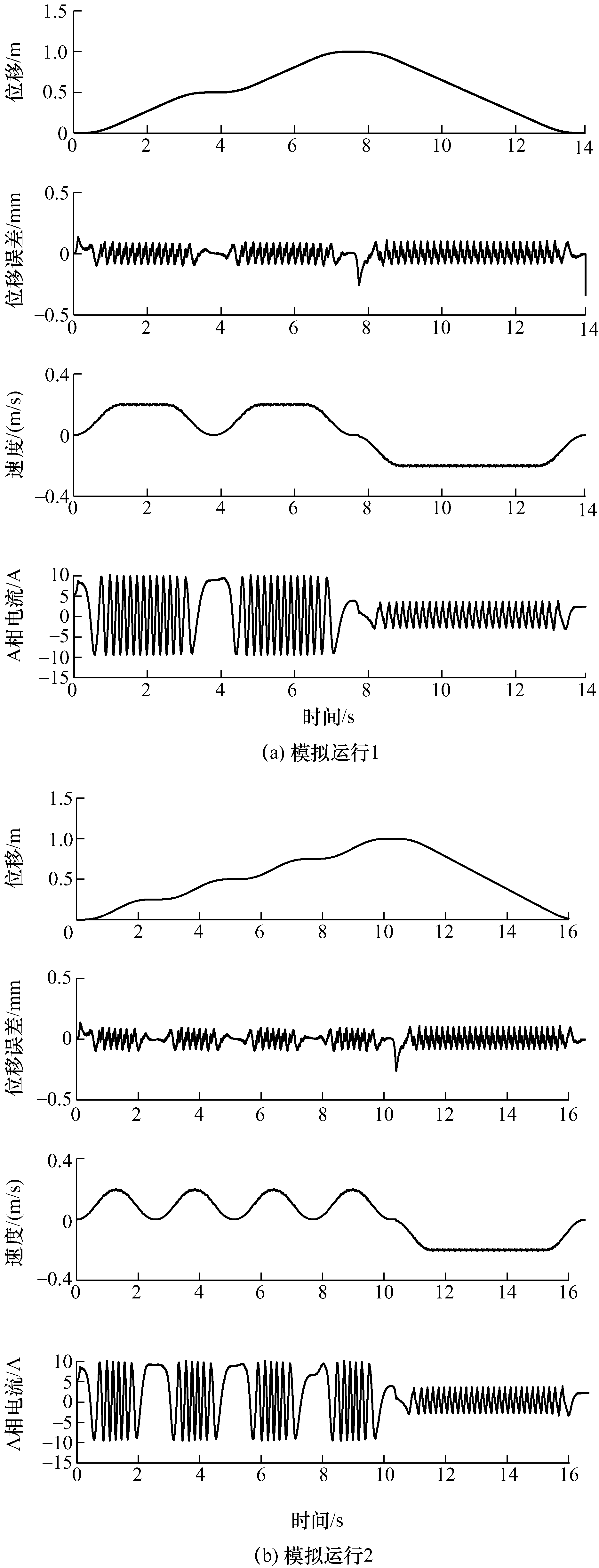

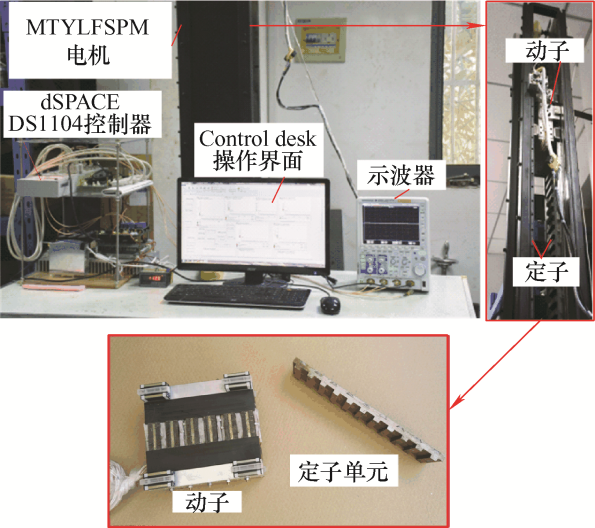

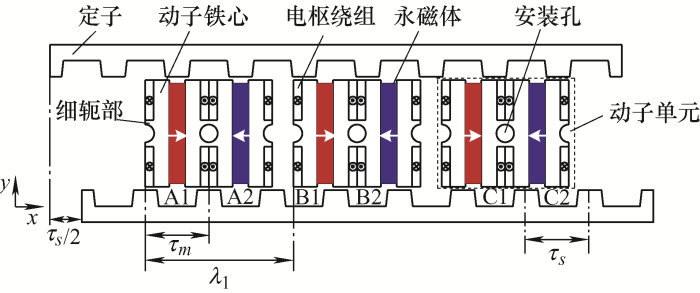

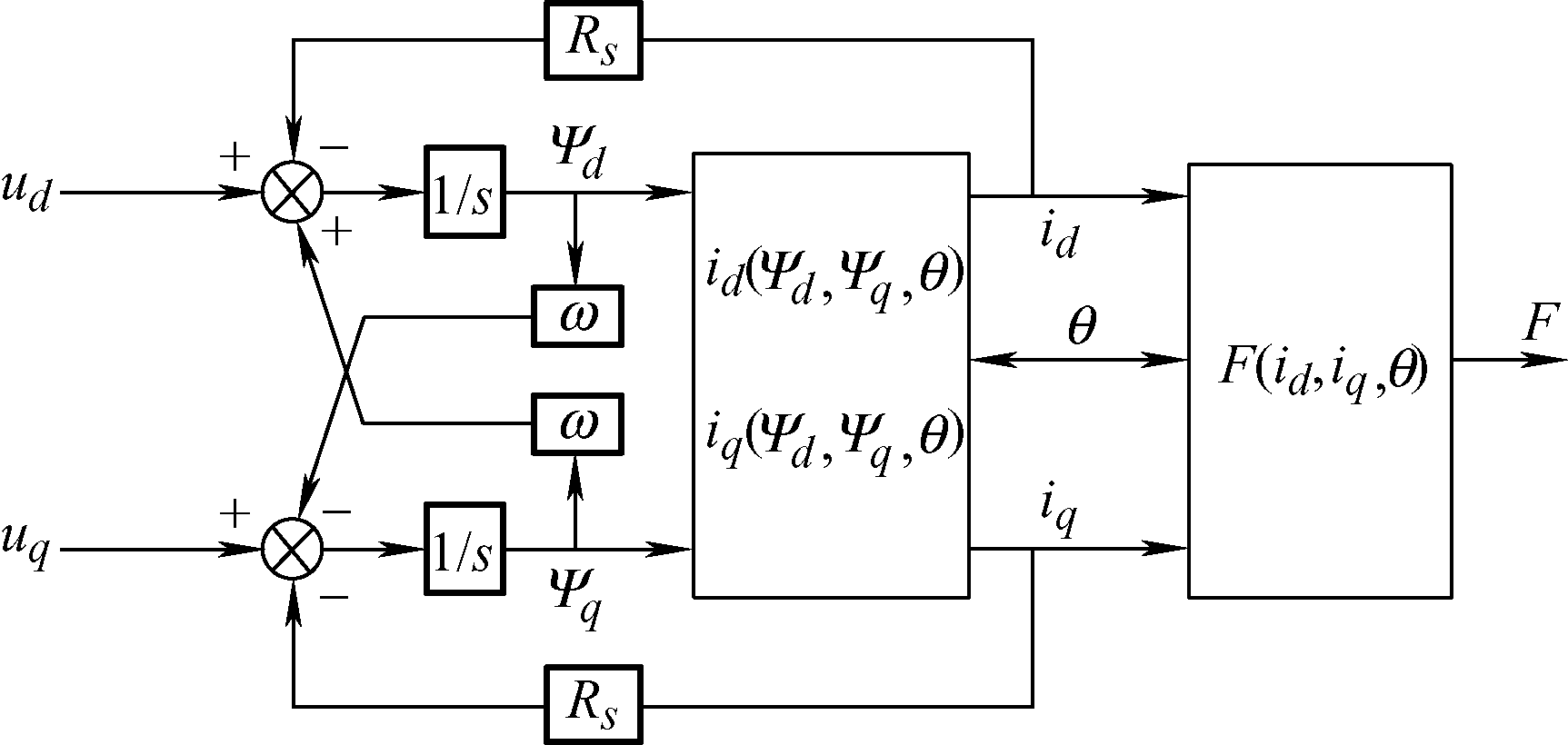

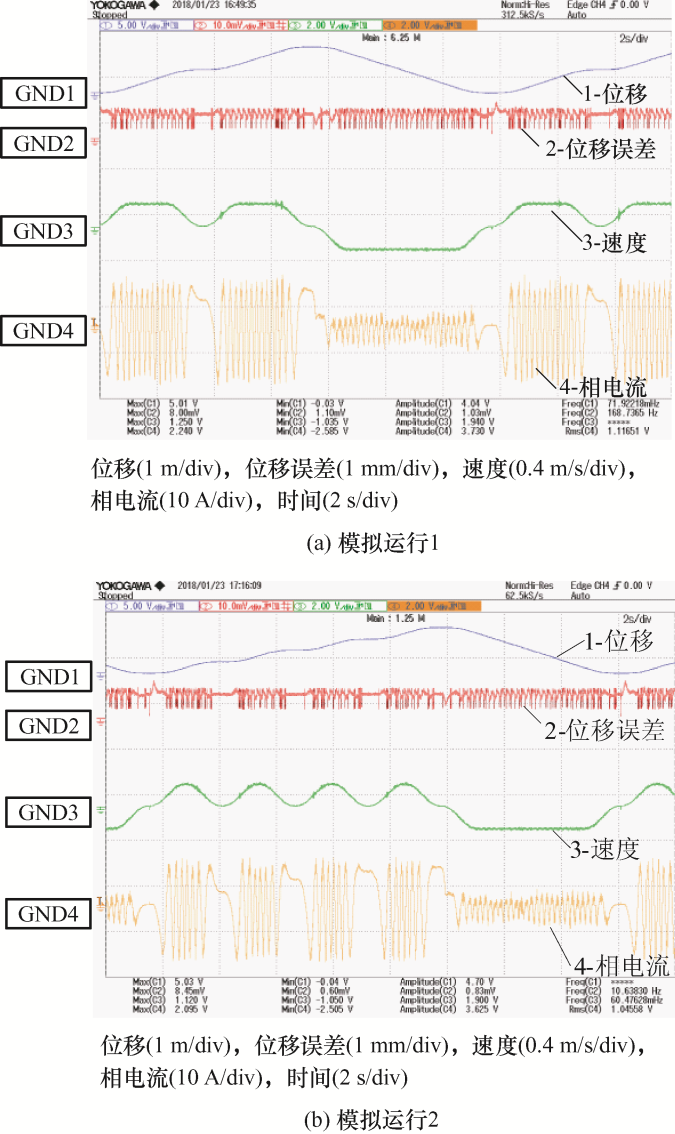

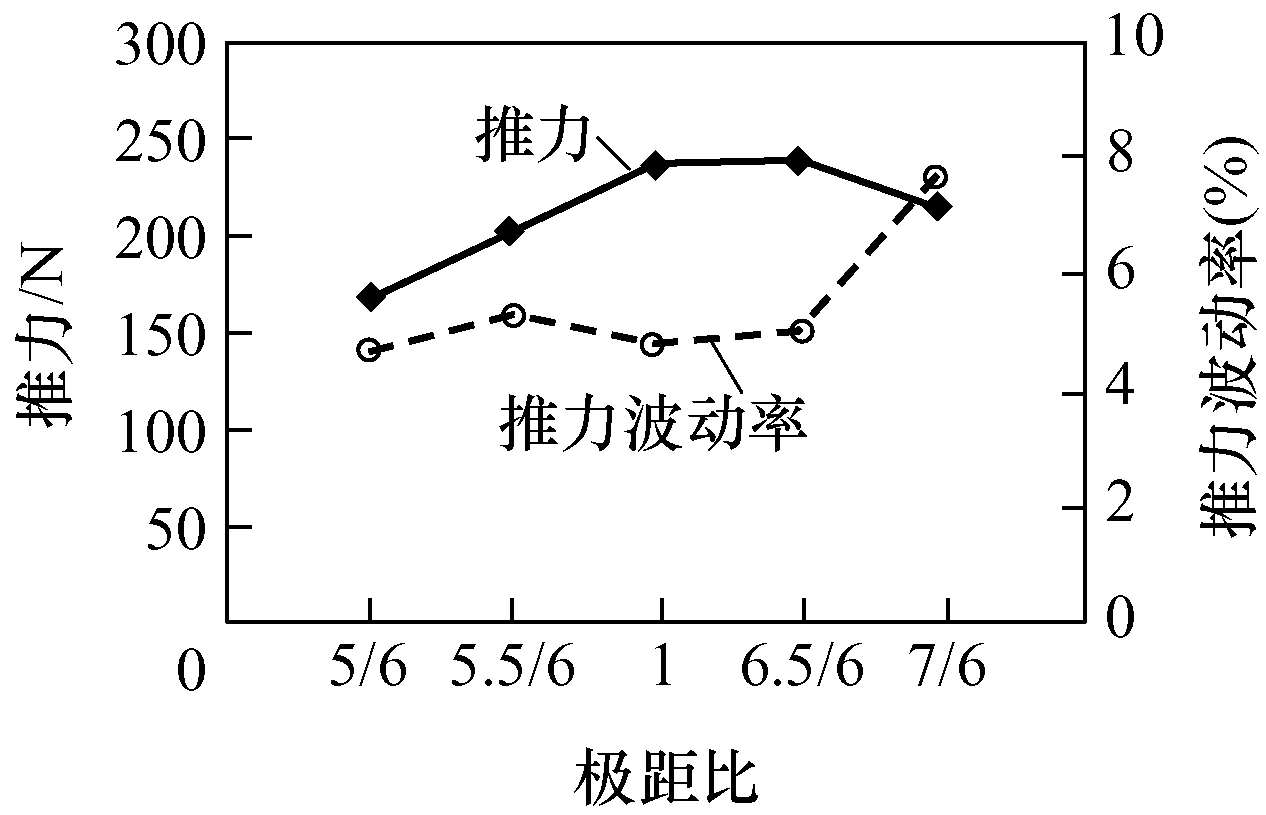

文章提出一种适用于无绳电梯应用领域的模块化细轭部磁通切换永磁直线(Modular thin yoke linear flux-switching permanent magnet,MTYLFSPM)电机并搭建其控制系统。该电机为双边结构,驱动电梯轿厢的初级动子包含永磁体和电枢绕组,而沿井道铺设的次级定子仅由导磁铁心构成。MTYLFSPM电机具有结构简单可靠、成本低、推力密度高等优点。文章对该电机的结构特性、工作原理以及极距比对性能的影响进行讨论。基于Simulink搭建MTYLFSPM电机模型、系统仿真模型并模拟电梯上下运行。制造了一台MTYLFSPM试验样机,进行了参数测量和模拟运行试验,试验结果与理论分析和仿真结果吻合,验证了理论分析的正确性和MTYLFSPM系统的可行性。

关键词: 磁通切换永磁电机, 直线电机, 模块化结构, 电机建模, 无绳电梯

Abstract:

For ropeless elevator propulsion, a modular thin yoke linear flux-switching permanent magnet (MTYLFSPM) machine is proposed and its drive control system is built. The proposed machine is double-sided structure. The short primary mover consists of permanent magnets and armature windings, which can be installed in elevator car. The secondary stators are made of iron core and can be distributed along the hoist way. Hence, this MTYLFSPM machine possesses merits, such as simple and robust structure, low cost and high thrust force density. The structure, operation principle and the effects of pole pitch ratio are illustrated. Then, based on Simulink, the accurate machine model and drive control system are built for elevator operation simulation. Finally, a MTYLFSPM prototype is manufactured. The machine parameters are measured and elevator operation experiment is performed. The experimental results agree with the simulation results, validating the performance analysis and the feasibility of the MTYLFSPM machine system.

Key words: Flux-switching permanent magnet machine, linear machine, modular structure, machine modeling, ropeless elevator

中图分类号:

TM359

程明, 张邦富, 王飒飒, 王伟. 模块化细轭部磁通切换永磁直线电机及其控制 ^*[J]. 电气工程学报, 2021, 16(1): 1-8.

CHENG Ming, ZHANG Bangfu, WANG Sasa, WANG Wei. Modular Thin Yoke Linear Flux-switching Permanent Magnet Machine and Control System[J]. Journal of Electrical Engineering, 2021, 16(1): 1-8.

图/表 15

图1

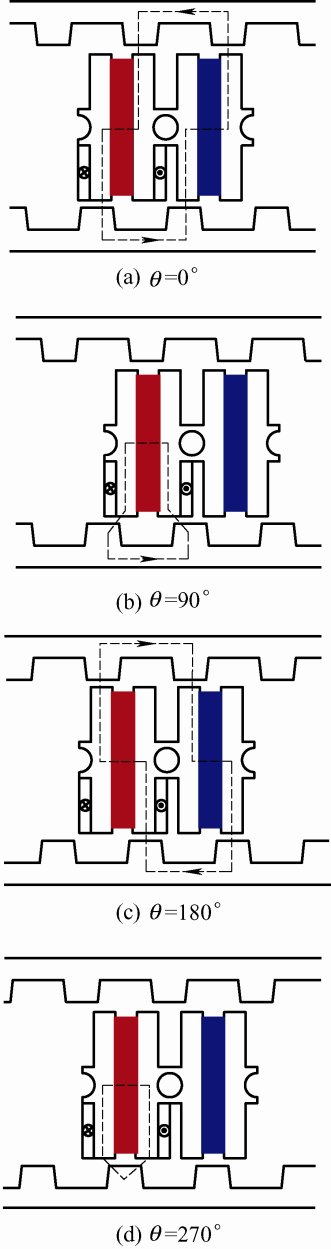

图2

表1

图3

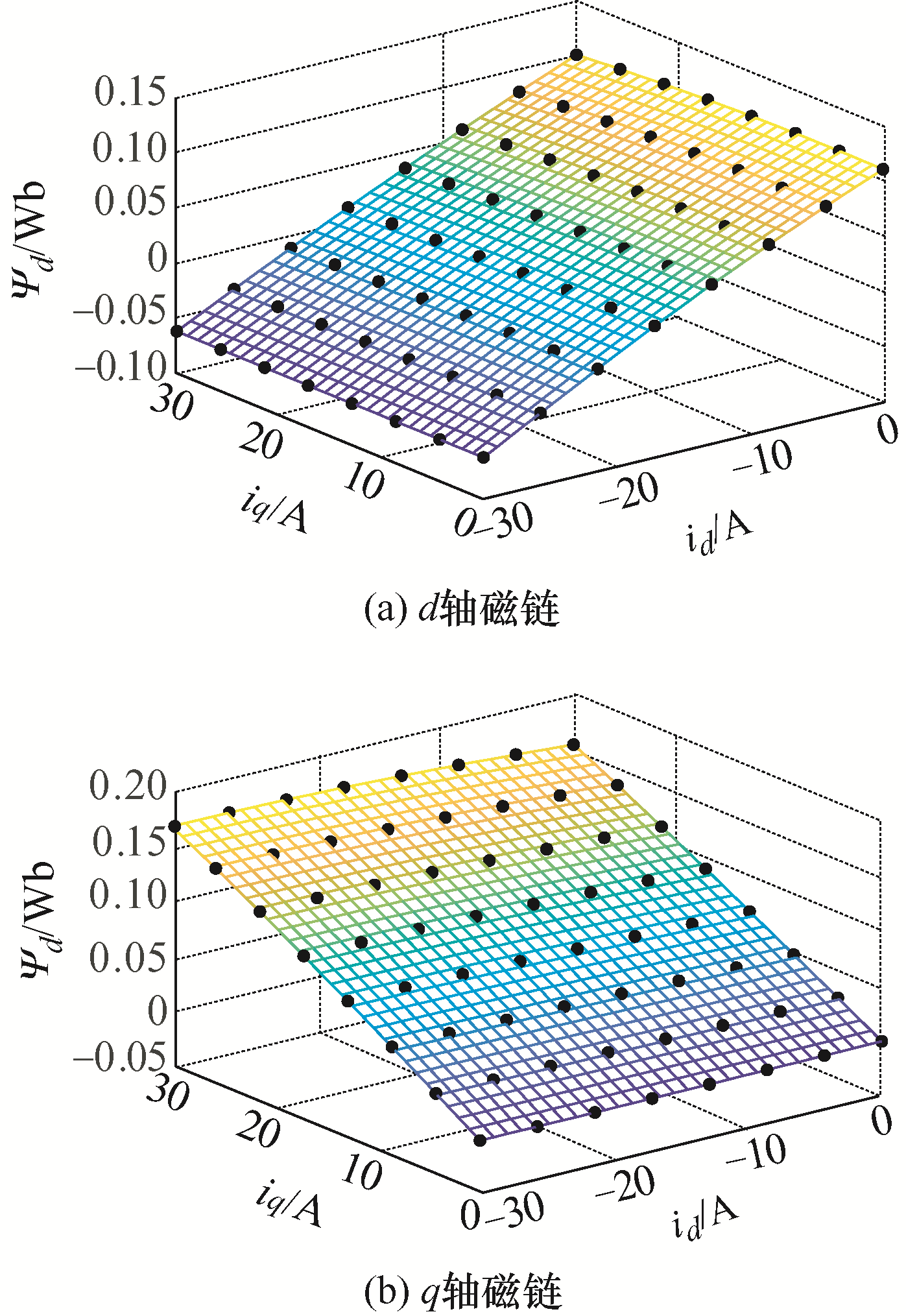

图4

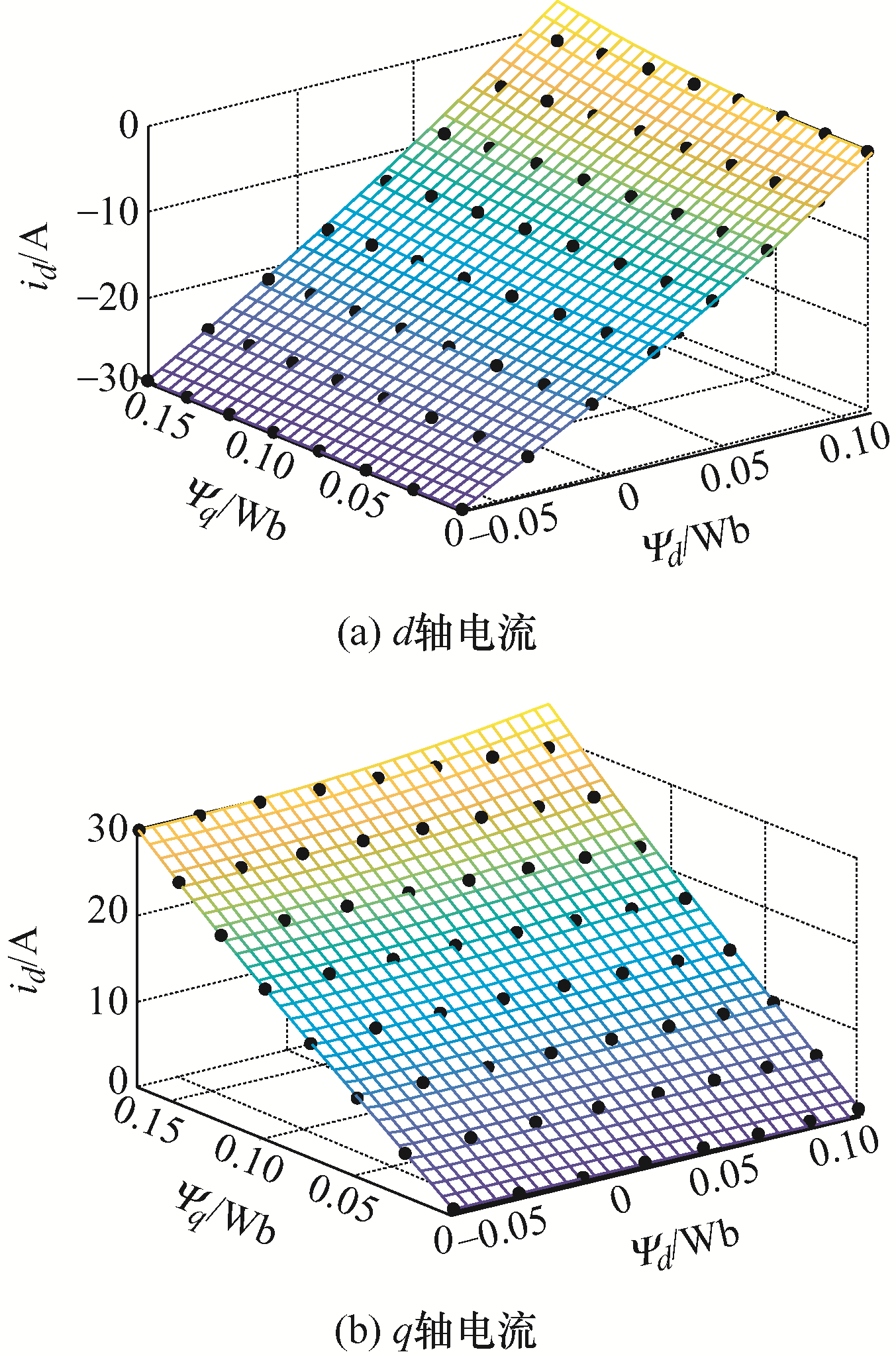

图5

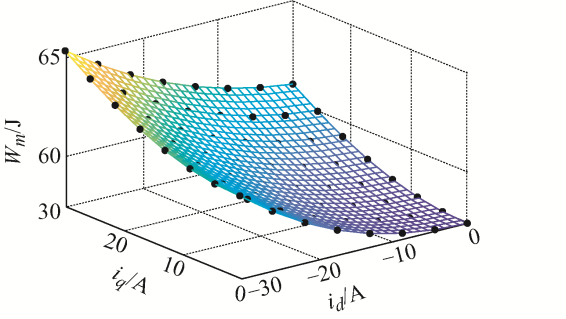

图6

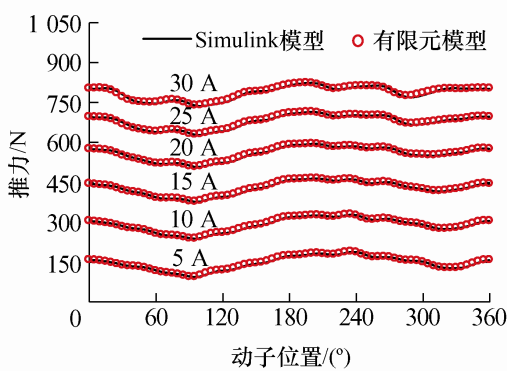

图7

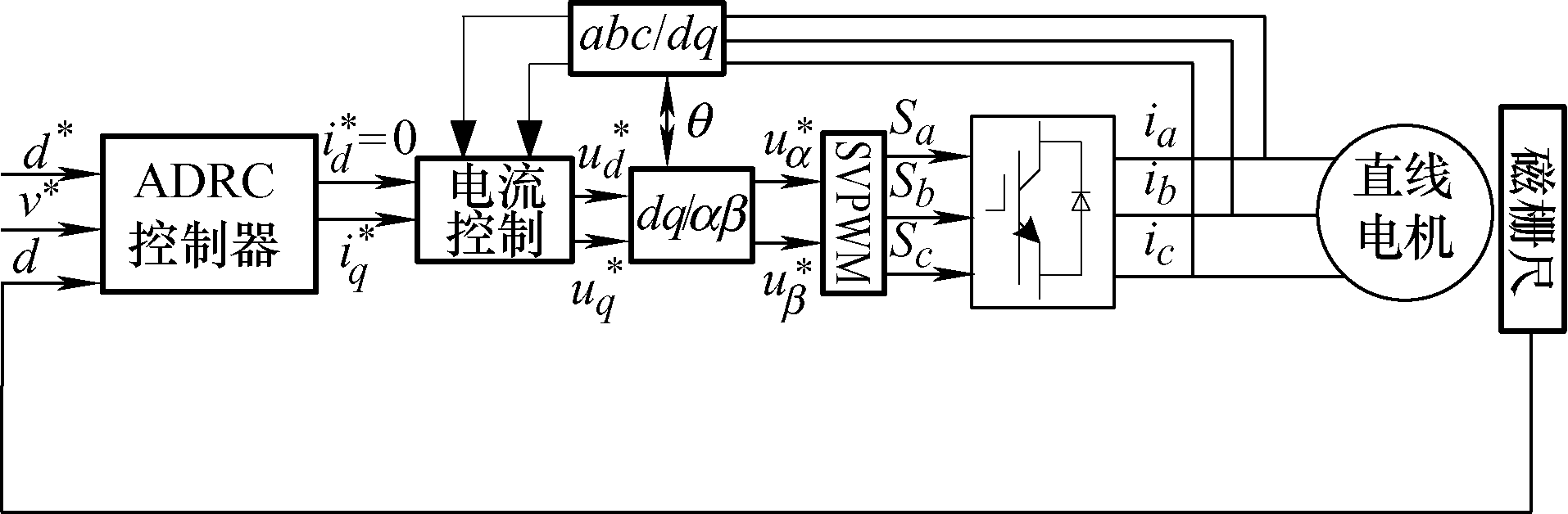

图8

图9

图10

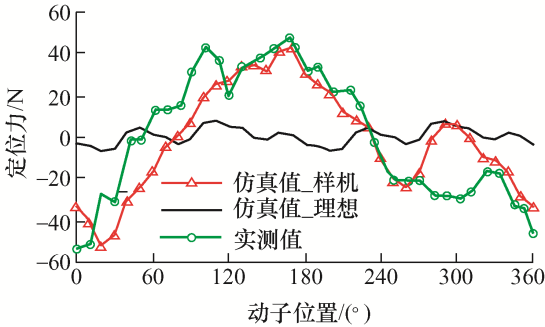

图11

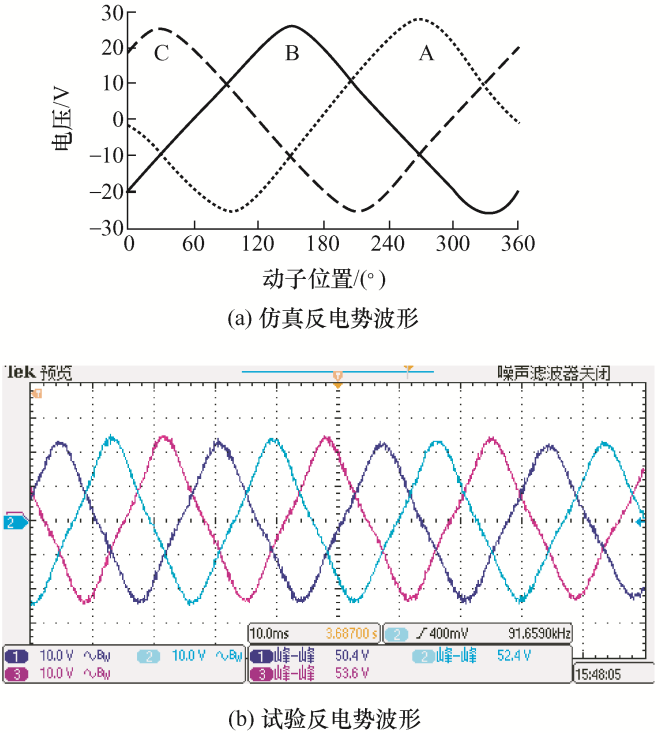

图12

图13

图14

参考文献 28

[1]	SO A, CHAN W. A study of linear PMSM driven ropeless elevators[J]. Building Services Engineering Research Technology, 2018: 1-16.
[2]	AL-KODMANY K. Tall buildings and elevators:A review of recent technological advances[J]. Buildings, 2015,5(3):1070-1104.
[3]	ISHII T. Elevators for skyscrapers[J]. IEEE Spectrum, 1994,31(9):42-46.
[4]	APPUNN R, FRANTZHELD J, JETTER M, et al. MULTI®-rope-less elevator demonstrator at test tower Rottweil[J]. Transportation Systems and Technology, 2018,4(3):80-89. doi: 10.17816/transsyst20184380-89
[5]	CHEVAILLER S, JUFER M, PERRIARD Y, et al. Linear motors for multi mobile systems[C]// IEEE Industry Applications Society Annual Meeting, 2005,3:2099-2106.
[6]	GIERAS J F, HARTZENBERG P D, MAGURA I J, et al. Control of an elevator drive with a single-sided linear induction motor[C]// Proceedings of Fifth European Conference on Power Electronics and Applications, 1993: 353-357.
[7]	YAMADA H, NAKAMURA Y, NAKADA T. Vertical motion analysis of a linear induction motor elevator[C]// Proceedings of the 1st International Symposium on Linear Drives For Industry Applications, 1995: 77-80.
[8]	MORIZANE T, MASADA E. Study on the feasibility of application of linear induction motor for vertical movement[J]. IEEE Transactions on Magnetics, 1993,29(6):2938-2940. doi: 10.1109/20.280911
[9]	LEE S G, KIM S A, SAHA S, et al. Optimal structure design for minimizing detent force of PMLSM for a ropeless elevator[J]. IEEE Transactions on Magnetics, 2014,50(1):4001104.
[10]	FAN H, CHAU K T, LIU C, et al. Quantitative comparison of novel dual-PM linear motors for ropeless elevator system[J]. IEEE Transactions on Magnetics, 2018,54(11):8106506.
[11]	THORNTON R. Linear synchronous motors for elevators[J]. Elevator World, 2006,9:168-169.
[12]	YOSHIDA K, MATSUMOTO H. Propulsion and guidance simulation of a high-temperature superconducting bulk ropeless linear elevator[J]. IEEE Transactions on Magnetics, 2004,40(2):615-618.
[13]	ZHENG L, JIN J, GUO Y, et al. Performance analysis of an hts magnetic suspension and propulsion system with a double-sided HTS linear synchronous motor[J]. IEEE Transactions on Magnetics, 2012,48(2):655-658. doi: 10.1109/TMAG.2011.2174046
[14]	WANG D, DU X, ZHANG D, et al. Design,optimization,and prototyping of segmental-type linear switched-reluctance motor with a toroidally wound mover for vertical propulsion application[J]. IEEE Transactions on Industrial Electronics, 2018,65(2):1865-1874.
[15]	LIM H, KRISHNAN R. Ropeless elevator with linear switched reluctance motor drive actuation systems[J]. IEEE Transactions on Industrial Electronics, 2007,54(4):2209-2218. doi: 10.1109/TIE.2007.899875
[16]	LOBO N S, LIM H S, KRISHNAN R. Comparison of linear switched reluctance machines for vertical propulsion application:Analysis,design,and experimental correlation[J]. IEEE Transactions on Industry Applications, 2008,44(4):1134-1142. doi: 10.1109/TIA.2008.926294
[17]	程明, 张淦, 花为. 定子永磁型无刷电机系统及其关键技术综述[J]. 中国电机工程学报, 2014,34(29):5204-5220. doi: 10.13334/j.0258-8013.pcsee.2014.29.022
	CHENG Ming, ZHANG Gan, HUA Wei. Overview of stator permanent magnet brushless machine systems and their key technologies[J]. Proceedings of the CSEE, 2014,34(29):5204-5220.
[18]	吉敬华, 潘小云, 赵文祥, 等. 五相容错式磁通切换永磁电机的气隙磁场调制运行机理分析[J]. 中国电机工程学报, 2017,37(21):6227-6236.
	JI Jinghua, PAN Xiaoyun, ZHAO Wenxiang, et al. Operation principle analysis of air-gap magnetic field modulation in five-phase fault-tolerant flux switching permanent-magnet motor[J]. Proceedings of the CSEE, 2017,37(21):6227-6236.
[19]	刘畅, 朱孝勇, 杜怿, 等. 基于电-热双向耦合的磁场调制型磁通切换电机设计与性能分析[J]. 中国电机工程学报, 2017,37(21):6237-6245.
	LIU Chang, ZHU Xiaoyong, DU Yi, et al. Design and performance analysis of magnetic field modulated flux-switching permanent magnet machine based on electrical-thermal bi-directional coupling design method[J]. Proceedings of the CSEE, 2017,37(21):6237-6245.
[20]	曹瑞武, 程明, 花为, 等. 磁路互补型模块化磁通切换永磁直线电机[J]. 中国电机工程学报, 2011,31(6):58-65.
	CAO Ruiwu, CHENG Ming, HUA Wei, et al. Novel modularized flux switching permanent magnet linear machine with complementary magnetic circuits[J]. Proceedings of the CSEE, 2011,31(6):58-65.
[21]	曹瑞武, 张铮, 金毅, 等. 次级无轭部双边磁通切换永磁直线电机及其控制[J]. 中国电机工程学报, 2017,37(22):6585-6593,6770.
	CAO Ruiwu, ZHANG Zheng, JIN Yi, et al. Double-sided linear flux-switching permanent magnet motor with yokeless secondary and control system[J]. Proceedings of the CSEE, 2017,37(22):6585-6593,6770.
[22]	MIN W, CHEN J T, ZHU Z Q, et al. Optimization and comparison of novel e-core and c-core linear switched flux PM machines[J]. IEEE Transactions on Magnetics, 2011,47(8):2134-2141. doi: 10.1109/TMAG.2011.2125977
[23]	张邦富. 电梯用初级永磁型直线电机及其控制系统研究[D]. 南京:东南大学, 2019.
	ZHANG Bangfu. Research on linear primary permanent magnet motor and control system for elevator[D]. Nanjing:Southeast University, 2019.
[24]	LIANG W, WANG J, LU T, et al. A new method for multiple finite element models in cosimulation with electrical circuit using machine multiloop modeling scheme[J]. IEEE Transactions on Industrial Electronics, 2014,61(12):6583-6590. doi: 10.1109/TIE.2014.2314053
[25]	CHEN X, WANG J, SEN B, et al. A high-fidelity and computationally efficient model for interior permanent-magnet machines considering the magnetic saturation,spatial harmonics,and iron loss effect[J]. IEEE Transactions on Industrial Electronics, 2015,62(7):4044-4055. doi: 10.1109/TIE.2014.2388200
[26]	CHU W, ZHU Z. Average torque separation in permanent magnet synchronous machines using frozen permeability[J]. IEEE Transactions on Magnetics, 2013,49(3):1202-1210. doi: 10.1109/TMAG.2012.2225068
[27]	HAN J. From PID to active disturbance rejection control[J]. IEEE Transactions on Industrial Electronics, 2009,56(3):900-906. doi: 10.1109/TIE.2008.2011621
[28]	MASOUDI S, FEYZI M R, SHARIFIAN M B B. Force ripple and jerk minimisation in double sided linear switched reluctance motor used in elevator application[J]. IET Electric Power Applications, 2016,10(6):508-516. doi: 10.1049/elp2.v10.6

参数	数值
气隙大小/mm		2
动子极距τ_m/mm		39
定子极距τ_s/mm		36
电机高度/mm		100
动子轭部高/mm		15
安装孔半径/mm		5
电机叠厚/mm		60
