电气工程学报 ›› 2018, Vol. 13 ›› Issue (9): 14-19.doi: 10.11985/2018.09.003

• • 上一篇    下一篇

热声直线电机起动及发电控制策略的研究

高晓曦,关新,胥德龙,喻宏伟,阮鹏

  1. 沈阳工业大学 电气传动研究所 沈阳 110870
  • 收稿日期:2017-10-20 出版日期:2018-09-25 发布日期:2019-11-29
  • 作者简介:高晓曦 女 1992年生,硕士研究生,研究方 向为电力电子技术及其应用。|关新 女 1966年生,副教授,主要研究方向为电力电子与电气传动。
  • 基金资助:
    国家自然科学基金资助项目(51377108);辽宁省高等学校创新团队项目(LT2013006)

The Study on Starting/Generating Control Strategy of A Thermoacoustic Linear Motor

Gao Xiaoxi,Guan Xin,Xu Delong,Yu Hongwei,Ruan Peng

  1. Institute of Electrical Transmission, Shenyang University of Technolog Shenyang 110870 China
  • Received:2017-10-20 Online:2018-09-25 Published:2019-11-29

摘要:

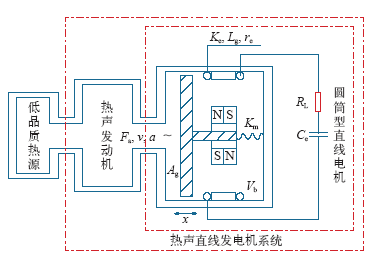

本文针对热声发动机起振温度高、谐振管耗散的声功大和系统体积庞大等问题,提出了一种基于起动及发电运行的控制方法。通过对热声发电系统(TAEGS)基础知识的了解,并对热声发动机起振机理的分析,建立了热声发电系统的数学模型,研究了起动控制和发电控制的不同控制策略。在Matlab/Simulink环境下进行仿真,结果表明,基于起动及发电控制的热声发电系统起振时间短,热声电转换效率有所提高,为热声技术投入到生产实践中利用低品质热源提供了可行性保证。

关键词: 热声发电系统, 圆筒型直线电机, 热声电转换效率

Abstract:

Aim ing at the problems of high starting temperature, large acoustic power dissipation and huge volume of the thermoacoustic engine, a control method based on starting/generating bidirectional operation is proposed. Based on the understanding of the basic knowledge of thermoacoustic electric generation system(TAEGS) and the analysis of the thermoacoustic engine's starting mechanism, a mathematical model of thermoacoustic power generation system is established, and different control strategies for starting control and power generation control are studied. The simulation results in Matlab/Simulink environment show that the thermoacoustic power generation system based on start/generate bidirectional control has shorter starting time and higher thermal-acoustic-electricity (T-A-E) conversion efficiency, which provides a feasible guarantee for the thermoacoustic technology to be put into production practice in using low quality heat source.

Key words: Thermoacoustic electric generation system, tubular linear motor, thermal-acoustic-electricity (T-A-E) conversion efficiency
