风电场接地系统辅助设计软件的研发

doi:10.11985/2018.03.006

电气工程学报 ›› 2018, Vol. 13 ›› Issue (3): 42-48.doi: 10.11985/2018.03.006

• • 上一篇

风电场接地系统辅助设计软件的研发

邓少平,康慨,熊力,曲名新,翟学,王羽

湖北省电力勘测设计院有限公司武汉 430040

收稿日期:2017-10-31 出版日期:2018-03-25 发布日期:2020-03-26
作者简介:邓少平男 1967年生,本科,高级工程师,主要从事电厂电气设计研究工作。|康慨男 1987年生,硕士,主要从事新能源发电及微电网研究工作。

Development of the Computer Aided Design Software of Wind Power Grounding Systems

Shaoping Deng,Kai Kang,Li Xiong,Mingxin Qu,Xue Zhai,Yu Wang

PowerChina Hubei Electrical Engineering Corporation Wuhan 430040 China

Received:2017-10-31 Online:2018-03-25 Published:2020-03-26

摘要/Abstract

摘要：

风电场的接地不但要满足工频短路电流,还要满足雷电冲击的要求。如果风电场的接地装置设计存在缺陷,会造成系统振荡、设备烧毁、全场停运甚至人员伤亡等严重后果。发变电站接地系统的参数评估是电力系统设计的重要环节,进行准确细致的接地网参数仿真计算是非常重要的。本文开发的风电场接地设计软件主要采用数值计算方法,能够较为全面地考虑实际影响因素,为风力发电场的设计、建设和运行提供有效的帮助。

关键词: 高土壤电阻率, 风电场, 接地设计软件, 参数仿真, 数值计算法

Abstract:

The grounding of wind farm should not only meet the demand of power frequency short-circuit current, but also meet the requirements of lightning impulse current. If there are defects in the design of the grounding device of the wind farm, it will result in the consequences of system shock, equipment burning, the suspension of the whole field and even personnel injury. The parameter evaluation of the grounding system of the transformer substation is an im-portant part of the design of power system, and it is very important to carry out accurate and detailed simulation calculation of grounding grid parameters. The wind farm earthing design software developed in this paper mainly adopts numerical calculation method, which can consider the influence factors in the actual situation more com-prehensively and provide the help for the design, construction, and operation of wind farm.

Key words: High soil resistivity, wind power plant, earthing design software, parameter simulation, numerical calcula-tion method

中图分类号:

TM614

邓少平,康慨,熊力,曲名新,翟学,王羽. 风电场接地系统辅助设计软件的研发[J]. 电气工程学报, 2018, 13(3): 42-48.

Shaoping Deng,Kai Kang,Li Xiong,Mingxin Qu,Xue Zhai,Yu Wang. Development of the Computer Aided Design Software of Wind Power Grounding Systems[J]. Journal of Electrical Engineering, 2018, 13(3): 42-48.

图/表 12

图1

图2

图3

图4

图5

图6

图7

表1

表2

图8

图9

图10

参考文献 10

[1]	张柯林 . 变电站地网接地电阻的数值计算及改造技术的研究[D]. 华中科技大学, 2007.
[2]	GB 51096—2015 风力发电场设计规范[S].
[3]	林峰, 张兰英, 吕庭钦 , 等. 风电场接地变及其中性点接地电阻的改进方案分析[J]. 电网与清洁能源, 2015,31(2):126-130,134.
	Lin Feng, Zhang Lanying, Lv Tingqin , et al. Analysis on improvement scheme of grounding resistance of wind farm grounding transformer and its neutral[J]. Power Grid & Clean Energy, 2015,31(2):126-130, 134.
[4]	郭小斌, 叶漫红 . 高土壤电阻率沙地风电场的接地研究[J].电力勘测设计, 2013(5):72-75,80.
	Guo Xiaobin, Ye Manhong . Study on grounding of wind farm in high soil resistivity sandy land[J]. Electric Power Survey & Design, 2013(5):72-75, 80.
[5]	滕明尧 . 风电场35kV系统接地研究[J].电子世界, 2013(6):63-64.
	Teng Mingyao . Study on 35kV system grounding of wind farm[J]. Electronic World, 2013(6):63-64.
[6]	陈亮, 白勇 . 风电场接地电阻选择设计[J].电气制造, 2013(2):54-57.
	Chen Liang, Bai Yong . Design of grounding eesistance selection for wind farm[J]. Electrical Manufacturing, 2013(2):54-57.
[7]	刘阳 . 山区风电场接地设计方案分析[J]. 林业科技情报, 2010,42(4):50-52.
	Liu Yang . Analysis of mountainous wind farm grounding design scheme[J]. Forestry Science and Technology Information, 2010,42(4):50-52.
[8]	石巍, 王秋红 . 风电场接地设计[J].电气制造, 2010(9):48-49,66.
	Shi Wei, Wang Qiuhong . Wind farm grounding design[J]. Electrical Manufacturing, 2010(9):48-49, 66.
[9]	周静增 . 风电场风电机组的接地设计[J].能源工程, 2010(3):41-43.
	Zhou Jingzeng . Grounding design of wind turbine in wind farm[J]. Energy Engineering, 2010(3):41-43.
[10]	郭继红, 郭宝海 . 大型风电场集电网系统接地方式探讨[J]. 水利水电工程设计, 2009,28(3):38-40.
	Guo Jihong, Guo Baohai . Discussion on grounding mode of large scale wind farm integrated power grid system[J]. Hydraulic and Hydroelectric Engineering Design, 2009,28(3):38-40.

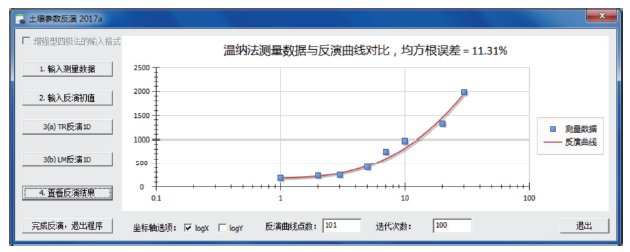

极距/m	视在电阻/Ω·m
1.00	183.67
2.00	231.21
3.00	244.52
5.00	416.87
7.00	739.43
10.00	960.76
20.00	1 318.14
30.00	1 976.39

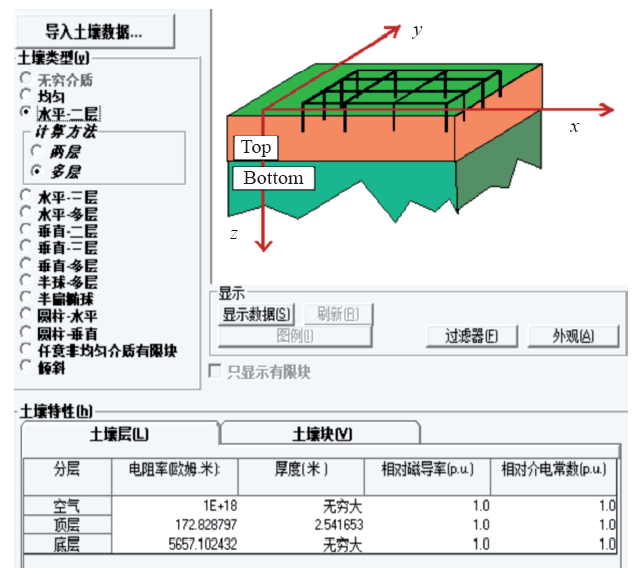

编号	厚度/m	电阻率/Ω·m
第一层	2.54	172.84
第二层	∞	5 660.1
