Z源并网风力发电系统机侧谐波抑制

doi:10.11985/2018.03.003

摘要/Abstract

摘要：

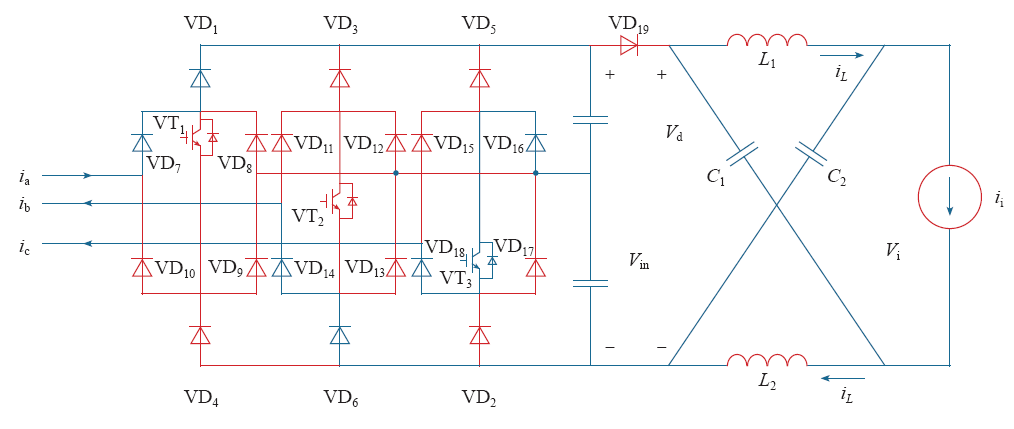

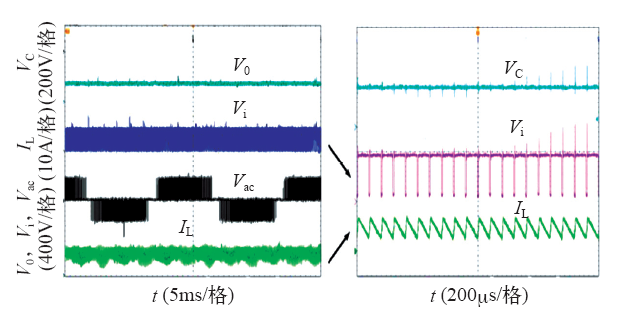

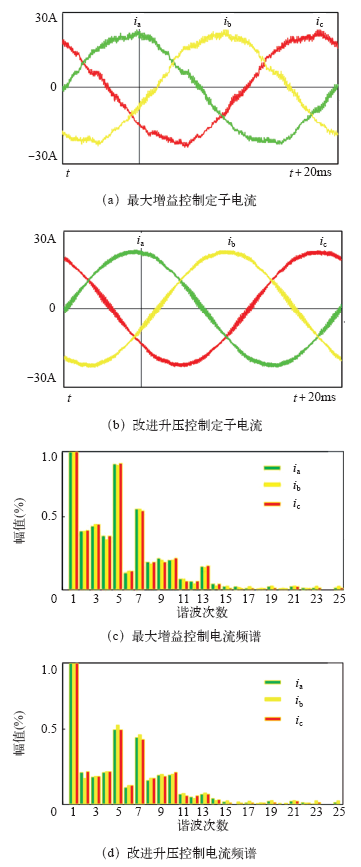

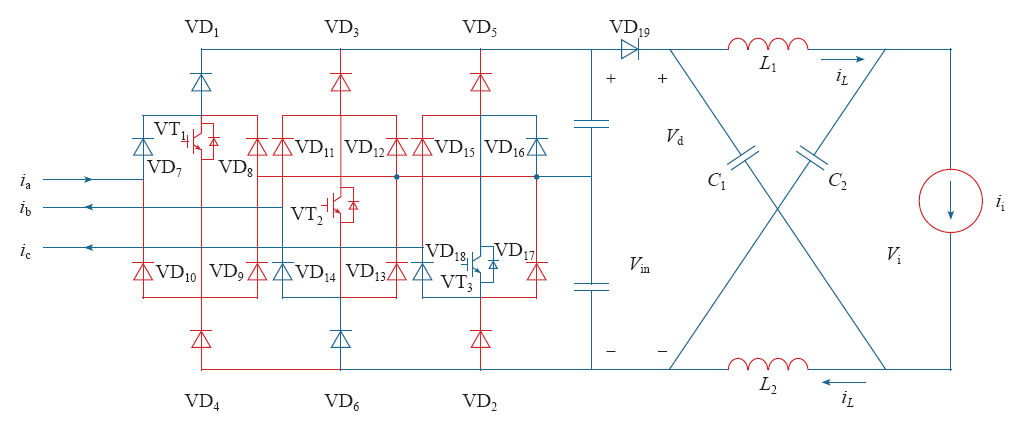

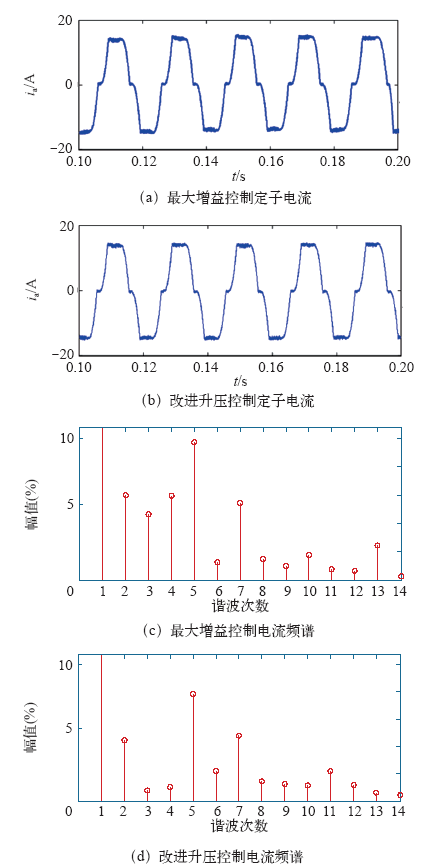

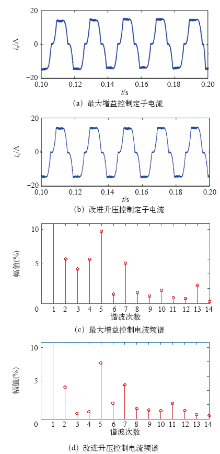

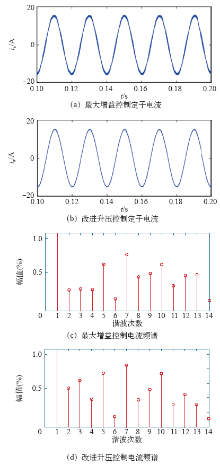

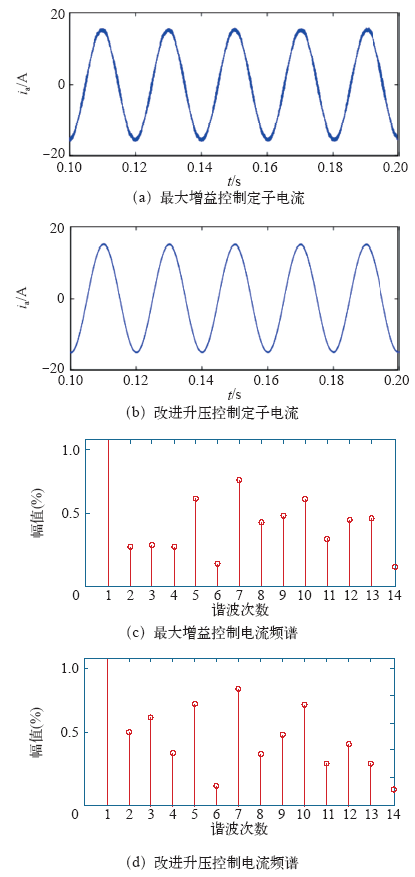

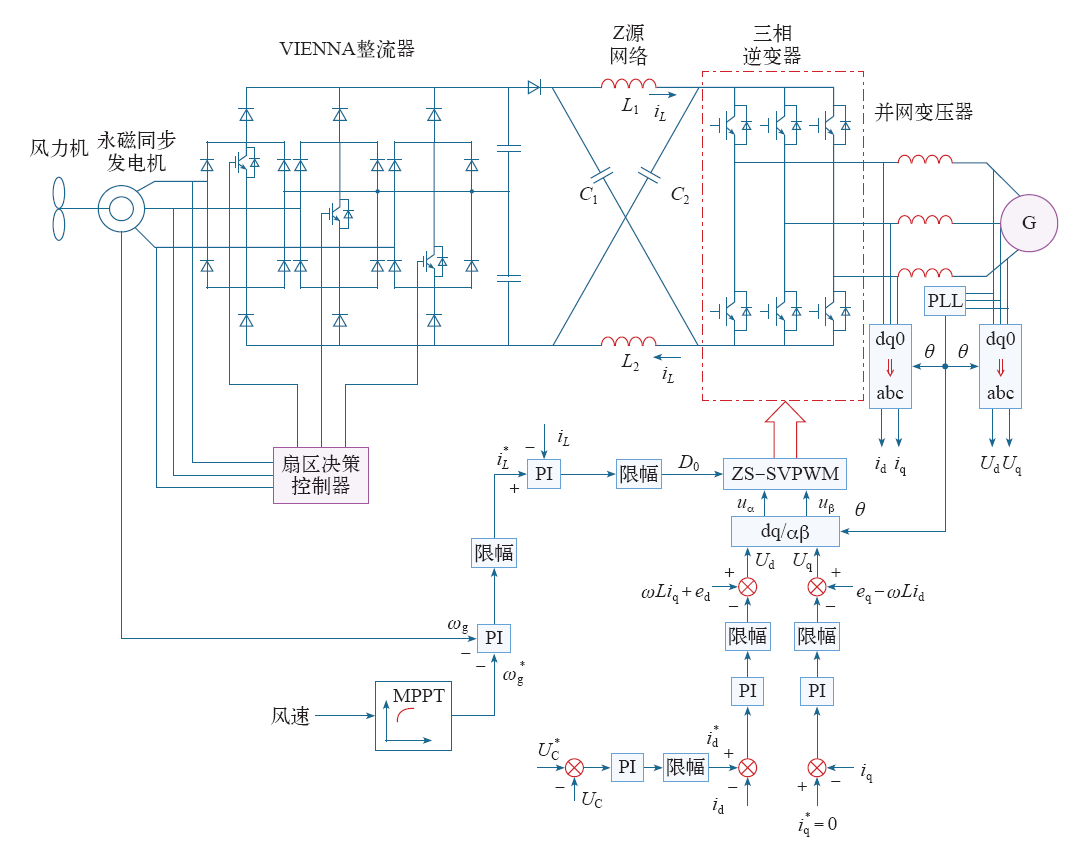

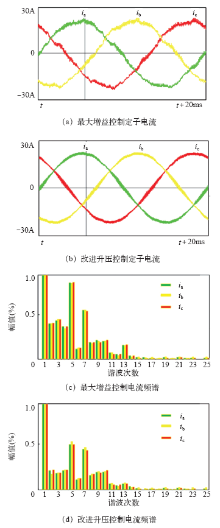

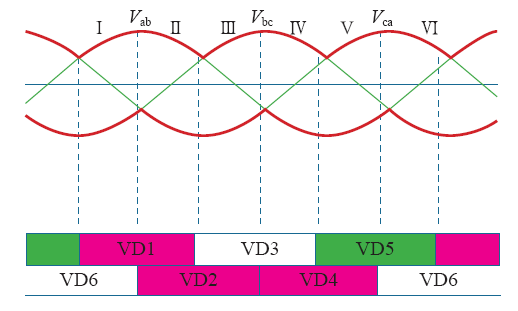

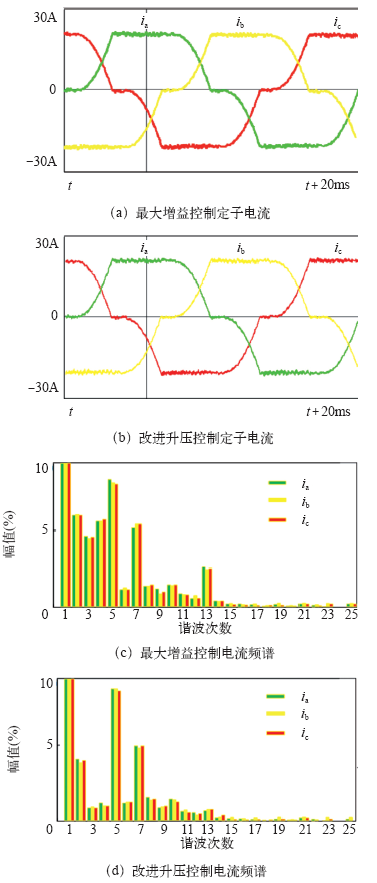

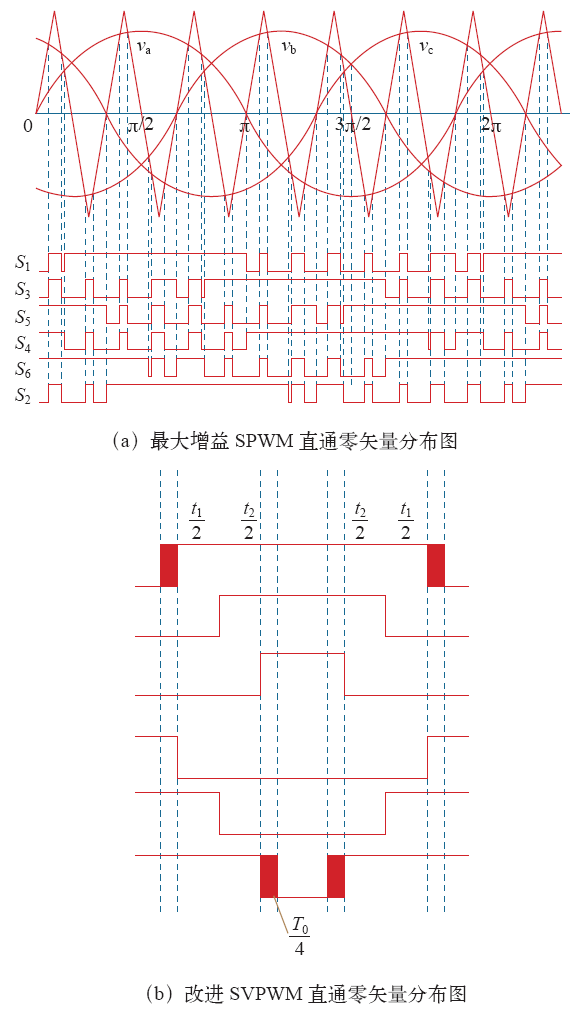

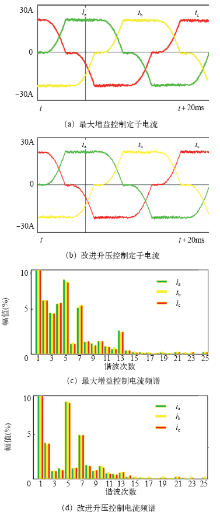

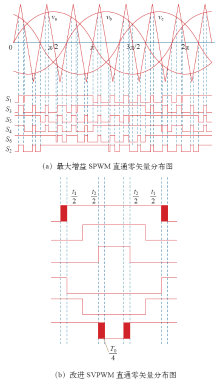

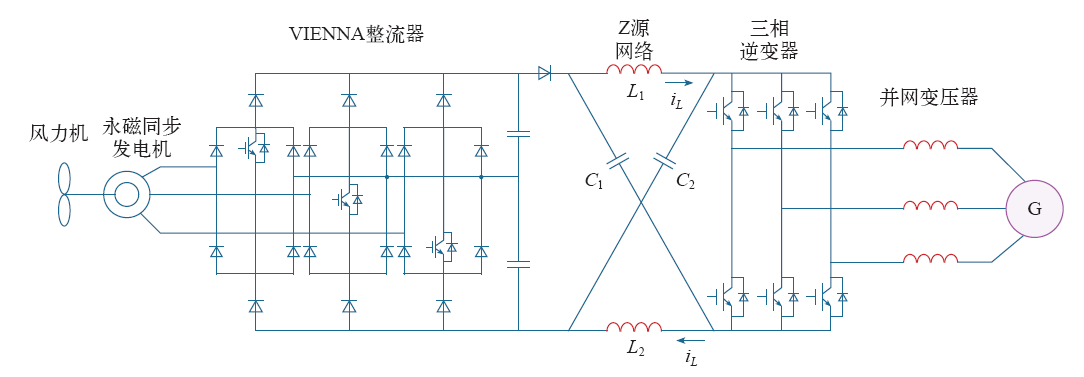

传统Z源并网风力发电系统整流侧采用的是三相不可控整流,其定子侧的电流谐波不仅会增大电机的铜耗和铁耗,降低发电效率,还有可能出现电机饱和以及失控等现象,严重影响了系统的稳定性。本文将VIENNA整流器应用于Z源并网风力发电系统,提出一种新的并网变流器控制方法。将定子输出电压的一个周期划分为6个扇区,通过扇区决策控制器给每个扇区内的不导通相提供电流通路,改善了机侧电流与机侧电压的非线性关系。比较了采用三相不可控整流器和VIENNA整流器以及最大升压控制和改进SVPWM控制下Z源并网风力发电系统的机侧电流谐波。仿真与实验结果表明,本文方法减少了定子侧电流谐波,提高了系统的效率和稳定性。

关键词: Z源逆变器, VIENNA整流器, 风力发电, 谐波抑制

Abstract:

D-PMSG based on Z-source inverter uses a three-phase diode rectifier. Stator side current harmonics will not only increase the motor's copper and iron losses, but also produce motor saturation and runaway phenomenon. What has seriously affected the stability of the system and reduced power generation efficiency. This paper presents a wind turbine generation system based on the Z-source inverter, which takes in the VIENNA rectifier. A period of stator voltage is divided into six sectors in this paper and equivalent circuit is researched in different working stages. A Z-source inverter control strategy is proposed according to the determination of Z-source inductor value. The simulation and experimental results prove the theoretical analysis very well.

Key words: Z-source inverter, VIENNA rectifier, wind power generation, harmonic suppression

中图分类号:

TM614

程谆,张阳,邓木生. Z源并网风力发电系统机侧谐波抑制[J]. 电气工程学报, 2018, 13(3): 17-26.

Zhun Cheng,Yang Zhang,Musheng Deng. Harmonic Suppression for the Motor-Side Converter of the Z-Source Grid-Connected Wind Generation System[J]. Journal of Electrical Engineering, 2018, 13(3): 17-26.

图/表 16

图1

图2

图3

图4

图5

图6

表

图7

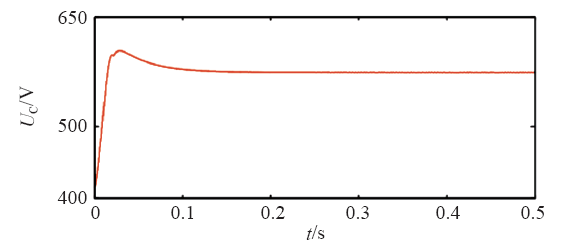

图8

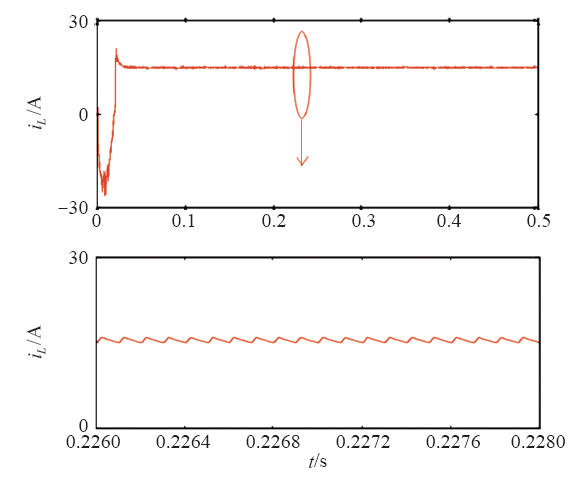

图9

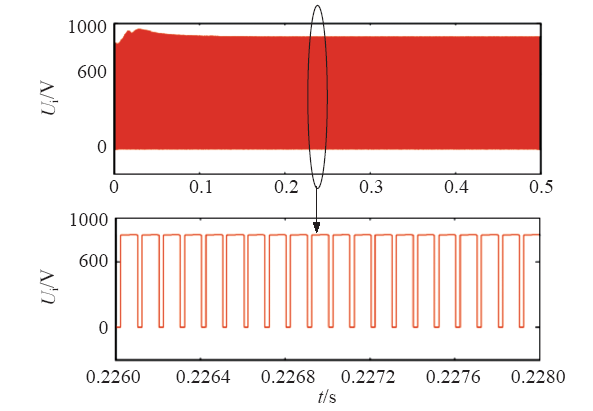

图10

图11

图12

图13

图14

图15

参考文献 16

[1]	Peng F Z, Shen M S, Qian Z M . Maximum boost control of the Z-source inverter[J]. IEEE Transactions on Power Electronics, 2005,20(4):833-838.
[2]	Thangaprakash S, Krishnan Dr A . Z-source inverter fed induction motor drives——a space vector pulse width modulation based approach[J]. Journal of Applied Science Research, 2009,5(5):579-584.
[3]	Tran Q, Chun T, Ahn J , et al. Algorithms for controlling both the DC boost and AC output voltage of Z-source inverter[J]. IEEE Transactions on Industrial Electronics, 2007,54(5):2745-2750.
[4]	Murthi G, Ojo O. A comprehensive analysis of a three-phase Z-source DC-AC converter [C]. IEEE Applied Power Electronics Conference, California, 2007.
[5]	Liu J B, Hu J G, Xu L Y . Dynamic modeling and analysis of Z-source converter-derivation of AC small signal model and design-oriented analysis[J]. IEEE Transactions on Power Electronics, 2007,22(5):1786-1796.
[6]	Ding Xinping, Qian Zhaoming, Xie Yeyuan, et al. Transient modeling and control of the novel ZVS Z-source rectifier [C]. 37th IEEE Power Electronics Specialists Conference, 2006: 1-5.
[7]	许颇, 张兴, 张崇巍, 等 .采用 Z 源变换器的小型风力并网逆变系统[J]. 电工技术学报, 2008,23(4):93-97.
	Xu Po, Zhang Xing, Zhang Chongwei , et al. Small wind turbine grid-connected systems based on Z-source inverter[J]. Transactions of China Electrotechnical Society, 2008,23(4):93-97.
[8]	李杰, 王得利, 陈国呈 , 等. 直驱式风力发电系统的三相Z源并网逆变器建模与控制[J]. 电工技术学报, 2009,24(2):114-120.
	Li Jie, Wang Deli, Chen Guocheng , et al. Modeling and control of three-phase Z-source inverter for direct-drive wind generation system[J]. Transactions of China Electrotechnical Society, 2009,24(2):114-120.
[9]	Li Xiao, Chen Jing, Zhang Jingning. Three-phase Z-source grid-connected wind power generation system based on novel deadbeat control [C]. The Second International Conference on Digital Manufacturing and Automation, Hunan, 2011: 1355-1359.
[10]	丁新平, 钱照明, 崔彬 , 等. 基于模糊PID的Z源逆变器直流链升压电路控制[J]. 中国电机工程学报, 2008: 28(24), 31-38.
	Ding Xinping, Qian Zhaoming, Cui Bin , et al. Fuzzy PID controller for DC-link boost voltage in Z-source inverter[J]. Proceedings of the CSEE, 2008: 28(24), 31-38.
[11]	陈宗祥, 蒋赢, 潘俊民 , 等. 基于滑模控制的Z源逆变器在单相光伏系统中的应用[J]. 中国电机工程学报, 2008,28(21):33-39.
	Chen Zongxiang, Jiang Ying, Pan Junmin , et al. A Z-source inverter for a single-phase PV system based on sliding-mode control[J]. Proceedings of the CSEE, 2008,28(21):33-39.
[12]	Ding Xinping, Qian Zhaoming, Xie Yeyuan, et al. Transient modeling and control of the novel ZVS Z-source rectifier [C]. 37th IEEE Power Electronics Specialists Conference, 2006: 1-5.
[13]	张瑾, 齐铂金 . Z源三电平中点钳位逆变器中点电位平衡控制方法[J]. 中国电机工程学报, 2010,30(12):7-13.
	Zhang Jin, Qi Bojin . Neutral-point potential balancing method for Z-source three-level NPC inverters[J]. Proceedings of the CSEE, 2010,30(12):7-13.
[14]	Loh P C, Vilathgamuwa D M, Gajanayake G J , et al. Transient modeling and analysis of pulse-width modulated Z-source inverter[J]. IEEE Transactions on Power Electronics, 2007,22(2):498-507.
[15]	Peng F Z, Alen Joseph, Jin Wang . Z-source inverter for motor drives[J]. IEEE Transactions on Power Electronics, 2005,20(4):857-863.
[16]	Loh P C, Vilathgamuwa D M, Lai Y S, et al. Pulse width modulation of Z-source inverters [C]. IEEE Industry Applications Society Annual Meeting, 2004: 148-155.

参数	数值
定子绕组相电阻/Ω	2.3
极对数	2
额定转速/(r/min)	1 500
相电压幅值对应的磁通/Wb	0.804
系统功率/kW	7.5
网侧线电压/V	380
电网频率/Hz	50
Z源网络电容电压/V	570
Z源网络电容/mF	2.04
Z源网络电感/mH	5
