铁氧体磁环加装位置对VFTO抑制效果研究*

doi:10.11985/2023.01.029

摘要/Abstract

摘要：

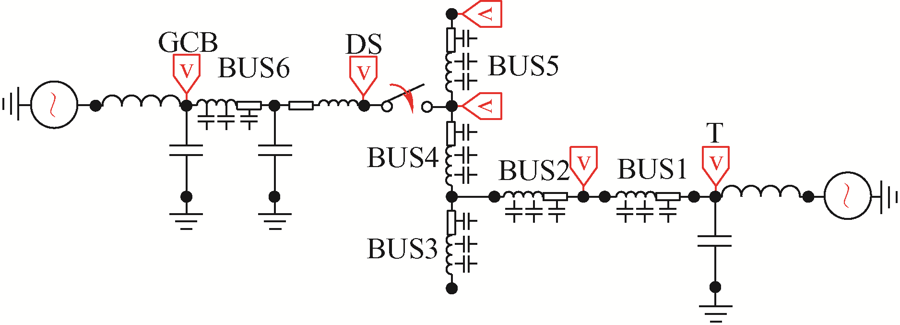

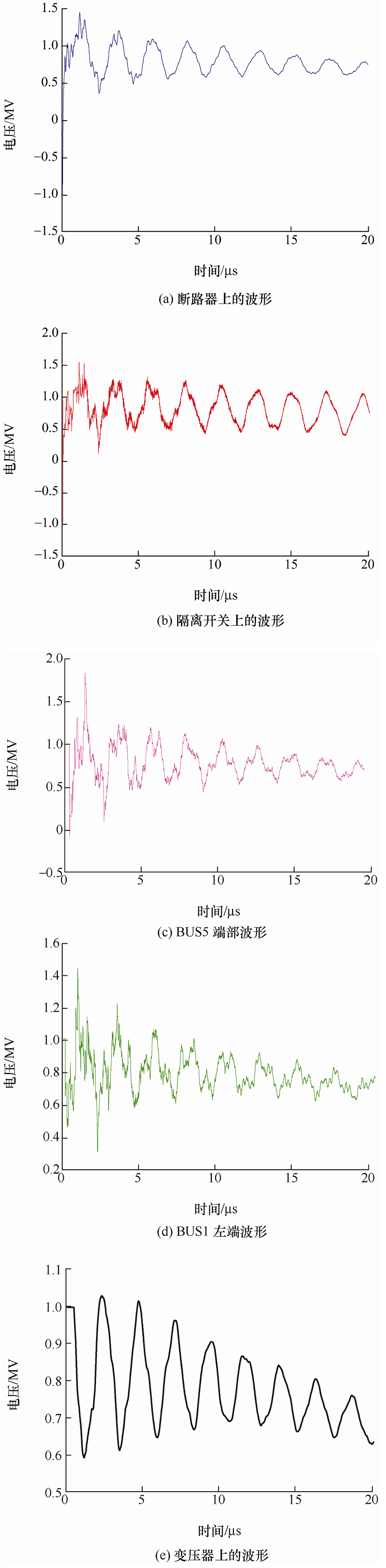

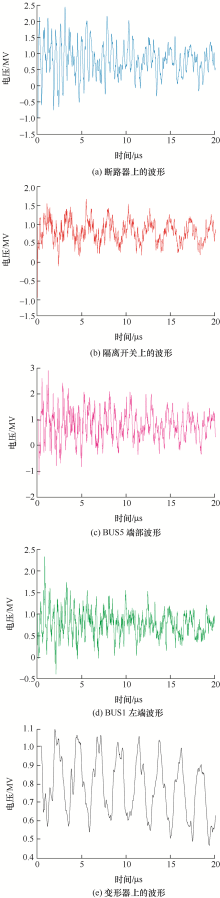

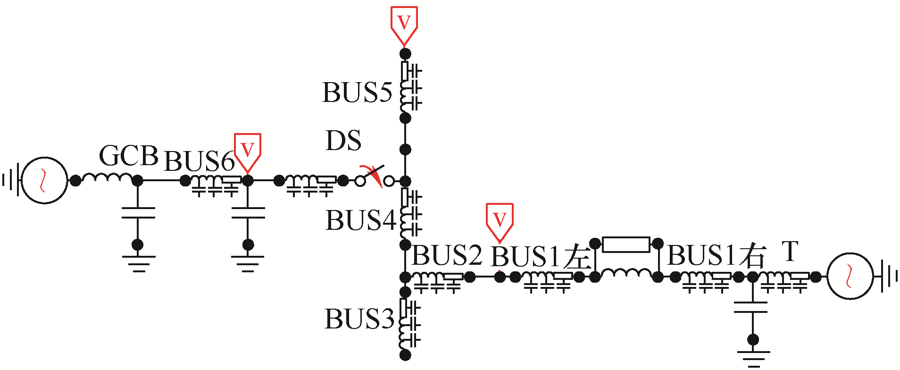

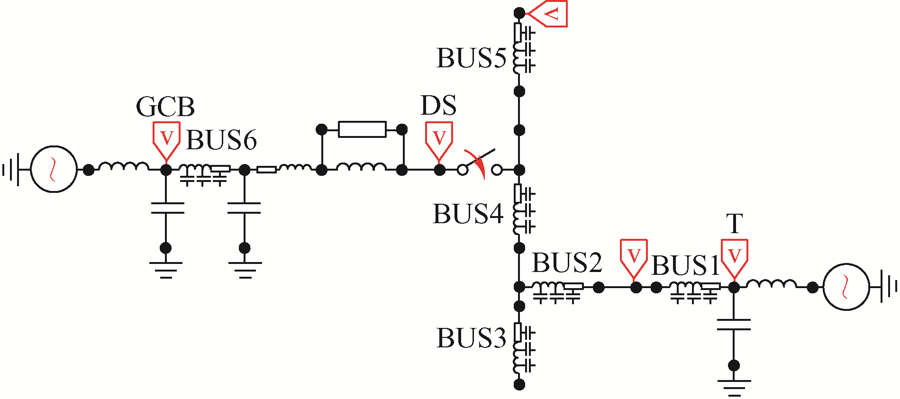

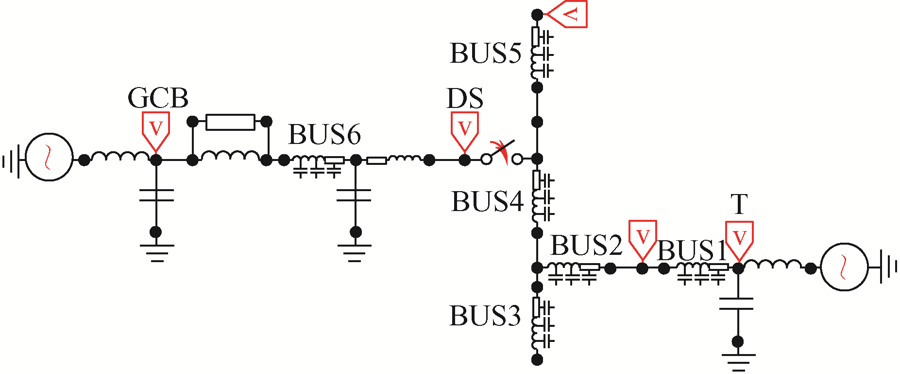

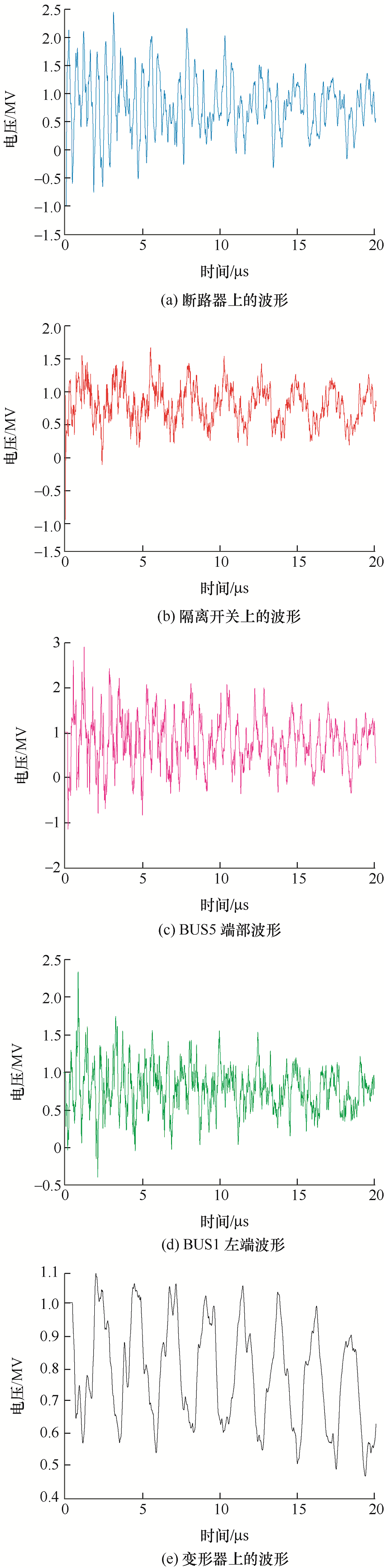

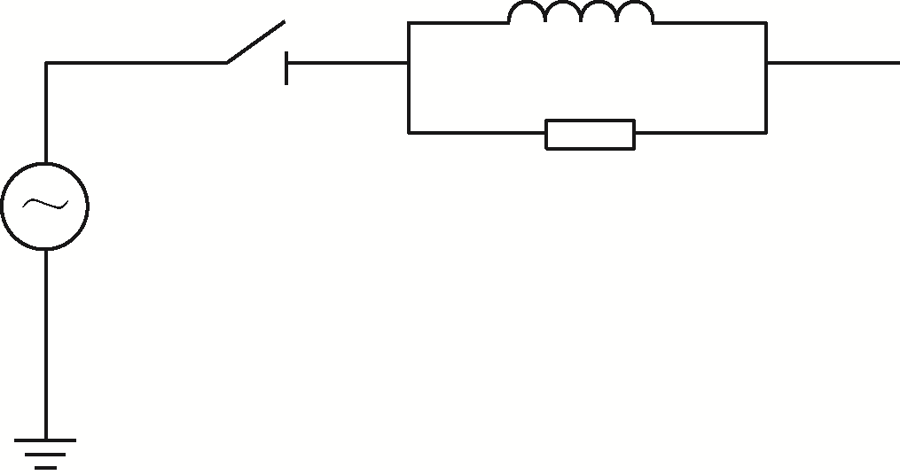

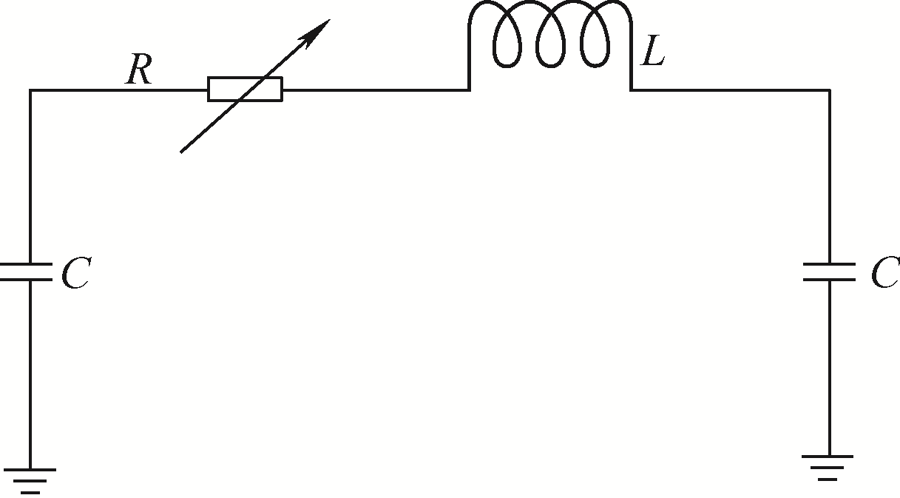

隔离开关开合闸时，会产生高幅值陡前沿的快速暂态过电压(Very fast transient overoltage，VFTO)，可能损坏GIS内部绝缘盆子及二次侧变压器等邻近设备，因此抑制VFTO极为重要。现有学者经研究分析发现铁氧体磁环具有抑制效果好、便于加工和加装的优点，但未对磁环加装位置影响抑制效果做分析。由此针对某1 000 kV GIS，用ATP-EMTP仿真分析出对VFTO危害最严重的三个点：断路器、BUS5端部和BUS1左端，再分析铁氧体磁环加装位置不同抑制VFTO的效果。为铁氧体磁环进一步应用到工程实际中提供参考。

关键词: 快速暂态过电压(VFTO), 铁氧体磁环, 抑制, 隔离开关

Abstract:

VFTO(Very fast transient overoltage) with high amplitude and steep front is produced when disconnector is switched on and off. It is possible to break down GIS internal insulation basin and the secondary side transformer and other adjacent equipment, so it is extremely important to suppress VFTO. Existing scholars have found that ferrite magnetic ring has the characteristics of good suppression effect, easy processing and installation, but the effect of magnetic ring installation position on suppression is not analyzed. Therefore, ATP-EMTP simulation is used to analyze the three most serious points of VFTO for a 1 000 kV GIS: the circuit breaker, the end of BUS5 and the left end of BUS1, and then the effect of different locations of ferrite magnetic ring on inhibiting VFTO is analyzed. It provides reference for further application of ferrite magnetic ring in engineering practice.

Key words: Very fast transient overoltage, ferrite magnetic ring, inhibition, disconnector

中图分类号:

TM863

胡洋, 张文斌, 欧阳娇, 谭清华, 柯毅. 铁氧体磁环加装位置对VFTO抑制效果研究^*[J]. 电气工程学报, 2023, 18(1): 258-264.

HU Yang, ZHANG Wenbin, OUYANG Jiao, TAN Qinghua, KE Yi. Research on the Suppression Effect of Ferrite Magnetic Ring on VFTO[J]. Journal of Electrical Engineering, 2023, 18(1): 258-264.

图/表 13

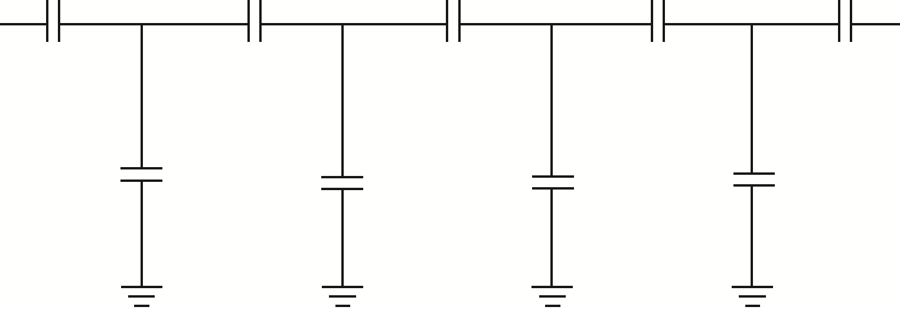

图1

表1

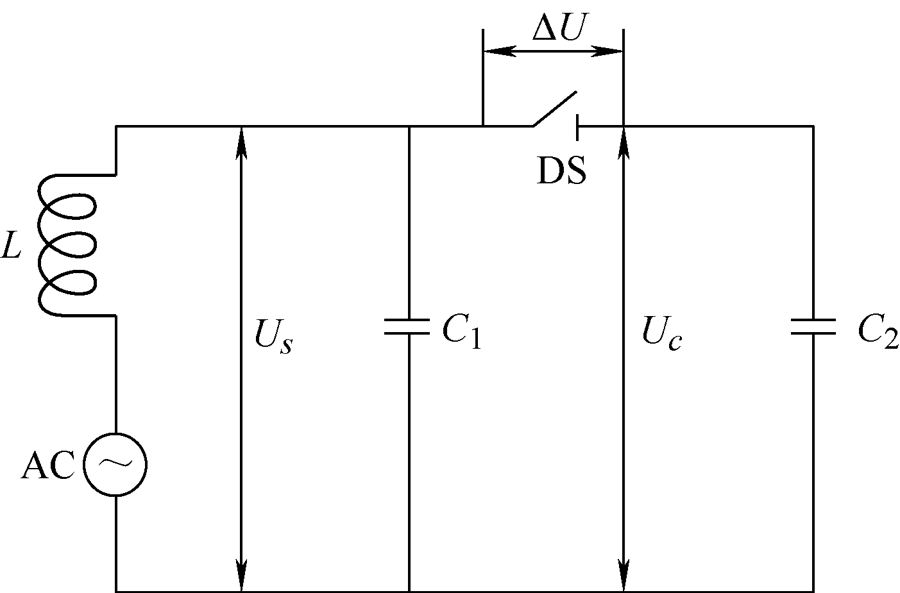

图2

图3

图4

图5

图6

图7

图8

图9

表2

图10

图11

参考文献 24

[1]	谷定燮, 修木洪, 戴敏, 等. 1 000 kV GIS变电所VFTO特性研究[J]. 高电压技术, 2007, 33(11):27-32.
	GU Dingxie, XIU Muhong, DAI Min, et al. Study on VFTO of 1 000 kV GIS substation[J]. High Voltage Engineering, 2007, 33(11):27-32.
[2]	刘卫东, 汪林森, 陈维江, 等. 特高压GIS特快速暂态过电压试验重复击穿过程研究[J]. 高电压技术, 2011, 37(3):644-650.
	LIU Weidong, WANG Linsen, CHEN Weijiang, et al. Investigation of the VFTO related repeated breakdown processes in UHV GIS[J]. High Voltage Engineering, 2011, 37(3):644-650.
[3]	ALMENWEER R A, SU Y, XIXIU W. Research on the fitting method to describe the mathematical expression of VFTO in GIS[J]. The Journal of Engineering, 2019, 16(3):2053-2057.
[4]	毛越波, 蔡新景, 杨钰. 大型变压器绕组的特快速暂态过电压计算及防护措施[J]. 高电压技术, 2019, 45(3):975-982.
	MAO Yuebo, CAI Xinjing, YANG Yu. Computation and protection measures of very fast transient overvoltages in large transformer windings[J]. High Voltage Engineering, 2019, 45(3):975-982.
[5]	马玉晖. VFTO波形及磁环抑制的研究[D]. 北京: 华北电力大学, 2017.
	MA Yuhui. Research on VFTO waveform and suppressing method with magnetic-rings[D]. Beijing: North China Electric Power University, 2017.
[6]	刘子英, 张靖, 吴文辉. 合闸电阻对1 000 kV GIS高压隔离开关VFTO的抑制研究[J]. 高压电器, 2021, 57(5):1-6.
	LIU Ziying, ZHANG Jing, WU Wenhui. Study on suppressing VFTO of 1 000 kV GIS disconnector by closing resistor[J]. High Voltage Apparatus, 2021, 57(5):1-6.
[7]	王磊, 万磊, 王浩, 等. 取消特高压GIS变电站隔离开关阻尼电阻的研究[J]. 高电压技术, 2015, 41(5):1746-1752.
	WANG Lei, WAN Lei, WANG Hao, et al. Study on eliminating damping resistance of disconnector in UHV GIS substation[J]. High Voltage Engineering, 2015, 41(5):1746-1752.
[8]	冯宇, 吴士普, 吴细秀, 等. VFTO抑制新方法研究高频过电压抑制导线[J]. 高压电器, 2018, 54(10):1-5.
	FENG Yu, WU Shipu, WU Xixiu, et al. A new method tosuppress VFTO the high frequency overvoltage restraining busbar[J]. High Voltage Apparatus, 2018, 54(10):1-5.
[9]	钟笑拳, 周力行, 刘涛, 等. 1 000 kV GIS 中快速暂态过电压抑制措施研究[J]. 电瓷避雷器, 2013, 6(6):119-123.
	ZHONG Xiaoquan, ZHOU Lixing, LIU Tao, et al. Research on protection measure for VFTO of 1 000 kV GIS substation[J]. Insulators and Surge Arresters, 2013, 6(6):119-123.
[10]	南保峰, 刘轩东, 冯磊, 等. GIS中VFTO防护措施研究综述[J]. 电瓷避雷器, 2017(6):81-85.
	NAN Baofeng, LIU Xuandong, FENG Lei, et al. Review of research on VFTO protective measures in GIS[J]. Insulators and Surge Arresters, 2017(6):81-85.
[11]	李宜, 张彼德. GIS 中金属氧化物避雷器对VFTO抑制研究[J]. 电瓷避雷器, 2020(4):41-45.
	LI Yi, ZHANG Bide. Study on the suppression of VFTO by metal oxide arrester in GIS[J]. Insulators and Surge Arresters, 2020(4):41-45.
[12]	周挺. 特高压GIS中快速暂态过电压的特性研究[D]. 武汉: 华中科技大学, 2013.
	ZHOU Ting. The research of characteristics of very fast transient overvoltage in UHV GIS system[D]. Wuhan: Huazhong University of Science and Technology, 2013.
[13]	陈维江, 颜湘莲, 王绍武, 等. 气体绝缘开关设备中特快速瞬态过电压研究的新进展[J]. 中国电机工程学报, 2011, 31(31):1-11.
	CHEN Weijiang, YAN Xianglian, WANG Shaowu, et al. Recent progress in investigations on very fast transient overvoltage in gas insulated switchgear[J]. Proceedings of the CSEE, 2011, 31(31):1-11.
[14]	李岩. 特快速暂态过电压特性分析及其数值仿真研究[D]. 济南: 山东大学, 2015.
	LI Yan. Characteristics analysis of very fast transient overvoltage its numerical simulation study[D]. Jinan: Shandong University, 2015.
[15]	刘玉, 鲁海亮, 刘文博, 等.500 kV GIS 变电站快速暂态过电压研究[J]. 电瓷避雷器, 2017(2):65-70.
	LIU Yu, LU Hailiang, LIU Wenbo, et al. The research of very fast transient overvoltage in 500 kV GIS substation[J]. Insulators and Surge Arresters, 2017(2):65-70.
[16]	ZHAN Huamao, DUAN Shaofeng, LI Chengrong, et al. A novel arc model for very fast transient overvoltage simulation in a 252 kV gas-insulated switchgear[J]. IEEE Transactions on Plasma Science, 2014, 42(10):3423-3429. doi: 10.1109/TPS.2014.2353416
[17]	唐启尧. 三峡电站500 kV气体绝缘全封闭快速暂态过电压分析[D]. 重庆: 重庆大学, 2008.
	TANG Qiyao. Analysis on VFTO of TGHP 500 kV GIS[D]. Chongqing: Chongqing University, 2008.
[18]	肖奔.1000 kV GIS变电站特快速暂态过电压的仿真[D]. 淮南: 安徽理工大学, 2017.
	XIAO Ben. Simulation study on very fast transient overvoltage of 1 000 kV GIS substation[D]. Huainan: Anhui University of Science & Technology, 2017.
[19]	王磊, 陈维江, 岳功昌, 等. 特高压气体绝缘开关设备的隔离开关残余电荷电压仿真分析[J]. 高电压技术, 2014, 40(12):3911-3917.
	WANG Lei, CHEN Weijing, YUE Gongchang, et al. Simulation analysis of potential caused by trapped charge in disconnector of UHV gas insulated switchgear device[J]. High Voltage Engineering, 2014, 40(12):3911-3917.
[20]	CHEN Weijiang, WANG Hao, HAN Bin, et al. Study on the influence of disconnector characteristics on very fast transient overvoltages in 1 100 kV gas-insulated switchgear[J]. IEEE Transactions on Power Delivery, 2015, 30(4):2037-2044. doi: 10.1109/TPWRD.2015.2403305
[21]	刘教民, 杜巍, 王震洲, 等. 基于时域有限元的特快速暂态过电压仿真新方法[J]. 电工技术学报, 2013, 28(11):286-292.
	LIU Jiaomin, DU Wei, WANG Zhenzhou, et al. A new simulation calculation method for VFT0 based on time domain finite element method[J]. Transactions of China Electrotechnical Society, 2013, 28(11):286-292.
[22]	吴文辉, 曹祥麟. 电力系统电磁暂态计算与EMTP应用[M]. 北京: 中国水利水电出版社, 2012.
	WU Wenhui, CAO Xianglin. Power system electromagnetic transient calculation and EMTP application[M]. Beijing: China Water Conservancy and Hydropower Press, 2012.
[23]	高凡夫, 谭向宇, 梁策, 等. 应用小磁环加装大磁环抑制GIS中VFTO的试验研究[J]. 高压电器, 2019, 55(6):56-61,69.
	GAO Fanfu, TAN Xiangyu, LIANG Ce, et al. Experimental study on suppressing VFTO in GIS with small and large magnetic rings[J]. High Voltage Apparatus, 2019, 55(6):56-61,69.
[24]	关永刚, 郭珮琪, 陈维江, 等. 铁氧体磁环抑制252 kV GIS中VFTO的试验研究[J]. 高电压技术, 2014, 7(7):1977-1985.
	GUAN Yonggang, GUO Peiqi, CHEN Weijiang, et al. Test study on suppressing VFTO in 252 kV GIS by ferrite magnetic rings[J]. High Voltage Engineering, 2014, 7(7):1977-1985.

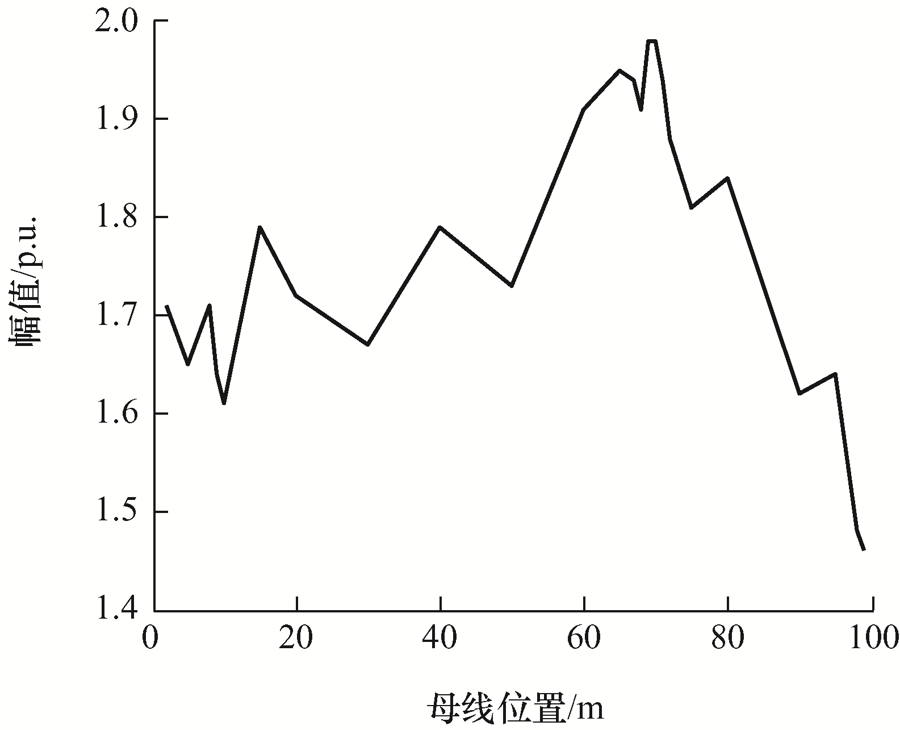

测试位置	断路器上	BUS6 10 m处	隔离开关上	BUS5 25 m处
幅值/p.u.	1.70	1.46	1.44	2.06
	2.67	2.38	1.83	1.76
	2.05	1.78	1.43	1.96
测试位置	BUS4 15 m处	BUS3 1 m处	BUS2 10 m处	BUS1 10 m处
幅值/p.u.	1.80	2.01	2.06	1.55
	2.57	2.63	2.21	2.54
	1.54	1.81	1.78	1.46
