双斜槽转子变频感应电机温升及转子热应力分析*

doi:10.11985/2023.01.002

电气工程学报 ›› 2023, Vol. 18 ›› Issue (1): 14-23.doi: 10.11985/2023.01.002

扫码分享

双斜槽转子变频感应电机温升及转子热应力分析^*

明帅¹(), 刘志远¹(), 狄冲¹(), 鲍晓华¹^,²()

1.合肥工业大学电气与自动化工程学院合肥 230009
2.合肥工业大学智能制造技术研究院合肥 230009

收稿日期:2022-12-06 修回日期:2023-01-30 出版日期:2023-03-25 发布日期:2023-04-19
通讯作者: 鲍晓华，男，1972年生，博士，教授。主要研究方向为电机设计、磁场分析和有限元分析。E-mail：baoxh@hfut.edu.cn
作者简介:明帅，男，1998年生，硕士研究生。主要研究方向为特种电机振动噪声分析。E-mail：2020110345@mail.hfut.edu.cn
刘志远，男，1997年生，硕士研究生。主要研究方向为电机电磁设计。E-mail：1229866986@qq.com
狄冲，男，1991年生，博士，讲师。主要研究方向为高速电机和开源平台电机建模。E-mail：Chong.Di@hfut.edu.cn
基金资助:
*国家自然科学基金(51977055);合肥工业大学智能制造技术研究院2019年度智能网联及新能源汽车技术科技成果转化及产业化专项资金(IMIWL2019001)

Analysis of Temperature Rise and Rotor Thermal Stress of Variable Frequency Induction Motor with Double Skewed Rotor

MING Shuai¹(), LIU Zhiyuan¹(), DI Chong¹(), BAO Xiaohua¹^,²()

1. School of Electrical Engineering and Automation, Hefei University of Technology, Hefei 230009
2. Intelligent Manufacturing Institute of Hefei University of Technology, Hefei 230009

Received:2022-12-06 Revised:2023-01-30 Online:2023-03-25 Published:2023-04-19

摘要/Abstract

摘要：

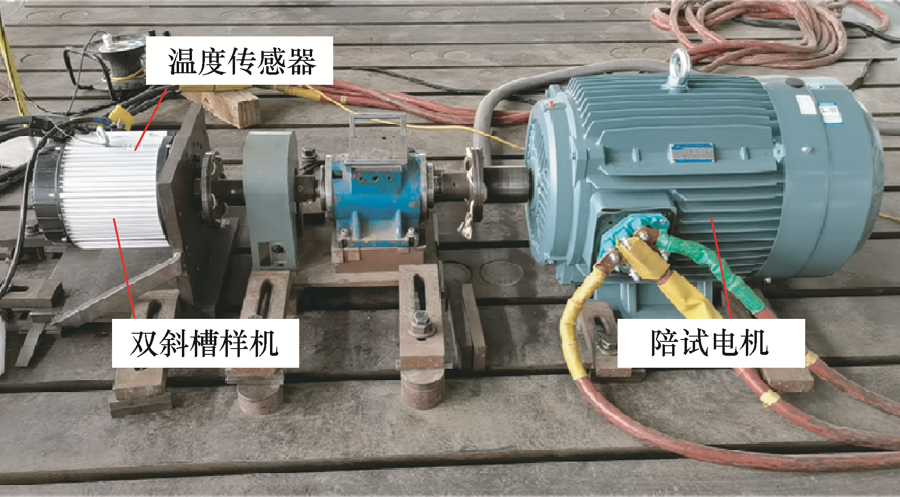

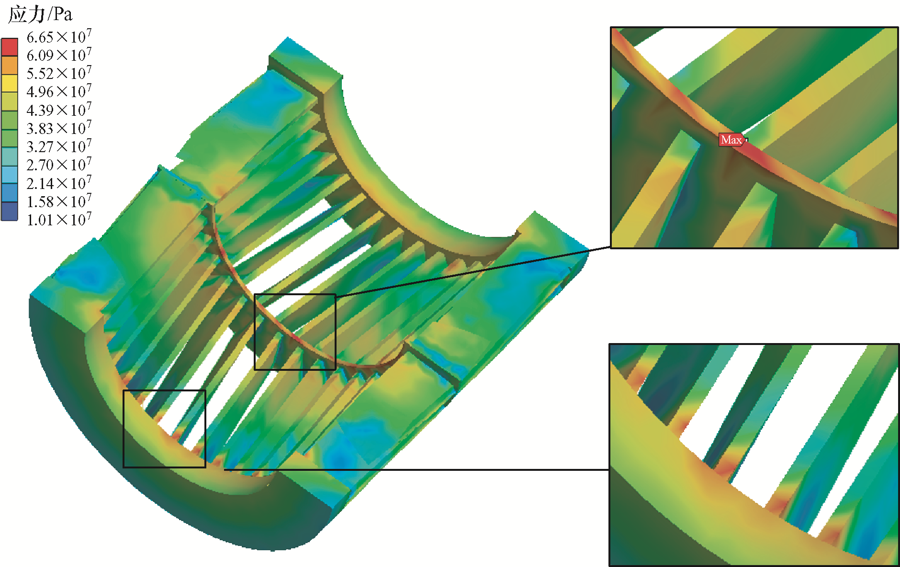

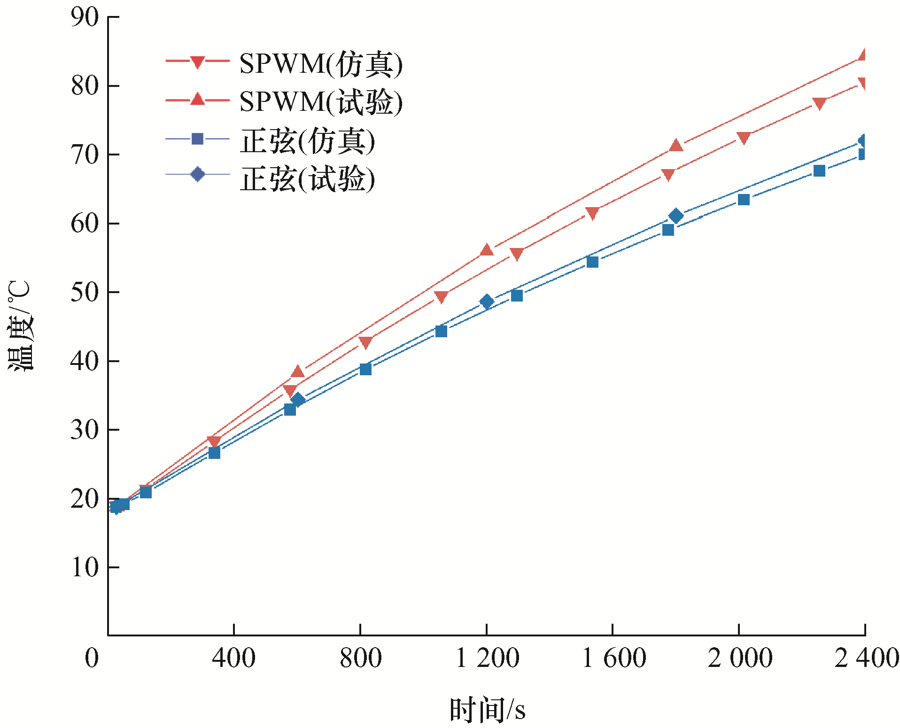

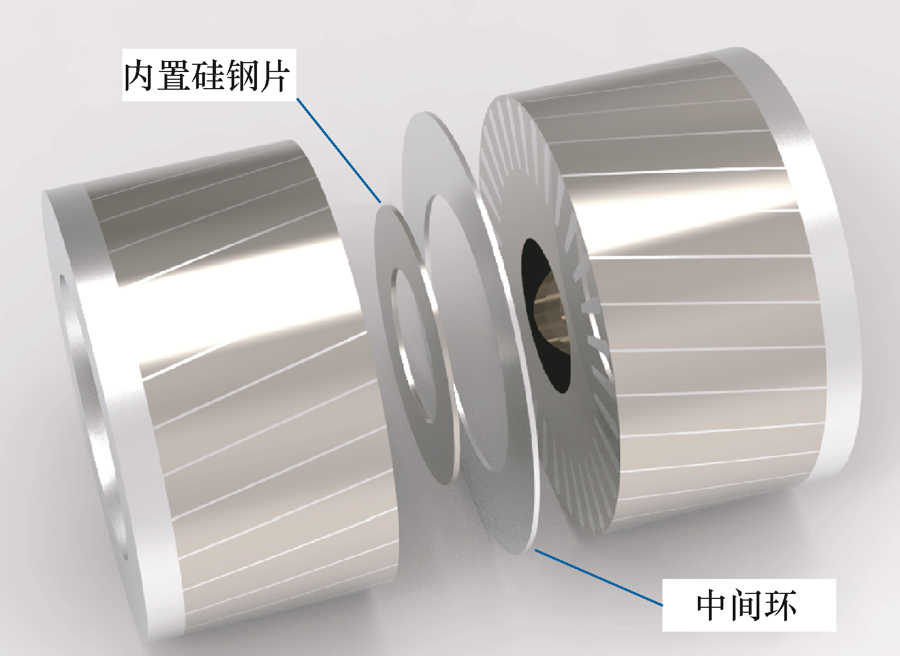

针对双斜槽转子变频感应电机温升及转子热应力研究的不足，研究变频器供电下双斜槽转子感应电机温升及转子热应力的分布规律。采用三维有限元法结合改进的铁耗模型对变频供电方式下的电磁损耗进行计算。以三维电磁场损耗密度为载荷，施加到三维温度场模型中作为热源，模拟变频供电方式下电机的瞬态温度变化过程，得到电机机壳的温升变化曲线及电机各部分的温度分布情况，并通过样机机壳温升试验验证了仿真计算结果的准确性。最后，以温度场的计算结果为载荷，施加相应约束条件，得到了双斜槽转子鼠笼热应力分布情况，指出了双斜槽转子鼠笼易断裂位置，得出有益结论。本文完善了双斜槽转子断条故障原因，为双斜槽转子的热优化设计提供重要参考。

关键词: 变频供电, 双斜槽转子, 温升, 转子热应力

Abstract:

In view of the deficiency of the research on the temperature rise and rotor thermal stress of the double-skewed rotor variable frequency induction motor, the distribution law of the temperature rise and rotor thermal stress of the double-skewed rotor induction motor under the power supply of the inverter are studied. The electromagnetic loss under inverter power supply mode is calculated by using the 3D finite element method combined with the improved iron loss model. Taking the 3D electromagnetic field loss density as the load and applying it to the 3D temperature field model as the heat source, the transient temperature change process of the motor under the inverter power supply mode is simulated, and the temperature rise curve of the motor shell and the temperature distribution of each part of the motor are obtained, and the accuracy of the simulation calculation results is verified by the temperature rise experiment of the prototype. Finally, the thermal stress distribution of the double-skewed rotor squirrel cage was obtained by taking the calculation result of the temperature field as the load and applying the corresponding constraints. The position where the squirrel cage of the double-skewed rotor is easy to break is pointed out, and some useful conclusions are drawn. The cause of the broken bars of the double-skewed rotor is improved and an important reference for the thermal optimization design of the double-skewed rotor is provided.

Key words: Inverter power supply, double skewed rotor, temperature rise, rotor thermal stress

中图分类号:

TM343

明帅, 刘志远, 狄冲, 鲍晓华. 双斜槽转子变频感应电机温升及转子热应力分析^*[J]. 电气工程学报, 2023, 18(1): 14-23.

MING Shuai, LIU Zhiyuan, DI Chong, BAO Xiaohua. Analysis of Temperature Rise and Rotor Thermal Stress of Variable Frequency Induction Motor with Double Skewed Rotor[J]. Journal of Electrical Engineering, 2023, 18(1): 14-23.

图/表 22

图1

图2

图3

表1

图4

图5

图6

图7

表2

图8

图9

图10

图11

表3

图12

表4

图13

图14

图15

图16

表5

图17

参考文献 20

[1]	陈永校, 诸自强, 应善成. 电机噪声的分析和控制[M]. 杭州: 浙江大学出版社,1987.
	CHEN Yongxiao, ZHU Ziqiang, YING Shancheng. Analysis and control of motor noise[M]. Hangzhou: Zhejiang University Press,1987.
[2]	WANG L, BAO X, DI C, et al. Analysis of synchronous parasitic torque in dual skew cage rotor induction motors with equivalent slot number[J]. IET Electric Power Applications, 2017, 11(8):1357-1365. doi: 10.1049/elp2.v11.8
[3]	王春雨. 电动叉车用双斜槽转子感应电机的振动噪声分析[D]. 合肥: 合肥工业大学, 2018.
	WANG Chunyu. Vibration and noise analysis of induction motor with double skewed slot rotor for electric forklift truck[D]. Hefei: Hefei University of Technology, 2018.
[4]	王艳武, 杨立, 陈翾, 等. 异步电机转子三维温度场及热应力场研究[J]. 电机与控制学报, 2010, 14(6):27-32.
	WANG Yanwu, YANG Li, CHEN Xuan, et al. Study on 3D thermal field and thermal stress field of the induction motor rotor[J]. Electric Machines and Control, 2010, 14(6):27-32.
[5]	谢颖, 王泽, 单雪婷, 等. 基于多场量的笼型感应电机三维瞬态磁热固耦合计算分析[J]. 中国电机工程学报, 2016, 36(11):3076-3084.
	XIE Ying, WANG Ze, SHAN Xueting, et al. The calculations and analysis of 3D transient magnetic-thermal-solid coupling for squirrel-cage induction motors based on multi fields[J]. Proceedings of the CSEE, 2016, 36(11):3076-3084.
[6]	李伟力, 李守法, 谢颖, 等. 感应电动机定转子全域温度场数值计算及相关因素敏感性分析[J]. 中国电机工程学报, 2007, 27(24):85-91.
	LI Weili, LI Shoufa, XIE Ying, et al. Stator-rotor coupled thermal field numerical calculation of induction motors and correlated factors sensitivity analysis[J]. Proceedings of the CSEE, 2007, 27(24):85-91.
[7]	丁树业, 崔广慧. PWM变频器供电的感应电机传热特性[J]. 南京航空航天大学学报, 2016, 48(1):122-129.
	DING Shuye, CUI Guanghui. Characteristics of heat transfer for induction motor supplied by PWM converter[J]. Journal of Nanjing University of Aeronautics & Astronautics, 2016, 48(1):122-129.
[8]	丁树业, 朱敏, 江欣. 永磁同步电机三维全域温度场与温度应力耦合研究[J]. 电机与控制学报, 2018, 22(1):53-60,71.
	DING Shuye, ZHU Min, JIANG Xin. Coupling study of 3D universal temperature field and temperature stress for permanent magnet synchronous motor[J]. Electric Machines and Control, 2018, 22(1):53-60,71.
[9]	曹君慈, 周柏宇, 李栋, 等. 不同磁极拓扑结构的轴向磁通永磁同步电机传热的研究[J]. 电机与控制学报, 2022, 26(5):26-36.
	CAO Junci, ZHOU Baiyu, LI Dong, et al. Heat transfer of axial flux permanent magnet motor with different magnetic pole topologies[J]. Electric Machines and Control, 2022, 26(5):26-36.
[10]	宁榕. SPWM型变频器供电下异步电机电磁噪声[J]. 电机与控制应用, 2014, 41(7):39-42.
	NING Rong. Electromagnetic noise of induction motor under SPWM inverter power supply[J]. Electric Machines & Control Application, 2014, 41(7):39-42.
[11]	赵争鸣, 袁立强. 电力电子与电机系统集成分析基础[M]. 北京: 机械工业出版社, 2009.
	ZHAO Zhengming, YUAN Liqiang. Integrated analysis of power electronics and motor drive system[M]. Beijing: China Machine Press, 2009.
[12]	赵海森, 刘晓芳, 罗应立, 等. 电压偏差条件下笼型感应电机的损耗特性[J]. 电机与控制学报, 2010, 14(5):13-19.
	ZHAO Haisen, LIU Xiaofang, LUO Yingli, et al. Losses characteristics of cage induction motors under voltage deviation conditions[J]. Electric Machines and Control, 2010, 14(5):13-19.
[13]	TONG W, SUN R, LI S, et al. Loss and thermal analysis for high speed amorphous metal PMSMs using 3-D electromagnetic-thermal bi-directional coupling[J]. IEEE Transactions on Energy Conversion, 2021, 36(4):2839-2849. doi: 10.1109/TEC.2021.3065336
[14]	BOGLIETTI A, CAVAGNINO A, IONEL D M, et al. A general model to predict the iron losses in PWM inverter-fed induction motors[J]. IEEE Transactions on Industry Applications, 2010, 46(5):1882-1890. doi: 10.1109/TIA.2010.2057393
[15]	WANG Hairong, WU Jianhua. The calculation of iron losses in inverter-fed induction motors based on time-stepping FEM[C]// 2013 International Conference on Electrical Machines and Systems (ICEMS), 2013:818-821.
[16]	韩力, 蔡瑞环, 沈超凡, 等.10 MW高速实心转子感应电动机损耗计算与温升分析[J]. 电机与控制学报, 2018, 22(12):44-53.
	HAN Li, CAI Ruihuan, SHEN Chaofan, et al. Loss calculation and temperature rise analysis of 10 MW high-speed solid rotor induction motor[J]. Electric Machines and Control, 2018, 22(12):44-53.
[17]	谢颖, 胡圣明, 陈鹏, 等. 永磁同步电机匝间短路故障温度场分析[J]. 电工技术学报, 2022, 37(2):322-331.
	XIE Ying, HU Shengming, CHEN Peng, et al. Thermal field analysis on inter-turn short circuit fault of permanent magnet synchronous motor[J]. Transactions of China Electrotechnical Society, 2022, 37(2):322-331.
[18]	XIA Y, XU Y, AI M, et al. Temperature calculation of an induction motor in the starting process[J]. IEEE Transactions on Applied Superconductivity, 2019, 29(2):1-4.
[19]	谢颖, 单雪婷, 郭金鹏, 等. 笼型转子导条断裂引发电机各场量变化与故障程度关联性研究[J]. 中国电机工程学报, 2017, 37(14):4222-4231.
	XIE Ying, SHAN Xueting, GUO Jinpeng, et al. The relationship study between field changes and faulty condition in squirrel-cage induction motor with broken bars fault[J]. Proceedings of the CSEE, 2017, 37(14):4222-4231.
[20]	林巨广, 赖剑斌, 路玲. 车用永磁同步电机转子热结构耦合分析[J]. 合肥工业大学学报, 2019, 42(2):172-177,210.
	LIN Juguang, LAI Jianbin, LU Ling. Thermal-structural coupled analysis of the rotor of vehicle permanent magnet synchronous motor[J]. Journal of Hefei University of Technology, 2019, 42(2):172-177,210.

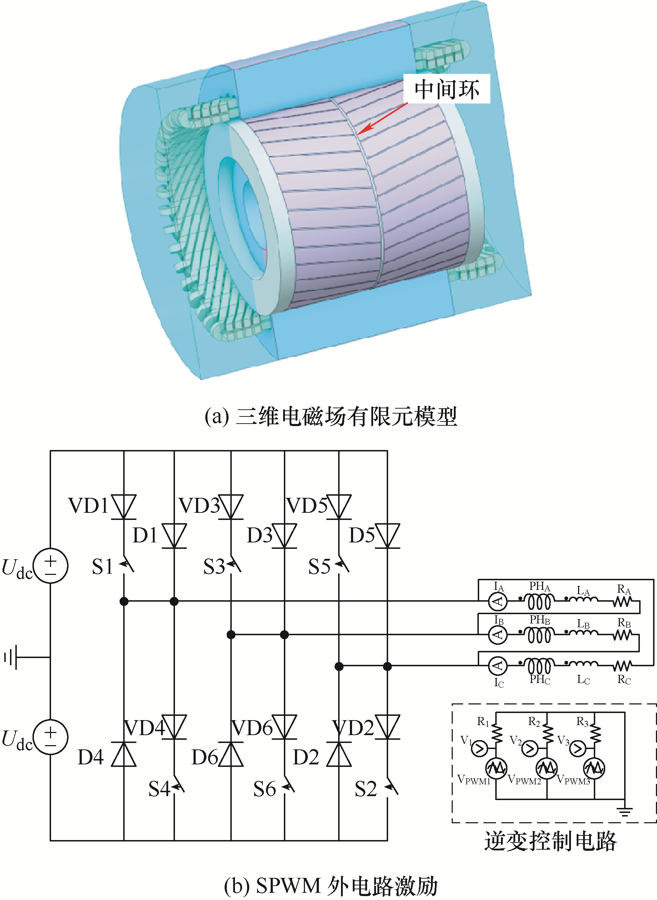

参数	数值
相数	3
极对数p	2
输入电压U/V	135
输入频率f₁/Hz	100
输出功率/kW	22.5
定子槽数Q₁	36
转子槽数Q₂	32
载波频率/Hz	5 000
电机三圆尺寸/mm	260-170-60
中间环厚度/mm	2

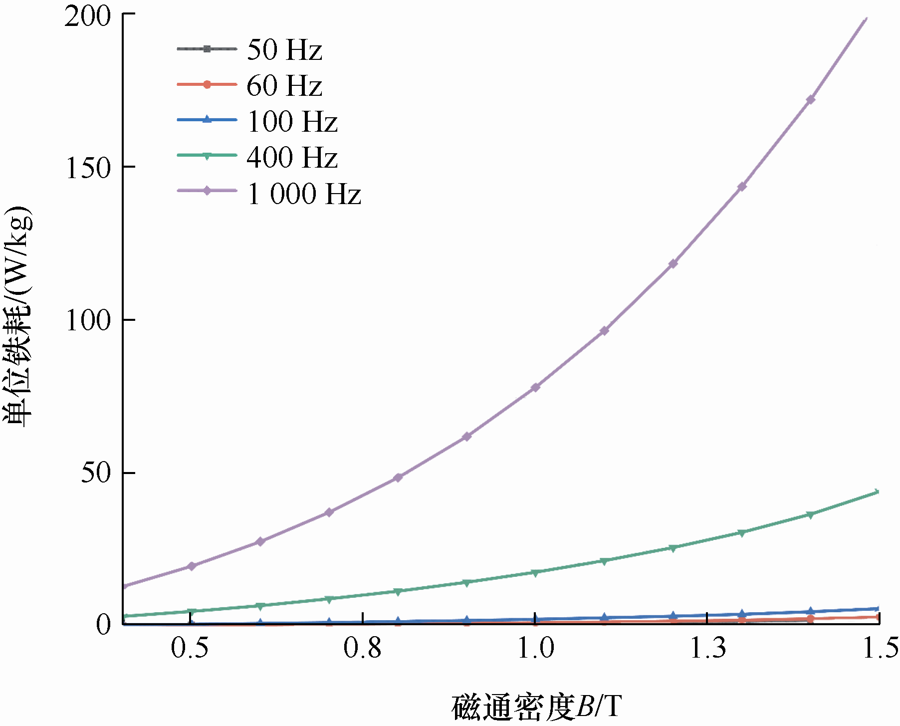

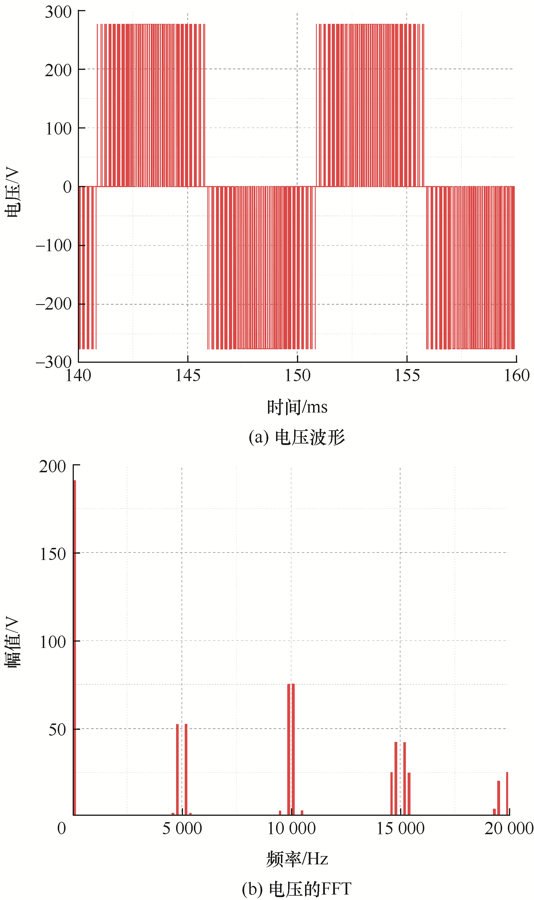

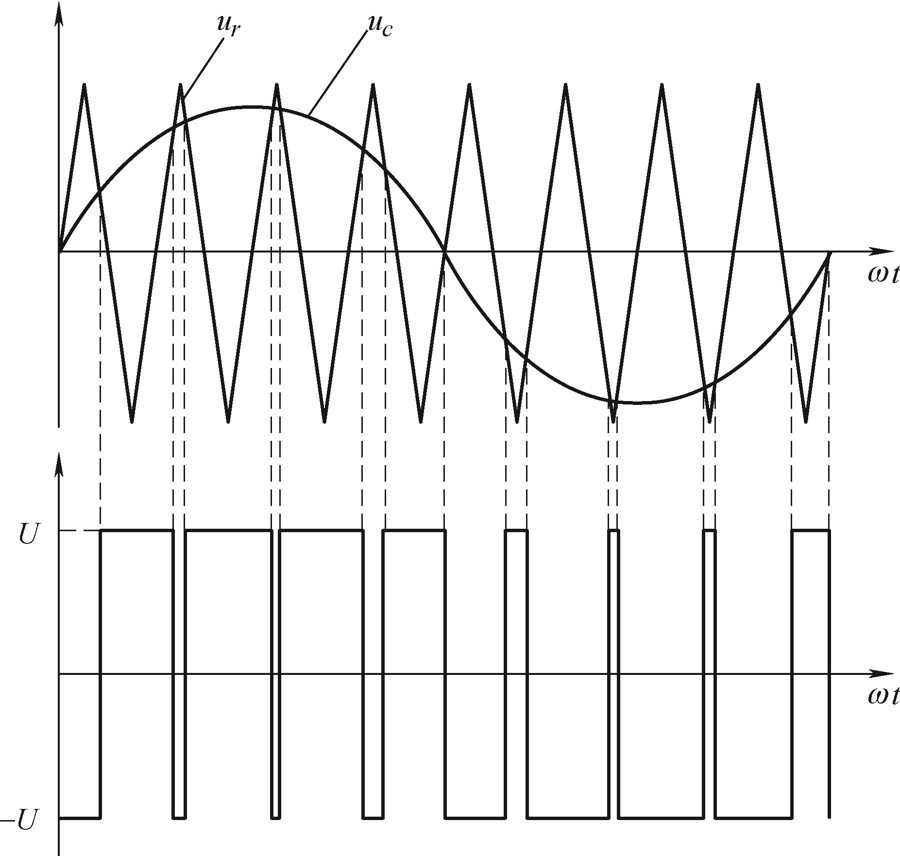

供电方式	定子铜耗/W	铁耗/W	转子铝耗/W
正弦供电	532	368	282
SPWM供电	540	518	376

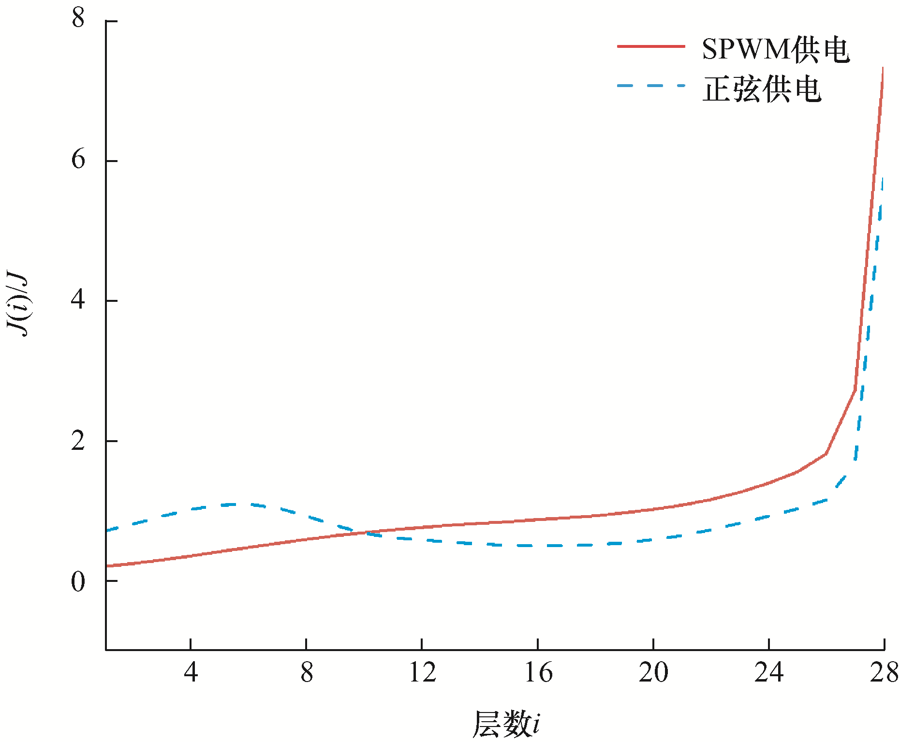

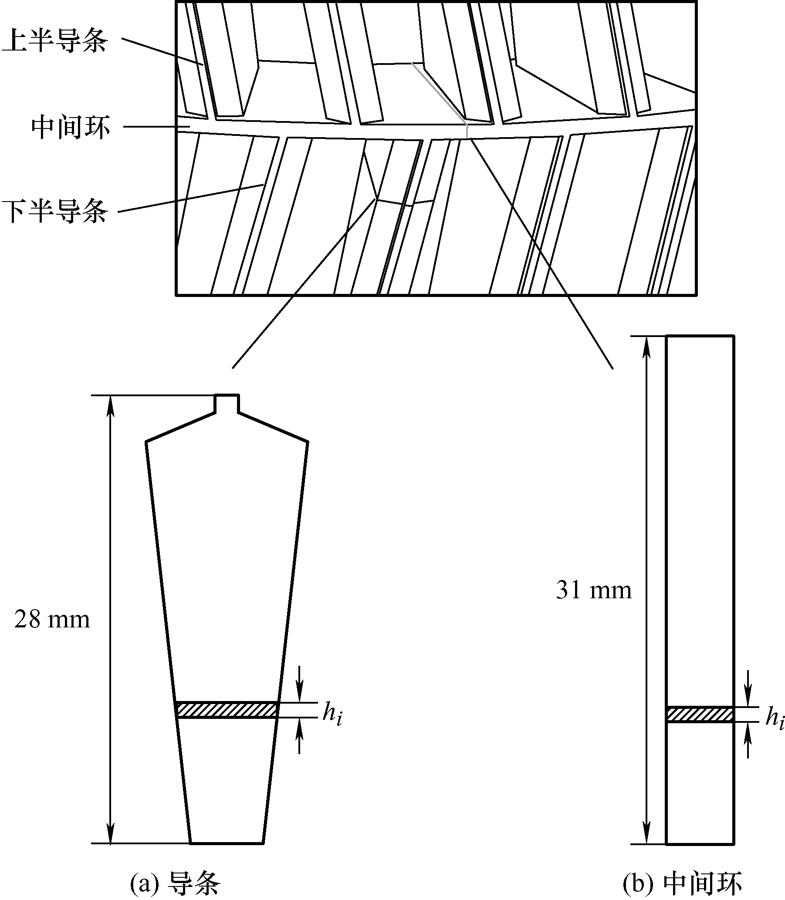

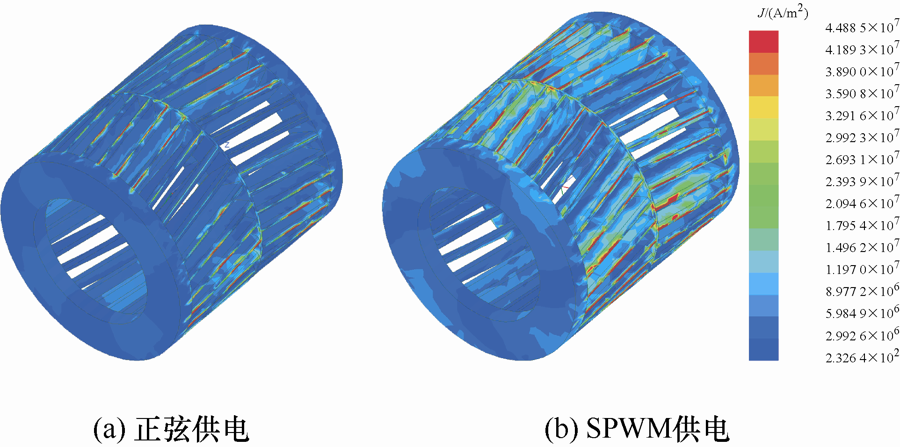

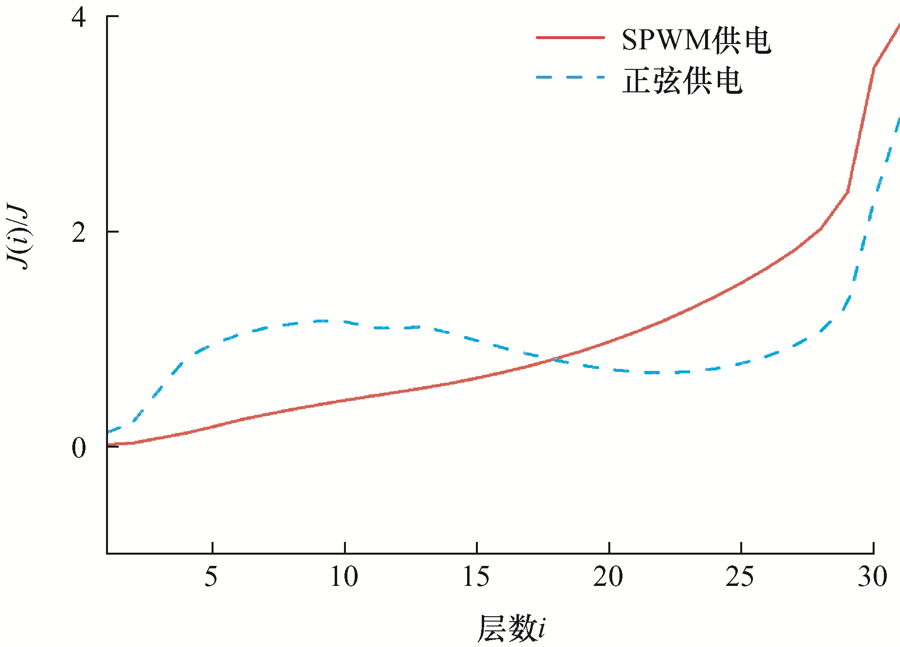

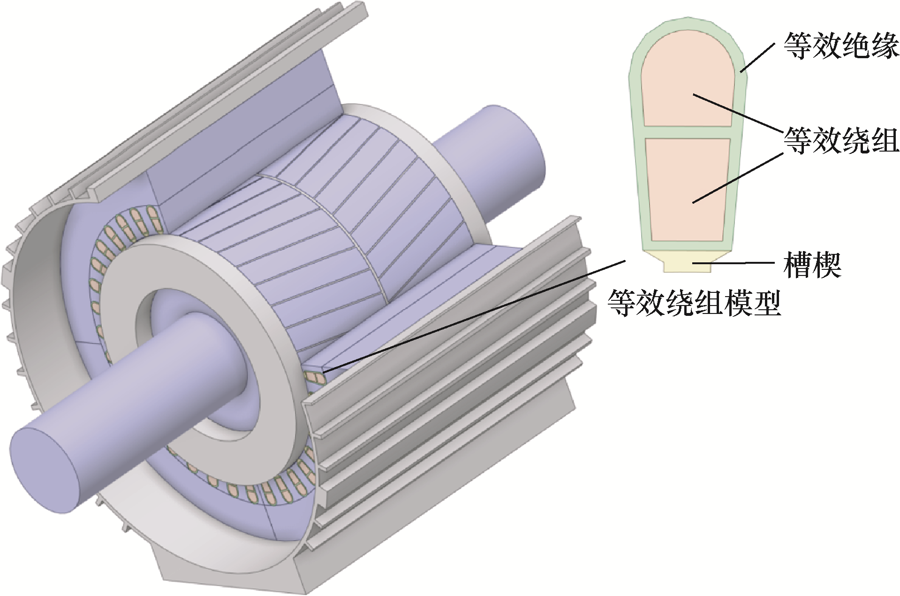

部件	导热系数/[W/(m∙K)]
机壳	167
定子绕组	400
转子绕组	210
等效气隙	0.082
等效绝缘	0.25
槽楔	0.5
转轴	46

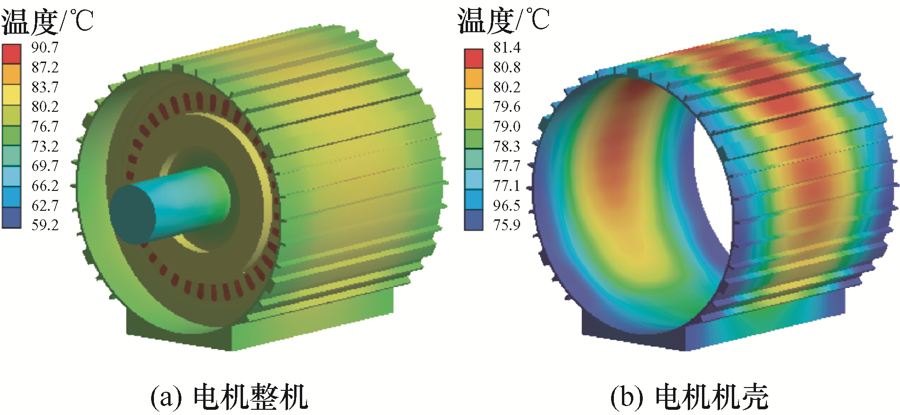

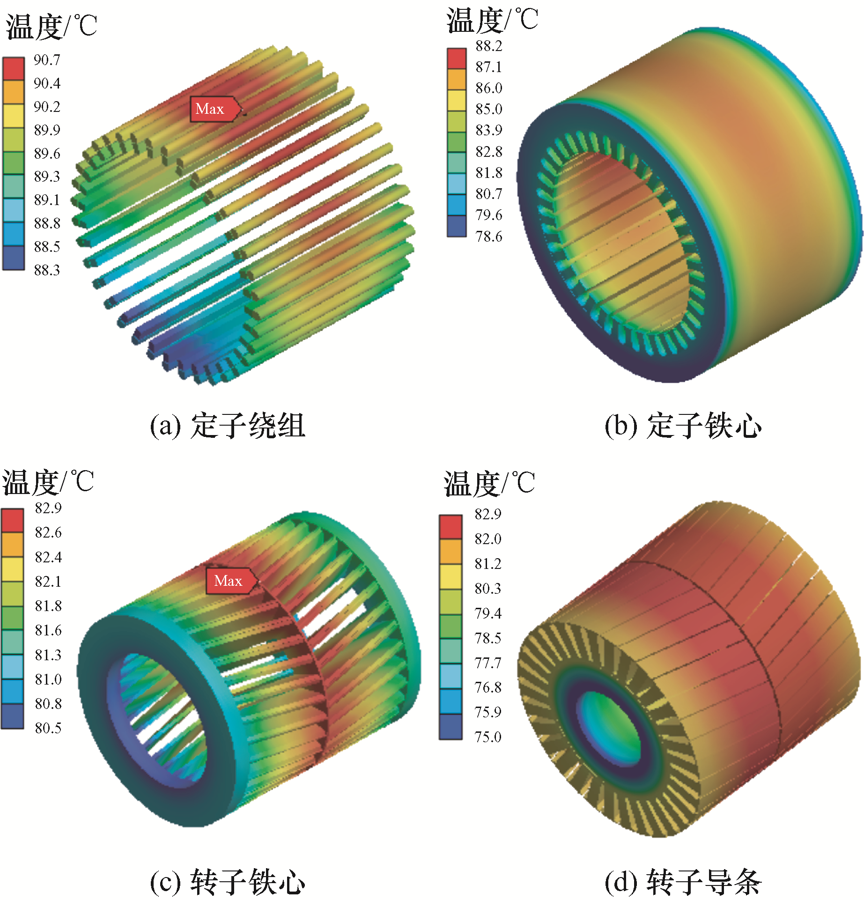

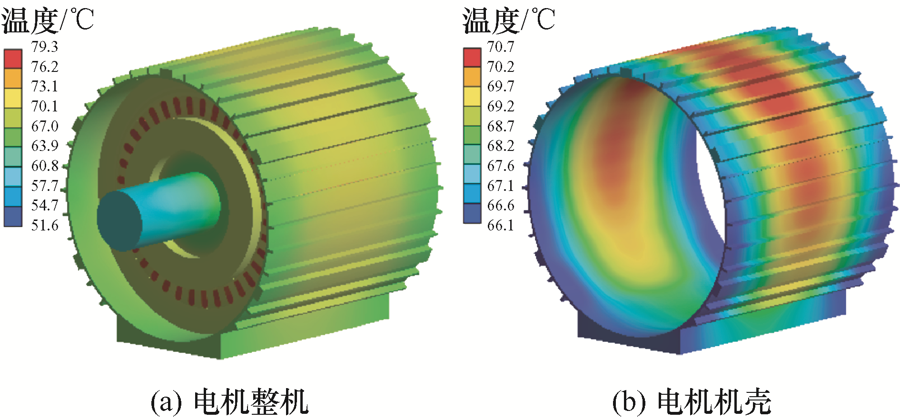

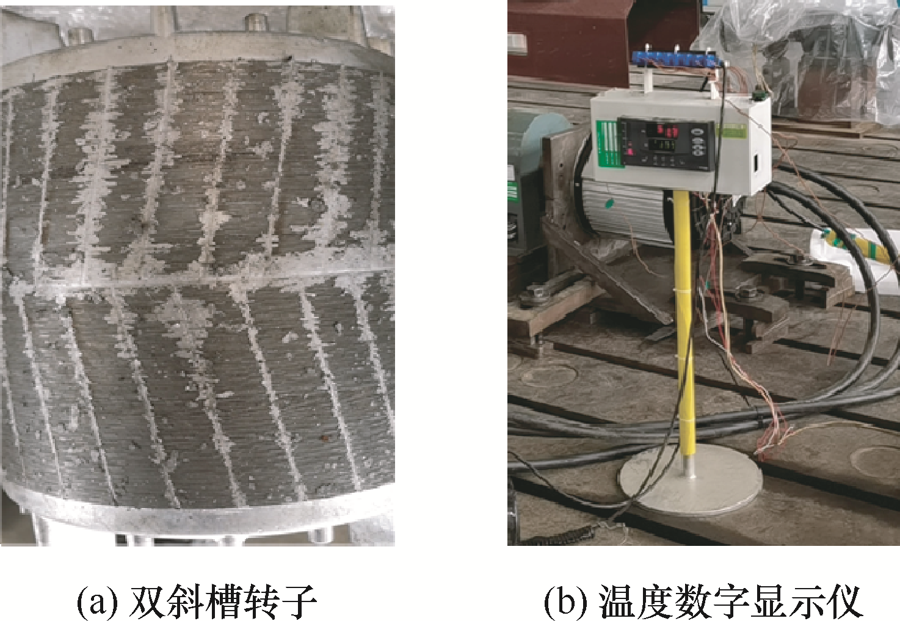

部件	正弦供电/℃	SPWM供电/℃
机壳	68.16	78.34
定子绕组	78.48	89.76
转子导条	70.18	81.87
定子铁心	74.34	85.59
转子铁心	69.95	81.56
转轴	61.53	71.33
