磷酸铁锂储能电池过充热失控仿真研究*

doi:10.11985/2022.03.005

电气工程学报 ›› 2022, Vol. 17 ›› Issue (3): 30-39.doi: 10.11985/2022.03.005

• 特邀专栏：储能(储氢)材料、技术、装置及新能源综合应用 • 上一篇下一篇

扫码分享

磷酸铁锂储能电池过充热失控仿真研究^*

于子轩¹(), 孟国栋¹(), 谢小军², 赵勇², 成永红¹

1.西安交通大学电力设备电气绝缘国家重点实验室西安 710049
2.西安热工研究院有限公司西安 710054

收稿日期:2022-05-24 修回日期:2022-08-05 出版日期:2022-09-25 发布日期:2022-10-28
通讯作者: 孟国栋 E-mail:vyzxalex@126.com;gdmengxjtu@xjtu.edu.cn
作者简介:于子轩,女,1997年生,硕士研究生。主要研究方向为电力设备绝缘性能评价与状态监测。E-mail： vyzxalex@126.com
基金资助:
*西安热工研究院有限公司研发基金资助项目(TM-21-TYK35)

Simulation Research on Overcharge Thermal Runaway of Lithium Iron Phosphate Energy Storage Battery

YU Zixuan¹(), MENG Guodong¹(), XIE Xiaojun², ZHAO Yong², CHENG Yonghong¹

1. State Key Laboratory of Electrical Insulation of Power Equipment, Xi’an Jiaotong University, Xi’an 710049
2. Xi’an Thermal Power Research Institute Co., Ltd., Xi’an 710054

Received:2022-05-24 Revised:2022-08-05 Online:2022-09-25 Published:2022-10-28
Contact: MENG Guodong E-mail:vyzxalex@126.com;gdmengxjtu@xjtu.edu.cn

摘要/Abstract

摘要：

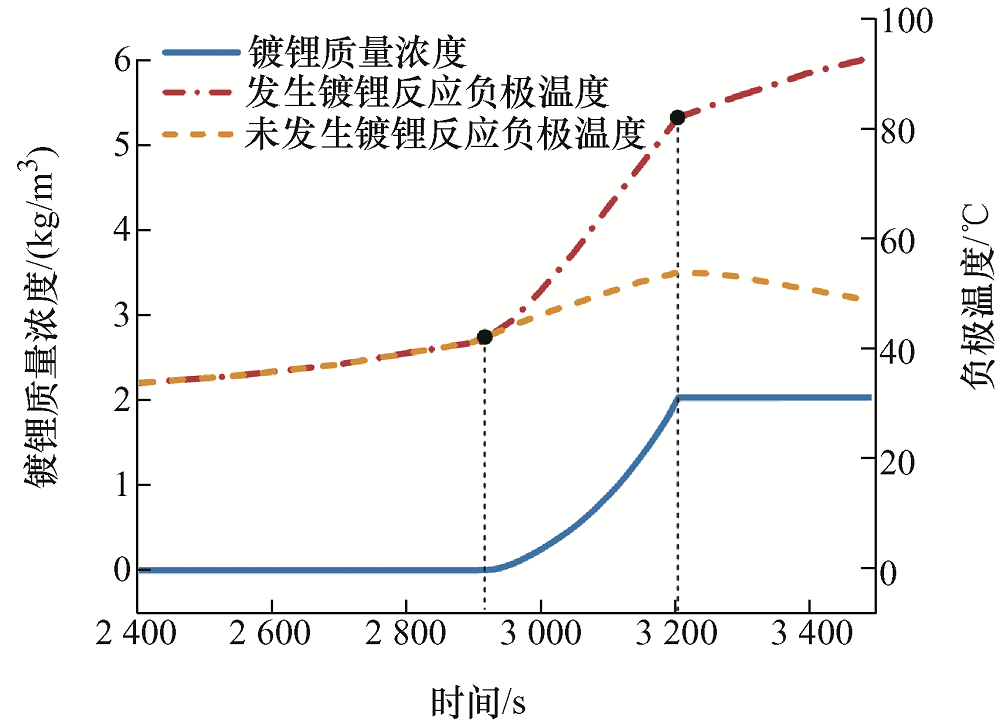

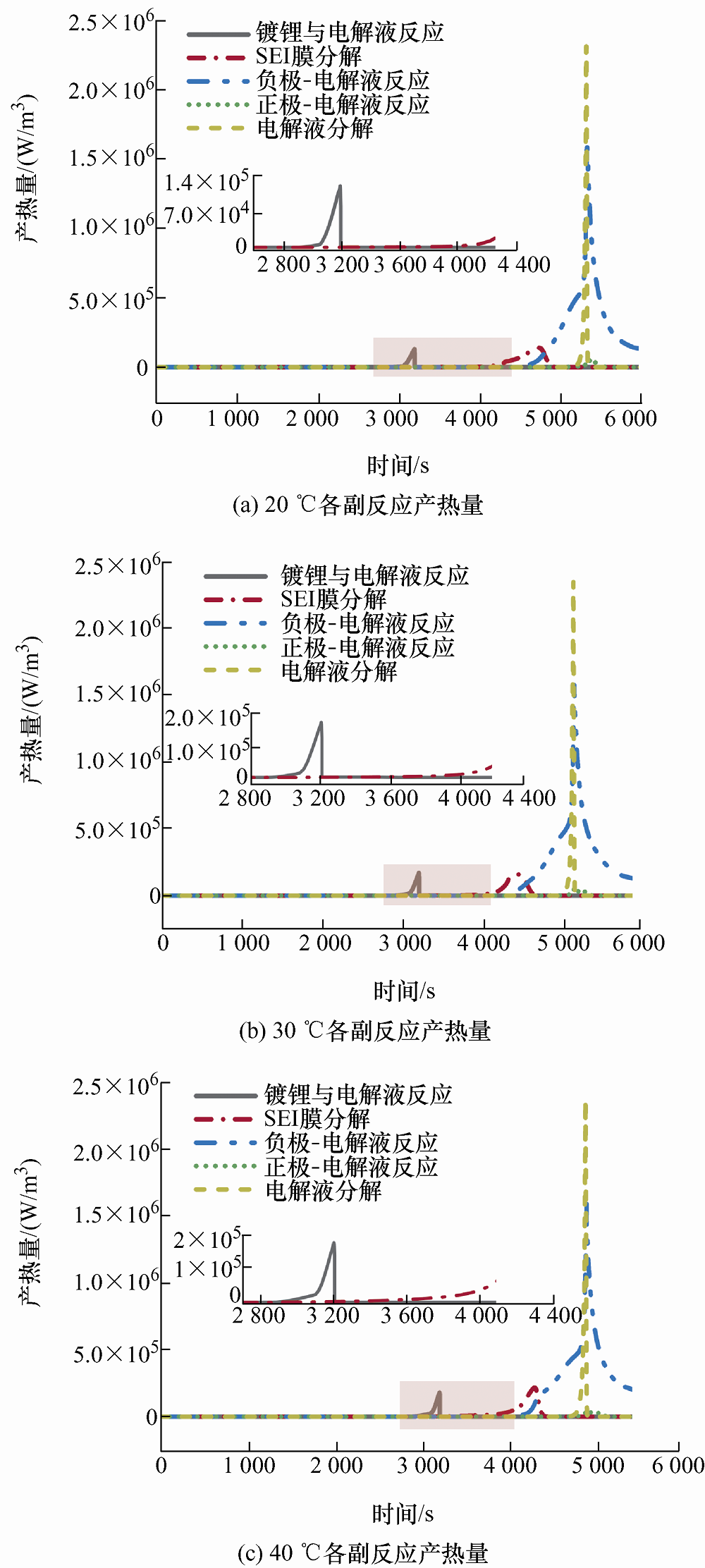

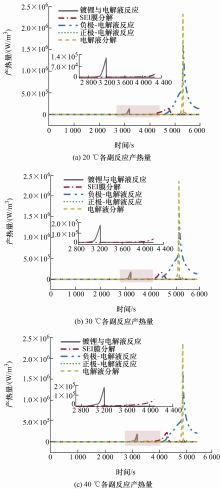

锂离子电池的热失控是导致储能电站发生起火或爆炸等安全事故的根本原因,研究锂离子电池热失控的发展规律和本征特性对于电化学储能电站的安全监测和故障预警具有重要意义。建立了磷酸铁锂储能电池在过充条件下的三维电化学-热耦合热失控的仿真模型,通过镀锂动力学方程量化过充负极镀锂量,引入SEI膜生长动力学方程反映镀锂与电解液反应速率,以量化负极镀锂与电解液反应产热,并引入其他副反应产热方程共同研究磷酸铁锂电池早期过充热失控温度变化及各副反应产热情况。分别研究了不同充电倍率(1C、2C、3C),不同环境温度(20 ℃、30 ℃、40 ℃)下磷酸铁锂电池热失控早期负极表面镀锂量变化、热失控温度变化曲线以及各副反应产热量变化特性,分析磷酸铁锂电池过充热失控温度发展过程及副反应产热规律。结果表明,负极镀锂与电解液反应作为过充热失控过程最起始的副反应,在电池热失控早期促使了其他副反应的开启,成为过充热失控的起始。本研究可为磷酸铁锂电池过充热失控早期过程探究提供理论参考。

关键词: 磷酸铁锂电池, 镀锂, 过充, 热失控

Abstract:

Thermal runaway of lithium-ion batteries is the fundamental cause of safety accidents such as fire or explosion in energy storage power stations. Therefore, studying the development law and intrinsic characteristics of thermal runaway of lithium-ion batteries is important for the safety monitoring and fault warning of electrochemical energy storage power stations. In this paper, a three-dimensional electrochemical-thermal coupled LiFePO₄ battery overcharge thermal runaway simulation model is established. Firstly, the amount of lithium plating on the overcharged negative electrode is quantified by the lithium plating kinetic equation, and secondly, the SEI film growth kinetic equation is introduced to reflect the lithium plating and electrolyte. The reaction rate is used to quantify the heat generated by the reaction between the negative electrode lithium plating and the electrolyte, and other side reaction heat generation equations are introduced to jointly study the temperature change of the lithium iron phosphate battery during the early overcharge and the runaway temperature and the heat generation of each side reaction. The changes in the amount of lithium plating on the negative electrode surface in the early stage of thermal runaway of lithium iron phosphate batteries under different charging rates (1C, 2C, 3C) and different ambient temperatures (20 ℃, 30 ℃, 40 ℃), the temperature curve of thermal runaway, and the change characteristics of the heat generated by the reaction are analyzed, and the development process of the thermal runaway temperature of the lithium iron phosphate battery and the law of the side reaction heat generation are analyzed. The results show that the reaction between the negative electrode lithium plating and the electrolyte is the initial side reaction in the thermal runaway process of overcharge, which promotes the opening of other side reactions in the early stage of thermal runaway of the battery, which becomes the beginning of thermal runaway of overcharge. This study can provide a theoretical reference for the early process of overcharge thermal runaway of LiFePO₄ batteries.

Key words: Lithium iron phosphate battery, lithium plating, overcharge, thermal runaway

中图分类号:

TG156

于子轩, 孟国栋, 谢小军, 赵勇, 成永红. 磷酸铁锂储能电池过充热失控仿真研究^*[J]. 电气工程学报, 2022, 17(3): 30-39.

YU Zixuan, MENG Guodong, XIE Xiaojun, ZHAO Yong, CHENG Yonghong. Simulation Research on Overcharge Thermal Runaway of Lithium Iron Phosphate Energy Storage Battery[J]. Journal of Electrical Engineering, 2022, 17(3): 30-39.

图/表 13

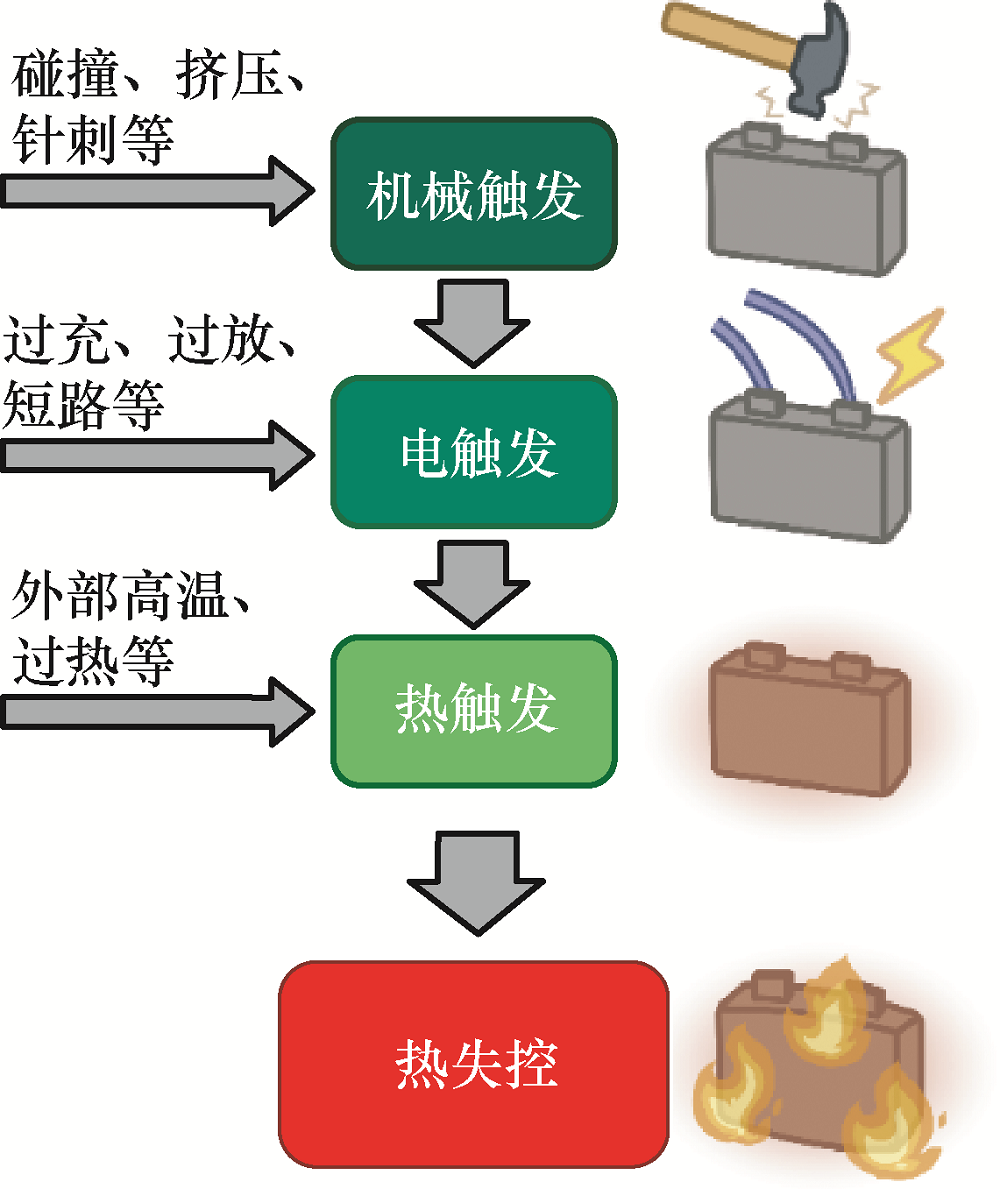

图1

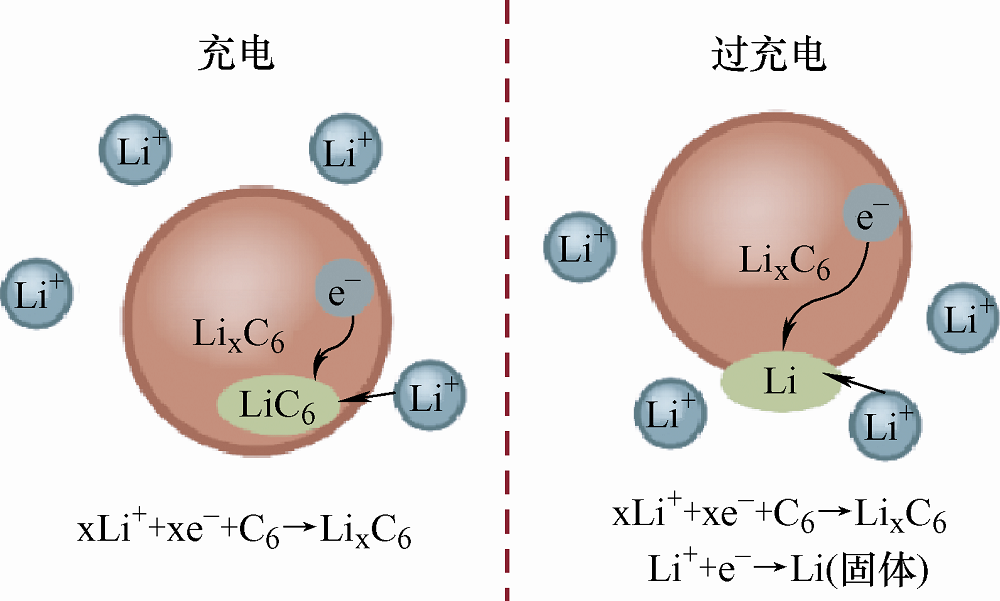

图2

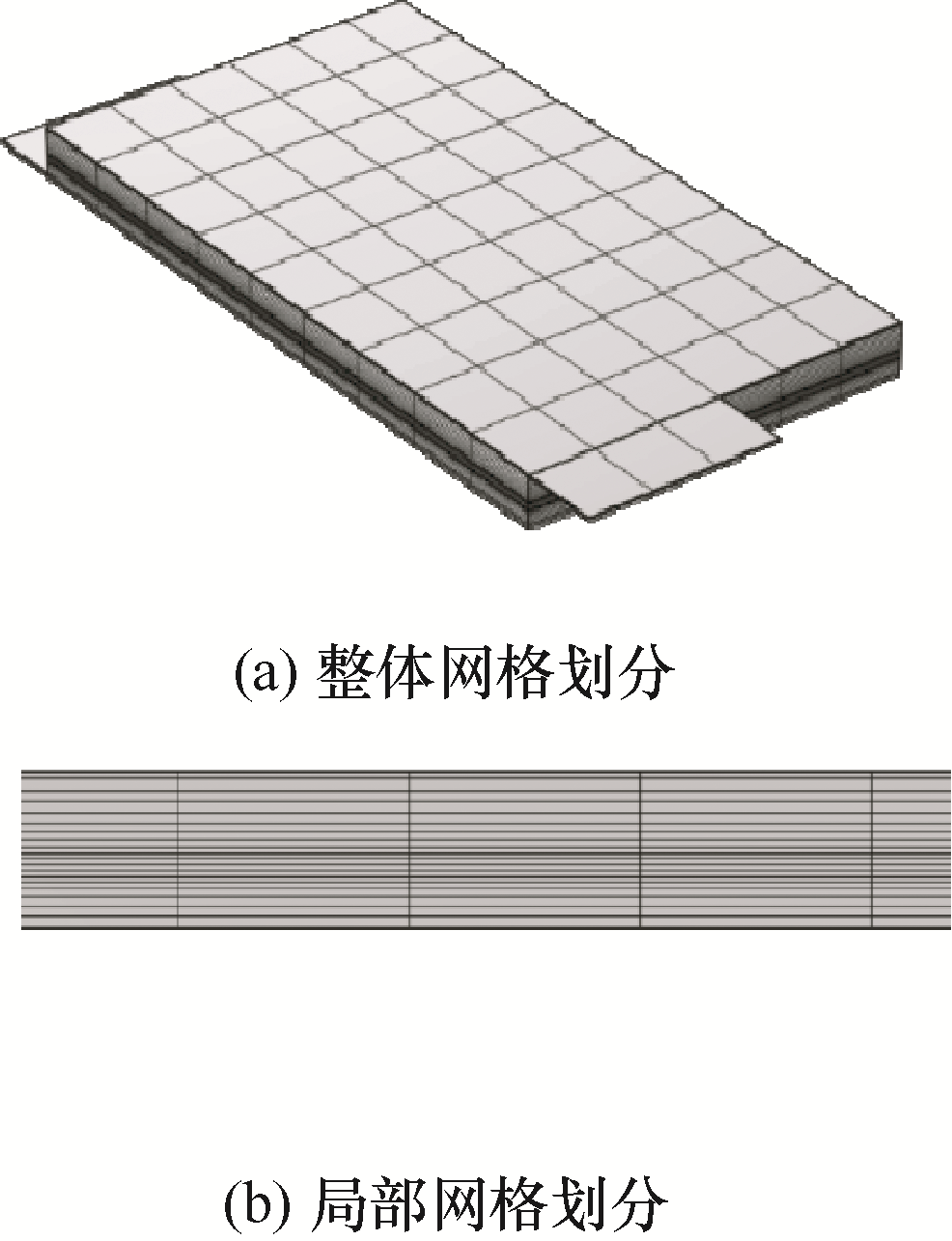

图3

表1

表2

表3

图4

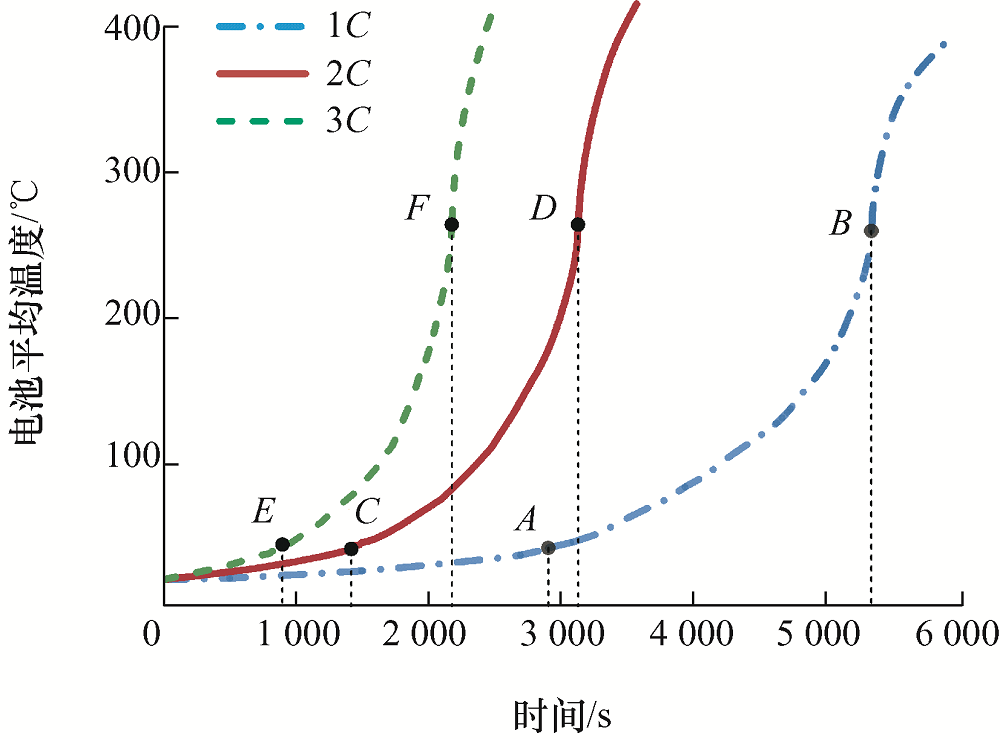

图5

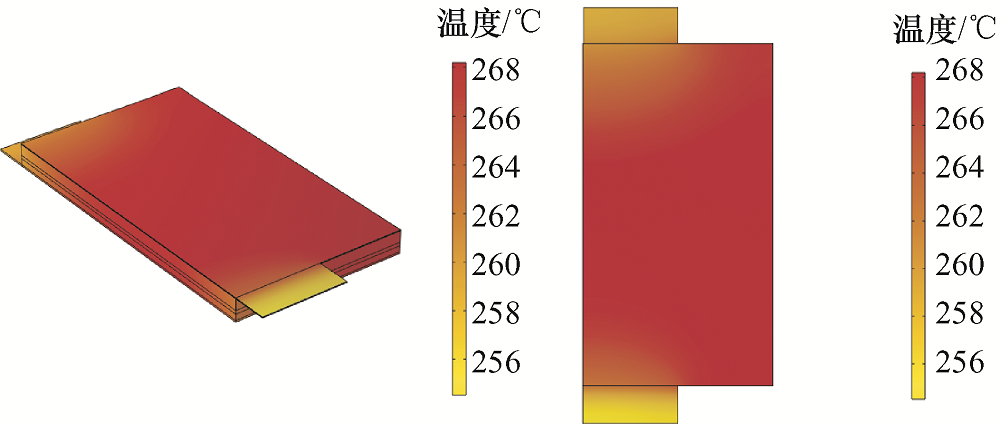

图6

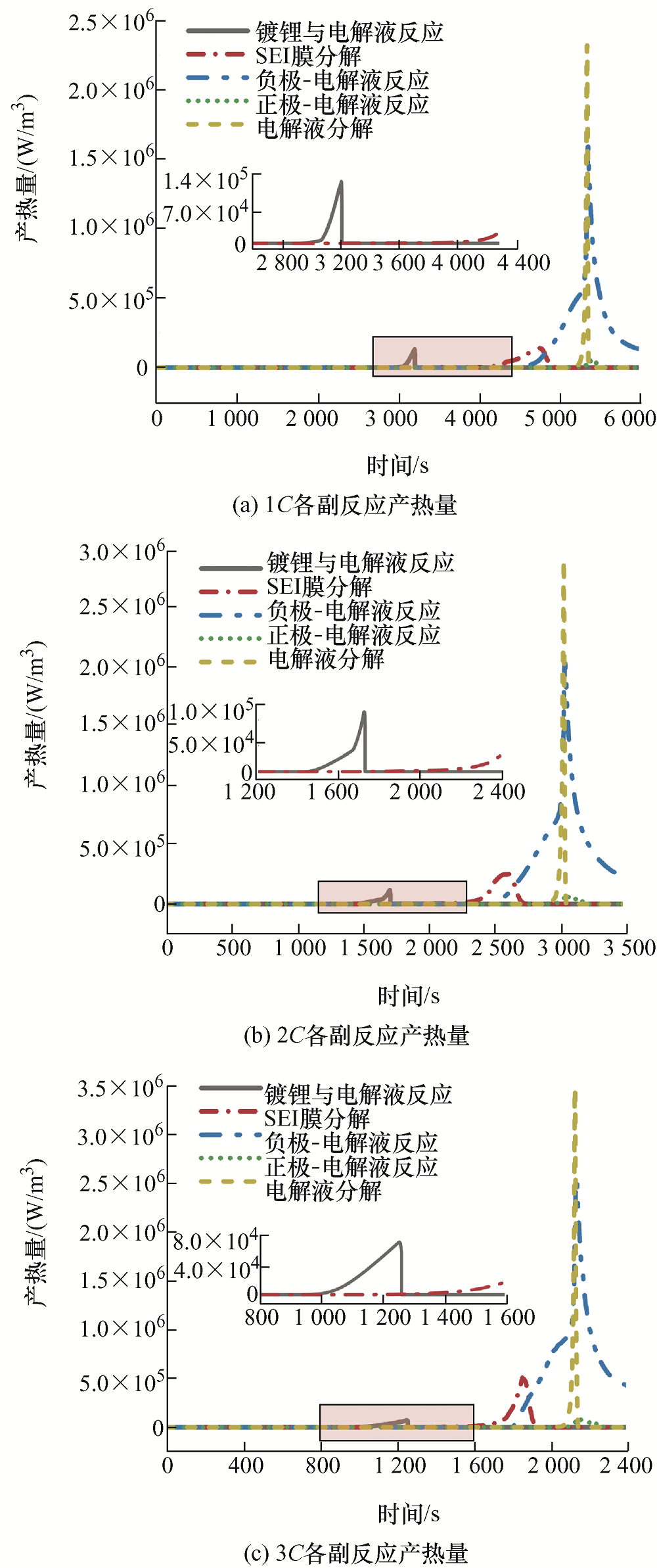

图7

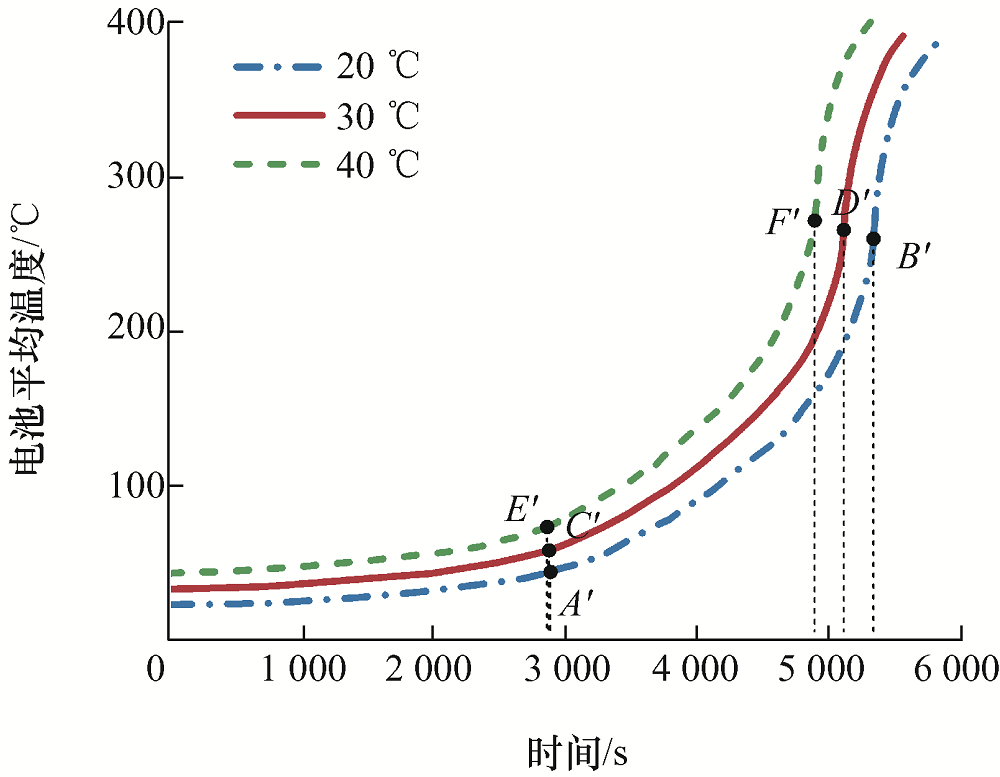

图8

图9

图10

参考文献 19

[1]	WANG C J, ZHU Y L, GAO F, et al. Thermal runaway behavior and features of LiFePO₄/graphite aged batteries under overcharge[J]. International Journal of Energy Research, 2020, 44(7):5477-5487. doi: 10.1002/er.5298
[2]	REN D, FENG X, LIU L, et al. Investigating the relationship between internal short circuit and thermal runaway of lithium-ion batteries under thermal abuse condition[J]. Energy Storage Materials, 2021, 34:563-573. doi: 10.1016/j.ensm.2020.10.020
[3]	ZENG G, BAI Z, HUANG P, et al. Thermal safety study of Li-ion batteries under limited overcharge abuse based on coupled electrochemical-thermal model[J]. International Journal of Energy Research, 2020, 44(5):3607-3625. doi: 10.1002/er.5125
[4]	HUANG S, DU Z J, ZHOU Q, et al. In situ measurement of temperature distributions in a Li-ion cell during internal short circuit and thermal runaway[J]. Journal of The Electrochemical Society, 2021, 168(9):090510.
[5]	YUAN Q, XU X, ZHU L, et al. Effects of local thermal accumulation conditions on the thermal characteristics of lithium-ion batteries under high-rate charging[J]. Journal of Energy Engineering, 2020, 146(6):04020072.
[6]	CHEN Y. Recent advances of overcharge investigation of lithium-ion batteries[J]. Ionics, 2021, 28(2):1-20. doi: 10.1007/s11581-021-04338-w
[7]	XU X M, LI R Z, ZHAO L, et al. Probing the thermal runaway triggering process within a lithium-ion battery cell with local heating[J]. AIP Advances, 2018, 8(10):105323.
[8]	JIANG L, LUO Z, WU T, et al. Overcharge behavior and early warning analysis of LiNi_0.5Co_0.2Mn_0.3O₂/C lithium-ion battery with high capacity[J]. Journal of The Electrochemical Society, 2019, 166(6):A1055. doi: 10.1149/2.0661906jes
[9]	HU H, XU X, SUN X, et al. Numerical study on the inhibition control of lithium-ion battery thermal runaway[J]. ACS Omega, 2020, 5(29):18254-18261. doi: 10.1021/acsomega.0c01862 pmid: 32743201
[10]	王怀铷, 孙宜听, 金阳. 磷酸铁锂储能电池簇过充热失控蔓延特性仿真研究[J]. 机械工程学报, 2021, 57(14): 32-39. doi: 10.3901/JME.2021.14.032
	WANG Huairu, SUN Yiting, JIN Yang. Simulation study on overcharge thermal runaway propagation of lithium-iron-phosphate energy storage battery clusters[J]. Journal of Mechanical Engineering, 2021, 57(14):32-39. doi: 10.3901/JME.2021.14.032
[11]	REN D, FENG X, LU L, et al. An electrochemical- thermal coupled overcharge-to-thermal- runaway model for lithium ion battery[J]. Journal of Power Sources, 2017, 364:328-340. doi: 10.1016/j.jpowsour.2017.08.035
[12]	OHSAKI T, KISHI T, KUBOKI T, et al. Overcharge reaction of lithium-ion batteries[J]. Journal of Power Sources, 2005, 146(1):97-100. doi: 10.1016/j.jpowsour.2005.03.105
[13]	VERBRUGGE M W, XIAO X, BAKER D R. Experimental and theoretical examination of low-current overcharge at lithiated-graphite porous electrodes[J]. Journal of The Electrochemical Society, 2020, 167(8):080523.
[14]	ARORA P, DOYLE M, WHITE R E. Mathematical modeling of the lithium deposition overcharge reaction in lithium-ion batteries using carbon-based negative electrodes[J]. Journal of The Electrochemical Society, 1999, 146(10):3543. doi: 10.1149/1.1392512
[15]	REN D S, SMITH K, GUO D X, et al. Investigation of lithium plating-stripping process in Li-ion batteries at low temperature using an electrochemical model[J]. Journal of The Electrochemical Society, 2018, 165(10): A2167-A2178. doi: 10.1149/2.0661810jes
[16]	LIN X K, KHOSRAVINIA K, HU X S, et al. Lithium plating mechanism,detection,and mitigation in lithium-ion batteries[J]. Progress in Energy and Combustion Science, 2021, 87:100953.
[17]	VIKRANT K S N, ALLU S. Modeling of lithium nucleation and plating kinetics under fast charge conditions[J]. Journal of The Electrochemical Society, 2021, 168(2):020536.
[18]	MEI W, ZHANG L, SUN J, et al. Experimental and numerical methods to investigate the overcharge caused lithium plating for lithium ion battery[J]. Energy Storage Materials, 2020, 32:91-104. doi: 10.1016/j.ensm.2020.06.021
[19]	EKSTRöM H, LINDBERGH G. A model for predicting capacity fade due to SEI formation in a commercial graphite/LiFePO₄ cell[J]. Journal of The Electrochemical Society, 2015, 162(6):A1003. doi: 10.1149/2.0641506jes

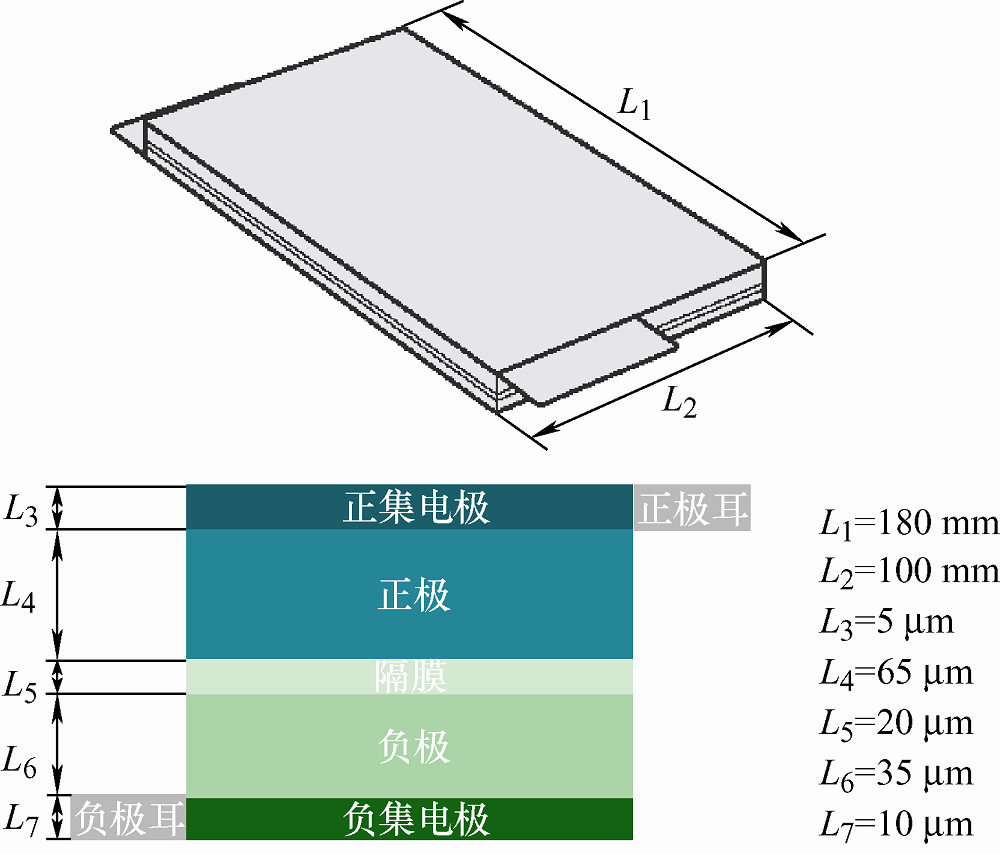

参数	描述	正集电极	正极	隔膜	负极	负集电极
L	*厚度/µm	5	65	20	35	10
ε_S	*固相体积分数	—	0.435	—	0.679	—
ε_l	*电解液相体积分数	—	0.565	—	0.321	—
R_S	电极粒子半径/µm	—	2	—	5	—
c_s_,max	最大活性物质浓度/(mol/m³)	—	21 190	—	31 507	—
c_l	初始电解液活性物质浓度/(mol/m³)	—	1 200	1 200	1 200	—
k	导热系数/[W/(m·K)]	160	1.48	1	1.04	400
ρ	密度/(kg/m³)	2 700	1 500	492	2 660	8 700
C_p	比热容/[J/(kg·K)]	903	1 260	700	1 437.4	385

参数	数值
镀锂摩尔质量M_Li/(g/mol)	6.941
镀锂密度ρ_Li/(kg/m³)	534
镀锂反应速率常数k_pl/(m/s)	2.5×10^-7
镀锂薄膜电导率δ_Li/(S/m)	6×10^-5
SEI物质摩尔质量M_SEI/(g/mol)	160
SEI物质密度ρ_SEI/(kg/m³)	1 600
寄生反应的无量纲交换电流密度J	8.4×10^-4
基于SEI膜属性的无量纲参数f	1.1×10³

变量x	指前因子A_x/s^-1	反应活化能 E_a_,_x/(×10⁵ J/mol)	归一化浓度C_x_,0	反应级数m_x	单位质量反应物产生热量H_x/(J/g)	反应活性物质含量W_x/(g/m³)
SEI	1.667×10¹⁵	1.350 8	0.15	1	257	6.104×10⁵
ne	2.5×10¹³	1.350 8	0.75	1	1 714	6.104×10⁵
pe1	1.75×10⁹	1.149 5	0.04	1	77	1.221×10⁶
pe2	1.077×10¹²	1.588 8	0.04	1	84	1.221×10⁶
e	5.14×10²⁵	2.74	1	1	155	4.069×10⁵
