锂离子电池正极材料低温性能衰退机理研究*

doi:10.11985/2022.03.004

电气工程学报 ›› 2022, Vol. 17 ›› Issue (3): 19-29.doi: 10.11985/2022.03.004

• 特邀专栏：储能(储氢)材料、技术、装置及新能源综合应用 • 上一篇下一篇

扫码分享

锂离子电池正极材料低温性能衰退机理研究^*

齐四清¹(), 苏林华²(), 范新宇³(), 姜楠¹(), 王鹏飞³()

1.国网内蒙古东部电力有限公司电力科学研究院呼和浩特 010020
2.国网内蒙古东部电力有限公司呼和浩特 010020
3.西安交通大学电气工程学院西安 710049

收稿日期:2022-02-24 修回日期:2022-06-17 出版日期:2022-09-25 发布日期:2022-10-28
通讯作者: 王鹏飞 E-mail:qisiqing@md.sgcc.com.cn;sulinhua@md.sgcc.com.cn;3120304272@stu.xjtu.edu.cn;jiangnan@md.sgcc.com.cn;pfwang@xjtu.edu.cn
作者简介:齐四清,男,1966年生,高级工程师。主要研究方向为电化学储能。E-mail： qisiqing@md.sgcc.com.cn
苏林华,男,1967年生,高级工程师。主要研究方向为电化学储能。E-mail： sulinhua@md.sgcc.com.cn
范新宇,男,1997年生,硕士研究生。主要研究方向为低温锂离子电池。E-mail： 3120304272@stu.xjtu.edu.cn
姜楠,男,1993年生。主要研究方向为电化学储能。E-mail： jiangnan@md.sgcc.com.cn
基金资助:
*国家电网公司总部科技资助项目(5419-202131234A-0-0-00)

Study on the Cathode Materials’ Deterioration Mechanism for Lithium-ion Batteries at Low Temperature

QI Siqing¹(), SU Linhua²(), FAN Xinyu³(), JIANG Nan¹(), WANG Pengfei³()

1. State Grid East Inner Mongolia Electric Power Research Institute, Hohhot 010020
2. State Grid East Inner Mongolia Electric Power Supply Co., Ltd., Hohhot 010020
3. School of Electrical Engineering, Xi’an Jiaotong University, Xi’an 710049

Received:2022-02-24 Revised:2022-06-17 Online:2022-09-25 Published:2022-10-28
Contact: WANG Pengfei E-mail:qisiqing@md.sgcc.com.cn;sulinhua@md.sgcc.com.cn;3120304272@stu.xjtu.edu.cn;jiangnan@md.sgcc.com.cn;pfwang@xjtu.edu.cn

摘要/Abstract

摘要：

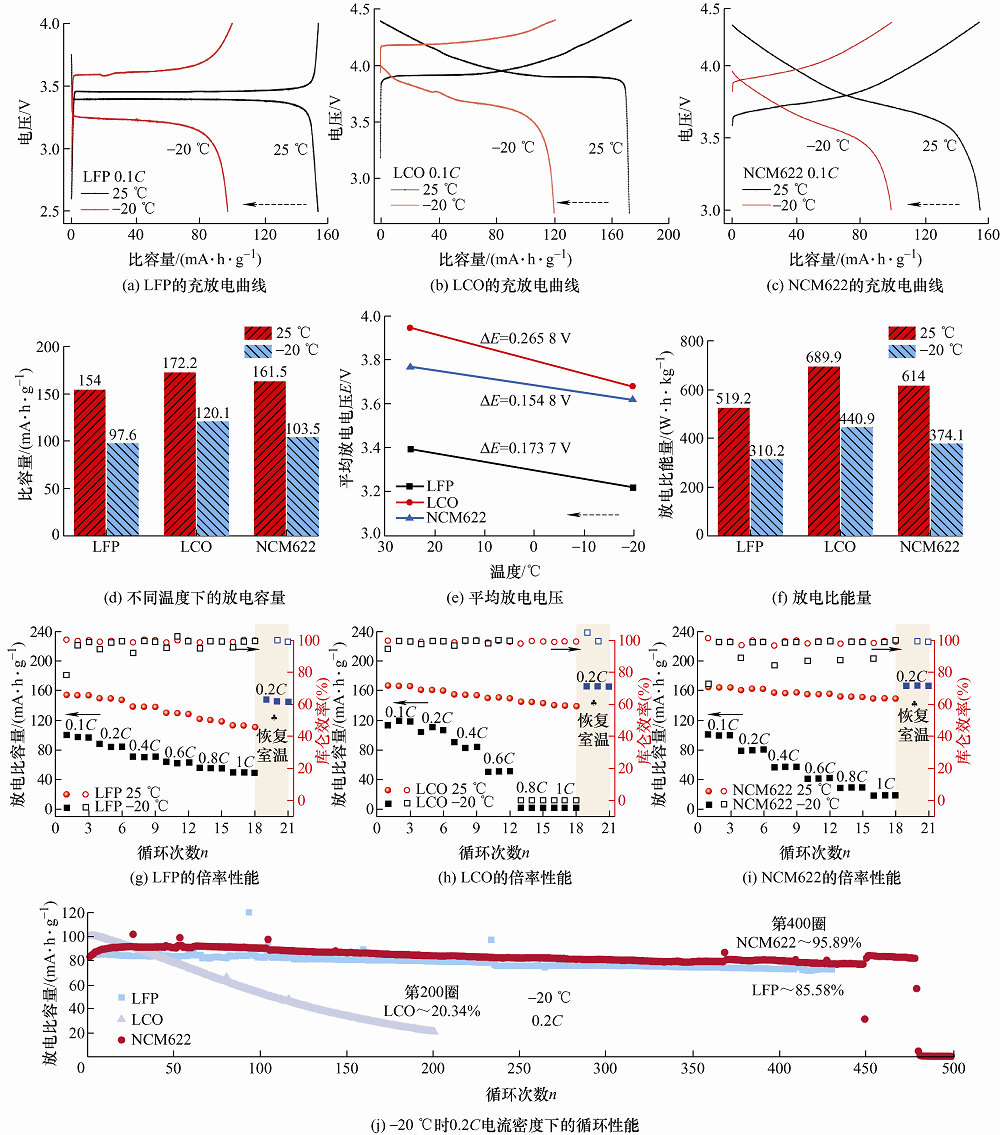

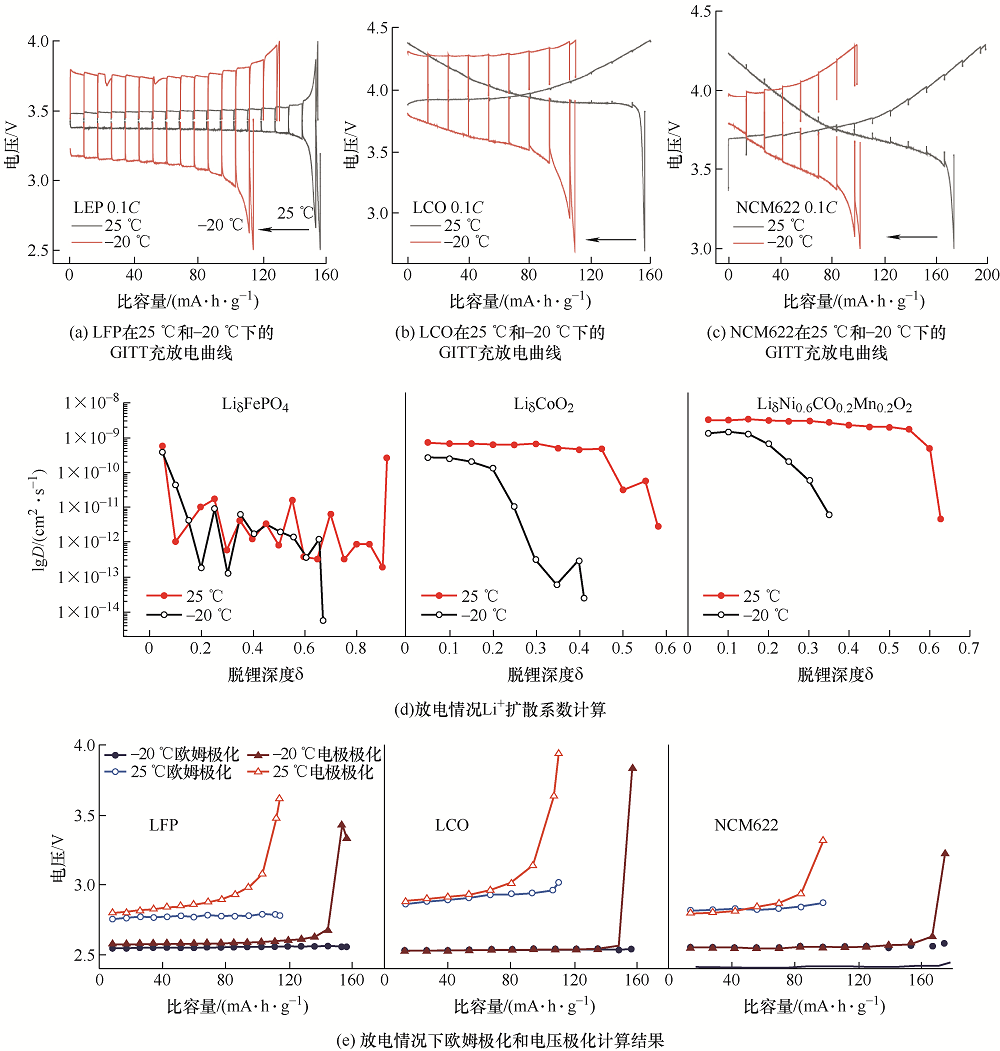

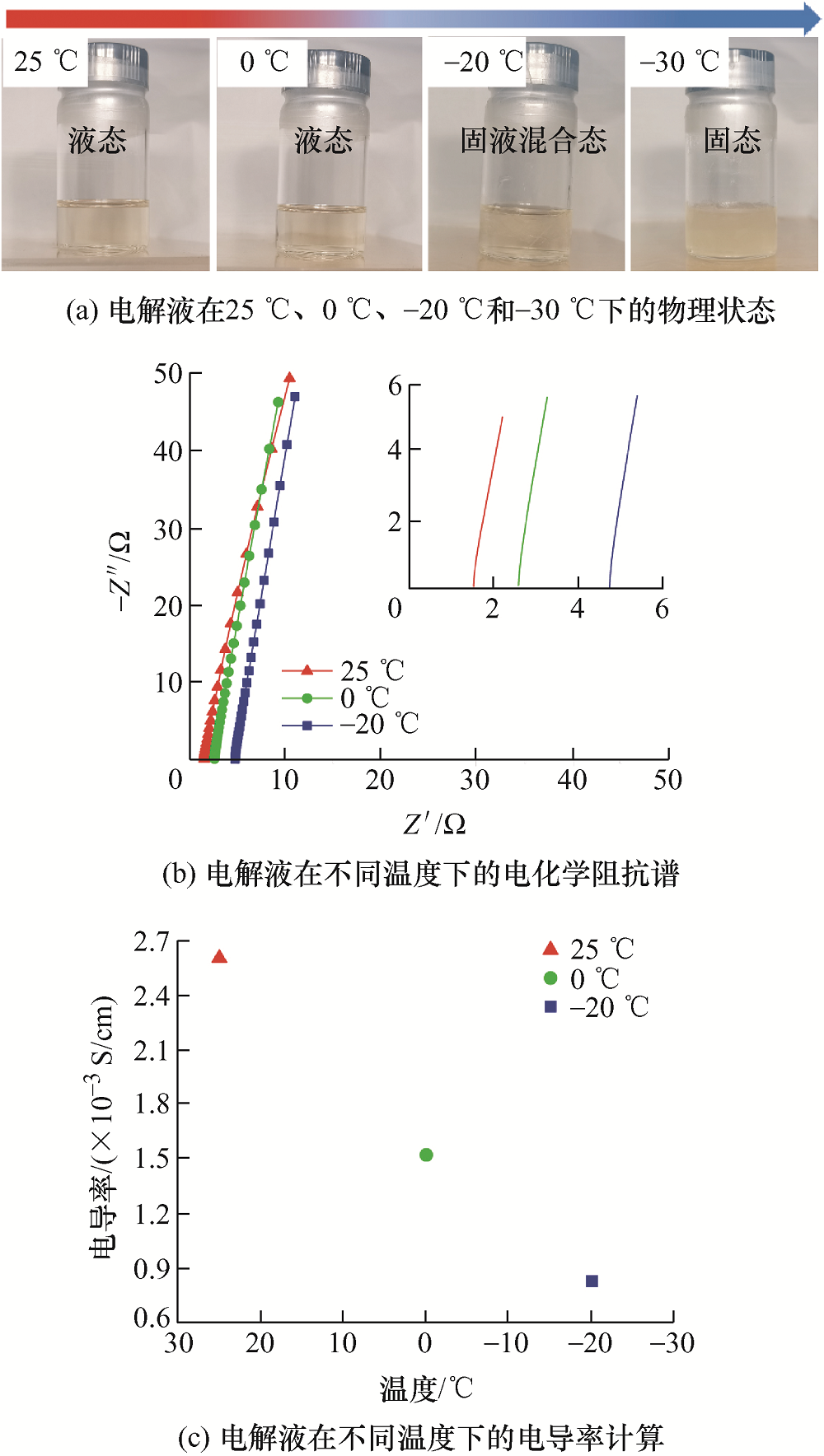

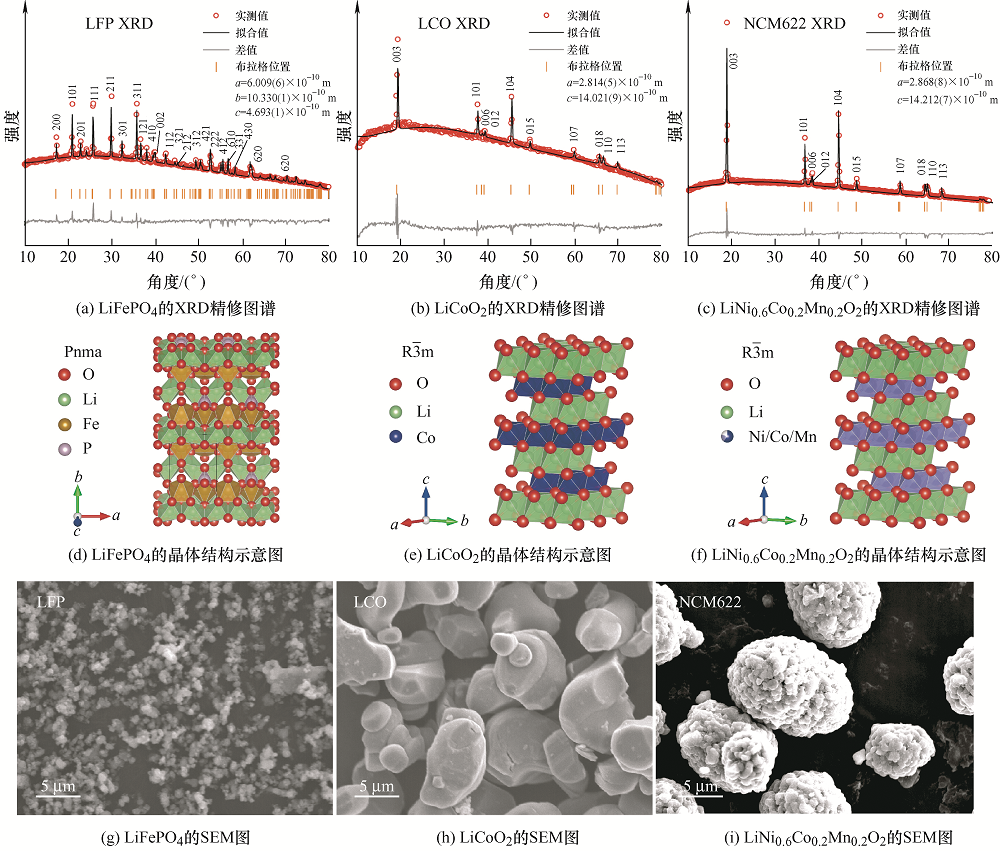

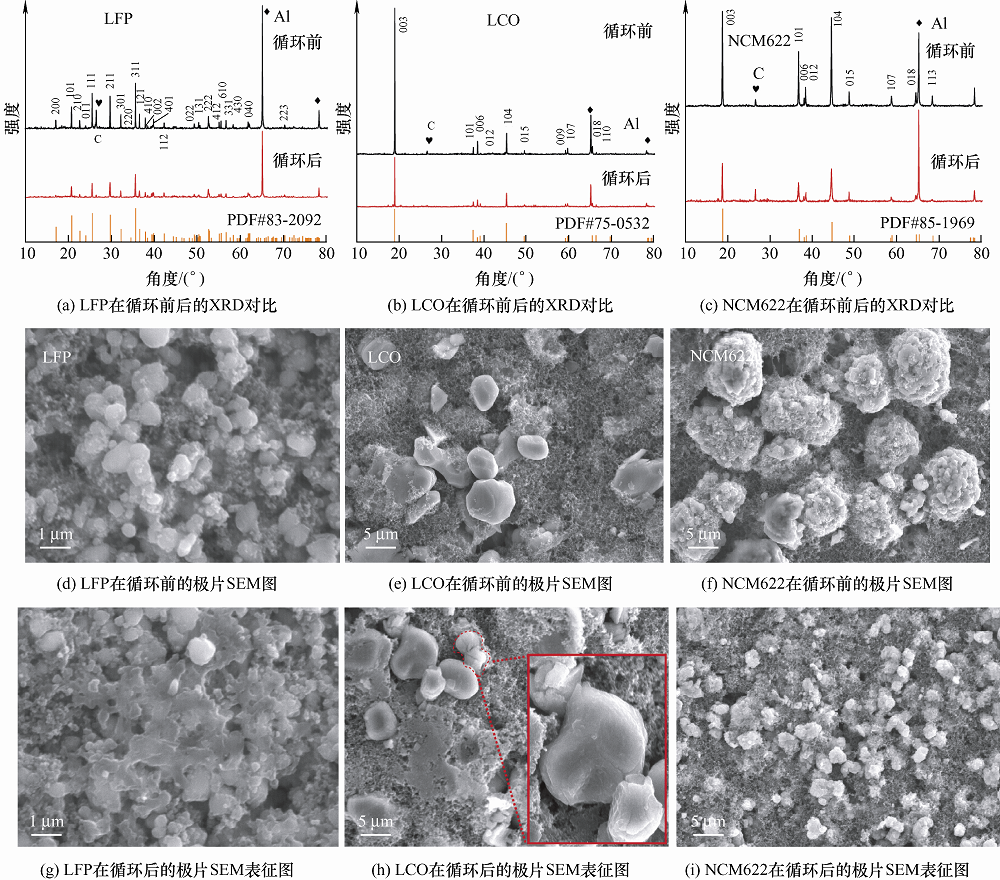

锂离子电池凭借其高能量密度、长循环寿命等突出优势被广泛应用于便携式设备、电动汽车以及大规模储能领域。然而,锂离子电池对外界温度敏感,尤其是在较低的工作温度下,能量密度和功率密度急剧下降,这严重限制了其在寒冷地区的应用。为探究锂离子电池在低温环境下的性能衰减机理,选择磷酸铁锂(LiFePO₄)、钴酸锂(LiCoO₂)、层状三元(LiNi_0.6Co_0.2Mn_0.2O₂)三种商业化正极材料作为研究对象,结合恒流充放电测试、电化学阻抗测试、恒电流间歇滴定技术以及X射线衍射分析和扫描电子显微镜表征技术,全面系统地比较了三种材料在室温(25 ℃)和低温(-20 ℃)下的电化学性能。恒流充放电测试结果显示三种正极材料在低温下均会出现比容量明显降低,三元NCM622表现出最佳的低温循环稳定性,在-20 ℃循环400圈时容量保持率为95.89%。进一步的交流阻抗测试分析和Li⁺扩散速率计算表明,在低温条件下电解液电导率的降低、正极材料电荷转移阻抗的增加和Li⁺扩散速率下降是导致锂离子电池正极材料低温性能退化的主要原因,该研究为提高锂离子电池的低温性能提供了可行的解决思路。

关键词: 锂离子电池, 低温性能, 正极材料, 离子扩散速率, 电荷转移阻抗

Abstract:

Lithium-ion batteries have been widely used in portable devices, electric vehicles and large-scale energy storage due to their advantages of high specific capacity and long cycle life. However, the battery performance of lithium-ion batteries is closely related to the operating temperature. At lower operating temperatures, the energy and power density of lithium-ion batteries drop sharply, which severely limits the application of lithium-ion batteries in some cold regions. In order to explore the electrochemical performance degradation mechanism of the current commercial lithium-ion battery cathode materials under low temperatures, three commercial cathode materials, lithium iron phosphate(LiFePO₄), lithium cobalt oxide(LiCoO₂), and layered ternary oxide(LiNi_0.6Co_0.2Mn_0.2O₂) are selected as the research objects, and the electrochemical performance of these three materials at room temperature(25 ℃) and low temperature(-20 ℃) are compared via comprehensive characterization technologies including constant current charge and discharge test, electrochemistry impedance spectroscopy(EIS), galvanostatic intermittent titration technique(GITT) test, X-ray diffraction analysis(XRD) and scanning electron microscope(SEM). Constant current charge and discharge results show that the specific capacities of the three materials are significantly reduced at low temperatures. Among them, NCM622 delivers the optimal cycling stability, of which the capacity retention rate achieves 95.89% after 400 cycles when operating at -20 ℃. Alternating current impedance test analysis results further show that the increase of charge transfer resistance and the decrease of Li⁺diffusivity at low temperature conditions are responsible for the degradation of the battery performance of lithium-ion battery cathode materials. This study provides a feasible method for improving the low-temperature performance of lithium-ion batteries.

Key words: Lithium-ion battery, low temperature, cathode materials, ion diffusivity, charge transfer resistance

中图分类号:

TM911

齐四清, 苏林华, 范新宇, 姜楠, 王鹏飞. 锂离子电池正极材料低温性能衰退机理研究^*[J]. 电气工程学报, 2022, 17(3): 19-29.

QI Siqing, SU Linhua, FAN Xinyu, JIANG Nan, WANG Pengfei. Study on the Cathode Materials’ Deterioration Mechanism for Lithium-ion Batteries at Low Temperature[J]. Journal of Electrical Engineering, 2022, 17(3): 19-29.

图/表 9

图1

图2

图3

图4

图5

表1

表2

图6

表3

参考文献 26

[1]	MENG F, XIONG X, TAN L, et al. Strategies for improving electrochemical reaction kinetics of cathode materials for subzero-temperature Li-ion batteries: A review[J]. Energy Storage Materials, 2022, 44:390-407. doi: 10.1016/j.ensm.2021.10.032
[2]	SCHMUCH R, WAGNER R, HÖRPEL G, et al. Performance and cost of materials for lithium-based rechargeable automotive batteries[J]. Nature Energy, 2018, 3(4):267-278. doi: 10.1038/s41560-018-0107-2
[3]	ZHANG N, DENG T, ZHANG S, et al. Critical review on low-temperature Li-ion/metal batteries[J]. Advanced Materials, 2021:2107899.
[4]	ORENDORFF C J, ROTH E P, NAGASUBRAMANIAN G. Experimental triggers for internal short circuits in lithium-ion cells[J]. Journal of Power Sources, 2011, 196(15):6554-6558. doi: 10.1016/j.jpowsour.2011.03.035
[5]	GAO X, ZHOU Y N, HAN D, et al. Thermodynamic understanding of Li-dendrite formation[J]. Joule, 2020, 4(9):1864-1879. doi: 10.1016/j.joule.2020.06.016
[6]	PIAO N, GAO X, YANG H, et al. Challenges and development of lithium-ion batteries for low temperature environments[J]. eTransportation, 2021, 11:100145.
[7]	HUANG C K, SAKAMOTO J, WOLFENSTINE J, et al. The limits of low-temperature performance of Li-ion cells[J]. Journal of The Electrochemical Society, 2000, 147(8):2893. doi: 10.1149/1.1393622
[8]	SMART M, RATNAKUMAR B, SURAMPUDI S. Use of organic esters as cosolvents in electrolytes for lithium-ion batteries with improved low temperature performance[J]. Journal of The Electrochemical Society, 2002, 149(4):A361-A370. doi: 10.1149/1.1453407
[9]	ZHANG W, XIA H, ZHU Z, et al. Decimal solvent-based high-entropy electrolyte enabling the extended survival temperature of lithium-ion batteries to -130 ℃[J]. CCS Chemistry, 2021, 3(4):1245-1255. doi: 10.31635/ccschem.020.202000341
[10]	XIE W, LIU W, DANG Y, et al. Investigation on electrolyte-immersed properties of lithium-ion battery cellulose separator through multi-scale method[J]. Journal of Power Sources, 2019, 417:150-158. doi: 10.1016/j.jpowsour.2019.02.002
[11]	TARASCON J M, ARMAND M. Issues and challenges facing rechargeable lithium batteries[J]. Materials for Sustainable Energy, 2011:171-179.
[12]	ZHANG S, XU K, JOW T R. The low temperature performance of Li-ion batteries[J]. Journal of Power Sources, 2003, 115(1):137-140. doi: 10.1016/S0378-7753(02)00618-3
[13]	WANG Y, CAO G J A M. Developments in nanostructured cathode materials for high-performance lithium-ion batteries[J]. Advanced Materials, 2008, 20(12):2251-2269. doi: 10.1002/adma.200702242
[14]	JI Y, ZHANG Y, WANG C Y. Li-ion cell operation at low temperatures[J]. Journal of The Electrochemical Society, 2013, 160(4):A636. doi: 10.1149/2.047304jes
[15]	HUBBLE D, BROWN D E, ZHAO Y, et al. Liquid electrolyte development for low-temperature lithium-ion batteries[J]. Energy & Environmental Science, 2022, 15:550.
[16]	OKADA K, KIMURA I, MACHIDA K. High rate capability by sulfur-doping into LiFePO₄ matrix[J]. RSC Advances, 2018, 8(11):5848-5853. doi: 10.1039/C7RA12740E
[17]	ZHU W, LIU D, GAGNON C, et al. Phase transformation of doped LiCoPO₄ during galvanostatic cycling[J]. Materials, 2020, 13(17):3810. doi: 10.3390/ma13173810
[18]	WANG A P, HOU C E, HUNG S W. Exploration of the evolution of nanotechnology from a patent co-classification perspective[J]. Nanotechnology Reviews, 2018, 7(3):233-245. doi: 10.1515/ntrev-2018-0005
[19]	KIM J M, CHUNG H T. The first cycle characteristics of Li[Ni_1/3Co_1/3Mn_1/3]O₂ charged up to 4.7 V[J]. Electrochimica Acta, 2004, 49(6):937-944. doi: 10.1016/j.electacta.2003.10.005
[20]	REN X, ZHANG X, SHADIKE Z, et al. Designing advanced in situ electrode/electrolyte interphases for wide temperature operation of 4.5 V Li\|\|LiCoO₂ batteries[J]. Advanced Materials, 2020, 32(49):2004898.
[21]	XIE Y, LI J, YUAN C J E A. Mathematical modeling of the electrochemical impedance spectroscopy in lithium ion battery cycling[J]. Electrochimica Acta, 2014, 127:266-275. doi: 10.1016/j.electacta.2014.02.035
[22]	KONG J Z, WANG S S, TAI G A, et al. Enhanced electrochemical performance of LiNi_0.5Co_0.2Mn_0.3O₂ cathode material by ultrathin ZrO₂ coating[J]. Journal of Alloys and Compounds, 2016, 657:593-600. doi: 10.1016/j.jallcom.2015.10.187
[23]	SHI S, MAI Y, TANG Y, et al. Preparation and electrochemical performance of ball-like LiMn_0.4Ni_0.4Co_0.2O₂ cathode materials[J]. Electrochimica Acta, 2012, 77:39-46. doi: 10.1016/j.electacta.2012.05.110
[24]	WEPPNER W, HUGGINS R A. Electrochemical investigation of the chemical diffusion,partial ionic conductivities,and other kinetic parameters in Li₃Sb and Li₃Bi[J]. Journal of Solid State Chemistry, 1977, 22(3):297-308. doi: 10.1016/0022-4596(77)90006-8
[25]	SHI S, TU J, TANG Y, et al. Combustion synthesis and electrochemical performance of Li[Li_0.2Mn_0.54Ni_0.13Co_0.13] O₂ with improved rate capability[J]. Journal of Power Sources, 2013, 228:14-23. doi: 10.1016/j.jpowsour.2012.11.091
[26]	CHURIKOV A, IVANISHCHEV A, IVANISHCHEVA I, et al. Determination of lithium diffusion coefficient in LiFePO₄ electrode by galvanostatic and potentiostatic intermittent titration techniques[J]. Electrochimica Acta, 2010, 55(8):2939-2950. doi: 10.1016/j.electacta.2009.12.079

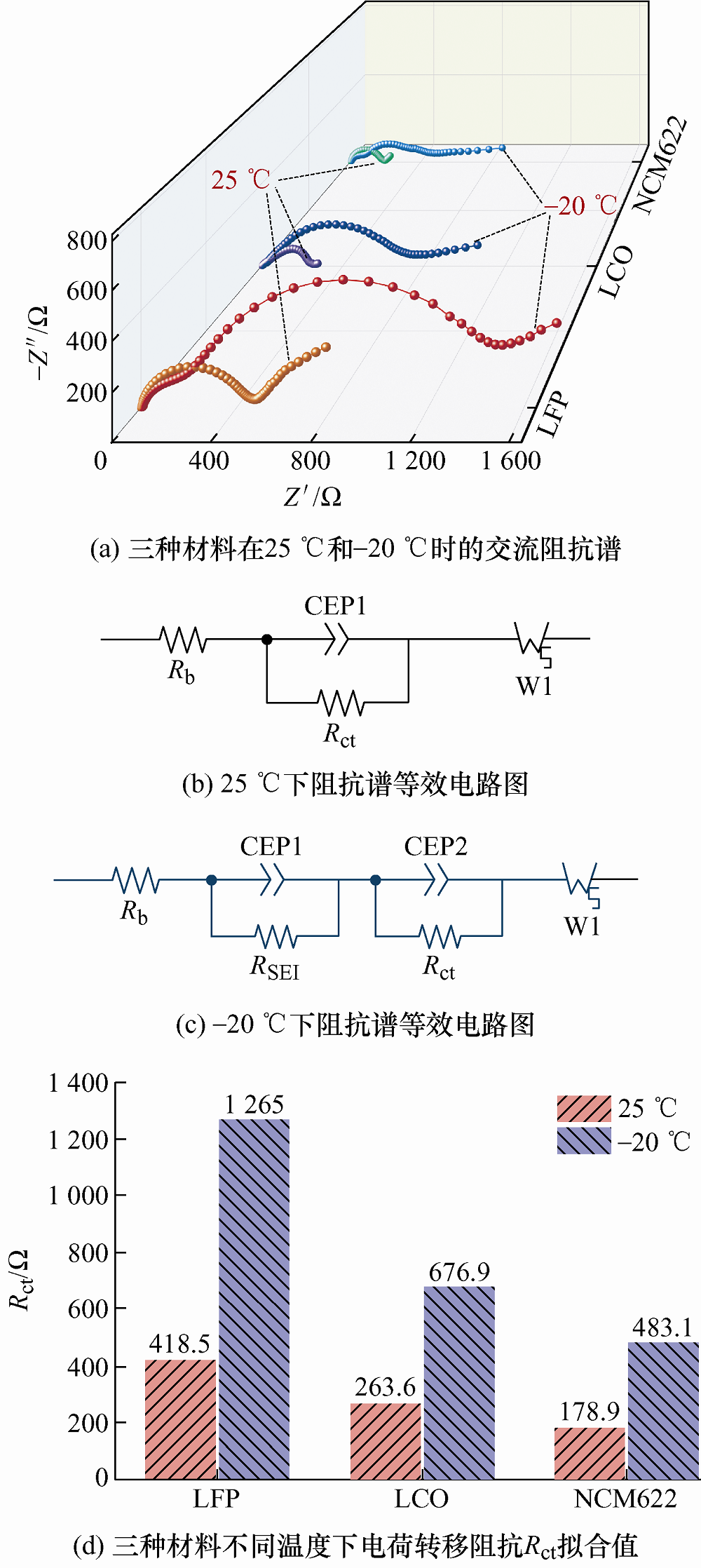

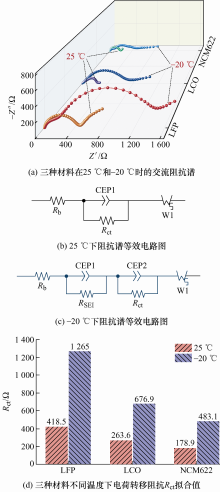

材料种类	LiFePO₄	LiCoO₂	LiNi_0.6Co_0.2Mn_0.2O₂
固有电阻R_b/Ω	2.244 (2.96%)	5.452 (1.21%)	2.269 (3.164%)
正极转移 R_ct/Ω	418.5 (1.20%)	263.6 (1.91%)	178.9 (1.08%)

材料种类	LiFePO₄	LiCoO₂
固有电阻 R_b/Ω	6.36 (2.79%)	6.578 (6.58%)	6.659 (1.44%)
SEI转移R_SEI/Ω	183.7 (1.64%)	11.52 (12.51%)	91.99 (2.68%)
正极转移R_ct/Ω	1 265 (1.53%)	676.9 (4.67%)	483.1 (1.12%)

材料种类及温度	LiFePO₄		LiCoO₂		LiNi_0.6Co_0.2Mn_0.2O₂
材料种类及温度	25 ℃	-20 ℃	25 ℃	-20 ℃	25 ℃	-20 ℃
欧姆极化/mV	28.71	160.27	10.99	343.37	29.15	264.81
电压极化/mV	131.31	285.43	107.4	538.77	80.75	290.35
