时变时滞电力系统鲁棒镇定控制器设计

doi:10.11985/2021.04.022

电气工程学报 ›› 2021, Vol. 16 ›› Issue (4): 174-182.doi: 10.11985/2021.04.022

扫码分享

时变时滞电力系统鲁棒镇定控制器设计

沈力¹(), 沈媛²(), 周浩²()

1.江苏省规划设计集团有限公司市政规划与工程设计院南京 210036
2.中国电子科技集团公司第二十八研究所南京 210007

收稿日期:2020-12-28 出版日期:2021-12-25 发布日期:2022-02-10
通讯作者: 沈媛 E-mail:18219920108@163.com;shenyuan1989@126.com;563361587@qq.com
作者简介:* 沈媛,女,1989年生,硕士,工程师。主要研究方向为信息系统总体与集成技术。E-mail： shenyuan1989@126.com
沈力,男,1992年生,硕士,工程师。主要研究方向为电力系统稳定性、市政电力规划。E-mail： 18219920108@163.com
周浩,男,1989年生,硕士,工程师。主要研究方向为信号与信息系统、系统集成方向。E-mail： 563361587@qq.com

Robust Stabilization Controller Design for Power Systems with Time Varying Delay

SHEN Li¹(), SHEN Yuan²(), ZHOU Hao²()

1. Municipal Planning and Engineering Design Institute of Jiangsu Provincial Planning and Design Group, Nanjing 210036
2. The 28^th Research Institute of China Electronics Technology Group Corporation, Nanjing 210007

Received:2020-12-28 Online:2021-12-25 Published:2022-02-10
Contact: SHEN Yuan E-mail:18219920108@163.com;shenyuan1989@126.com;563361587@qq.com

摘要/Abstract

摘要：

为考虑时滞系统的不确定性,在常时滞电力系统模型基础上建立不确定时滞电力系统模型。构建新的增广型Lyapunov-Krasovskii泛函,引用Bessel-Legendre不等式方法处理所提Lyapunov-Krasovskii泛函导数中的积分项,计算得到不确定时滞稳定判据。通过和现有文献对比,验证所提方法的优越性。根据得到的稳定判据,应用参数调整法及线性矩阵不等式技术设计出无记忆状态反馈控制器和有记忆状态反馈控制器,通过典型二阶时滞系统、单机无穷大系统分析验证了两种控制器的镇定作用。

关键词: 电力系统, 时变时滞, 鲁棒镇定控制器

Abstract:

For the uncertain time-delay systems, the uncertain time-delay power system model is established based on the constant time-delay power system model. By using Bessel-Legendre inequality method to deal with the integral term in the derivative of the new augmented Lyapunov-Krasovskii functional, an uncertain delay stability criterion with less conservativeness is obtained. Compared with the existing literature, the superiority of the proposed method is verified. According to the obtained stability criteria, the memoryless feedback controller and the feedback controller with memory are designed by parameter adjustment method and LMI technology. The stabilization of the controllers is verified by the analysis of the typical second-order delay system and the single machine infinite bus system.

Key words: Power systems, time-varying delay, robust controller

中图分类号:

TM712

沈力, 沈媛, 周浩. 时变时滞电力系统鲁棒镇定控制器设计[J]. 电气工程学报, 2021, 16(4): 174-182.

SHEN Li, SHEN Yuan, ZHOU Hao. Robust Stabilization Controller Design for Power Systems with Time Varying Delay[J]. Journal of Electrical Engineering, 2021, 16(4): 174-182.

图/表 10

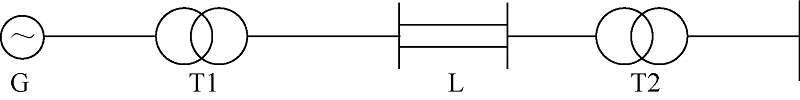

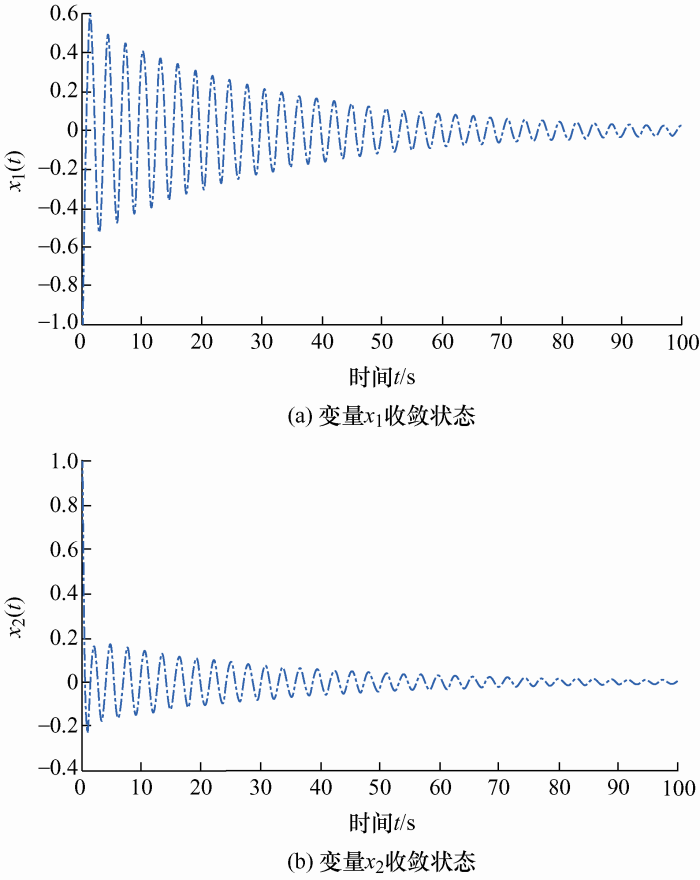

图1

图2

图3

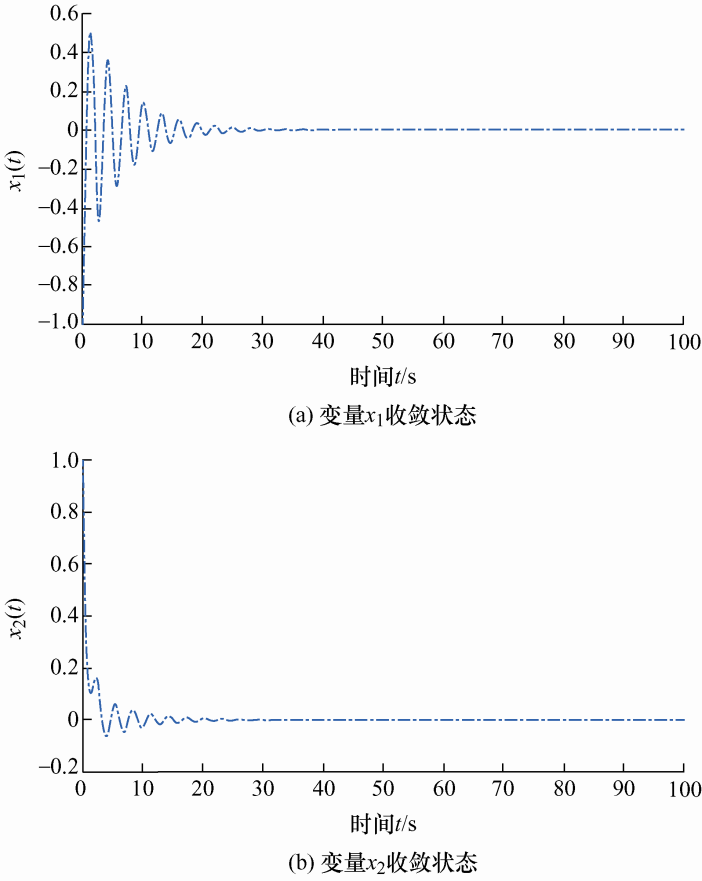

图4

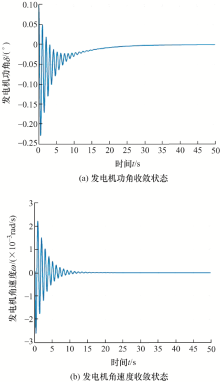

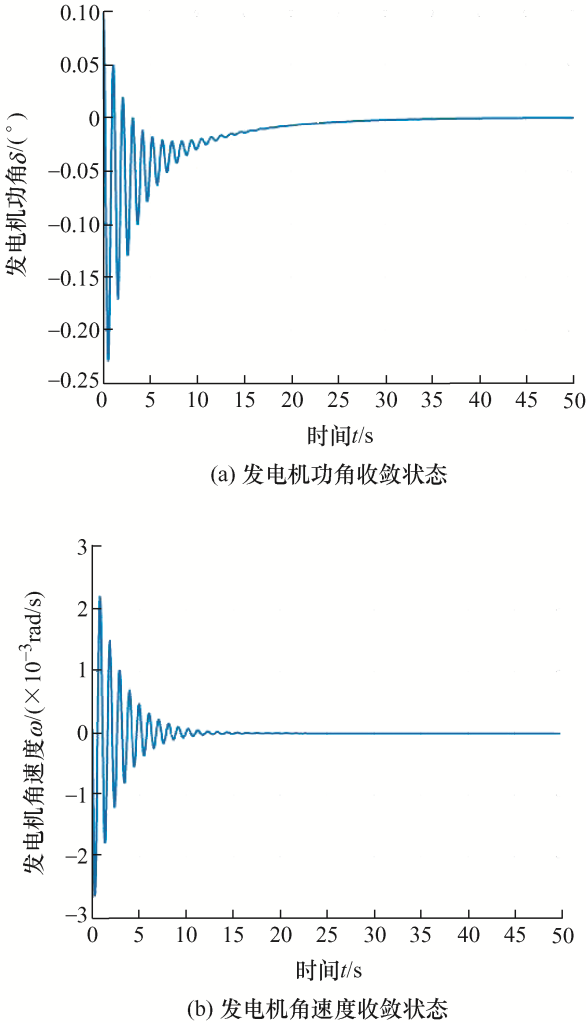

图5

表1

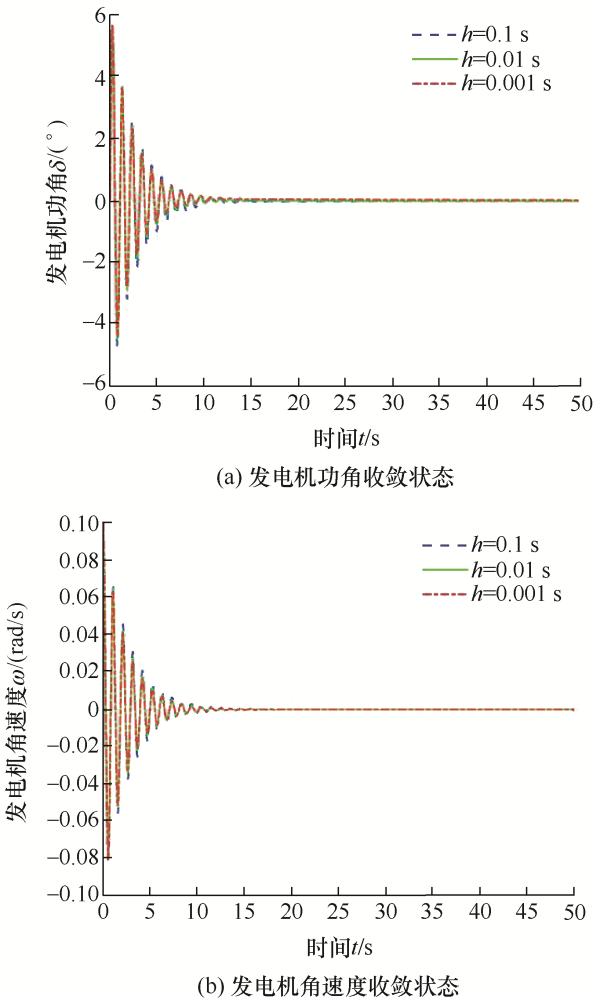

图6

表2

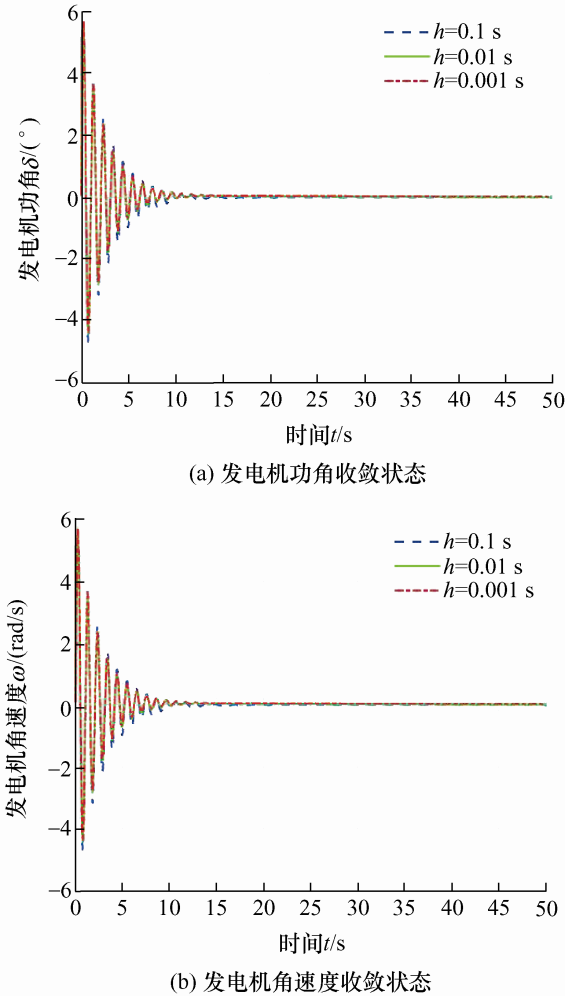

图7

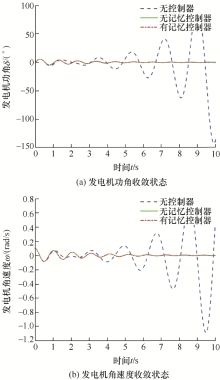

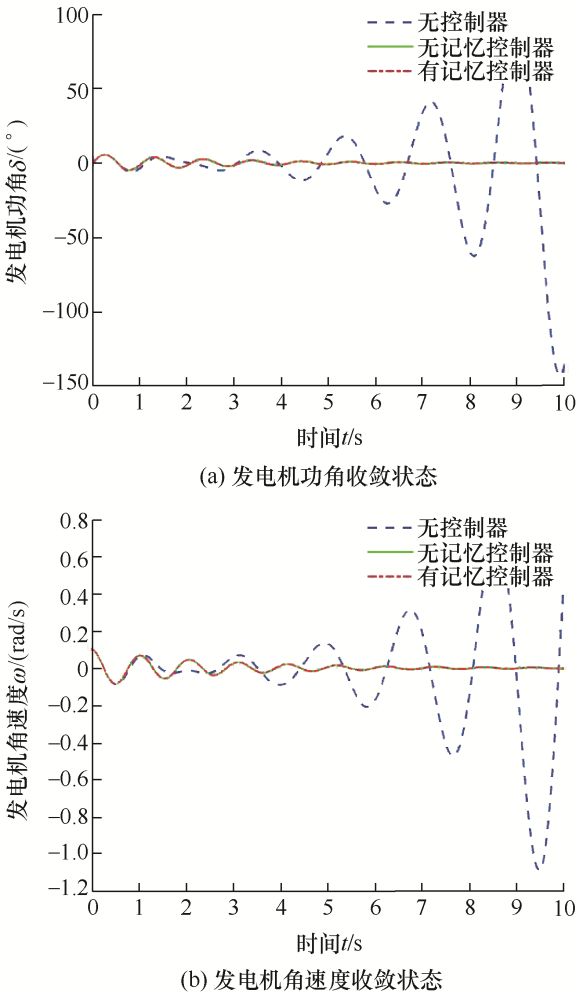

图8

参考文献 23

[1]	MEESSINA A R. Inter-area oscillations in power systems[M]. New York:Springer, 2009.
[2]	ZHANG X M, HAN Q L. State estimation for static neural networks with time-varying delays based on an improved reciprocally convex inequality[J]. IEEE Trans. Neural Netw. Learn Syst., 2018, 29(4):1376-1381. doi: 10.1109/TNNLS.2017.2661862
[3]	贾宏杰, 谢星星, 余晓丹. 考虑时滞影响的电力系统小扰动稳定域[J]. 电力系统自动化, 2006, 30(21):1-5.
	JIA Hongjie, XIE Xingxing, YU Xiaodan. Power system small signal stability region with time delay considered[J]. Automation of Electric Power Systems, 2006, 30(21):1-5.
[4]	贾宏杰, 陈建华, 余晓丹. 时滞环节对电力系统小扰动稳定性的影响[J]. 电力系统自动化, 2006, 30(5):5-8,17.
	JIA Hongjie, CHEN Jianhua, YU Xiaodan. Impact of time delay on power system small signal stability[J]. Automation of Electric Power Systems, 2006, 30(5):5-8,17.
[5]	贾宏杰, 尚蕊, 张宝贵. 电力系统时滞稳定裕度求解方法[J]. 电力系统自动化, 2007, 31(2):5-11.
	JIA Hongjie, SHANG Rui, ZHANG Baogui. Computation of delay stability margin of electric power systems[J]. Automation of Electric Power Systems, 2007, 31(2):5-11.
[6]	贾宏杰, 安海云, 余晓丹. 电力系统改进时滞依赖型稳定判据[J]. 电力系统自动化, 2008, 32(19):15-19.
	JIA Hongjie, AN Haiyun, YU Xiaodan. An improved delay-dependent stability criteria for power system with multiple time delays[J]. Automation of Electric Power Systems, 2008, 32(19):15-19.
[7]	ZENG H B, HE Y, WU M, et al. New results on stability analysis for systems with discrete distributed delay[J]. Automatica, 2015, 60(10):189-192. doi: 10.1016/j.automatica.2015.07.017
[8]	WU M, HE Y, SHE J H. New delay-dependent stability criteria and stabilizing method for neutral systems[J]. IEEE Trans. on Automatic Control, 2004, 49(12):2266-2271. doi: 10.1109/TAC.2004.838484
[9]	PARK P G, KO J W. Stability and robust stability for systems with a time-varying delay[J]. Automatica, 2007, 43(10):1855-1858. doi: 10.1016/j.automatica.2007.02.022
[10]	贾宏杰, 安海云, 余晓丹. 电力系统时滞依赖型鲁棒稳定判据及其应用[J]. 电力系统自动化, 2010, 34(3):6-11.
	JIA Hongjie, AN Haiyun, YU Xiaodan. A delay-dependent robust stability criterion for power system amd its application[J]. Automation of Electric Power Systems, 2010, 34(3):6-11.
[11]	董朝宇, 贾宏杰, 姜懿郎. 含积分二次型的电力系统改进时滞稳定判据[J]. 电力系统自动化, 2015, 39(24):35-40.
	DONG Chaoyu, JIA Hongjie, JIANG Yilang. Time-delay stability criteria for power system with integral quadratic from[J]. Automation of Electric Power Systems, 2015, 39(24):35-40.
[12]	李晓萌, 贾宏杰. 电力系统改进时滞依赖型鲁棒稳定判据[J]. 电力系统及其自动化学报, 2018, 30(4):114-120.
	LI Xiaomeng, JIA Hongjie. Improved time-delay- dependent robust stability criteria for power system[J]. Proceedings of the CSU-EPSA, 2018, 30(4):114-120.
[13]	李宁, 孙永辉, 卫志农, 等. 基于Wirtinger不等式的电力系统延时依赖稳定判据[J]. 电力系统自动化, 2017, 41(2):108-113.
	LI Ning, SUN Yonghui, WEI Zhinong, et al. Delay-dependent stability criteria for power system based on Wirtingers intergral inequality[J]. Automation of Electric Power Systems, 2017, 41(2):108-113.
[14]	孙永辉, 李宁, 卫志农, 等. 多时滞不确定电力系统的改进时滞依赖鲁棒稳定判据[J]. 电力系统自动化, 2017, 41(16):117-122.
	SUN Yonghui, LI Ning, WEI Zhinong, et al. Improved robust delay-dependent stability crriteria for power systems with multiple time delays and uncertain parameters[J]. Automation of Electric Power Systems, 2017, 41(16):117-122.
[15]	孙勇, 李志民, 于继来. 基于最小熵H_∞控制的降阶电力系统稳定器设计[J]. 吉林大学学报, 2010, 40(2):523-528.
	SUN Yong, LI Zhiming, YU Jilai. Design of reduced-order power system stabilizer based on minimum entropy H_∞ theory[J]. Journal of Jilin Unversity, 2010, 40(2):523-528.
[16]	石颉, 王成山. 基于线性矩阵不等式理论的广域电力系统状态反馈控制器设计[J]. 电网技术, 2008, 32(6):36-41.
	SHI Jie, WANG Chengshan. Design of state feedback controller for wide-area power system based on linear matrix inequalities theory[J]. Power System Technology, 2008, 32(6):36-41.
[17]	俞立. 鲁棒控制:线性矩阵不等式处理方法[M]. 北京: 清华大学出版社, 2002.
	YU Li. Robust control:Linear matrix inequality approach[M]. Beijing: Tsinghua University Press, 2002.
[18]	QI J, JIANG Q Y, WANG G Z, et al. Wide-area time-delay robust damping control for power system[J]. European Trans. on Electrical Power, 2009, 19(7):899-910. doi: 10.1002/etep.v19:7
[19]	袁金鹏, 王秀明, 姜志国. 基于LMI的电力系统广域附加阻尼控制[J]. 东北电力大学学报, 2009(4):50-54.
	YUAN Jinpeng, WANG Xiuming, JIANG Zhiguo. Design of additional damped controller using LMI in power system[J]. Journal of Northeast Electric Power University, 2009(4):50-54.
[20]	SOLIMAN A H, ELSHAFEI A L, BENDARY F, et al. LMI static output-feedback design of fuzzy power system stabilizers[J]. Expert Systems with Applications, 2009, 36(3):6817-6825. doi: 10.1016/j.eswa.2008.08.018
[21]	ZHANG X M, HAN Q L, SEURET A, et al. Overview of recent advances in stability of liner systems with time-varying delay[J]. IET Control Theory and Applications, 2019, 13(1):1-16. doi: 10.1049/cth2.v13.1
[22]	BOYD S, GHAOUI L, FERON E, et al. Linear matrix inequalities in system and control theory[M]. Philadelphia:SIAM, 1994.
[23]	王真. 广域测量时变时滞电力系统稳定性分析与控制[D]. 株洲:湖南工业大学, 2019.
	WANG Zhen. Wide-area measurement of time-varying delay power system stability analysis and control[D]. Zhuzhou:Hunan University of Technology, 2019.

时滞h/s	控制器参数	数值
0.100	K₁	${10^3} \times \left[ {\begin{array}{*{20}{c}}{ - 1.498\;6}&{0.017\;5}&{0.010\;0}&{ - 7.743\;1}\end{array}} \right]$
0.010	K₁	$\left[ {\begin{array}{*{20}{c}}{ - 541.122\;9}&{ - 0.100\;2}&{0.880\;5}&{ - 450.324\;7}\end{array}} \right]$
0.001	K₁	$\left[ {\begin{array}{*{20}{c}}{ - 636.191\;4}&{ - 0.849\;8}&{0.943\;8}&{ - 407.389\;5}\end{array}} \right]$

时滞h/s	控制器参数	数值
0.1	K₁ K₂	${10^6} \times \left[ {\begin{array}{*{20}{c}}{ - 0.754\;2}&{0.021\;8}&{0.010\;3}&{ - 9.158\;3}\\{ - 0.000\;4}&0&0&{ - 1.605\;1}\end{array}} \right]$
0.01	K₁ K₂	$\left[ {\begin{array}{*{20}{c}}{ - 628.093\;4}&{ - 0.599\;8}&{0.892\;7}&{ - 397.952\;2}\\{\;43.820\;5}&{0.172\;5}&{0.037\;5}&{ - 31.790\;5}\end{array}} \right]$
0.001	K₁ K₂	${10^3} \times \left[ {\begin{array}{*{20}{c}}{ - 1.140\;4}&{ - 0.002\;3}&{ - 0.000\;6}&{ - 0.547\;5}\\{500.967\;2}&{1.432\;0}&{1.584\;7}&{139.261\;9}\end{array}} \right]$
