基于模糊PID的液压杆塔调平控制方法研究*

doi:10.11985/2021.04.021

摘要/Abstract

摘要：

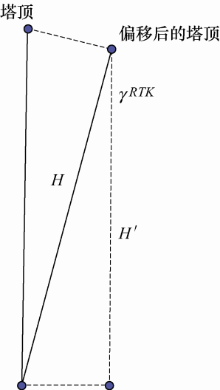

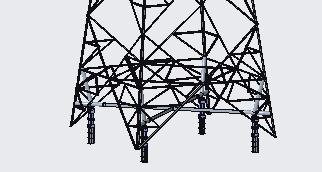

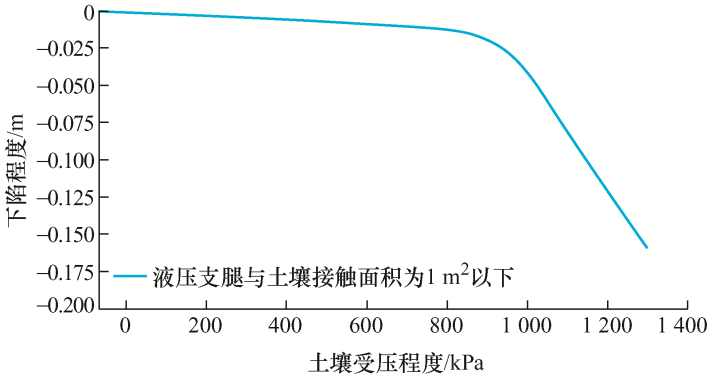

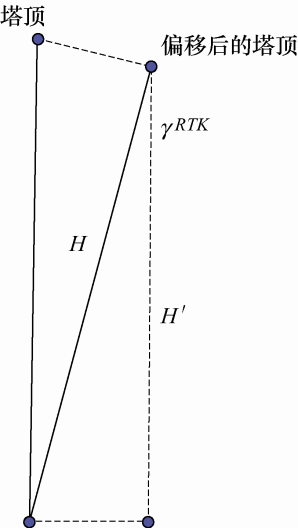

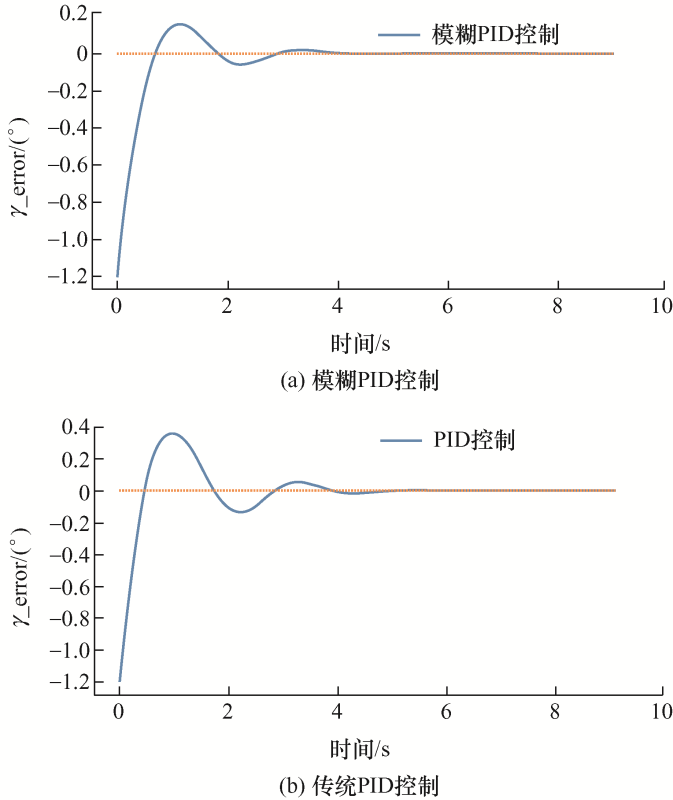

针对输电线路杆塔需要在容易下陷的土壤上进行液压提升作业前进行调平控制的情况,对受压土壤下陷特性进行研究,得出在液压杆对土壤施压的情况下,土壤下陷程度与施压程度是线性关系。在此基础上利用惯性测量单元(Inertial measurement unit,IMU)和实时动态差分定位技术(Real time kinematic,RTK)对调平过程中的杆塔倾斜状态进行测量,并且在二者频率不一致的基础上以卡尔曼滤波进行数据融合后,再以模糊PID控制算法实现杆塔调平控制。文章在试验中对比IMU和RTK在卡尔曼滤波融合下和没有融合的杆塔状态估计,其融合数据更具鲁棒性。并且在控制算法上对比传统PID控制算法和模糊PID控制算法,在超调量和恢复稳态时间上,模糊PID控制更具优势。

关键词: 液压杆塔调平, 卡尔曼滤波, 模糊PID控制, IMU, RTK

Abstract:

Aiming at the situation that the transmission line tower needs leveling control before hydraulic lifting operation on the soil prone to subsidence, the subsidence characteristics of the soil under pressure are studied, and it is found that the subsidence degree of the soil is linear with the pressure degree under the pressure of the hydraulic rod. On this basis, IMU(Inertial measurement unit) and RTK (Real time kinematic) are used to measure the tilt state of the tower in the leveling process, and on the basis of their inconsistent frequencies, Kalman filter is used for data fusion, and then fuzzy PID control algorithm is used to achieve the tower leveling control. In the experiment, the state estimation of the tower with IMU and RTK are compared under Kalman filter fusion and without fusion, and the fusion data is more robust. In addition, compared with the traditional PID control algorithm, the fuzzy PID control has more advantages in overshoot and steady-state recovery time.

Key words: Hydraulic tower leveling, Kalman filtering, Fuzzy PID control, IMU, RTK

中图分类号:

胡燃, 萧定辉, 卞佳音, 何泽斌, 陈建强, 林新生, 彭红刚. 基于模糊PID的液压杆塔调平控制方法研究^*[J]. 电气工程学报, 2021, 16(4): 166-173.

HU Ran, XIAO Dinghui, BIAN Jiayin, HE Zebin, CHEN Jianqiang, LIN Xinsheng, PENG Honggang. Research on Leveling Control Method of Hydraulic Tower Based on Fuzzy PID[J]. Journal of Electrical Engineering, 2021, 16(4): 166-173.

图/表 14

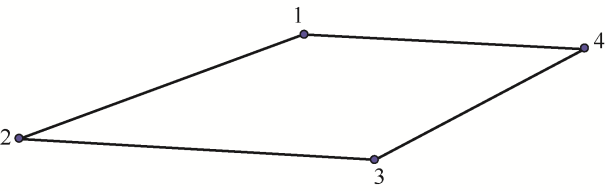

图1

图2

图3

图4

图5

图6

图7

图8

图9

表1

表2

表3

图10

图11

参考文献 15

[1]	李忠信. 带电升塔技术在大房500 kW线路的应用[J]. 电力建设, 1995, 16(7):28-30,43.
	LI Zhongxin. Application of live lifting tower technology in 500 kW line of large building[J]. Power Construction, 1995, 16(7):28-30,43.
[2]	卓高智. 浅论500 kV拉V型直线铁塔整体提升方法[J]. 广东科技, 2007(11):209-210.
	ZHUO Gaozhi. Brief discussion on integral lifting method of 500 kV pull V Type straight line tower[J]. Guangdong Science and Technology, 2007(11):209-210.
[3]	SKELTON H E, ORDE C L. Lifting of transmission towers under liver line conditions[J]. IEEE Transactions on Power Apparatus and Systems, 1982, PAS- 101(9):3018-3021.
[4]	房怀英, 杨建红, 吴仕平. 基于模糊PID控制沥青砂浆车液压调平系统[J]. 长安大学学报, 2011, 31(1):98-101.
	FANG Huaiying, YANG Jianhong, WU Shiping. Control of hydraulic leveling system of asphalt mortar truck based on mould and PID[J]. Journal of Chang’an University, 2011, 31(1):98-101.
[5]	王冰. 基于神经网络的车载平台自动调平控制系统的研究[D]. 哈尔滨:哈尔滨工业大学, 2012.
	WANG Bing. Research on automatic leveling control system of vehicle platform based on neural network[D]. Harbin:Harbin Institute of Technology, 2012.
[6]	史海红. 摊铺机模型研制及调平系统神经网络控制技术研究[D]. 哈尔滨:哈尔滨工业大学, 2006.
	SHI Haihong. Development of paver model and research on neural network control technology of leveling system[D]. Harbin:Harbin Institute of Technology, 2006.
[7]	冯仪, 陈柏金. 车载雷达机电式自动调平控制系统[J]. 华中科技大学学报, 2004(6):66-68,71.
	FENG Yi, CHEN Baijin. Electromechanical automatic leveling control system for vehicle-mounted radar[J]. Journal of Huazhong University of Science and Technology, 2004(6):66-68,71.
[8]	冯文选, 马吉胜, 吴大林, 等. 不同条件下土壤压力沉陷关系有限元分析[J]. 火炮发射与控制学报, 2019, 40(1):53-58.
	FENG Wenxuan, MA Jisheng, WU Dalin, et al. Finite element analysis of soil pressure-settlement relationship under different conditions[J]. Journal of Artillery Launch and Control, 2019, 40(1):53-58.
[9]	钟铁. 基于现代统计理论的陆地地震勘探随机噪声特征研究[D]. 长春:吉林大学, 2016.
	ZHONG Tie. Study on random noise characteristics of land seismic exploration based on modern statistical theory[D]. Changchun:Jilin University, 2016.
[10]	周军, 魏国亮, 田昕, 等. 融合UWB和IMU数据的新型室内定位算法[J]. 小型微型计算机系统, 2021, 42(8):1741-1746.
	ZHOU Jun, WEI Guoliang, TIAN Xin, et al. A novel indoor location algorithm combining UWB and IMU data[J]. Journal of Small Microcomputer Systems, 2021, 42(8):1741-1746.
[11]	李睿, 冯庆善, 蔡茂林, 等. 基于多传感器数据融合的长输埋地管道中心线测量[J]. 石油学报, 2014, 35(5):987-992.
	LI Rui, FENG Qingshan, CAI Maolin, et al. Measurement of long-distance buried pipeline centerline based on multi-sensor data fusion[J]. Acta Petrolei Sinica, 2014, 35(5):987-992.
[12]	张新宇. 基于互补滤波的汽车姿态数据采集系统研究[J]. 电子器件, 2021, 44(4):994-999.
	ZHANG Xinyu. Research on vehicle attitude data acquisition system based on complementary filter[J]. Electronic Devices, 2021, 44(4):994-999.
[13]	张毅. 基于液压支腿的电力杆塔自动调平系统研究[D]. 太原:太原理工大学, 2016.
	ZHANG Yi. Research on automatic leveling system of electric pole and tower based on hydraulic outrigger[D]. Taiyuan:Taiyuan University of Technology, 2016.
[14]	杨辉, 严永锋, 陆荣秀. 基于模糊PID控制算法的管廊通风系统设计[J]. 控制工程, 2019, 26(12):2181-2187.
	YANG Hui, YAN Yongfeng, LU Rongxiu. Ventilation system design of urban utility tunnel based on fuzzy PID control algorithm[J]. Control Engineering of China, 2019, 26(12):2181-2187.
[15]	王旭元. 锂电池放电仪器的研究与开发[D]. 长沙:中南大学, 2010.
	WANG Xuyuan. Research and development of discharge instrument for lithium battery[D]. Changsha:Central South University, 2010.

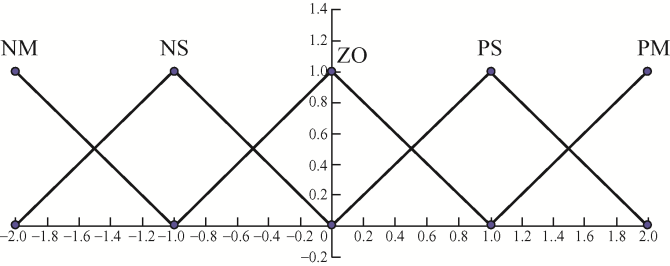

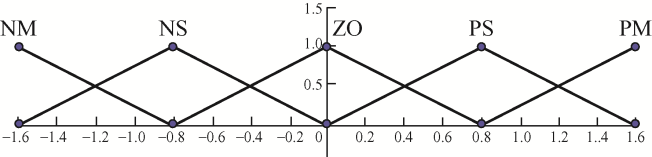

EC	E
EC	NM	NS	ZO	PS	PM
NM	PM	PM	PM	PS	ZO
NS	PM	PM	PM	ZO	ZO
ZO	PM	PS	ZO	PS	NS
PS	ZO	ZO	NS	PM	NS
PM	ZO	NS	NS	PM	NM

EC	E
EC	NM	NS	ZO	PS	PM
NM	NM	NM	NM	NS	ZO
NS	NM	NS	NS	ZO	PS
ZO	NS	NS	ZO	PS	PS
PS	NS	ZO	PS	PS	PM
PM	ZO	PS	NS	PM	PM

EC	E
EC	NM	NS	ZO	PS	PM
NM	NS	NS	NS	ZO	PS
NS	NB	NM	NS	ZO	PS
ZO	NM	NM	NS	ZO	PS
PS	NM	NS	NS	ZO	PS
PM	NS	NS	NS	ZO	PS
