下垂控制微电网的无功补偿失稳机理及抑制对策

doi:10.11985/2020.01.004

电气工程学报 ›› 2020, Vol. 15 ›› Issue (1): 29-35.doi: 10.11985/2020.01.004

所属专题：特邀专栏：微电网功率变换与稳定控制

• 特邀专栏: 微电网功率变换与稳定控制 • 上一篇下一篇

扫码分享

下垂控制微电网的无功补偿失稳机理及抑制对策

施云杰,冯夏云(),汪飞,张笠君,李玉菲

上海大学自动化系上海市电站自动化技术重点实验室上海 200044

收稿日期:2019-10-30 出版日期:2020-03-25 发布日期:2020-05-13
通讯作者: 冯夏云 E-mail:arthur@shu.edu.cn
作者简介:施云杰,男,1996年生,硕士研究生。主要研究方向为电能质量补偿及IGBT热电联合仿真研究。E-mail：1003689826@qq.com|汪飞,男,1981年生,博士,教授。主要研究方向为微电网、能量路由、IGBT寿命预测等。E-mail：f.wang@i.shu.edu.cn|张笠君,男,1990年生,博士。主要研究方向为虚拟同步发电机。E-mail：lijunzhang@shu.edu.cn|李玉菲,女,1995年生,博士研究生。主要研究方向为直流微电网建模与仿真。E-mail：13774316513@163.com

Instability Mechanism and Control Measures of Reactive Compensation in Islanded Microgrid Based on Droop Control

SHI Yunjie,FENG Xiayun(),WANG Fei,ZHANG Lijun,LI Yufei

Shanghai Key Laboratory of Power Station Automation Technology, Shanghai University, Shanghai 200044 China

Received:2019-10-30 Online:2020-03-25 Published:2020-05-13
Contact: FENG Xiayun E-mail:arthur@shu.edu.cn

摘要/Abstract

摘要：

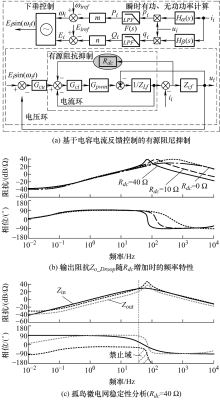

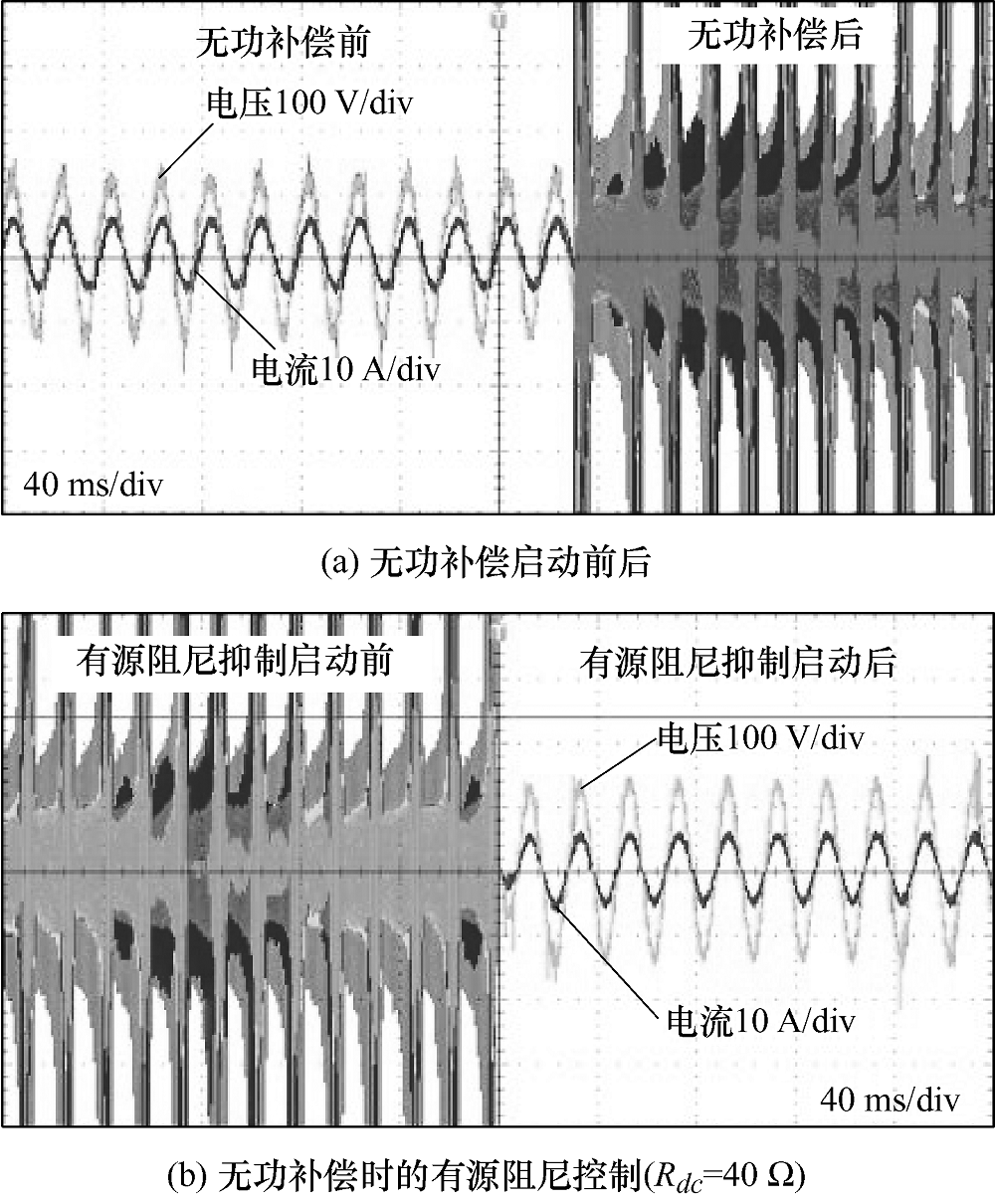

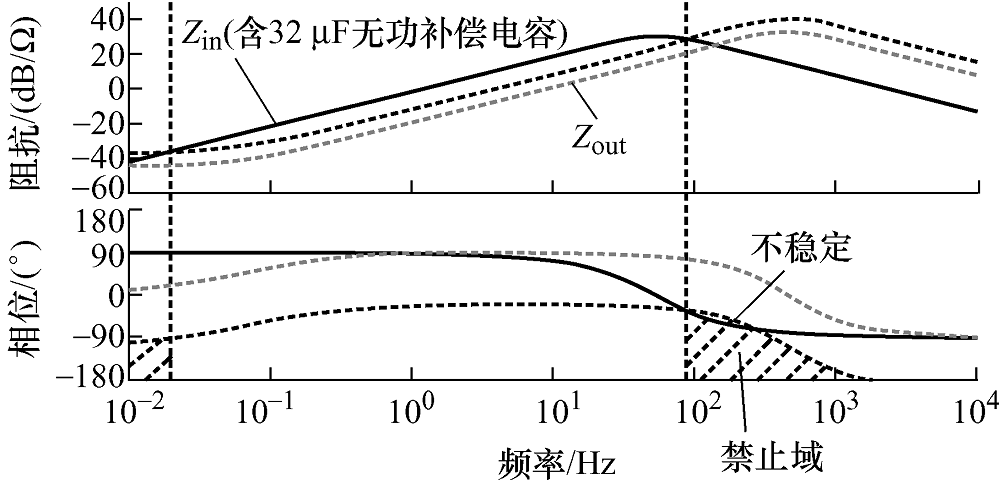

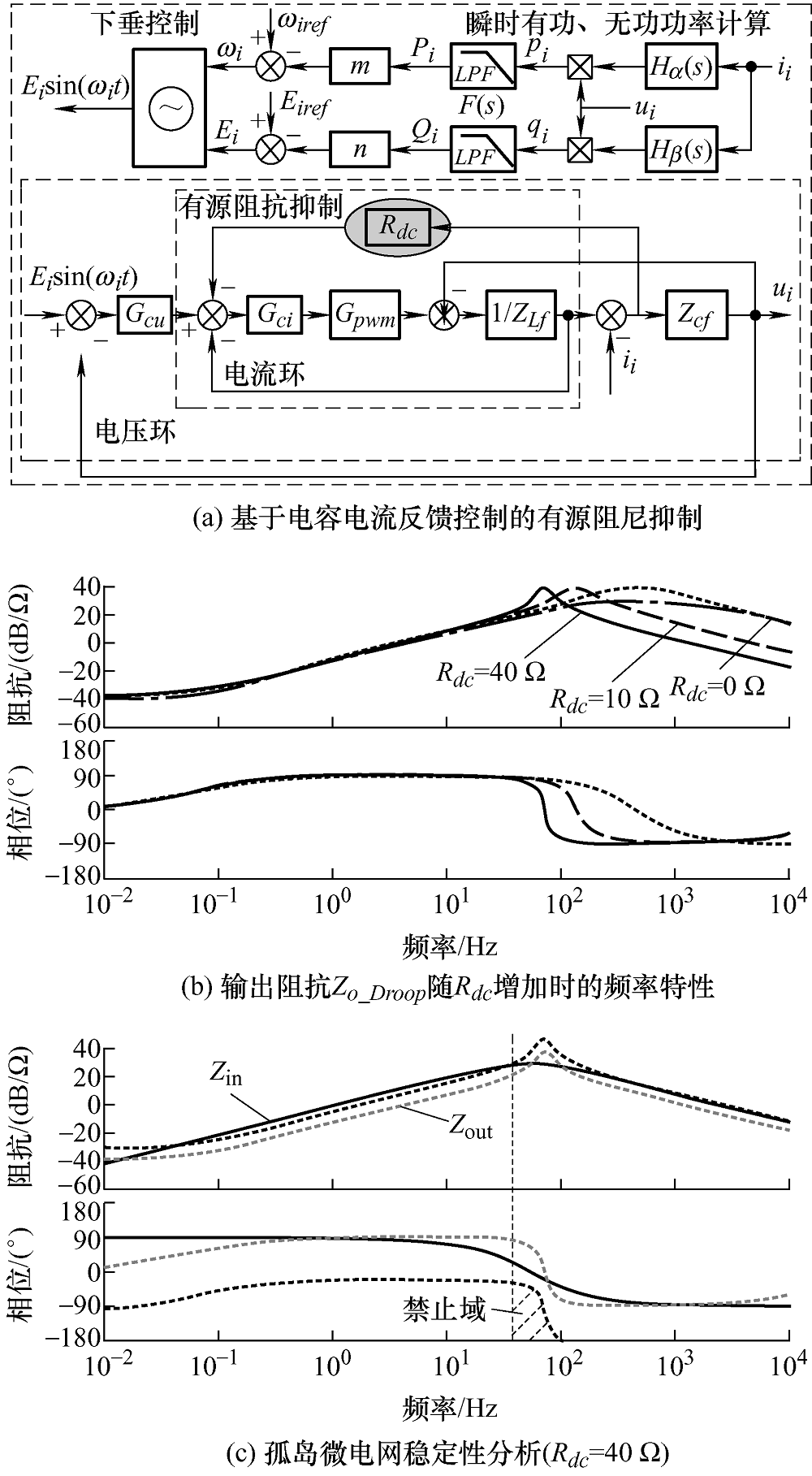

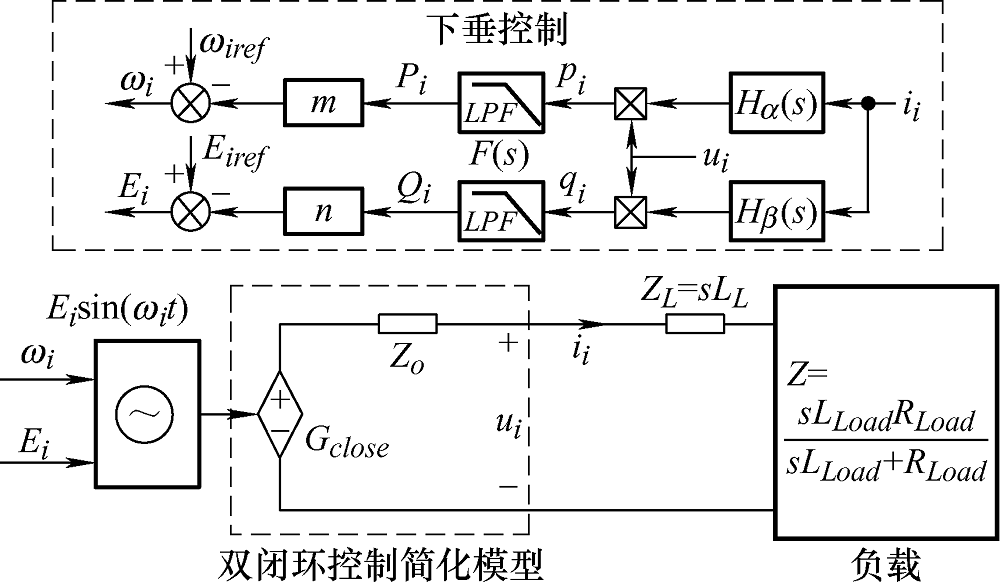

出于线路经济运行与传输损耗的要求,就孤岛微电网的无功补偿,研究了基于下垂控制的孤岛微电网采用无功补偿电容器进行无功补偿时的谐振问题。首先,采用小信号分析法建立了下垂控制逆变器输出阻抗模型,揭示了下垂功率控制环(主要是Q-U控制参数)仅影响逆变器低频段输出阻抗。然后,基于阻抗的稳定性判据分析了采用电容器进行无功补偿时的孤岛微电网稳定性问题。研究表明,采用电容器进行无功补偿时,将使系统失稳。最后提出在电流内环中引入电容电流反馈控制,实现输出阻抗重塑,抑制谐振,并设计了一台3 kW变换器,验证了所建输出阻抗模型及谐振抑制方法的正确性。

关键词: 电容器无功补偿, 下垂控制, 孤岛微电网, 阻抗稳定性判据, 谐振抑制

Abstract:

For the line economical operation and lower transmission loss requirements, on the part of reactive compensation of islanded microgrid, resonance problems among droop control inverter and the reactive compensation capacitor are studied. Firstly, output impedance of droop control inverter is obtained by small signal method, it is disclosed that droop control inverter especially Q-U control factor is mainly factor, which would affect the output impedance value at lower frequency band. Then, the stability of islanded microgrid is analyzed by impedance-based specifications when reactive power capacitors are emulated for reactive power compensation. It is shown that the grid is unstable if the reactive power capacitor is existed for reactive compensation. Finally, harmonic suppression method based on capacitor current feedforward control at current inner loop is proposed, which reshapes the output impedance of droop control inverter, and a 3 kW droop control inverter is designed for verified the effectiveness of the output impedance model and harmonics damping mothed.

Key words: Reactive compensation based on reactive power capacitor, droop control, islanded microgrid, impedance-based specifications, harmonic suppression

中图分类号:

TM561

施云杰,冯夏云,汪飞,张笠君,李玉菲. 下垂控制微电网的无功补偿失稳机理及抑制对策[J]. 电气工程学报, 2020, 15(1): 29-35.

SHI Yunjie,FENG Xiayun,WANG Fei,ZHANG Lijun,LI Yufei. Instability Mechanism and Control Measures of Reactive Compensation in Islanded Microgrid Based on Droop Control[J]. Journal of Electrical Engineering, 2020, 15(1): 29-35.

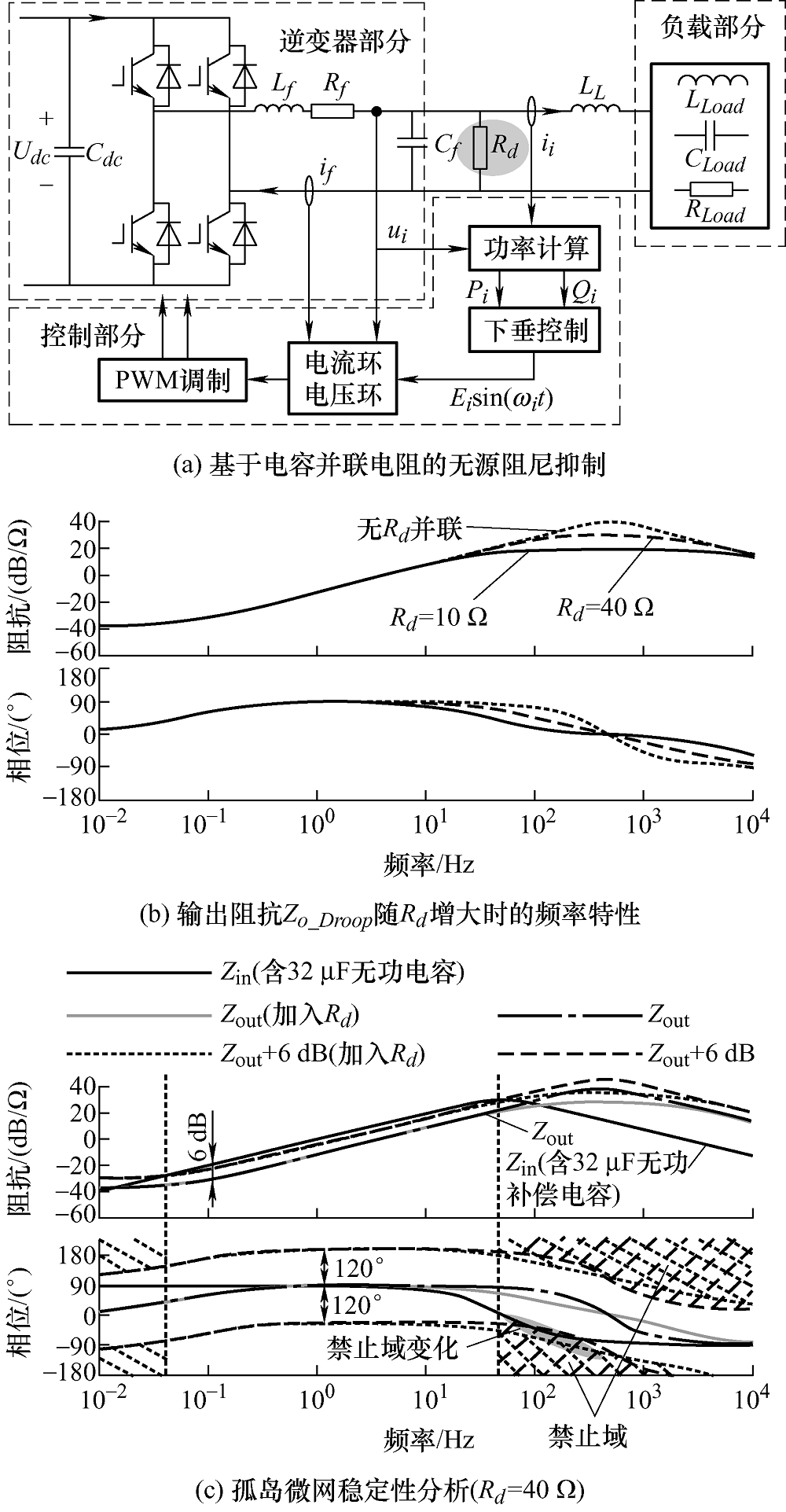

图/表 10

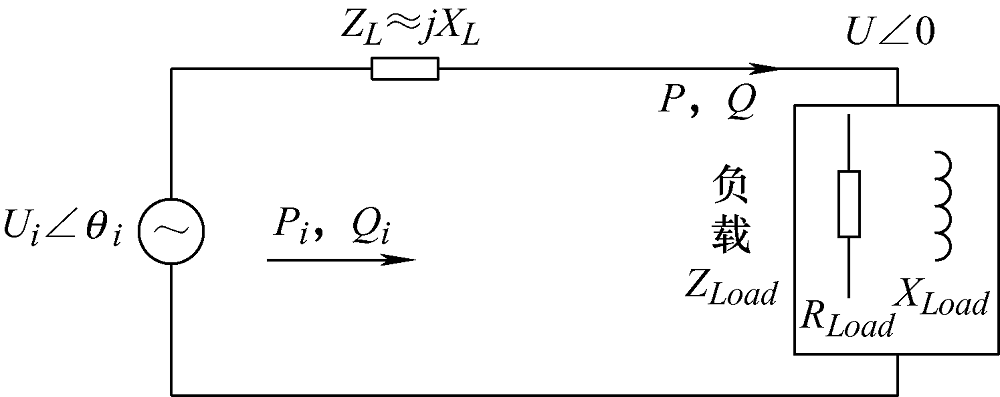

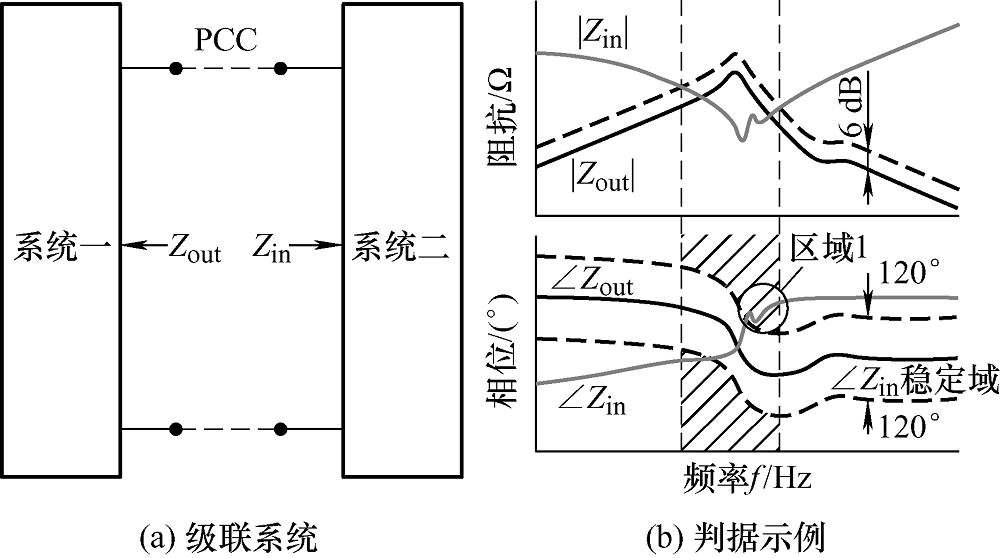

图1

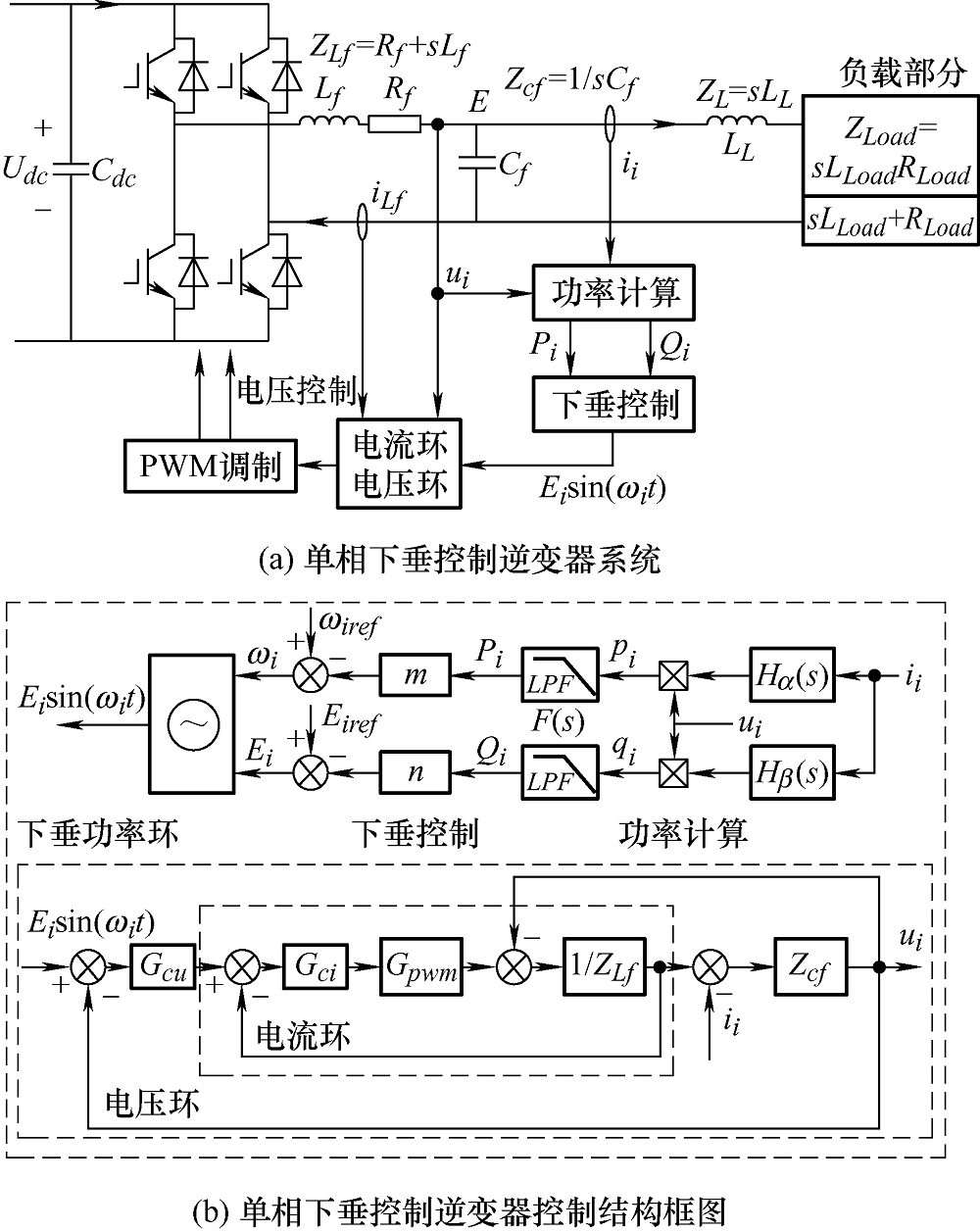

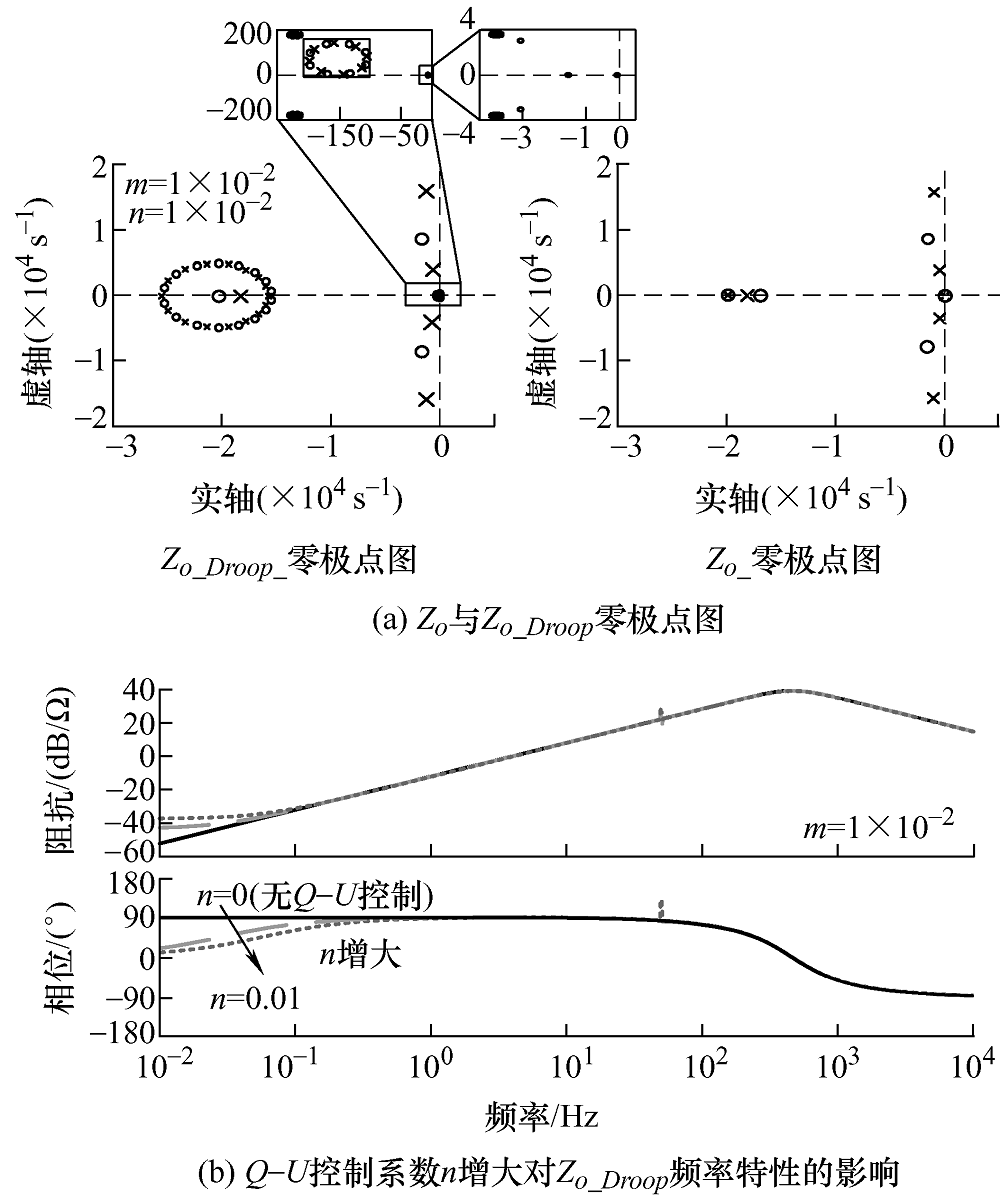

图2

表1

图3

图4

图5

图6

图7

图8

图9

参考文献 26

[1]	Guerrero J M, Hang L, Uceda J . Control of distributed uninterruptible power supply systems[J]. IEEE Transactions on Industrial Electronics, 2008,55(8):2845-2859. doi: 10.1109/TIE.2008.924173
[2]	Haddadi A, Yazdani A, Joos G , et al. A gain-scheduled decoupling control strategy for enhanced transient perfor- mance and stability of an islanded active distribution network[J]. IEEE Transactions on Power Delivery, 2014,29(2):560-569. doi: 10.1109/TPWRD.2013.2278376
[3]	Guo X, Lu Z, Wang B , et al. Dynamic phasors-based modeling and stability analysis of droop-controlled inverters for microgrid applications[J]. IEEE Transactions on Smart Grid, 2014,5(6):2980-2987. doi: 10.1109/TSG.2014.2331280
[4]	Guerrero J M, GarciadeVicuna L, Matas J , et al. A wireless controller to enhance dynamic performance of parallel inverters in distributed generation systems[J]. IEEE Transactions on Power Electronics, 2004,19(5):1205-1213. doi: 10.1109/TPEL.2004.833451
[5]	Guerrero J M, Vasquez J C, Matas J , et al. Control strategy for flexible microgrid based on parallel line- interactive UPS systems[J]. IEEE Transactions on Industrial Electronics, 2009,56(3):726-736. doi: 10.1109/TIE.2008.2009274
[6]	Zhong Q . Robust droop controller for accurate propor- tional load sharing among inverters operated in parallel[J]. IEEE Transactions on Industrial Electronics, 2013,60(4):1281-1290. doi: 10.1109/TIE.2011.2146221
[7]	Li Y W, Kao C . An accurate power control strategy for power-electronics-interfaced distributed generation units operating in a low-voltage multibus microgrid[J]. IEEE Transactions on Power Electronics, 2009,24(12):2977-2988. doi: 10.1109/TPEL.2009.2022828
[8]	He J, Li Y W, Guerrero J M , et al. An islanding microgrid power sharing approach using enhanced virtual impedance control scheme[J]. IEEE Transactions on Power Electronics, 2013,28(11):5272-5282. doi: 10.1109/TPEL.2013.2243757
[9]	中华人民共和国电力工业部. 供电营业规则[J]. 电力标准化与计量, 1997(2):2-16.
	Ministry of Electric Power Industry of the People's Republic of China. Power supply business rules[J]. Electric Power Standardization & Measurement, 1997(2):2-16.
[10]	Xue Y, Zhang X . Reactive power and AC voltage control of LCC HVDC system with controllable capacitors[J]. IEEE Transactions on Power Systems, 2017,32(1):753-764. doi: 10.1109/TPWRS.59
[11]	Kekatos V, Wang G, Conejo A J , et al. Stochastic reactive power management in microgrids with renewables[J]. IEEE Transactions on Power Systems, 2015,30(6):3386-3395. doi: 10.1109/TPWRS.2014.2369452
[12]	Prasai A, Divan D M . Control of dynamic capacitor[J]. IEEE Transactions on Industry Applications, 2011,47(1):161-168. doi: 10.1109/TIA.2010.2090318
[13]	Lu C, Hsu C, Juang C . Coordinated control of flexible AC transmission system devices using an evolutionary fuzzy lead-lag controller with advanced continuous ant colony optimization[J]. IEEE Transactions on Power Systems, 2013,28(1):385-392. doi: 10.1109/TPWRS.2012.2206410
[14]	Das S, Chatterjee D, Goswami S K . A GSA-based modified SVC switching scheme for load balancing and source power factor improvement[J]. IEEE Transactions on Power Delivery, 2016,31(5):2072-2082. doi: 10.1109/TPWRD.2015.2502623
[15]	Chen Y, Guerrero J M, Shuai Z , et al. Fast reactive power sharing,circulating current and resonance suppression for parallel inverters using resistive-capacitive output impe- dance[J]. IEEE Transactions on Power Electronics, 2016,31(8):5524-5537. doi: 10.1109/TPEL.2015.2493103
[16]	Padiyar K R, SaiKumar H V . Investigations on strong resonance in multimachine power systems with STATCOM supplementary modulation controller[J]. IEEE Transactions on Power Systems, 2006,21(2):754-762. doi: 10.1109/TPWRS.2006.873405
[17]	Padiyar K R, Prabhu N . Design and performance evaluation of subsynchronous damping controller with STATCOM[J]. IEEE Transactions on Power Delivery, 2006,21(3):1398-1405. doi: 10.1109/TPWRD.2005.861332
[18]	胡伟, 孙建军, 姜一鸣 , 等. 含STATCOM的孤岛微电网低频稳定性分析[J]. 中国电机工程学报, 2015,35(10):2454-2462. doi: 10.13334/j.0258-8013.pcsee.2015.10.011
	Hu Wei, Sun Jianjun, Jiang Yiming , et al. Low frequency stabilization analysis of isolated microgrid with STATCOM[J]. Proceedings of the CSEE, 2015,35(10):2454-2462. doi: 10.13334/j.0258-8013.pcsee.2015.10.011
[19]	Jachim H, Karl-Heinz W . Multi-inverter UPS system with redundant load sharing control[J]. IEEE Transactions on Industrial Electronics, 1990,37(6):506-513. doi: 10.1109/41.103455
[20]	吴恒, 阮新波, 杨东升 , 等. 虚拟同步发电机功率环的建模与参数设计[J]. 中国电机工程学报, 2015,35(24):6508-6518. doi: 10.13334/j.0258-8013.pcsee.2015.24.027
	Wu Heng, Ruan Xinbo, Yang Dongsheng , et al. Modeling of the power loop and parameter design of virtual synchro- nous generators[J]. Proceedings of the CSEE, 2015,35(24):6508-6518. doi: 10.13334/j.0258-8013.pcsee.2015.24.027
[21]	Guerrero J M, Vasquez J C, Matas J , et al. Control strategy for flexible microgrid based on parallel line- interactive UPS systems[J]. IEEE Transactions on Industrial Electronics, 2009,56(3):726-736. doi: 10.1109/TIE.2008.2009274
[22]	李建林, 徐少华, 惠东 . 百MW级储能电站用PCS多机并联稳定性分析及其控制策略综述[J]. 中国电机工程学报, 2016,36(15):4034-4047.
	Li Jianlin, Xu Shaohua, Hui Dong . A review of stability analysis and control strategy of multi-parallel PCS for hundred MW level energy storage power station[J]. Proceedings of the CSEE, 2016,36(15):4034-4047.
[23]	Beres R N, Wang X, Liserre M , et al. A review of passive power filters for three-phase grid-connected voltage- source converters[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2016,4(1):54-69. doi: 10.1109/JESTPE.2015.2507203
[24]	Wang X, Blaabjerg F, Loh P C . Passivity-based stability analysis and damping injection for multiparalleled VSCs with LCL filters[J]. IEEE Transactions on Power Electronics, 2017,32(11):8922-8935. doi: 10.1109/TPEL.2017.2651948
[25]	Li Y W . Control and resonance damping of voltage- source and current-source converters with LC filters[J]. IEEE Transactions on Industrial Electronics, 2009,56(5):1511-1521. doi: 10.1109/TIE.2008.2009562
[26]	He J, Li Y W, Wang R , et al. Analysis and mitigation of resonance propagation in grid-connected and islanding microgrids[J]. IEEE Transactions on Energy Conversion, 2015,30(1):70-81. doi: 10.1109/TEC.2014.2332497

项目	参数	数值
LC滤波器	C_f/μF	3×10^–6
	L_f/mH	2
	R_f/Ω	0.02
线路阻抗	X_Li/mΩ	314
线路阻抗	R_Li/mΩ	1
负载	R_Load/Ω	25
负载	L_Load/H	0.152
直流母线电压	U_dc/V	400
开关频率	f_s/kHz	10
电压电流环控制	k_ip	0.8
	k_ii/s^–1	150
	k_up	8.3×10^–3
	k_ui/s^–1	25
下垂控制	ω_iref/(rad/s)	314
	E_iref/V	110
	n	0.01
	m	0.01
