光伏电源的PQ耦合潮流模型及对配电网电压的影响

doi:10.11985/2016.10.001

电气工程学报 ›› 2016, Vol. 11 ›› Issue (10): 1-6.doi: 10.11985/2016.10.001

• • 下一篇

光伏电源的PQ耦合潮流模型及对配电网电压的影响

张芳,李慧,张利

北京信息科技大学自动化学院北京 100192

收稿日期:2016-05-24 出版日期:2016-10-25 发布日期:2020-04-30
作者简介:张芳, 女 1979年生,博士,讲师,主要研究方向为电力系统分析与控制。|李慧, 女 1976年生,博士,副教授,主要研究方向为新能源发电和电网能量管理系统。
基金资助:
北京市教委科技计划面上项目(KM201511232008);北京市青年拔尖人才培育计划资助(CIT&TCD201404126)

Power Flow Calculation Model of PQ Coupling Photovoltaic and Influence of Photovoltaic on Distribution Network Voltage

Fang Zhang,Hui Li,Li Zhang

Beijing Information Science and Technology University Beijing 100192 China

Received:2016-05-24 Online:2016-10-25 Published:2020-04-30

摘要/Abstract

摘要：

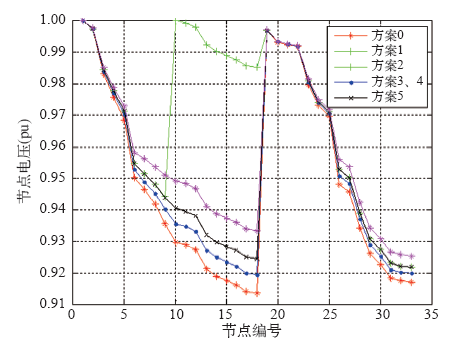

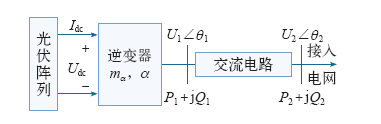

光伏电源并入配电网络,不仅充当着有功电源,还可适当输出无功功率,承担调节电压的重要作用。根据并网光伏电源的结构,建立了光伏电源PQ耦合的潮流计算模型,其有功与无功输出均与逆变器的调制比和移相角密切相关。根据实际系统对光伏电源的需求设置调制比和移相角,使逆变器既能工作于合理状态,同时也能满足系统功率需求。光伏电源并入配电网,其有功和无功输出共同影响配电网电压,算例表明PV型光伏电源对局部节点电压提升效果显著,PQ耦合且具有最大电压调节能力的光伏电源对系统整体电压提升效果显著。

关键词: 光伏并网, PQ耦合, 电压影响, 潮流模型

Abstract:

Photovoltaic power incorporated into distribution network provides the active power. At the same time reactive power output is very important in regulating voltage. According to the structure of grid-connected photovoltaic power, the power flow calculation model of PQ-coupled photovoltaic power is established. The active and reac-tive power output of photovoltaic power is modulated by phase shift angle and modulation ratio of the inverter. According to the actual output need of photovoltaic power, setting the modulation ratio and phase shift angle, inverters can work at a reasonable state and the output of photovoltaic power can also meet the system power requirements. The active and reactive power output of grid-connected photovoltaic power affect the voltage of the distribution network. Numerical examples show that the PV type photovoltaic power approves the local node voltage significantly, PQ coupling and with a maximum capacity of voltage regulator type photovoltaic power approves the overall system voltage significantly.

Key words: Grid-connected photovoltaic power, PQ-coupled, effects of voltage, power flow calculation model

中图分类号:

TM614

张芳,李慧,张利. 光伏电源的PQ耦合潮流模型及对配电网电压的影响[J]. 电气工程学报, 2016, 11(10): 1-6.

Fang Zhang,Hui Li,Li Zhang. Power Flow Calculation Model of PQ Coupling Photovoltaic and Influence of Photovoltaic on Distribution Network Voltage[J]. Journal of Electrical Engineering, 2016, 11(10): 1-6.

图/表 8

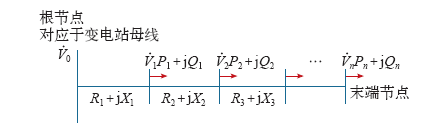

图1

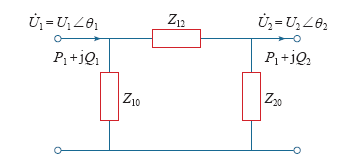

图2

图3

图4

表1

表2

表3

图5

参考文献 11

[1]	施婕, 艾芊 . 智能电网实现的若干关键技术问题研究[J]. 电力系统保护与控制, 2009,37(19):1-5.
	Shi Jie, Ai Qian . Research on several key technical problems in realization of smart grid[J]. Power System Protection and Control, 2009,37(19):1-5.
[2]	康龙云, 郭红霞, 吴捷 , 等. 分布式电源及其接入电力系统时若干研究课题综述[J]. 电网技术, 2010,34(11):43-47.
	Kang Longyun, Guo Hongxia, Wu Jie , et al. Distributed generation and effects of its parallel operation on power system[J]. Power System Technology, 2010,34(11):43-47.
[3]	陈权, 李令冬, 王群京 , 等. 光伏发电并网对系统的仿真建模及对配电网电压稳定性的影响[J]. 电工技术学报, 2013,28(3):241-247.
	Chen Quan, Li Lingdong, Wang Qunjing , et al. Simulation model of photovoltaic generation grid-connected system and its impacts on voltage stability in distribution grid[J]. Transactions of China Electrotechnical Society, 2013,28(3):241-247.
[4]	陈炜, 艾欣, 吴涛 , 等. 光伏并网发电系统对电网的影响研究综述[J]. 电力自动化设备, 2013,33(2):26-33.
	Chen Wei, Ai Xin, Wu Tao , et al. Influence of grid-connected photovoltaic system on power network[J]. Electric Power Automation Equipment, 2013,33(2):26-33.
[5]	罗雯清, 张焰 . 含风光储发电的配电网潮流计算方法[J]. 华东电力, 2013,41(2):337-340.
	Luo Wenqing, Zhang Yan . Power flow calculation for distribution network with wind/PV/storage access[J]. East China Electric Power, 2013,41(2):337-340.
[6]	李新, 彭怡, 赵晶晶 , 等. 分布式电源并网的潮流计算[J]. 电力系统保护与控制, 2009,37(17):78-82, 87.
	Li Xin, Peng Yi, Zhao Jingjing , et al. Power flow calculation of distribution network with distributed generation[J]. Power System Protection and Control, 2009,37(17):78-81, 87.
[7]	陈旭, 张勇军, 黄向敏 . 主动配电网背景下无功电压控制方法综述[J]. 电力系统自动化, 2016,40(1):143-151.
	Chen Xu, Zhang Yongjun, Huang Xiangmin . Review of reactive power and voltage control method in the backgroud of active distribution network[J]. Automation of Electric Power Systems, 2016,40(1):143-151.
[8]	Leisse I, Samuelsson O, Svensson J. Coordinated voltage control in distribution systems with DG-control algorithm and case study[C]. CIRED Workshop, Lisbon, Portugal, 2012: 4.
[9]	张立梅, 唐巍, 赵云军 , 等. 分布式发电接入配电网后对系统电压及损耗的影响分析[J]. 电力系统保护与控制, 2011,39(5):91-96.
	Zhang Limei, Tang Wei, Zhao Yunjun , et al. Analysis of DG influences on system voltage and losses in distribution network[J]. Power System Protection and Control, 2011,39(5):91-96.
[10]	杨秀媛, 刘小河, 张芳 , 等. 大型太阳能并网发电模型及应用[J]. 中国电机工程学报, 2011,31(S):19-22.
	Yang Xiuyuan, Liu Xiaohe, Zhang Fang , et al. Model of large PV and its application on power system analysis[J]. Proceedings of the CSEE, 2011,31(S):19-22.
[11]	刘东冉, 陈树勇, 马敏 , 等. 光伏发电系统模型综述[J]. 电网技术, 2011,35(8):47-52.
	Liu Dongran, Chen Shuyong, Ma Min , et al. A review on models for photovoltaic generation system[J]. Power System Technology, 2011,35(8):47-52.

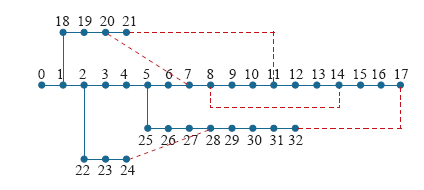

方案	接入节点9的光伏电源类型
0	无光伏电源
1	PV型（P = 300kW,V = 12.66kV）
2	PI型（P = 300kW,I = 10A）
3	PQ型（P = 300kW,Q = 0）
4	PQ耦合且具有最大出力（P = 300kW,Q = 0）
5	PQ耦合且具有最大电压调节能力

调制比	移相角/(°)	功率因数
0.800	12.632	0.962
0.811	9.474	0.979
0.821	3.158	1.000
0.832	7.895	1.000
0.842	11.053	1.000
0.853	14.211	1.000
0.863	15.790	1.000
0.874	17.368	1.000
0.884	18.947	1.000
0.895	20.526	1.000
0.905	22.105	1.000
0.916	23.684	1.000
0.926	25.263	1.000
0.937	26.842	1.000
0.947	26.842	1.000
0.958	28.421	1.000
0.968	30.000	1.000
0.979	30.000	1.000
0.990	30.000	1.000
1.000	30.000	0.999
