三线圈无线输电系统的频率分裂特性和抑制方法

doi:10.11985/2018.05.005

电气工程学报 ›› 2018, Vol. 13 ›› Issue (5): 27-32.doi: 10.11985/2018.05.005

三线圈无线输电系统的频率分裂特性和抑制方法

路倩云¹,王文清²,翟志颖¹,田子建¹

^1. 中国矿业大学机电与信息工程学院北京 100083
^2. 北京工业职业技术学院北京 100042

收稿日期:2017-09-21 出版日期:2018-05-25 发布日期:2019-11-22
作者简介:路倩云女 1992年生,硕士研究生,研究方向为无线输电。|王文清男 1963年生,教授级高工,研究方向为智能仪表。
基金资助:
国家重点研发计划专项资助项目(2016YFC0801800);国家自然基金资助项目(51674269);北京工业职业技术学院重点课题(bgzykyz201605);北京工业职业技术学院重点课题(bgzyky201780z)

Frequency Splitting Characteristics and Suppression Method of Three-Coil Wireless Transmission System

Lu Qianyun¹,Wang Wenqing²,Zhai Zhiying¹,Tian Zijian¹

^1. China University of Mining and Technology Beijing 100083 China
^2. Beijing Polytechnic College Beijing 100042 China

Received:2017-09-21 Online:2018-05-25 Published:2019-11-22

摘要/Abstract

摘要：

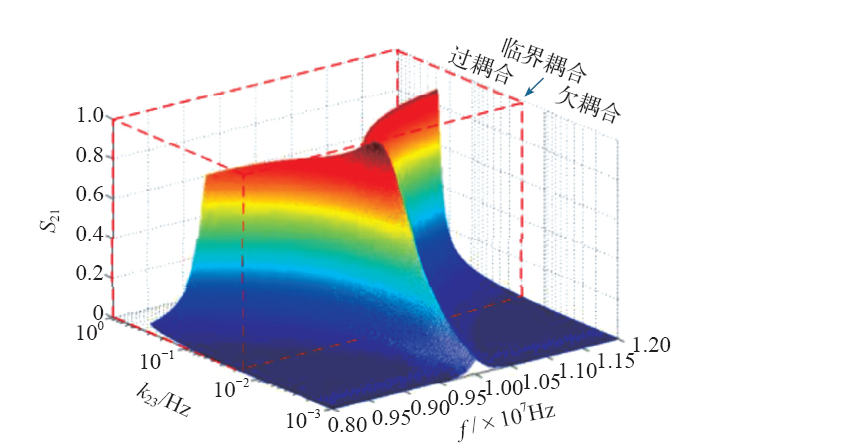

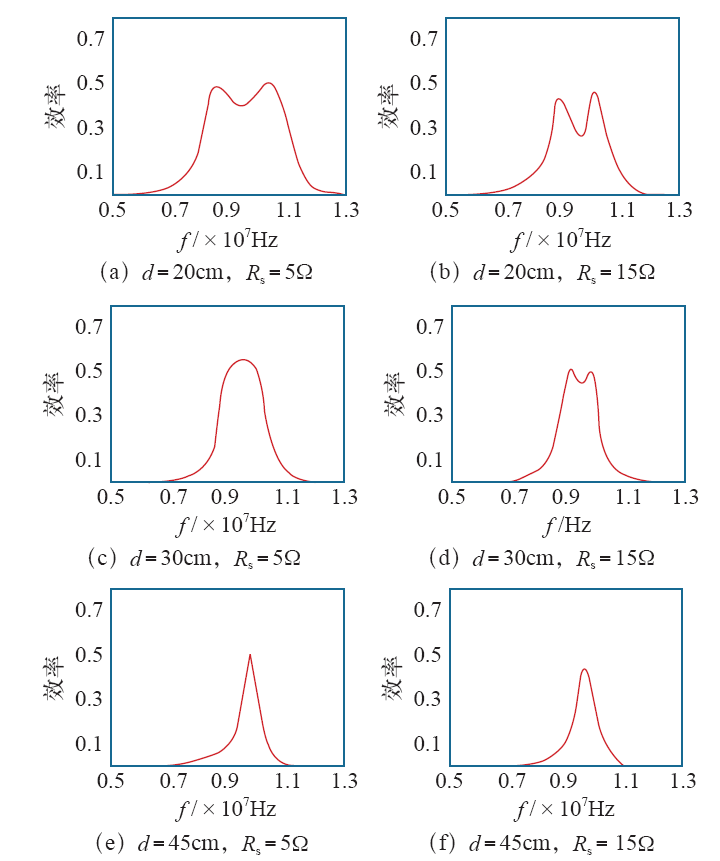

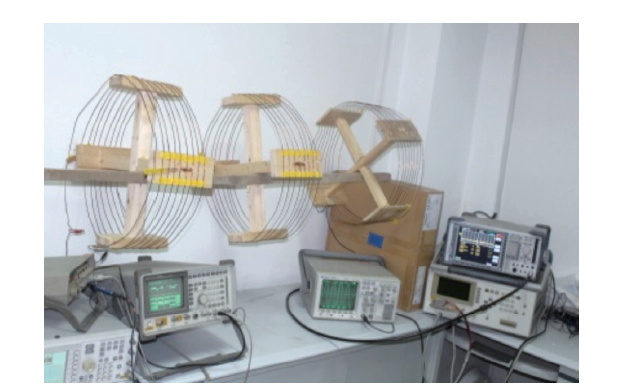

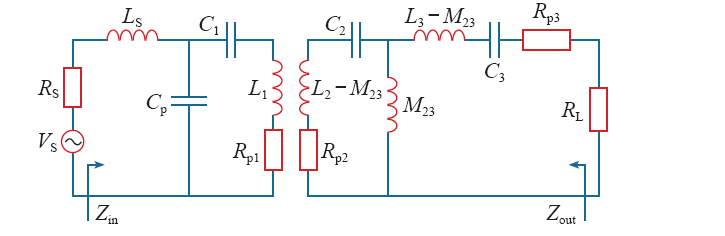

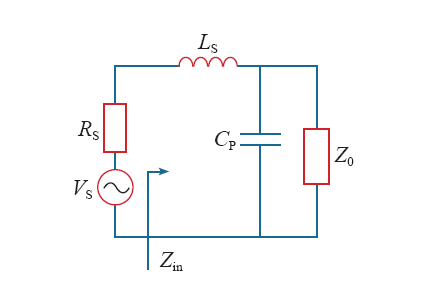

首先以基尔霍夫定律为基础,分析三线圈WPT系统的S参数、传输效率以及该系统的频率分裂现象。频率分裂现象是线圈之间的过耦合导致系统出现不止一个谐振频率的现象。频率分裂仅出现在过耦合区域,由于在过耦合区域内阻与系统的输入阻抗不匹配导致频率分裂现象,本文提出一种阻抗匹配方法来抑制该现象。通过在发射端添加L型阻抗匹配网络并且在接收端组成概念性阻抗匹配网络,来实现抑制频率分裂现象、增大系统效率的目的。最后,通过实验和仿真来对比分析所提方法的正确性。

关键词: 三线圈无线电能传输系统, 磁耦合谐振式, 频率分裂, 阻抗匹配

Abstract:

Based on the Kirchhoff law, the S-parameters, the transmission efficiency and the frequency division of the three-coil WPT system are analyzed. The phenomenon of frequency splitting is that the over-coupling between the coils causes the system to appear more than one resonant frequency. The frequency splitting occurs only in the over-coupled region. Since the internal impedance of the over-coupling region does not match the input impedance of the system, the frequency splitting phenomenon is proposed. Therefore, an impedance matching method is proposed to suppress the frequency splitting phenomenon. By adding an L-shaped impedance matching network at the transmitter and forming a conceptual impedance matching network at the receiving end, the purpose of suppressing the frequency splitting and increasing the efficiency of the system is realized. Finally, the correctness of the proposed method is compared by experiment and simulation.

Key words: Three coil WPT system, magnetic resonance coupling, frequency splitting, impedance matching

中图分类号:

TM72

路倩云,王文清,翟志颖,田子建. 三线圈无线输电系统的频率分裂特性和抑制方法[J]. 电气工程学报, 2018, 13(5): 27-32.

Lu Qianyun,Wang Wenqing,Zhai Zhiying,Tian Zijian. Frequency Splitting Characteristics and Suppression Method of Three-Coil Wireless Transmission System[J]. Journal of Electrical Engineering, 2018, 13(5): 27-32.

图/表 9

图1

表1

图2

图3

图4

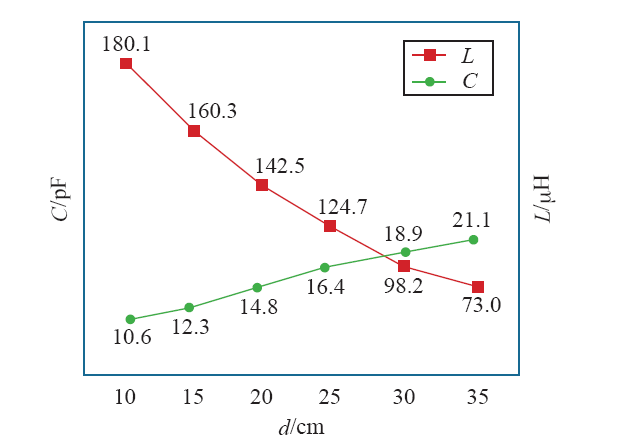

图5

图6

图7

表2

参考文献 10

[1]	田子建, 杜欣欣, 樊京 , 等. 磁耦合谐振式无线输电系统不同拓扑结构的分析[J]. 电气工程学报, 2015,10(6):47-57.
	Tian Zijian, Du Xinxin, Fan Jing , et al. Analysis on different topology structures in magnetic coupling resonant WPT system[J]. Journal of Electrical Engineering, 2015,10(6):47-57.
[2]	杨庆新, 张献, 李阳 . 无线电能传输技术及其应用[M]. 北京: 机械工业出版社, 2014.
[3]	Andre Kurs, Aristeidis Karalis, Robert Moffatt . Wireless power transfer via strongly coupled magnetic resonances[J]. Science, 2007,317(6):83-86.
[4]	黄学良, 谭林林, 陈忠 , 等. 无线电能传输技术研究与应用综述[J]. 电工技术学报, 2013,28(10):1-11.
	Huang Xueliang, Tan Linlin, Chen Zhong , et al. Review and research progress on WPT technology[J]. Transactions of China Electrotechnical Society, 2013,28(10):1-11.
[5]	张献, 杨庆新, 陈海燕 , 等. 磁耦合谐振式传能系统的频率分裂特性研究[J]. 电机工程学报, 2012,32(9):167-171.
	Zhang Xian, Yang Qingxin, Chen Haiyan , et al. Research on characteristics of frequency splitting in electromagnetic coupling resonant power transmission systems[J]. Proceedings of the CSEE, 2012,32(9):167-171.
[6]	Lyu Yuelong, Meng Fanyi . A method of using nonidentical resonant coils for frequency splitting elimination in wireless power transfer[J]. IEEE Transactions on Power Electronics, 2015,30(11):6097-6107.
[7]	Huang X L, Tan L L, Wang W. Resonant frequency splitting analysis and optimation of wireless power transfer system[C]. PIERS Proceedings, Moscow, 2012,49(1):684-688.
[8]	Huang Runhong, Zhang Bo . Frequency splitting phenomena of magnetic resonant coupling wireless power transfer[J]. IEEE Transactions on Magnetic, 2014,50(11):1-4.
[9]	Zhang Yiming, Zhao Zhengming, Chen Kainan. Frequency splitting analysis of magnetically-coupled resonant wireless power transfer[C]. IEEE Energy Conversion Congress and Exposition, 2013: 2227-2232.
[10]	Huang Yong, Shinohara Naoki, Mitani Tomohiko . Impedance matching in wireless power transfer[J]. IEEE Transactions on Microwave Theory and Techniques, 2017,65(2):582-590.

参数	数值	参数	数值
L₁/μH	1.0	R_p2、R_p3/Ω	0.5
L₂、L₃/μH	20	R_S、R_L/Ω	50
C₁/pF	253	k₁₂	0.1
C₂、C₃/pF	12.67	f₀/MHz	10
R_p1/Ω	0.1

d/cm	10	15	20	25	30	35
效率1	0.21	0.30	0.43	0.59	0.55	0.41
效率2	0.51	0.54	0.60	0.59	0.56	0.50
