减载运行方式下直驱永磁风电机组虚拟同步控制策略 *

doi:10.11985/2019.03.007

电气工程学报 ›› 2019, Vol. 14 ›› Issue (3): 47-53.doi: 10.11985/2019.03.007

减载运行方式下直驱永磁风电机组虚拟同步控制策略 ^*

包广清¹,李媛¹,马明^2,³,汪宁渤^2,³

^1. 兰州理工大学电气工程与信息工程学院兰州 730050
^2. 国网甘肃省电力公司电力科学研究院兰州 730070
^3. 甘肃省新能源并网运行控制重点实验室兰州 730070

收稿日期:2019-07-08 出版日期:2019-09-25 发布日期:2019-11-21
作者简介:包广清,女,1972年生,博士,教授,博士研究生导师。主要研究方向为特种电机设计、新能源并网稳定性等。E-mail：gqbao@lut.cn|李媛,女,1993年生,硕士研究生。主要研究方向为新能源并网稳定性。E-mail：245505603@qq.com|马明,男,1983年生,硕士,工程师。主要研究方向为电力系统运行及新能源发电。E-mail：mingwq@qq.com|汪宁渤,男,1963年生,硕士,高级工程师(教授级),享受国务院特殊津贴。主要研究方向为新能源发电与并网运行控制技术。E-mail：wangnb@gs.sgcc.com.cn
基金资助:
* 国家自然科学基金(51967012);甘肃省重大科技专项基金(17ZD2GA010);甘肃省教育厅科研创新团队(2018C-09);国家电网公司科研资助项目(SGGSKY00FJS1800142)

Virtual Synchronization Control Strategy of Direct Drive Permanent Magnet Wind Turbine under Load Shedding Operation Mode

BAO Guangqing¹,LI Yuan¹,MA Ming^2,³,WANG Ningbo^2,³

^1. College of Electrical and Information Engineering, Lanzhou University of Technology, Lanzhou 730050 China
^2. Power Science Research Institute of State Grid Gansu Electric Power Company, Lanzhou 730070 China
^3. Key Laboratory of New Energy Grid-connected Operation and Control in Gansu Province, Lanzhou 730070 China

Received:2019-07-08 Online:2019-09-25 Published:2019-11-21

摘要/Abstract

摘要：

随着风电并网容量的增加,导致系统惯量支撑能力不足,电网频率失稳等问题日益显著,虚拟同步发电机技术模拟同步发电机运行特性成为一种有效的解决方案。以风电场主流机型之一的直驱永磁风电机组为研究对象,在并网控制中引入虚拟同步控制策略,提高直驱永磁风电机组的等效惯量,使其向电网输送平滑功率。并利用机组自身超速和变桨协调控制提供备用容量,通过虚拟同步发电机的惯量响应控制环节增发有功出力,从而提升系统一次调频能力。仿真结果表明,所提出的协调控制策略能够充分利用风电机组自身减载运行和虚拟同步发电机技术,有效提升并网系统的频率稳定和惯性支撑效果,有利于电力系统的安全稳定运行。

关键词: 直驱永磁风电机组, 虚拟同步控制, 备用容量, 惯量, 一次调频

Abstract:

With the increase of wind power grid-connected capacity, the system inertia support capacity is insufficient, and the grid frequency instability is becoming more and more obvious. The virtual synchronous generator technology simulates the synchronous generator operation characteristics and becomes an effective solution. the direct-drive permanent magnet wind turbine of one of the mainstream models of wind farms as the research object is taken, and introduces the virtual synchronous control strategy in the grid-connected control to improve the equivalent inertia of the direct-drive permanent magnet wind turbine to deliver smooth power to the grid. And use the unit's own overspeed and pitch coordinated control to provide spare capacity, through the virtual synchronous generator's inertia response control link to increase the active output to improve the system’s primary frequency modulation capability. The simulation results show that the coordinated control strategy proposed here can make full use of wind turbine’s own load shedding operation and virtual synchronous generator technology, effectively improve the frequency stability and inertial support effect of the grid-connected system, which is conducive to the safe and stable operation of the power system.

Key words: Direct drive permanent magnet wind turbine, virtual synchronization control, spare capacity, inertia, primary frequency modulation

中图分类号:

TM614

包广清,李媛,马明,汪宁渤. 减载运行方式下直驱永磁风电机组虚拟同步控制策略 ^*[J]. 电气工程学报, 2019, 14(3): 47-53.

BAO Guangqing,LI Yuan,MA Ming,WANG Ningbo. Virtual Synchronization Control Strategy of Direct Drive Permanent Magnet Wind Turbine under Load Shedding Operation Mode[J]. Journal of Electrical Engineering, 2019, 14(3): 47-53.

图/表 12

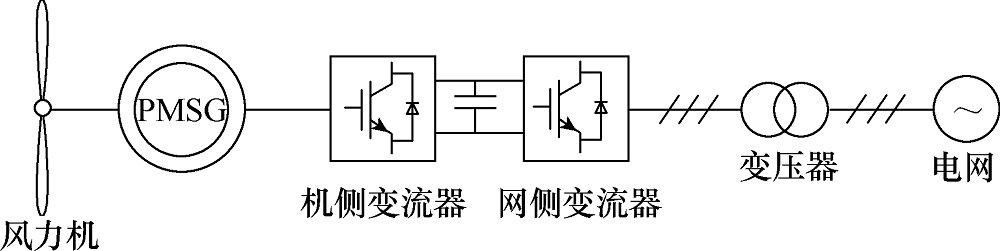

图1

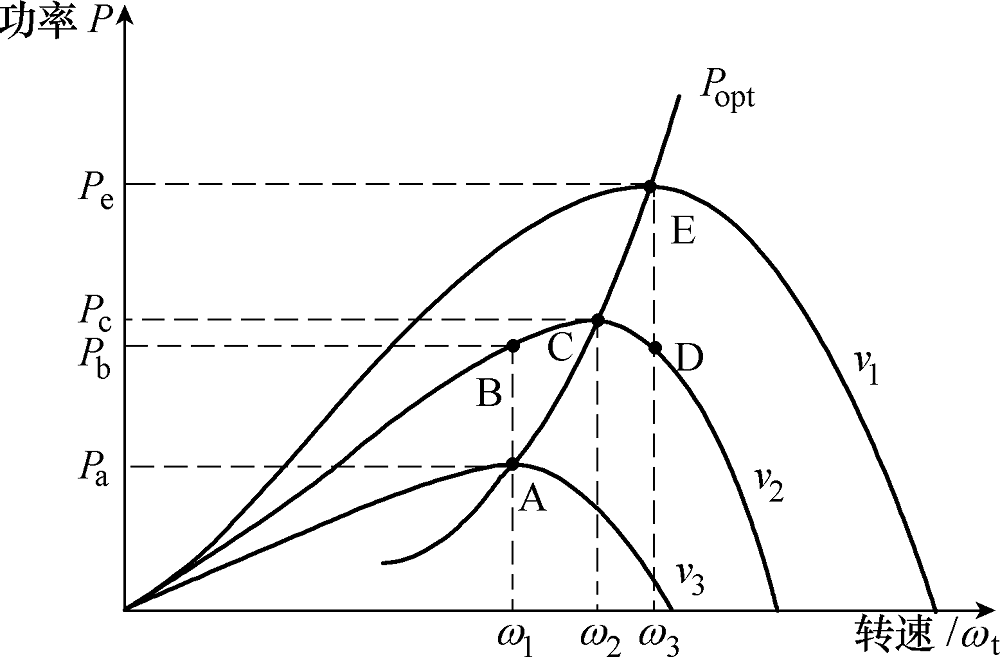

图2

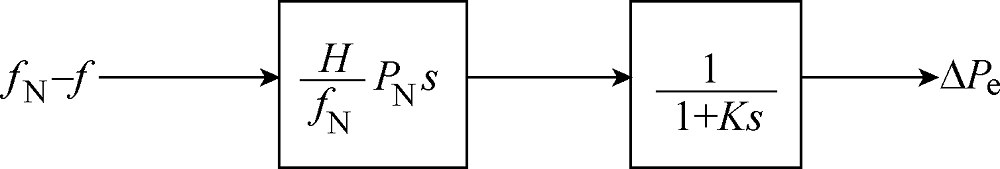

图3

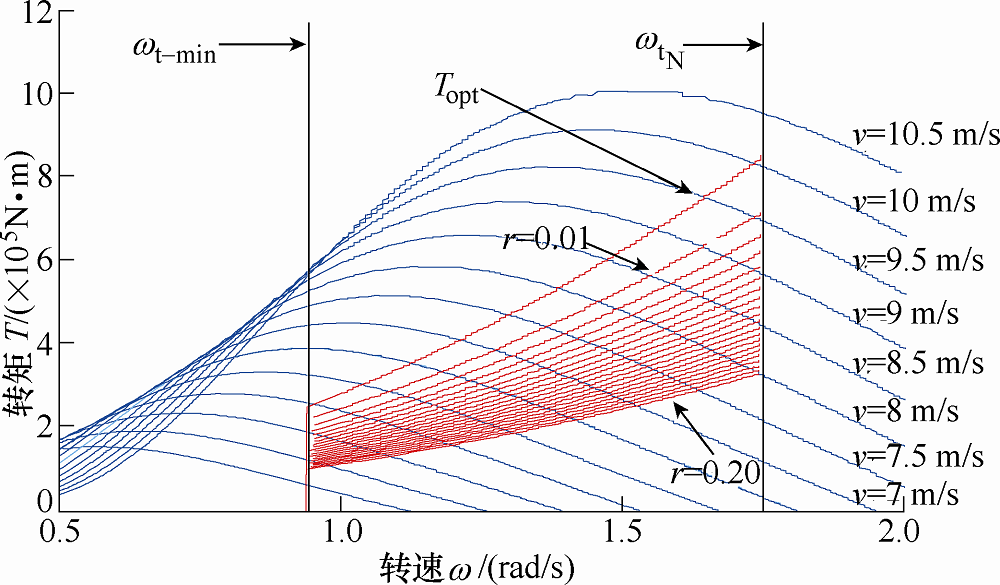

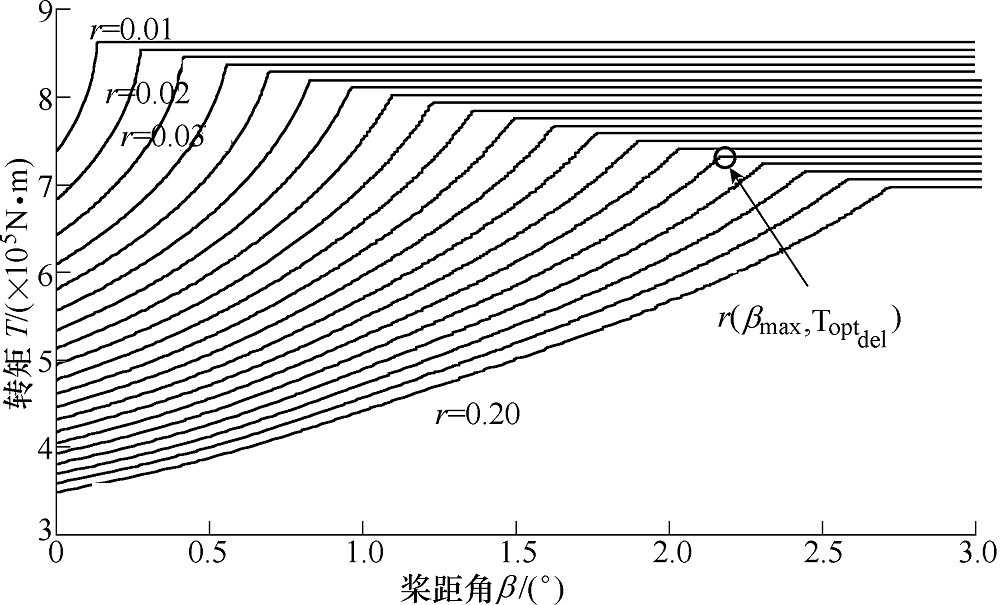

图4

图5

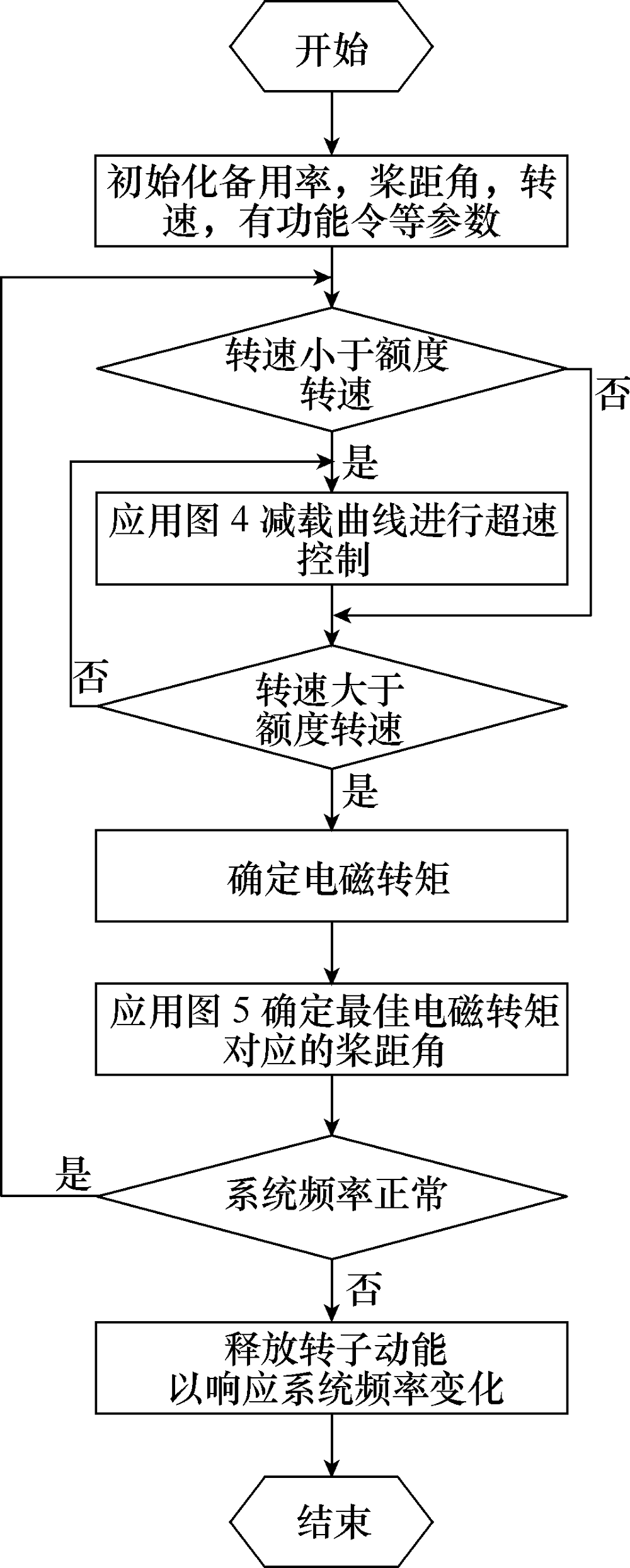

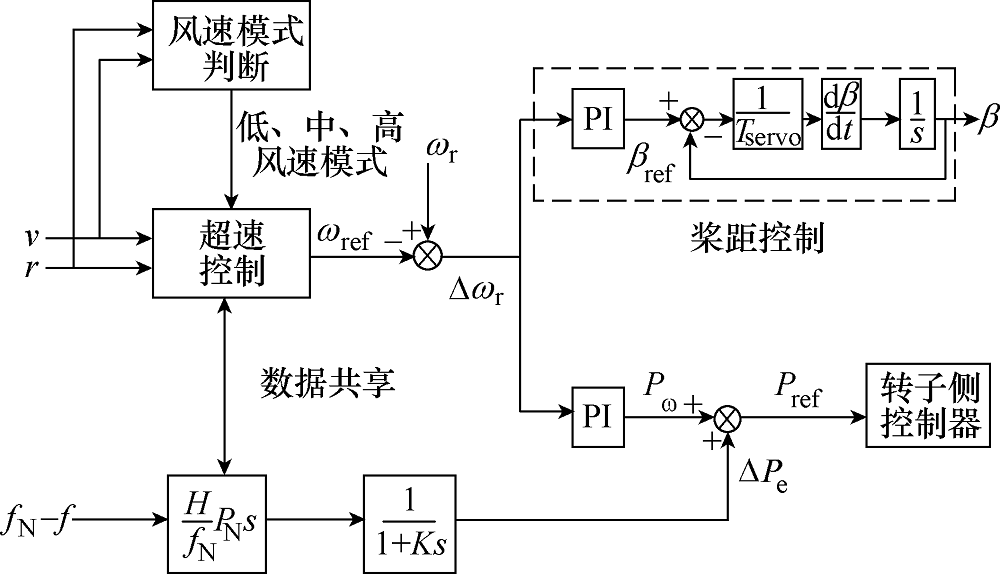

图6

图7

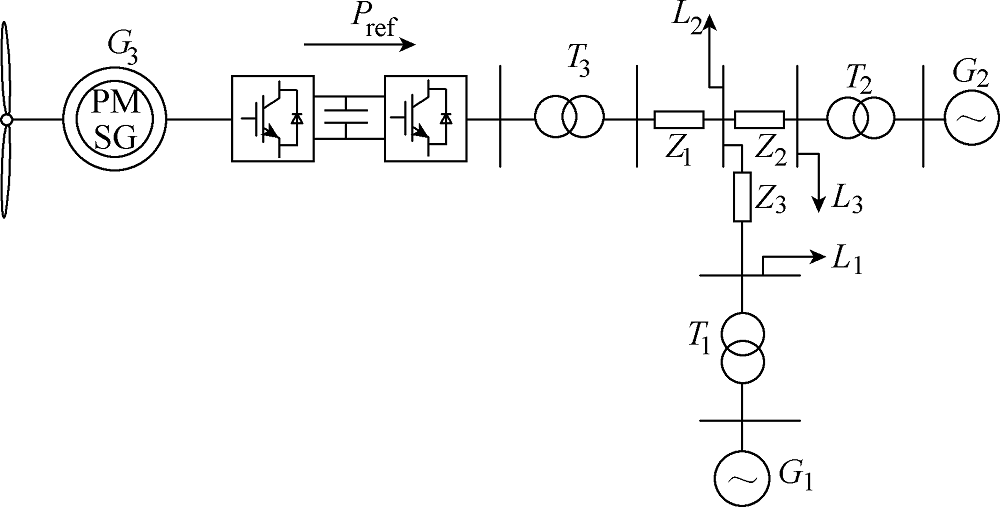

图8

表1

表2

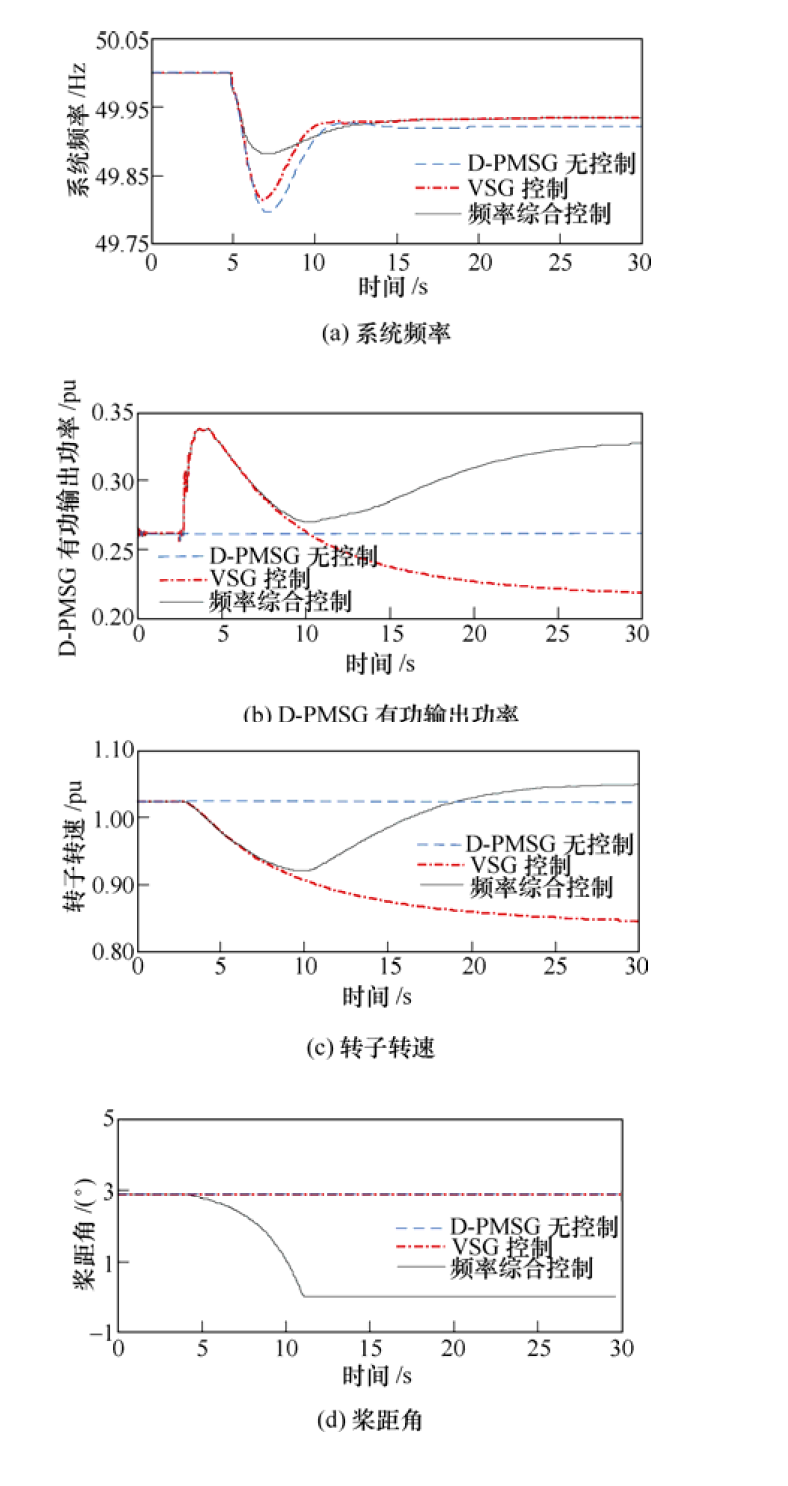

图9

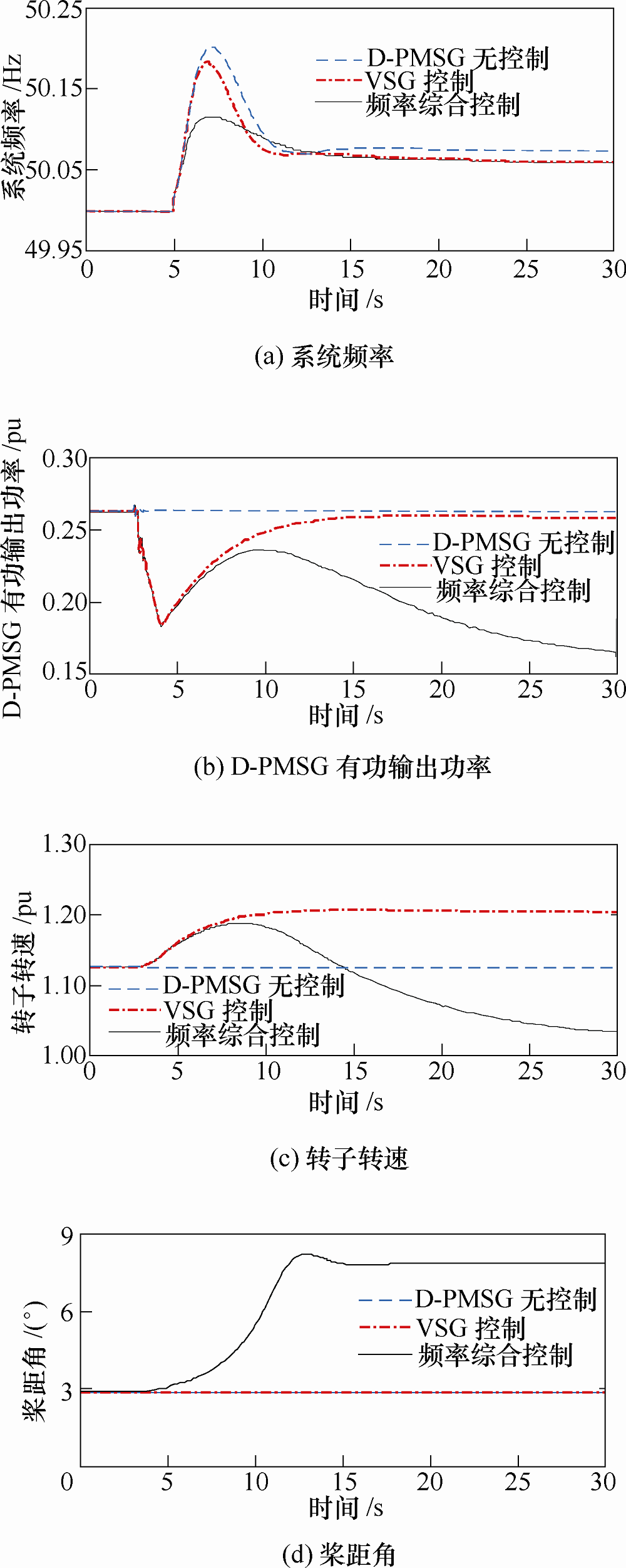

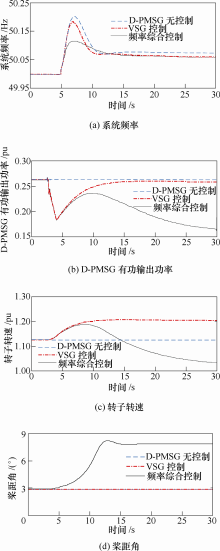

图10

参考文献 17

[1]	柴建云, 赵杨阳, 孙旭东 , 等. 虚拟同步发电机技术在风力发电系统中的应用与展望[J]. 电力系统自动化, 2018(9):17-25.
	Chai Jianyun, Zhao Yangyang, Sun Xudong , et al. Application and prospect of virtual synchronous generator in wind power generation system[J]. Automation of Electric Power Systems, 2018(9):17-25.
[2]	Beck H P, Hesse R. Virtual synchronous machine[C]// Proceedings of the 9th International Conference on Electrical Power Quality and Utilisation,October 9-77. 2007. Barcelona. Spain:1-6.
[3]	Zhong Qingchang, Weirs G . Synchronverters:Inverters that mimic synchronous generators[J]. IEEE Transactions on Industrial Electronics, 2011,58(4):1259-1267.
[4]	Zhong Q C, Hornik T . Control of power inverters in renewable energy and smart grid integration[J]. Applied & Environmental Microbiology, 2012,62(9):3128-3132.
[5]	Anaya-Lara O, Hughes F M, Jenkins N , et al. Contribution of DFIG-based wind farms to power system short-term frequency regulation[J]. IEEE Proceedings Generation Transmission & Distribution, 2006,153(2):164-170.
[6]	Conroy J F, Watson R . Frequency response capability of full converter wind turbine generators in comparison to conventional generation[J]. IEEE Transactions on Power Systems, 2008,23(2):649-656.
[7]	Ullah N R, Thiringer T, Karlsson D . Temporary primary frequency control support by variable speed wind turbines potential and applications[J]. IEEE Transactions on Power Systems, 2008,23(2):601-612.
[8]	Erlich I, Wilch M . Primary frequency control by wind turbines[C]// Power & Energy Society General Meeting. IEEE, 2010.
[9]	Keung P K, Li P, Banakar H . Kinetic energy of wind- turbine generators for system frequency support[J]. IEEE Transactions on Power Systems, 2009,24(1):279-287.
[10]	ZHONG Q C, Ma Z, Ming W L , Grid-friendly wind power systems based on the synchronverter technology[J]. Energy Conversion and Management, 2015(89):719-726.
[11]	付媛, 王毅, 张祥宇 . 变速风电机组的惯性与一次调频特性分析及综合控制[J]. 中国电机工程学报, 2014,34(27):4706-4716. doi: 10.13334/j.0258-8013.pcsee.2014.27.018
	Fu Yuan, Wang Yi, Zhang Xiangyu . Analysis and integrated control of inertia and primary frequency regulation for variable speed wind turbines[J]. Proceedings of the CSEE, 2014,34(27):4706-4716. doi: 10.13334/j.0258-8013.pcsee.2014.27.018
[12]	史燕 . 变速恒频风电机组并网运行仿真分析[D]. 太原:太原理工大学, 2008.
[13]	秦晓辉, 苏丽宁, 迟永宁 . 大电网中虚拟同步发电机惯量支撑与一次调频功能定位辨析[J]. 电力系统自动化, 2018(9):36-43.
	Qin Xiaohui, Su Lining, Chi Yongning . Functional orientation discrimination of inertia support and primary frequency regulation of virtual synchronous generator in large power grid[J]. Automation of Electric Power Systems, 2018(9):36-43.
[14]	Clark K, Millar N W, Sanchez-Gasca J J . Modeling of GE wind turbine-generators for grid studies v4.5[R]. Atlanta, USA:GE Engergy, 2010: 44-46.
[15]	De Almeida R, Pecas-Lopes J . Participations of doubly fed induction wind generators in system frequency regulation[J]. IEEE Trans. Power Syst., 2007(22):944-950.
[16]	Zertek G, Verbic A, Pantos M . Optimised control approach for frequency-control contribution of variable speed wind turbines[J]. IET Renew Power Gener., 2012: 6:17-23.
[17]	张昭遂, 孙元章, 李国杰 , 等. 超速与变桨协调的双馈风电机组频率控制[J]. 电力系统自动化, 2011,35(17):20-25.
	Zhang Zhaosui, Sun Yuanzhang, Li Guojie , et al. Frequency regulation by doubly fed induction generator wind turbines based on coordinated overspeed control and pitch control[J]. Automation of Electric Power Systems, 2011,35(17):20-25.

参数	数值
电阻${{R}_{s}}/\Omega $	0.006 7
电感${{L}_{\text{d}}}/\text{mH}$	1.4
电感${{L}_{\text{q}}}/\text{mH}$	1.4
磁通量${{\psi }_{\text{f}}}/\text{Wb}$	9.25
电导$H/\text{s}$	5.8
功率P/kW	32

参数	G₁数值	G₂数值
直轴阻抗${{X}_{\text{d}}}/\Omega $	2.13	2.00
暂态直轴阻抗${{X}_{\text{d}}}^{'}/\Omega $	0.308	0.35
次暂态直轴阻抗${{X}_{\text{d}}}^{''}/\Omega $	0.234	0.252
交轴阻抗${{X}_{\text{q}}}/\Omega $	2.07	1.9
暂态交轴阻抗${{X}_{\text{q}}}^{'}/\Omega $	0.906	2.19
次暂态交轴阻抗${{X}_{\text{q}}}^{''}/\Omega $	0.234	0.243
电阻${{R}_{s}}/\Omega $	0.004	0.004
电抗${{X}_{1}}/\Omega $	0.17	0.17
纵轴暂态时间常数${{T}_{\text{d}0}}^{'}$	6.085 7	8.00
纵轴次暂态时间常数${{T}_{\text{d0}}}^{''}$	0.052 6	0.068 1
纵轴暂态时间常数${{T}_{\text{q0}}}^{'}$	1.653	0.9
电导$H/s$	3.84	5.2
