考虑延时补偿的永磁同步电机电流预测控制

doi:11.11985/2016.03.002

摘要/Abstract

摘要：

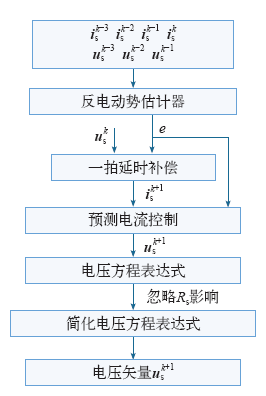

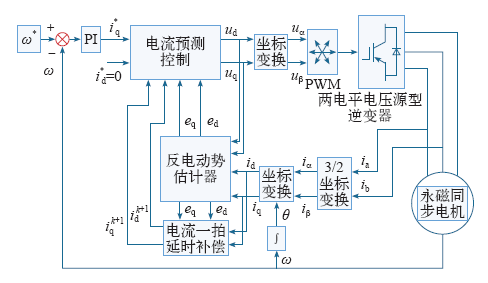

传统的永磁同步电机控制方法采用磁场定向控制（FOC）,电流内环采用PI调节器,但PI参数整定不当时容易出现超调和振荡,同时数字控制固有的采样、滤波延时等因素,也会影响电流内环的性能。因此,改善电流内环性能是人们研究高性能永磁同步电机的热点问题。近年来,预测控制逐渐应用在永磁同步电机上,但传统的预测控制需要精确的数学模型。为此,提出了一种永磁同步电机的电流预测控制方法,利用过去时刻的电压电流信息计算出反电动势,经过一拍延时补偿后,再将得到的反电动势代入模型预测中,从而消除反电动势项中参数误差的影响。这种方法不仅补偿了延时的影响,而且模型参数中仅用到了电阻和电感,增强了系统鲁棒性,其有效性通过实验得到了验证。

关键词: 永磁同步电机, 一拍延时补偿, 电流预测控制, 鲁棒性

Abstract:

Field oriented control (FOC) is the traditional control method of permanent magnet synchronous motor (PMSM) drives, which employs PI regulator in the inner current loop. However, inappropriate PI parameter may lead to overshoot and oscillation. Furthermore, the inherent delay caused by sampling and filtering in digital control will also affect the performance of current control. Therefore, improving the performance of inner current loop becomes a hot issue for the high performance control of PMSM drives. In recent years, predictive control has been applied to permanent magnet synchronous motor, but it requires accurate mathematical model. This paper proposes a novel predictive current control method for PMSM drives, which firstly calculate the back EMF based on the voltage/current at the previous instant, and then substitute the EMF into model prediction after one-step delay compensation. Hence, the influence caused by parameter mismatch in EMF is eliminated. The propose method not only compensates the influence of digital delay, but also enhances the system robustness, because only the value of inductance is required. The presented experimental results confirm the effectiveness of the proposed method.

Key words: Permanent magnet synchronous motor, one step delay compensation, predictive current control, robustness

中图分类号:

TM351

张永昌,高素雨. 考虑延时补偿的永磁同步电机电流预测控制[J]. 电气工程学报, 2016, 11(3): 13-20.

Zhang Yongchang,Gao Suyu. Predictive Current Control for Permanent Magnet Synchronous Motor with Delay Compensation[J]. Journal of Electrical Engineering, 2016, 11(3): 13-20.

图/表 15

图1

图2

图3

图4

表

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

参考文献 24

[1]	Dai Ying, Song Liwei, Cui Shumei . Development of PMSM drives for hybrid electric car applications[J]. IEEE Transactions on Magnetics, 2007,43(1):434-437. doi: 10.1109/TMAG.2006.887718
[2]	张坤, 王蝶 . 稀土永磁同步电动机的节能应用[J].科技创新与应用, 2013(25):34-40.
	Zhang Kun, Wang Die . Energy conservation application of REPMSM[J]. Technological Innovation and Application, 2013(25):34-40.
[3]	王成元, 夏加宽, 孙宜标 . 现代电机控制技术[M]. 北京: 机械工业出版社, 2009.
[4]	Pucci M, Vitale G. High performance VOC-FOC based wind generator system with induction machine [C]. IEEE International Electric Machines and Drives Conference, 2009: 1474-1479.
[5]	Simanek J, Novak J, Cerny O , et al. FOC and flux weakening for traction drive with permanent magnet synchronous motor[J]. IEEE Transactions on Industrial Electronics, 2008: 753-758.
[6]	Geyer T, Papafotiou G , Morari, M. Model predictive direct torque control; part I: concept, algorithm, and analysis[J]. IEEE Transactions on Industrial Electronics, 2009,56(6):1894-1905. doi: 10.1109/TIE.2008.2007030
[7]	Zhang Yongchang, Zhu Jianguo . A novel duty cycle control strategy to reduce both torque and flux ripples for DTC of permanent magnet synchronous motor drives with switching frequency reduction[J]. IEEE Transactions on Industrial Electronics, 2011,26(10):3055-3067.
[8]	Foo G, Rahman M . Sensorless direct torque and flux-controlled IPM synchronous motor drive at very low speed without signal injection[J]. IEEE Transactions on Industry Application, 2010,57(1):395-403.
[9]	Pacas M, Weber J . Predictive direct torque control for the PM synchronous machine[J]. IEEE Transactions on Industrial Electronics, 2005,52(5):1350-1356. doi: 10.1109/TIE.2005.855662
[10]	Rodriguez J, Cortes P. Predictive control of power converters and electrical drives[M]. Wiley-IEEE Press, 2012.
[11]	Cortes P, Kazmierkowski M, Kennel R , et al. Predictive control in power electronics and drives[J]. IEEE Transactions on Industrial Electronics, 2008,55(12):4312-4324. doi: 10.1016/j.isatra.2019.08.052 pmid: 31506164
[12]	Hyung Tae Moon, Hyun Soo Kim, Myung Joong Youn . A discrete-time predictive current control for PMSM[J]. IEEE Transactions on Power Electronics, 2003,18(1):464-472. doi: 10.1109/TPEL.63
[13]	Kouro S, Cortés P, Vargas R , et al. Model predictive control—a simple and powerful method to control power converters[J]. IEEE Transactions on Industrial Electronics, 2009,56(6):1826-1838. doi: 10.1109/TIE.2008.2008349
[14]	Santisteban J A, Stephan R M . Vector control methods for induction machines: an overview[J]. IEEE Transactions on Education, 2001,44(2):170-175. doi: 10.1109/13.925828
[15]	Geyer T, Mastellone S . Model predictive direct torque control of a five-level anpc converter drive system[J]. IEEE Transactions on Industry Application, 2012,48(5):1565-1575. doi: 10.1109/TIA.2012.2210174
[16]	Duran M J, Prieto J, Barrero F , et al. Predictive current control of dual three-phase drives using restrained search techniques[J]. IEEE Transactions on Industrial Electronics, 2011,58(8):3253-3263. doi: 10.1109/TIE.2010.2087297
[17]	Yim D H, Park B G, Kim R Y, et al. A predictive current control associated to EKF for high performance IPMSM drives [C]. IEEE Twenty-Sixth Annual Applied Power Electronics Conference and Exposition, 2011: 1010-1016.
[18]	Rodriguez J, Kennel R M, Espinoza J R , et al. High-performance control strategies for electrical drives: an experimental assessment[J]. IEEE Transactions on Industrial Electronics, 2012,59(2):812-820. doi: 10.1109/TIE.2011.2158778
[19]	王伟华, 肖曦, 丁有爽 . 永磁同步电机改进电流预测控制[J]. 电工技术学报, 2013,28(3):50-55.
	Wang Weihua, Xiao Xi, Ding Youshuang . An improved predictive current control method for permanent magnet synchronous motors[J]. Transactions of China Electrotechnical Society, 2013,28(3):50-55.
[20]	牛里, 杨明, 刘可述 , 等. 永磁同步电机电流预测控制算法[J]. 中国电机工程学报, 2012,32(6):131-137.
	Niu Li, Yang Ming, Liu Keshu , et al. A predictive current control scheme for permanent magnet synchronous motors[J]. Proceedings of the CSEE, 2012,32(6):131-137.
[21]	Zhu Hao, Xiao Xi, Li Yongdong. PI type dynamic decoupling control scheme for PMSM high speed operation [C]. IEEE Twenty-Fifth Annual Applied Power Electronics Conference and Exposition, 2010: 1736-1739.
[22]	Bibian S, Jin H . Time delay compensation of digital control for DC switch mode power supplies using prediction techniques[J]. IEEE Transactions on Power Electronics, 2000,15(5):835-842. doi: 10.1109/TPEL.63
[23]	Zhang Yongchang, Zhu Jianguo, Xu Wei. Analysis of one step delay in direct torque control of permanent magnet synchronous motor and its remedies [C]. IEEE International Conference on Electrical Machines and Systems (ICEMS), 2010: 792-797.
[24]	王宏佳, 杨明, 牛里 , 等. 永磁交流伺服系统电流环带宽扩展研究[J]. 中国电机工程学报, 2010,30(12):56-62.
	Wang Hongjia, Yang Ming, Niu Li , et al. Current loop bandwidth expansion for permanent magnet AC servo system[J]. Proceedings of the CSEE, 2010,30(12):56-62.

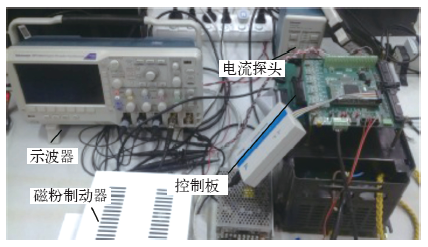

参数	数值
电机额定电压U_n/V	380
电机额定功率P_n/kW	1.5
直流母线电压U_dc/V	540
电机额定频率f /Hz	100
电机极对数n_p	4
电机定子电阻R_s/Ω	0.4
d轴和q轴电感L /mH	4.41
电机额定转矩T_n/N·m	9.55
永磁体磁链Ψ_sif/Wb	0.212 5
