四相电励磁双凸极电动机单相开路故障分析与容错控制策略

doi:11.11985/2016.01.006

摘要/Abstract

摘要：

多相结构是提高电机容错能力的有效途径,本文以一台四相8/6极电励磁双凸极电动机为研究对象,借助有限元电磁场分析技术,根据电磁转矩的产生机理确定了功率电路控制逻辑,对电机正常运行及单相开路故障时的运行特性进行了对比分析,通过分析各相电流对电磁转矩的贡献情况,针对单相开路故障提出并研究了一种容错控制策略,仿真分析表明,该控制策略能有效降低故障相对电机电动运行性能的影响,验证了其有效性。

关键词: 四相电励磁双凸极电动机, 开路故障, 有限元分析, 容错控制

Abstract:

It is proved that multiphase motor has the advantage of good fault tolerant performance. Based on an 8/6-pole four-phase wound-field double salient motor(WFDSM) prototype, control strategies of the driving inverteris presented according tothe mechanism and properties of electromagnetic torques production. Operation characteristics undernormal and single phase open circuit conditions are investigatedwith the help of finite element analysis(FEA). To improve theelectromagnetic performance of single phase open circuitfaulty operation, a fault tolerancestrategy is proposed for the WFDSM machineby analyzing thecontributions of each armature winding to electromagnetic torques. The proposed topology is validated by simulation which shows that the proposed topology can enhancethe electromagnetic performance of faulty operation.

Key words: Four-phaseWFDSM, open circuit, FEA, fault tolerant control

中图分类号:

TM352

王兰凤,陈志辉,何海翔,赵凯弟. 四相电励磁双凸极电动机单相开路故障分析与容错控制策略[J]. 电气工程学报, 2016, 11(1): 39-46.

Wang Lanfeng,Chen Zhihui,He Haixiang,Zhao Kaidi. Open-Circuit Faults Analysis and Fault Tolerant Control Technology of a Four-Phase Wound-Field Doubly Salient Motor[J]. Journal of Electrical Engineering, 2016, 11(1): 39-46.

图/表 11

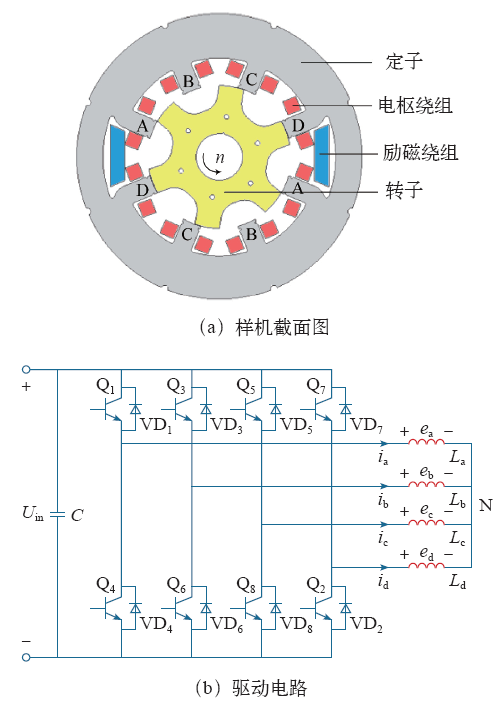

图1

表1

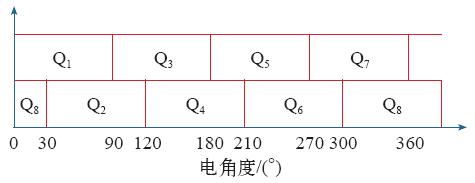

图2

表2

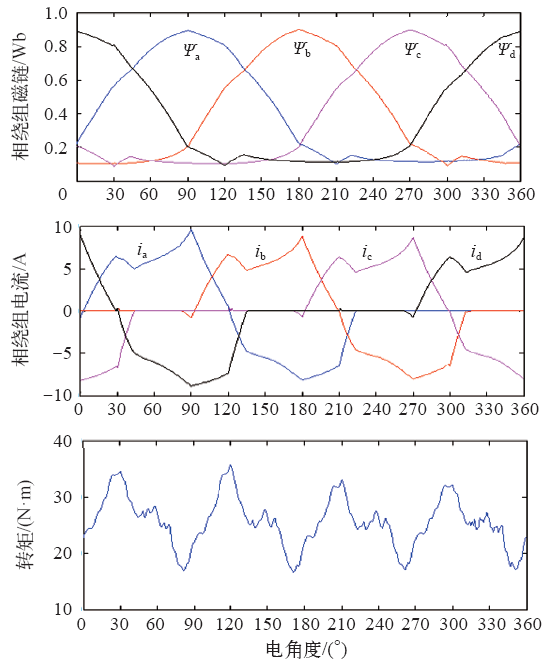

图3

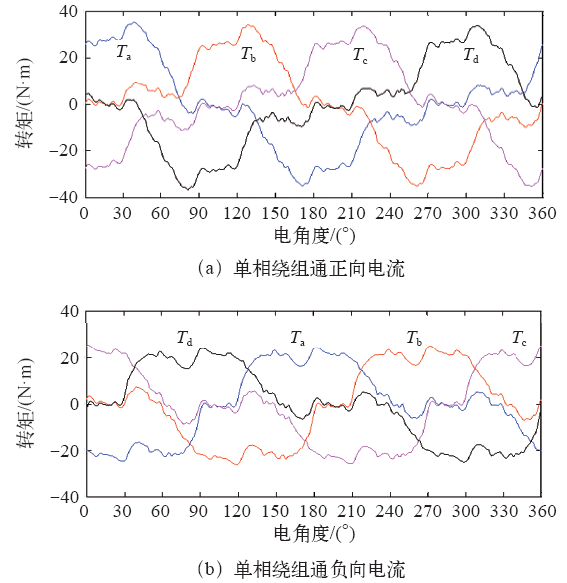

图4

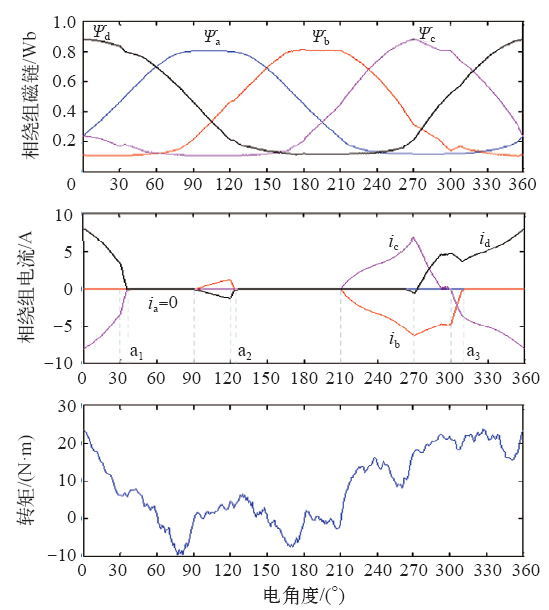

图5

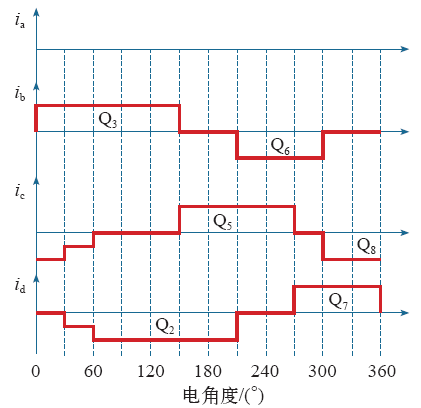

图6

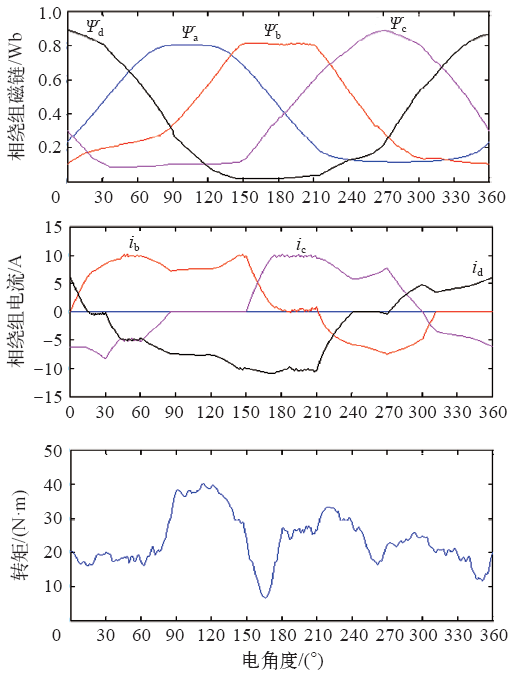

图7

表3

表4

参考文献 13

[1]	赵文祥, 程明, 朱孝勇 , 等. 驱动用微特电机及其控制系统的可靠性技术研究综述[J]. 电工技术学报, 2007,22(4):38-46.
	Zhao Wenxiang, Cheng Ming, Zhu Xiaoyong . An overview of reliability of drive system for small and special electric machines[J]. Transactions of China Electrotechnical Society, 2007,22(4):38-46.
[2]	Mecrow B C, Jack A G, Haylock J A , et al. Fault-tolerant permanent magnet machine drives[J]. IEE Proceedings-Electric Power Applications, 1996,143(6):437-442. doi: 10.1155/2014/241085 pmid: 25045729
[3]	Jahns T M . Improved reliability in solid-state ac drives by means of multiple independent phase drive units[J]. IEEE Transactions on Industry Applications, 1980(3):321-331.
[4]	Zhao W, Cheng M, Zhu X , et al. Analysis of fault-tolerant performance of a doubly salient permanent-magnet motor drive using transient cosimulation method[J]. IEEE Transactions on Industrial Electronics, 2008,55(4):1739-1748. doi: 10.1109/TIE.2008.917064
[5]	Zhao Wenxiang, Chau K T, Cheng Ming , et al. Remedialbrushless AC operation of fault-tolerant doubly salientpermanent-magnet motor drives[J]. IEEE Transactions on Industrial Electronics, 2010,57(6):2134-2141. doi: 10.1109/TIE.2009.2033824
[6]	Zhu D, Qiu X, Zhou N, et al. A novel five phase fault tolerant doubly salient electromagnetic generator for direct driven wind turbine [C]. IEEE International Conference on Electrical Machines and Systems, 2008: 2418-2422.
[7]	吕飞, 周波, 魏佳丹 . 基于双绕组电励磁双凸极电机的双余度发电系统[J]. 中国电机工程学报, 2007,27(6):21-25.
	Lü Fei, Zhou Bo, Wei Jiadan . Two redundancy generator system based on dual-winding doubly salient electro-magnetic motor[J]. Proceedings of the CSEE, 2007,27(6):21-25.
[8]	魏佳丹, 周波 . 双凸极电机全桥变换器单相开路故障容错方案[J]. 中国电机工程学报, 2008,28(24):88-93.
	Wei Jia-dan, Zhou Bo . Project on single phase open-circuit fault tolerance of doubly salient electro-magnet motor driven by full-bridge converter[J]. Proceedings of the CSEE, 2008,28(24):88-93.
[9]	赵文祥, 程明, 花为 , 等. 双凸极永磁电机故障分析与容错控制策略[J]. 电工技术学报, 2009,24(4):71-77.
	Zhao Wenxiang, Cheng Ming, Hua Wei , et al. Fault analysis and remedial strategy of doubly salient permanent magnet motors[J]. Transactions of China Electrotechnical Society, 2009,24(4):71-77.
[10]	杨正专, 程明, 赵文祥 . 8/6 极双凸极永磁电动机驱动系统容错型拓扑结构[J]. 电工技术学报, 2009,24(7):34-40.
	Yang Zhengzhuan, Cheng Ming, Zhao Wenxiang . A new fault tolerant drive topology for 8/6-pole doubly salient permanent magnet motors[J]. Transactions of China Electrotechnical Society, 2009,24(7):34-40.
[11]	赵耀, 王慧贞, 肖岚 , 等. 五相容错电励磁双凸极电机容错特性分析[J]. 中国电机工程学报, 2013,33(24):135-142.
	Zhao Yao, Wang Huizhen, Xiao Lan , et al. Characteristics analysis of five-phase fault-tolerant doubly salient electro-magnetic generators[J]. Proceedings of the CSEE, 2013,33(24):135-142.
[12]	赵耀, 王慧贞, 赵晓中 , 等. 五相容错双凸极发电机单相短路故障分析[J]. 中国电机工程学报, 2013,33(30):90-97.
	Zhao Yao, Wang Huizhen, Zhao Xiaozhong , et al. Analysis on single-phase short-circuit performances of five-phase fault-tolerant doubly salient electro-magnetic generators[J]. Proceedings of the CSEE, 2013,33(30):90-97.
[13]	陈志辉, 杨志浩, 谢淑玲 . 电励磁双凸极电机并联桥短路故障的研究[J]. 电机与控制学报, 2014,18(4):11-16.
	Chen Zhihui, Yang Zhihao, Xie Shuling . Research on short-circuit faults of doubly salient electro-magnetic generator in parallel bridge mode[J]. Electric Machines and Control, 2014,18(4):11-16.

参数	数值
额定转速/(r/min)	240
定子内径/mm	123.4
定子外径/ mm	245
转子内径/mm	40
转子外径/mm	122.6
铁心长度/mm	150
气隙/mm	0.4
铁心材料	DW310-35

相绕组	通正电	通负电
A	0°~90°,300°~360°	120°~240°
B	30°~180°	210°~330°
C	120°~270°	0°~60°,300°~360°
D	210°~360°	30°~150°

运行状态	i_arms/A	i_brms/A	i_crms/A	i_drms/A
正常运行	4.64	4.44	4.41	4.72
A相开路	0	1.99	3.13	2.88
A相开路容错控制	0	6.93	6.46	7.01

运行状态	T_max/(N·m)	T_min/(N·m)	T_ave/(N·m)	k
正常运行	35.82	16.66	25.62	0.75
A相开路	23.97	-9.74	8.37	4.03
A相开路容错控制	41.85	8.47	25.44	1.31
