基于改进聚类的输电线路参数多代理辨识与估计

摘要/Abstract

摘要：

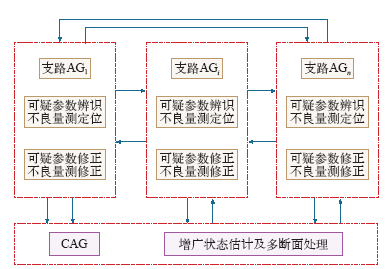

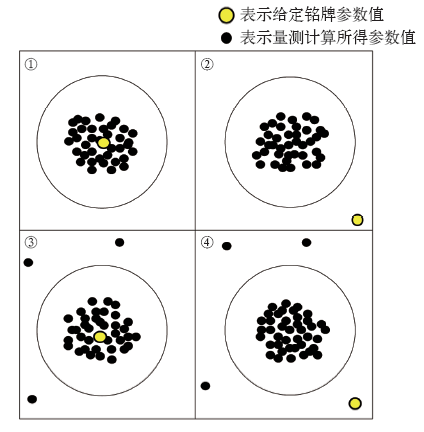

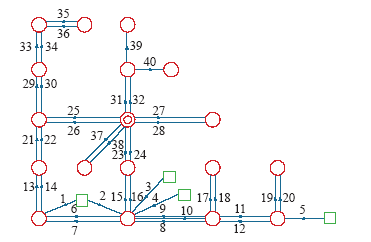

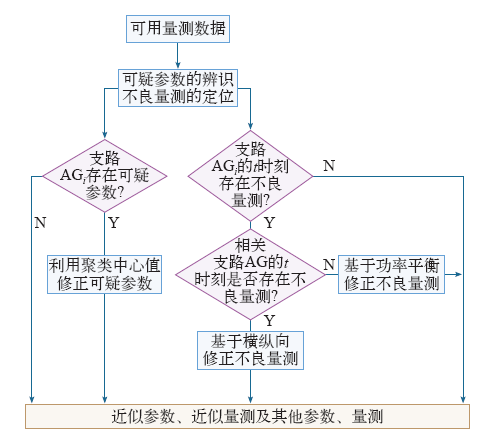

提出一种对线路参数的多断面计算结果聚类来辨识可疑参数同时定位不良量测的方法,进而给出一种对可疑参数及不良量测修正的方法,得到偏差较小的近似值。利用这些值进行增广状态估计,改善其收敛性及结果的可靠性。从物理连接、电气连接和实际传输关系三方面分析,并采用博弈论获取电网节点的综合相关度,避免残差污染和残差淹没,进一步提高估计结果的准确度。结合多代理理论,将每条线路作为一个支路代理（AG）,实现可疑参数的辨识、修正及不良量测的定位、修正,设置协调代理（CAG）完成参数估计,支路AG与CAG协调修正,保证最终结果的可靠性。最后,以我国某中等城市实际输电网为例进行仿真分析,结果表明了所提方法的可行性及有效性。

关键词: 改进聚类, 参数辨识, 量测定位, 节点综合相关度, 增广状态估计, 多代理

Abstract:

A method of identifying suspicious parameters and positing bad data by clustering multi-section calculation of parameters is proposed. Based on this, a method of correcting suspicious parameters and bad data is proposed to obtain approximations with less deviation. By utilizing these data, both performance of convergence and results reliability of augmented state estimation are improved. The comprehensive relevance is got by means of analyzing three aspects of physical connection, electrical connection and power transmission and adopting game theory. It can become the basis of avoiding residual contamination and residual flooded, as a result to further improve the determination accuracy. To enhance efficiency, multi-agent theory is introduced to achieve the performance required above. Every branch is regard as a branch agent (AG), to achieve identification and correction of suspicious parameters and position and correction of bad data. Coordination agent (CAG) is set to achieve parameters estimation. Branch AG and CAG scheme and amend to guarantee reliability of final results. Finally, the simulation analysis of actual transmission network of a medium-sized city in our country has been given to show the feasibility and effectiveness of the proposed method.

Key words: Improved clustering, parameter identification, bad data position, nodes comprehensive relevance, augmented state estimation, multi-agent

中图分类号:

TM744

卢志刚,陈月敏. 基于改进聚类的输电线路参数多代理辨识与估计[J]. 电气工程学报, 2015, 10(4): 70-81.

Lu Zhigang,Chen Yuemin. Multi-agent Identification and Estimation of Transmission Line Parameters Based on Improved Clustering[J]. Journal of Electrical Engineering, 2015, 10(4): 70-81.

图/表 12

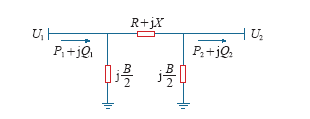

图1

图2

图3

图4

图5

表1

表2

表4

表5

表7

表8

附图

参考文献 24

[1]	姜杰, 郭威, 黄文兴 , 等. 基于故障数据的线路分布参数时域辨识方法[J]. 电力系统保护与控制, 2013,41(14):7-12.
	Jiang Jie, Guo Wei, Huang Wenxing , et al. Distributed parameter time domain identification method of transmission lines based on fault records[J]. Power System Protection and Control, 2013,41(14):7-12.
[2]	颜全椿, 卫志农, 徐泰山 , 等. 基于主导与非主导参数的非线性加权最小绝对值参数估计[J]. 电力系统自动化, 2013,37(20):71-76.
	Yan Quanchun, Wei Zhinong, Xu Taishan , et al. Nonlinear weighted absolute least value parameter estimation based on dominant and non-dominant parameter[J]. Automation of Electric Power System, 2013,37(20):71-76.
[3]	牛绳索, 梁志瑞, 张建华 , 等. 基于多时段同步测量信息的T接线路参数在线测量[J]. 电工技术学报, 2012,27(5):238-244.
	Niu Shengsuo, Liang Zhirui, Zhang Jianhua , et al. Online measurement of T-connection transmission line parameters based on multi-Interval synchronized measurement information[J]. Transactions of China Electrotechnical Society, 2012,27(5):238-244.
[4]	王兴志, 严正, 沈沉 , 等. 基于在线核学习的电网不良数据检测与辨识方法[J]. 电力系统保护与控制, 2012,40(1):50-55.
	Wang Xingzhi, Yan Zheng, Shen Chen , et al. Power grid bad-data detection and identification based on online Kernel learning method[J]. Power System Protection and Control, 2012,40(1):50-55.
[5]	Liu W H E, Wu F F, Lun S M . Estimation of parameter errors from measurement residuals in state estimation[J]. IEEE Transactions on Power Systems, 1992,7(1):81-89.
[6]	陈晓刚, 易永辉, 江全元 , 等. 基于WAMS/SCADA混合量测的电网参数辨识与估计[J]. 电力系统自动化, 2008,32(5):1-5.
	Chen Xiaogang, Yi Yonghui, Jiang Quanyuan , et al. Network parameter identification and estimation based on hybrid measurement of WAMS/SCADA[J]. Automation of Electric Power System, 2008,32(5):1-5.
[7]	宁辽逸, 孙宏斌, 吴文传 , 等. 基于状态估计的电网支路参数估计方法[J]. 中国电机工程学报, 2009,29(1):7-12.
	Ning Liaoyi, Sun Hongbin, Wu Wenchuan , et al. State estimation based branch parameter estimation method for power grid[J]. Proceedings of the CSEE, 2009,29(1):7-12.
[8]	Liu W, Lim S . Parameter error identification and estimation in power system state estimation[J]. IEEE Transactions on Power Systems, 1995,10(1):200-209.
[9]	李江, 王义伟, 魏超 , 等. 卡尔曼滤波理论在电力系统中的应用综述[J]. 电力系统保护与控制, 2014,42(6):135-144.
	LI Jiang, Wang Yiwei, Wei Chao . A survey on the application of Kalman filtering method in power system[J]. Power System Protection and Control, 2014,42(6):135-144.
[10]	颜伟, 宋林涛, 于娟 , 等. 基于权函数的电网参数分区辨识与估计方法[J]. 电力系统自动化, 2011,35(5):25-29.
	Yan Wei, Song Lintao , Yujuan, et al. A divisional identification and estimation method of network parameter errors based on weight function[J]. Automation of Electric Power System, 2011,35(5):25-29.
[11]	吴昊, 闫文瑾, 何桦 . 基于多方式断面的输电网络参数估计[J]. 电网技术, 2009,33(18):89-92.
	Wu Hao, Yan Wenjin, He Hua . Parameter estimation of power transmission network based on multi-cases of power flow operating conditions[J]. Power System Technology, 2009,33(18):89-92.
[12]	柴京慧, 李书敏, 何桦 . 基于PMU及多时间断面的输电网参数估计[J]. 电力系统自动化, 2009,33(11):49-52.
	Chai Jinghui, Li Shumin, He Hua . Parameter estimation based on PMU and multi-cases of SCADA for electricity transmission network[J]. Automation of Electric Power System, 2009,33(11):49-52.
[13]	何桦, 张瑜, 宣丽娜 . 基于线性内点法及正交变换的抗差参数估计[J]. 电力系统自动化, 2007,31(20):36-39.
	He Hua, Zhang Yu, Xuan Lina . WLAV robust parameter estimation based on linear interior point algorithm and orthogonal transformation[J]. Automation of Electric Power System, 2007,31(20):36-39.
[14]	李学平, 卢志刚, 刘照拯 , 等. 含分布式电源的配电网多故障抢修的多代理策略研究[J]. 电工技术学报, 2013,28(8):48-55.
	Li Xueping, Lu Zhigang, Liu Zhaozheng , et al. Multi-agent strategy of distribution networks multi-faults rush-repair with distributed generators[J]. Transactions of China Electrotechnical Society, 2013,28(8):48-55.
[15]	王平, 余昆, 李振坤 , 等. 采用多代理技术提高高压配电网的供电可靠性[J]. 中国电机工程学报, 2009,29(增刊):50-54.
	Wang Ping, Yu Kun, Li Zhenkun , et al. Application of multi-agent technology to enhance power supply reliability of high voltage distribution network[J]. Proceedings of the CSEE, 2009,29(S1):50-54.
[16]	Min Zhang, Jia Xingcheng. Pattern classification with granular computing [C]. [IEEE International Conference on Systems, Man and Cybernetics, 2005,1:336-340.
[17]	Ding Shifei, Xu Li, Zhu Hong , et al. Research and progress of cluster algorithms based on granular computing[J]. International Journal of Digital Content Technology and Its Applications, 2010,4(5):96-104.
[18]	苟光磊, 黄丽丰, 倪伟 . 基于粒计算的概念聚类算法[J]. 重庆理工大学学报(自然科学), 2013,27(6):76-79.
	Gou Guanglei, Huang Lifeng, Ni Wei . Conceptual clustering algorithm based on granular computing[J]. Journal of Chongqing University of Technology,( Natural Science) , 2013,27(6):76-79.
[19]	李碧君, 薛禹胜, 顾锦汶 , 等. 基于权函数的电力系统状态估计算法[J]. 电力系统自动化, 1999,23(8):32-34.
	Li Bijun, Xue Yusheng, Gu Jinwen , et al. Weight function based power system state estimation algorithm[J]. Power System Technology, 1999,23(8):32-34.
[20]	于尔铿 . 电力系统状态估计[M]. 北京: 水利电力出版社, 1985.
[21]	陈晓刚, 孙可, 曹一家 . 基于复杂网络理论的大电网结构脆弱性分析[J]. 电工技术学报, 2007,22(10):138-144.
	Chen Xiaogang, Sun Ke, Cao Yijia . Structural vulnerability analysis of large power grid based on complex network theory[J]. Transactions of China Electrotechnical Society, 2007,22(10):138-144.
[22]	龚燕平, 彭建春 . 支路复功率损耗和潮流分量的归属分析[J]. 电网技术, 2010,34(5):93-98.
	Gong Yanping, Peng Jianchun . Analysis on attribution of branch complex power loss and complex power flow component[J]. Power System Technology, 2010,34(5):93-98.
[23]	吴叶科, 宋如顺, 陈波 . 基于博弈论的综合赋权法的信息安全风险评估[J]. 计算机工程与科学, 2011,33(5):9-13.
	Wu Yeke, Song Rushun, Chen Bo . A comprehensive weight method based on the game theory for information security risk assessment[J]. Computer Engineering& Science, 2011,33(5):9-13.
[24]	D M Lane, A G Mcfadzean . Distributes problem solving and real-time mechanism in robot architecture[J]. Engineering Application of Artificial Intelligence, 1994,7(2):105-117.

粒计算聚类结果	聚类中心	月样本断面数	与聚类中心最相似的断面数	可归类的断面数
1	1 198	216	8	7
2	1 618	192	6	6
3	1 761	173	5	5
4	1 323	156	4	3
5	1 016	161	5	5
6	2 420	196	6	5
7	1 777	177	5	4
8	1 429	138	4	3
9	521	136	4	4
10	2 178	145	4	4
11	862	156	6	5
12	697	139	3	3
13	1 588	124	5	5
14	2 366	144	6	5
15	1 806	104	4	4
16	473	122	4	4
17	1 835	96	3	3
18	2 622	118	4	4
19	1 478	86	3	3
20	2 059	104	4	3
21	406	72	3	2
22	1 158	21	—	—
合计	可以归类的断面总数			87

线路编号		参数真值	给定铭牌值
3	X/Ω	4.506 5	4.218 1
19	R/Ω	0.568 5	0.877 3
19	X/Ω	3.252 1	3.489 2
28	R/Ω	0.698 4	0.498 1
	X/Ω	4.939 7	5.153 3
	B/(10^-4S)	0.830 1	3.213
34	X/Ω	10.255 4	10.049 1
34	B/(10^-4S)	1.688 5	4.357 4

线路编号	时刻	相关支路AG 存在错误	P₁/MW	Q₁/Mvar	U₁/kV
线路编号	时刻	相关支路AG 存在错误	P₂/MW	Q₂/Mvar	U₂/kV
2	5	否	160.496 215	8.010 114	223.49
2	5	否	160.172 338	7.989 906	223.25
2	21	否	174.674 944	37.981 527	223.08
2	21	否	174.273 315	37.216 937	223.29
3	35	否	242.512 257	17.581 242	226.71
3	35	否	241.794 054	15.729 693	225.71
3	36	是	242.512 249	17.581 221	226.71
3	36	是	241.794 011	15.729 687	225.71
4	90	是	257.001 90	0.470 337	226.74
4	90	是	255.988 63	2.831 57	225.88
5	69	是	256.430 10	24.380 611	225.77
5	69	是	256.277 94	24.648 329	225.72
9	21	是	26.479 221	26.011 186	223.05
9	21	是	26.458 972	29.149 092	222.92
10	90	是	7.0274 55	31.011 706	223.79
10	90	是	7.018 997	33.867 914	223.35
10	21	是	30.344 966	35.484 401	223.29
10	21	是	30.327 471	37.888 235	222.72
14	59	否	134.554 124	4.400 775	223.76
14	59	否	134.371 277	3.993 922	223.52
15	36	否	87.137 219	58.004 137	227.84
15	36	否	87.052 143	54.997 688	225.51
17	90	是	29.198 704	16.648 655	223.37
17	90	是	29.184 702	19.829 521	223.32

节点	与其综合相关度大于0.6的节点
3-1	7-2
3-2	7-2、2-1
15-1	4-1、2-1、7-2
15-2	4-1、23-1

方法	迭代次数
Ⅰ	14
Ⅱ	7
Ⅲ	5
