七电平MPUC逆变器滞环SVPWM容错控制方法*

doi:10.11985/2023.03.023

电气工程学报 ›› 2023, Vol. 18 ›› Issue (3): 216-223.doi: 10.11985/2023.03.023

扫码分享

七电平MPUC逆变器滞环SVPWM容错控制方法^*

李国华¹(), 韩颖¹(), 李丰¹(), 刘明²()

1.辽宁工程技术大学电气与控制工程学院葫芦岛 125105
2.朝阳师范高等专科学校数学计算机系朝阳 122000

收稿日期:2022-07-16 修回日期:2023-04-06 出版日期:2023-09-25 发布日期:2023-10-23
作者简介:李国华，男，1981年生，博士，副教授。主要研究方向为电力系统电能质量分析与治理。E-mail：dkliguohua@163.com
韩颖，女，1997年生，硕士研究生。主要研究方向为电力电子与电力传动。E-mail：13998992883@163.com
李丰，男，1997年生，硕士研究生。主要研究方向为电力电子与电力传动。E-mail：lifeng176002@163.com
刘明，女，1981年生，讲师。主要研究方向为电力电子与电力传动。E-mail：2238594157@qq.com
基金资助:
* 国家自然科学基金(51307076);辽宁省自然科学基金(20180550268);辽宁工程技术大学学科创新团队(LNTU20TD-32)

Hysteresis SVPWM Fault-tolerant Control Method for Seven-level MPUC Inverter

LI Guohua¹(), HAN Ying¹(), LI Feng¹(), LIU Ming²()

1. Faculty of Electrical and Control Engineering, Liaoning Technical University, Huludao 125105
2. College of Mathematics and Computer, Chaoyang Teachers College, Chaoyang 122000

Received:2022-07-16 Revised:2023-04-06 Online:2023-09-25 Published:2023-10-23

摘要/Abstract

摘要：

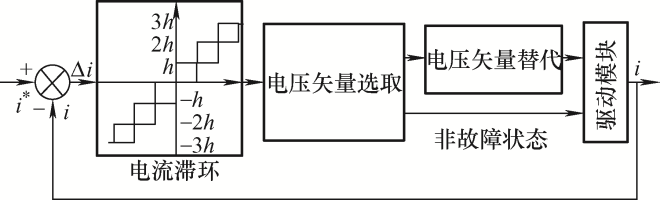

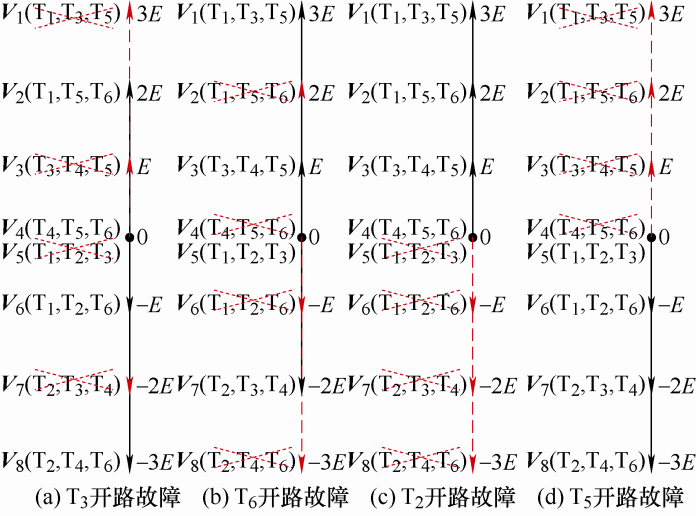

为了提高单相多电平MPUC逆变器的工作可靠性，提出一种电流跟踪型单相七电平MPUC逆变器滞环SVPWM容错控制方法。首先，分析功率开关器件开路故障对单相MPUC七电平逆变器电压矢量的影响。逆变器开路故障状态下，该方法利用冗余电压矢量的替代实现容错控制；优先选择位置重合的冗余电压矢量进行等效替代；如果没有重合非故障矢量，则选择位置和作用效果最接近的其他非故障矢量。在逆变器单管开路故障状态下，该方法可保证逆变器输出电流较准确地跟踪参考电流，不需要增加备用的硬件冗余单元，能够节约硬件成本，简化系统结构。仿真结果证明了该方法的有效性。

关键词: MPUC逆变器, 电流跟踪, 七电平, 容错, 电压矢量替代

Abstract:

In order to improve the reliability of single-phase MPUC multilevel inverter, a current tracking single-phase seven-level MPUC inverter hysteresis SVPWM fault-tolerant control method is proposed. Firstly, the influence of single switch open circuit fault on voltage vector of single-phase MPUC seven-level inverters is analyzed. When the inverter is in open circuit fault state, the fault-tolerant control is realized by replacing redundant voltage vectors; the redundant voltage vectors with overlapping positions are preferred for equivalent substitution; if no non-fault vectors are overlapped, the other nonfault vectors with the closest position and effect are selected. Under the condition of single switch open circuit fault, this proposed method can ensure that the output current of the inverter can accurately track the reference current. This proposed method does not need to add spare hardware redundancy unit, which can save the hardware cost and simplify the system structure. Simulation results show the effectiveness of the proposed method.

Key words: MPUC inverter, current tracking, seven-level, fault tolerance, voltage vector substitution

中图分类号:

TM71

李国华, 韩颖, 李丰, 刘明. 七电平MPUC逆变器滞环SVPWM容错控制方法^*[J]. 电气工程学报, 2023, 18(3): 216-223.

LI Guohua, HAN Ying, LI Feng, LIU Ming. Hysteresis SVPWM Fault-tolerant Control Method for Seven-level MPUC Inverter[J]. Journal of Electrical Engineering, 2023, 18(3): 216-223.

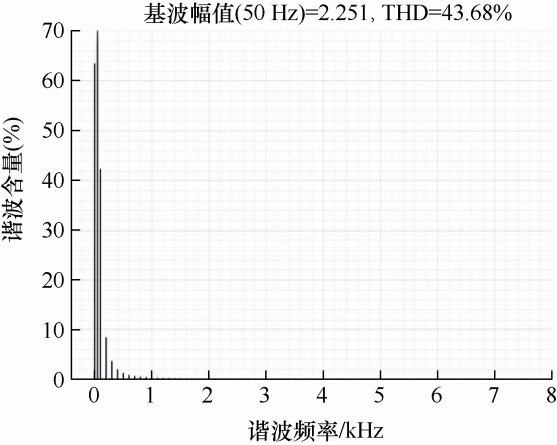

图/表 22

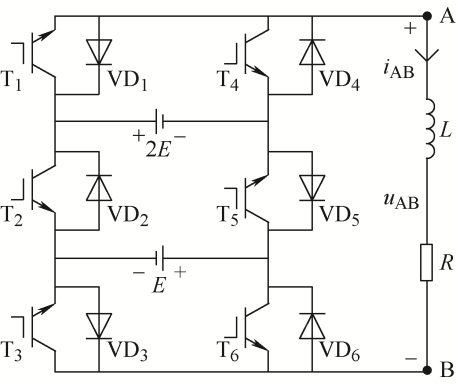

图1

表1

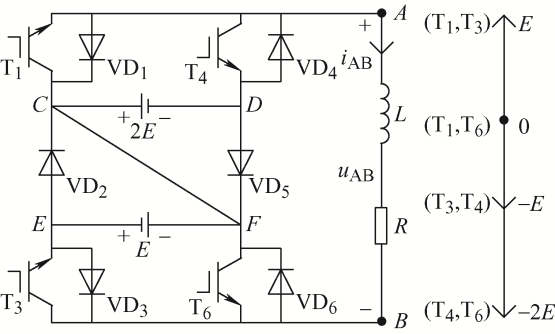

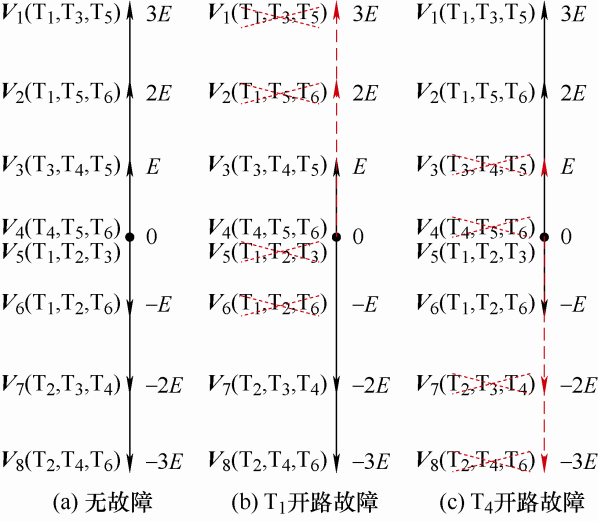

图2

图3

表2

图4

表3

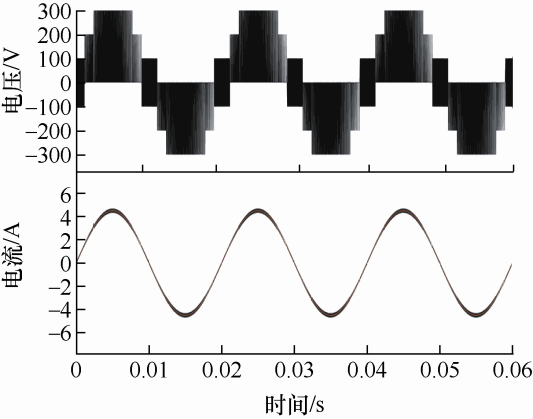

图5

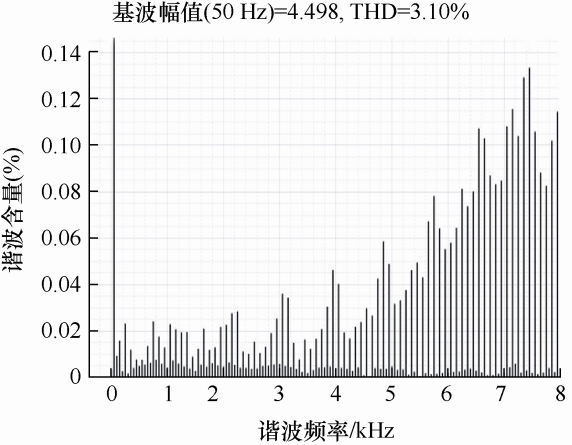

图6

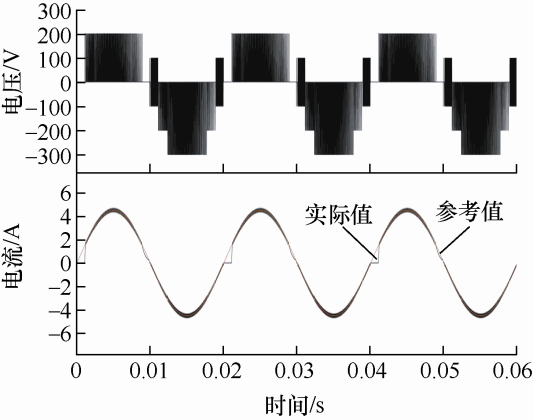

图7

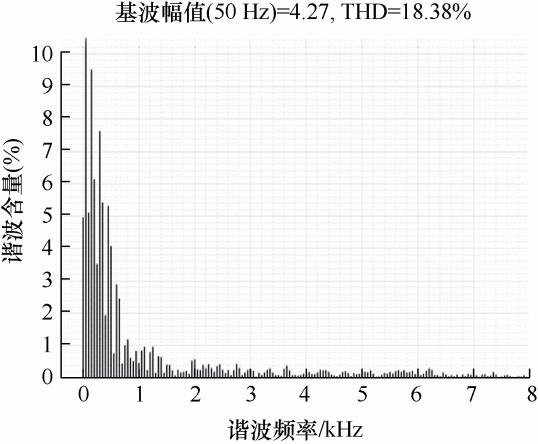

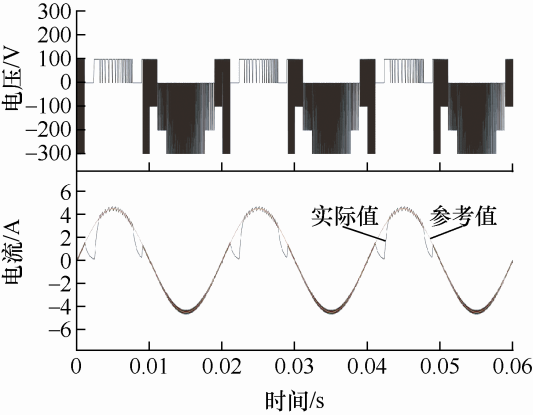

图8

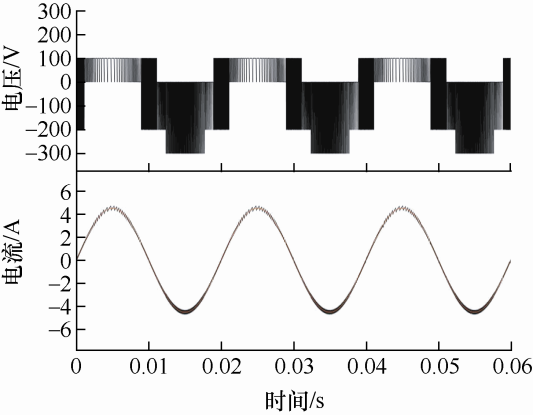

图9

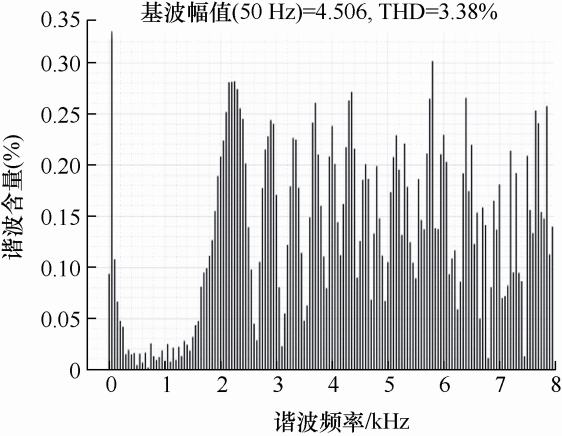

图10

图11

图12

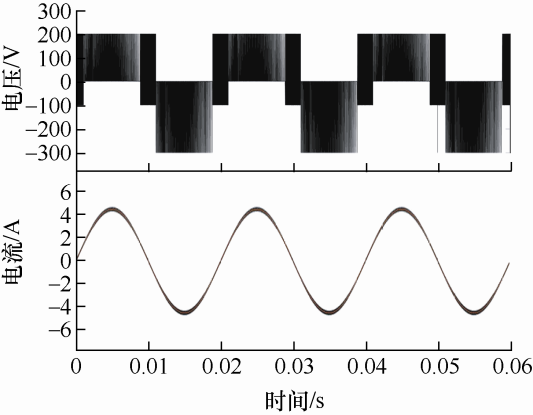

图13

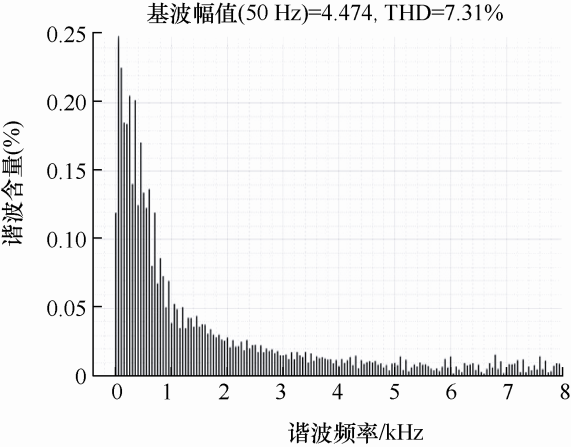

图14

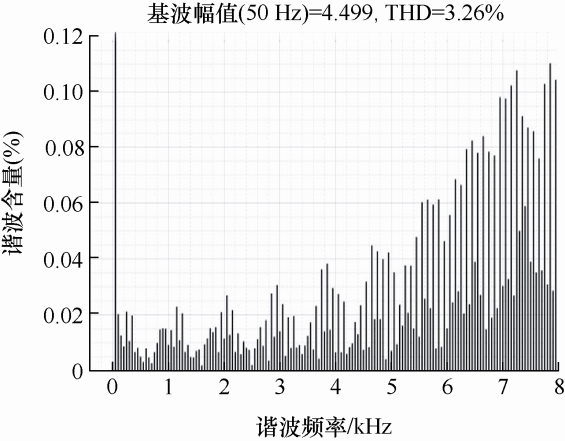

图15

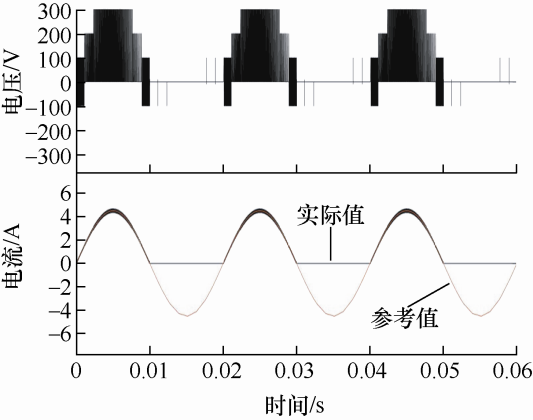

图16

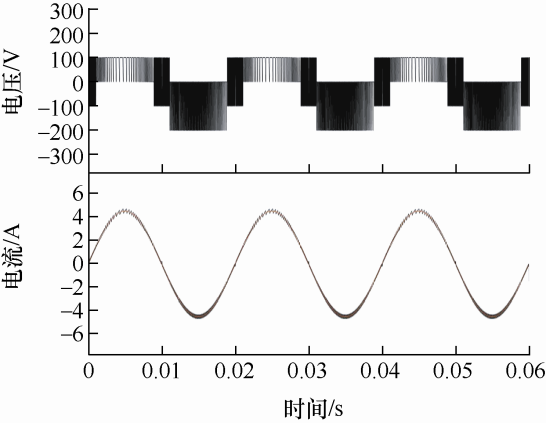

图17

图18

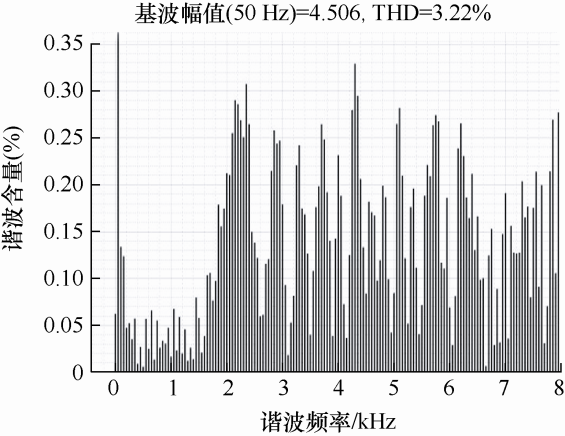

图19

参考文献 15

[1]	SAHOO S K, BHATTACHARYA T. Phase-shifted carrier-based synchronized sinusoidal PWM techniques for a cascaded H-bridge multilevel inverter[J]. IEEE Transactions on Power Electronics, 2017, 33(1):513-524. doi: 10.1109/TPEL.2017.2669084
[2]	徐帅, 张建忠. 多电平电压源型逆变器的容错技术综述[J]. 电工技术学报, 2015, 30(21):39-50.
	XU Shuai, ZHANG Jianzhong. Overview of fault-tolerant techniques for multilevel voltage source inverters[J]. Transactions of China Electrotechnical Society, 2015, 30(21):39-50.
[3]	MIRAFZAL B. Survey of fault-tolerance techniques for three-phase voltage source inverters[J]. IEEE Transactions on Industrial Electronics, 2014, 61(10):5192-5202. doi: 10.1109/TIE.2014.2301712
[4]	JAHAN H K, PANAHANDEH F, ABAPOUR M, et al. Reconfigurable multilevel inverter with fault-tolerant ability[J]. IEEE Transactions on Power Electronics, 2017, 33(9):7880-7893. doi: 10.1109/TPEL.2017.2773611
[5]	HAJI-ESMAEILI M M, NASERI M, KHOUN-JAHAN H, et al. Fault-tolerant structure for cascaded H-bridge multilevel inverter and reliability evaluation[J]. IET Power Electronics, 2017, 10(1):59-70. doi: 10.1049/pel2.v10.1
[6]	HAMMOND P W. Enhancing the reliability of modular medium-voltage drives[J]. IEEE Transactions on Industrial Electronics, 2002, 49(5):948-954. doi: 10.1109/TIE.2002.803172
[7]	ALEENEJAD M, MAHMOUDI H, MOAMAEI P, et al. A new fault-tolerant strategy based on a modified selective harmonic technique for three-phase multilevel converters with a single faulty cell[J]. IEEE Transactions on Power Electronics, 2015, 31(4):3141-3150. doi: 10.1109/TPEL.2015.2444661
[8]	SUN L, WU Z, XIAO F, et al. Suppression of real power back flow of nonregenerative cascaded H-bridge inverters operating under faulty conditions[J]. IEEE Transactions on Power Electronics, 2015, 31(7):5161-5175.
[9]	臧义, 林家泉, 王旭, 等. 基于差补调制方式的级联H桥逆变器单元故障控制方法[J]. 中国电机工程学报, 2006, 26(19):65-69.
	ZANG Yi, LIN Jiaquan, WANG Xu, et al. Control method for cascaded H-bridge inverter with faulty cells based on differential PWM[J]. Proceedings of the CSEE, 2006, 26(19):65-69.
[10]	SONG W, HUANG A Q. Fault-tolerant design and control strategy for cascaded H-bridge multilevel converter-based STATCOM[J]. IEEE Transactions on Industrial Electronics, 2009, 57(8):2700-2708. doi: 10.1109/TIE.2009.2036019
[11]	NEYSHABOURI Y, IMAN-EINI H. A new fault-tolerant strategy for a cascaded H-bridge based STATCOM[J]. IEEE Transactions on Industrial Electronics, 2018, 65(8):6436-6445. doi: 10.1109/TIE.2018.2793182
[12]	MAHARJAN L, YAMAGISHI T, AKAGI H, et al. Fault-tolerant operation of a battery-energy-storage system based on a multilevel cascade PWM converter with star configuration[J]. IEEE Transactions on Power Electronics, 2010, 25(9):2386-2396. doi: 10.1109/TPEL.2010.2047407
[13]	ALEENEJAD M, MAHMOUDI H, AHMADI R. A fault-tolerant strategy based on fundamental phase-shift compensation for three-phase multilevel converters with quasi-Z-source networks with discontinuous input current[J]. IEEE Transactions on Power Electronics, 2016, 31(11):7480-7488. doi: 10.1109/TPEL.2016.2520884
[14]	VAHEDI H, SHARIFZADEH M, AL-HADDAD K. Modified seven-level pack U-cell inverter for photovoltaic applications[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2018, 6(3):1508-1516. doi: 10.1109/JESTPE.2018.2821663
[15]	OUNEJJAR Y, AL-HADDAD K, DESSAINT L A. A novel six-band hysteresis control for the packed U cells seven-level converter:Experimental validation[J]. IEEE Transactions on Industrial Electronics, 2011, 59(10):3808-3816. doi: 10.1109/TIE.2011.2161059

矢量	T₁	T₂	T₃	T₄	T₅	T₆	u_AB
V₁	1	0	1	0	1	0	3E
V₂	1	0	0	0	1	1	2E
V₃	0	0	1	1	1	0	E
V₄	0	0	0	1	1	1	0
V₅	1	1	1	0	0	0	0
V₆	1	1	0	0	0	1	-E
V₇	0	1	1	1	0	0	-2E
V₈	0	1	0	1	0	1	-3E

矢量	T₁	T₂	T₃	T₄	T₅	T₆	u_AB
V₁	×	√	×	√	×	√	3E
V₂	×	√	√	√	×	×	2E
V₃	√	√	×	×	×	√	E
V₄	√	√	√	×	×	×	0
V₅	×	×	×	√	√	√	0
V₆	×	×	√	√	√	×	-E
V₇	√	×	×	×	√	√	-2E
V₈	√	×	√	×	√	×	-3E

状态	T₁	T₂	T₃	T₄	T₅	T₆
1	V₃	(T₁,T₃)	V₂	√	(T₁,T₃)	√
2	V₃	(T₁,T₃)	√	√	(T₁,T₃)	V₁/V₃
3	√	(T₁,T₃)	V₂	V₂	(T₁,T₃)	√
4	√	(T₁,T₆)	√	V₅	(T₁,T₆)	V₅
5	V₄	(T₁,T₆)	V₄	√	(T₁,T₆)	√
6	V₇	(T₃,T₄)	√	√	(T₃,T₄)	V₇
7	√	(T₄,T₆)	V₆	V₆	(T₄,T₆)	√
8	√	(T₄,T₆)	√	V₆	(T₄,T₆)	V₇
