温差发电阵列解析方法及其热失配性能研究*

doi:10.11985/2023.02.008

电气工程学报 ›› 2023, Vol. 18 ›› Issue (2): 78-88.doi: 10.11985/2023.02.008

扫码分享

温差发电阵列解析方法及其热失配性能研究^*

王粒同¹^,²(), 王军¹^,²(), 甘育东¹^,², 孙章¹^,²

1.西华大学电气与电子信息学院成都 610039
2.西华大学流体及动力机械教育部重点实验室成都 610039

收稿日期:2022-04-12 修回日期:2022-06-21 出版日期:2023-06-25 发布日期:2023-07-12
通讯作者: 王军，女，1966年生，博士。主要研究方向为新能源变换技术、电力电子节能技术、膜计算及其在电气工程领域应用、新型交流电机控制技术、智能控制与自动测试技术等。E-mail：745257101@qq.com
作者简介:王粒同，男，1997年生，硕士研究生。主要研究方向为温差发电阵列研究，温差发电最大功率点跟踪技术。E-mail：924105977@qq.com
基金资助:
四川省科技计划资助项目(2023YFQ0026);四川省科技计划资助项目(2022ZYD0115)

Study on Analytical Method and Thermal Mismatch Performance of Thermoelectric Generator Array

WANG Litong¹^,²(), WANG Jun¹^,²(), GAN Yudong¹^,², SUN Zhang¹^,²

1. School of Electrical Engineering and Electronic Information, Xihua University, Chengdu 610039
2. Key Laboratory of Fluid and Power Machinery Ministry of Education, Xihua University, Chengdu 610039

Received:2022-04-12 Revised:2022-06-21 Online:2023-06-25 Published:2023-07-12

摘要/Abstract

摘要：

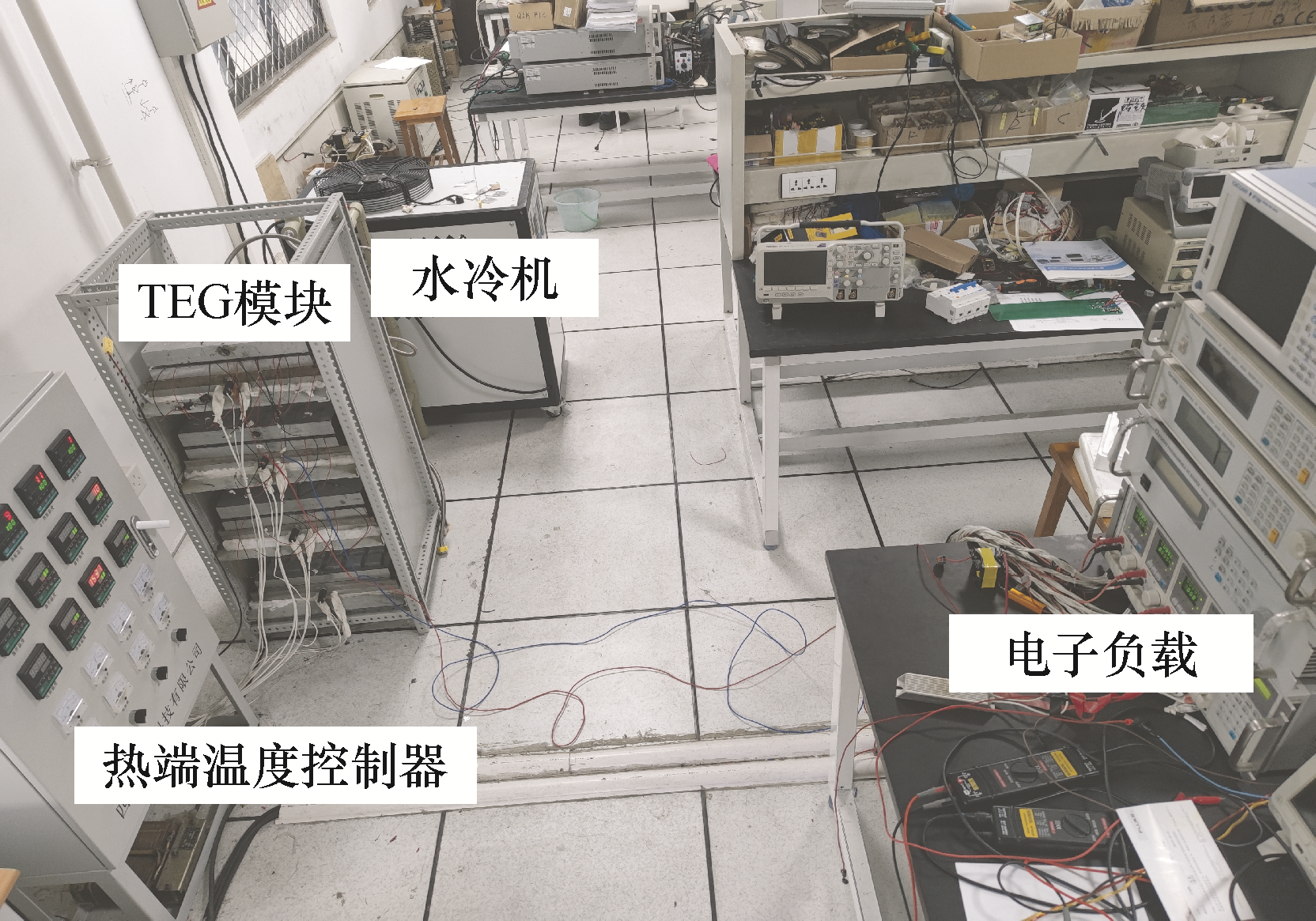

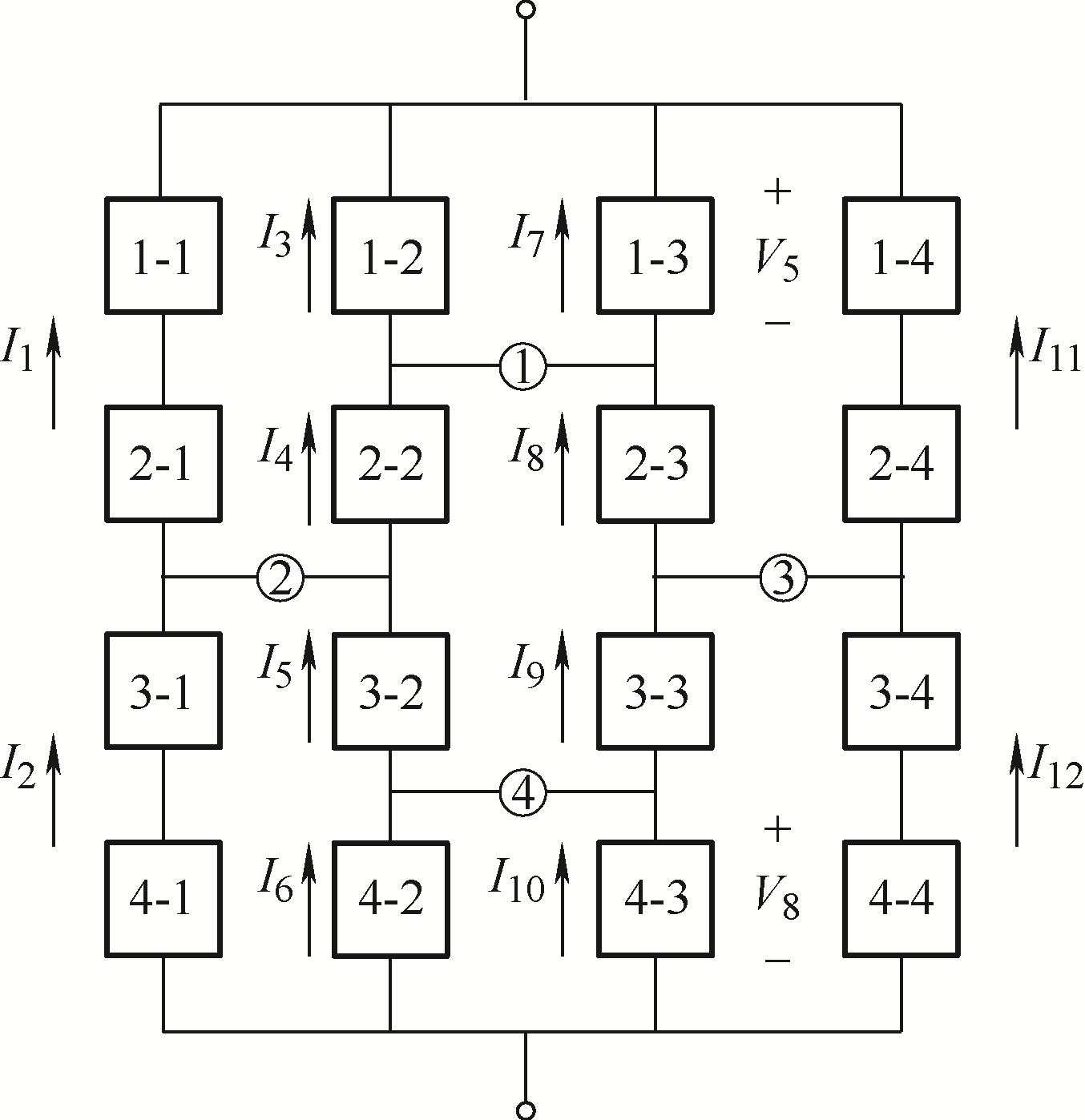

温差发电阵列(Thermoelectric generator，TEG)的热失配现象会导致器件损坏，严重影响发电单元效率和可靠性。为分析温差发电阵列的电气特性及其热失配现象对阵列的影响，通过对阵列进行基尔霍夫电压电流定律分析，提出一种温差发电阵列解析方法用于分析阵列的电气特性；同时，搭建了一个低品位热源下的温差发电阵列试验平台，基于已搭建的温差发电平台开展热失配的相关试验及分析，在常见的温度分布下对阵列进行相关试验，测量各阵列输出的最大输出功率，计算得到各阵列的损耗率，量化热失配对于温差发电的影响。最后，通过试验发现，温度失配会造成阵列功率明显下降，串并联结构(Series-parallel，SP)较其余阵列具有更高的效率，温度分布的均匀程度与温差发电的输出功率有极强的关联性，阵列连接方式的复杂程度与温差发电的输出功率也存在关联性。

关键词: 温差发电阵列, 热失配现象, 解析方法

Abstract:

The thermal mismatch phenomenon in thermoelectric generator(TEG) arrays can lead to device damage and seriously affect the efficiency and reliability of the generation units. In order to analyze the electrical characteristics of TEGs and the effects of thermal mismatch on the arrays, an analytical method is proposed to analyze the electrical characteristics of TEGs through the analysis of Kirchhoff’s voltage and current law; meanwhile, an experimental platform for TEGs with low-grade heat source is built, and the experiments and analysis of thermal mismatch are carried out based on the built TEG platform. The maximum output power of each array is measured, and the loss rate of each array is calculated to quantify the effect of thermal mismatch on temperature difference power generation. Finally, it is found that the temperature mismatch causes a significant decrease in array power, the series-parallel(SP) structure has higher efficiency than the rest of the arrays, the uniformity of temperature distribution has a strong correlation with the output power of temperature differential power generation, and the complexity of the array connection has a correlation with the output power of temperature differential power generation.

Key words: Thermoelectric generator array, heat mismatch, numerical analytical method

中图分类号:

TM561

王粒同, 王军, 甘育东, 孙章. 温差发电阵列解析方法及其热失配性能研究^*[J]. 电气工程学报, 2023, 18(2): 78-88.

WANG Litong, WANG Jun, GAN Yudong, SUN Zhang. Study on Analytical Method and Thermal Mismatch Performance of Thermoelectric Generator Array[J]. Journal of Electrical Engineering, 2023, 18(2): 78-88.

图/表 21

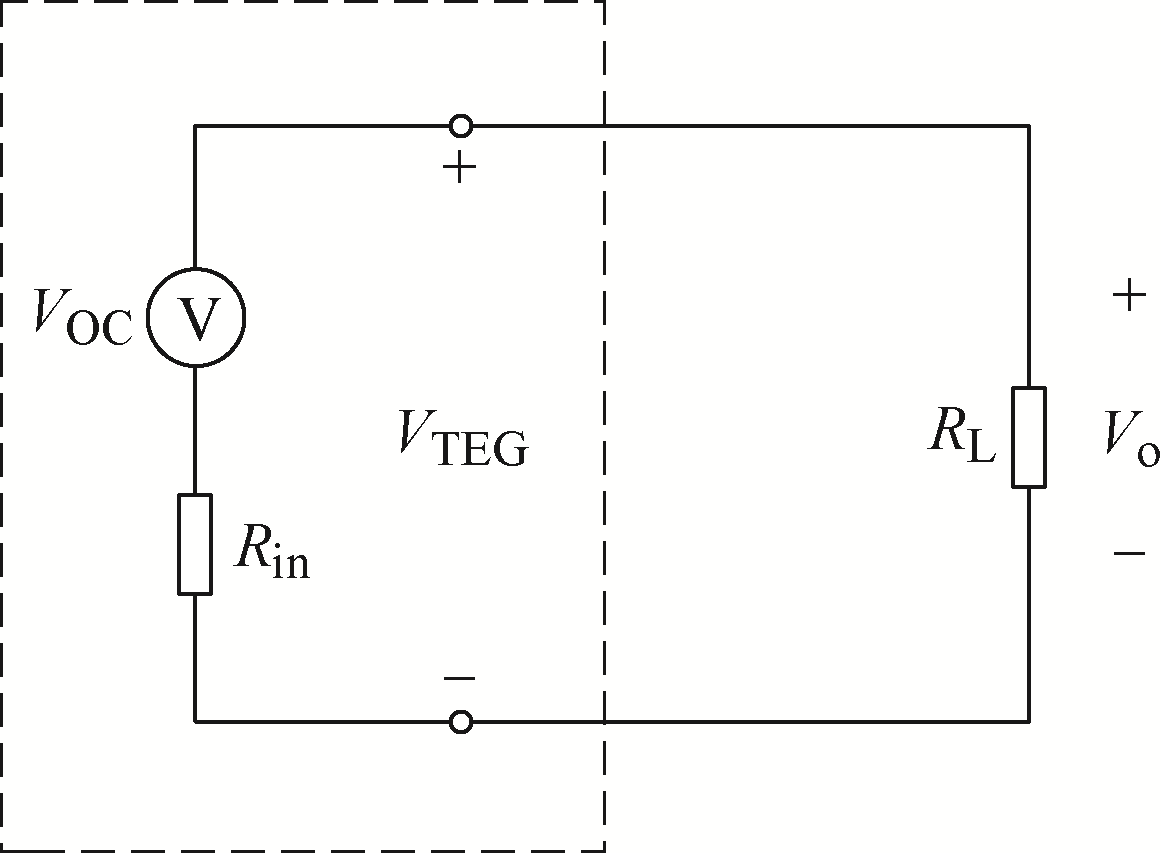

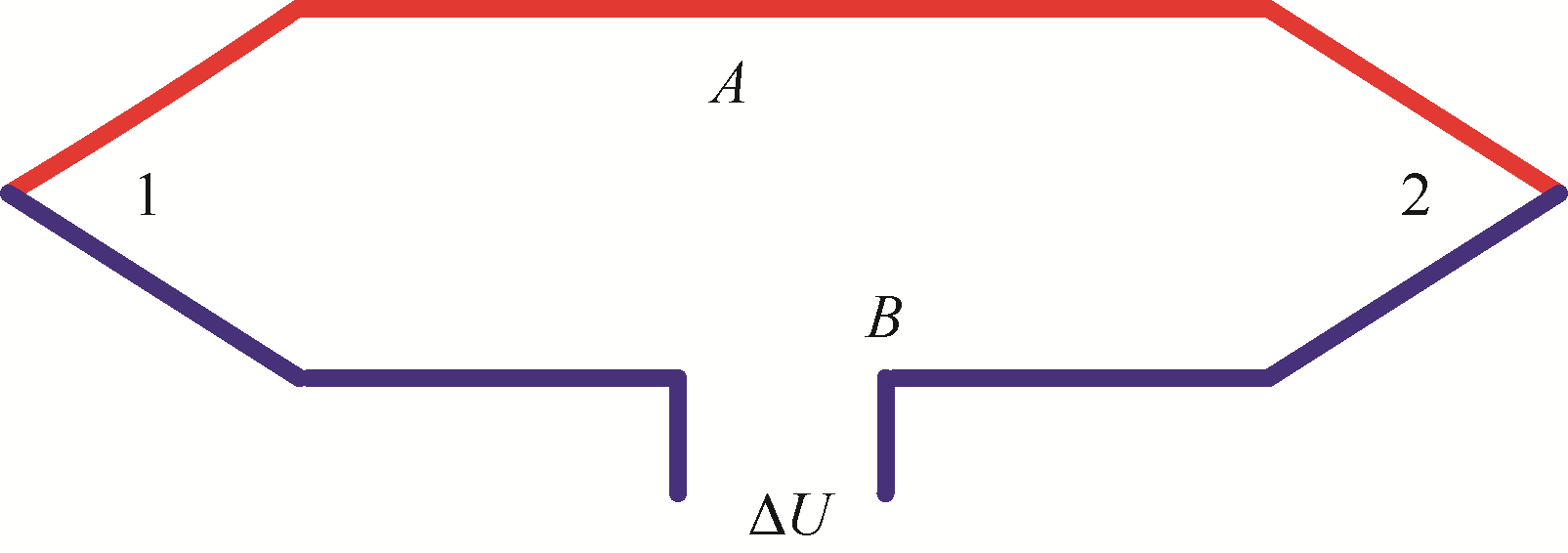

图1

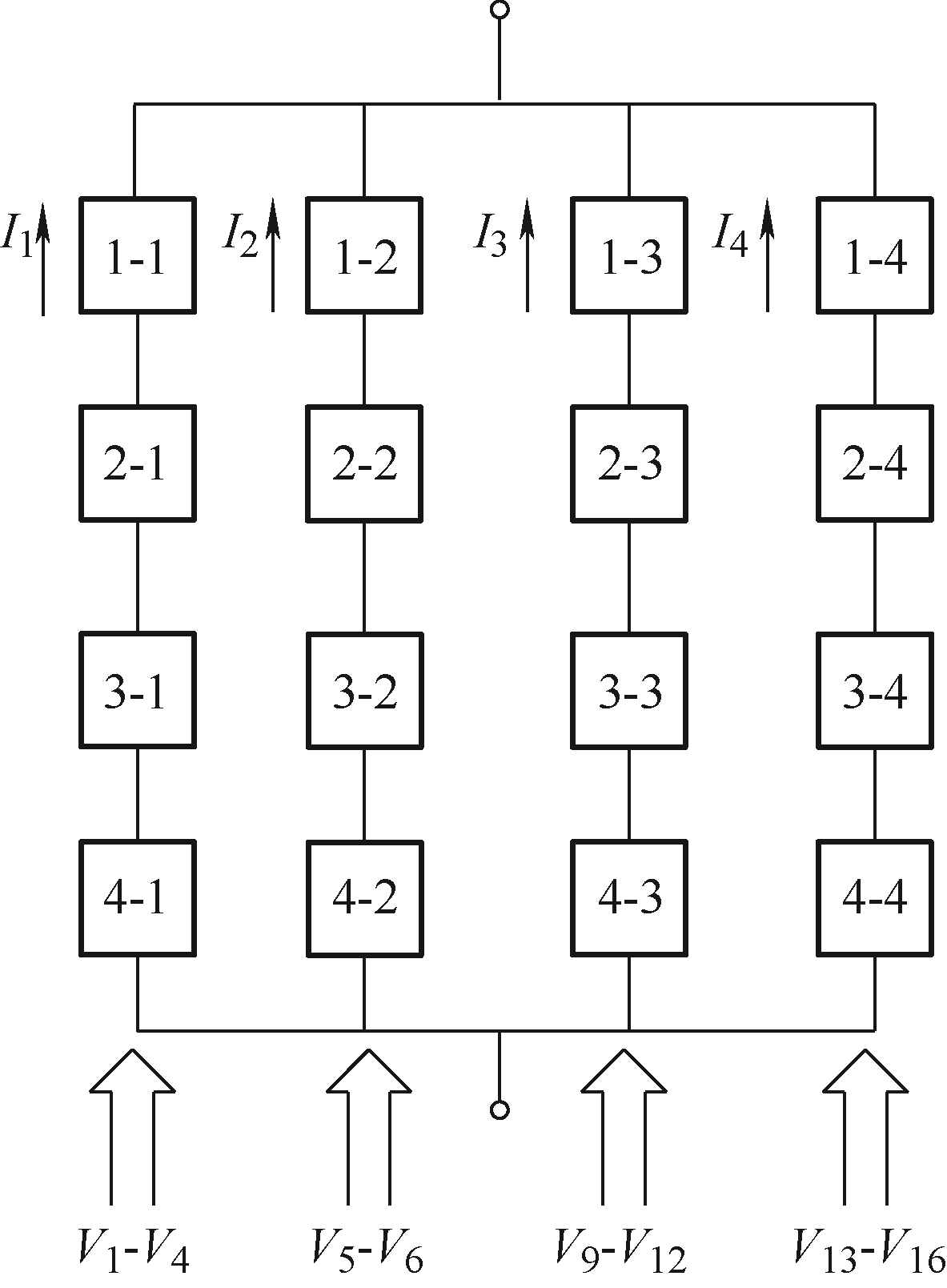

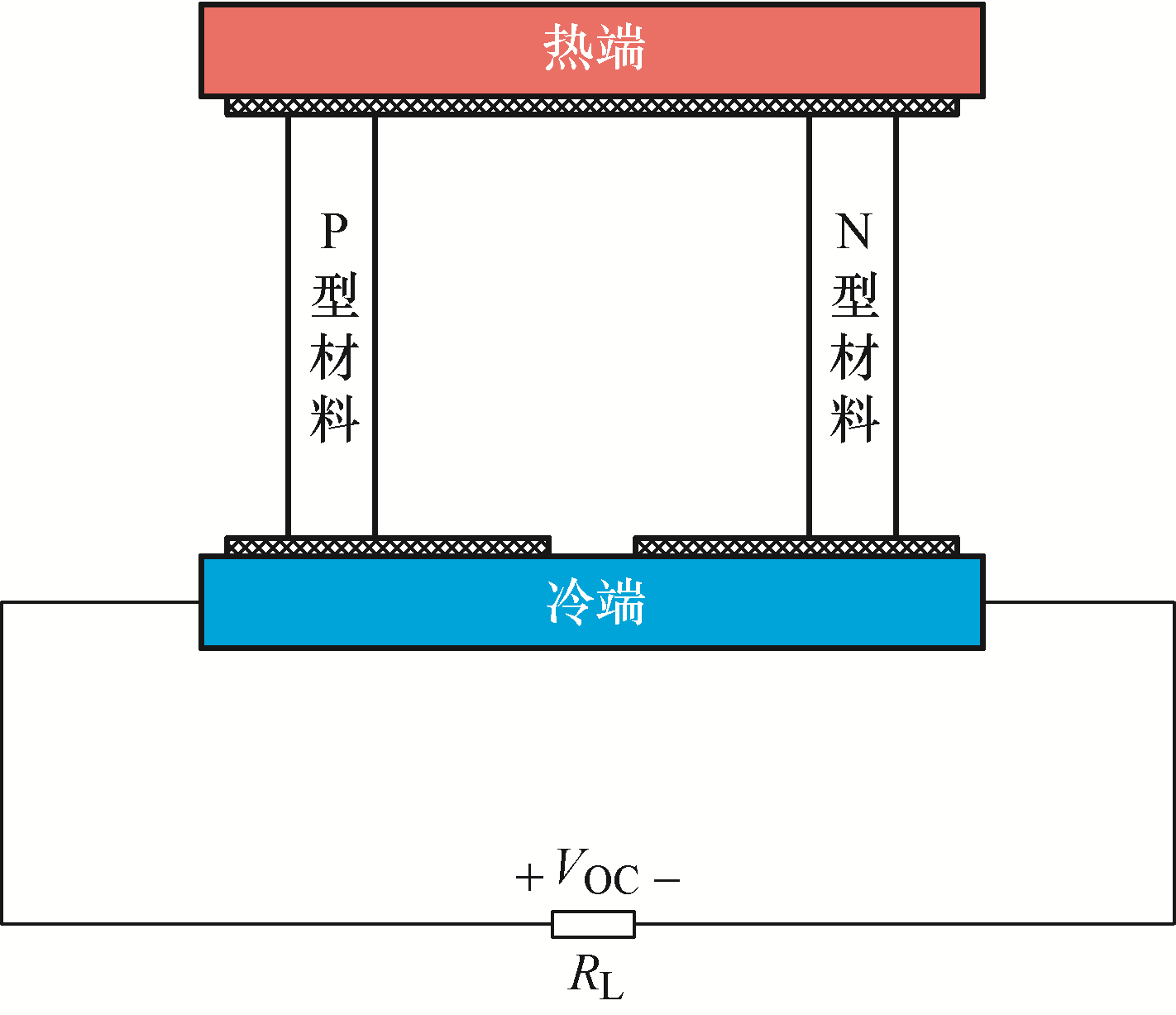

图2

图3

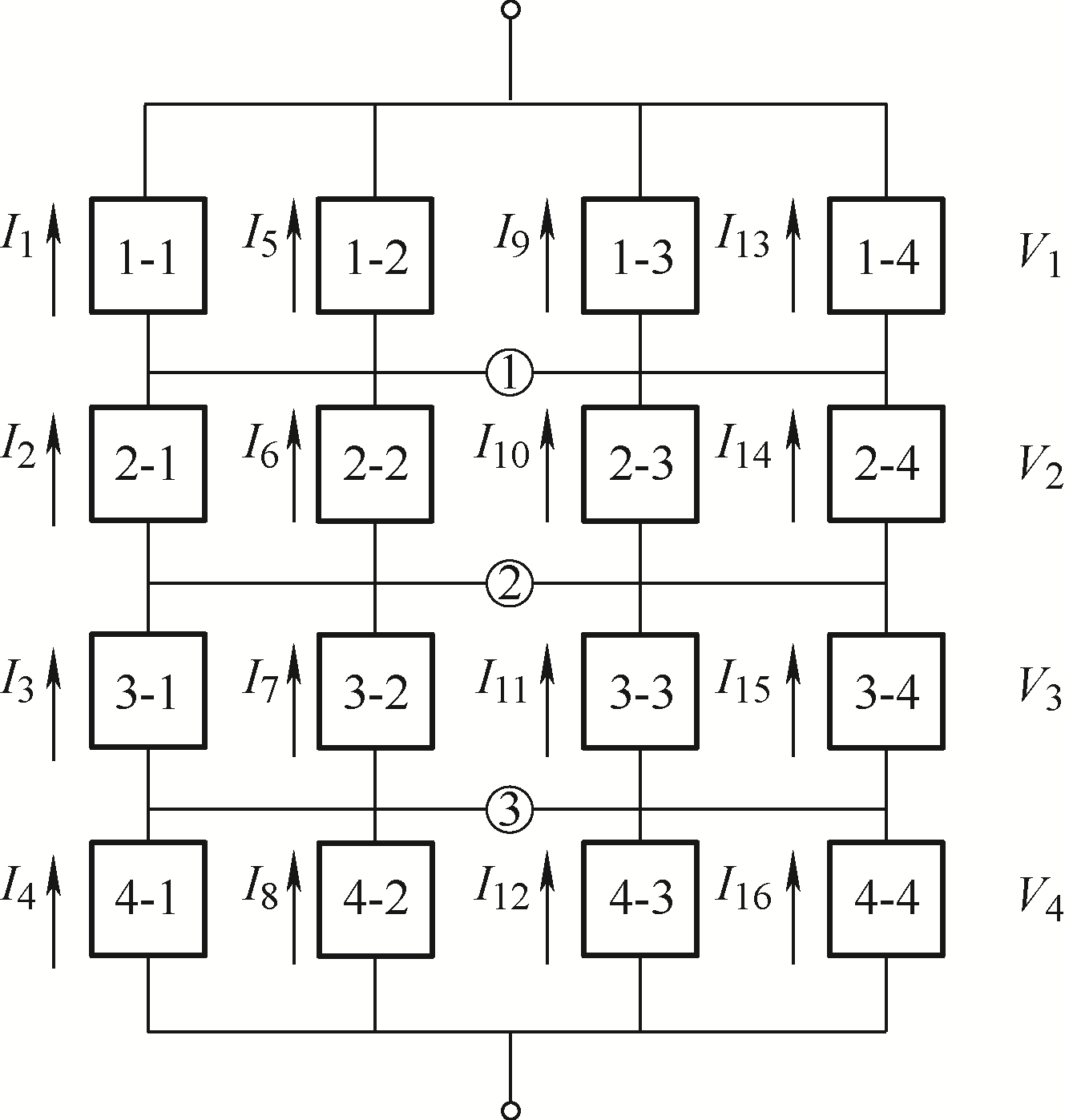

图4

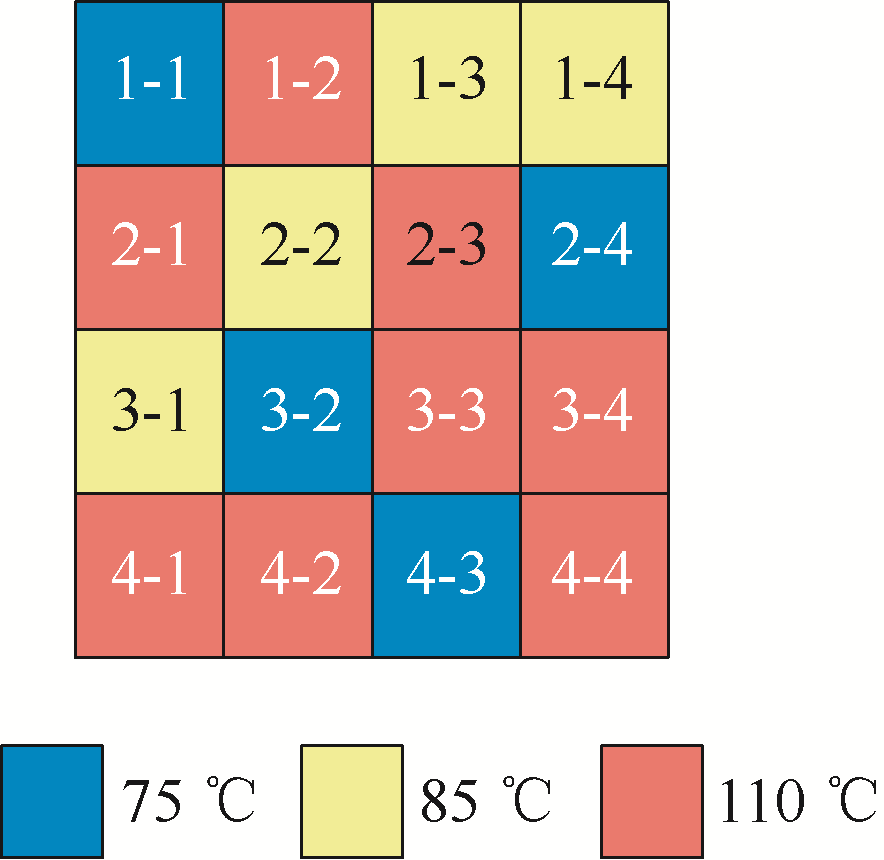

图5

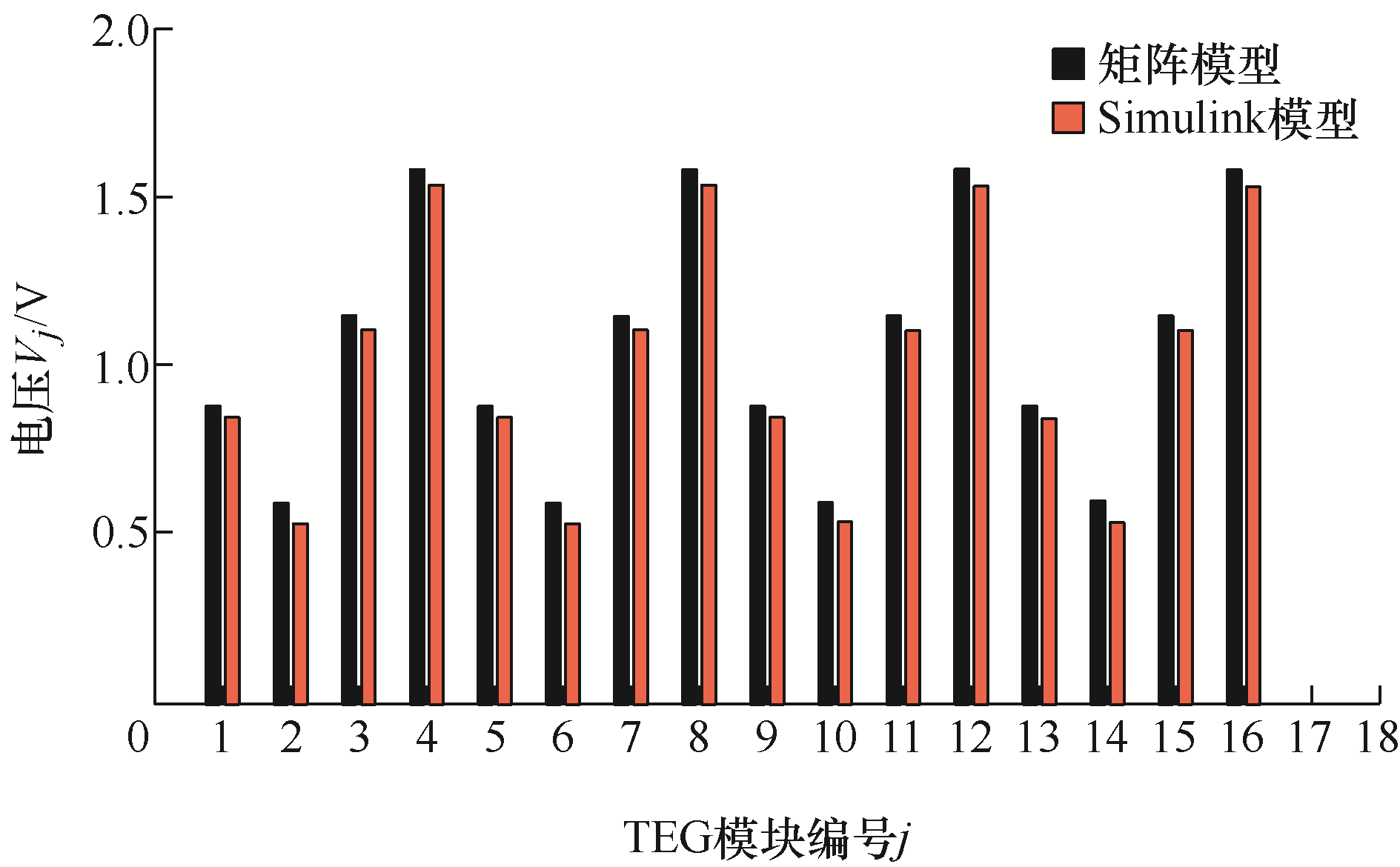

图6

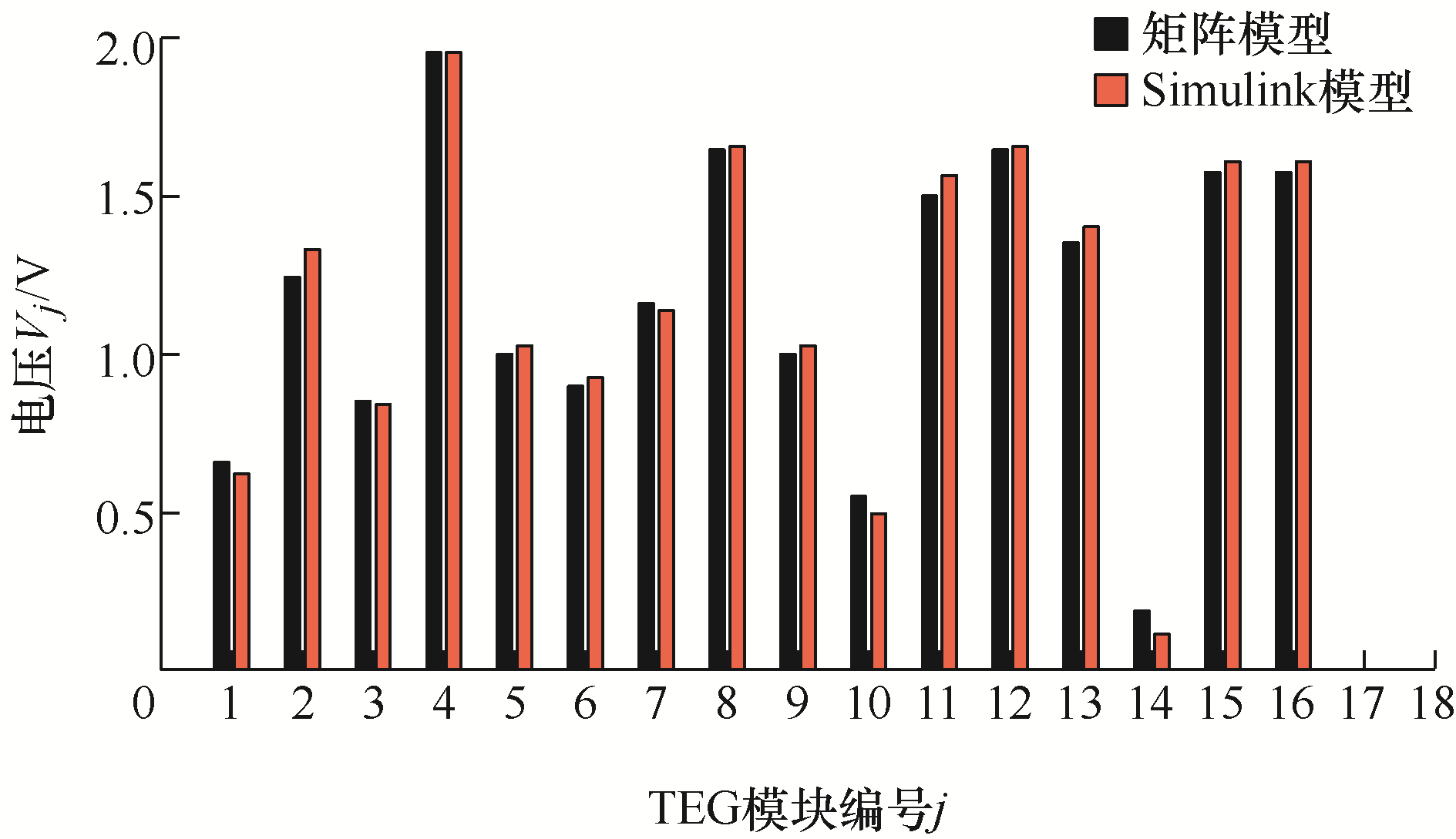

图7

图8

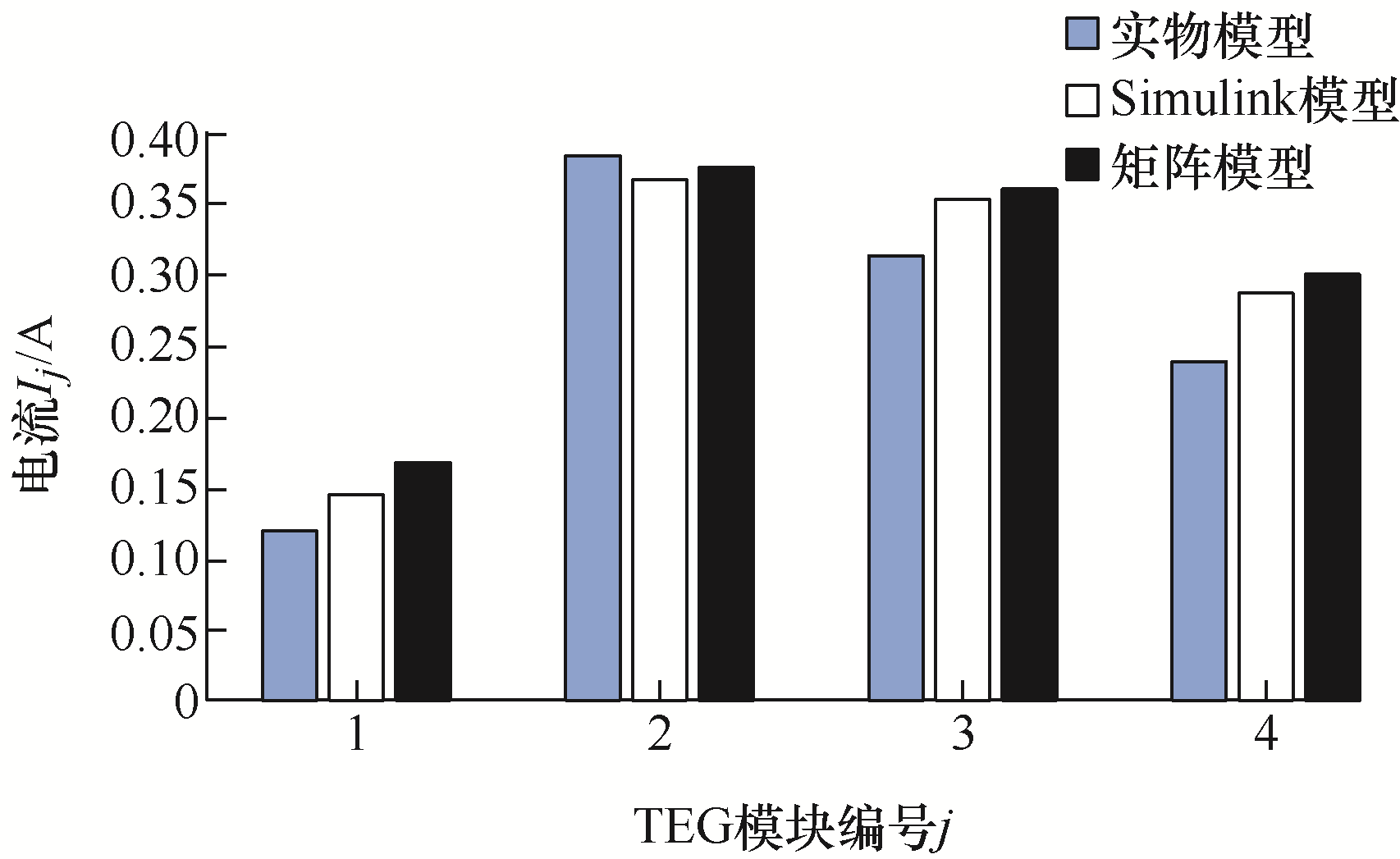

图9

图10

图11

图12

图13

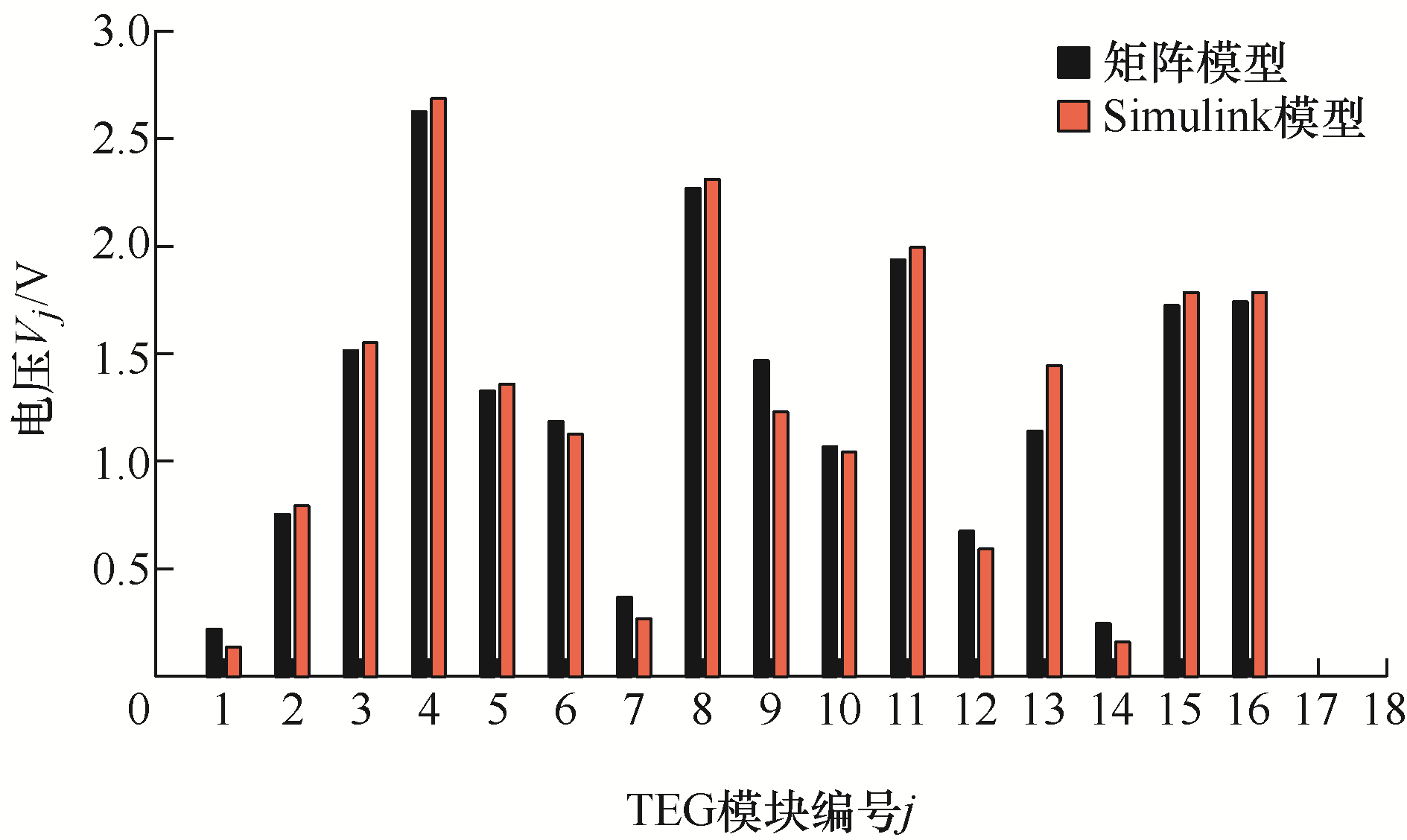

图14

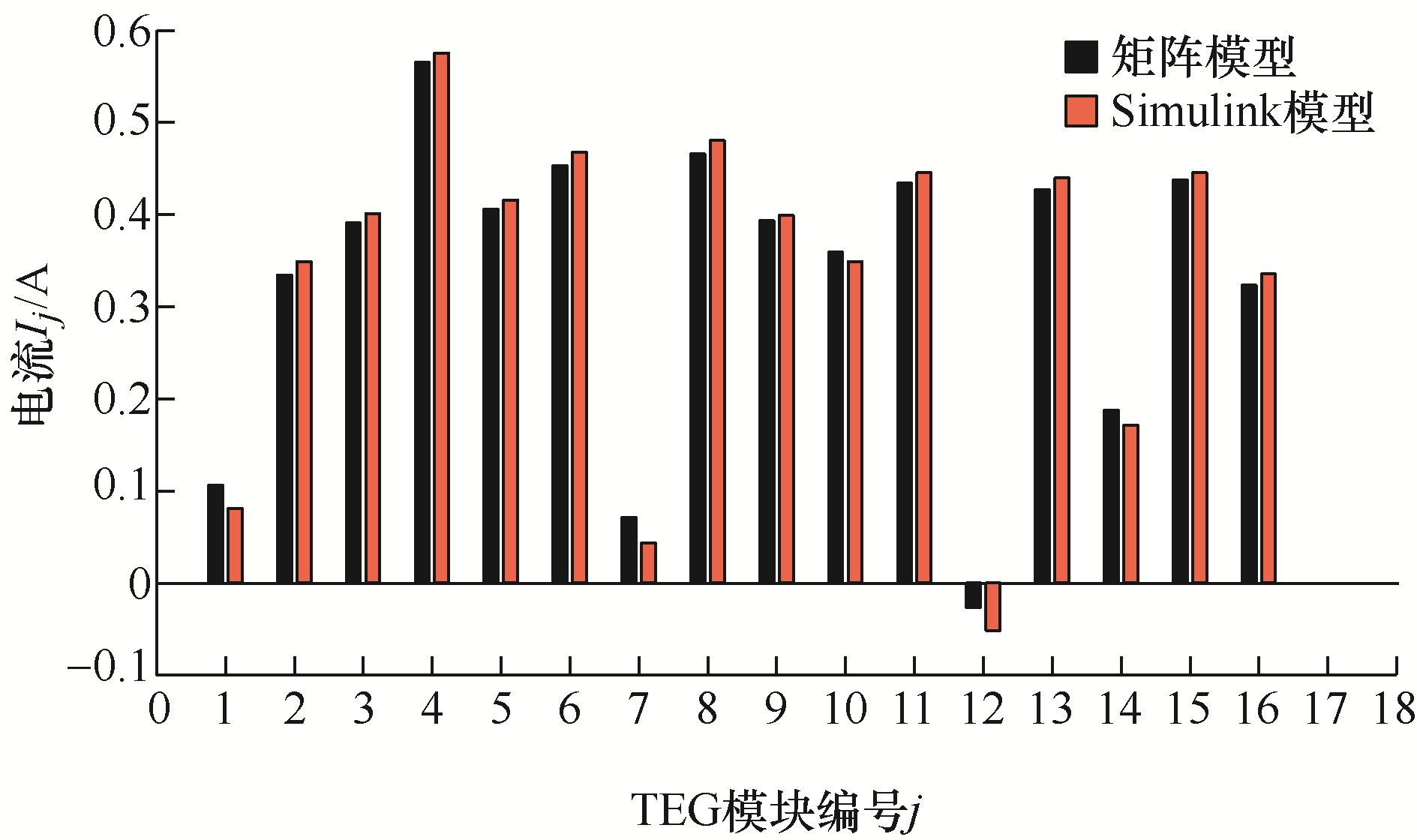

图15

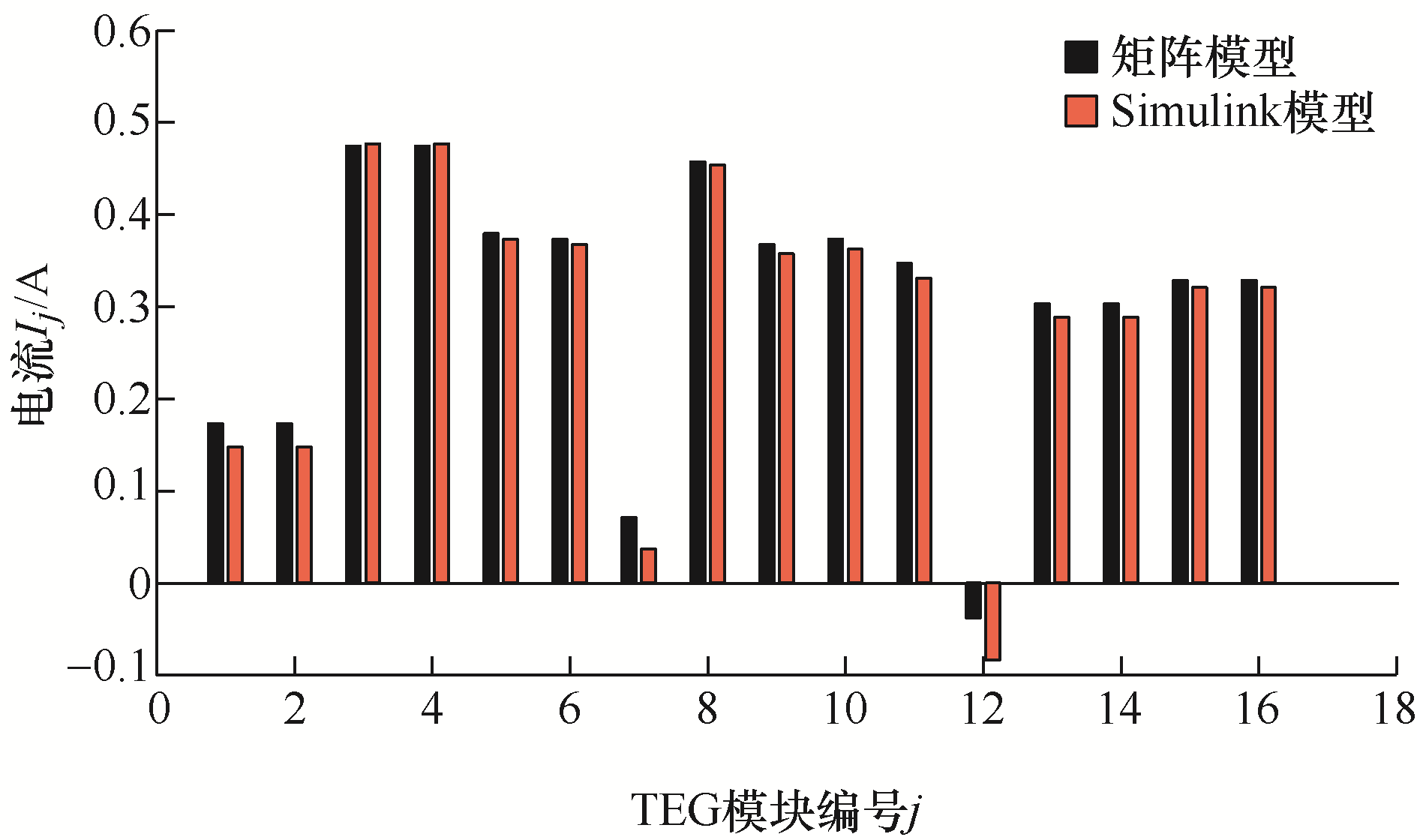

图16

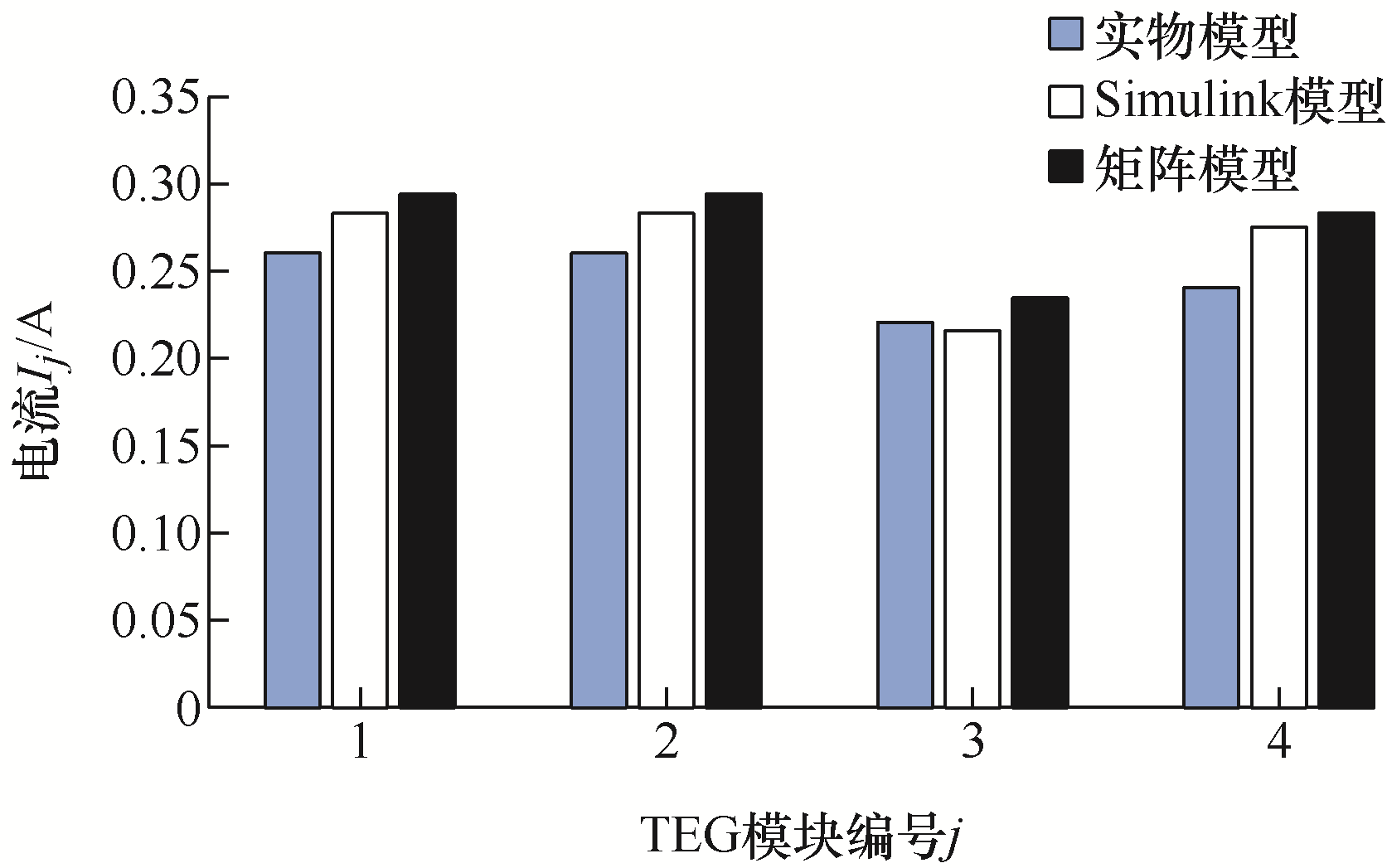

图17

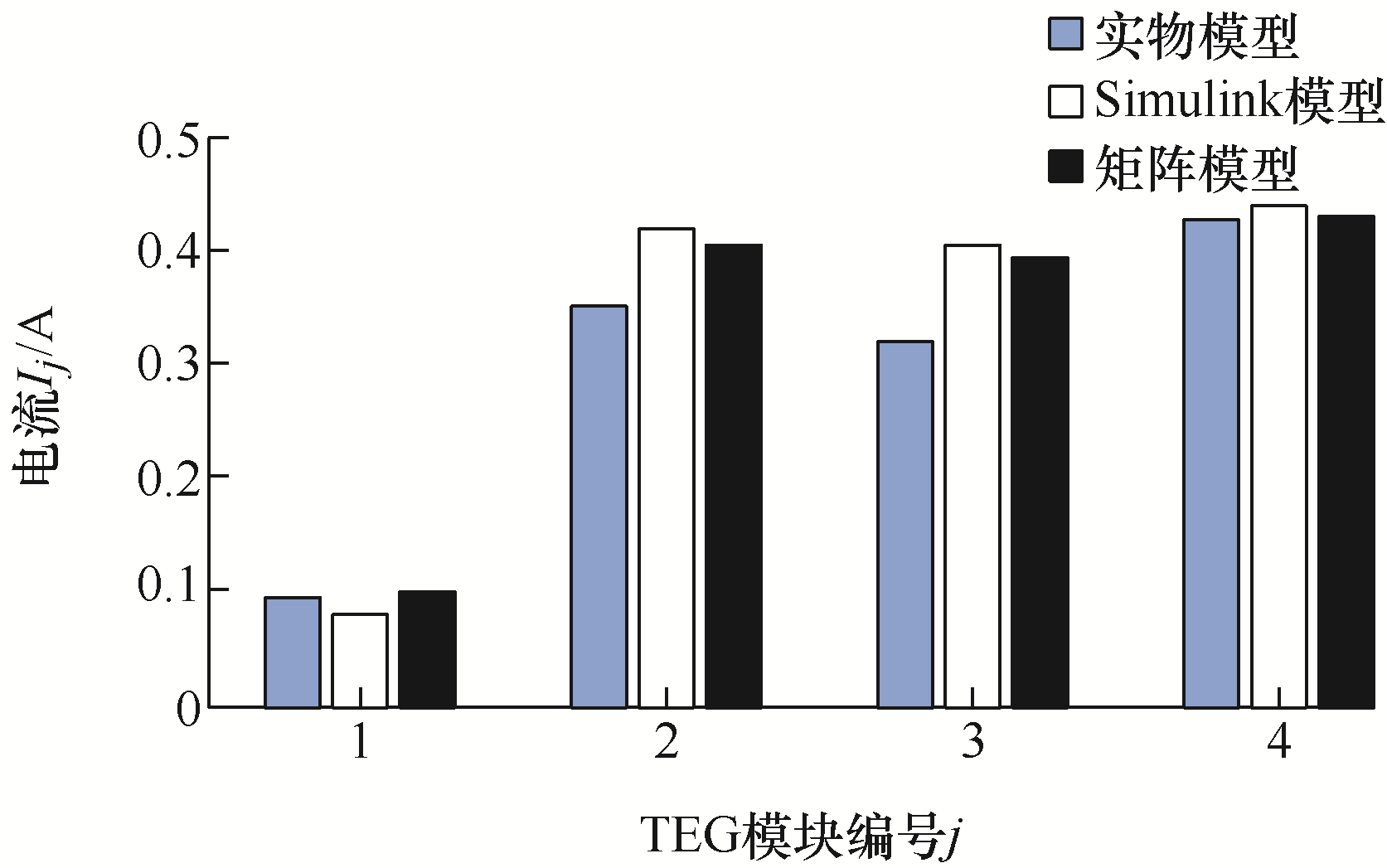

图18

表1

表2

表3

参考文献 22

[1]	FU J, LIU J, FENG R, et al. Energy and exergy analysis on gasoline engine based on mapping characteristics experiment[J]. Appl. Energy, 2013, 102:622-630. doi: 10.1016/j.apenergy.2012.08.013
[2]	JI D, WEI Z, STEFANO M, et al. Thermoelectric generation for waste heat recovery:Application of a system level design optimization approach via Taguchi method[J]. Energy Convers Manage, 2018, 172:507-516. doi: 10.1016/j.enconman.2018.06.016
[3]	WANG Tongcai, LUAN Weiling, LIU Tongjun, et al. Performance enhancement of thermoelectric waste heat recovery system by using metal foam inserts[J]. Energy Convers Manage, 2016, 124:13-19. doi: 10.1016/j.enconman.2016.07.006
[4]	KRAEMER D, POUDEL B, FENG H P, et al. High-performance flat-panel solar thermoelectric generators with high thermal concentration[J]. Nat. Mater, 2011(10):532-538.
[5]	YANG Jihui, YIP Hin-lap, JEN A K Y. Rational design of advanced thermoelectric materials[J]. Advanced Energy Material, 2013, 3(5):549-565. doi: 10.1002/aenm.v3.5
[6]	张建中. 温差电技术[M]. 天津: 天津科技出版社, 2013.
	ZHANG Jianzhong. Thermoelectric technology[M]. Tianjin: Tianjin Science and Technology Press, 2013.
[7]	席丽丽, 杨炯, 史迅. 填充方钴矿热电材料:从单填到多填[J]. 中国科学:物理学力学天文学, 2011, 41(6):706-728.
	XI Lili, YANG Jiong, SHI Xun. Filled skobalt thermoelectric material:From single to multi-fill[J]. Science in China:Physics,Mechanics,and Astronomy, 2011, 41(6):706-728.
[8]	XIAO H, GUO X L, YANG S W. Detailed modeling,and irreversible transfer process analysis of a multi-element thermoelectric generator system[J]. J. Electron. Mater., 2011(40):1195-1201.
[9]	KIM S. Analysis and modeling of effective temperature differences and electrical parameters of thermoelectric generator[J]. Appl. Energy, 2013(102):1458-1463.
[10]	张君君, 吴红飞, 邢岩, 等. 适用于温差发电的高效率耦合电感升降压变换器[J]. 电工技术学报, 2014, 29(10):106-112.
	ZHANG Junjun, WU Hongfei, XING Yan, et al. High efficiency coupling inductor voltage up and down converter for thermoelectric generation[J]. Transactions of China Electrotechnical Society, 2014, 29(10):106-112.
[11]	王军, 阎铁生, 陈亮, 等. 基于短路电流法的温差发电最大功率点跟踪控制[J]. 电工技术学报, 2020, 35(2):318-329.
	WANG Jun, YAN Tiesheng, CHEN Liang, et al. The maximum power point tracking control of thermoelectric generation based on short-circuit current method[J]. Transactions of China Electrotechnical Society, 2020, 35(2):318-329.
[12]	杨昕骜, 王军, 阎铁生, 等. 基于改进型短路电流法的温差发电MPPT方法[J]. 电源技术, 2020, 44(11):1634-1637.
	YANG Xinao, WANG Jun, YAN Tiesheng, et al. MPPT method for thermoelectric generation based on improved short-circuit current method[J]. Power Supply Technology, 2020, 44(11):1634-1637.
[13]	杨博, 王俊婷, 钟林恩, 等. 基于贪婪神经网络的集中式温差发电系统最大功率跟踪[J]. 电工技术学报, 2020, 35(11):2349-2359.
	YANG Bo, WANG Junting, ZHONG Linen, et al. Maximum power tracking of centralized thermal-differential generation system based on greedy neural network[J]. Transactions of China Electrotechnical Society, 2020, 35(11):2349-2359.
[14]	HIDAKA A, TSUJI T, MATSUMOTO S. A thermoelectric power generation system with ultra low input voltage boost converter with maximum power point tracking[C]// International Conference on Renewable Energy Research and Applications (ICRERA),Nagasaki, 2012:1-5.
[15]	SHEN B, HENDRY R, CANCHEEVARAM J, et al. DC-DC converter suitable for thermoelectric generator[C]// 24th International Conference on Thermoelectrics, 2005:529-531.
[16]	CHEN M. Realistic optimal design of thermoelectric battery bank under partial lukewarming[C]// 48th IEEE Industrial & Commercial Power Systems Conference, May 20-24,2022,Louisville,KY,USA. IEEE, 2012:1-4.
[17]	CÓZAR I R, PUJOL T, LEHOCKY M. Numerical analysis of the effects of electrical and thermal configurations of thermoelectric modules in large-scale thermoelectric generators[J]. Applied Energy, 2018, 229:264-280. doi: 10.1016/j.apenergy.2018.07.116
[18]	NEGASH A A, KIM T Y, CHO G. Effect of electrical array configuration of thermoelectric modules on waste heat recovery of thermoelectric generator[J]. Sensors and Actuators A:Physical, 2017, 260:212-219. doi: 10.1016/j.sna.2017.04.016
[19]	DENG Y D, ZHENG S J, SU C Q, et al. Effect of thermoelectric modules’ topological connectionon automotive exhaust heat recovery system[J]. Journal of Electronic Materials, 2016, 45(3):1740-1750. doi: 10.1007/s11664-015-4194-6
[20]	CHEN M, ROSENDAHL L A, CONDRA T J, et al. Numerical modeling of thermoelectric generators with varying material properties in a circuit simulator[J]. IEEE Trans. on Energy Conversion, 2008, 24(1):112-124. doi: 10.1109/TEC.2008.2005310
[21]	WANG Y J, HSU P C. Modelling of solar cells and modules using piecewise linear parallel branches[J]. IET Renewable Power Generation, 2011, 5(3):215-222. doi: 10.1049/iet-rpg.2010.0134
[22]	MONTECUCCO A, SIVITER J, KNOX A R. The effect of temperature mismatch on thermoelectric generators electrically connected in series and parallel[J]. Applied Energy, 2014, 123:47-54. doi: 10.1016/j.apenergy.2014.02.030

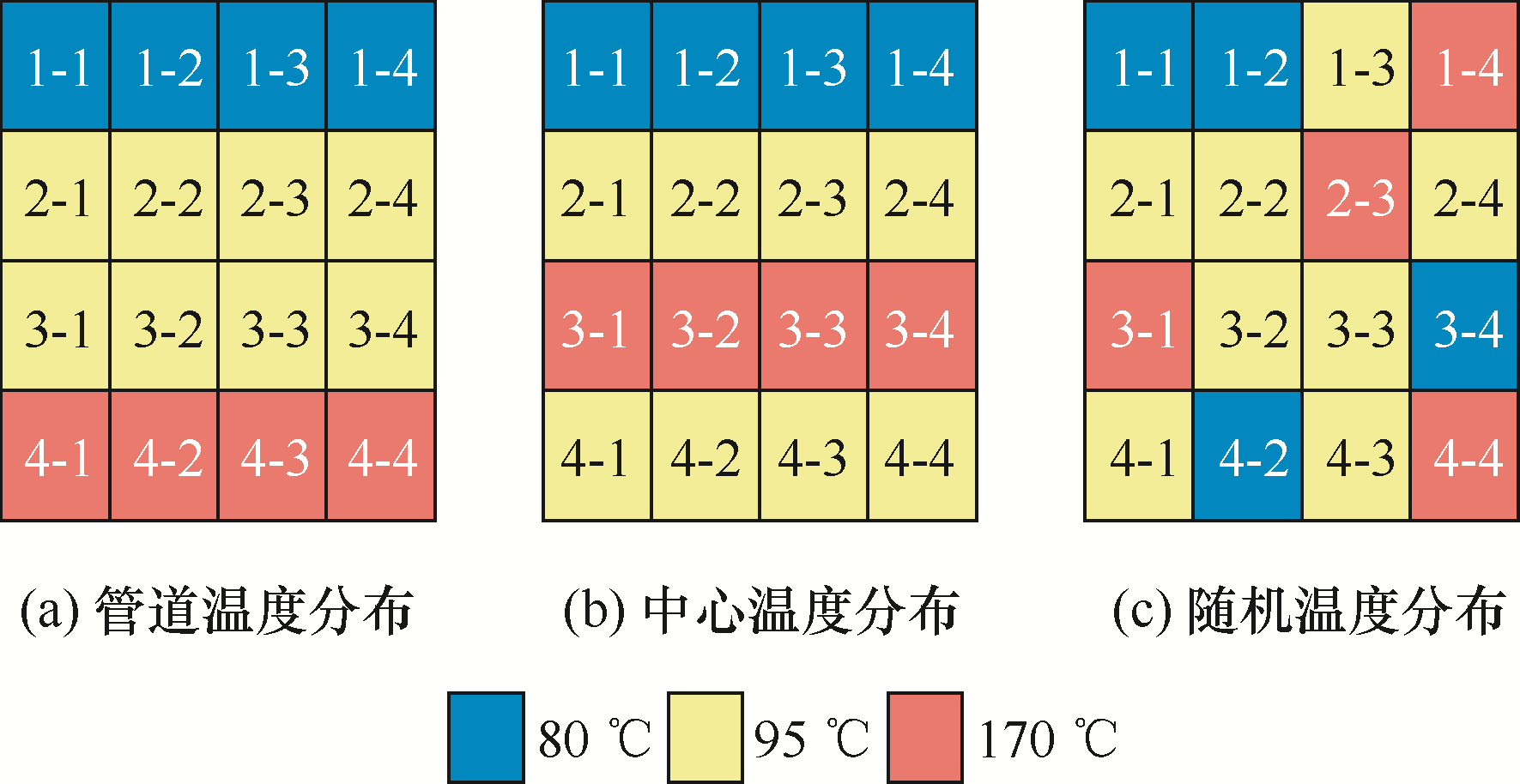

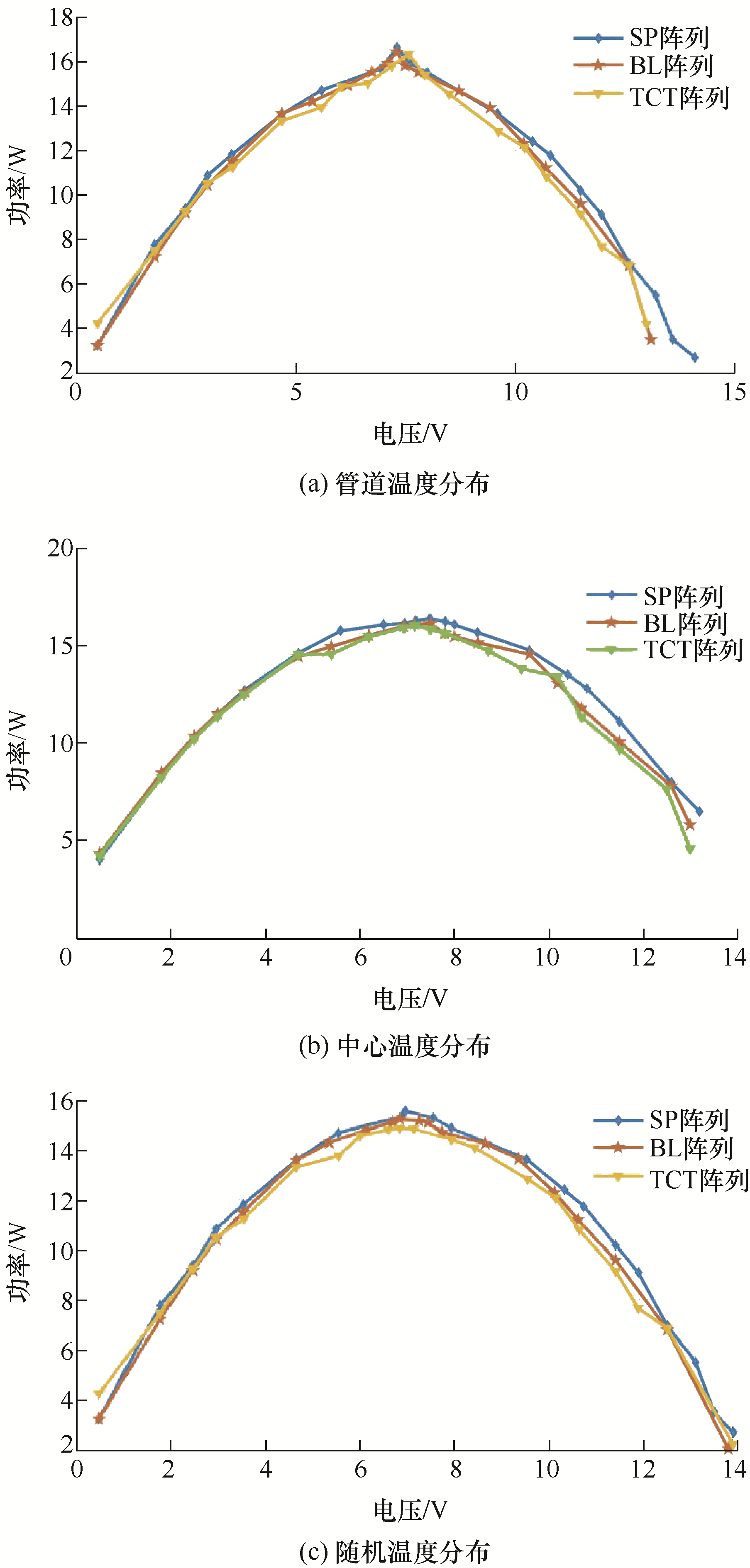

温度分布情况	阵列类型		I_max/A	P_max/W
情况1	SP	7.32	2.27	16.61
	BL	7.31	2.25	16.42
	TCT	7.58	2.15	16.32
情况2	SP	7.48	2.18	16.38
	BL	7.5	2.15	16.11
	TCT	7.16	2.23	16.01
情况3	SP	7.03	2.21	15.56
	BL	7.31	2.08	15.25
	TCT	6.9	2.15	14.88

阵列类型	理想最大输出功率/W	温度失配情况下的损耗率(%)
阵列类型	理想最大输出功率/W	情况1	情况2	情况3
SP	19.76	15.94	17.10	21.25
BL	19.76	16.90	18.47	22.82
TCT	19.76	17.40	18.97	24.69

源		III 类平方和	自由度	均方	F	显著性
温度分布	假设球形度	14.801	2	7.401	29.588	0.000
	格林豪斯-盖斯勒	14.801	1.763	8.396	29.588	0.000
	辛-费德特	14.801	2.000	7.401	29.588	0.000
	下限	14.801	1.000	14.801	29.588	0.000
连接方式	假设球形度	2.190	2	1.095	9.529	0.000
	格林豪斯-盖斯勒	2.190	1.157	1.893	9.529	0.003
	辛-费德特	2.190	1.280	1.711	9.529	0.002
	下限	2.190	1.000	2.190	9.529	0.005
