发电侧共享储能运营机制与交易模式研究综述*

doi:10.11985/2023.01.021

摘要/Abstract

摘要：

发电侧共享储能因能够提升新能源场站的灵活性和提高储能利用率而受到广泛关注，但不够成熟的运营机制与交易模式阻碍了它的大规模发展。共享储能运营机制和交易模式的研究对支撑和鼓励多类型储能单元及其所有者参与能量共享具有重要意义，也是当前的研究热点领域。为此，从运营机制、交易模式两个方面进行了梳理和分析，讨论了分散式、集中式共享储能在需求满足、利益驱动不同投建目的下的运营机制；在此基础上从非合作博弈与合作博弈两个角度分析总结了目前共享储能的交易模式；并展望了共享储能在未来电网形态演变中的发展方向，以期为新型电力系统中电网、新能源储能、储能协同发展需求的研究和技术应用提供借鉴。

关键词: 发电侧, 共享储能, 运营机制, 交易模式, 博弈论

Abstract:

Shared energy storage on the generation side is widely concerned because it can improve the flexibility of new energy stations and the utilization rate of energy storage, but its large-scale development is hindered by the immature operation mode. The study of shared energy storage operation mechanism and trading model is important to support and encourage the participation of multiple energy storage units in energy sharing, and is also a current research hot spot. To this end, the operational mechanism and trading mode are sorted out and analyzed, and the operational mechanism of distributed and centralized shared energy storage under different investment and construction purposes of demand satisfaction and interest drive are discussed. On this basis, the current trading model of shared energy storage is summarized from two perspectives: non-cooperative game and cooperative game. And the development direction of shared energy storage in the evolution of the future power grid is discussed and foreseen, in order to provide a reference for the research and technology application of the synergistic development needs for the power grid, new energy storage, and energy storage in the new power system.

Key words: Generation side, shared energy storage, operation mechanism, trading mode, game theory

中图分类号:

TM561

李笑竹, 陈来军, 杜锡力, 温嘉鑫. 发电侧共享储能运营机制与交易模式研究综述^*[J]. 电气工程学报, 2023, 18(1): 188-200.

LI Xiaozhu, CHEN Laijun, DU Xili, WEN Jiaxin. Research Status and Prospect of Shared Energy Storage Operation Mechanism and Trading Mode on Generation Side[J]. Journal of Electrical Engineering, 2023, 18(1): 188-200.

图/表 9

图1

图2

图3

图4

表1

图5

图6

表2

表3

参考文献 69

[1]	National Development and Reform Commission. The guidance of energy bureau on promoting the integration of power grid and storage and multi-energy complementary development[J]. The Bulletin of the State Council of the People’s Republic of China, 2021(12):59-62.
[2]	郝艺博, 杜锡力, 李笑竹, 等. 考虑储能性能差异的新能源场站群共享储能交易模式[J]. 发电技术, 2022, 43(5):687-697. doi: 10.12096/j.2096-4528.pgt.22114
	HAO Yibo, DU Xili, LI Xiaozhu, et al. Shared energy storage trading mode of new energy station group considering energy storage performance differencce[J]. Power Generation Technology, 2022, 43(5):687-697. doi: 10.12096/j.2096-4528.pgt.22114
[3]	LI Xiaozhu, WANG Weiqing, WANG Haiyun. A novel bi-level robust game model to optimize a regionally integrated energy system with large-scale centralized renewable-energy sources in western China[J]. Energy, 2021, 228:120513. doi: 10.1016/j.energy.2021.120513
[4]	谢丽蓉, 郑浩, 魏成伟, 等. 兼顾补偿预测误差和平抑波动的光伏混合储能协调控制策略[J]. 电力系统自动化, 2021, 45(3):130-138.
	XIE Lirong, ZHENG Hao, WEI Chengwei, et al. Coordinated control strategy of photovoltaic hybrid energy storage considering prediction error compensation and fluctuation suppression[J]. Automation of Electric Power Systems, 2021, 45(3):130-138.
[5]	KNAP V, CHAUDHARY S, STROE D, et al. Sizing of an energy storage system for grid inertial response and primary frequency reserve[J]. IEEE Transactions on Power Systems, 2016, 31(5):3447-3456. doi: 10.1109/TPWRS.2015.2503565
[6]	LASLETT D, CARTER C, CREAGH C, et al. A large-scale renewable electricity supply system by 2030:Solar,wind,energy efficiency,storage and inertia for the South West Interconnected System (SWIS) in western Australia[J]. Renewable Energy, 2017, 113:713-731. doi: 10.1016/j.renene.2017.06.023
[7]	GU Chenjia, WANG Jianxue, ZHANG Yao, et al. Optimal energy storage planning for stacked benefits in power distribution network[J]. Renewable Energy, 2022, 195:366-380. doi: 10.1016/j.renene.2022.06.029
[8]	李笑竹, 陈来军, 杜锡力, 等. 考虑退役动力电池衰减特性的新能源场站群共享储能长期规划配置[J]. 太阳能学报, 2022, 43(5):499-509. doi: 10.19912/j.0254-0096.tynxb.2022-0505
	LI Xiaozhu, CHEN Laijun, DU Xili, et al. Study on long-term planning of shared energy storage at power generation considering attenuation characteristics of retired power batteries[J]. Acta Energiae Solaris Sinica, 2022, 43(5):499-509. doi: 10.19912/j.0254-0096.tynxb.2022-0505
[9]	SUN Guoqiang, SHEN Sichen, CHEN Sheng, et al. Bidding strategy for a prosumer aggregator with stochastic renewable energy production in energy and reserve markets[J]. Renewable Energy, 2022, 191:278-290. doi: 10.1016/j.renene.2022.04.066
[10]	KALATHIL D, WU C, POOLLA K, et al. The sharing economy for the electricity storage[J]. IEEE Transactions on Smart Grid, 2019, 10(1):556-567. doi: 10.1109/TSG.2017.2748519
[11]	ZHENG Siqian, HUANG Gongsheng, LAI A C. Techno-economic performance analysis of synergistic energy sharing strategies for grid-connected prosumers with distributed battery storages[J]. Renewable Energy, 2021, 178:1261-1278. doi: 10.1016/j.renene.2021.06.100
[12]	DAI Rui, ESMAEILBEIGI R, CHARKHGARD H. The utilization of shared energy storage in energy systems:A comprehensive review[J]. IEEE Transactions on Smart Grid, 2021, 12(4):3163-3174. doi: 10.1109/TSG.2021.3061619
[13]	张国强, 郭文怡, 杨瑞琳, 等. 集中式共享储能商业模式与政策分析[J]. 电气时代, 2022(6):30-33.
	ZHANG Guoqiang, GUO Wenyi, YANG Ruilin, et al. Business model and policy analysis of centralized shared energy storage[J]. Electric Age, 2022(6):30-33.
[14]	孙偲, 陈来军, 邱欣杰, 等. 基于合作博弈的发电侧共享储能规划模型[J]. 全球能源互联网, 2019, 2(4):360-366.
	SUN Cai, CHEN Laijun, QIU Xinjie, et al. A generation-side shared energy storage planning model based on cooperative game[J]. Journal of Global Energy Interconnection, 2019, 2(4):360-366.
[15]	刘娟, 邹丹平, 陈毓春, 等. “互联网+”的客户侧分布式储能P2P共享模式运营机制及效益探讨[J]. 电网与清洁能源, 2020, 36(4):97-105.
	LIU Juan, ZOU Danping, CHEN Yuchun, et al. Discussions on operation mechanism and benefits of customer-side distributed energy storage P2P sharing mode of “Internet+”[J]. Power System and Clean Energy, 2020, 36(4):97-105.
[16]	刘敦楠, 赵宁宁, 李鹏飞, 等. 基于“共享储能-需求侧资源”联合跟踪可再生能源发电曲线的市场化消纳模式[J]. 电网技术, 2021, 45(7):2791-2802.
	LIU Dunnan, ZHAO Ningning, LI Pengfei, et al. Market-oriented consumption model based on the joint tracking of renewable energy generation curve of “shared energy storage & demand side resources”[J]. Power System Technology, 2021, 45(7):2791-2802.
[17]	SYED M, HANSEN P, MORRISON G. Performance of a shared solar and battery storage system in an Australian apartment building[J]. Energy and Buildings, 2020, 225:110321. doi: 10.1016/j.enbuild.2020.110321
[18]	陈岑, 武传涛, 康慨, 等. 基于改进Owen值法的分布式储能双层合作博弈优化策略[J]. 中国电机工程学报, 2022, 42(11):3924-3936.
	CHEN Cen, WU Chuantao, KANG Kai, et al. Optimal strategy of distributed energy storage two-layer cooperative game based on improved Owen-value method[J]. Proceedings of the CSEE, 2022, 42(11):3924-3936.
[19]	马昱欣, 胡泽春, 刁锐. 新能源场站共享储能提供调频服务的日前优化策略[J]. 电网技术, 2022, 46(10):3857-3868.
	MA Yuxin, HU Zechun, DIAO Rui. Day-ahead optimization strategy for shared energy storage of renewable energy power stations to provide frequency regulation service[J]. Power System Technology, 2022, 46(10):3857-3868.
[20]	YSX A, YL A, XQC A, et al. Research on the transaction mode and mechanism of grid-side shared energy storage market based on blockchain[J]. Energy Report, 2022, 8(2):224-229.
[21]	张巍, 卢骧. 点对点交易下储能聚合商共享自营多模式交易模型[J]. 电力系统自动化, 2022, 46(2):15-23.
	ZHANG Wei, LU Xiang. Sharing and self-operating multi-mode trading model of energy storage aggregators with peer-to-peer trade[J]. Automation of Electric Power Systems, 2022, 46(2):15-23.
[22]	康重庆, 刘静琨, 张宁. 未来电力系统储能的新形态:云储能[J]. 电力系统自动化, 2017, 41(21):8-14,22.
	KANG Chongqing, LIU Jingkun, ZHANG Ning. A new form of energy storge in future power system:Cloud energy storage[J]. Automation of Electric Power Systems, 2017, 41(21):8-14,22.
[23]	LIU Jingkun, ZHANG Ning, KANG Chongqing, et al. Cloud energy storage for residential and small commercial consumers: A business case study[J]. Applied Energy, 2017, 188:226-236. doi: 10.1016/j.apenergy.2016.11.120
[24]	SUN Lingling, QIU Jing, HAN Xiao, et al. Capacity and energy sharing platform with hybrid energy storage system: An example of hospitality industry[J]. Applied Energy, 2020, 280(4):115897. doi: 10.1016/j.apenergy.2020.115897
[25]	WANG Zhimin, GU Chenghong, LI Furong. Flexible operation of shared energy storage at households to facilitate PV penetration[J]. Renewable Energy, 2018, 116:438-446. doi: 10.1016/j.renene.2017.10.005
[26]	WANG Zhimin, GU Chenghong, LI Furong, et al. Active demand response using shared energy storage for household energy management[J]. IEEE Transactions on Smart Grid, 2013, 4(4):1888-1897. doi: 10.1109/TSG.2013.2258046
[27]	LOMBARDI P, SCHWABE F. Sharing economy as a new business model for energy storage systems[J]. Applied Energy, 2017, 188:485-496. doi: 10.1016/j.apenergy.2016.12.016
[28]	BUKHSH R, JAVAID N, ABBASI R A, et al. An efficient fog as a power economy sharing service[J]. IEEE Access, 2019, 7:185012-185027. doi: 10.1109/Access.6287639
[29]	刘亚锦, 代航, 刘志坚, 等. 面向多类型工业用户的分散式共享储能配置及投资效益分析[J]. 电力自动化设备, 2021, 41(10):256-264.
	LIU Yajin, DAI Hang, LIU Zhijian, et al. Configuration and investment benefit analysis of decentralized shared energy storage for multiple types of industrial users[J]. Electric Power Automation Equipment, 2021, 41(10):256-264.
[30]	董凌, 年珩, 范越, 等. 能源互联网背景下共享储能的商业模式探索与实践[J]. 电力建设, 2020, 41(4):38-44.
	DONG Ling, NIAN Heng, FAN Yue, et al. Exploration and practice of business model of shared energy storage in energy internet[J]. Electric Power Construction, 2020, 41(4):38-44. doi: 10.3969/j.issn.1000-7229.2020.04.005
[31]	LIU Jichun, CHEN Xue, XIANG Yue, et al. Optimal planning and investment benefit analysis of shared energy storage for electricity retailers[J]. International Journal of Electrical Power & Energy Systems, 2021, 126(6):106561. doi: 10.1016/j.ijepes.2020.106561
[32]	STERIOTIS K, TSAOUSOGLOU G, EFTHYMIOPOULOS N, et al. Real-time pricing in environments with shared energy storage systems[J]. Energy Efficiency, 2019, 12(5):1085-1104. doi: 10.1007/s12053-018-9723-8
[33]	简川黔, 刘继春, 蒲天骄, 等. 共建共享模式下考虑需求响应的多售电主体风光储容量优化方法[J]. 电力自动化设备, 2021, 41(9):206-214.
	JIAN Chuanqian, LIU Jichun, PU Tianjiao, et al. Wind-photovoltaic-storage capacity optimization method for multiple electricity sell entities considering demand response under co-construction and sharing mode[J]. Electric Power Automation Equipment, 2021, 41(9):206-214.
[34]	江岳文, 郑晨昕. 风电场群联合共享储能两阶段协同并网优化[J]. 电网技术, 2022, 46(9):3426-3439.
	JIANG Yuewen, ZHENG Chenxin. Two-stage operation optimization for a grid-connected wind farm cluster with shared energy storage[J]. Power System Technology, 2022, 46(9):3426-3439.
[35]	刘国静, 李琥, 李冰洁, 等. 基于系统动力学的共享储能政策效应分析[J]. 储能科学与技术, 2022, 11(11):3708-3719.
	LIU Guojing, LI Hu, LI Bingjie, et al. Effect analysis of shared energy storage policy based on system dynamics[J]. Energy Storage Science and Technology, 2022, 11(11):3708-3719.
[36]	邱伟强, 王茂春, 林振智, 等. “双碳”目标下面向新能源消纳场景的共享储能综合评价[J]. 电力自动化设备, 2021, 41(10):244-255.
	QIU Weiqiang, WANG Maochun, LIN Zhenzhi, et al. Comprehensive evaluation of shared energy storage towards new energy accommodation scenario under targets of carbon emission peak and carbon neutrality[J]. Electric Power Automation Equipment, 2021, 41(10):244-255.
[37]	蒋从伟, 欧庆和, 吴仲超, 等. 基于联盟博弈的多微网共享储能联合配置与优化[J]. 中国电力, 2022, 55(12):11-21.
	JIANG Congwei, OU Qinghe, WU Zhongchao, et al. Joint configuration and utility analysis of multi-microgrid shared energy storage based on alliance game[J]. Electric Power, 2022, 55(12):11-21.
[38]	俞容江, 陈致远, 尹建兵, 等. 第三方投资共享储能电站商业模式及其经济性评价[J]. 南方电网技术, 2022, 16(4):78-85.
	YU Rongjiang, CHEN Zhiyuan, YIN Jianbing, et al. Business model and economic evaluation of third-party invested and shared energy storage[J]. Southern Power System Technology, 2022, 16(4):78-85.
[39]	杨帆, 王维庆, 程静, 等. 基于误差分配原则的发电侧共享储能容量规划研究[J]. 电力系统保护与控制, 2022, 50(7):91-102.
	YANG Fan, WANG Weiqing, CHEN Jing, et al. Capacity planning of shared energy storage on the generation side based on the error distribution principle[J]. Power System Protection and Control, 2022, 50(7):91-102.
[40]	帅轩越, 王秀丽, 吴雄, 等. 计及电热需求响应的共享储能容量配置与动态租赁模型[J]. 电力系统自动化, 2021, 45(19):24-32.
	SHUAI Xuanyue, WANG Xiuli, WU Xiong, et al. Shared energy storage capacity allocation and dynamic lease model considering electricity-heat demand response[J]. Automation of Electric Power Systems, 2021, 45(19):24-32.
[41]	王珣, 刘瑾, 沈玮. 基于区块链技术的非合作博弈共享储能交易模型[J]. 南京信息工程大学学报, 2022, 14(5):595-603.
	WANG Xun, LIU Jin, SHEN Wei. Non-cooperative game trading model of shared energy storage based on blockchain[J]. Journal of Nanjing University of Information Science & Technology, 2022, 14(5):595-603.
[42]	陈玥, 刘锋, 魏韡, 等. 需求侧能量共享:概念、机制与展望[J]. 电力系统自动化, 2021, 45(2):1-11.
	CHEN Yue, LIU Feng, WEI Wei, et al. Energy sharing at demand side:Concept,mechanism and prospect[J]. Automation of Electric Power Systems, 2021, 45(2):1-11.
[43]	PAUDEL A, CHAUDHARI K, LONG Chao, et al. Peer-to-peer energy trading in a prosumer-based community microgrid:A game-theoretic model[J]. IEEE Transactions on Industrial Electronics, 2018, 66(8):6087-6097. doi: 10.1109/TIE.2018.2874578
[44]	张青苗, 陈来军, 马恒瑞, 等. 基于主从博弈的共享储能分时电价策略[J]. 智慧电力, 2022, 50(7):82-88.
	ZHANG Qingmiao, CHEN Laijun, MA Hengrui, et al. Time-of-use price strategy for shared energy storage based on stackelberg game[J]. Smart Power, 2022, 50(7):82-88.
[45]	MOTALLEB M, GHORBANI R. Non-cooperative game-theoretic model of demand response aggregator competition for selling stored energy in storage devices[J]. Applied Energy, 2017, 202(15):581-596. doi: 10.1016/j.apenergy.2017.05.186
[46]	ZHANG Rongqing, CHENG Xiang, YANG Liuqing. Energy management framework for electric vehicles in the smart grid:A three-party game[J]. IEEE Communications Magazine, 2016, 54(12):93-101.
[47]	帅轩越, 马志程, 王秀丽, 等. 基于主从博弈理论的共享储能与综合能源微网优化运行研究[J]. 电网技术, 2023, 47(2):679-690.
	SHUAI Xuanyue, MA Zhicheng, WANG Xiuli, et al. Research on optimal operation of shared energy storage and integrated energy microgrid based on leader-follower game theory[J]. Power System Technology, 2023, 47(2):679-690.
[48]	ZHENG Boshen, WEI Wei, CHEN Yue, et al. A peer-to-peer energy trading market embedded with residential shared energy storage units[J]. Applied Energy, 2022, 308:118400. doi: 10.1016/j.apenergy.2021.118400
[49]	ANEES A, DILLON T, CHEN Y. A novel decision strategy for a bilateral energy contract[J]. Applied Energy, 2019, 253:113571.1-113571.13.
[50]	裴佑, 裴哲义, 邱伟强, 等. 基于区块链的共享储能联合调频分散交易机制设计[J]. 电力自动化设备, 2021, 41(10):138-145.
	PEI You, PEI Zheyi, QIU Weiqiang, et al. Design of decentralized trading mechanism for shared energy storage joint frequency regulation based on blockchain[J]. Electric Power Automation Equipment, 2021, 41(10):138-145.
[51]	ESMAT A, DEVOS M, GHIASSI-FARROKHFAL Y, et al. A novel decentralized platform for peer-to-peer energy trading market with blockchain technology[J]. Applied Energy, 2021, 282:116-123.
[52]	TUSHAR W, CHAI B, YUEN C, et al. Energy storage sharing in smart grid:A modified auction based approach[J]. IEEE Transactions on Smart Grid, 2016, 7(3):1462-1475. doi: 10.1109/TSG.2015.2512267
[53]	孙偲, 郑天文, 陈来军, 等. 基于组合双向拍卖的共享储能机制研究[J]. 电网技术, 2020, 44(5):1732-1739.
	SUN Cai, ZHENG Tianwen, CHEN Laijun, et al. Energy storage sharing mechanism based on combinatorial double auction[J]. Power System Technology, 2020, 44(5):1732-1739.
[54]	刘继春, 陈雪, 向月. 考虑共享模式的市场机制下售电公司储能优化配置及投资效益分析[J]. 电网技术, 2020, 44(5):1740-1750.
	LIU Jichun, CHEN Xue, XIANG Yue. Optimal sizing and investment benefit analysis for energy storage of electricity retailers under market mechanisms considering shared mode[J]. Power System Technology, 2020, 44(5):1740-1750.
[55]	HAN Liyang, MORSTYN T, MCCULLOCH M. Constructing prosumer coalitions for energy cost savings using cooperative game theory[C]// 2018 Power Systems Computation Conference(PSCC), June 11-15,2018,Dublin,Ireland. IEEE, 2018:1-7.
[56]	李咸善, 方子健, 李飞, 等. 含多微电网租赁共享储能的配电网博弈优化调度[J]. 中国电机工程学报, 2022, 42(18):6611-6625.
	LI Xianshan, FANG Zijian, LI Fei, et al. Game-based optimal dispatching strategy for distribution network with multiple microgrids leasing shared energy storage[J]. Proceedings of the CSEE, 2022, 42(18):6611-6625.
[57]	黄铖, 刘海涛, 马丙泰, 等. 基于纳什谈判的共享储能电站优化运行研究[J]. 电力建设, 2022, 43(2):1-9. doi: 10.12204/j.issn.1000-7229.2022.02.001
	HUANG Cheng, LIU Haitao, MA Bingtai, et al. Research on optimal operation of shared energy-storage power station applying Nash negotiation[J]. Electric Power Construction, 2022, 43(2):1-9. doi: 10.12204/j.issn.1000-7229.2022.02.001
[58]	刘轶涵, 徐青山, 杨永标, 等. 计及配电网潮流约束下基于广义纳什议价理论的工业用户共享储能配置[J]. 电网技术, 2023, 47(2):571-585.
	LIU Yihan, XU Qingshan, YANG Yongbiao, et al. Distribution network power flow constrained shared energy storage configuration for industrial consumers based on generalized nash bargaining theory[J]. Power System Technology, 2023, 47(2):571-585.
[59]	CHEN Yue, MEI Shengwei, ZHOU Fengyu, et al. An energy sharing game with generalized demand bidding:Model and properties[J]. IEEE Transactions on Smart Grid, 2020, 11(3):2055-2066. doi: 10.1109/TSG.5165411
[60]	李咸善, 王苗. 考虑源荷不确定性的多微电网鲁棒优化调度与VCG机制竞价策略[J/OL]. 电网技术:1-15[2022-07-30]. DOI:10.13335/j.1000-3673.pst.2022.0843. doi: 10.13335/j.1000-3673.pst.2022.0843
	LI Xianshan, WANG Miao. Robust optimal scheduling of multi-microgrid and bidding strategy of VCG mechanism considering renewable energy-load uncertainty[J/OL]. Power System Technology:1-15[2022-07-30]. DOI:10.13335/j.1000-3673.pst.2022.0843. doi: 10.13335/j.1000-3673.pst.2022.0843
[61]	安麒, 王剑晓, 武昭原, 等. 高比例可再生能源渗透下的电力市场价值分配机制设计[J]. 电力系统自动化, 2022, 46(7):13-22.
	AN Qi, WANG Jianxiao, WU Zhaoyuan, et al. Benefit allocation mechanism design of electricity markets with penetration of high proportion of renewable energy[J]. Automation of Electric Power Systems, 2022, 46(7):13-22.
[62]	CHAKRABORTY P, BAEYENS E, POOLLA K, et al. Sharing storage in a smart grid:A coalitional game approach[J]. IEEE Transactions on Smart Grid, 2019, 10(4):4379-4390. doi: 10.1109/TSG.5165411
[63]	帅轩越, 王秀丽, 吴雄, 等. 计及条件风险价值下基于合作博弈的多微网协同优化调度[J]. 电网技术, 2022, 46(1):130-138.
	SHUAI Xuanyue, WANG Xiuli, WU Xiong, et al. Cooperative optimal scheduling of multi-microgrids based on cooperative game considering conditional value at risk[J]. Power System Technology, 2022, 46(1):130-138.
[64]	QI Wei, SHEN Bo, ZHANG Hongcai, et al. Sharing demand-side energy resources:A conceptual design[J]. Energy, 2017, 135:455-465. doi: 10.1016/j.energy.2017.06.144
[65]	李咸善, 解仕杰, 方子健, 等. 多微电网共享储能的优化配置及其成本分摊[J]. 电力自动化设备, 2021, 41(10):44-51.
	LI Xianshan, XIE Shijie, FANG Zijian, et al. Optimal configuration of shared energy storage for multi-microgrid and its cost allocation[J]. Electric Power Automation Equipment, 2021, 41(10):44-51.
[66]	HAN Liyang, MORSTYN T, MCCULLOCH M. Estimation of the shapley value of a peer-to-peer energy sharing game using coalitional stratified random sampling[J]. International Journal of Control,Automation and Systems, 2021, 19:1863-1872. doi: 10.1007/s12555-019-0535-1
[67]	HAN Liyang, MORSTYN T, MCCULLOCH M. Incentivizing prosumer coalitions with energy management using cooperative game theory[J]. IEEE Transactions on Power Systems, 2018, 34(1):303-313. doi: 10.1109/TPWRS.2018.2858540
[68]	MEI Jie, CHEN Chen, WANG Jianhui, et al. Coalitional game theory based local power exchange algorithm for networked microgrids[J]. Applied Energy, 2019, 239:133-141. doi: 10.1016/j.apenergy.2019.01.208
[69]	YANG Yu, HU Guoqiang, SPANOS C J. Optimal sharing and fair cost allocation of community energy storage[J]. IEEE Transactions on Smart Grid, 2021, 12(5):4185-4194. doi: 10.1109/TSG.2021.3083882

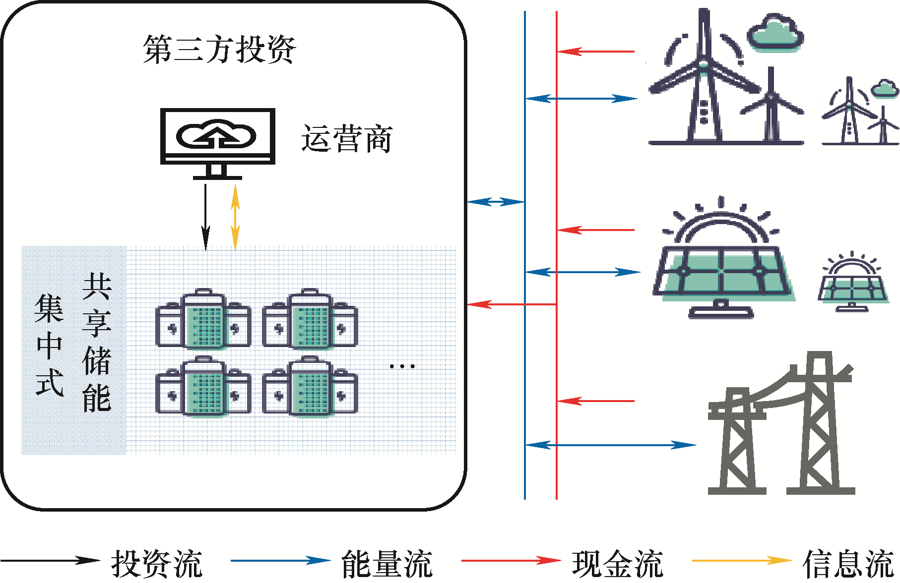

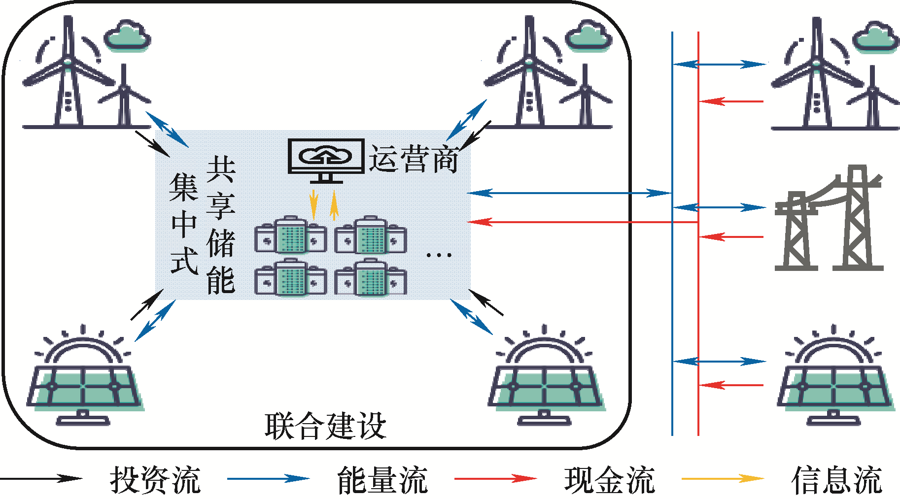

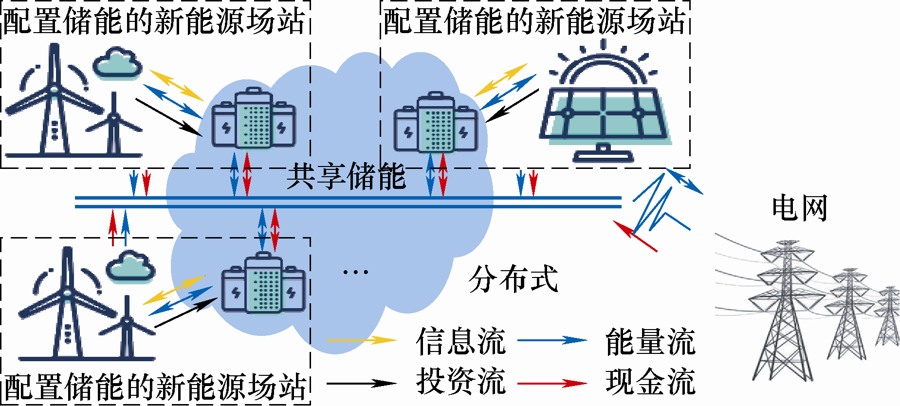

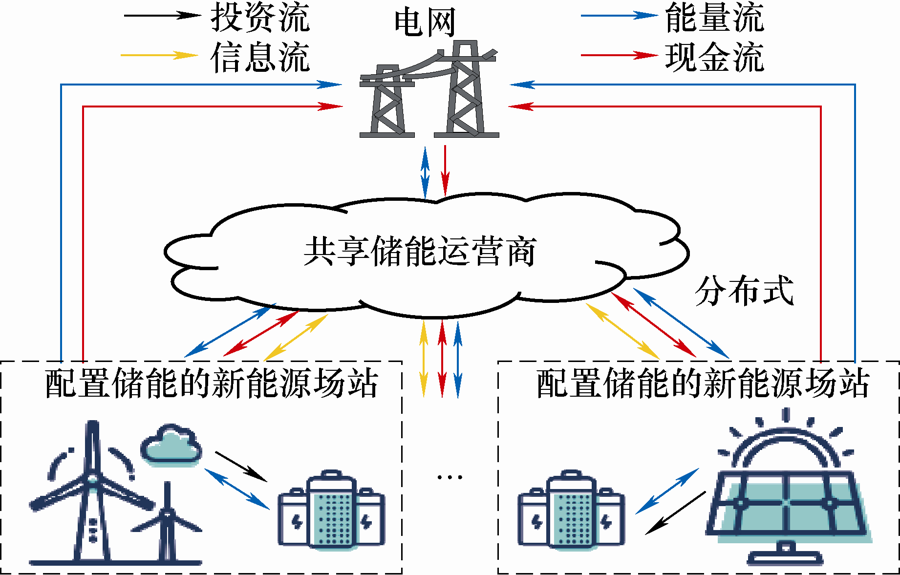

基本结构		运营机制
分类	适用对象	分类	特点
分散式	自行配置储能的单体发电量较大的新能源场站	各主体间自由交易	易实现，但互动机制复杂、风险较大
分散式	自行配置储能的单体发电量较大的新能源场站	运营商统一管理	需要支付费用，但可使共享储能发挥最大利用价值
集中式	单体发电量较小的新能源场站，自配储能时利用率不高、经济性较差	需求满足型	多个新能源场站为满足自身调节需求，联合投资共同建设共享储能
集中式	单体发电量较小的新能源场站，自配储能时利用率不高、经济性较差	利益驱动型	第三方主体出于盈利目的，应对多主体调节需求投建共享储能

模式分类		优点	缺点	使用场景
非合作博弈	双边交易	具有灵活性、自发性，可充分调度多主体参与的积极性	定价结构复杂，需要承担价格与交易量的风险	参与者数量较少的场景
非合作博弈	拍卖	可准确反映多主体间供需关系与偏好行为	存在过度竞争、不正当合作与非真实信息等缺陷	参与者数量较多，主体偏好行为复杂的场景
合作博弈		可权衡多方利益诉求，防止不良竞争	联盟不稳定、无法兼顾个体理性与整体理性	参与者多数处在竞争关系中，且存在利益冲突的场景

策略类型	优点	缺点	使用场景
VCG机制	高效，获得与其他主体相关利润	难以实现预算平衡，需要额外激励	有相关政策补贴的场景
Shapley值法	公平，按边际贡献分配	计算复杂程度大，可导致联盟不稳定	适用于参与储能共享的主体较多，且存在利益冲突的场景
核仁法	快速，按平均主义分配	复杂程度随参与者数量呈几何倍数增加	适用于参与储能共享的主体较多，且存在利益冲突的场景
