基于非线性电导绝缘的随桥敷设高压直流电缆接头电-热场分布及优化设计*

doi:10.11985/2022.02.026

电气工程学报 ›› 2022, Vol. 17 ›› Issue (2): 226-234.doi: 10.11985/2022.02.026

扫码分享

基于非线性电导绝缘的随桥敷设高压直流电缆接头电-热场分布及优化设计^*

李捍平¹(), 丛贇¹(), 李小炳¹(), 张振鹏²(), 刘勇³()

1.国网浙江省电力有限公司舟山供电公司舟山 316000
2.中国电力科学研究院有限公司武汉 430074
3.天津大学电气自动化与信息工程学院天津 300072

收稿日期:2021-10-24 修回日期:2022-03-22 出版日期:2022-06-25 发布日期:2022-08-08
通讯作者: 刘勇 E-mail:lihanping@126.com;congyun198708@gmail.com;34084056@qq.com;13971276891@163.com;tjuliuyong@tju.edu.cn
作者简介:李捍平,男,1971年生,高级工程师。主要研究方向为电力工程技术管理、智能变电站模块化技术等。E-mail： lihanping@126.com
丛贇,男,1987年生,高级工程师。主要研究方向为电力工程技术管理、智能变电站模块化技术等。E-mail： congyun198708@gmail.com
李小炳,男,1981年生,高级工程师。主要研究方向为电力工程技术管理。E-mail： 34084056@qq.com
张振鹏,男,1980年生,博士,高级工程师。主要研究方向为电力电缆运维及高压绝缘技术。E-mail： 13971276891@163.com
基金资助:
*国家自然科学基金资助项目(51707133)

Electrical-thermal Field Distributions and Optimal Design of Bridge-along HVDC Cable Joints Based on Nonlinear Conductive Insulation

LI Hanping¹(), CONG Yun¹(), LI Xiaobing¹(), ZHANG Zhenpeng²(), LIU Yong³()

1. Zhoushan Power Supply Company, State Grid Zhejiang Electric Power Co., Ltd., Zhoushan 316000
2. China Electric Power Research Institute, Wuhan 430074
3. School of Electrical and Information Engineering, Tianjin University, Tianjin 300072

Received:2021-10-24 Revised:2022-03-22 Online:2022-06-25 Published:2022-08-08
Contact: LIU Yong E-mail:lihanping@126.com;congyun198708@gmail.com;34084056@qq.com;13971276891@163.com;tjuliuyong@tju.edu.cn

摘要/Abstract

摘要：

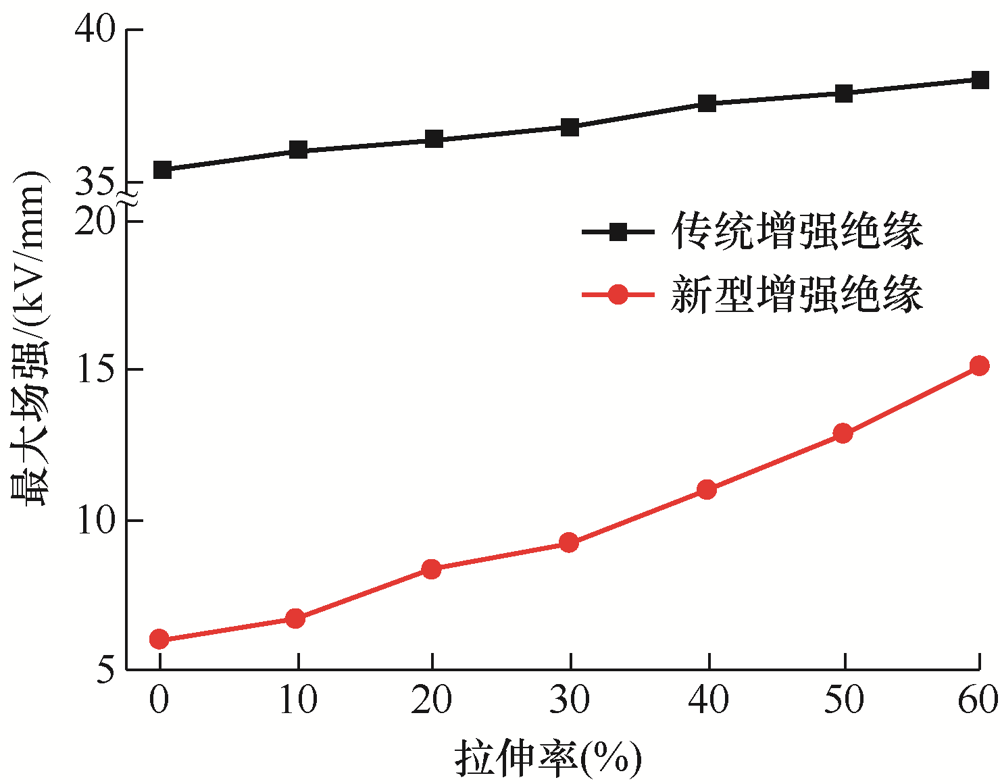

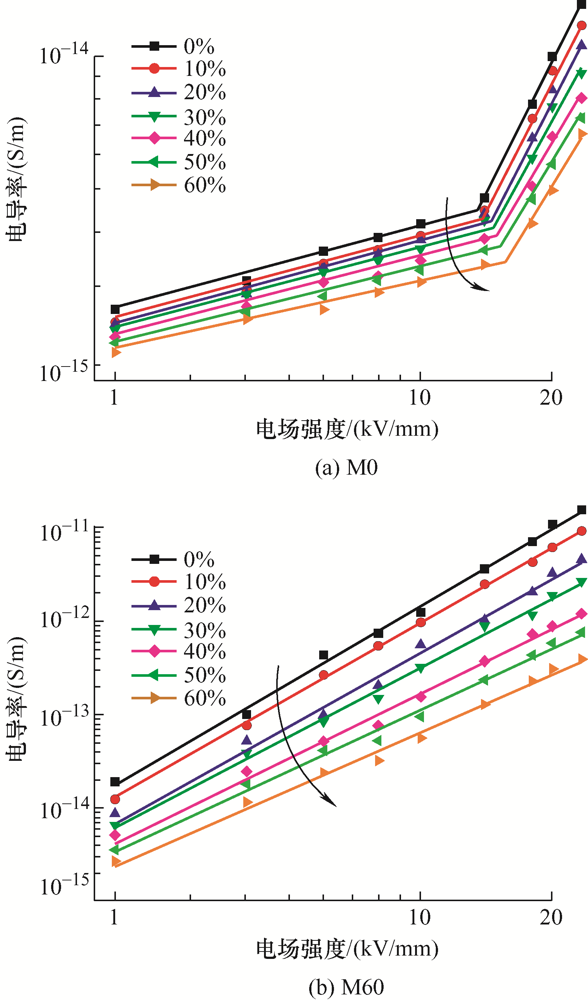

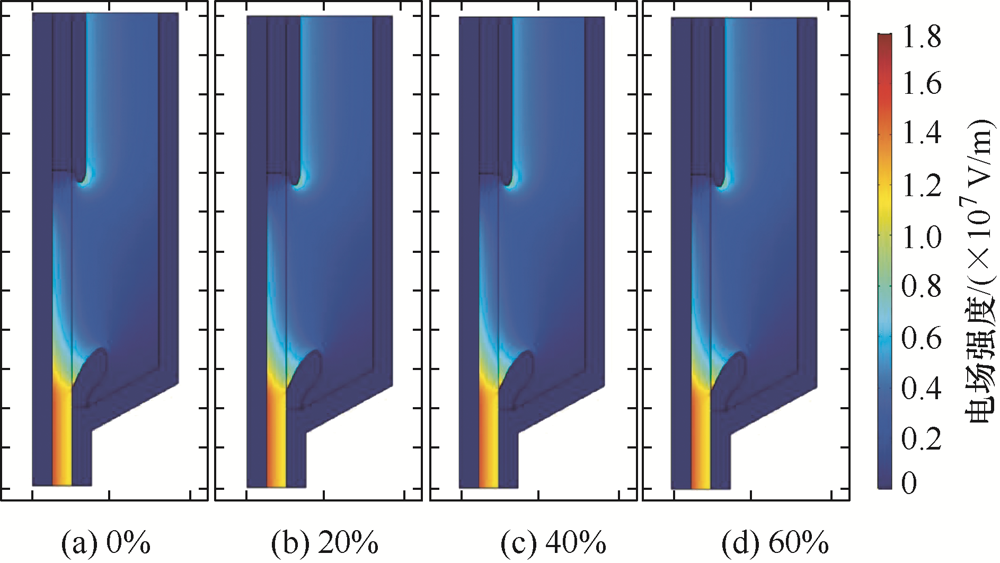

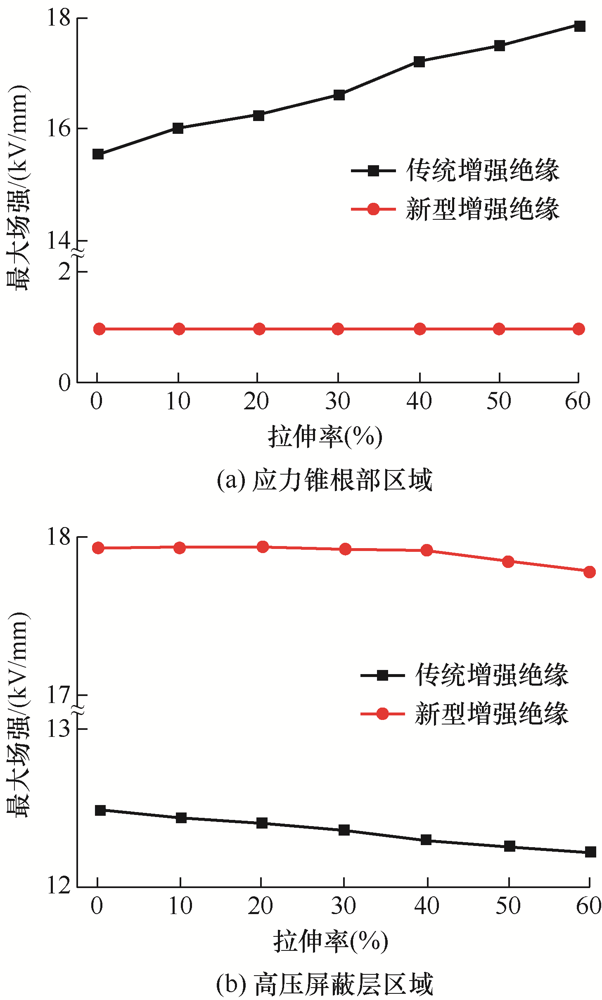

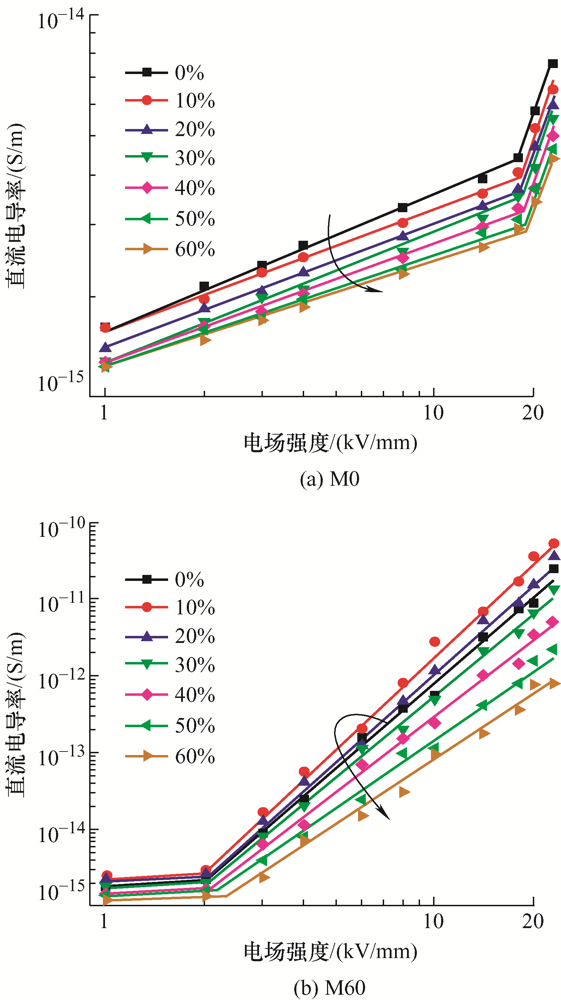

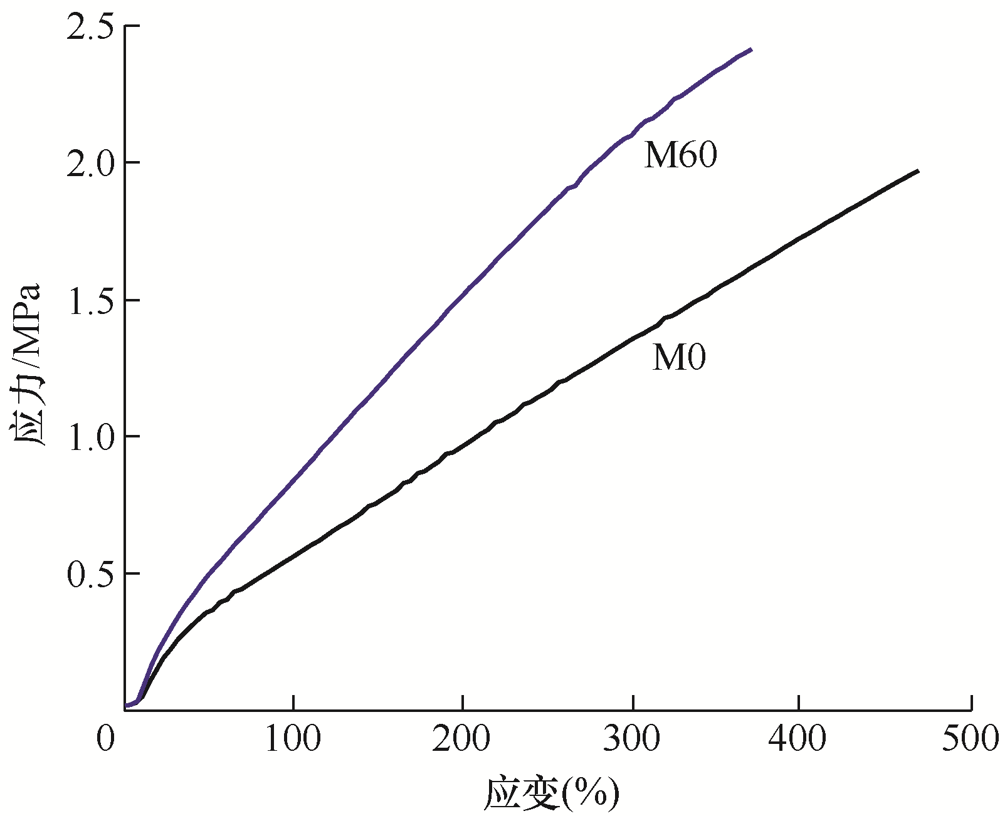

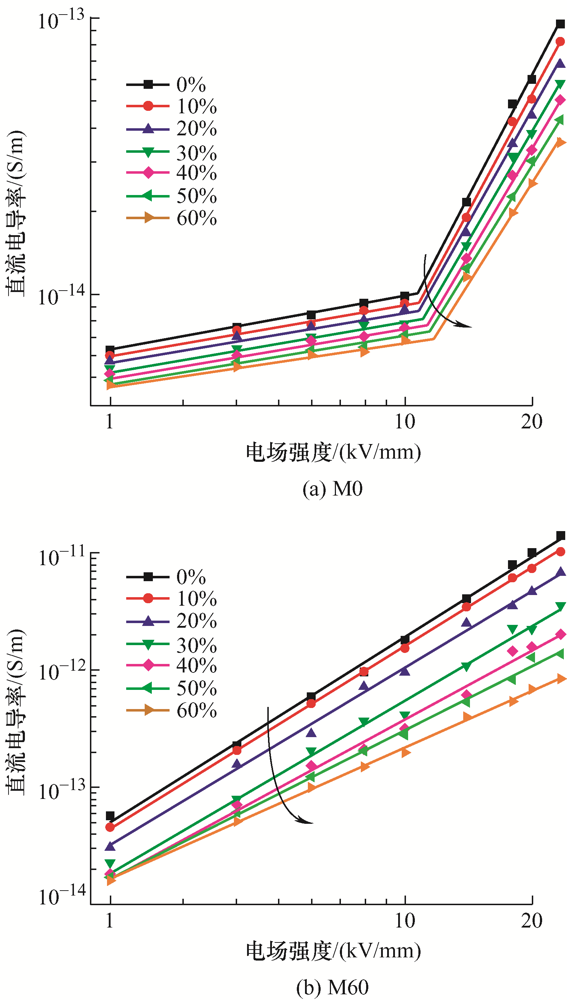

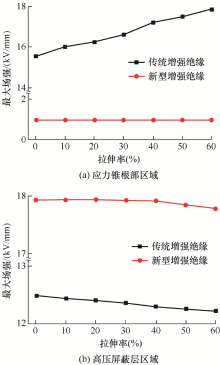

针对随桥敷设高压直流电缆接头绝缘电-热场分布问题,开展基于非线性电导增强绝缘的高压直流电缆接头电场优化设计方法研究,探究电-热-机械应力多物理场作用下聚合物绝缘材料的非线性电导率特性对直流电缆接头绝缘电场分布的影响规律,分析高压直流电缆接头增强绝缘优化设计方法。结果表明,碳化硅(Silicon carbide, SiC)掺杂大幅增强了硅橡胶绝缘的非线性电导率,提高了硅橡胶绝缘的非线性系数参数,降低了非线性电导率的阈值电场强度。当桥梁梁箱温度达到40 ℃时,直流电缆满载运行条件下电缆接头最大场强位于应力锥根部,达到40 kV/mm;非线性电导复合绝缘可显著降低中间接头应力锥三结合点处电场强度,抑制附件增强绝缘的电场畸变。采用非线性电导硅橡胶绝缘作为高压直流电缆接头增强绝缘材料,可弥补电缆接头应力锥无法有效抑制接头绝缘直流电场畸变的不足。研究结果可为随桥敷设高压直流电缆接头绝缘电场调控与设计提供理论与试验基础。

关键词: 随桥敷设电缆, 直流电缆接头, 聚合物绝缘, 非线性电导, 电热复合场

Abstract:

Aiming at the uniform distribution of electric-thermal coupling field in the HVDC cable joints laying along bridges, the electric field of HVDC cable joints is optimized and designed based on nonlinear conductive insulation in this paper. The influence of the non-linear conductivity characteristics of polymer insulating materials on the distribution of the insulation electric field of DC cable joints under the multi-filed of electrical, thermal and mechanical stress is studied, and the optimization design for the reinforced insulation of HVDC cable joints is analyzed. The results show that the nonlinear conductivity of the silicone rubber is greatly enhanced by doping silicon carbide(SiC) nanofillers, the electric field strength coefficient of the silicone rubber insulation are improved, and the threshold electric field strength of conductivity entering the nonlinear region is reduced. When the ambient temperature in the bridge beam box reaches 40 ºC, the maximum field in the cable joint is up to 40 kV/mm, located at the root of stress cone. The distortion of electric field of stress cone in the UHVDC cable joint are obviously suppressed by the modified silicone rubber reinforced insulation material. The modified silicone rubber, used as the reinforced insulating material for UHVDC cable joints, can make up for the insufficient that the field distortion in the joint cannot be suppressed effectively by adjusting the structural size of cable joints. The research can play an import role in the electric field modification and design of bridge-along HVDC cable joints.

Key words: Bridge-along cables, HVDC cable joints, polymer insulation, nonlinear conductivity, electrical and thermal field

中图分类号:

TM215

李捍平, 丛贇, 李小炳, 张振鹏, 刘勇. 基于非线性电导绝缘的随桥敷设高压直流电缆接头电-热场分布及优化设计^*[J]. 电气工程学报, 2022, 17(2): 226-234.

LI Hanping, CONG Yun, LI Xiaobing, ZHANG Zhenpeng, LIU Yong. Electrical-thermal Field Distributions and Optimal Design of Bridge-along HVDC Cable Joints Based on Nonlinear Conductive Insulation[J]. Journal of Electrical Engineering, 2022, 17(2): 226-234.

图/表 16

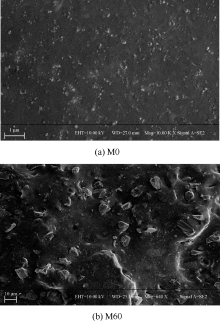

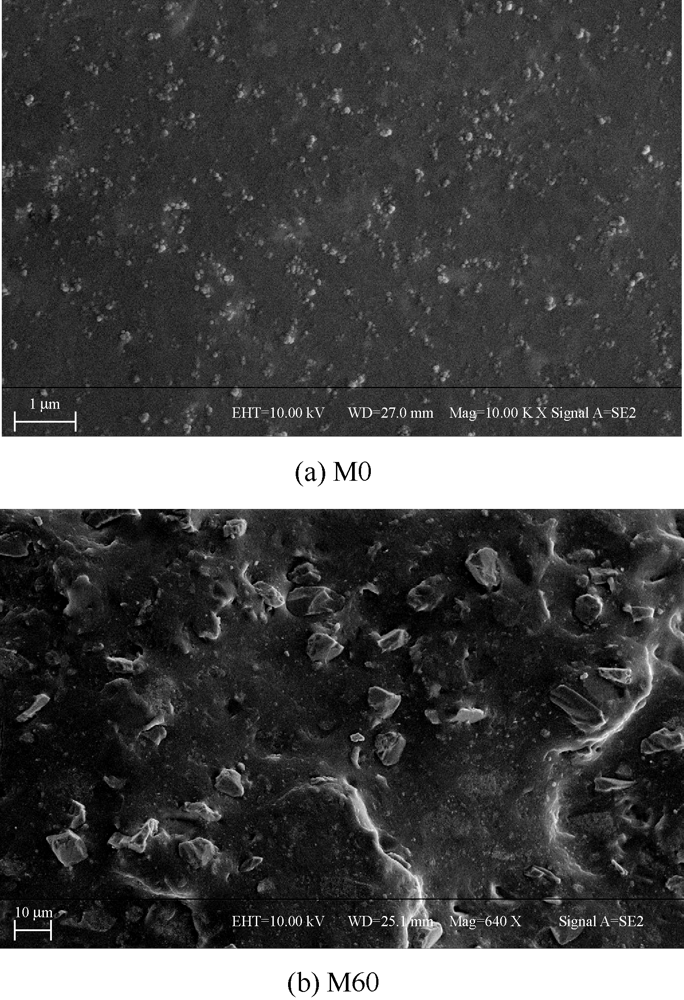

图1

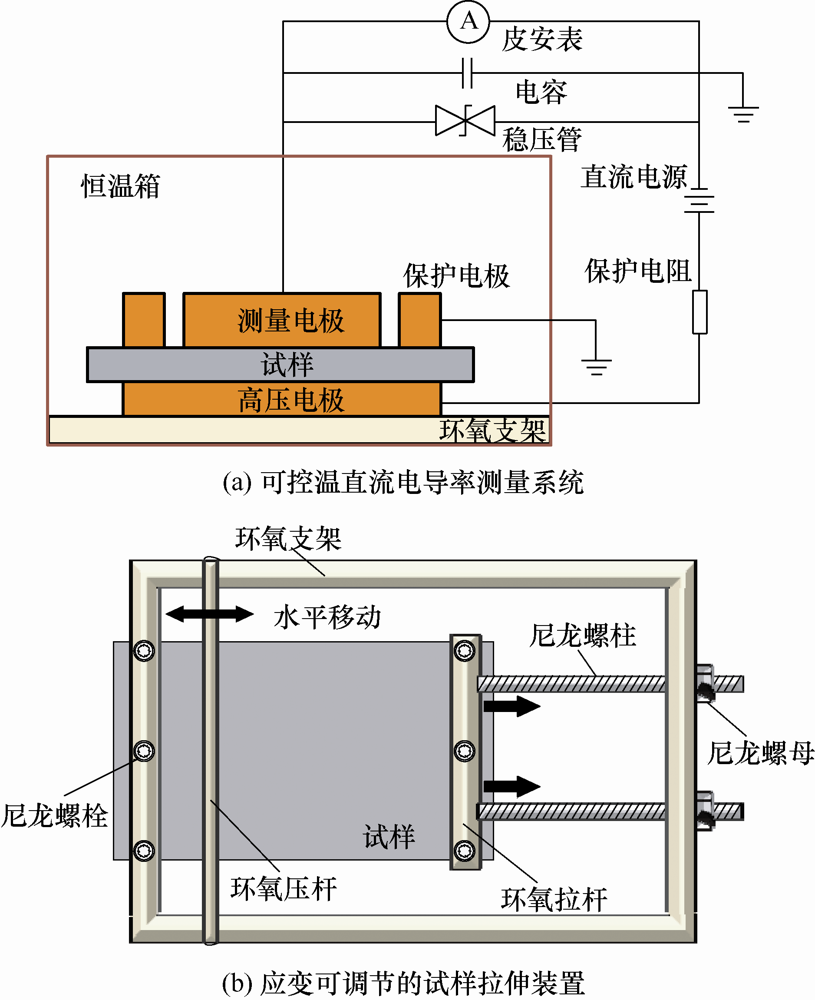

图2

图3

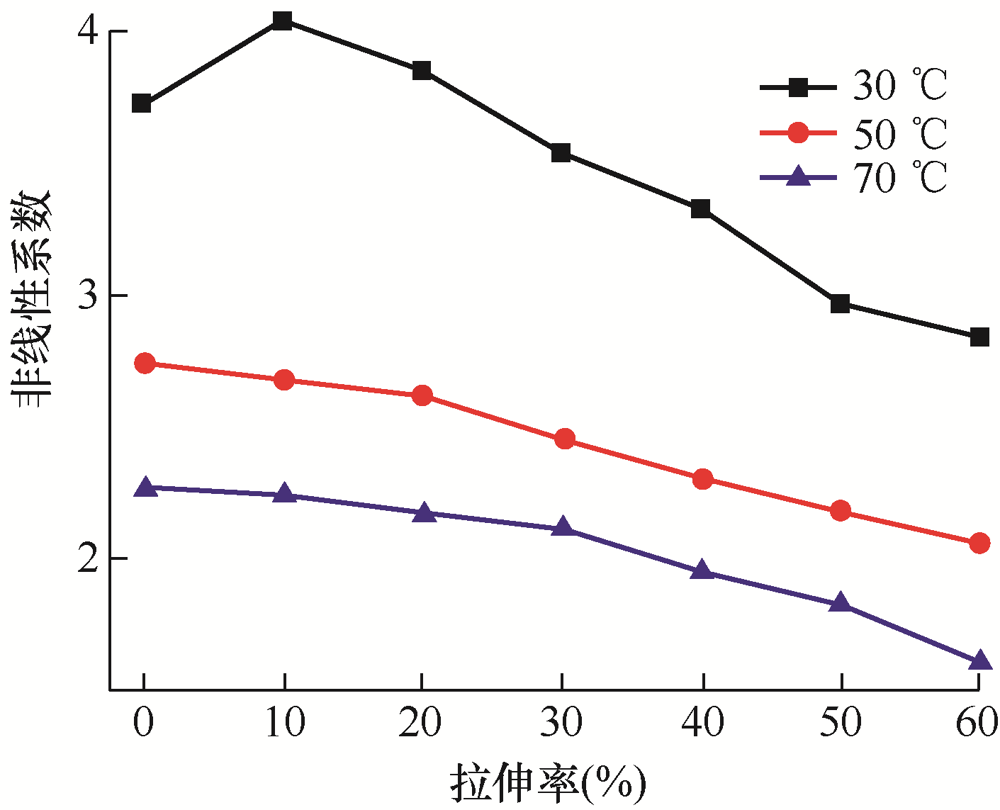

图4

表1

图5

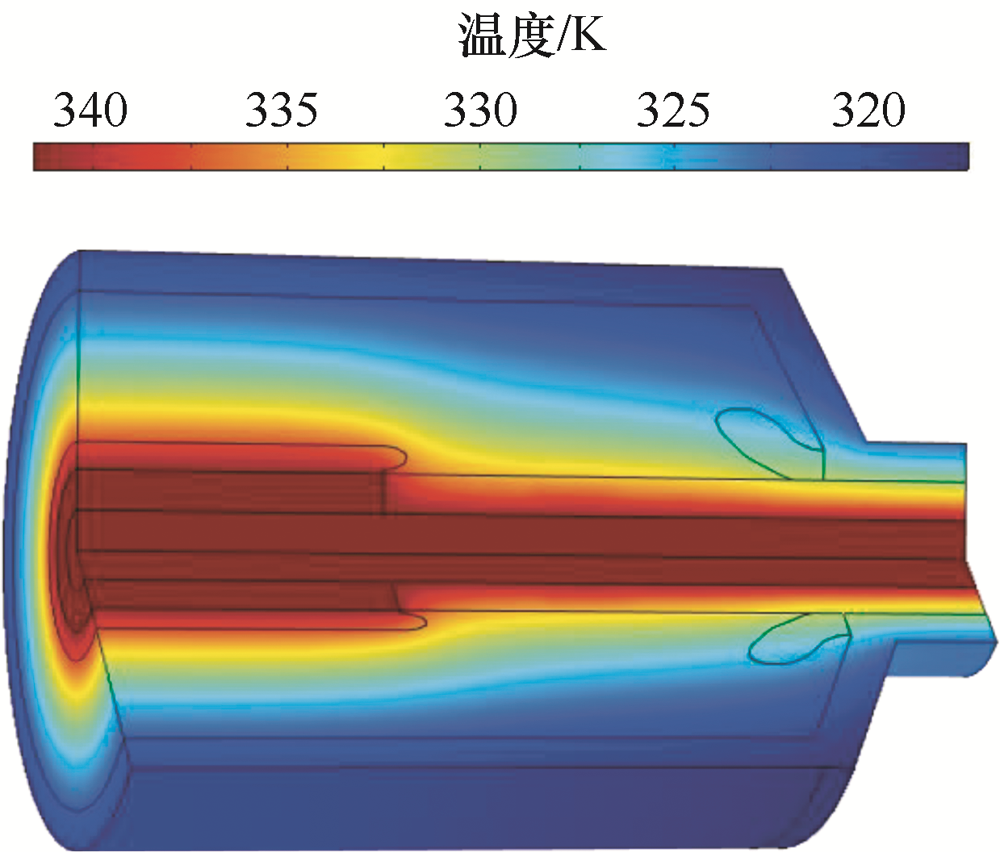

图6

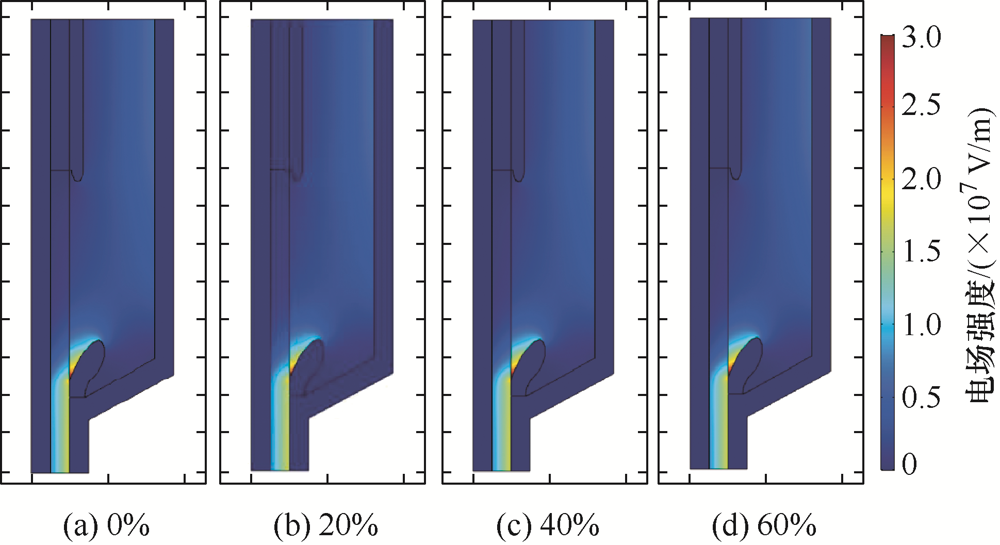

图7

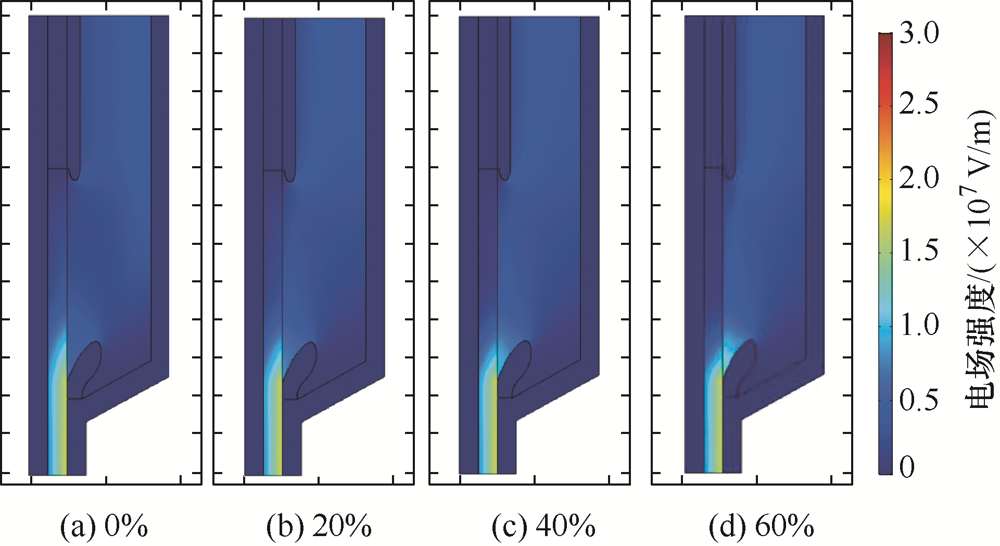

图8

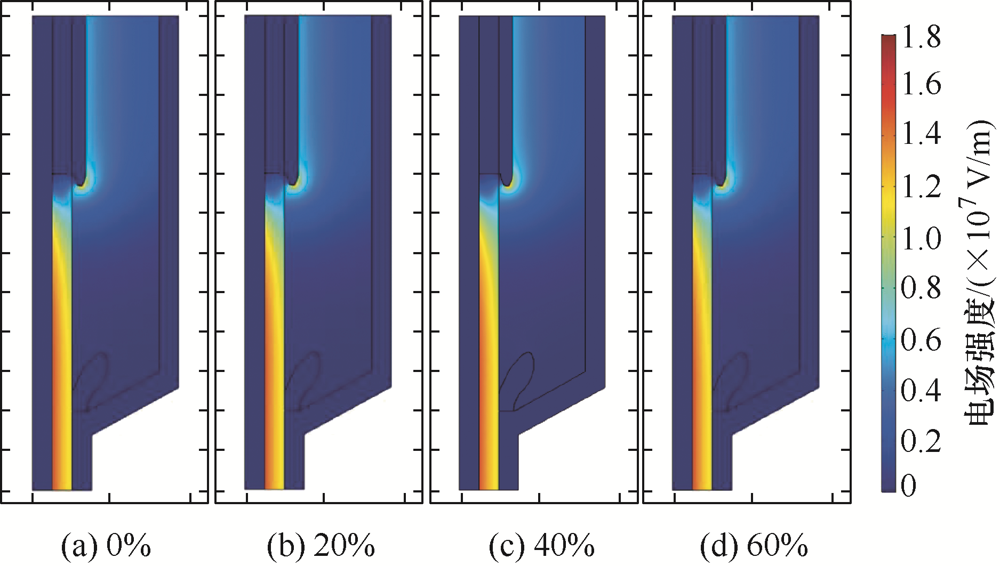

图9

图10

图11

图12

图13

图14

图15

参考文献 16

[1]	李程. 随桥敷设高压电缆技术在舟山群岛新区的规划应用研究[D]. 北京: 华北电力大学, 2017.
	LI Cheng. The analysis and design of high voltage cable laying along bridges technology in the new district of Zhoushan Islands[D]. Beijing: North China Electric Power University, 2017.
[2]	钟宇军, 李程, 孙建生, 等. 国内外桥梁敷设电力电缆的可行性对比分析及建议[J]. 浙江电力, 2016, 35(7):16-19.
	ZHONG Yujun, LI Cheng, SUN Jiansheng, et al. Comparative analysis on the feasibility of bridge-along power cable laying both at home and abroad and the suggestions[J]. Zhejiang Electric Power, 2016, 35(7):16-19.
[3]	胡世勋, 张雅茹, 邵清, 等. 不同改性技术路线的聚丙烯基高压直流电缆绝缘材料综合性能比较[J]. 中国电机工程学报, 2022, 42(4):1243-1252.
	HU Shixun, ZHANG Yaru, SHAO Qing, et al. Comprehensive performance comparisons of polypropylene-based HVDC cable insulating materials adopting different modification technical routes[J]. Proceedings of the CSEE, 2022, 42(4):1243-1252.
[4]	苏金刚. 基于高压直流电缆附件的EPDM电树枝生长机理与抑制方法研究[D]. 天津: 天津大学, 2019.
	SU Jingang. Growth mechanism and suppression methods of electrical tree in EPDM for HVDC cable accessory[D]. Tianjin: Tianjin University, 2019.
[5]	WANG X, WANG C C, WU K, et al. An improved optimal design scheme for high voltage cable accessories[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2014, 21(1):5-15. doi: 10.1109/TDEI.2013.004102
[6]	LI Z L, DU B X, YANG Z R, et al. Effects of crystal morphology on space charge transportation and dissipation of SiC/silicone rubber composites[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2017, 24(4):2616-2625. doi: 10.1109/TDEI.2017.006388
[7]	VU T T N, TEYSSEDRE G, VISSOUVANADIN B, et al. Correlating conductivity and space charge measurements in multi-dielectrics under various electrical and thermal stresses[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2015, 22(1):117-127. doi: 10.1109/TDEI.2014.004507
[8]	陈庆国, 秦艳军, 尚南强, 等. 温度对高压直流电缆中间接头内电场分布的影响分析[J]. 高电压技术, 2014, 40(9):2619-2626.
	CHEN Qingguo, QIN Yanjun, SHANG Nanqiang, et al. Influence analysis of temperature on electric-field distribution in HVDC cable joint[J]. High Voltage Engineering, 2014, 40(9):2619-2626.
[9]	韩宝忠, 郭文敏, 李忠华. 碳化硅/硅橡胶复合材料的非线性电导特性[J]. 功能材料, 2008, 39(9):1490-1493.
	HAN Baozhong, GUO Wenmin, LI Zhonghua. Nonlinear conductivity characteristics of silicon carbide/silicone rubber composites[J]. Journal of Functional Materials, 2008, 39(9):1490-1493.
[10]	迟庆国, 崔爽, 张天栋, 等. 碳化硅晶须/环氧树脂复合介质非线性电导特性研究[J]. 电工技术学报, 2020, 35(20):4405-4414.
	CHI Qingguo, CUI Shuang, ZHANG Tiandong, et al. Study on nonlinear characteristics on conductivity of silicon carbide whisker/epoxy resin composites[J]. Transactions of China Electrotechnical Society, 2020, 35(20):4405-4414.
[11]	刘晨阳, 郑晓泉, 别成亮. 掺杂ZnO/环氧树脂基体的制备及其非线性电导改性研究[J]. 电工技术学报, 2016, 31(12):24-30.
	LIU Chenyang, ZHENG Xiaoquan, BIE Chengliang. Research of preparation and non-linear conductivity modification of doped ZnO/epoxide resin material[J]. Transactions of China Electrotechnical Society, 2016, 31(12):24-30.
[12]	赵鹏. 基于COMSOL仿真的高压直流交联聚乙烯(XLPE)电缆附件设计[D]. 北京: 中国电力科学研究院, 2018.
	ZHAO Peng. Design of HVDC XLPE cable accessories based on COMSOL simulation[D]. Beijing: China Electric Power Research Institute, 2018.
[13]	LIU C, ZHENG X, PENG P. The nonlinear conductivity experiment and mechanism analysis of modified polyimide (PI) composite materials with inorganic filler[J]. IEEE Transactions on Plasma Science, 2015, 43(10):3727-3733. doi: 10.1109/TPS.2015.2475622
[14]	DU B X, YANG Z R, LI Z L, et al. Temperature-dependent charge property of silicone rubber/SiC composites under lightning impulse superimposed DC voltage[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2019, 26(3):810-817. doi: 10.1109/TDEI.2018.007771
[15]	廖波, 周国庆, 刘卓典. 碳纤维/硅橡胶导电复合材料的温度响应[J]. 功能材料, 2011, 42(10):1920-1923.
	LIAO Bo, ZHOU Guoqing, LIU Zhuodian. Temperature response of the carbon fiber/silicone rubber composites[J]. Journal of Functional Materials, 2011, 42(10):1920-1923.
[16]	周文英, 齐暑华, 涂春潮, 等. 混杂填料填充导热硅橡胶性能研究[J]. 材料工程, 2006(8):15-19.
	ZHOU Wenying, QI Shuhua, TU Chunchao, et al. Properties of heat conductive silicone rubber filled with hybrid fillers[J]. Journal of Materials Engineering, 2006(8):15-19.

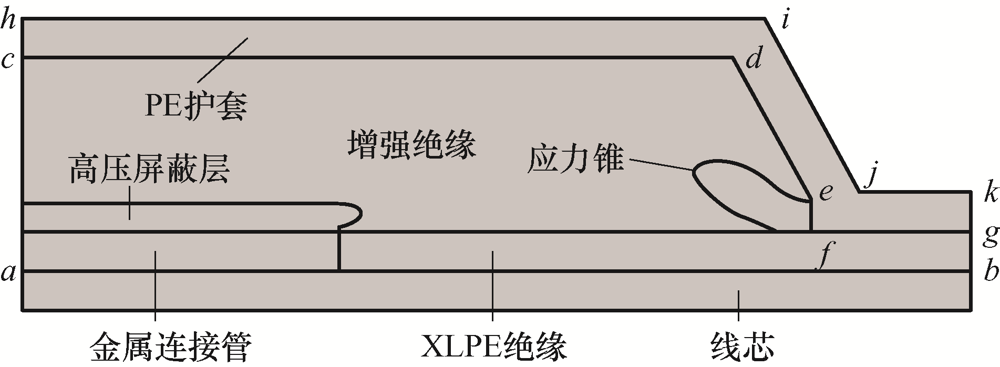

材料	密度/ (kg/m³)	电导率/ (S/m)	相对介电常数	导热系数/ [W/(m·K)]	恒压比热容/ [J/(kg·K)]
线芯	8 940	5.998×10⁷	1	400	385
XLPE 绝缘	920	σ_X (E, T)	2.3	0.28	2 600
半导电层	1 100	2×10^-3	30	0.4	2 180
增强绝缘	2 500	σ (E, T, γ)	3.25	0.27	1 700
PE护套	2 530	5×10^-13	2.4	0.28	950
