低速区列车牵引系统的电制动力提升控制方法*

doi:10.11985/2022.02.010

电气工程学报 ›› 2022, Vol. 17 ›› Issue (2): 83-91.doi: 10.11985/2022.02.010

• 特邀专栏:电气化交通中的电能变换与利用新技术 • 上一篇下一篇

扫码分享

低速区列车牵引系统的电制动力提升控制方法^*

李建新¹(), 李佳耀¹, 高翔², 蒋威²^,³, 宋文胜¹()

1.西南交通大学电气工程学院成都 611756
2.中国铁道科学研究院集团有限公司机车车辆研究所北京 100081
3.北京纵横机电科技有限公司北京 100094

收稿日期:2021-12-01 修回日期:2022-05-16 出版日期:2022-06-25 发布日期:2022-08-08
作者简介:李建新,男,1996年生,硕士研究生。主要研究方向为三相异步电机控制技术。E-mail： jianxin_li@my.swjtu.edu.cn
宋文胜,男,1985年生,博士,教授。主要研究方向为电力牵引传动与控制、电力电子变流技术、车-网耦合系统稳定性分析。E-mail： songwsh@swjtu.edu.cn
基金资助:
*中国国家铁路集团有限公司科技研究开发计划重点课题资助项目(N2019J025)

Enhanced Electric Braking Force Scheme of Train Traction System in Low-speed Range

LI Jianxin¹(), LI Jiayao¹, GAO Xiang², JIANG Wei²^,³, SONG Wensheng¹()

1. School of Electrical Engineering, Southwest Jiaotong University, Chengdu 611756
2. Locomotive & Car Research Institute, China Academy of Railway Sciences Co., Ltd., Beijing 100081
3. Beijing Zongheng Electro-Mechanical Technology Co., Ltd., Beijing 100094

Received:2021-12-01 Revised:2022-05-16 Online:2022-06-25 Published:2022-08-08

摘要/Abstract

摘要：

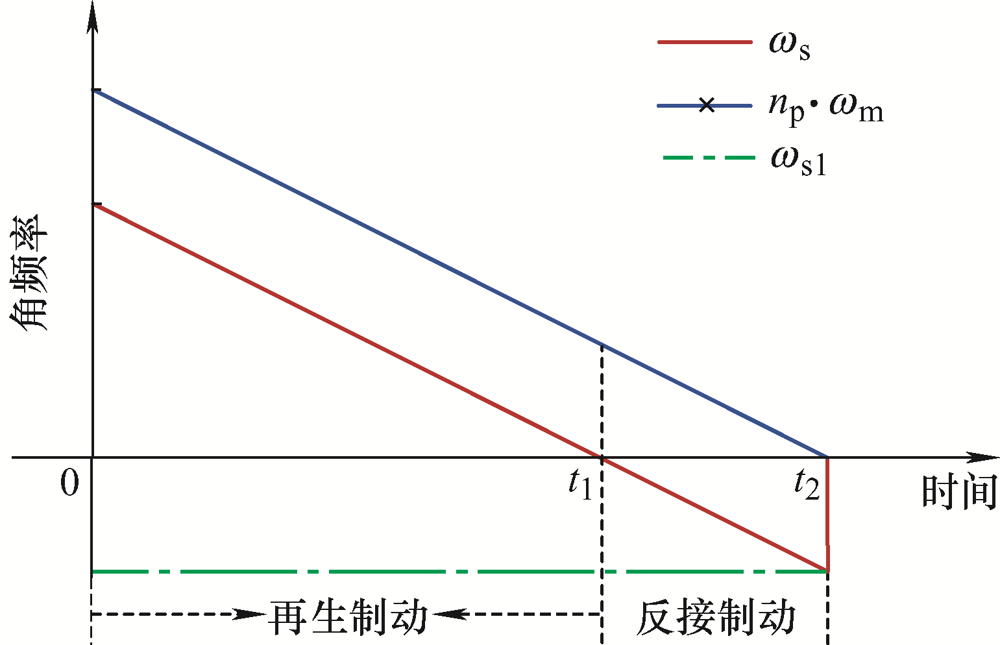

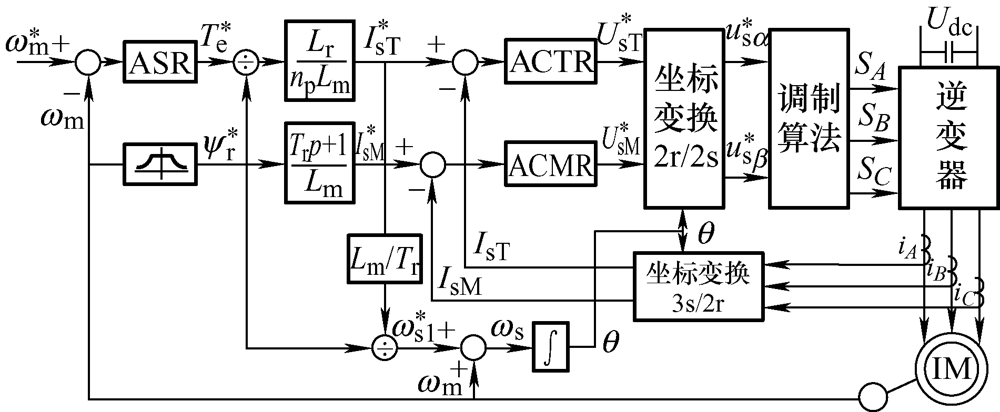

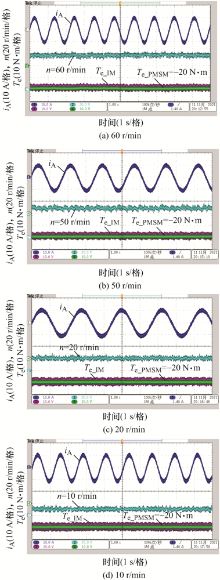

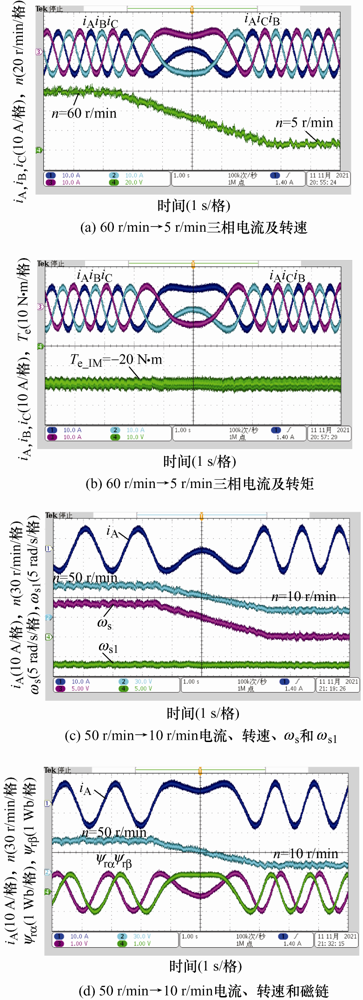

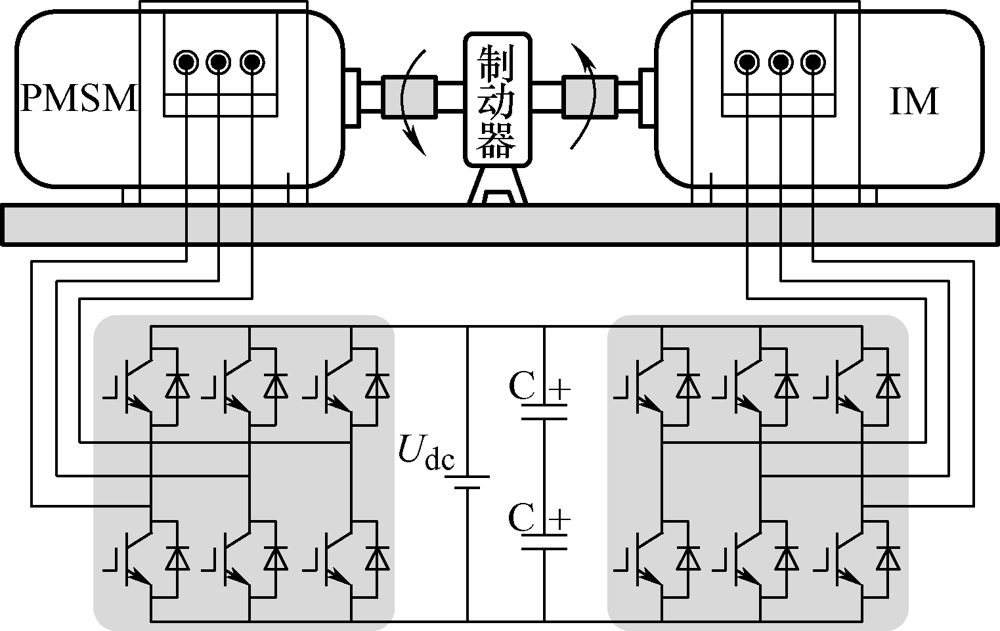

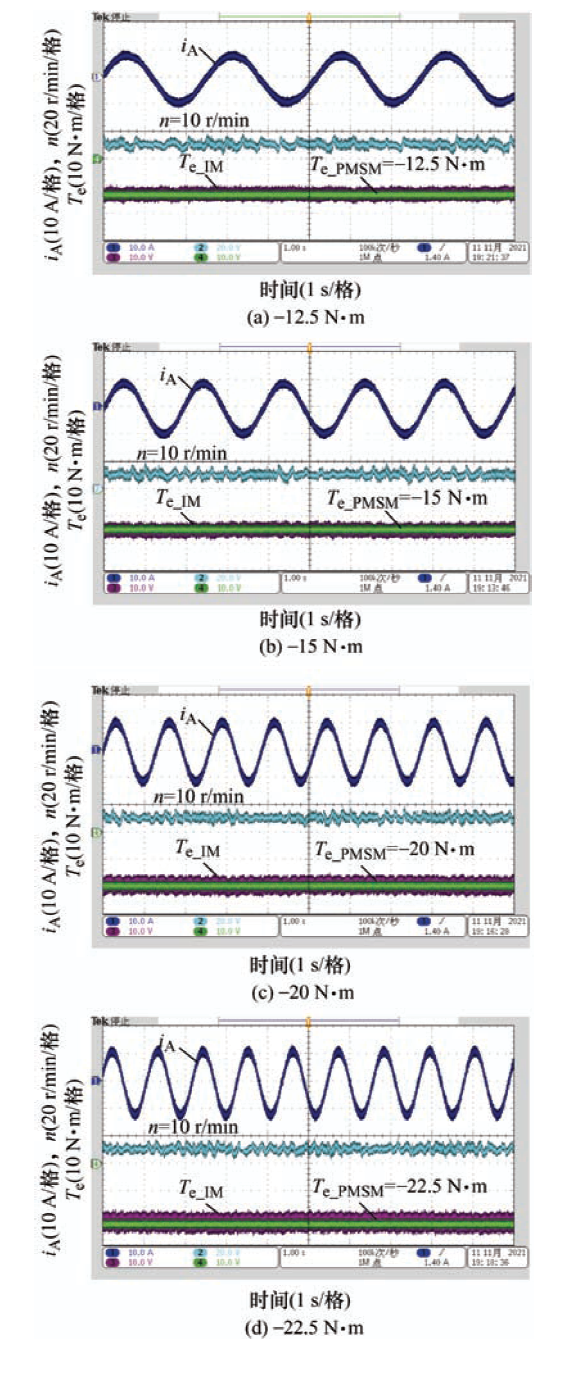

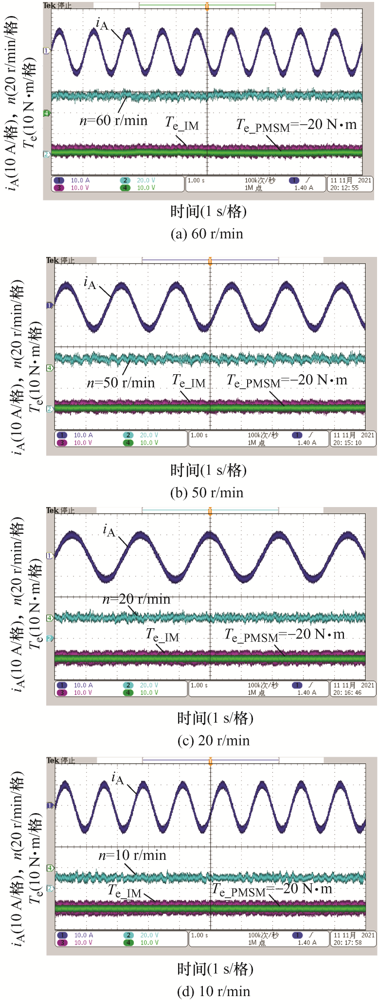

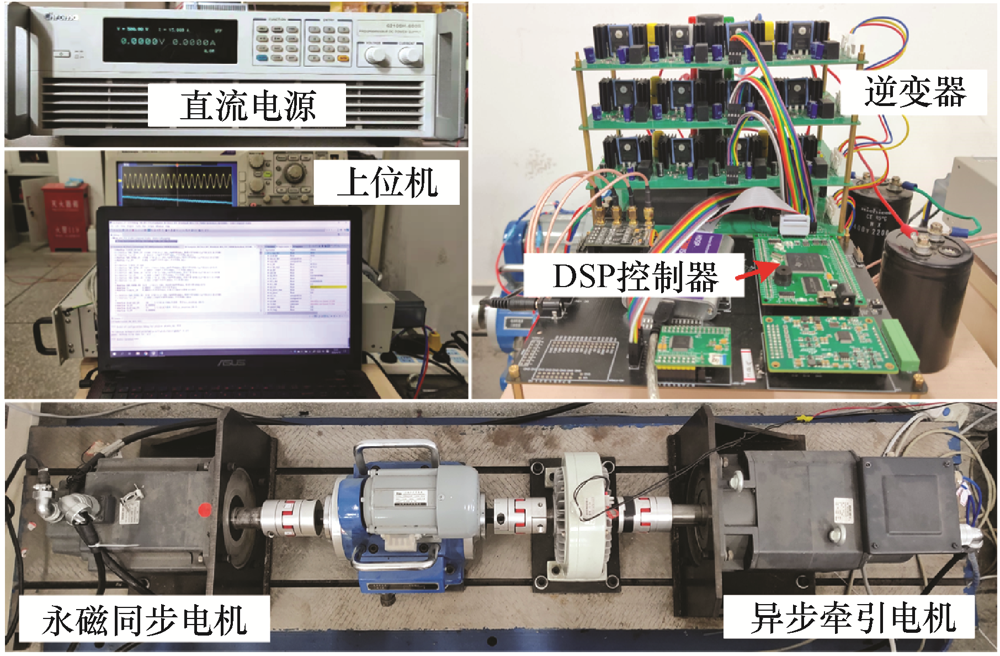

目前,我国列车牵引传动系统普遍采用电-空联合制动的制动方式,具有低速区电-空制动切换引起乘客舒适性下降、空气制动可控性不强和闸瓦磨损严重等缺点。为解决该问题,研究了一种基于再生制动和反接制动的列车全电制动控制技术,可实现列车在全速度范围内的电气制动。首先,根据矢量控制下电磁转矩和转差频率的关系,分析不同制动方式在低速区的转矩输出能力,确定了再生制动在定子角频率大于零和反接制动在定子角频率小于零时制动转矩的可控性;其次,通过间接矢量控制磁场定向和直接矢量控制磁链观测证明了反接制动的实现原理和可行性,进而提出了低速区由再生制动自然换向至反接制动的全电制动方案;最后,开展了小功率电机对拖试验测试,试验结果验证了所提制动策略可以实现低速区制动转矩的稳定可控输出,且转矩平滑无冲击,提升了低速区列车电气制动能力。

关键词: 异步牵引电机, 磁场定向控制, 再生制动, 反接制动, 全电制动

Abstract:

At present, the electro-pneumatic combined braking method is generally adopted in the traction drive system in China, which has disadvantages such as the passenger’s comfort decline caused by the switching of electric braking and pneumatic braking at low speed, weak controllability of pneumatic braking and serious wear of brake shoes. In order to solve this problem, an electric braking control technology of the train based on regenerative braking and plug braking is proposed, which can realize the electric braking in the whole speed range. Firstly, according to the relationship between torque and slip frequency under vector control, the torque output capacity of different braking methods at low speed is analyzed. The controllability of braking torque of regenerative braking when stator frequency is greater than zero and plug braking when stator frequency is less than zero is determined. Secondly, through the field orientation of indirect vector control and the flux observation of direct vector control, the realization principle and feasibility of plug braking are proved. Furthermore, a pure electric braking scheme in which regenerative braking is naturally commutated to plug braking in the low-speed range is proposed. Finally, a low power motor towing experiment test is carried out, the experimental results verify that the proposed braking strategy can achieve stable and controllable output of braking torque in low-speed range and the torque is smooth without impact, which improves the electric braking ability of the train in low-speed range.

Key words: Asynchronous traction motor, field orientated control, regenerative braking, plug braking, pure electric braking

中图分类号:

TM921

李建新, 李佳耀, 高翔, 蒋威, 宋文胜. 低速区列车牵引系统的电制动力提升控制方法^*[J]. 电气工程学报, 2022, 17(2): 83-91.

LI Jianxin, LI Jiayao, GAO Xiang, JIANG Wei, SONG Wensheng. Enhanced Electric Braking Force Scheme of Train Traction System in Low-speed Range[J]. Journal of Electrical Engineering, 2022, 17(2): 83-91.

图/表 12

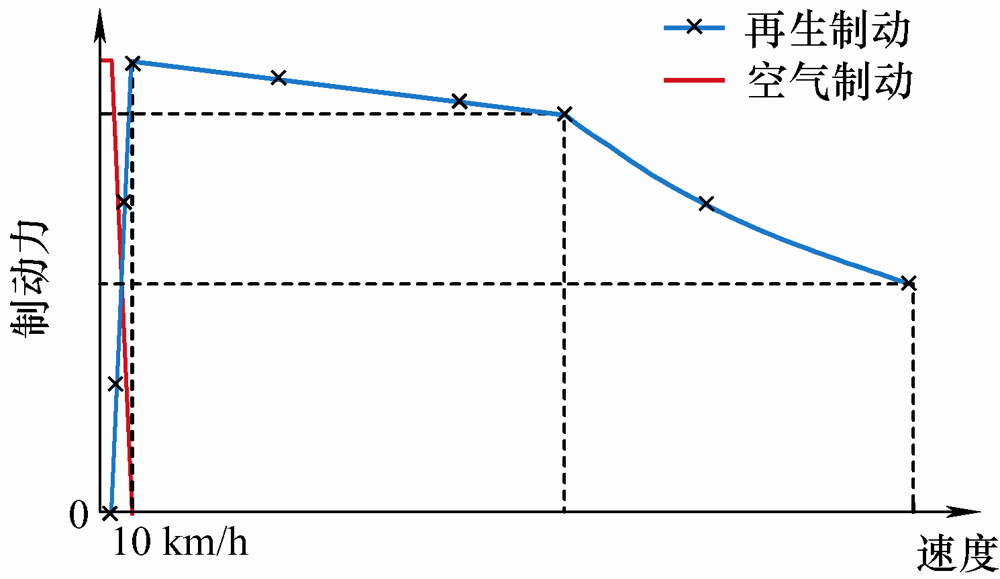

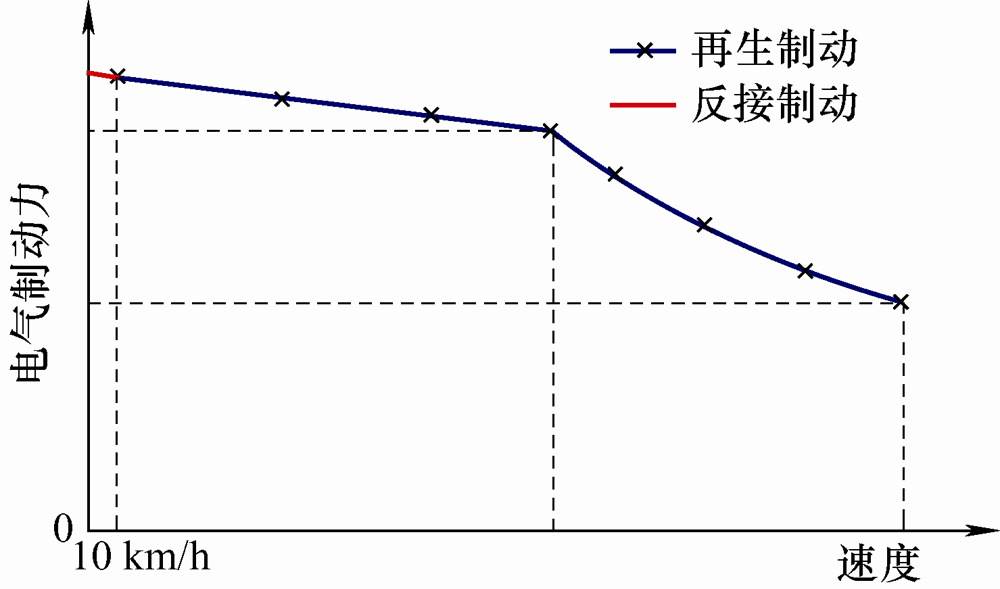

图1

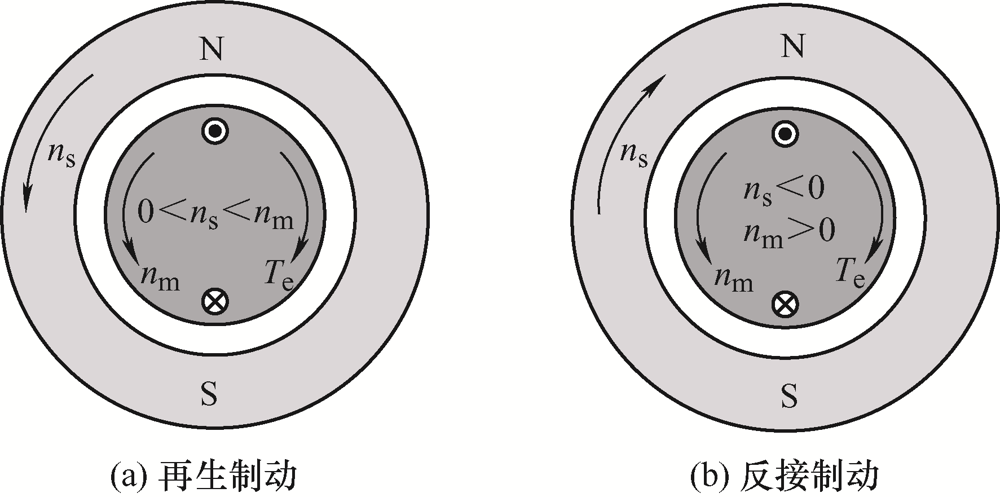

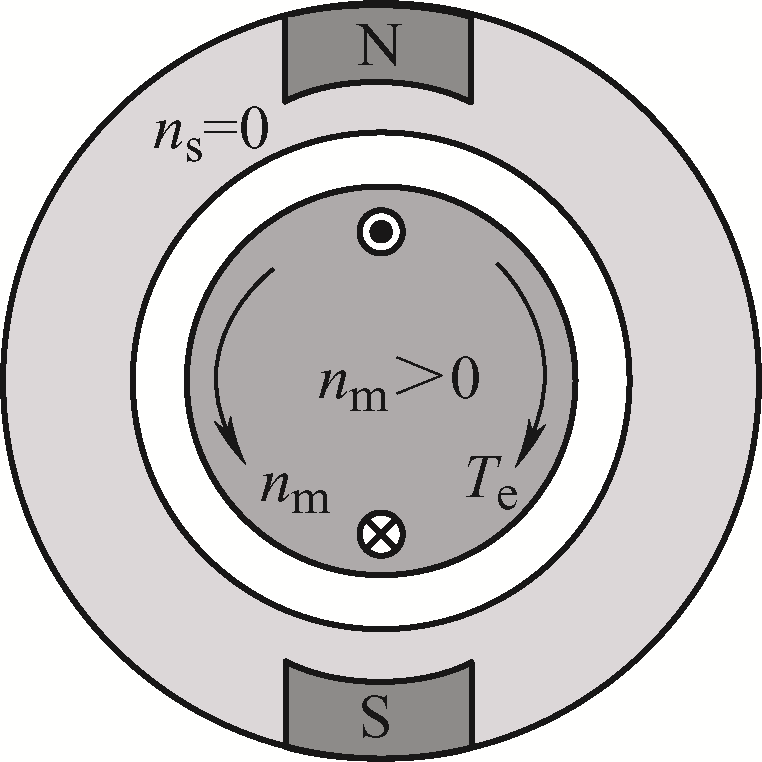

图2

图3

图4

图5

图6

表1

图7

图8

图9

图10

图11

参考文献 18

[1]	吴萌岭, 马天和, 田春, 等. 列车制动技术发展趋势探讨[J]. 中国铁道科学, 2019, 40(1):134-144.
	WU Mengling, MA Tianhe, TIAN Chun, et al. Discussion on development trend of train braking technology[J]. China Railway Science, 2019, 40(1):134-144.
[2]	李万新. 高速动车组电空制动系统的建模和参数分析[J]. 中国铁道科学, 2017, 38(2):89-95.
	LI Wanxin. Modeling and parameter analysis methodology of electro-pneumatic braking system for high-speed EMU[J]. China Railway Science, 2017, 38(2):89-95.
[3]	李和平, 严霄蕙. 70年来我国铁路机车车辆制动技术的发展历程[J]. 铁道机车车辆, 2019, 39(6):16-31.
	LI Heping, YAN Xiaohui. Development history of rolling stock brake technology of China railway in the past 70 years[J]. Railway Locomotive & Car, 2019, 39(6):16-31.
[4]	胡海涛, 陈俊宇, 葛银波, 等. 高速铁路再生制动能量储存与利用技术研究[J]. 中国电机工程学报, 2020, 40(1):246-256.
	HU Haitao, CHEN Junyu, GE Yinbo, et al. Research on regenerative braking energy storage and utilization technology for high-speed railways[J]. Proceedings of the CSEE, 2020, 40(1):246-256.
[5]	CHEN Junyu, HU Haitao, GE Yinbo, et al. An energy storage system for recycling regenerative braking energy in high-speed railway[J]. IEEE Transactions on Power Delivery, 2021, 36(1):320-330. doi: 10.1109/TPWRD.2020.2980018
[6]	牛悦丞, 李芾, 李新荣, 等. 列车制动盘热分析现状与展望[J]. 机车电传动, 2019(6):5-9.
	NIU Yuecheng, LI Fu, LI Xinrong, et al. Status and prospect of thermal analysis of train brake discs[J]. Electric Drive for Locomotives, 2019(6):5-9.
[7]	李亦民. 城轨列车全电制动技术研究[D]. 北京: 北京交通大学, 2017.
	LI Yimin. Research on pure electric brake technology of urban rail train[D]. Beijing: Beijing Jiaotong University, 2017.
[8]	望月旭. 纯电制动[J]. 变流技术与电力牵引, 2005(5):18-19.
	WANG Yuexu. Pure electric braking[J]. Converter Technology & Electric Traction, 2005(5):18-19.
[9]	吴萌岭, 雷驰, 陈茂林. 基于列车电机械制动系统夹紧力的控制算法优化[J]. 同济大学学报, 2020, 48(6):898-903.
	WU Mengling, LEI Chi, CHEN Maolin. Control algorithm optimization of clamping force based on train electro-mechanical braking system[J]. Journal of Tongji University, 2020, 48(6):898-903.
[10]	WU Mengling, PENG Shun, CHEN Maolin. The MRAC based clamping force control of the electro-mechanical braking device[C]// IEEE International Conference on Intelligent Transportation Engineering,Singapore, 2017.
[11]	SONE S, ASHIYA M. An innovative traction system from the viewpoint of braking[C]// International Conference on Developments in Mass Transit Systems,London,United Kingdom, 1998.
[12]	ASHIYA M, SONE S, SATO Y, et al. Application of pure electric braking system to electric railcars[C]// International Workshop on Advanced Motion Control,Nagoya,Japan, 2000.
[13]	LEE H. A study on braking system using fully electric brake system[C]// IEEE International Conference on Industrial Technology,Busan,South Korea, 2014.
[14]	KOVUDHIKULRUNGSRI L, KOSEKI T. Precise torque and speed control in pure electric braking operation of AC traction in low speed range[C]// International Workshop on Advanced Motion Control,Maribor,Slovenia,2002.
[15]	ZHOU Meili, YANG Zhongping, YOU Xiaojie. Pure electric brake of linear induction motor in the linear metro[C]// International Conference on Electrical Machines and Systems.Beijing,China, 2011.
[16]	王子超, 孙洪亮, 苏丹, 等. 新一代有轨电车全电制动停车技术[J]. 城市轨道交通研究, 2021, 24(S2):79-82.
	WANG Zichao, SUN Hongliang, SU Dan, et al. All-electric braking stopping technology of the new generation tram[J]. Urban Mass Transit, 2021, 24(S2):79-82.
[17]	朱红. 西门子6SE70型变频器制动方案选择[J]. 电气传动, 1999(1):16-18.
	ZHU Hong. The braking solutions of Siemens 6SE70 converters[J]. Electric Drive, 1999(1):16-18.
[18]	张寅孩, 葛金法, 汪松松. 基于Bang-Bang最优理论的感应电机能耗制动相轨迹分析[J]. 电工技术学报, 2011, 26(2):74-80.
	ZHANG Yinhai, GE Jinfa, WANG Songsong. Energy- consumed braking phase trajectory of induction motor based on Bang-Bang optimal theory[J]. Transactions of China Electrotechnical Society, 2011, 26(2):74-80.

参数	数值	参数	数值
直流侧电压U_dc/V	350	采样频率f_sa/kHz	4
开关频率f_sv/Hz	500	额定功率P_N/kW	3.0
额定转速n_N/(r/min)	1 465	额定转矩T_e/(N∙m)	20
定子电阻R_s/Ω	1.2	转子电阻R_r/Ω	0.69
定子漏感L_ls/mH	11	转子漏感L_lr/mH	11
励磁电感L_m/mH	115	极对数n_p	2
