基于综合损耗最优的双有源桥式变换器调制方法*

doi:10.11985/2022.02.006

电气工程学报 ›› 2022, Vol. 17 ›› Issue (2): 49-55.doi: 10.11985/2022.02.006

• 特邀专栏:电气化交通中的电能变换与利用新技术 • 上一篇下一篇

扫码分享

基于综合损耗最优的双有源桥式变换器调制方法^*

陈晓楠¹(), 王明才¹, 李驰², 赵楠²(), 郑泽东²()

1.国网电动汽车服务有限公司北京 100052
2.清华大学电机工程与应用电子技术系北京 100084

收稿日期:2021-11-30 修回日期:2022-05-15 出版日期:2022-06-25 发布日期:2022-08-08
通讯作者: 郑泽东 E-mail:chenxiaonan@evs.sgcc.com.cn;zhaon_2020@tsinghua.org.cn;zzd@tsinghua.edu.cn
作者简介:陈晓楠,男,1972年生,高级工程师。主要研究方向为电力工程技术。E-mail： chenxiaonan@evs.sgcc.com.cn
赵楠,男,1991年生,博士。主要研究方向为电力电子与新能源。E-mail： zhaon_2020@tsinghua.org.cn
基金资助:
*国网电动汽车服务有限公司科技资助项目(2700/2021-71012B)

Optimum Total Losses Orientated Modulation Strategy for Dual Active Bridge

CHEN Xiaonan¹(), WANG Mingcai¹, LI Chi², ZHAO Nan²(), ZHENG Zedong²()

1. State Grid Electric Vehicle Service Co., Ltd., Beijing 100052
2. Department of Electrical Engineering, Tsinghua University, Beijing 100084

Received:2021-11-30 Revised:2022-05-15 Online:2022-06-25 Published:2022-08-08
Contact: ZHENG Zedong E-mail:chenxiaonan@evs.sgcc.com.cn;zhaon_2020@tsinghua.org.cn;zzd@tsinghua.edu.cn

摘要/Abstract

摘要：

双有源桥变换器具有良好的软开关、电气隔离、功率调节能力,被广泛应用于直流输电、储能、列车牵引等领域。双有源桥变换器的调制算法与效率密切相关,原副边电流大小、器件开关时刻等重要因素均由调制算法决定,并直接影响器件开关时刻的损耗。提出一种基于综合损耗最优的双有源桥式变换器调制方法,该方法能够依据双有源桥变换器的不同工作模态情况进行损耗建模,计算器件的导通损耗与开关损耗,并综合总损耗确定最优的调制策略。最后,通过PLECS仿真验证了该方法的可行性和有效性。

关键词: 双有源桥, 调制方法, 效率提升, 损耗最优

Abstract:

Dual active bridge converter is widely used in energy storage, traction, DC power transmission due to its good performance in soft-switching, electric isolation and power control ability. Modulation strategy, which decides the current in primary /secondary side and the switching time of the switches, is important for dual active bridge and has great influence on efficiency. The power loss of switches can be calculated under certain modulation strategy. In this paper, an optimum efficiency orientated modulation strategy is proposed. The conduct loss and switching loss are both considered based on the different working mode of dual active converter, and the modulation with lowest total losses and best efficiency can be chosen. The PLECS simulation results show the correctness and effectiveness of proposed strategy.

Key words: Dual active bridge, modulation strategy, efficiency improve, lowest total losses

中图分类号:

TM561

陈晓楠, 王明才, 李驰, 赵楠, 郑泽东. 基于综合损耗最优的双有源桥式变换器调制方法^*[J]. 电气工程学报, 2022, 17(2): 49-55.

CHEN Xiaonan, WANG Mingcai, LI Chi, ZHAO Nan, ZHENG Zedong. Optimum Total Losses Orientated Modulation Strategy for Dual Active Bridge[J]. Journal of Electrical Engineering, 2022, 17(2): 49-55.

图/表 10

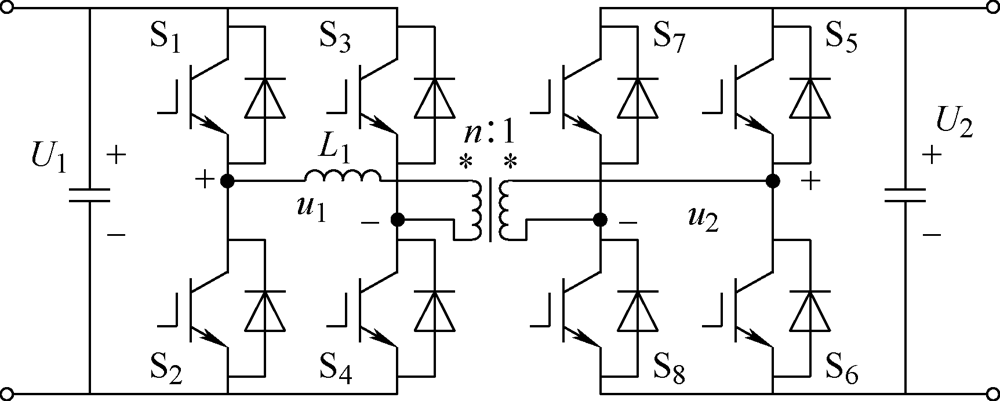

图1

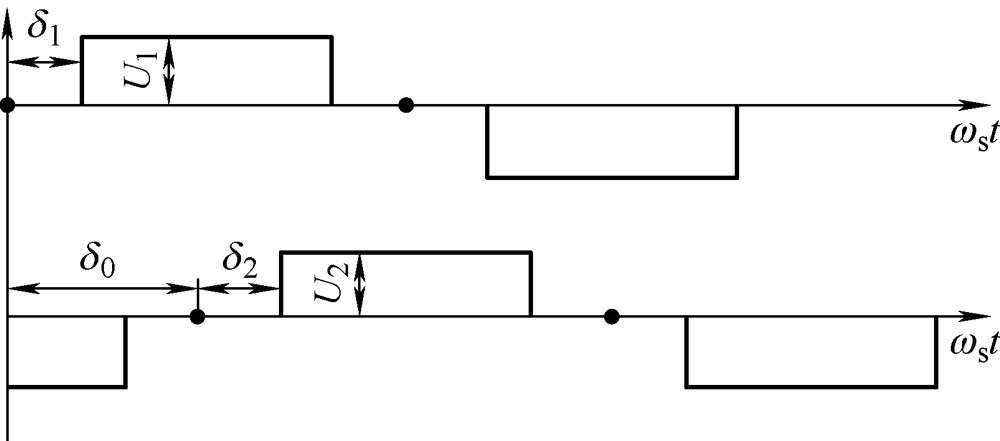

图2

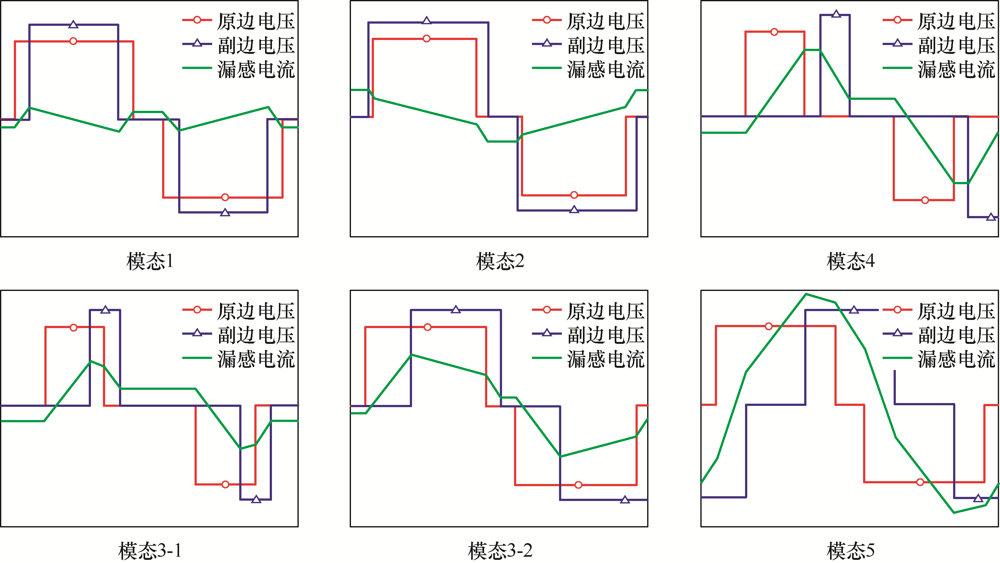

图3

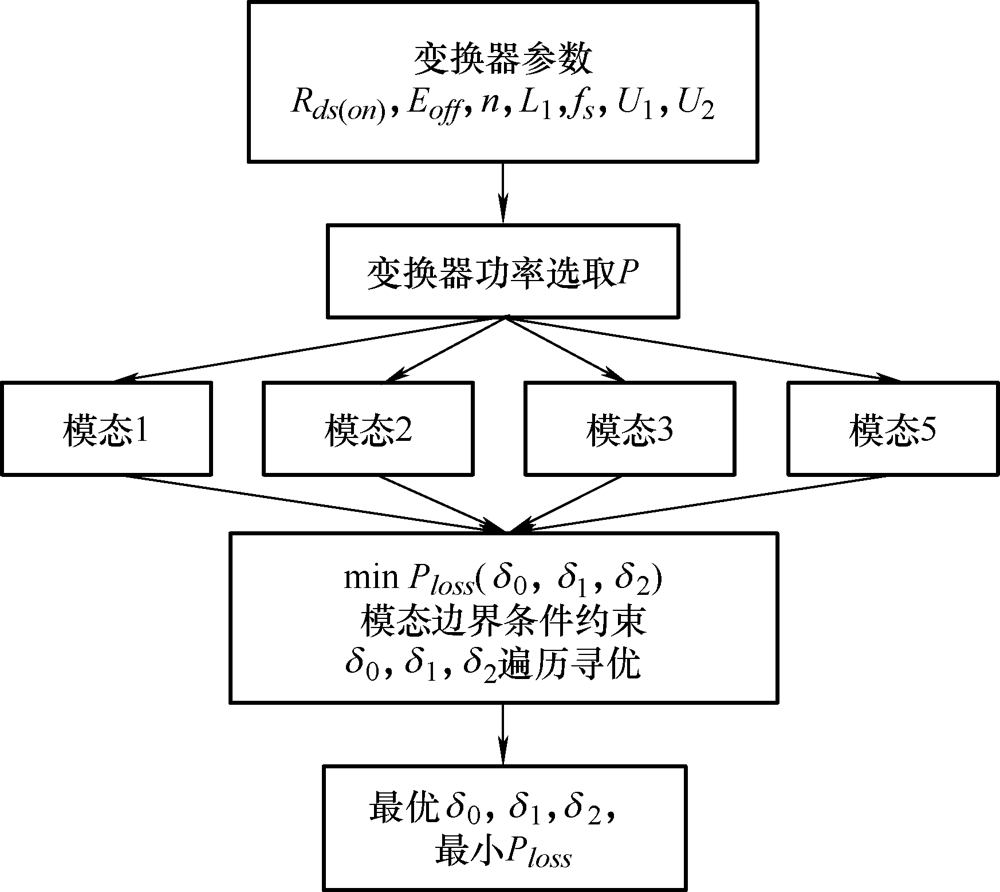

图4

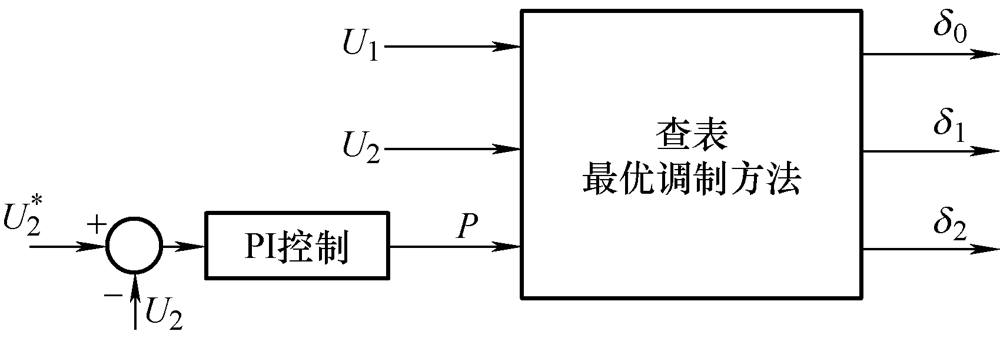

图5

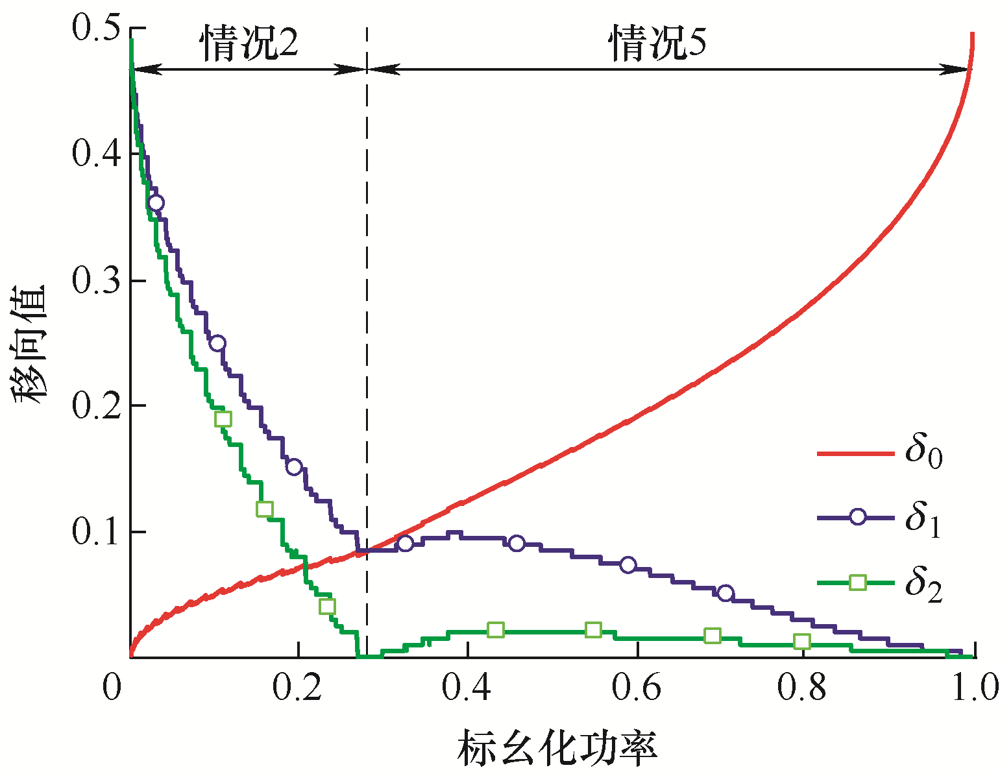

图6

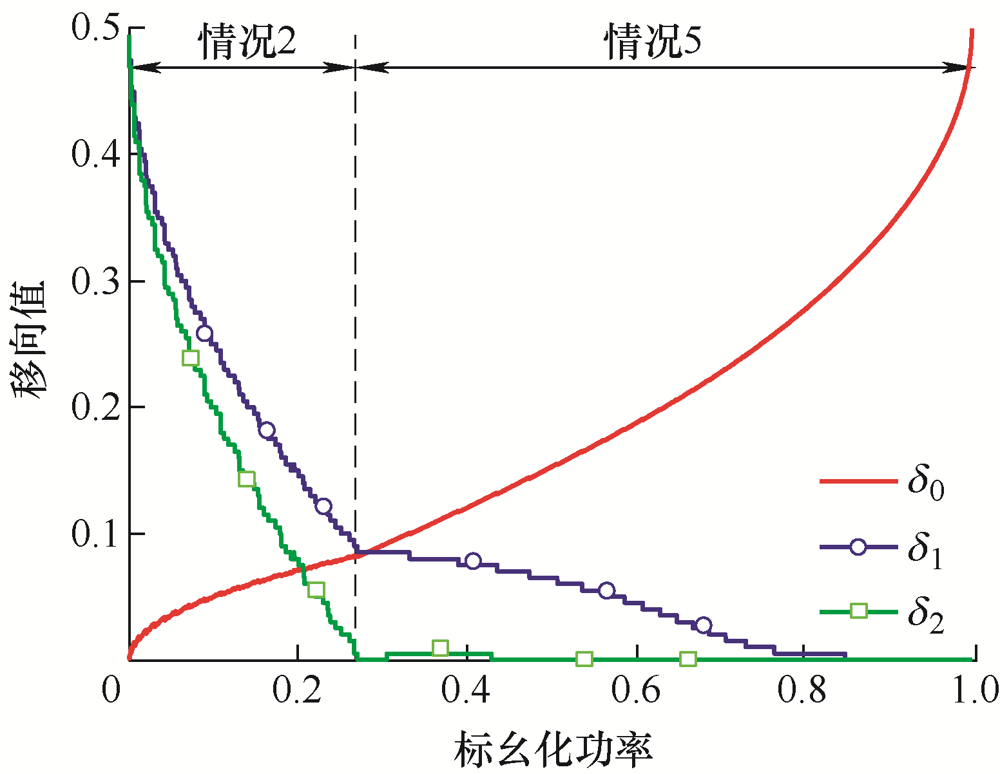

图7

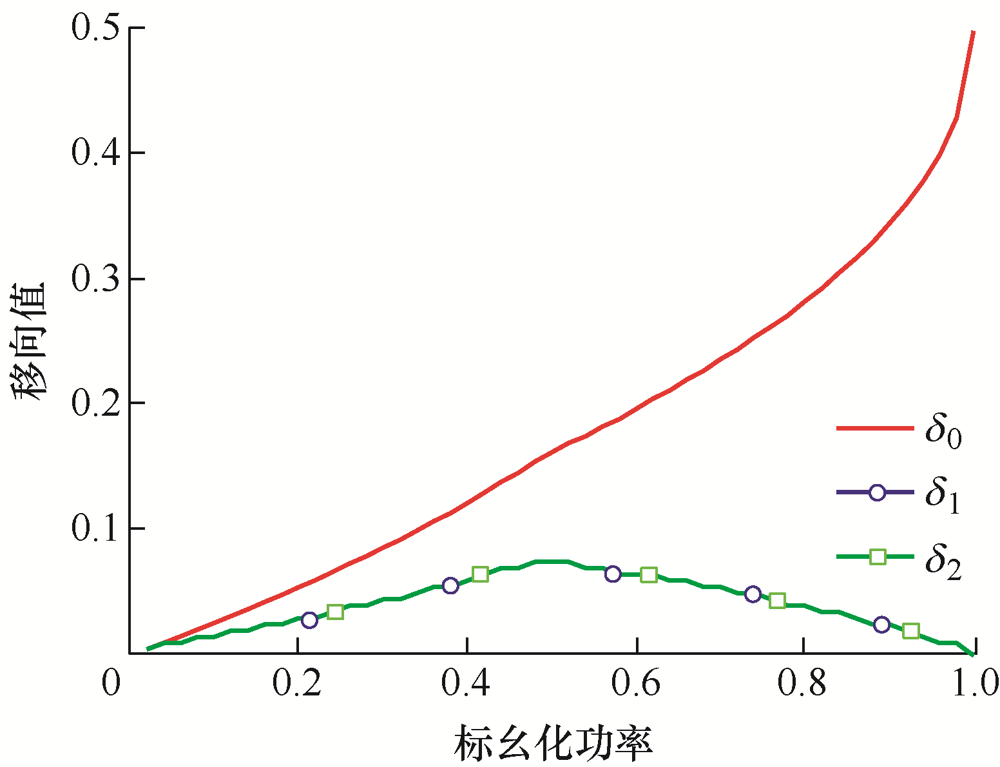

图8

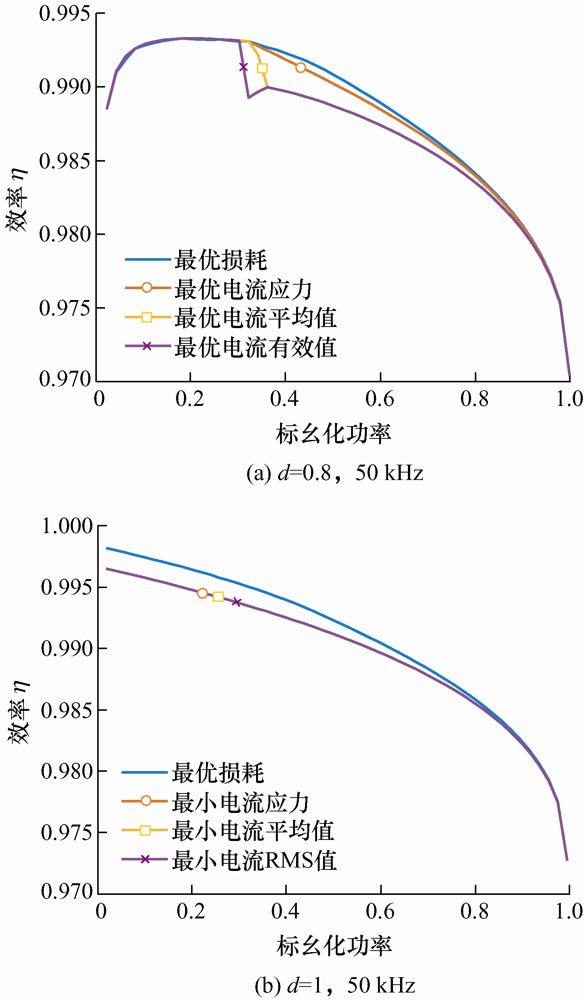

图9

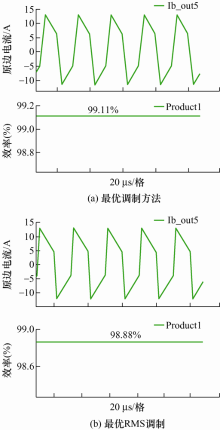

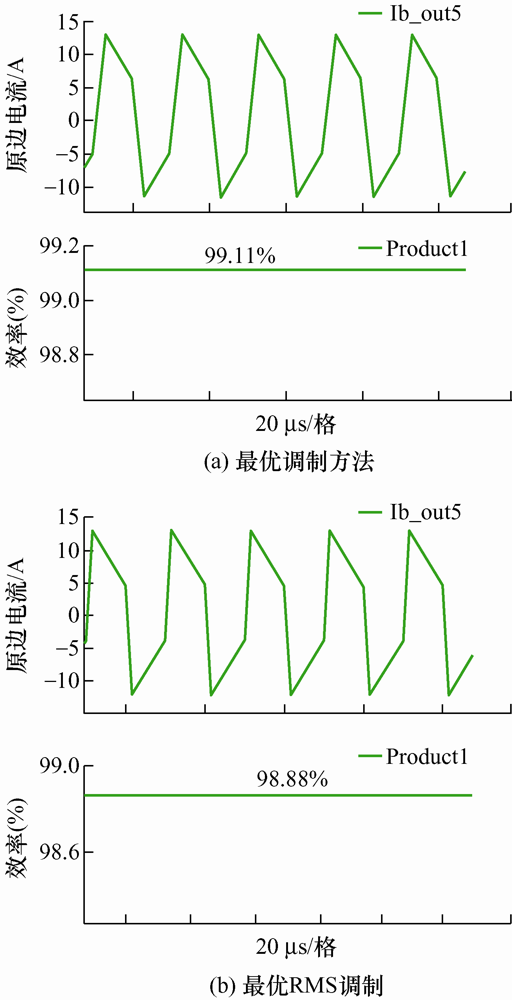

图10

参考文献 16

[1]	KHERALUWALA M N, GASCOIGNE R W, DIVAN D M, et al. Performance characterization of a high-power dual active bridge DC-to-DC converter[J]. IEEE Transactions on Industry Applications, 1992, 28(6):1294-1301. doi: 10.1109/28.175280
[2]	ZHAO B, SONG Q, LIU W, et al. Overview of dual-active-bridge isolated bidirectional DC-DC converter for high-frequency-link power-conversion system[J]. IEEE Transactions on Power Electronics, 2014, 29(8):4091-4106. doi: 10.1109/TPEL.2013.2289913
[3]	HOU N, LI Y W. Overview and comparison of modulation and control strategies for a nonresonant single-phase dual-active-bridge DC-DC converter[J]. IEEE Transactions on Power Electronics, 2020, 35(3):3148-3172. doi: 10.1109/TPEL.2019.2927930
[4]	OGGIER G G, GARCÍA G O, OLIVA A R. Switching control strategy to minimize dual active bridge converter losses[J]. IEEE Transactions on Power Electronics, 2009, 24(7):1826-1838. doi: 10.1109/TPEL.2009.2020902
[5]	OGGIER G G, GARCIA G O, OLIVA A R. Modulation strategy to operate the dual active bridge DC-DC converter under soft switching in the whole operating range[J]. IEEE Transactions on Power Electronics, 2011, 26(4):1228-1236. doi: 10.1109/TPEL.2010.2072966
[6]	ZHAO B, YU Q, SUN W. Extended-phase-shift control of isolated bidirectional DC-DC converter for power distribution in microgrid[J]. IEEE Transactions on Power Electronics, 2012, 27(11):4667-4680. doi: 10.1109/TPEL.2011.2180928
[7]	赵彪, 于庆广, 孙伟欣. 双重移相控制的双向全桥DC-DC变换器及其功率回流特性分析[J]. 中国电机工程学报, 2012, 32(12):43-50.
	ZHAO Biao, YU Qingguang, SUN Weixin. Bi-directional full-bridge DC-DC converters with dual-phase-shifting control and its backflow power characteristic analysis[J]. Proceedings of the CSEE, 2012, 32(12):43-50.
[8]	ZHAO B, SONG Q, LIU W, et al. Current-stress-optimized switching strategy of isolated bidirectional DC-DC converter with dual-phase-shift control[J]. IEEE Transactions on Industrial Electronics, 2013, 60(10):4458-4467. doi: 10.1109/TIE.2012.2210374
[9]	王聪, 沙广林, 王俊, 等. 基于双重移相控制的双有源桥DC-DC变换器的软开关[J]. 电工技术学报, 2015, 30(12):106-113.
	WANG Cong, SHA Guanglin, WANG Jun, et al. The analysis of zero voltage switching dual active bridge DC-DC converters based on dual-phase-shifting control[J]. Transactions of China Electrotechnical Society, 2015, 30(12):106-113.
[10]	HUANG J, WANG Y, LI Z, et al. Unified triple-phase-shift control to minimize current stress and achieve full soft-switching of isolated bidirectional DC-DC converter[J]. IEEE Transactions on Industrial Electronics, 2016, 63(7):4169-4179. doi: 10.1109/TIE.2016.2543182
[11]	KRISMER F, KOLAR J W. Closed form solution for minimum conduction loss modulation of DAB converters[J]. IEEE Transactions on Power Electronics, 2012, 27(1):174-188. doi: 10.1109/TPEL.2011.2157976
[12]	TONG A, HANG L, LI G, et al. Modeling and analysis of a dual-active-bridge-isolated bidirectional DC/DC converter to minimize RMS current with whole operating range[J]. IEEE Transactions on Power Electronics, 2018, 33(6):5302-5316. doi: 10.1109/TPEL.2017.2692276
[13]	侯聂, 宋文胜, 王顺亮. 全桥隔离DC/DC变换器相移控制归一化及其最小回流功率控制[J]. 中国电机工程学报, 2016, 36(2):499-506.
	HOU Nie, SONG Wensheng, WANG Shunliang. Normalization of phase shift control and minimum reflux power control of full-bridge isolated DC/DC converters[J]. Proceedings of the CSEE, 2016, 36(2):499-506.
[14]	SHAO S, JIANG M, YE W, et al. Optimal phase-shift control to minimize reactive power for a dual active bridge DC-DC converter[J]. IEEE Transactions on Power Electronics, 2019, 34(10):10193-10205. doi: 10.1109/TPEL.2018.2890292
[15]	BAI H, MI C. Eliminate reactive power and increase system efficiency of isolated bidirectional dual-active- bridge DC-DC converters using novel dual-phase-shift control[J]. IEEE Transactions on Power Electronics, 2008, 23(6):2905-2914. doi: 10.1109/TPEL.2008.2005103
[16]	ZHAO B, SONG Q, LIU W, et al. Universal high-frequency-link characterization and practical fundamental-optimal strategy for dual-active-bridge DC-DC converter under PWM plus phase-shift control[J]. IEEE Transactions on Power Electronics, 2015, 30(12):6488-6494. doi: 10.1109/TPEL.2015.2430934
