基于ADMM的电-气综合能源系统分布式滚动优化调度*

doi:10.11985/2022.01.022

电气工程学报 ›› 2022, Vol. 17 ›› Issue (1): 171-178.doi: 10.11985/2022.01.022

扫码分享

基于ADMM的电-气综合能源系统分布式滚动优化调度^*

孟丽娜(), 赵兴勇(), 郭珠珠, 王晋华

山西大学电力与建筑学院太原 030013

收稿日期:2021-05-07 修回日期:2021-10-18 出版日期:2022-03-25 发布日期:2022-05-06
通讯作者: 孟丽娜 E-mail:2869046294@qq.com;shzhxy@163.com
作者简介:赵兴勇,男,1965年生,博士,教授,硕士研究生导师。主要研究方向为分布式发电并网、智能电网、微电网等。E-mail： shzhxy@163.com
基金资助:
*国网山西省电力公司科技资助项目(SGTYHT/18-JS-206)

Distributed Rolling Optimization Scheduling of Electric Gas Integrated Energy System Based on ADMM

MENG Lina(), ZHAO Xingyong(), GUO Zhuzhu, WANG Jinhua

College of Electric Power and Architecture, Shanxi University, Taiyuan 030013

Received:2021-05-07 Revised:2021-10-18 Online:2022-03-25 Published:2022-05-06
Contact: MENG Lina E-mail:2869046294@qq.com;shzhxy@163.com

摘要/Abstract

摘要：

电-气综合能源系统优化调度是提高系统经济效益的重要手段,而其优化调度模型复杂、约束条件较多、求解困难,同时负荷及可再生能源预测值存在较大误差。针对这一问题,首先构建集中式优化调度模型,其次采用交替方向乘子算法(Alternative direction multiplier method,ADMM)将集中式优化调度模型转化为两个可以信息交互的子系统,同时将滚动优化方法引入到算法之中,构建分布式滚动优化调度模型。最后通过算例验证了所提方法的可行性及有效性,一定程度上减小了预测误差对系统的影响;对比三种优化模型下系统运行成本,证明分布式滚动优化模型算法收敛性好的同时具有一定的经济效益。

关键词: 电-气综合能源系统, 优化调度, 集中式优化, ADMM, 分布式滚动优化

Abstract:

The optimal dispatch of electricity gas integrated energy system is an important means to improve the economic benefits of the system. However, its optimal dispatch model is complex, with many constraints and difficult to solve. At the same time, there are large errors in the load and renewable energy forecast values. In order to solve this problem, firstly, a centralized optimal scheduling model is constructed. Secondly, ADMM is used to transform the centralized optimal scheduling model into two subsystems that can interact with each other. At the same time, rolling optimization method is introduced into the algorithm to build a distributed rolling optimal scheduling model. Finally, an example is given to verify the feasibility and effectiveness of the proposed method, which reduces the impact of prediction error on the system to a certain extent. By comparing the system operation cost of three optimization models, it shows that the distributed rolling optimization model has good convergence and certain economic benefits.

Key words: Electricity gas integrated energy system, optimal scheduling, centralized optimization, ADMM, distributed rolling optimization

中图分类号:

TK01

孟丽娜, 赵兴勇, 郭珠珠, 王晋华. 基于ADMM的电-气综合能源系统分布式滚动优化调度^*[J]. 电气工程学报, 2022, 17(1): 171-178.

MENG Lina, ZHAO Xingyong, GUO Zhuzhu, WANG Jinhua. Distributed Rolling Optimization Scheduling of Electric Gas Integrated Energy System Based on ADMM[J]. Journal of Electrical Engineering, 2022, 17(1): 171-178.

图/表 7

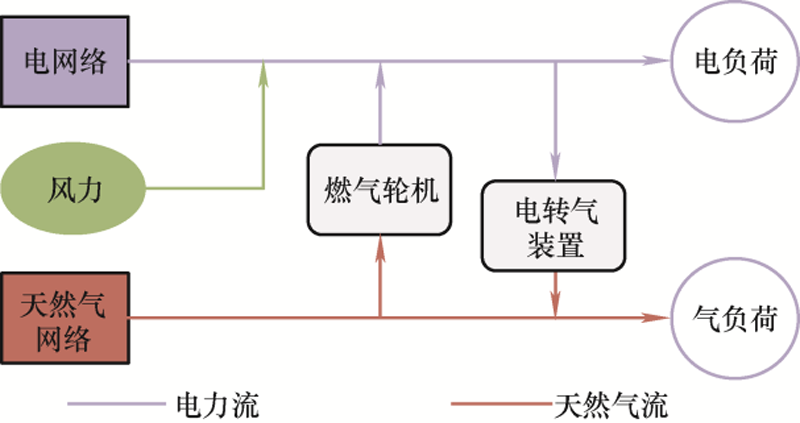

图1

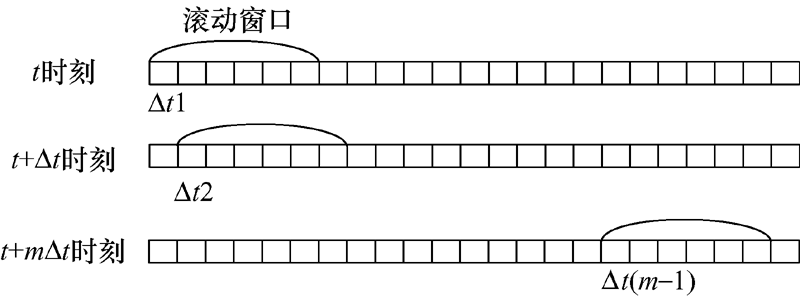

图2

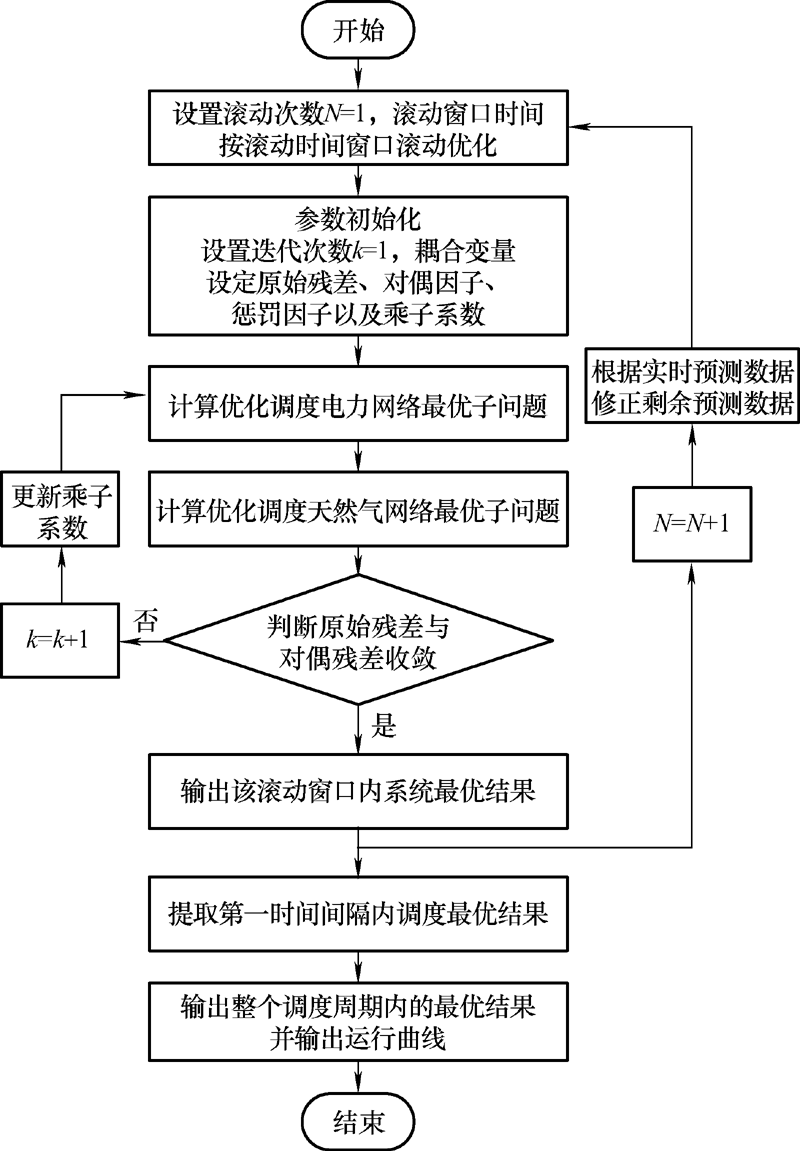

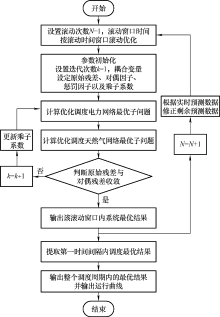

图3

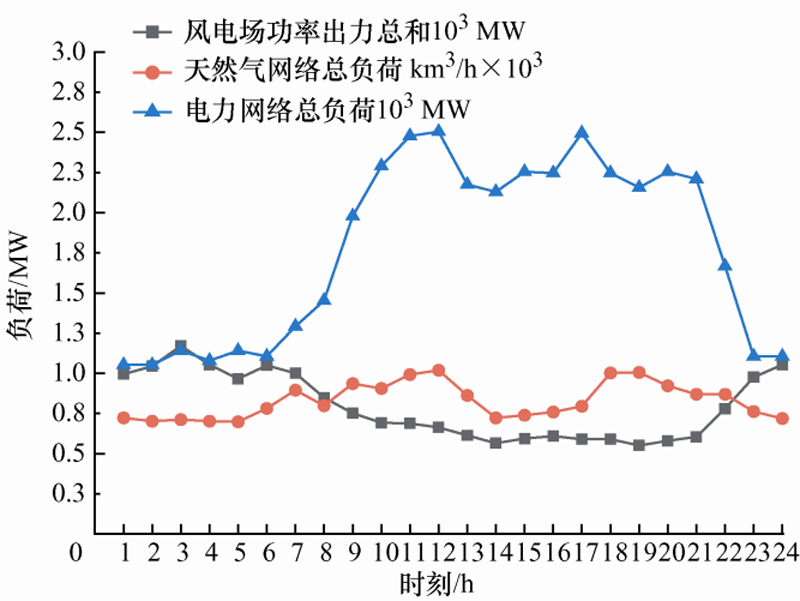

图4

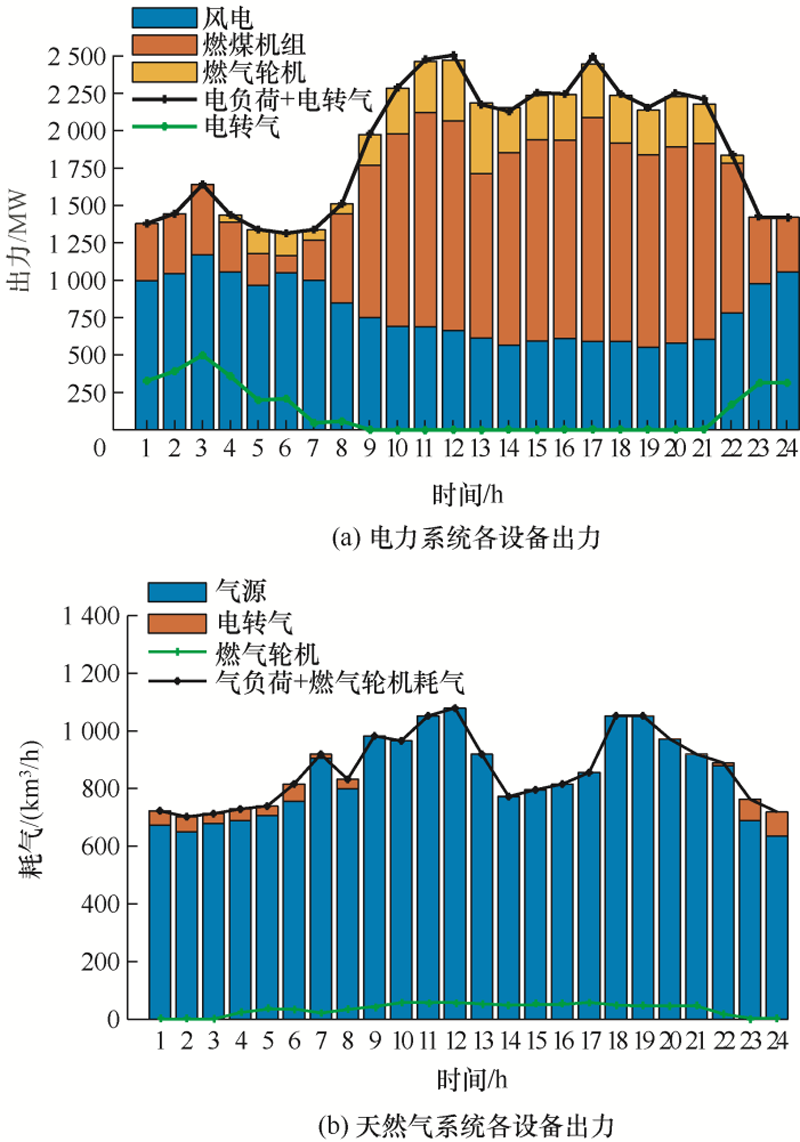

图5

表1

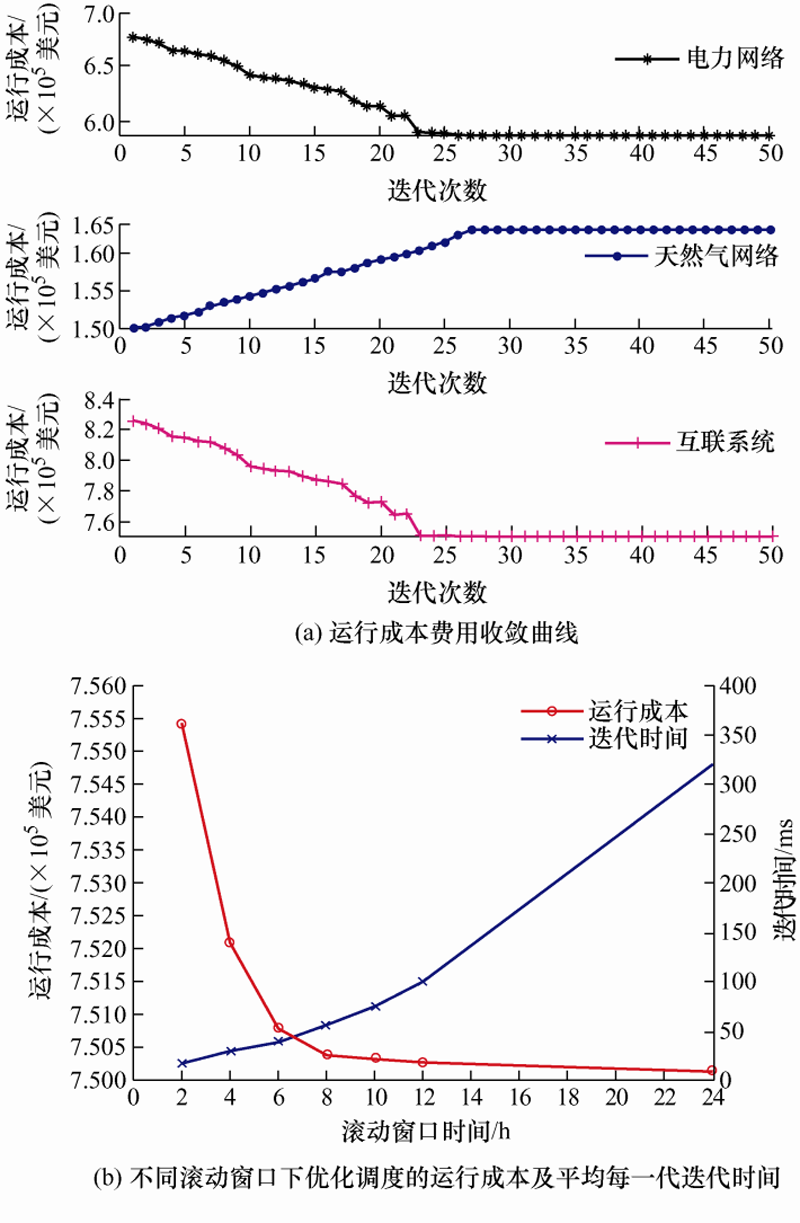

图6

参考文献 16

[1]	贾宏杰, 王丹, 徐宪东, 等. 区域综合能源系统若干问题研究[J]. 电力系统自动化, 2015(7):198-207.
	JIA Hongjie, WANG Dan, XU Xiandong, et al. Research on some problems of regional integrated energy system[J]. Automation of Electric Power Systems, 2015(7):198-207.
[2]	卫志农, 张思德, 孙国强, 等. 计及电转气的电–气互联综合能源系统削峰填谷研究[J]. 中国电机工程学报, 2017, 37(16):4601-4609.
	WEI Zhinong, ZHANG Side, SUN Guoqiang, et al. Study on peak shaving and valley filling of electricity to gas interconnected integrated energy system[J]. Proceedings of the CSEE, 2017, 37(16):4601-4609.
[3]	权超, 董晓峰, 姜彤. 基于 CCHP 耦合的电力、天然气区域综合能源系统优化规划[J]. 电网技术, 2018, 42(8):2456-2466.
	QUAN Chao, DONG Xiaofeng, JIANG Tong. Optimization planning of power and natural gas regional integrated energy system based on CCHP coupling[J]. Power System Technology, 2018, 42(8):2456-2466.
[4]	MARTINEZ-MARES A, FUERTE-ESQUIVEL C R. A untlied gas and power flow analysis in natural gas and electricity coupled networks[J]. IEEE Transaction on Power Systems, 2012, 27(4):2156-2166. doi: 10.1109/TPWRS.2012.2191984
[5]	SUN Guoqiang, CHEN Shuang, WEI Zhinong, et al. Multi-period integrated natural gas and electricpower system probabilistic optimal power flow incorporating power-to-gas units[J]. Journal of Modern Power Systems and Clean Energy, 2017, 5(3):412-423. doi: 10.1007/s40565-017-0276-1
[6]	李杨, 刘伟佳, 赵俊华, 等. 含电转气的电气-热系统协同调度与消纳风电效益分析[J]. 电网技术, 2016, 40(12):3680-3688.
	LI Yang, LIU Weijia, ZHAO Junhua, et al. Analysis on cooperative dispatching and wind power consumption benefit of electric thermal system with electricity to gas[J]. Power System Technology, 2016, 40(12):3680-3688.
[7]	王伟亮, 王丹, 贾宏杰, 等. 考虑天然气网络状态的电力-天然气区域综合能源系统稳态分析[J]. 中国电机工程学报, 2017, 37(5):1293-1305.
	WANG Weiliang, WANG Dan, JIA Hongjie, et al. Steady state analysis of power natural gas regional integrated energy system considering natural gas network state[J]. Proceedings of the CSEE, 2017, 37(5):1293-1305.
[8]	龚睿. 区域型电气互联综合能源系统运行模式与优化控制算法研究[D]. 南京: 南京理工大学, 2018.
	GONG Rui. Research on operation mode and optimal control algorithm of regional interconnected integrated energy system[D]. Nanjing: Nanjing University of Technology, 2018.
[9]	李婷, 叶希, 唐权, 等. 基于交替方向乘子法的源网协同多适应规划[J]. 电力建设, 2017, 38(11):105-112.
	LI Ting, YE Xi, TANG Quan, et al. Source network cooperative multi adaptation planning based on alternating direction multiplier method[J]. Electric Power Construction, 2017, 38(11):105-112.
[10]	王程, 刘念. 基于交替方向乘子法的互联微电网系统分布式优化调度[J]. 电网技术, 2016, 40(9):2675-2681.
	WANG Cheng, LIU Nian. Interconnected microelectronics based on alternating direction multiplier method distributed optimal dispatching of power grid system[J]. Power System Technology, 2016, 40(9):2675-2681.
[11]	瞿小斌, 文云峰, 叶希, 等. 基于串行和并行ADMM算法的电-气能量流分布式协同优化[J]. 电力系统自动化, 2017, 41(4):12-19.
	QU Xiaobin, WEN Yunfeng, YE Xi, et al. Distributed collaborative optimization of power gas energy flow based on serial and parallel ADMM algorithm[J]. Automation of Electric Power Systems, 2017, 41(4):12-19.
[12]	王成山, 吕超贤, 李鹏, 等. 园区型综合能源系统多时间尺度模型预测优化调度[J]. 中国电机工程学报, 2019, 39(23):6791-6803,7093.
	WANG Chengshan, LÜ Chaoxian, LI Peng, et al. Multi time scale model prediction and optimal dispatch of park type integrated energy system[J]. Proceedings of the CSEE, 2019, 39(23):6791-6803,7093.
[13]	肖浩, 裴玮, 孔力. 基于模型预测控制的微电网多时间尺度协调优化调度[J]. 电力系统自动化, 2016, 40(18):7-14.
	XIAO Hao, PEI Wei, KONG Li. Multi time scale coordinated optimal dispatch of microgrid based on model predictive control[J]. Automation of Electric Power Systems, 2016, 40(18):7-14.
[14]	梅建春, 卫志农, 张勇, 等. 电-气互联综合能源系统多时间尺度动态优化调度[J]. 电力系统自动化, 2018, 42(13):36-42.
	MEI Jianchun, WEI Zhinong, ZHANG Yong, et al. Multi time scale dynamic optimal dispatching of power gas interconnected integrated energy system[J]. Automation of Electric Power Systems, 2018, 42(13):36-42.
[15]	张儒峰, 姜涛, 李国庆, 等. 考虑电转气消纳风电的电-气综合能源系统双层优化调度[J]. 中国电机工程学报, 2018, 38(19):5668-5678.
	ZHANG Rufeng, JIANG Tao, LI Guoqing, et al. Double layer optimal scheduling of power gas integrated energy system considering power to gas consumption of wind power[J]. Proceedings of the CSEE, 2018, 38(19):5668-5678.
[16]	陈泽兴. 电-气互联系统协同运行优化的模型与算法研究[D]. 广州: 华南理工大学, 2019.
	CHEN Zexing. Research on model and algorithm of coordinated operation optimization of power gas interconnected system[D]. Guangzhou: South China University of Technology, 2019.

优化模型	电力系统运行成本	天然气系统运行成本	互联系统运行成本
集中式	587 810	165 004	750 814
分布式	587 286	162 957	750 243
分布式滚动	587 706	163 072	750 778
