考虑随机影响因素的电网饱和负荷概率预测方法

doi:10.11985/2021.03.014

电气工程学报 ›› 2021, Vol. 16 ›› Issue (3): 99-105.doi: 10.11985/2021.03.014

扫码分享

考虑随机影响因素的电网饱和负荷概率预测方法

荆林国¹(), 荆仲毅²(), 张韶晶¹(), 张韶颖¹()

1.国网山东省电力公司滨州供电公司滨州 256610
2.山东科技大学电气与自动化工程学院青岛 266590

收稿日期:2020-09-02 修回日期:2021-05-12 出版日期:2021-09-25 发布日期:2021-10-29
作者简介:荆林国,男,1975年生,高级工程师。主要研究方向为电力工程技术及生产运维等。E-mail： fujiao8944643939@163.com
荆仲毅,男,1999年生。主要研究方向为电力通信技术。E-mail： 893607537@qq.com
张韶晶,女,1976年生,高级工程师。主要研究方向为电力工程技术及营销服务等。E-mail： 1115327593@qq.com
张韶颖,女,1973年生。主要研究方向为电力生产运维。E-mail： 1263459082@qq.com

Power Grid Saturation Load Probability Prediction Method Considering Random Influencing Factors

JING Linguo¹(), JING Zhongyi²(), ZHANG Shaojing¹(), ZHANG Shaoying¹()

1. Binzhou Power Supply Company of State Grid Shandong Electric Power Company, Binzhou 256610
2. College of Electrical Engineering and Automation, Shandong University of Science and Technology,Qingdao 266590

Received:2020-09-02 Revised:2021-05-12 Online:2021-09-25 Published:2021-10-29

摘要/Abstract

摘要：

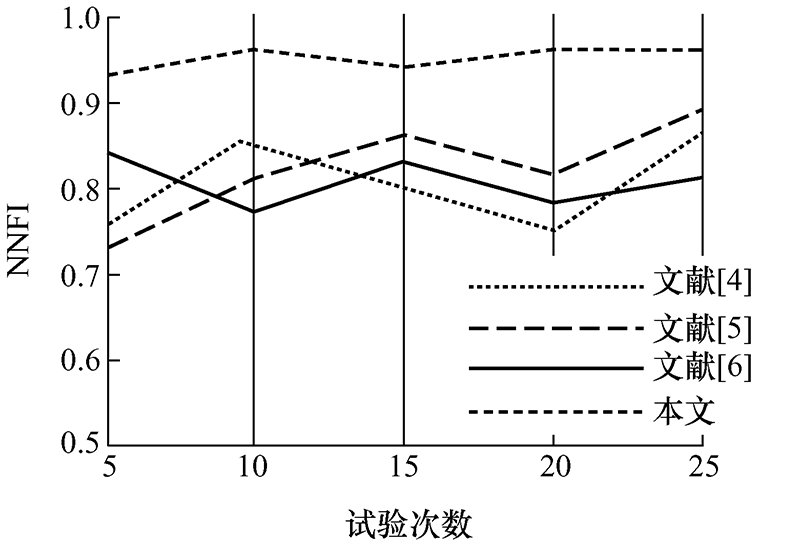

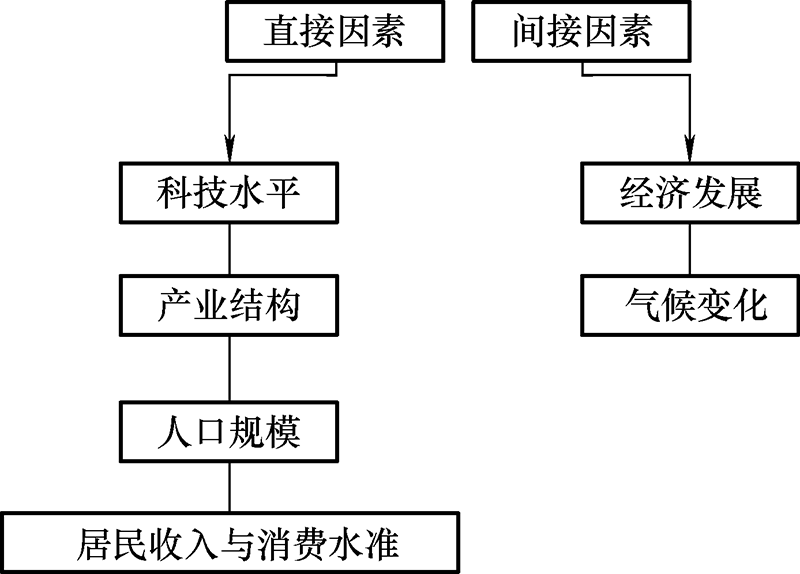

为有效解决当前电网负荷预测相关研究成果精确性待优化等问题,提出基于粒子群算法的电网饱和负荷概率预测方法。综合考虑电网饱和负荷影响因素,利用K均值聚类法对供电区域进行划分,以划分结果为依据,引入高斯过程回归模型和粒子群算法,利用滚动预测的方式获取电量剩余历史信息数据预测值,同时通过粒子群法对优化问题进行求解,获得最优的超参数,结合电网饱和判据与饱和负荷的随机影响因素规划数值,构建电网饱和负荷的概率预测模型。通过试验对所提方法进行测试,结果表明,该方法非标准拟合指数和比较拟合指数均较高,融合饱和判据程度强,具有可靠性。

关键词: 影响因素, 电网饱和负荷, 概率预测模型

Abstract:

In order to effectively solve the problems such as the accuracy of current research results of power grid load forecasting to be optimized, a probability forecasting method of power grid saturated load based on particle swarm optimization algorithm is proposed. Considering the influence factors of the saturated load of the power grid, the K-means clustering method is used to divide the power supply area. Based on the division results, the Gaussion process regression model and particle swarm optimization method are introduced to obtain the prediction value of the remaining historical information data of the power grid by the rolling prediction method. At the same time, the particle swarm optimization method is used to solve the optimization problem to obtain the optimal hyper parameters and determine the saturation of the power grid. According to the combination with the random factors of saturated load, the probability prediction model of saturated load is constructed. The experimental results show that the proposed method has high non-standard fitting index and comparative fitting index, strong fusion saturation criterion and reliability.

Key words: Influencing factor, grid saturation load, probability prediction model

中图分类号:

TM715

荆林国, 荆仲毅, 张韶晶, 张韶颖. 考虑随机影响因素的电网饱和负荷概率预测方法[J]. 电气工程学报, 2021, 16(3): 99-105.

JING Linguo, JING Zhongyi, ZHANG Shaojing, ZHANG Shaoying. Power Grid Saturation Load Probability Prediction Method Considering Random Influencing Factors[J]. Journal of Electrical Engineering, 2021, 16(3): 99-105.

图/表 5

图1

图2

图3

图4

表1

参考文献 15

[1]	陈缨, 郭小敏, 黄宇, 等. 基于动态概率潮流的输电网断线风险评估[J]. 中国电力, 2019, 52(5):155-163.
	CHEN Ying, GUO Xiaomin, HUANG Yu, et al. Assessment on line-breakage risk in transmission network based on dynamic probability power flow[J]. Electric Power, 2019, 52(5):155-163.
[2]	王召健, 陈来军, 刘锋, 等. 考虑可控负荷调节能力的多微电网分布式频率控制[J]. 电力系统自动化, 2016, 40(15):47-52.
	WANG Zhaojian, CHEN Laijun, LIU Feng, et al. Distributed frequency control of multi-microgrids with regulation capacity constraints of controllable loads[J]. Automation of Electric Power Systems, 2016, 40(15):47-52.
[3]	张哲, 杨航, 尹项根, 等. 电网运行风险在线评估中基于灵敏度分析的负荷削减模型[J]. 电力自动化设备, 2018, 38(5):90-95.
	ZHANG Zhe, YANG Hang, YIN Xianggen, et al. Load shedding model based on sensitivity analysis in on-line power system operation risk assessment[J]. Electric Power Automation Equipment, 2018, 38(5):90-95.
[4]	张明理, 宋卓然, 梁毅, 等. 基于饱和负荷密度的城市远景空间负荷预测[J]. 沈阳工业大学学报, 2018, 40(1):12-18.
	ZHANG Mingli, SONG Zhuoran, LIANG Yi, et al. Forecasting for urban prospective spatial load based on saturated load density[J]. Journal of Shenyang University of Technology, 2018, 40(1):12-18.
[5]	方陈, 江兴稳, 周健, 等. 含分布式能源区域电网月最大净负荷概率预测[J]. 水电能源科学, 2018, 36(9):197-200.
	FANG Chen, JIANG Xingwen, ZHOU Jian, et al. Probability prediction of monthly net load for regional power grid with distributed energy penetration[J]. Water Resources and Power, 2018, 36(9):197-200.
[6]	陆继翔, 张琪培, 杨志宏, 等. 基于CNN-LSTM混合神经网络模型的短期负荷预测方法[J]. 电力系统自动化, 2019, 43(8):191-197.
	LU Jixiang, ZHANG Qipei, YANG Zhihong, et al. Short-term load forecasting method based on CNN-LSTM hybrid neural network model[J]. Automation of Electric Power Systems, 2019, 43(8):191-197.
[7]	蒋正邦, 吴浩, 程祥, 等. 基于多元聚类模型与两阶段聚类修正算法的变电站特性分析[J]. 电力系统自动化, 2018, 42(15):157-163.
	JIANG Zhengbang, WU Hao, CHENG Xiang, et al. Analysis of substation characteristics based on multivariate clustering model and two-stage clustering-correction algorithm[J]. Automation of Electric Power Systems, 2018, 42(15):157-163.
[8]	刘叶, 吴晟, 周海河, 等. 基于K-means聚类算法优化方法的研究[J]. 信息技术, 2019, 43(1):66-70.
	LIU Ye, WU Sheng, ZHOU Haihe, et al. Research on optimization method based on K-means clustering algorithm[J]. Information Technology, 2019, 43(1):66-70.
[9]	薛文, 苏宏升. 基于分群策略的混沌粒子群优化算法[J]. 计算机工程与设计, 2019, 40(2):443-448.
	XUE Wen, SU Hongsheng. Chaotic particle swarm optimization algorithm based on grouping strategy[J]. Computer Engineering and Design, 2019, 40(2):443-448.
[10]	郝晓弘, 刘鹏娟, 汪宁渤. 混沌优化PSO-LSSVM算法的短期负荷预测[J]. 兰州理工大学学报, 2019, 45(1):91-96.
	HAO Xiaohong, LIU Pengjuan, WANG Ningbo. Short-term load forecasting using chaotic optimization PSO-LSSVM algorithm[J]. Journal of Lanzhou University of Technology, 2019, 45(1):91-96.
[11]	闫重熙, 陈皓. 基于改进天牛须搜索算法优化LSSVM短期电力负荷预测方法研究[J]. 电测与仪表, 2020, 57(6):11-16,23.
	YAN Zhongxi, CHEN Hao. Research of LSSVM short-term load forecasting method based on the improved beetle antennae search algorithm[J]. Electrical Measurement & Instrumentation, 2020, 57(6):11-16,23.
[12]	党存禄, 武文成, 李超锋, 等. 基于CatBoost算法的电力短期负荷预测研究[J]. 电气工程学报, 2020, 15(1):76-82.
	DANG Cunlu, WU Wencheng, LI Chaofeng, et al. Short term load forecasting based on CatBoost algorithm[J]. Journal of Electrical Engineering, 2020, 15(1):76-82.
[13]	张彦龙, 翟登辉, 许丹, 等. 基于机器学习的换流站故障分析报告智能分类方法[J]. 电气工程学报, 2019, 14(1):83-88.
	ZHANG Yanlong, ZHAI Denghui, XU Dan, et al. Intelligent classification method of fault analysis report of converter station based on machine learning[J]. Journal of Electrical Engineering, 2019, 14(1):83-88.
[14]	刁守斌, 于涛, 王建建, 等. 基于保留非线性算法的直流配电网潮流计算[J]. 电气工程学报, 2020, 15(4):75-84.
	DIAO Shoubin, YU Tao, WANG Jianjian, et al. Power flow calculation of DC distribution network based on the reserved nonlinear algorithm[J]. Journal of Electrical Engineering, 2020, 15(4):75-84.
[15]	刘升伟, 王星华, 鲁迪, 等. 基于改进高斯过程回归的短期负荷概率区间预测方法[J]. 电力系统保护与控制, 2020, 48(1):24-31.
	LIU Shengwei, WANG Xinghua, LU Di, et al. Electric load probabilistic interval prediction method based on improved Gaussian process regression[J]. Power System Protection and Control, 2020, 48(1):24-31.

方法	电网饱和区间/(×10⁸ kW·h)	饱和期望值 /(×10⁸kW·h)	随机影响因素规划数值	最终饱和规划数值	鲁棒性(%)
本文方法	152.1~200.6	200.6	4.1	196.5	98
文献[4]	147.5~196.1	158.7	7.4	151.3	95.4
文献[5]	165.7~189.4	185.5	10.6	174.9	94.3
文献[6]	132.3~167.1	165.6	5.7	150.9	91.5
