一种220 kV户外变电站支柱式绝缘子清扫系统*

doi:10.11985/2020.02.008

电气工程学报 ›› 2020, Vol. 15 ›› Issue (2): 54-60.doi: 10.11985/2020.02.008

扫码分享

一种220 kV户外变电站支柱式绝缘子清扫系统^*

陈宇¹,周腊吾²,丁婧³,翁小川⁴,尹恒¹,邵敬平¹,史晓蓉⁶,陈宇⁵()

1.湖北华电西塞山发电有限公司黄石 435001;
2.长沙理工大学电气与信息工程学院长沙 410000;
3.国网湖北省电力有限公司鄂州市鄂城区供电公司鄂州 436000;
4.湖北华电武昌热电有限公司武汉 435000;
5.国网浙江青田县供电有限公司丽水 323900;
6.亚太卫星控股有限公司中国香港 999077

收稿日期:2020-01-07 出版日期:2020-06-25 发布日期:2020-07-31
作者简介:陈宇,男,1995年生,硕士。主要研究方向为电力系统继电保护。E-mail:815034513@qq.com
基金资助:
* 湖南省自然科学基金资助项目(2018JJ2434)

Utility Model Relates to a 220 kV Outdoor Substation Stanchion Insulator Cleaning System

CHEN Yu¹,ZHOU Lawu²,DING Jing³,WENG Xiaochuan⁴,YIN Heng¹,SHAO Jingping¹,SHI Xiaorong⁶,CHEN Yu⁵()

1. Hubei Huadian Xisaishan Power Generation Co., Ltd., Huangshi 435001 China;
2. School of Electrical and Information Engineering, Changsha University of Science and Technology, Changsha 410000 China;
3. Ezhou City Echeng District Power Supply Company, State Grid Hubei Electric Power Co., Ltd., Ezhou 436000 China;
4. Hubei Huadian Wuchang Thermal Power Co., Ltd., Wuhan 435000 China;
5. Qingtian County Power Supply Company, State Grid Zhejiang Electric Power Co., Ltd., Lishui 323900 China;
6. APT Satellite Holdings Co., Ltd., Hong Kong 999077 China

Received:2020-01-07 Online:2020-06-25 Published:2020-07-31

摘要/Abstract

摘要：

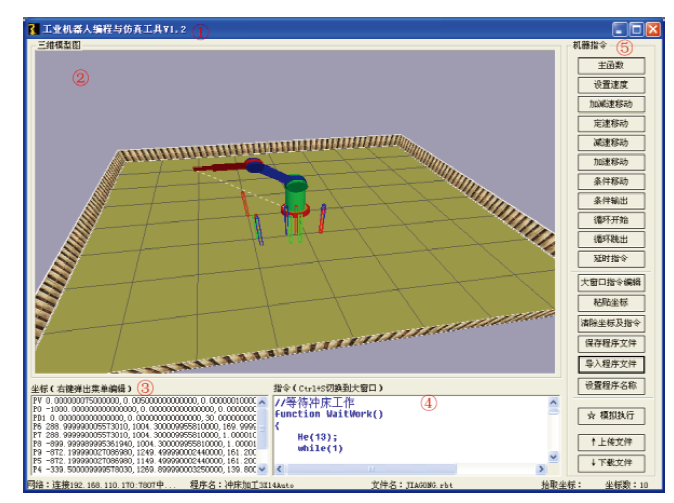

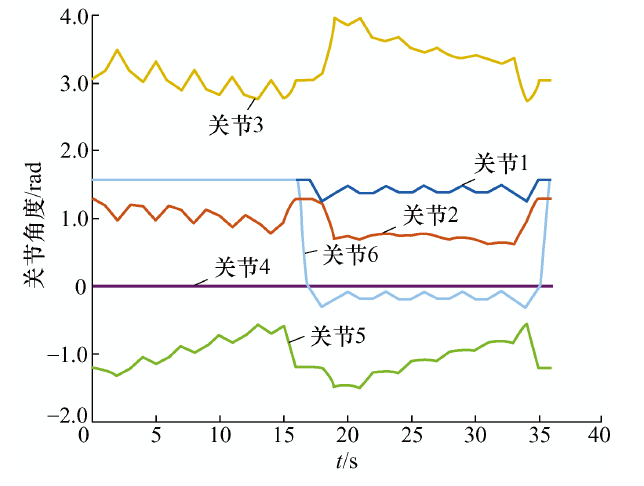

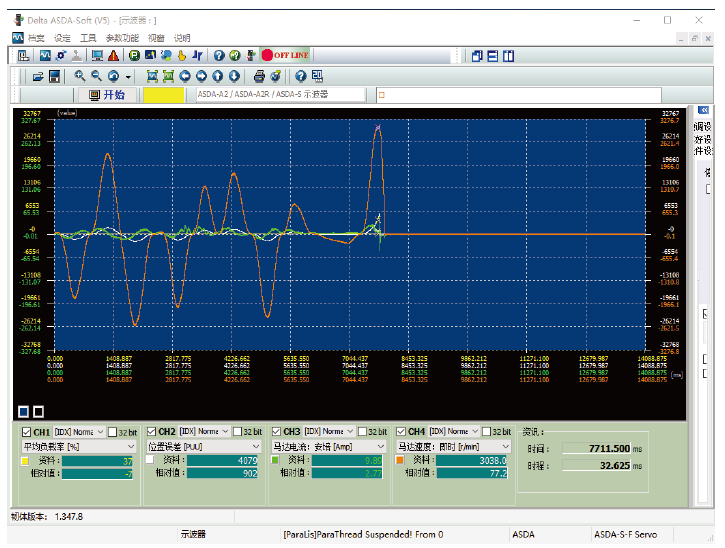

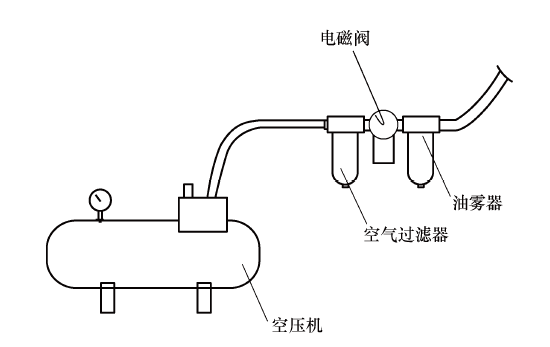

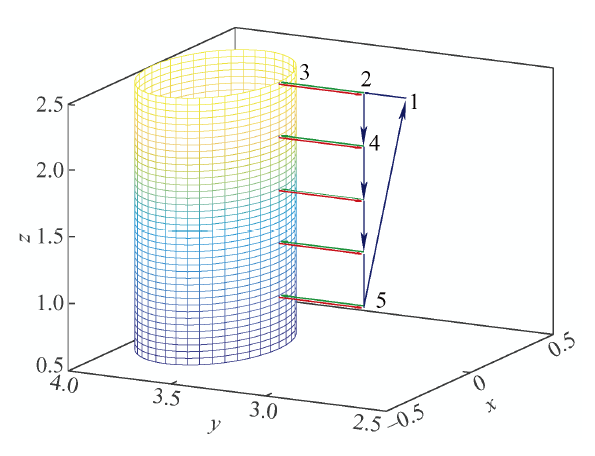

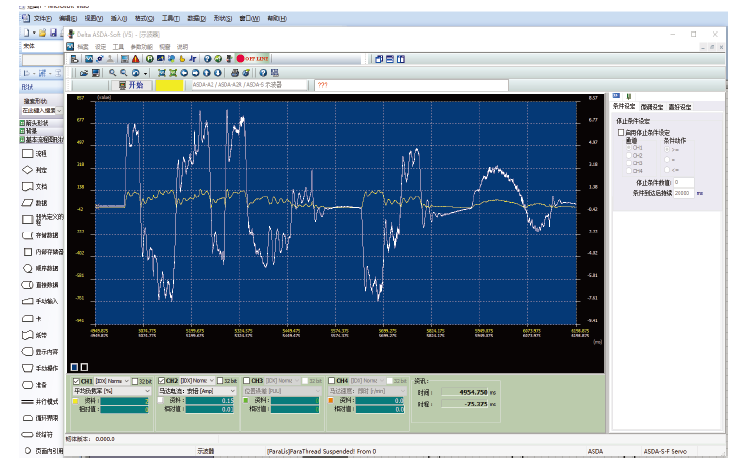

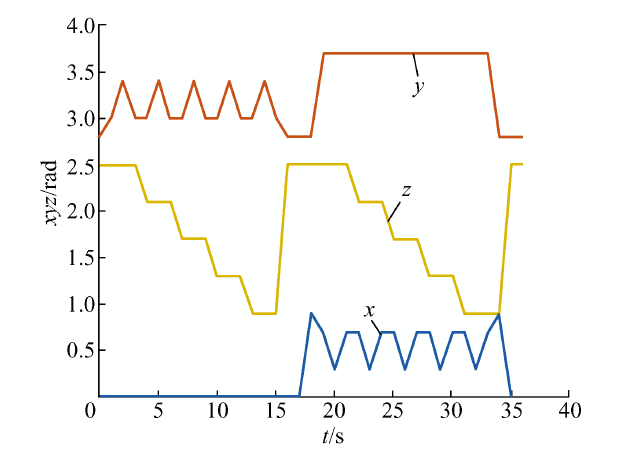

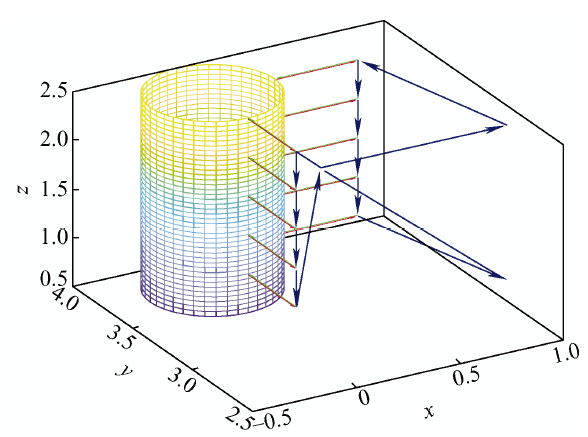

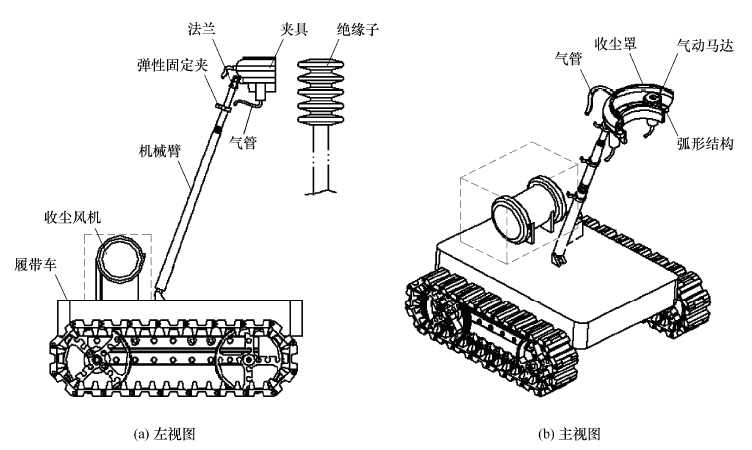

支柱绝缘子是隔离开关和断路器等电气设备的组成部分,电力系统安全稳定运行与绝缘子安全运行息息相关。绝缘子清扫系统是由空压风系统、移动系统和清扫系统三个部分组成。对变电站支柱式绝缘子清扫系统进行了设计与研究,运用Matlab仿真软件对机械臂的运动轨迹进行仿真,判断其和实际工作轨迹逆解的完成是否满足条件。接着依据绝缘子清扫系统的设计指标要求,对连接小车与机械臂之间的圆形安装底座在ANSYS和Hypermesh软件下建模仿真,圆形安装底座所受到的应力可以达到相关技术指标。通过“工业机械臂编程与仿真工具”,即用来编写机械臂具体动作的程序,实现坐标点获取、机器指令编程、程序文件上传和下载,各种加工程序上传到控制服务器后实现机械臂的指令编程。该运行方式突破了常规调试方法的弊端,在虚拟3D动画中可以及时发现,不会造成损失。最后通过波形测试可以得出伺服器会估算负载大小,并随时调整转矩去匹配负载。通过实时改变电流大小,来实现调整扭矩。

关键词: 绝缘子清扫系统, 运动轨迹, 应力分析, 波形测试

Abstract:

Pillar insulators are the components of electrical equipment such as isolating switches and circuit breakers. The safe and stable operation of power system is closely related to the safe operation of insulators. In this thesis, the design and research of substation pillar insulator cleaning system are carried out. The insulator cleaning system is composed of three parts: the air pressure system, the moving system and the cleaning system. Matlab is used to simulate the motion trajectory of the manipulator and the inverse solution of the actual working trajectory meets the requirements. Then, according to the design index requirements of the insulator cleaning system, the circular mounting base connecting the trolley and the mechanical arm is modeled and simulated under ANSYS and Hypermesh, and the stress on the circular mounting base could reach relevant technical indexes. The industrial manipulator programming and simulation tool is used to write the manipulator specific action of the program, achieve coordinate point acquisition, machine instruction programming, program file upload and download. A variety of processing procedures are uploaded to the control server to achieve the command arm programming. This operation mode breaks through the disadvantages of the conventional debugging method, and can be found in time in the virtual 3D animation without loss. Finally, through the waveform test, it can be concluded that the server will estimate the load size and adjust the torque to match the load. The server adjusts the torque by changing the current size in real time.

Key words: Insulator cleaning system, trajectory of motion, stress analysis, waveform test

中图分类号:

TP24

陈宇, 周腊吾, 丁婧, 翁小川, 尹恒, 邵敬平, 史晓蓉, 陈宇. 一种220 kV户外变电站支柱式绝缘子清扫系统^*[J]. 电气工程学报, 2020, 15(2): 54-60.

CHEN Yu, ZHOU Lawu, DING Jing, WENG Xiaochuan, YIN Heng, SHAO Jingping, SHI Xiaorong, CHEN Yu. Utility Model Relates to a 220 kV Outdoor Substation Stanchion Insulator Cleaning System[J]. Journal of Electrical Engineering, 2020, 15(2): 54-60.

图/表 16

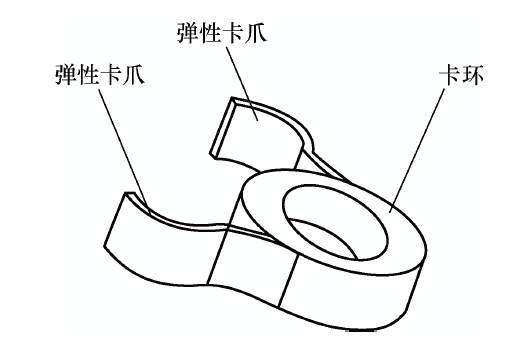

图1

图2

图3

图4

图5

图6

图7

图8

图9

表1

图10

图11

表2

图12

图13

图14

参考文献 19

[1]	王亮, 徐洋, 尤承佳, 等. 大气污染对电力网供负荷的影响[J]. 能源工程, 2015(4):18-21.
	Wang Liang, Xu Yang, You Chengjia, et al. Impact of air pollution on power supply loads[J]. Energy Engineering, 2015(4):18-21.
[2]	赵甦, 宗飞. 大气中污秽混合物对输电线路绝缘子的影响[J]. 科技风, 2019(9):117.
	Zhao Su, Zong Fei. Influence of contaminated mixture in the atmosphere on insulators of transmission lines[J]. Science and Technology Wind, 2019(9):117.
[3]	宿志一, 李庆峰. 我国电网防污闪措施的回顾和总结[J]. 电网技术, 2010,34(12):124-130.
	Su Zhiyi, Li Qingfeng. Review and summary of anti- pollution flashover measures in China’s power grid[J]. Power System Technology, 2010,34(12):124-130.
[4]	李静, 许鹏娟, 杨光, 等. 盐密对污秽复合绝缘子电场与温度场的影响研究[J]. 电气工程学报, 2018,13(7):23-30.
	Li Jing, Xu Pengjuan, Yang Guang, et al. Study on the effect of salt density on electric and temperature field of contaminated composite insulator[J]. Journal of Electrical Engineering, 2018,13(7):23-30.
[5]	宋敏. 有限元分析在接触网绝缘子电场分析中的应用[J]. 电气工程学报, 2019,14(2):108-114.
	Song Min. Application of finite element analysis in electric field analysis of contact network insulators[J]. Journal of Electrical Engineering, 2019,14(2):108-114.
[6]	杨富磊, 高峰, 熊一, 等. 关于输电线路运行管理技术的研究[J]. 电气时代, 2018(8):93-95.
	Yang Fulei, Gao Feng, Xiong Yi, et al. Research on operation management technology of transmission line[J]. Electric Age, 2018(8):93-95.
[7]	王中岳, 林济铿, 胡世骏, 等. 输电线路污闪跳闸概率计算方法[J]. 中国电力, 2016,49(5):53-58.
	Wang Zhongyue, Lin Jikeng, Hu Shijun, et al. Calculation method for pollution flashover trip probability of trans- mission lines[J]. Electric Power, 2016,49(5):53-58.
[8]	黄阿强. 解析输电线路污闪跳闸原因及防范[J]. 通讯世界, 2015,283(24):191-192.
	Huang Aqiang. Analysis on causes and prevention of pollution flashover trips on transmission lines[J]. Communications World, 2015,283(24):191-192.
[9]	刘琳, 李晓昂, 张锐, 等. 影响GIS支柱绝缘子闪络电压的沿面电场特征参数[J]. 高电压技术, 2019,45(9):2740-2746.
	Liu Lin, Li Xiaoang, Zhang Rui, et al. Characteristic parameters of creeping electric field affecting the flashover voltage of GIS pillar insulators[J]. High Voltage Technology, 2019,45(9):2740-2746.
[10]	祝新飞. 绝缘子染污及清扫机械手研究[D]. 青岛:青岛科技大学, 2017.
[11]	Soler R, Guillet J. Robotic maintenance of the EDF transmission (63 to 400 kV) network feasibility study and effects on tower design[C]// The 5th International Conference on Transmission and Distribution Construction,Operation and Live Line Maintenance. Nevada,USA,ESMO, 1993.
[12]	Nakashima M, Yakabe H, Maruyama Y, et al. Application of semi-automatic robot technology on hot-line mainte- nance work[C]// Proceedings of 1995 IEEE International Conference on Robotics and Automation, 1995:843-850.
[13]	Murali N, Gupta K, Bhanot S. Analysis of Q-learning on ANNs for robot control using live video feed[C]// 2017 IEEE International Conference on Signal and Image Processing Applications (ICSIPA), 2017:524-529.
[14]	Shin K G, McKay N D. A dynamic programming approach to trajectory planning of robotic manipulators[J]. IEEE Transactions on Automatic Control, 1986,31(6):491-500.
[15]	Seung Hyun Byum, Byung Hak Cho, Joon Young Park, et al. Implementation of control system for insulator cleaning robot[C]// SICE-ICASE International Joint Confer- ence,18-21 Oct.,Busan,Korea. IEEE, 2006:3044-3047.
[16]	Joon Young Park, Byung Hak Cho, Seung Hyun Byum. Development of automatic cleaning robot for live-line insulators[C]// 11th International Conference on Trans- mission & Distribution Construction,Operation and Live-Line Maintenance (ESMO2006),15-19 October,Albuquerque,NM,USA. IEEE, 2006.
[17]	王林, 王洪, 光景凤, 等. 一种悬垂绝缘子带电清扫机器人机构设计[J]. 机械设计与制造, 2019(1):232-235.
	Wang Lin, Wang Hong, Guang Jingfeng, et al. Design of a robotic cleaning robot with overhang insulators[J]. Machinery Design and Manufacturing, 2019(1):232-235.
[18]	刘继君, 王思城, 董旭, 等. 便携式绝缘子串软轴带电清扫器及其应用[J]. 电工技术, 2017(10):128-129,131.
	Liu Jijun, Wang Sicheng, Dong Xu, et al. Portable shaft cleaner with flexible shaft and its application[J]. Electrical Engineering Technology, 2017(10):128-129,131.
[19]	国家电网有限公司. 电力系统污区分级与外绝缘选择标准:Q/GDW 1152.1-2014[S]. 北京:中国电力科学研究院, 2015.
	State Grid Co.,Ltd. Pollution classification and external insulation selection for electric power system:Q/GDW 1152.1-2014[S]. Beijing:China Electric Power Research Institute, 2015.

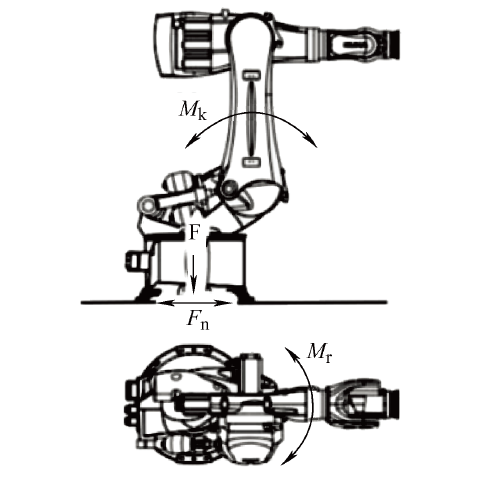

力和力矩	数值
正常情况下F_v/N	37 000
最大情况下F_vmax/N	40 500
正常情况下F_h/N	15 900
最大情况下F_hmax/N	23 500
正常情况下M_k/(N·m)	58 900
最大情况下M_kmax/(N·m)	84 500
正常情况下M_r/(N·m)	18 500
最大情况下M_rmax/(N·m)	45 500

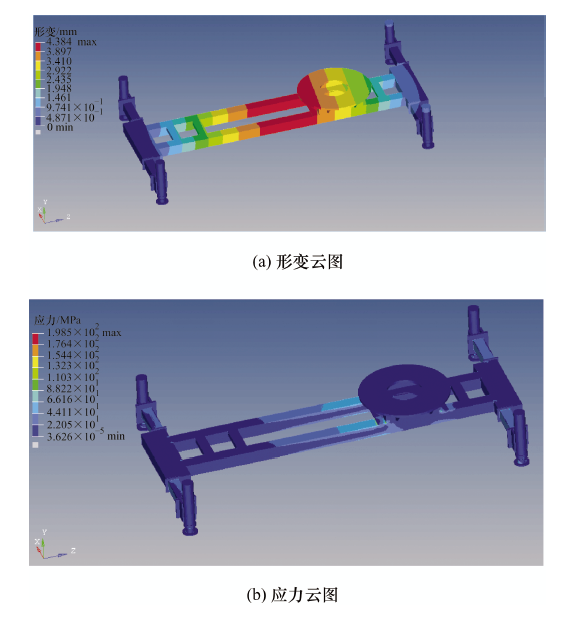

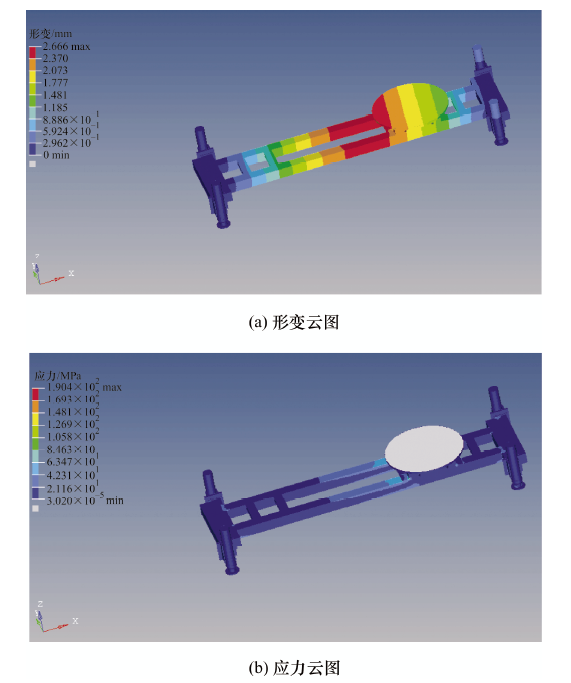

工况	不伸长	伸至最长
最大型变量/mm	2.666	4.384
最大应力/MPa	190.4	198.5
应力≤235 MPa	满足	满足
