宽带电磁场除藻技术的试验研究

doi:10.11985/2020.01.016

摘要/Abstract

摘要：

基于磁场对细胞的影响,电磁场除藻法成为新兴的除藻技术。由于藻类种群的多样性,固定磁场只能解决单一藻类,为了去除多种群藻类,提高除藻效率,利用交变三角波频谱宽泛的特点提出了一种交变磁场除藻技术。交变磁场由交变的三角波通过电感来产生,设计了一套能够产生稳定的高频交变三角波的发生装置,搭建了试验平台,通过改变频率产生不同磁场对藻体进行试验。最后将试验前后的藻类进行比较,结果表明,在适当的频率范围内,频率越高,藻体的去除率越高。

关键词: 电磁场除藻, 三角波, 频谱

Abstract:

Based on the effect of magnetic fields on cells, the electromagnetic field algae removal method has become an emerging algae removal technology. Due to the diversity of algae populations, a fixed magnetic field can only solve a single alga. In order to remove multiple algae groups and improve algae removal efficiency, taking advantage of the wide spectrum of alternating triangular waves, a new technology of algae removal by alternating magnetic field is proposed. An alternating magnetic field is generated by an alternating triangular wave through an inductor, a set of generators capable of generating stable high-frequency alternating triangle waves is designed, and an experimental platform is set up. Experiments are performed on algae by changing the frequency to generate different magnetic fields. Finally, algae are compared before and after the experiment. The results show that within the frequency range, the higher the frequency, the higher the removal rate of algal bodies.

Key words: Electromagnetic field algae removal, triangular wave, spectrum

中图分类号:

TM154

代淑文,冯德仁. 宽带电磁场除藻技术的试验研究[J]. 电气工程学报, 2020, 15(1): 110-116.

DAI Shuwen,FENG Deren. Experimental Study of Algae Removal Technology with Broadband Electromagnetic Field[J]. Journal of Electrical Engineering, 2020, 15(1): 110-116.

图/表 16

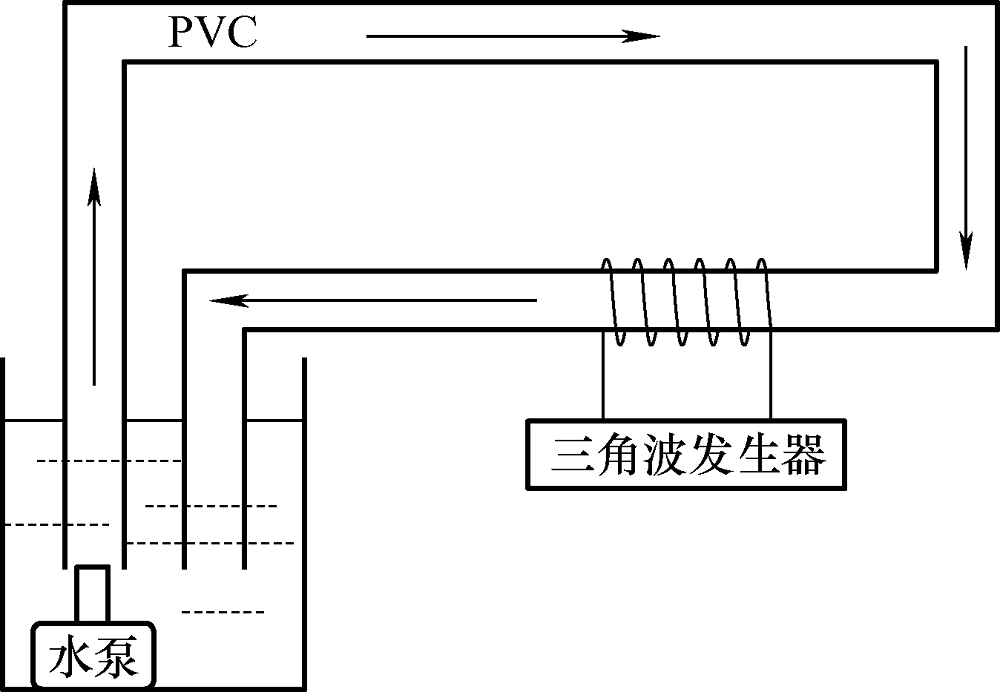

图1

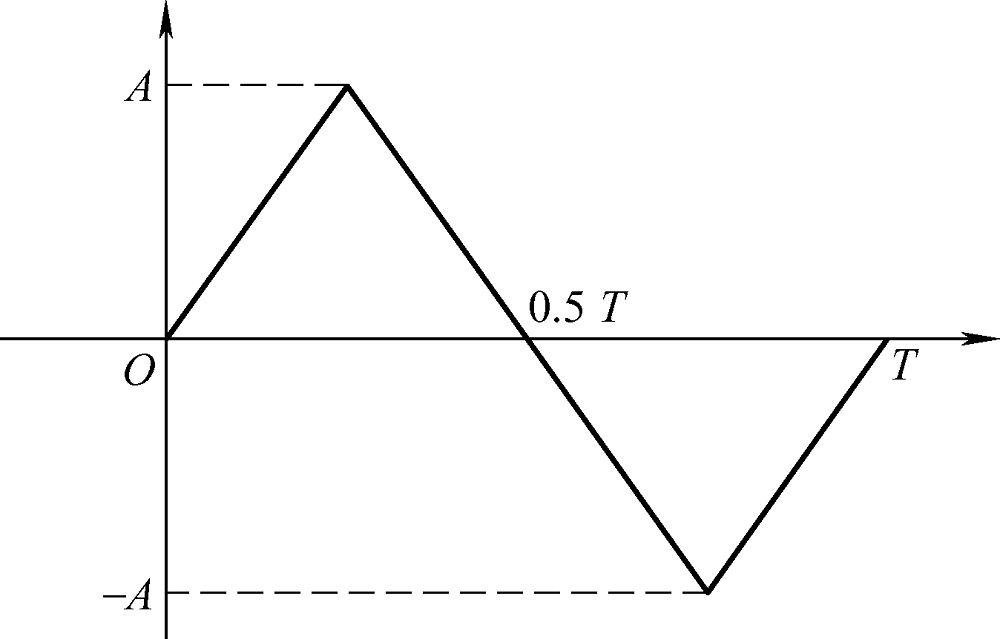

图2

图3

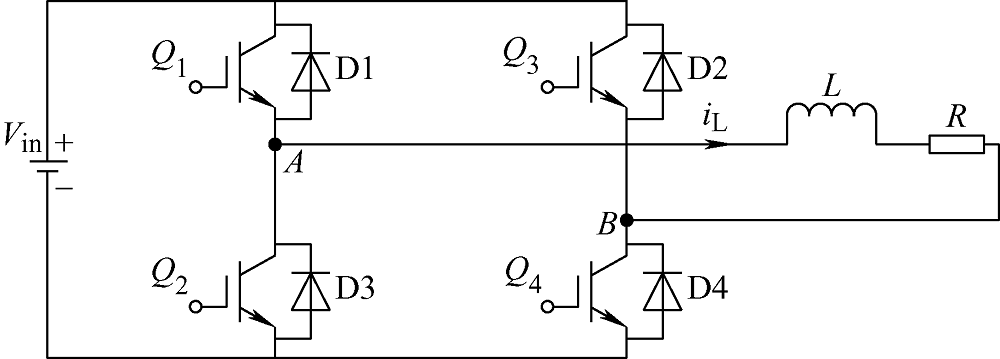

图4

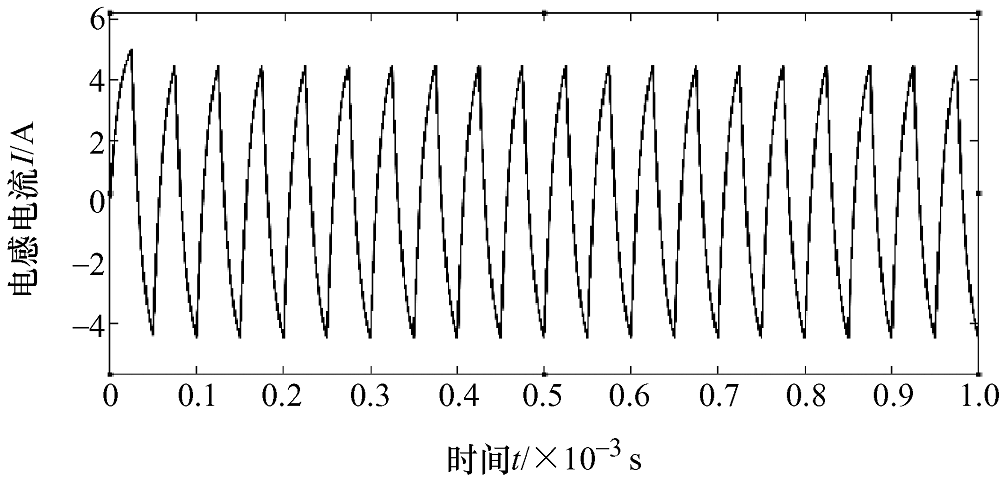

图5

图6

图7

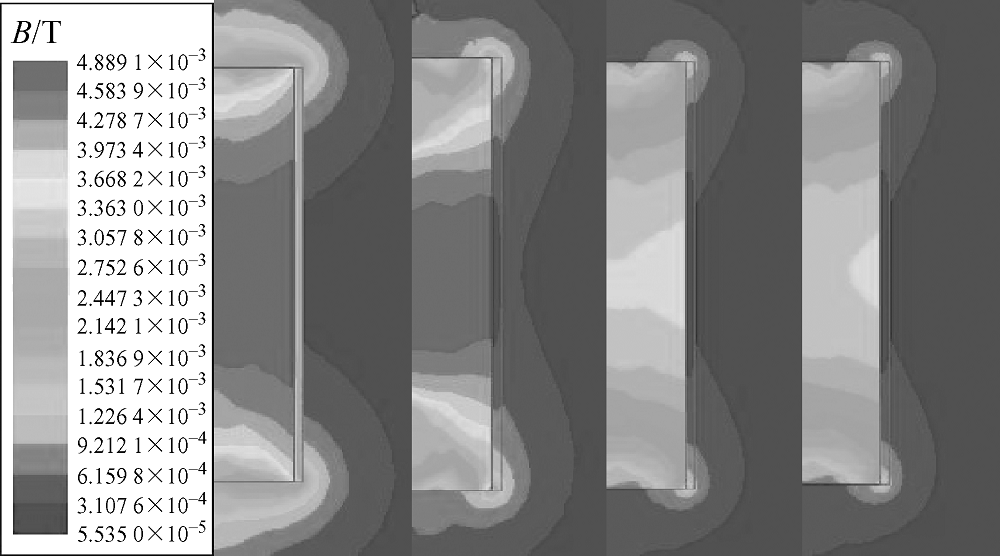

图8

表1

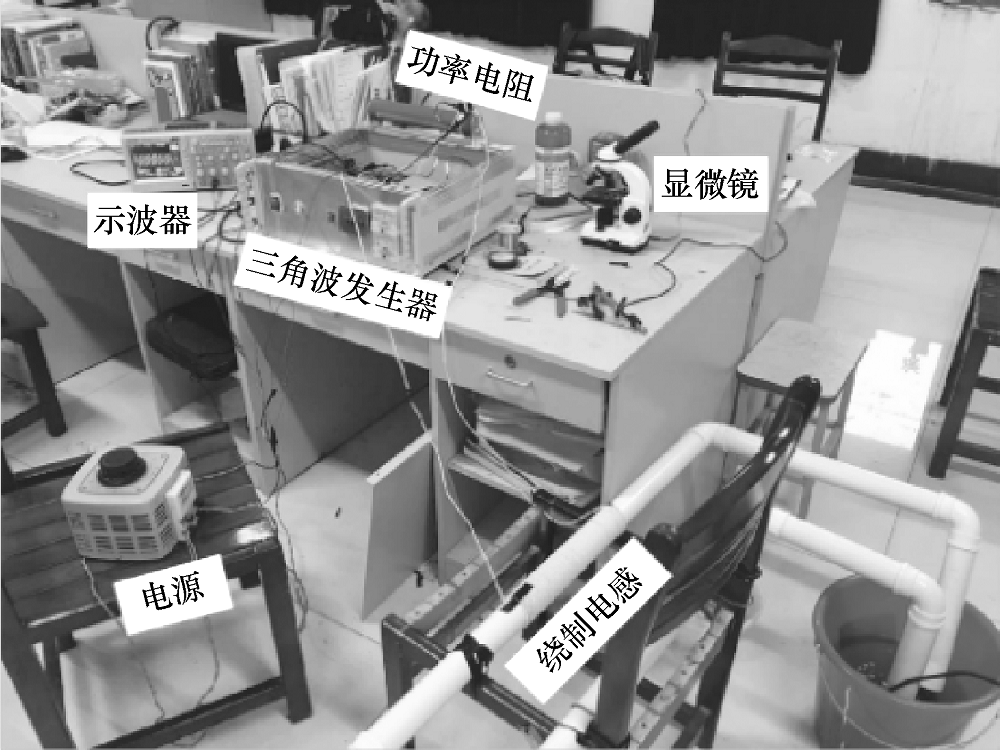

图9

图10

表2

表3

图11

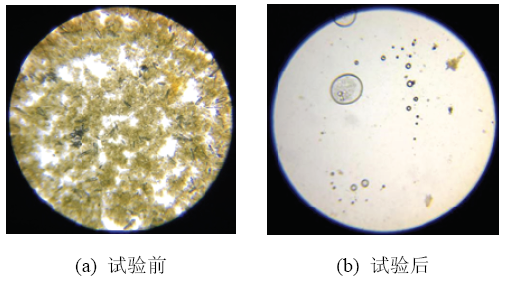

图12

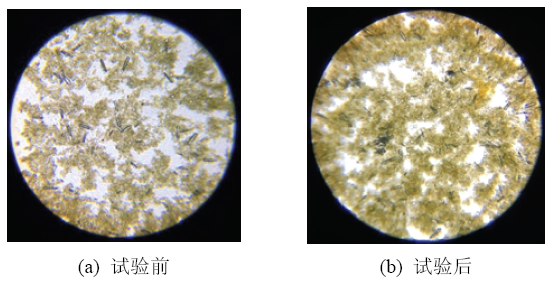

图13

参考文献 15

[1]	雷红玮 . 基于磁场刺激的细胞生物效应机理研究[D]. 沈阳:东北大学, 2013.
[2]	延克军, 吴思聪, 甄树聪 , 等. 交变电磁场强化混凝除藻的研究[J]. 硅酸盐通报, 2015,34(4):155-159.
	Yan Kejun, Wu Sicong, Zhen Shucong , et al. Research on enhanced coagulation and algae removal by alternating electromagnetic field[J]. Bulletin of the Chinese Ceramic Society, 2015,34(4):155-159.
[3]	吴思聪, 延克军, 郭恒超 , 等. 交变电磁场强化混凝对河水中藻类去除的研究[J]. 水处理技术, 2014,40(11):28-31.
	Wu Sicong, Yan Kejun, Guo Hengchao , et al. Research on algae removal in river water by enhanced coagulation with alternating electromagnetic field[J]. Water Treatment Technology, 2014,40(11):28-31.
[4]	张英杰, 潘超, 程亮 , 等. 一种电磁感应水处理器关键技术的研究[J]. 电源学报, 2013(5):93-98.
	Zhang Yingjie, Pan Chao, Cheng Liang , et al. Research on a key technology of electromagnetic induction water processor[J]. Journal of Power Sources, 2013(5):93-98.
[5]	Liu Dan, Wang Peng, Wei Guanran , et al. Removal of algal blooms from fresh water by the coagulation- magnetic separation method[J]. Environ Sci Pollut Res., 2013,20(1):60-65. doi: 10.1007/s11356-012-1052-4 pmid: 22767355
[6]	王有元, 杨涛, 田苗 . 电场对绝缘纸中水分扩散特性的影响[J]. 电工技术学报, 2015,30(1):195-203.
	Wang Youyuan, Yang Tao, Tian Miao . Influence of electric field on moisture diffusion in insulating paper[J]. Transactions of China Electrotechnical Society, 2015,30(1):195-203.
[7]	宁雅, 吴刚, 赵以军 . 水体pH值时空变化条件下絮凝除藻剂的pH值优化[J]. 环境工程, 2017,35(1):41-45.
	Ning Ya, Wu Gang, Zhao Yijun . pH optimization of flocculant algae removal agent under the condition of temporal and spatial variation of water pH[J]. Environmental Engineering, 2017,35(1):41-45.
[8]	向平, 方宇, 张亚晴 . 三电极系统处理含藻水[J]. 环境工程学报, 2017,11(2):793-797.
	Xiang Ping, Fang Yu, Zhang Yaqing . Three-electrode system for treating algae-containing water[J]. Journal of Environmental Engineering, 2017,11(2):793-797.
[9]	杨辉, 严梦姣, 孙志民 , 等. 新型气浮-沉淀工艺水库水除藻除浊效果及分析[J]. 沈阳建筑大学学报, 2017,33(6):1141-1152.
	Yang Hui, Yan Mengjiao, Sun Zhimin , et al. Effect and analysis of water and algae removal and turbidity removal in reservoirs with a new air flotation-sedimentation process[J]. Journal of Shenyang Jianzhu University, 2017,33(6):1141-1152.
[10]	邱丽佳, 张君枝, 张艳娜 , 等. H₂O₂氧化铜绿微囊藻致嗅物质及灭藻效应研究[J]. 环境科学学报, 2017,37(3):954-961.
	Qiu Lijia, Zhang Junzhi, Zhang Yanna , et al. Study on olfactory substances and algae killing effect of H₂O₂ oxide on microcystis aeruginosa[J]. Acta Scientiae Circumstantiae, 2017,37(3):954-961.
[11]	孔垂鑫 . 交变电磁场抑垢机理实验研究[D]. 济南:山东大学, 2016.
[12]	唐铭 . 交变电磁场应用于藻类去除的实验研究[D]. 马鞍山:安徽工业大学, 2018.
[13]	周律, 李哿, 李涛 , 等. 污水生物处理中生物膜传质特性的研究进展[J]. 环境科学学报, 2011(8):1580-1586.
	Zhou Lü, Li Ge, Li Tao , et al. Research progress on biofilm mass transfer characteristics in sewage biological treatment[J]. Acta Scientiae Circumstantiae, 2011(8):1580-1586.
[14]	米彦, 芮少琴, 储贻道 , 等. 基于阿基米德螺旋线圈的高变化率脉冲磁场发生器[J]. 高电压技术, 2017(2):578-586.
	Mi Yan, Rui Shaoqin, Chu Yidao , et al. High-change-rate pulsed magnetic field generator based on Archimedes spiral coils[J]. High Voltage Technology, 2017(2):578-586.
[15]	靳晓光, 张洪刚, 潘纲 . 阳离子化壳聚糖改性黏土絮凝去除藻华[J]. 环境工程学报, 2018,12(9):2437-2445.
	Jin Xiaoguang, Zhang Honggang, Pan Gang . Removal of algal blooms by cationized chitosan modified clay[J]. Chinese Journal of Environmental Engineering, 2018,12(9):2437-2445.

	时间/min	0	5	10	15
对比样	显微镜(放大倍数为80) 下图片
	藻细胞数目/ (×10⁷个/L)	0.928	1.150	1.410	1.760
	增长率(%)	0	23.9	51.9	89.7
20 kHz试验样	显微镜(放大倍数为80) 下图片
	藻细胞数目/ (×10⁷个/L)	1.540	1.020	0.864	0.608
	灭藻率(%)	0	33.7	43.9	60.5

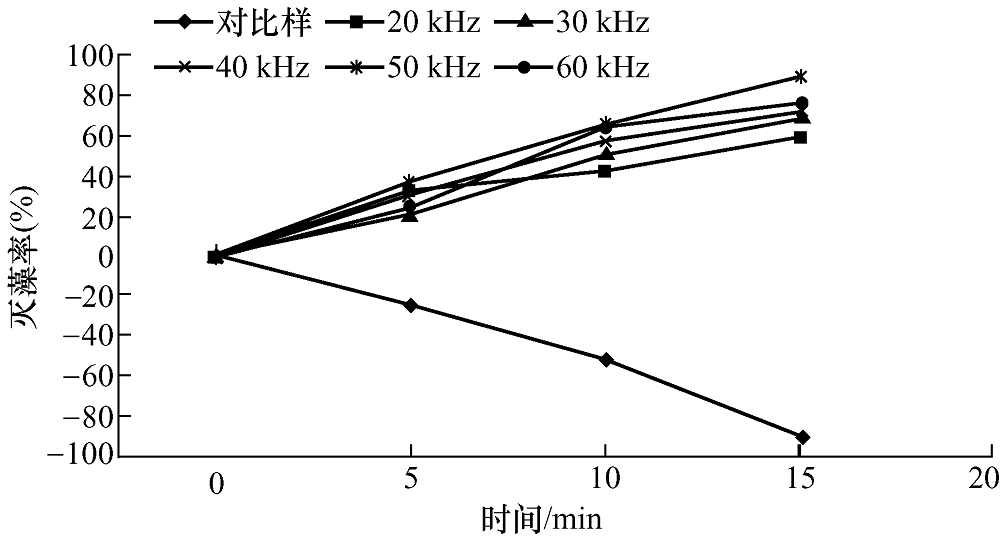

	时间/min	0	5	10	15
对比样	藻细胞数目/ (×10⁷个/L)	0.928	1.150	1.410	1.760
对比样	灭藻率(%)	0	-23.9	-51.9	-89.7
20 kHz	藻细胞数目/ (×10⁷个/L)	1.540	1.020	0.864	0.608
20 kHz	灭藻率(%)	0	33.7	43.9	60.5
30 kHz	藻细胞数目/ (×10⁷个/L)	1.630	1.280	0.800	0.512
30 kHz	灭藻率(%)	0	21.6	51.0	68.6
40 kHz	藻细胞数目/ (×10⁷个/L)	1.630	1.120	0.672	0.448
40 kHz	灭藻率(%)	0	31.4	58.8	72.5
50 kHz	藻细胞数目/ (×10⁷个/L)	1.700	1.060	0.576	0.160
50 kHz	灭藻率(%)	0	37.7	66.0	90.6
60 kHz	藻细胞数目/ (×10⁷个/L)	1.180	1.180	0.544	0.352
60 kHz	灭藻率(%)	0	24.5	65.3	77.6
