一种新型谐波发生器研究 *

doi:10.11985/2019.04.003

摘要/Abstract

摘要：

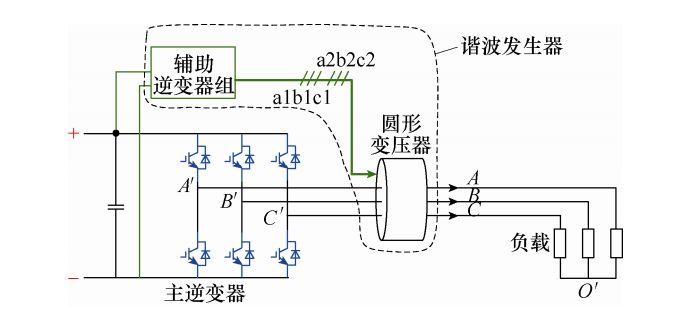

在三相及其倍数相逆变系统中谐波主要为6k±1(k=1,2,3,…)次,其中低次谐波影响最为严重。针对此问题构造了一种以多相绕组圆形变压器为主体的新型谐波发生器,提出基于谐波发生器的谐波抑制技术,应用电磁理论把谐波发生器生成的特定低次谐波通过圆形变压器感应到逆变系统主电路来抑制设备中的谐波。谐波发生器功能为产生特定低次谐波,不参与有功功率转换与传递,可以有效减小装置容量和体积,同时降低主开关管工作频率。理论推导了该谐波发生器的工作原理,仿真及试验验证了装置的有效性。

关键词: 谐波发生器, 圆形变压器, 谐波消除, 逆变系统

Abstract:

In three-phase and multiple-phase inverters, the harmonics are mainly 6k±1 (k = 1, 2, 3,…). Secondly, the impact of low-order harmonics is the most serious. To solve this problem, a new type of harmonic generator with multi-phase winding circular transformer as the main body is constructed. A harmonic suppression technology based on harmonic generator is proposed. The specific low-order harmonics generated by harmonic generator are induced to the main circuit of the inverting system by the electromagnetic theory to suppress the harmonics in the equipment. The function of harmonic generator is to generate specific low-order harmonics, and it does not participate in the conversion and transmission of active power. It can effectively reduce the capacity and volume of the device, and also reduce the working frequency of the main switch. The working principle of the harmonic generator is deduced theoretically and the effectiveness of the device is verified by simulation and experiment.

Key words: Harmonic generator, round transformer, harmonic elimination, inverter system

中图分类号:

TM561

张兵锋,王铁军,彭见仁,张志斌,牛可悦. 一种新型谐波发生器研究 ^*[J]. 电气工程学报, 2019, 14(4): 18-25.

Bingfeng ZHANG,Tiejun WANG,Jianren PENG,Zhibin ZHANG,Keyue NIU. Research on Novel Harmonic Generator[J]. Journal of Electrical Engineering, 2019, 14(4): 18-25.

图/表 19

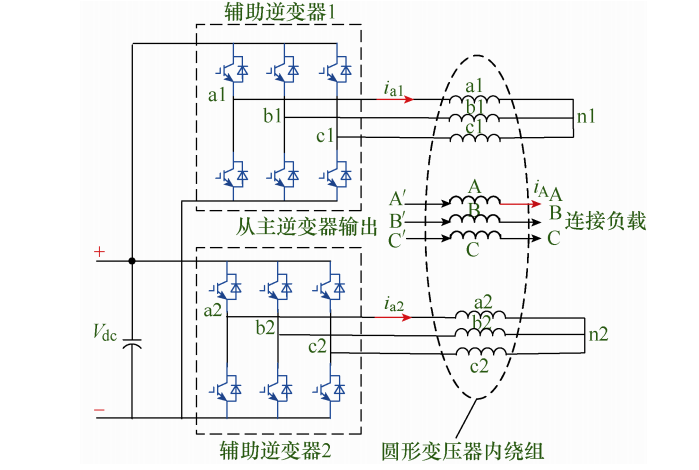

图1

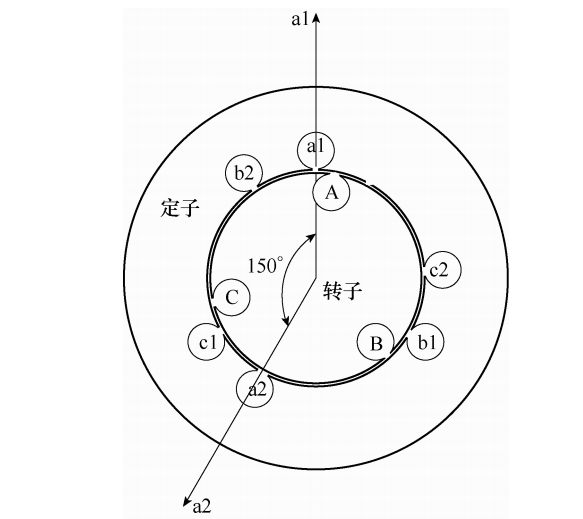

图2

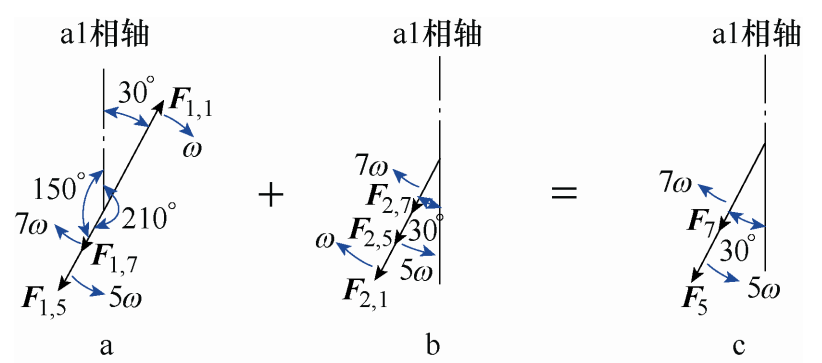

图3

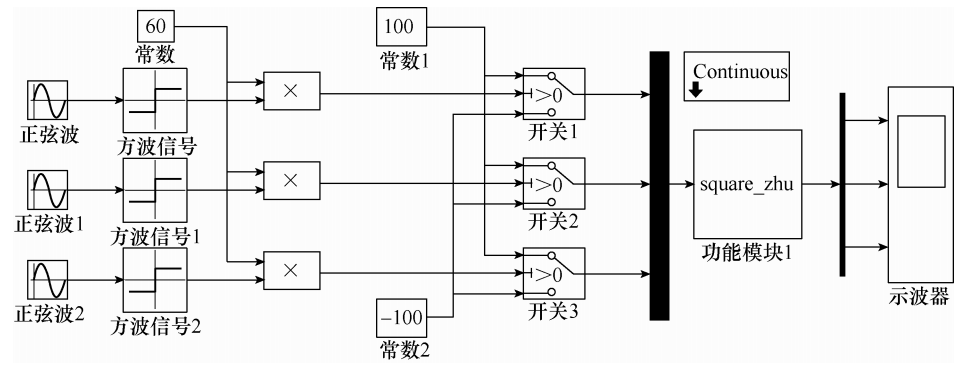

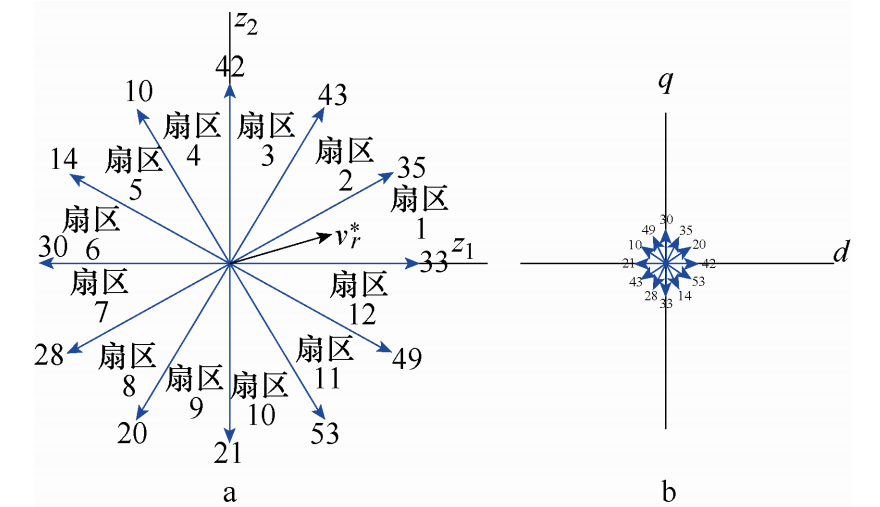

图4

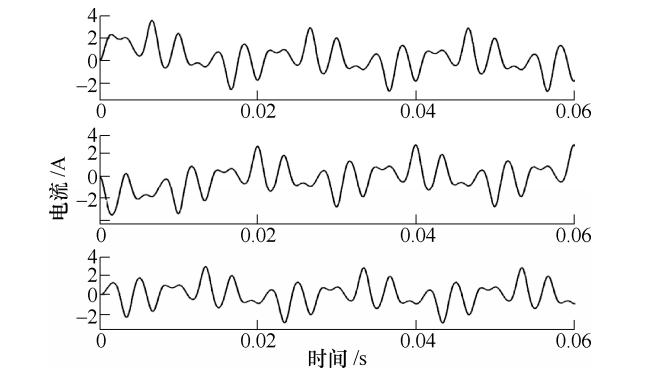

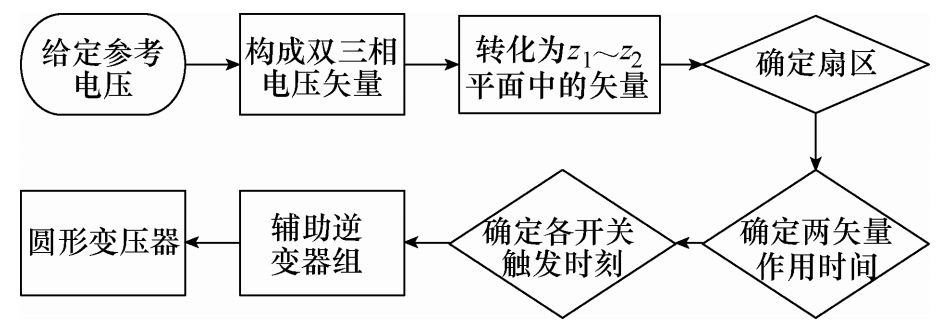

图5

图6

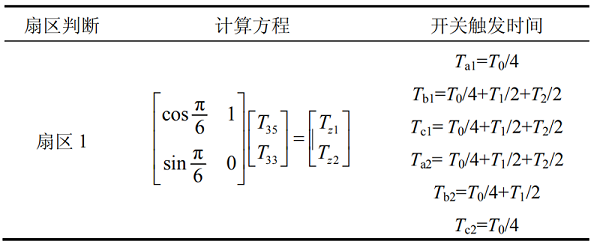

表1

表2

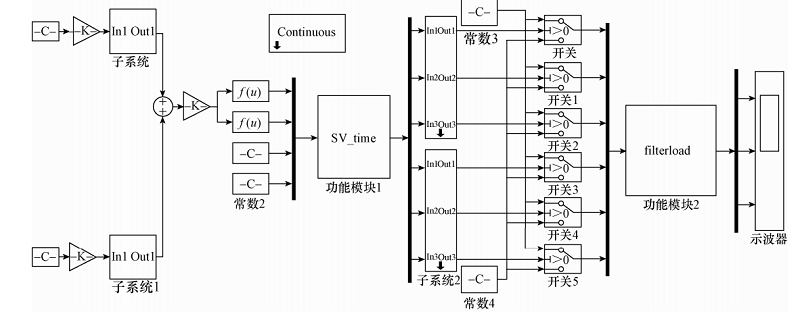

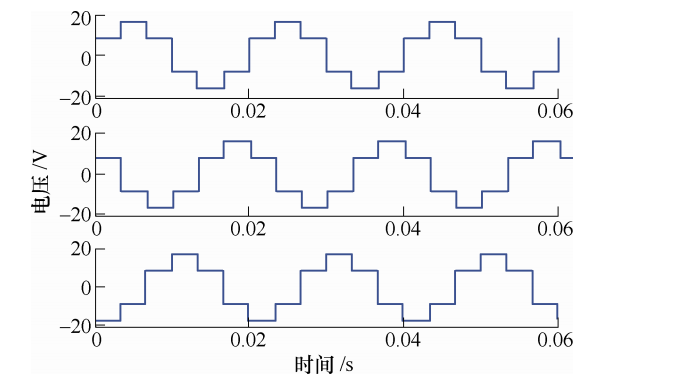

图7

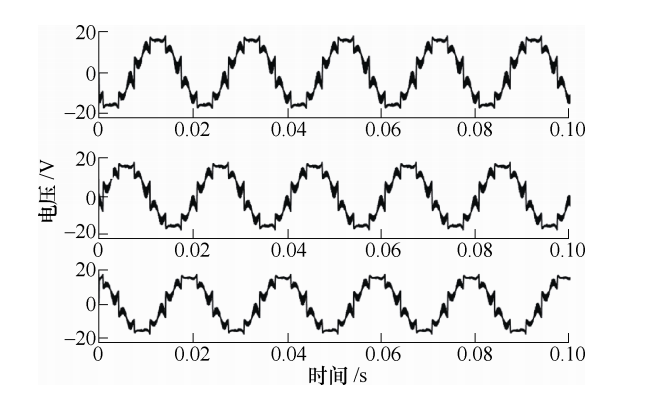

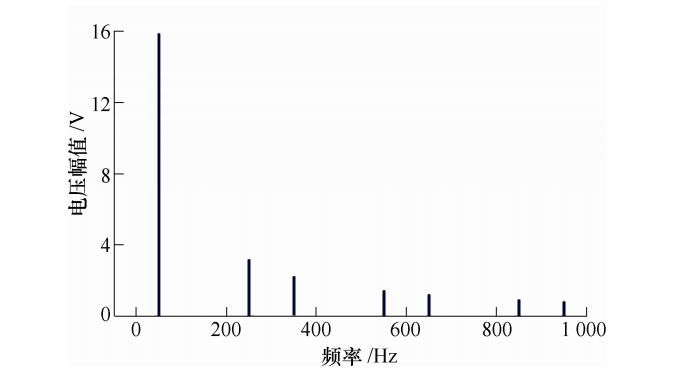

图8

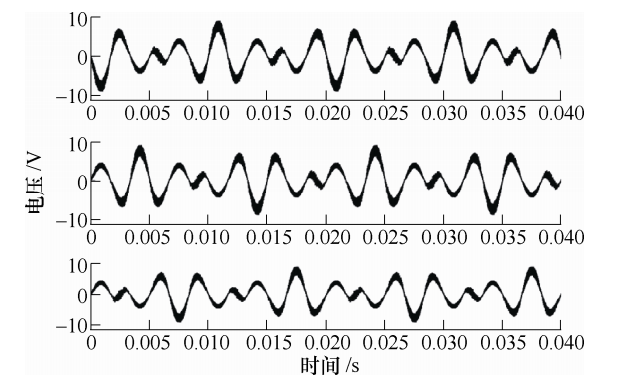

图9

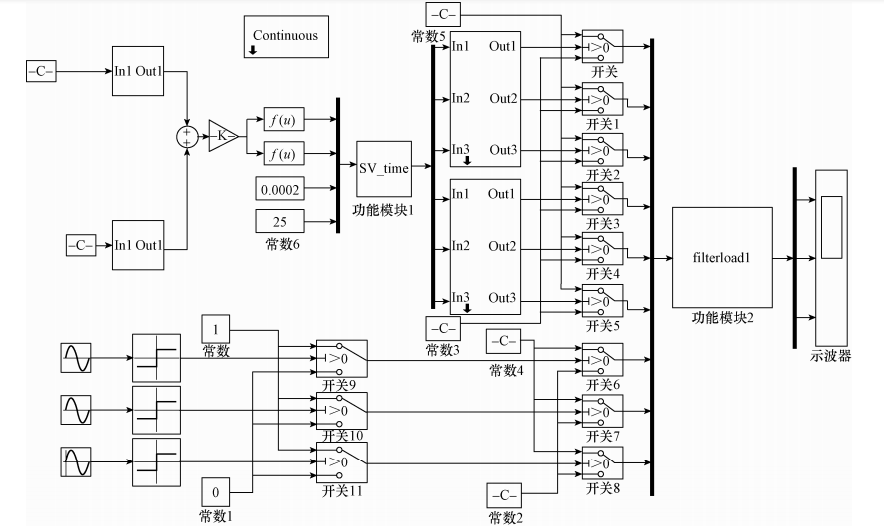

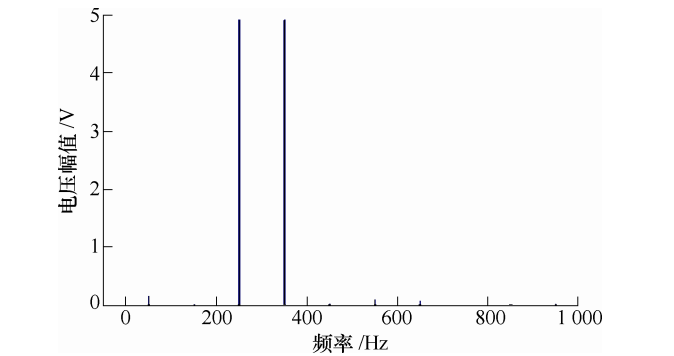

图10

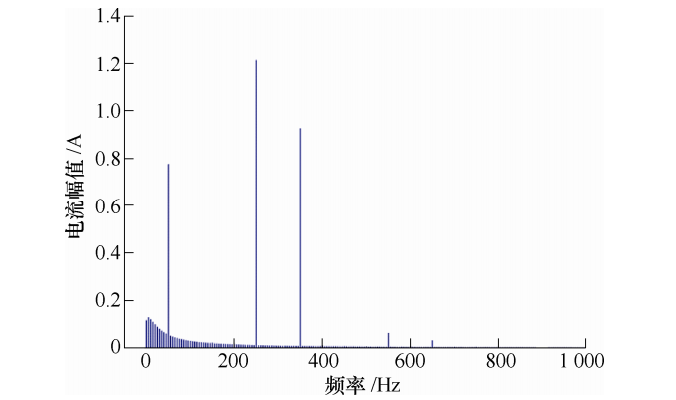

图11

图12

图13

图14

图15

图16

图17

参考文献 18

[1]	荆凯, 孙鹤旭, 董砚 , 等. 以电流矢量为目标的永磁同步电机定子电流动态预测[J]. 电工技术学报, 2016,31(2):47-55.
	Jing Kai, Sun Hexu, Dong Yan , et al. Stator current dynamic prediction of permanent magnet synchronous motor targeting the current vector[J]. Transactions of China Electrotechnical Society, 2016,31(2):47-55.
[2]	徐艳平, 张保程, 周钦 . 永磁同步电机双矢量模型预测电流控制[J]. 电工技术学报, 2017,32(20):222-230.
	Xu Yanping, Zhang Baocheng, Zhou Qin . Two-vector based model predictive current control for permanent magnet synchronous motor[J]. Transactions of China Electrotechnical Society, 2017,32(20):222-230.
[3]	Biswas J, Nair M D, Gopinath V , et al. An optimized hybrid SVPWM strategy based on multiple division of active vector time[J]. IEEE Trans. Power Electron., 2017,32(6):2549-2555.
[4]	Marouani K, Baghli L, Hadiouche D , et al. A new PWM strategy based on a 24-sector vector space decomposition for a six-phase VSI-fed dual stator induction motor[J]. IEEE Transactions on Industrial Electronics, 2008,55(5):1910-1920.
[5]	薛山, 温旭辉 . 一种新颖的多相SVPWM[J]. 电工技术学报, 2006,21(2):68-72.
	Xue Shan, Wen Xuhui . A new strategy of SVPWM for a multi-phase inverter[J]. Transactions of China Electrotechnical Society, 2006,21(2):68-72.
[6]	胡存刚, 胡军, 陈权 , 等. 基于特定谐波消除PWM的三电平有源中点钳位逆变器共模电压抑制方法[J]. 电工技术学报, 2016,31(16):93-102.
	Hu Cungang, Hu Jun, Chen Quan , et al. Suppression method of common-mode voltage for three-level active neutral-point-clamped inverter based on selective harmonics elimination PWM[J]. Transactions of China Electrotechnical Society, 2016,31(16):93-102.
[7]	Zhao Yifan, Lipo T A . Space vector PWM control of dual three-phase induction machine using vector space position[J]. IEEE Transactions on Industry Applications, 1995,31(5):1100-1109.
[8]	Ghosh A, Gupta R, Joshi A . Control of cascaded transformer multi-level inverter based DSTATCOM[J]. Electric Power Systems Research, 2007,77(8):379-384.
[9]	李永东 . 高性能大容量交流电机调速技术的现状及展望[J]. 电工技术学报, 2005,20(2):1-10.
	Li Yongdong . High performance and high power AC motor variable speed drives status and trends[J]. Transactions of China Electrotechnical Society, 2005,20(2):1-10.
[10]	Gopakumar K, Ranganathan V T, ABhat S R . Split phase induction motor operation from PWM voltage source inverter[J]. IEEE Transactions on Industrial Electronics, 2009,29(5):927-932.
[11]	孙盼, 赵镜红, 熊欣 , 等. 用于多脉波整流的直线式移相变压器[J]. 电工技术学报, 2017,32(增刊1):169-177.
	Sun Pan, Zhao Jinghong, Xiong Xin , et al. A linear-shaped phase-shift transformer applied in multi-pulse rectifier[J]. Transactions of China Electrotechnical Society, 2017,32(Suppl. 1):169-177.
[12]	王铁军, 方芳, 姜晓弋 , 等. 圆形变压器在24脉波整流系统中的应用[J]. 电工技术学报, 2016,31(13):172-179.
	Wang Tiejun, Fang Fang, Jiang Xiaoyi , et al. Application of round-shaped transformers in 24 pulses rectifier systems[J]. Transactions of China Electrotechnical Society, 2016,31(13):172-179.
[13]	王铁军, 辜承林, 赵镜红 . 用于抑制多相异步电动机定子谐波电流电抗滤波器的研究[J]. 电工技术学报, 2006,21(11):65-70.
	Wang Tiejun, Gu Chenglin, Zhao Jinghong . Study of novel filter for reducing harmonic currents of stator windings in muti-phase induction motor[J]. Transactions of China Electrotechnical Society, 2006,21(11):65-70.
[14]	Hadiouche D, Razik H, Rezzoug A. Study and simulationof space vector PWM control of double-star inductionmotors[C]∥ IEEE CIEP,Acapulco,Mexico, 2000: 42-47.
[15]	方芳, 王铁军, 柳泊 , 等. 新型12相多重叠加逆变器的建模与仿真[J]. 武汉理工大学学报, 2014,38(5):1016-1021.
	Fang Fang, Wang Tiejun, Liu Bo , et al. Modeling and simulation of a novel 12-phase multi-module inverters[J]. Journal of Wuhan University of Technology, 2014,38(5):1016-1021.
[16]	Lyra R O C, Lipo T A . Torque density improvement in a six-phase induction motor with third harmonic current injection[J]. IEEE Transactions on Industry Applications, 2002,38(5):1351-1360.
[17]	Paice,Derek Albert. Autotransformers to parallel AC to DC converters. U. S. Patent:6982884[P],2006-01-03.
[18]	Juha P, Tapani J . Design of rotating electrical machines[M]. John Wiley & Sons,Ltd, 2008: 225-239.

参数	数值	参数	数值
基波频率f/Hz	50	绕组线圈漏感L_l/H	0.001
直流母线电压U/V	25	负载电阻r_r/Ω	50
绕组线圈内阻r_s/Ω	0.15	负载电感L_L/H	0.095
绕组线圈电感L/H	0.01	功率因数$cos\varphi$	0.8
