电气工程学报 ›› 2016, Vol. 11 ›› Issue (12): 45-49.doi: 10.11985/2016.12.007

• • 上一篇

变电站蓄电池组电压均衡策略研究

柴庆冕,杨双锁,马春生

  1. 国网北京市电力公司北京 100031
  • 收稿日期:2016-11-13 出版日期:2016-11-25 发布日期:2019-11-22
  • 作者简介:柴庆冕男 1986年生,硕士研究生,工程师,主要从事电网运行、配网规划、用电检查等相关工作。|杨双锁男 1982年生,硕士研究生,工程师,主要从事变电站运维管理工作。

Study of Voltage Balancing Methods for Accumulator System of Substation

Chai Qingmian,Yang Shuangsuo,Ma Chunsheng

  1. State Grid Beijing Electric Power Company Beijing 100031 China
  • Received:2016-11-13 Online:2016-11-25 Published:2019-11-22

摘要:

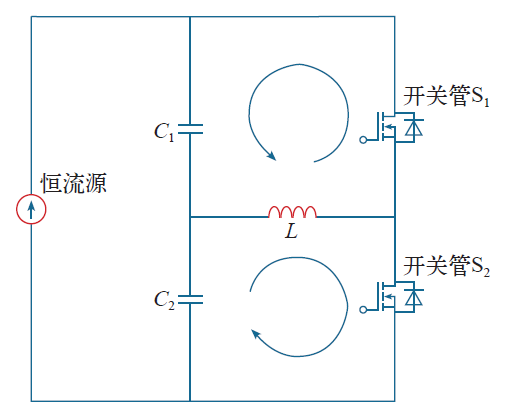

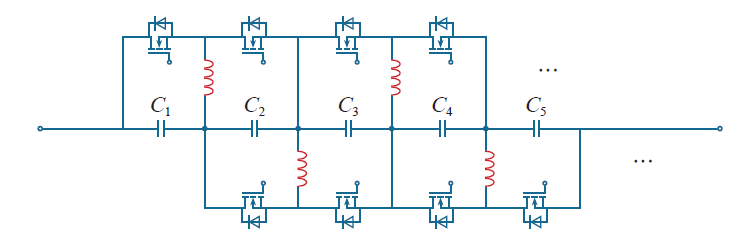

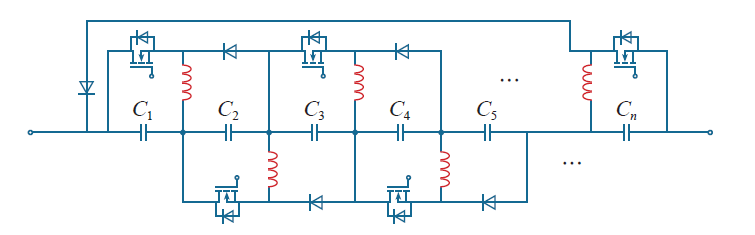

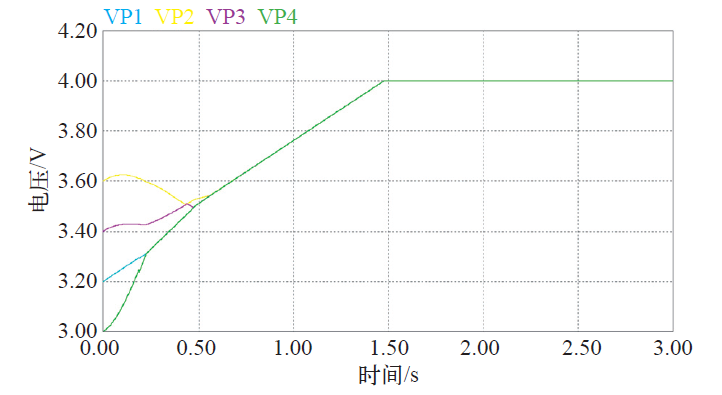

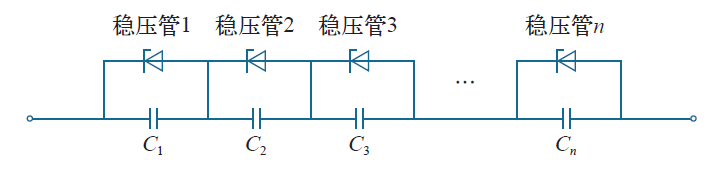

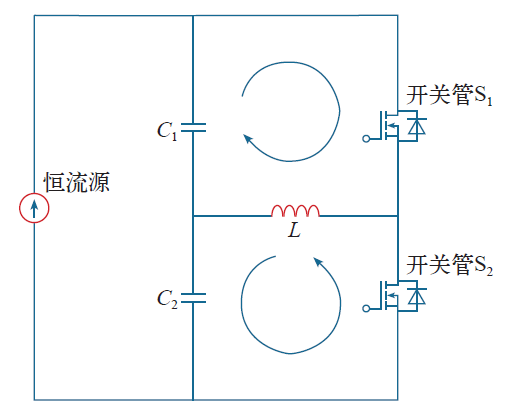

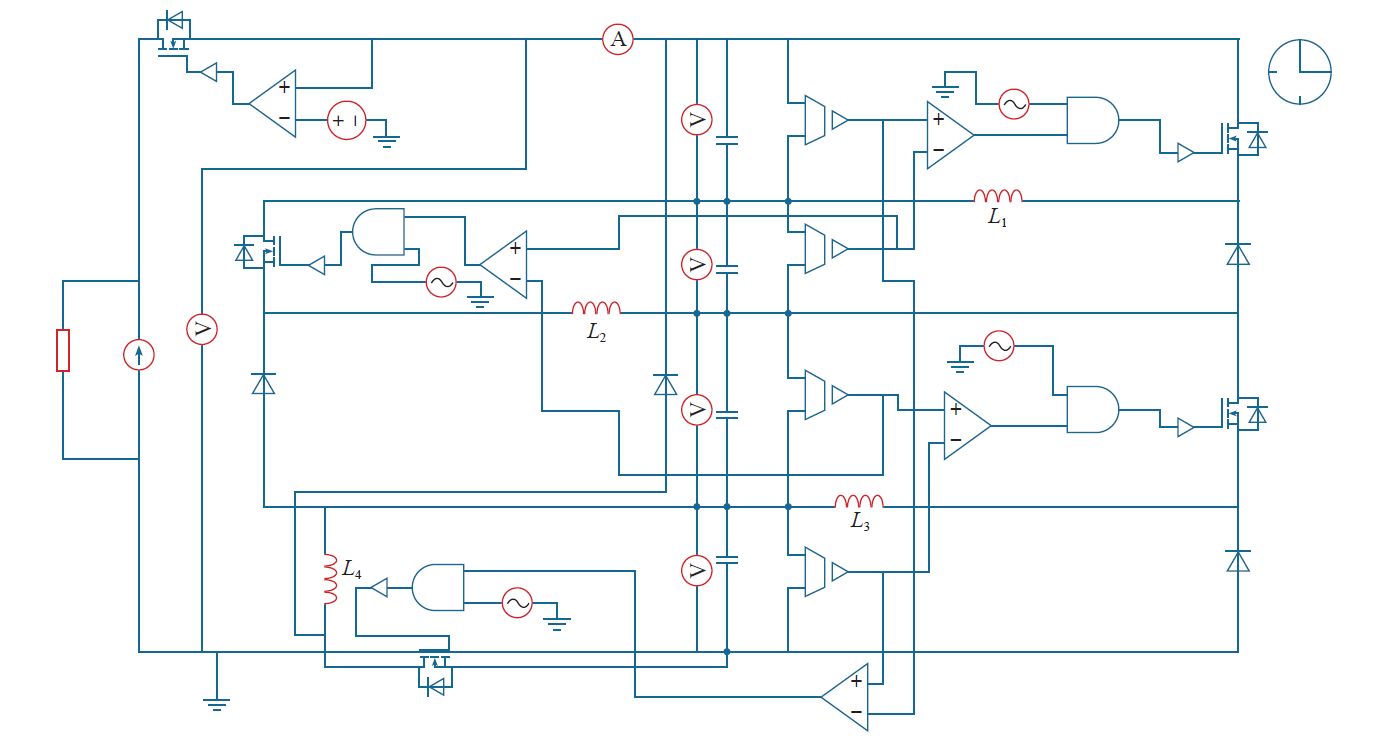

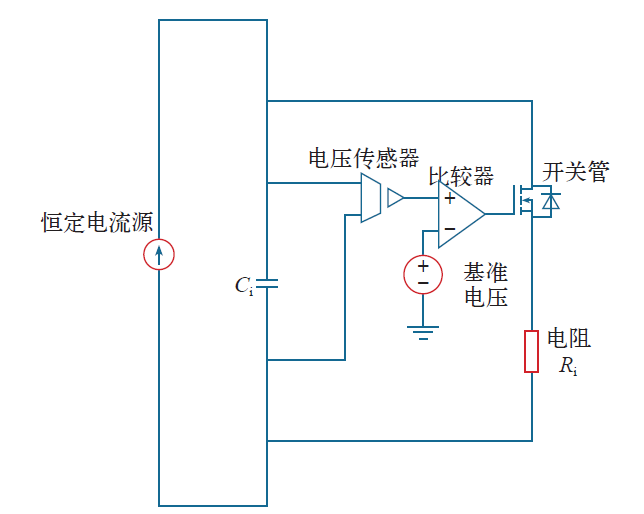

变电站中,蓄电池组作为站内直流电源,其性能及可靠性对变电站供电系统的正常工作起着至关重要的作用。蓄电池组电池数量庞大,电池之间难免存在个体差异,在充放电过程中易造成电压不均衡,从而影响蓄电池组的整体性能,因此对电池组采取电压均衡措施具有重要意义。本文讨论了几种实际应用中常用的电池组电压均衡方案,在分析比较的基础上提出了一种新颖的能量变换均衡法,并通过仿真分析了该方案的可行性。

关键词: 蓄电池组, 电压均衡, DC-DC变换器, 能量损失

Abstract:

Accumulator system, which can be used as DC sources of power substations, is of great significance to the power supplying system. However, the imbalance of voltages between different batteries is a restraining factor to the overall performance of accumulator system. Three different kinds of voltage balancing methods are discussed in the article, based on which a novel balancing method with DC-DC converter is proposed, and then the practicability of the method is analyzed through simulation.

Key words: Accumulator, DC-DC converter, energy loss, voltage balance
