扩展黑启动策略中被启动机组启动顺序优化决策

doi:10.11985/2016.09.004

摘要/Abstract

摘要：

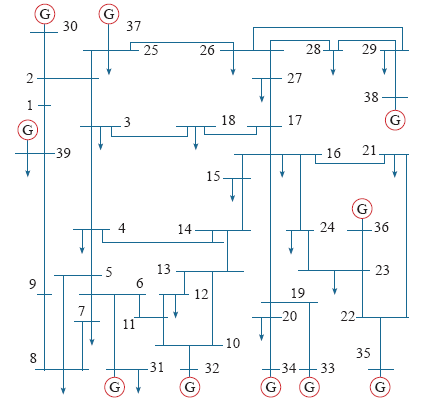

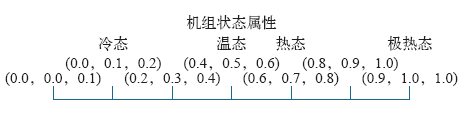

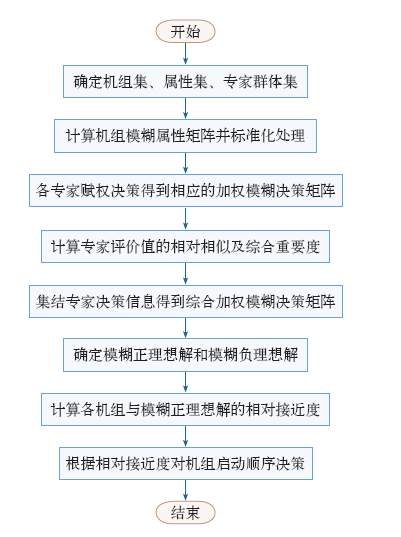

为研究扩展黑启动策略中被启动机组的启动顺序问题,首先从机组恢复全过程的角度全面分析了影响其启动顺序的因素,将定性因素以三角模糊数量化表示,建立了机组启动的模糊多属性群决策模型;然后根据专家个体重要性及其决策信息与专家群体意见的相似度计算得到专家个体综合权重,通过集结专家个人决策信息,将机组启动的模糊多属性群决策问题转化为模糊多属性决策问题;在此基础上采用基于三角模糊数的逼近理想解法求解得到各被启动机组最优的启动顺序。新英格兰10机39节点系统算例分析表明,该方法能够有效地对多台被启动机组的启动顺序进行排序, 为调度决策人员提供科学合理的决策辅助信息。

关键词: 大停电扩展黑启动, 机组投运, 模糊多属性群决策, 三角模糊数

Abstract:

In order to determine the units' start-up sequence during extended black-start strategy, in this paper,the factors that affect start-up sequence were fully considered from the perspective of whole recovery process firstly, the qualitative factors were quantified by triangular fuzzy numbers and a fuzzy multi-attribute group decision model was established; then the comprehensive weight of expert was calculated by integrating individual authority and the consistency of individual decision information with expert group decision information, the fuzzy multi-attribute group decision making problem for units' start-up was transformed into fuzzy multi-attribute decision problem by integrating all expert decision information; on this basis, the TOPSIS based on triangular fuzzy number was proposed to determine the optimal start-up sequence. The test results on the New England 10-unit 39-bus power system indicated that units' start-up sequence during extended black-start can be optimized effectively by the proposed method, it could provide scientific and reasonable auxiliary information for dispatchers to make decisions.

Key words: Massive outage, extended black-start, unit restoration, fuzzy multi-attribute group decision making, triangular fuzzy number

中图分类号:

TM76

王大江,赵静波,顾雪平,贾京华. 扩展黑启动策略中被启动机组启动顺序优化决策[J]. 电气工程学报, 2016, 11(9): 25-34.

Dajiang Wang,Jingbo Zhao,Xueping Gu,Jinghua Jia. Optimal Decision-Making of Start-Up Sequence for Units to be Started during Extended Black-Start Strategy[J]. Journal of Electrical Engineering, 2016, 11(9): 25-34.

图/表 12

图1

图2

图3

图4

表1

表2

表3

表4

表5

表6

表7

表8

参考文献 31

[1]	周孝信, 陈树勇, 鲁宗相 . 电网和电网技术发展的回顾与展望—试论三代电网[J]. 中国电机工程学报, 2013,33(22):1-11.
	Zhou Xiaoxin, Chen Shuyong, Lu Zongxiang . Review and prospect for power system development and related technologies: a concept of three-generation power systems[J]. Proceedings of the CSEE, 2013,33(22):1-11.
[2]	汤涌, 卜广全, 易俊 . 印度“7.30”、“7.31”大停电事故分析及启示[J]. 中国电机工程学报, 2012,32(25):167-174.
	Tang Yong, Bu Guangquan, Yi Jun . Analysis and lessons of the blackout in Indian power grid on July 30 and 31, 2012[J]. Proceedings of the CSEE, 2012,32(25):167-174.
[3]	葛睿, 董昱, 吕跃春 . 欧洲“11.4”大停电事故分析及对我国电网运行工作的启示[J]. 电网技术, 2007,31(3):1-6.
	Ge rui, Dong Yu, Lv Yuechun . Analysis of large-scale blackout in UCTE power grid and lessons to be drawn to power grid operation in China[J]. Power System Technology, 2007,31(3):1-6.
[4]	陈亦平, 洪军 . 巴西“11.10”大停电原因分析及对我国南方电网的启示[J]. 电网技术, 2010,34(5):77-82.
	Chen Yiping, Hong Jun . Analysis on causes of blackout occurred in Brazilian power grid on Nov.11, 2009 and lessons drawn from it to China southern power grid[J]. Power System Technology, 2010,34(5):77-82.
[5]	唐斯庆, 张弥, 李建设 , 等 .海南电网 “9.26”大面积停电事故的分析与总结[J]. 电力系统自动化, 2006,30(1):1-7,16.
	Tang Siqing, Zhang Mi, Li Jianshe , et al. Review of blackout in Hainan on September 26th——causes and recommendations[J]. Automation of Electric Power Systems, 2006,30(1):1-7, 16.
[6]	Lester H F, Lion K L, Liu C C . From generic restoration to specific restoration strategies[J]. IEEE Transactions on Power Systems, 1995,10(2):745-752.
[7]	Jerry J A . A framework for power system restoration following a major power failure[J]. IEEE Transactions on Power Systems, 1995,9(3):1480-1485.
[8]	Lindstorm R R . Simulation and field test of the black start of a large coal-field generating station utilizing small remote hydro generation[J]. IEEE Transactions on Power Systems, 1990,5(1):162-168.
[9]	Delfino B, Denegri G B, Invernizzi M , et al. Black-start and restoration of a part of the Italian HV network: modeling and simulation of a field test[J]. IEEE Transactions on Power Systems, 1996,11(3):1371-1379.
[10]	Funakoshi T, Furukawa K. Transformer over voltage problems and countermeasures at black start[C]. Proceedings of IEEE PES General Meeting, Toronto, 2003: 581-588.
[11]	程改红, 徐政 . 电力系统故障恢复过程中的过电压控制[J]. 电网技术, 2004,28(11):29-33.
	Cheng Gaihong, Xu Zheng . A method to control sustained over voltage during power system restoration[J]. Power System Technology, 2004,28(11):29-33.
[12]	门冉, 高小涛, 盛昌栋 . 火电机组快速甩负荷功能的应用和实现[J]. 江苏电机工程, 2015,34(1):9-12.
	Men Ran , Gao Xiaotao Sheng Changdong. Application and implementation of FCB function of thermal power units[J]. Jiangsu Electrical Engineering, 2015,34(1):9-12.
[13]	邱晓燕, 唐海平, 李兴源 , 等. 基于专家系统和数值计算的电力系统恢复[J]. 中国电机工程学报, 1996,16(6):413-416.
	Qiu Xiaoyan, Tang Haiping, Li Xingyuan , et al. Power system restoration based on expert system and numerical computation[J]. Proceedings of the CSEE, 1996,16(6):413-416.
[14]	刘艳, 顾雪平, 张丹 . 基于数据包络分析模型的电力系统黑启动方案相对有效性评估[J]. 中国电机工程学报, 2006,26(5):32-37.
	Liu Yan, Gu Xueping, Zhang Dan . Data envelopment analysis based relative effectiveness assessment of power system black-start plans[J]. Proceedings of the CSEE, 2006,26(5):32-37.
[15]	刘艳, 顾雪平 . 评估黑启动方案的层次化数据包络分析方法[J]. 电力系统自动化, 2006,30(21):33-38.
	Liu yan, Gu Xueping . Hierachical data envelopment analysis for assessing black-start plans[J]. Automation of Electric Power Systems, 2006,30(21):33-38.
[16]	吴烨, 房鑫炎 .基于模糊 DEA 模型的电网黑启动方案评估优化算法[J]. 电工技术学报, 2008,23(8):101-106.
	Wu Ye, Fang Xinyan . Data envelopment analysis based optimal fuzzy algorithm for assessing power grid black-start plans[J]. Transactions of China Electrotechnical Society, 2008,23(8):101-106.
[17]	林振智, 文福拴, 薛禹胜 , 等. 基于多属性群决策特征根法的智能电网黑启动决策[J]. 电力系统自动化, 2010,34(5):18-23.
	Lin Zhenzhi, Wen Fushuan, Xue Yusheng , et al. Black-start decision-making in smart grids using muti-attribute group eigenvalue method[J]. Automation of Electric Power Systems, 2010,34(5):18-23.
[18]	吴烨, 房鑫炎, 张焰 , 等. 电网黑启动的广义模式评估算法[J]. 电工技术学报, 2011,26(3):155-161.
	Wu Ye, Fang Xinyan, Zhang Yan , et al. Generalized assessment algorithm for power grid black-start modes[J]. Transactions of China Electrotechnical Society, 2011,26(3):155-161.
[19]	吴涛, 郭嘉阳, 李华伟 . 华北电网利用十三陵抽水蓄能电厂水电机组进行黑启动的试验研究[J]. 电网技术, 2001,25(3):56-58.
	Wu Tao, Guo Jiayang, Li Huawei . Investigation of black start for north China power system by Shisanling hydroelectric generating sets[J]. Power System Technology, 2001,25(3):56-58.
[20]	郁惟镛, 房鑫炎, 熊惠敏 . 华东电网黑启动方案研究之一[J]. 电力系统及其自动化学报, 2000,12(2):1-4.
	Yu Weiyong, Fang Xinyan, Xiong Huimin . The first research of east China power system black-start plan[J]. Transaction of Power System and Automation, 2000,12(2):1-4.
[21]	周世平 . 湖北电网黑启动试验的实施与思考[J]. 高电压技术, 2007,33(12):115-117.
	Zhou Shiping . Practice and discuss of black start test for Hubei electric power network[J]. High Voltage Engineering, 2007,33(12):115-117.
[22]	聂凌云 . 基于RTDS的蒙西电网黑启动和风电参与黑启动的研究[D]. 北京:华北电力大学, 2013.
[23]	卜婷婷 . 风电接入对电力系统恢复过程的影响分析[D]. 北京:华北电力大学, 2014.
[24]	黄杏, 金新民, 马琳 . 微网离网黑启动优化控制方案[J]. 电工技术学报, 2013,28(4):182-190.
	Huang Xing, Jin Xinmin, Ma Lin . An optimized island micro-grid black start control method[J]. Transaction of China Electrotechnical Society, 2013,28(4):182-190.
[25]	顾雪平, 钟慧荣, 贾京华 , 等. 电力系统扩展黑启动方案的研究[J]. 中国电机工程学报, 2011,31(28):25-32.
	Gu Xueping, Zhong Huirong, Jia Jinghua , et al. Extended black-start schemes of power systems[J]. Proceedings of the CSEE, 2011,31(28):25-32.
[26]	董张卓, 焦建林, 孙启宏 . 用层次分析法安排电力系统事故后火电机组恢复的次序[J]. 电网技术, 1997,21(6):48-51,54.
	Dong Zhangzhuo, Jiao Jianlin , SunQihong. Arrangement of priority sequence of the thermal unit restoration on analytical hierarchy process model[J]. Power System Technology, 1997,21(6):48-51, 54.
[27]	张志毅, 陈允平, 袁荣湘 . 系统重构阶段机组最优恢复次序的模糊多属性决策法[J]. 电工技术学报, 2007,22(11):153-157.
	Zhang Zhiyi, Chen Yunping, Yuan Rongxiang . Fuzzy multiple attribute decision-making method for units' optimal starting-up sequence during the system reconstruction[J]. Transactions of China Electrotechnical Society, 2007,22(11):153-157.
[28]	胡键, 郭志忠, 刘迎春 . 故障恢复问题和发电机恢复排序分析[J]. 电网技术, 2004,28(18):1-5.
	Hu Jian, Guo Zhizhong, Liu Yingchun , et al. Power system restoration and analysis of restoration sequence of generating sets[J]. Power System Technology, 2004,28(18):1-4.
[29]	刘强, 石立宝, 周明 , 等. 电力系统恢复中机组恢复的优化选择方法[J]. 电工技术学报, 2009,24(3):164-170.
	Liu Qiang, Shi Libao, Zhou Ming , et al. Optimal strategy for units start-up during power system restoration[J]. Transactions of China Electrotechnical Society, 2009,24(3):164-170.
[30]	Adibi M M, Borkoski J N, Kafka R J , et al. Frequency response of prime movers during restoration[J]. IEEE Transactions on Power Systems, 1999,14(2):751-756.
[31]	黄智力, 李茂青 . 基于理想点的三角模糊数群体多属性决策法[J]. 厦门大学学报:自然科学版, 2008,47(6):812-817.
	Huang Zhili, Li Maoqing . Method for triangular fuzzy number multiple attributive group decision making based on ideal solution[J]. Journal of Xiamen University: Natural Science, 2008,47(6):812-817.

机组编号	PG/MW	Pcr/MW	KP/(MW/h)	PM/ MW	ST/ MV·A
34	300	15.00	179.64	4.5	25
35	250	12.50	149.70	4.0	25
36	330	16.50	120.00	5.0	25

机组	路径指标	容量 /MW	机组状态	启动功率 /MW	升负荷率 /(MW/h)	电压下降 /pu	频率跌落 /Hz	功率振荡
34	3	300	热态	15.00	179.64	0.1	0.4	1.45
35	6	250	温态	12.50	149.70	0.11	0.34	1.92
36	5	330	极热态	16.50	120.00	0.09	0.44	1.00

wij(ek)	w11	w12	w13	w14	w15	w16	w17	w18
e1	0.366 7	0.368	0.366 9	0.366 7	0.366 7	0.366 7	0366 7	0.366 7
e2	0.315 3	0.315	0.315 5	0.316 7	0.315 5	0.316 7	0.316 7	0.316 7
e3	0.318 0	0.317	0.317 6	0.316 7	0.317 8	0.316 7	0.316 7	0.316 7

wij(ek)	w11	w12	w13	w14	w15	w16	w17	w18
e1	0.366 7	0.367 7	0.366 9	0.366 7	0.366 7	0.366 7	0.366 7	0.366 7
e2	0.316 0	0.315 3	0.315 8	0.316 7	0.315 7	0.316 7	0.316 7	0.316 7
e3	0.317 3	0.316 9	0.317 3	0.316 7	0.317 6	0.316 7	0.316 7	0.316 7

wij(ek)	w11	w12	w13	w14	w15	w16	w17	w18
e1	0.366 7	0.368 1	0.366 9	0.366 7	0.366 7	0.366 7	0366 7	0.366 7
e2	0.315 9	0.314 9	0.315 2	0.316 7	0.315 9	0.316 7	0.316 7	0.316 7
e3	0.317 5	0.317 0	0.318 0	0.316 7	0.317 4	0.316 7	0.316 7	0.316 7
