航空固态功率控制器电弧故障检测方法研究

doi:10.11985/2015.11.003

摘要/Abstract

摘要：

固态功率控制器（SSPC）是由半导体器件构成的智能开关装置,用于接通和断开电路,并实现电路保护。由于其具有功耗低、可靠性高等优点,在现代飞机电气系统中得到广泛的应用。与此同时,电弧故障已被证明是威胁航空电气设备正常运行的因素之一,而且极有可能引发严重的灾难。本文对具有电弧检测功能的SSPC的结构进行了说明,对航空电弧的分类、特性、仿真及试验方法进行了介绍,并对故障电弧检测方法做出总结,最后指出目前航空SSPC电弧故障检测技术面临的问题。

关键词: 固态功率控制器, 电弧故障检测, 傅里叶变换, 小波变换

Abstract:

Solid state power controller (SSPC) is the intelligent switch constituted by the semiconductor device and is used to turn on and off the circuit, as well as protecting the circuit. Because of its low power consumption and high reliability, SSPC is getting widely used in modern aircraft electrical system. At the same time, arc fault has proved to be one of the factors threatening the normal operation of aviation electrical equipment, and is likely to cause serious disaster. In this paper, the structure of SSPC with arc fault detection (AFD) function has been described, and the classification, characteristics, simulation and test methods of aviation arc are introduced. After summarizing the AFD methods, we conclude the present problems AFD technology facing for aviation SSPC.

Key words: Solid state power controller, arc fault detection, Fourier transform, wavelet transform

中图分类号:

V242.4+3

吉瑞萍, 李伟林, 张晓斌, 董延军. 航空固态功率控制器电弧故障检测方法研究[J]. 电气工程学报, 2015, 10(11): 19-26.

Ji Ruiping , Li Weilin , Zhang Xiaobin , Dong Yanjun . A Review of Arc Fault Detection Methods for Aviation Solid State Power Controller[J]. Journal of Electrical Engineering, 2015, 10(11): 19-26.

图/表 15

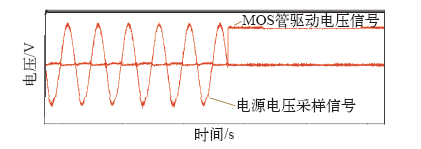

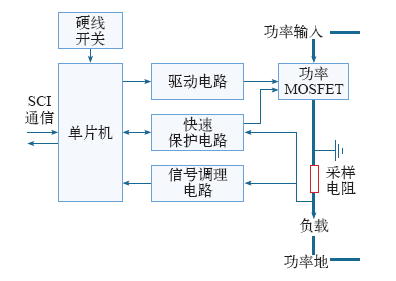

图1

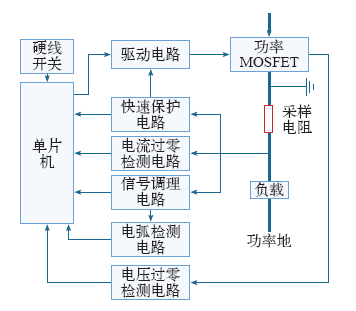

图2

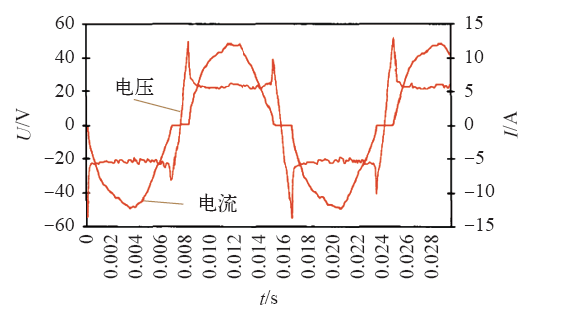

图3

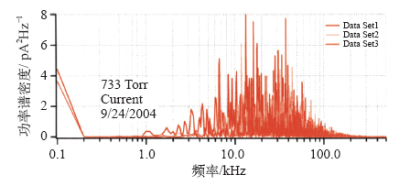

图4

图5

图6

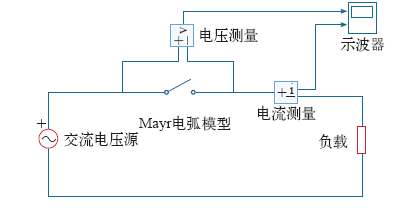

图7

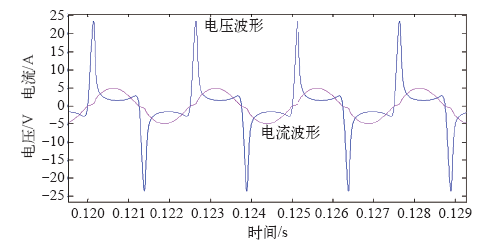

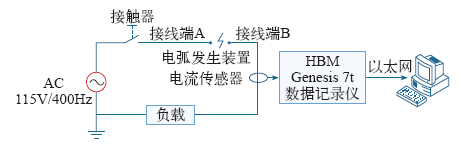

图8

图9

图10

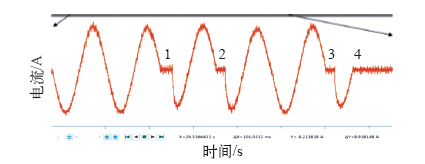

图11

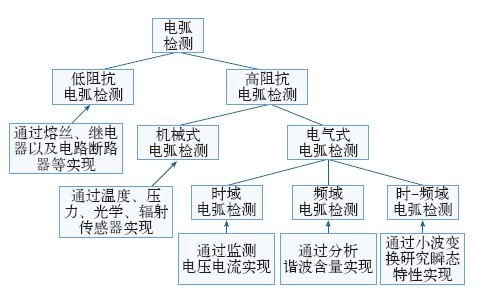

图12

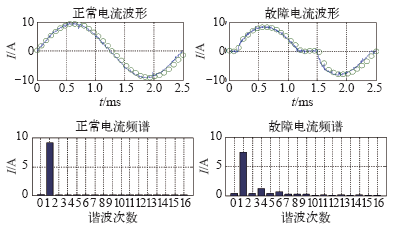

图13

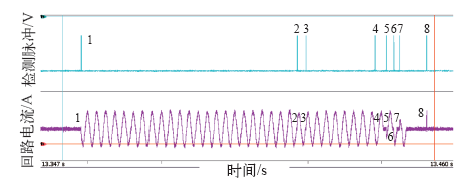

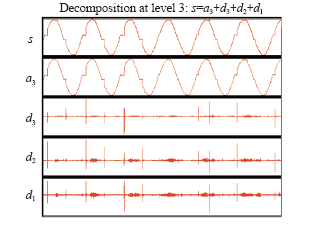

图14

表1

参考文献 40

[1]	陈昌林 . 交流固态功率控制器的研究[D]. 南京:南京航空航天大学, 2008.
[2]	吴卓奇 . 具有电弧检测功能的直流固态功率控制器的研究[D]. 南京:南京航空航天大学, 2008.
[3]	Izquierdo D, Barrado A, Sanz M, et al. Modeling methods for solid state power controllers(SSPC) [C]. IEEE Compatibility and Power Electronics, 2009: 265-270.
[4]	Gregory G D, Wong K, Dvorak R . More about arc-fault circuit interrupters[C]. IEEE Industry Applications Conference, 38th IAS Annual Meeting, 2003(2):1306-1313.
[5]	Pellon C V, Potter T E, Sekar S C , et al. Aircraft electrical system monitoring with arc fault circuit protection and automatic fault location[R]. SAE Technical Paper, 2006.
[6]	Andrea J, Zirn O, Bournat M. Principle of arc fault detection for solid state power controller [C]. 2012 IEEE 58th Holm Conference on Electrical Contacts (Holm), 2012: 1-6.
[7]	Xie M, Zhang X, Dong Y, et al. Arc fault detection for DC solid state power controllers [C]. Transportation Electrification Asia-Pacific (ITEC Asia-Pacific), 2014 IEEE Conference and Expo, 2014: 1-6.
[8]	沈颂华 . 航空航天器供电系统[M]. 北京: 北京航空航天大学出版社, 2005.
[9]	张维谊 . 固态功率控制器特性研究[D]. 西安:西北工业大学, 2013.
[10]	Mechler P. Simulation of AC arc faults in aircraft electrical networks [C]. 21st International Conference on Electrical Contacts, 2002: 2902-2905.
[11]	王其平 . 电器电弧理论[M]. 北京: 机械工业出版社, 1982.
[12]	SAE Aerospace . AS5692 ARC fault circuit breaker (AFCB) aircraft trip-free single phase 115VAC 400Hz constant frequency[S]. SAE: USA, 2004.
[13]	Liu G, Cao Y N, Liu Y , et al. A survey on arc fault detection and wire fault location for aircraft wiring systems[R]. SAE Technical Paper, 2008.
[14]	Djuric M B, Radojevic Z M, Terzija V V . Time domain solution of fault distance estimation and arcing faults detection on overhead lines[J]. IEEE Transactions on Power Delivery, 1999,14(1):60-67. doi: 10.1109/61.736683
[15]	Engel J C, Parker K L. Arc fault detection in ac electric power systems: U. S. Patent 6, 522, 509[P]. 2003-2-18.
[16]	Naidu M, Schoepf T J, Gopalakrishnan S . Arc fault detection scheme for 42-V automotive DC networks using current shunt[J]. IEEE Transactions on Power Electronics, 2006,21(3):633-639. doi: 10.1109/TPEL.2006.872385
[17]	得州仪器公司. 检测电弧故障的设备和方法:中国,1746688A[P]. 2006-03-15
[18]	Banke B, Petersen H H. Method and device for the detection of fault current arcing in electric circuits: U. S. Patent 7, 219, 023[P]. 2007 -5-15.
[19]	Senger E C, Kaiser W, Santos J C , et al. Broken conductors protection system using carrier communication[J]. IEEE Transactions on Power Delivery, 2000,15(2):525-530. doi: 10.1109/61.852979
[20]	J Zuercher J C, McClanahan D L. Apparatus and method for real time determination of arc fault energy, location and type: U. S. Patent 7,068,045[P]. 2006-6-27.
[21]	Faifer M, Ottoboni R, Rossi M, et al. A method for the detection of series arc faults in DC aircraft power networks [C]. 2013 IEEE International Instrumentation and Measurement Technology Conference, 2013: 778-783.
[22]	Ammerman R F, Gammon T, Sen P K , et al. DC-arc models and incident-energy calculations[J]. IEEE Transactions on Industry Applications, 2010,46(5):1810-1819. doi: 10.1109/TIA.2010.2057497
[23]	Grassetti R, Ottoboni R, Rossi M, et al. A low-cost arc fault detector for aerospace applications [C]. 2012 IEEE Autotestcon, 2012: 239-243.
[24]	印永嘉 . 关于检测低压故障电弧的研究[D]. 上海:上海交通大学, 2007.
[25]	Beck J B, Nemir D C . Arc fault detection through model reference estimation[R]. SAE Technical Paper, 2006.
[26]	刘天宇 . 具有电弧检测功能的交流SSPC特性研究[D]. 西安:西北工业大学, 2014.
[27]	马征, 张国钢, 柯春俊 . 一种基于高频电流频谱分析的故障电弧检测方法[J]. 低压电器, 2010(9):10-12,15.
	Ma Zheng, Zhang Guogang, Ke Chunjun . A method of fault arc detec-tion based on spectral analysis of high-frequency cur-rent[J]. Low Voltage Apparatus, 2010(9):10-12, 15.
[28]	赵淑敏 . AFCI (故障电弧断路器) 的研制[D]. 杭州:浙江大学, 2007.
[29]	王莉, 曹璐, 严仰光 . 航空交流故障电弧特性的研究[J]. 低压电器, 2011(2):19-23.
	Wang Li, Cao Lu, Yan Yangguang . Research on arc fault charac-teristic for AC power system in aircraft[J]. Low Voltage Apparatus, 2011(2):19-23.
[30]	U L 1699, Arc-Fault Circuit Interrupters[S]. United States: UL Standard Destination, 2006.
[31]	颉萌 . 交流SSPC电弧检测功能特性研究[D]. 西安:西北工业大学, 2015.
[32]	郭云微 . 低压电弧故障断路器的研究与实现[D]. 杭州:杭州电子科技大学, 2012.
[33]	Kim C H, Kim H, Ko Y H , et al. A novel fault-detection technique of high-impedance arcing faults in transmission lines using the wavelet transform[J]. IEEE Transactions on Power Delivery, 2002,17(4):921-929. doi: 10.1109/TPWRD.2002.803780
[34]	Sedighi A R, Haghifam M, Malik O P , et al. High impedance fault detection based on wavelet transform and statistical pattern recognition[J]. IEEE Transactions on Power Delivery, 2005,20(4):2414-2421. doi: 10.1109/TPWRD.2005.852367
[35]	Michalik M, Rebizant W, Lukowicz M , et al. High-impedance fault detection in distribution networks with use of wavelet-based algorithm[J]. IEEE Transactions on Power Delivery, 2006,21(4):1793-1802. doi: 10.1109/TPWRD.2006.874581
[36]	T Lai T M, Snider L A, Lo E , et al. High-impedance fault detection using discrete wavelet transform and frequency range and RMS conversion[J]. IEEE Transactions on Power Delivery, 2005,20(1):397-407. doi: 10.1109/TPWRD.2004.837836
[37]	Wang Z, McConnell S, Balog R S, et al. Arc fault signal detection-Fourier transformation vs. wavelet decomposition techniques using synthesized data [C]. IEEE 40th Photovoltaic Specialist Conference, 2014: 3239-3244.
[38]	刘晓明, 赵洋, 曹云东 , 等. 基于多特征融合的交流系统串联电弧故障诊断[J]. 电网技术, 2014(3):795-801.
	Liu Xiaoming, Zhao Yang, Cao Yundong , et al. Multi-feature fusion based diagnosis of series arc faults in AC system[J]. Power System Technology, 2014(3):795-801.
[39]	张士文, 张峰, 王子骏 , 等. 一种基于小波变换能量与神经网络结合的串联型故障电弧辨识方法[J]. 电工技术学报, 2014(6):290-295,302.
	Zhang Shiwen, Zhang Feng, Wang Zhijun , et al. Series arc fault identification method based on energy produced by wavelet transformation and neural network[J]. Transactions of China Electrotechnical Society, 2014(6):290-295, 302.
[40]	刘晓明, 赵洋, 曹云东 , 等. 基于小波变换的交流系统串联电弧故障诊断[J]. 电工技术学报, 2014(1):10-17.
	Liu Xiaoming, Zhao Yang, Cao Yundong , et al. Series arc fault diag-nosis based on wavelet transform in AC system[J]. Transactions of China Electrotechnical Society, 2014(1):10-17.

检测方法	优点	缺点
时域	检测速度快, 硬件实现简单	反映的故障信息有限, 容易产生漏判
频域	算法成熟	对非正弦波形检测效率低
时-频域	检测效率高	算法复杂,硬件实现困难
