Design of Controller of High Speed Air Compressor for Hydrogen Fuel Cell

doi:10.11985/2020.04.011

Abstract

Abstract:

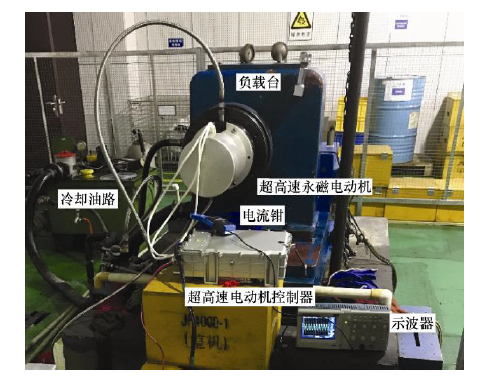

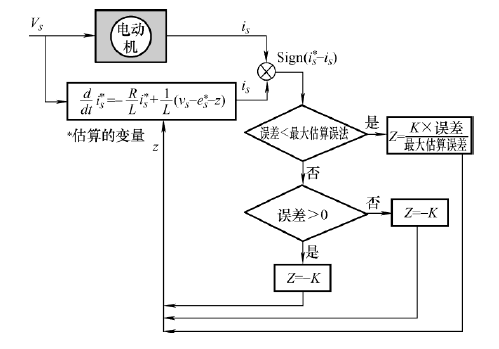

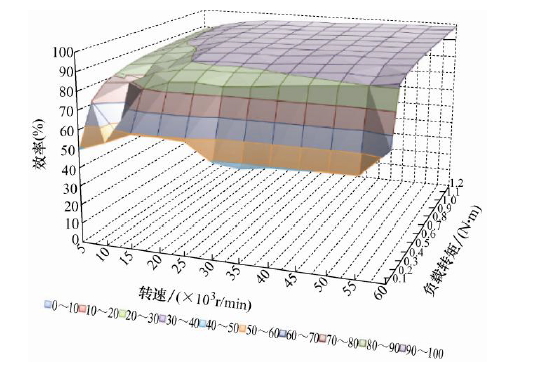

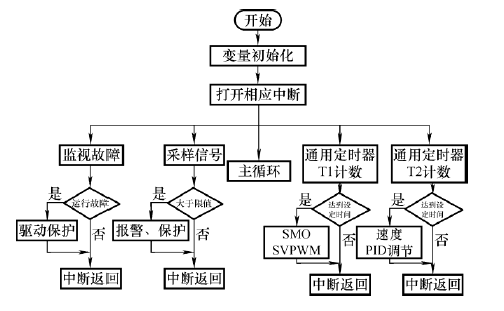

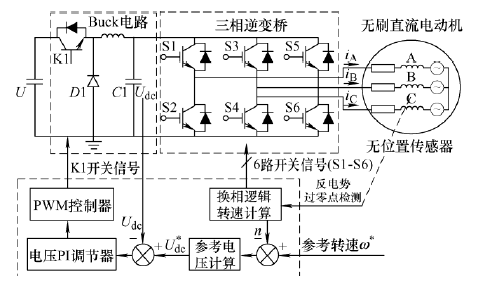

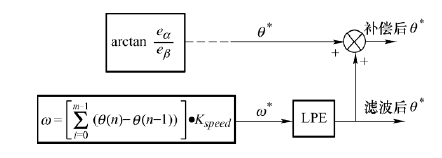

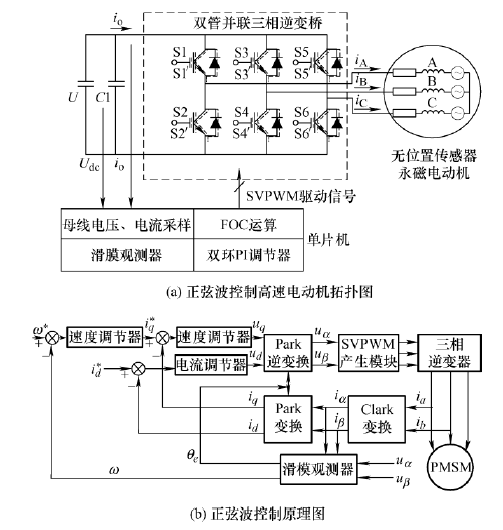

Hydrogen fuel cell vehicles (HFCV) have zero pollution to the environment and have a long cruising range. At the same time, hydrogen fuel sources are very rich. Now HFCV is an important development direction for new energy vehicles. Air compressor is an important part of fuel cell. The centrifugal turbo compressor uses a high-speed permanent magnet motor to directly drive the turbine without speed-increasing gears and lubricating oil. A high speed permanent magnet motor controller is designed for hydrogen fuel cell air compressor. The sliding mode observer (SMO) is used to estimate the position and speed of the rotor, the motor controller adopts three-stage starting mode. A dual-core chip with integrated motor control processor’s is used in the controller with single current sensor and common IGBT power devices. The high speed motor controller is produced and the experimental platform is built, then the starting performance and speed regulation performance of the motor controller are tested. The controller has a simple structure with low cost and stable performance.

Key words: Hydrogen fuel cell, air compressor, high-speed motors, position sensorless, sliding mode observer (SMO)

CLC Number:

U469

HUANG Qi, LUO Ling, XUE Likun, CAO Zhaohui, WANG Sheng. Design of Controller of High Speed Air Compressor for Hydrogen Fuel Cell[J]. Journal of Electrical Engineering, 2020, 15(4): 91-98.

Figures/Tables 11

References 16

[1]	罗悦齐, 张嵩, 高丽萍, 等. 质子交换膜燃料电池低温启动水热管理特性及优化[J]. 电工技术学报, 2018,33(11):2626-2635.
	LUO Yueqi, ZHANG Song, GAO Liping, et al. Optimization of water and thermal management in proton exchange membrane fuel cell during low temperature startup[J]. Transactions of China Electrotechnical Society, 2018,33(11):2626-2635.
[2]	吴震宇. 车载燃料电池用空气压缩机工作性能研究及能效分析[D]. 杭州:浙江大学, 2007.
	WU Zhenyu. Performance research and power analysis of air compressor in fuel cell vehicle[D]. Hangzhou:Zhejiang University, 2007.
[3]	鲍鹏龙, 章道彪, 许思传, 等. 燃料电池车用空气压缩机发展现状及趋势[J]. 电源技术, 2016,40(8):1731-1734.
	BAO Penglong, ZHANG Daobiao, XU Sichuan, et al. Development status and trend of air compressor in fuel cells vehicle[J]. Chinese Journal of Power Sources, 2016,40(8):1731-1734.
[4]	李宏钦. 氢燃料电池车用高速离心式压缩机的设计及研究[D]. 杭州:浙江大学, 2019.
	LI Hongqin. Design and research of high speed centrifugal compressor for hydrogen fuel cell vehicle[D]. Hangzhou:Zhejiang University, 2019.
[5]	沈建新, 李鹏, 郝鹤, 等. 高速永磁无刷电动机电磁损耗的研究概况[J]. 中国电动机工程学报, 2013,33(3):62-74,14.
	SHEN Jianxin, LI Peng, HAO He, et al. Study on electromagnetic losses in high-speed permanent magnet brushless machines-the state of the art[J]. Proceedings of the CSEE, 2013,33(3):62-74,14.
[6]	罗玲, 黄其, 张远. 开式绕组无刷电动机换相转矩脉动抑制研究[J]. 电气工程学报, 2019,14(4):1-9.
	LUO Ling, HUANG Qi, ZHANG Yuan. Research on commutation torque ripple suppression of open winding brushless DC motor[J]. Journal of Electrical Engineering, 2019,14(4):1-9.
[7]	SONG X, HAN B, WANG K. Sensorless drive of high-speed BLDC motors based on virtual third-harmonic back EMF and high-precision compensation[J]. IEEE Transactions on Power Electronics, 2019,34(9):8787-8796. doi: 10.1109/TPEL.63
[8]	黄其, 曹纪超, 薛利昆, 等. 散热风机无位置传感器控制器设计[J]. 自动化与仪表, 2020,35(2):61-65,89.
	HUANG Qi, CAO Jichao, XUE Likun, et al. Design of position sensorless controller for BLDC cooling fan[J]. Automation & Instrumentation, 2020,35(2):61-65,89.
[9]	黄其, 陈翔, 罗玲, 等. 电动汽车用永磁同步电动机控制器设计[J]. 电动机与控制应用, 2019,46(10):84-91.
	HUANG Qi, CHEN Xiang, LUO Ling, et al. Design of permanent magnet synchronous motor controller for electric vehicle[J]. Electric Machines & Control Application, 2019,46(10):84-91.
[10]	PAYZA O, DEMIR Y, AYDIN M. Investigation of losses for a concentrated winding high-speed permanent magnet-assisted synchronous reluctance motor for washing machine application[J]. IEEE Transactions on Magnetics, 2018,54(11):1-5. doi: 10.1109/TMAG.2018.2889566
[11]	张前, 冯明, 陈俊, 等. 车载超高速永磁无刷电动机驱动器[J]. 工程科学学报, 2017,39(10):1565-1574.
	ZHANG Qian, FENG Ming, CHEN Jun, et al. A vehicle mounted super high speed permanent magnet brushless motor drive[J]. Chinese Journal of Engineering, 2017,39(10):1565-1574.
[12]	陈小安, 单文桃, 周进明, 等. 高速电主轴驱动控制技术研究综述[J]. 振动与冲击, 2013,32(8):39-47.
	CHEN Xiaoan, SHAN Wentao, ZHOU Jinming, et al. Review on the drive and control technology of high-speed motorized spindle system[J]. Journal of Vibration and Shock, 2013,32(8):39-47.
[13]	HUANG Qi, LUO Ling, CAO Jichao. Investigations on high reliability permanent magnet motor controller for electric vehicle[C]// 2019 IEEE 3rd International Electrical and Energy Conference (CIEEC),Beijing,China, 2019: 1924-1929.
[14]	周闯, 秦国辉, 王玉鹏, 等. 基于Buck变换器的无刷直流电动机无位置传感器控制[J]. 电工技术学报, 2017,32(12):197-204.
	ZHOU Chuang, QIN Guohui, WANG Yupeng, et al. Sensorless control of brushless DC motor based on Buck converter[J]. Transactions of China Electrotechnical Society, 2017,32(12):197-204.
[15]	黄科元, 伍瑞泽, 黄守道, 等. 单电阻采样的永磁同步电动机相电流重构策略[J]. 电力系统及其自动化学报, 2018,30(9):114-120.
	HUANG Keyuan, WU Ruize, HUANG Shoudao, et al. Phase current reconstruction strategy for PMSM using one-shunt current sampling[J]. Proceedings of the Chinese Society of Universities for Electric Power System and Automation, 2018,30(9):114-120.
[16]	黄其, 陈星宇, 唐扬, 等. 电动汽车电动机及控制器智能测试系统设计[J]. 自动化与仪表, 2019,34(6):63-67.
	HUANG Qi, CHEN Xingyu, TANG Yang, et al. Intelligent test system for new energy automobile motor and controller[J]. Automation and Instrumentation, 2019,34(6):63-67.

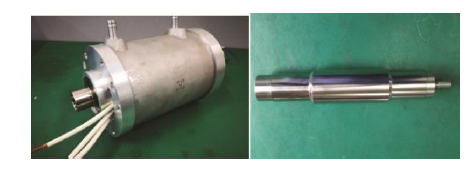

项目	数值	项目	数值
额定电压/V	350	极对数	1
额定功率/kW	7.5	磁钢材料	N42H
额定转速/(r/min)	60 000	护套材料	不锈钢
定子外径/mm	90	转子外径/mm	38
定子厚度/mm	75	轴承	气浮轴承
定子槽数	24	冷却方式	定子水冷

矢量状态	S2	S4	S6	实测电流
V0	0	0	0	0
V1	0	0	1	-i_C
V2	0	1	0	-i_B
V3	0	1	1	i_A
V4	1	0	0	-i_A
V5	1	0	1	i_B
V6	1	1	0	i_C
V7	1	1	1	0
