充水式潜水电机温度场仿真分析*

doi:10.11985/2024.01.015

电气工程学报 ›› 2024, Vol. 19 ›› Issue (1): 141-149.doi: 10.11985/2024.01.015

扫码分享

充水式潜水电机温度场仿真分析^*

李佳欣¹(), 鲍晓华¹(), 狄冲¹(), 燕靖文¹(), 朱庆龙²()

1.合肥工业大学电气与自动化工程学院合肥 230009
2.大型潜水电泵及装备安徽省重点实验室合肥 231131

收稿日期:2023-01-05 修回日期:2023-10-28 出版日期:2024-03-25 发布日期:2024-04-25
通讯作者: 鲍晓华，男，1972年生，博士，教授。主要研究方向为电机设计、磁场分析和有限元分析。E-mail：baoxh@hfut.edu.cn
作者简介:李佳欣，男，1997年生，硕士研究生。主要研究方向为特种电机优化设计及温度场仿真。E-mail：13721058410@163.com;
狄冲，男，1991年生，博士，讲师。主要研究方向为高速电机和开源平台电机建模。E-mail：Chong.Di@hfut.edu.cn;
燕靖文，女，1996年生，博士研究生。主要研究方向为电机电磁设计、铁损计算与分析、电机谐波分析。E-mail：2019170308@hfut.edu.cn;
朱庆龙，男，1961年生，硕士。主要研究方向为大型潜水电机电泵技术和泵站综合自动化系统。E-mail：zhuqinglong@hdjh.cn
基金资助:
国家自然科学基金(51977055);安徽省科技重大专项(201903a05020042)

Simulation Analysis of Temperature Field of the Water-filled Submersible Motor

LI Jiaxin¹(), BAO Xiaohua¹(), DI Chong¹(), YAN Jingwen¹(), ZHU Qinglong²()

1. School of Electrical and Automation, Hefei University of Technology, Hefei 230009
2. Anhui Key Laboratory of Large Submersible Pump and Equipment, Hefei 231131

Received:2023-01-05 Revised:2023-10-28 Online:2024-03-25 Published:2024-04-25

摘要/Abstract

摘要：

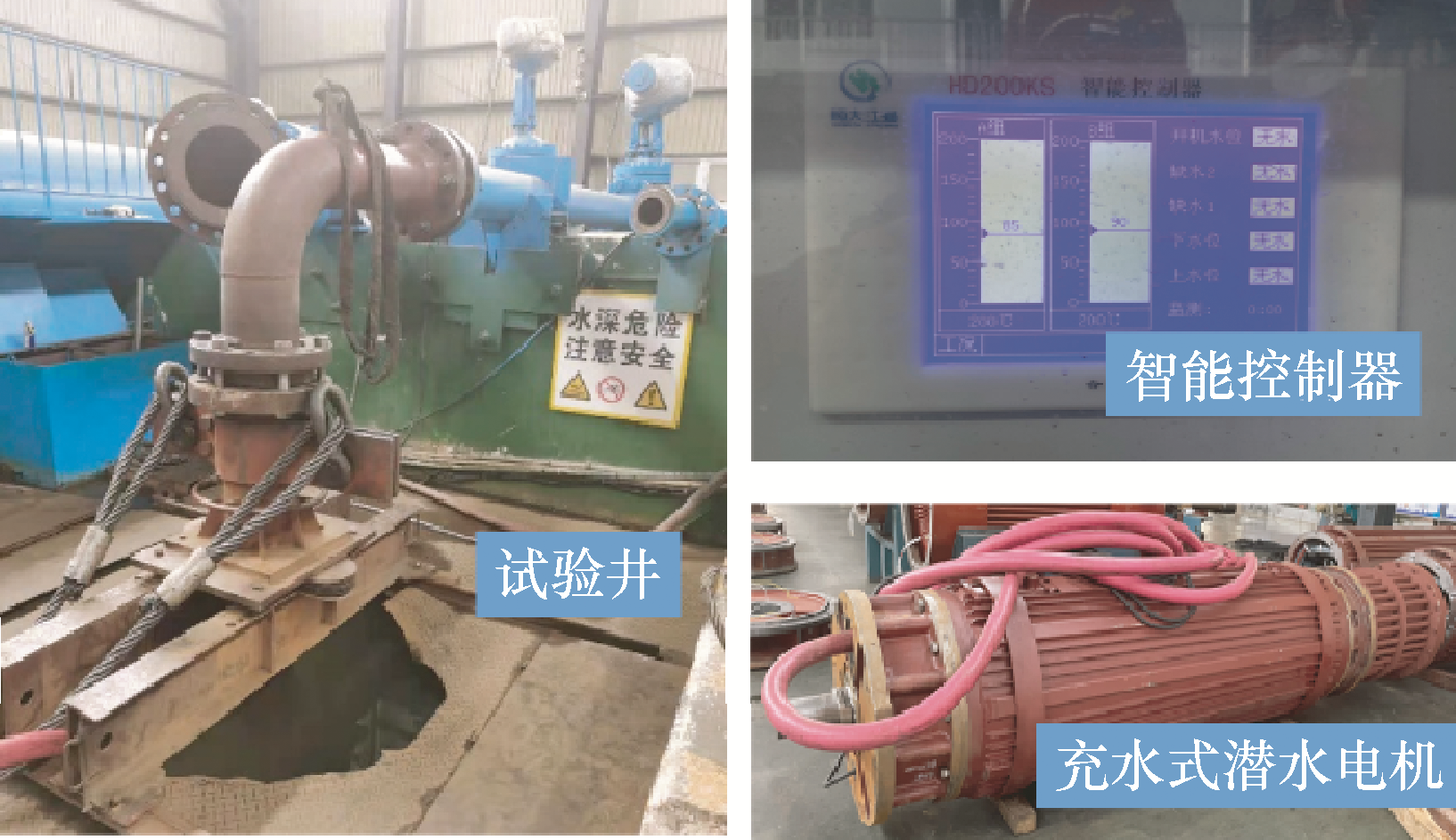

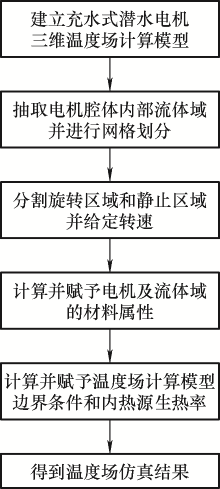

为了避免充水式潜水电机在运行过程中局部过热导致绝缘失效，造成匝间短路故障的问题，提高电机运行的可靠性，以一台500 kW充水式潜水电机为例，搭建了充水式潜水电机包括冷却器、外部水道、吸水罩在内的三维全域温度场仿真模型。模型对定子槽内部分进行了简化的同时考虑了定子槽内冷却水的流通，进一步提高了温度场仿真的精度。最后，对充水式潜水电机内外循环散热过程进行了仿真分析，并通过搭建充水式潜水电机试验平台对温度场仿真结果进行了验证。

关键词: 充水式潜水电机, 温度场仿真, 全域等效模型, 循环冷却过程

Abstract:

In order to avoid insulation failure and inter-turn short circuit failure caused by partial overheating of submersible motor filled with water during operation and improve the reliability of motor operation, a 500 kW water-filled submersible motor is taken as an example, a three-dimensional global temperature field model of the submersible motor is established, including the cooler, the cooling water channels, and the external shield. The inner part of stator slot is simplified by the model, which considers the flow of cooling water in the stator groove, and the precision of temperature field simulation is further improved. Finally, the internal and external circulation cooling process of the submersible motor is simulated and the simulation results of the temperature field are verified by building a submersible motor experimental platform.

Key words: Water-filled submersible motor, temperature field simulation, global equivalent model, circulating cooling process

中图分类号:

TM343

李佳欣, 鲍晓华, 狄冲, 燕靖文, 朱庆龙. 充水式潜水电机温度场仿真分析^*[J]. 电气工程学报, 2024, 19(1): 141-149.

LI Jiaxin, BAO Xiaohua, DI Chong, YAN Jingwen, ZHU Qinglong. Simulation Analysis of Temperature Field of the Water-filled Submersible Motor[J]. Journal of Electrical Engineering, 2024, 19(1): 141-149.

图/表 20

图1

表1

图2

图3

表2

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

图15

图16

图17

表3

参考文献 21

[1]	DAVIN T, PELLE J, HARMAND S, et al. Experimental study of oil cooling systems for electric motors[J]. Applied Thermal Engineering, 2015,75:1-13.
[2]	FAWZAL A S, CIRSTEA R M, GYFTAKIS K N, et al. Fan performance analysis for rotor cooling of axial flux permanent magnet machines[J]. IEEE Transactions on Industry Applications, 2017, 53(4):32953304.
[3]	KIM C, LEE K S, YOOK S J. Effect of air-gap fans on cooling of windings in a large-capacity,high-speed induction motor[J]. Applied Thermal Engineering, 2016,100:658-667.
[4]	MIZUNO S, NODA S, MATSUSHITA M, et al. Development of a totally enclosed fan-cooled traction motor[J]. IEEE Transactions on Industry Applications, 2013, 49(4):1508-1514. doi: 10.1109/TIA.2013.2256872
[5]	SATRÚSTEGUI-DE LEGARRA M. Thermal and hydraulic design of water based cooling systems for electrical machines[D]. Pamplona: Universidad de Navarra, 2017.
[6]	LINDH P, PETROV I, JAATINEN-VÄRRI A, et al. Direct liquid cooling method verified with an axialflux permanent-magnet traction machine prototype[J]. IEEE Transactions on Industrial Electronics, 2017, 64(8):6086-6095. doi: 10.1109/TIE.41
[7]	ZHANG Bo, SEIDLER T, DIERKEN R, et al. Development of a yokeless and segmented armature axial flux machine[J]. IEEE Transactions on Industrial Electronics, 2016, 63(4):2062-2071.
[8]	张世斌. 深井救灾排水系统潜水电机内流体流动与温升特性研究[D]. 北京: 中国矿业大学, 2018.
	ZHANG Shibin. Research on fluid flow and heat transfer characteristics of submersible motor from relief drainage system in deep well[D]. Beijing: China University of Mining and Technology, 2018.
[9]	JANKOWSKI T A, PRENGER F C, HILL D D, et al. Development and validation of a thermal model for electric induction motors[J]. IEEE Transactions on Industrial Electronics, 2010, 57(12):4043-4054. doi: 10.1109/TIE.2010.2043044
[10]	李伟力, 付敏, 周封, 等. 基于流体相似理论和三维有限元法计算大中型异步电动机的定子三维温度场[J]. 中国电机工程学报, 2000, 20(5):15-18,22.
	LI Weili, FU Min, ZHOU Feng, et al. Calculation of 3D stator temperature field of large and medium scale asynchronous motor on the basis of theory of fluid similarity and 3D FEM[J]. Proceedings of the CSEE, 2000, 20(5):15-18,22.
[11]	鲍晓华, 吕强, 王瑞男, 等. 大型高压干式潜水电机定子三维温度场有限元分析[J]. 大电机技术, 2011(6):8-12.
	BAO Xiaohua, LÜ Qiang, WANG Ruinan, et al. Calculation of stator 3D temperature field for large-size high-voltage dry submersible motor[J]. Large Electric Machine and Hydraulic Turbine, 2011(6):8-12.
[12]	鲍晓华, 方勇, 程晓巍, 等. 基于三维有限元的大型充水式潜水电机端部涡流损耗[J]. 电工技术学报, 2014, 29(7):83-89.
	BAO Xiaohua, FANG Yong, CHENG Xiaowei, et al. 3D finite element method analysis of eddy current losses in the end region of large water filling submersible motor[J]. Transactions of China Electrotechnical Society, 2014, 29(7):83-89.
[13]	韩继超. 大型汽轮发电机端部区域流体流动状态与热交换机理的研究[D]. 哈尔滨: 哈尔滨理工大学, 2015.
	HAN Jichao. Research on fluid flow state and heat exchange mechanism in large turbogenerator end region[D]. Harbin:Harbin University of Science and Technology, 2015.
[14]	ZHAO Meng, RAN Xiaohe, SHANG Jing. Influences of 3D fluid field for submersible permanent magnet motors on thermal field distribution[C]// 2019 22nd International Conference on Electrical Machines and Systems(ICEMS). IEEE: 1-5.
[15]	ZHANG Shibin, ZHENG Xiaowen, FENG Lijie, et al. The design and experimental research of cooling structure in deep well submersible motor[J]. Journal of Discrete Mathematical Sciences and Cryptography, 2016, 19(3):838-848.
[16]	XU Yongming, LIU Fei, ZHANG Fang. Analysis of heat transfer based on fluid network decoupling in submersible motor[C]// 2015 IEEE International Conference on Applied Superconductivity and Electromagnetic Devices (ASEMD). IEEE,2015:81-82.
[17]	李伟力, 李守法, 谢颖, 等. 感应电动机定转子全域温度场数值计算及相关因素敏感性分析[J]. 中国电机工程学报, 2007, 27(24):85-91.
	LI Weili, LI Shoufa, XIE Ying, et al. Stator-rotor coupled thermal field numerical calculation of induction motors and correlated factors sensitivity analysis[J]. Proceedings of the CSEE, 2007, 27(24):85-91.
[18]	HUANG Xuzhen, TAN Qiang, LI Liyi, et al. Winding temperature field model considering void ratio and temperature rise of a permanent-magnet synchronous motor with high current density[J]. IEEE Transactions on Industrial Electronics, 2016, 64(3):2168-2177. doi: 10.1109/TIE.2016.2625242
[19]	KOU Baoquan, HUANG Xuzhen, WU Hongxing, et al. Thrust and thermal characteristics of electromagnetic launcher based on permanent magnet linear synchronous motors[J]. IEEE Transactions on Magnetics, 2008, 45(1):358-362. doi: 10.1109/TMAG.2008.2008883
[20]	STATON D, BOGLIETTI A, CAVAGNINO A. Solving the more difficult aspects of electric motor thermal analysis in small and medium size industrial induction motors[J]. IEEE Transactions on Energy Conversion, 2005, 20(3):620-628. doi: 10.1109/TEC.2005.847979
[21]	LIANG Peixing, PEI Yulong, CHAI Feng, et al. Equivalent stator slot model of temperature field for high torque-density permanent magnet synchronous in-wheel motor[C]// International Conference on Electrical Machines & Systems. IEEE,2014:3457-3462.

参数	数值
额定电压U/V	6 000
额定功率P/kW	500
极对数p	2
定子槽数Q_s	36
转子槽数Q_z	42
定子外径D₁/mm	604
气隙长度g/mm	1.5

材料	热导率 λ/[W/(m·℃)]	比热容 c/[kJ/(kg·℃)]	密度 ρ/(kg/m³)
电工用铜	394	0.385	8 930
绝缘材料	0.16	1.9	940
水	0.6	4.18	1 000
结构钢	39	0.463	7 840

时间	绕组A处温度/℃	绕组B处温度/℃
9∶14	42.0	45.5
9∶24	45.8	48.3
9∶34	46.7	49.8
9∶44	48.3	51.1
9∶54	48.8	48.9
10∶04	49.7	49.2
10∶14	47.4	49.6
10∶24	47.9	49.7
