基于奇异谱分析的车载电缆局部放电窄带干扰抑制

doi:10.11985/2023.03.005

摘要/Abstract

摘要：

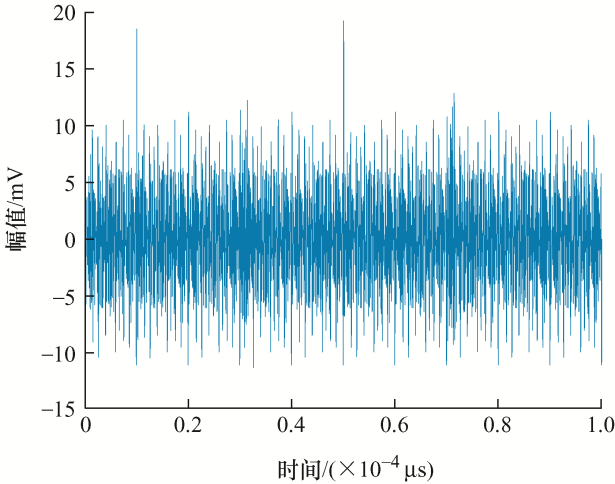

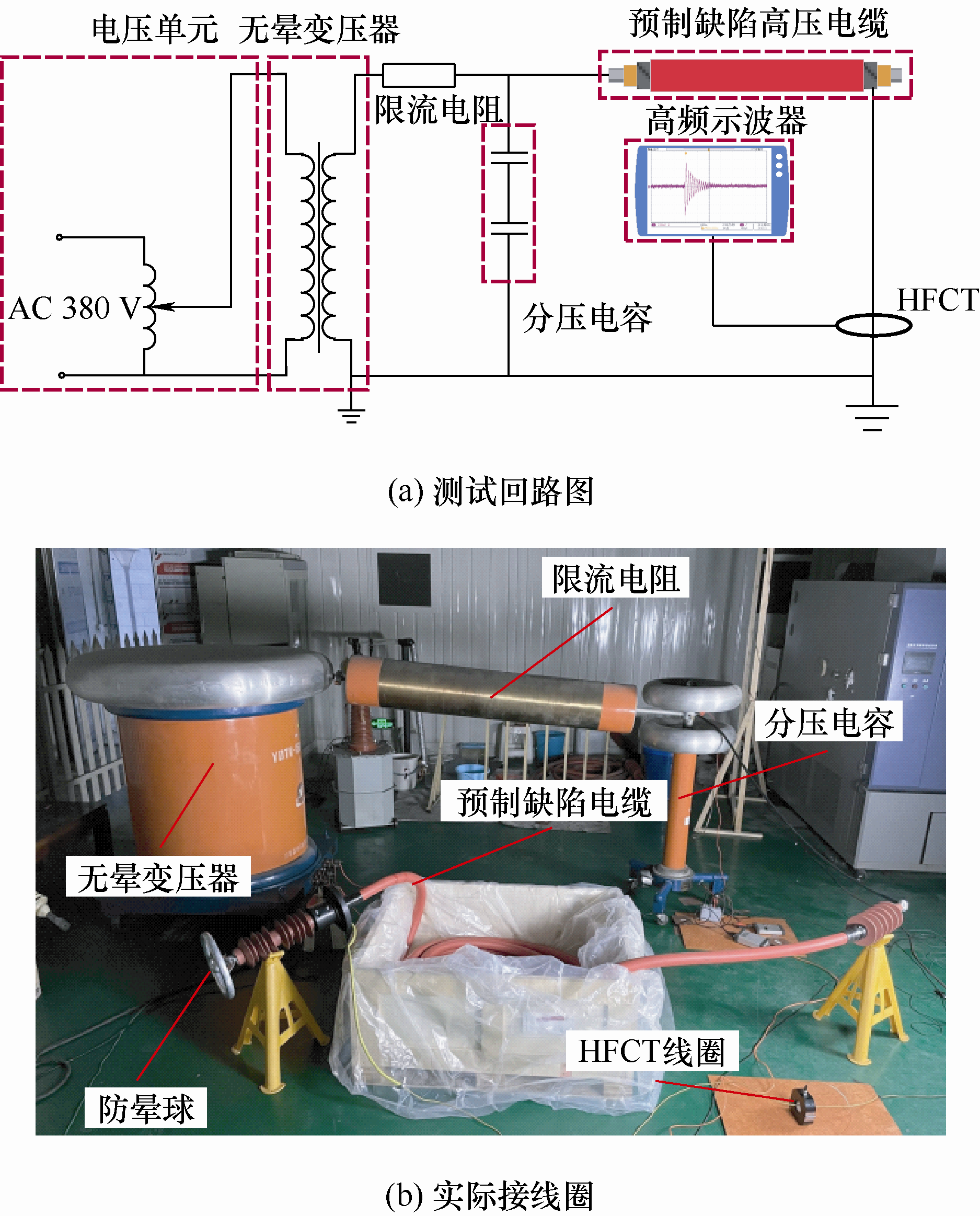

局部放电检测是评估车载高压电缆绝缘状态的重要方法之一。而窄带干扰作为最常见的干扰之一，会导致局部放电信号淹没在噪声中，从而难以获取准确的局部放电信号，给电缆绝缘状态的评估带来困难。介绍一种基于奇异频谱分析的方法，用于抑制车载高压电缆局部放电信号中的窄带干扰。该方法通过对奇异谱分析(Singular spectrum analysis，SSA)实现对一维信号的分析和预测，从而从时间序列中分解出趋势项、周期项和噪声。为了验证所提方法的有效性，模拟了具有窄带干扰的理想局部放电信号，并应用所提方法对信号进行降噪处理。同时，在实验室内进行了真实局部放电信号的验证试验。降噪结果表明，所提方法能够有效地消除车载高压电缆局部放电信号中的窄带干扰，对于判断车载电缆的绝缘状态具有一定的指导意义。本文研究为车载高压电缆局部放电信号提取提供了一种新的方法，对车载电缆绝缘状态评估具有潜在的工程应用价值。

关键词: 车载电缆, 局部放电, 周期性窄带干扰, 奇异谱分析

Abstract:

Partial discharge detection is one of the important methods for assessing the insulation status of vehicle-mounted high-voltage cables. Narrowband interference, as one of the most common interferences, causes the partial discharge signal to be submerged in noise, which makes it difficult to obtain an accurate partial discharge signal and brings difficulties to the assessment of the cable insulation state. A method based on singular spectrum analysis is introduced for suppressing the narrowband interference in the localized discharge signal of vehicle-mounted high-voltage cables. The method realizes the analysis and prediction of one-dimensional signals by singular spectrum analysis(SSA), which decomposes the trend term, period term and noise from the time series. In order to verify the effectiveness of the proposed method, an ideal localized discharge signal with narrow-band interference is simulated, and the proposed method is applied to noise reduction of the signal. At the same time, the validation experiments of real localized discharge signals are carried out in the laboratory. The noise reduction results show that the proposed method can effectively eliminate the narrow-band interference in the partical discharge signal of the vehicle-mounted high-voltage cable, which is of some significance for judging the insulation status of the vehicle-mounted cable. This study provides a new method for localized discharge signal extraction for on-board high-voltage cables, which has potential engineering applications for the assessment of insulation status of on-board cables.

Key words: Vehicle cable, partial discharge, periodic narrow-band interference, singular spectrum analysis

中图分类号:

TM855

杨思为, 高国强, 刘凯, 周书圆, 陈奎, 唐于京, 辛东立, 吴广宁. 基于奇异谱分析的车载电缆局部放电窄带干扰抑制[J]. 电气工程学报, 2023, 18(3): 46-53.

YANG Siwei, GAO Guoqiang, LIU Kai, ZHOU Shuyuan, CHEN Kui, TANG Yujing, XIN Dongli, WU Guangning. Narrowband Interference Suppression of Partial Discharge for High-speed Train on Singular Spectrum Analysis[J]. Journal of Electrical Engineering, 2023, 18(3): 46-53.

图/表 13

图1

表1

图2

图3

图4

图5

表2

图6

图7

图8

图9

图10

表3

参考文献 22

[1]	谢敏, 周凯, 何珉, 等. 史坦无偏估计自适应奇异值分解在局放信号白噪声抑制中的应用[J]. 电网技术, 2018, 42(12):4153-4159.
	XIE Min, ZHOU Kai, HE Min, et al. Application of adaptive singular value decomposition based on stein unbiased risk estimation in partial discharge signal white noise suppression[J]. Power System Technology, 2018, 42(12):4153-4159.
[2]	万晓琪, 宋辉, 罗林根, 等. 卷积神经网络在局部放电图像模式识别中的应用[J]. 电网技术, 2019, 43(6):2219-2226.
	WAN Xiaoqi, SONG Hui, LUO Lingen, et al. Application of convolutional neural networks in pattern recognition of partial discharge image[J]. Power System Technology, 2019, 43(6):2219-2226.
[3]	王干军, 李锦舒, 吴毅江, 等. 基于随机森林的高压电缆局部放电特征寻优[J]. 电网技术, 2019, 43(4):1329-1336.
	WANG Ganjun, LI Jinshu, WU Yijiang, et al. Random forest base feature selection for partial discharge recognition of HV cables[J]. Power System Technology, 2019, 43(4):1329-1336.
[4]	张重远, 岳浩天, 王博闻, 等. 基于相似矩阵盲源分离与卷积神经网络的局部放电超声信号深度学习模式识别方法[J]. 电网技术, 2019, 43(6):1900-1906.
	ZHANG Zhongyuan, YUE Haotian, WANG Bowen, et al. Pattern recognition of partial discharge ultrasonic signal based on similar matrix BSS and deep learning CNN[J]. Power System Technology, 2019, 43(6):1900-1906.
[5]	LI Shuaibing, CAO Binglei, LI Jin, et al. Review of condition monitoring and defect inspection methods for composited cable terminals[J]. High Voltage, 2023, 8(3):431-444. doi: 10.1049/hve2.v8.3
[6]	BARTL J. Thermodynamical properties of the plasma SF₆ in the temperature range from 230 to 20 000 K and pressures from 0.1 to 1.0 MPa[J]. Acta Technica CSAV, 1980, 25(1):33-49.
[7]	YANG L, JUDD M D, BENNOCH C J. Denoising UHF signal for PD detection in transformers based on wavelet technique[C]// 2004 Annual Report Conference on Electrical Insulation and Dielectric Phenomena,Boulder,USA, 2004:166-169.
[8]	律方成, 谢军, 王永强. 局部放电稀疏表示去噪方法[J]. 中国电机工程学报, 2015, 35(10):2625-2633.
	LÜ Fangcheng, XIE Jun, WANG Yongqiang. Partial discharge signal denoising method based on sparse representation[J]. Proceedings of the CSEE, 2015, 35(10):2625-2633.
[9]	唐炬, 黄江岸, 张晓星, 等. 局部放电在线监测中混频周期性窄带干扰的抑制[J]. 中国电机工程学报, 2010, 30(13):121-127.
	TANG Ju, HUANG Jiangan, ZHANG Xiaoxing, et al. Suppression of the periodic narrow-band noise with mixed frequencies in partial discharge on-line monitoring[J]. Proceedings of the CSEE, 2010, 30(13):121-127.
[10]	樊高辉, 刘尚合, 刘卫东, 等. FFT 谱最小熵解卷积滤波抑制放电信号中的周期性窄带干扰[J]. 高电压技术, 2017, 43(4):1378-1385.
	FAN Gaohui, LIU Shanghe, LIU Weidong, et al. Suppression of the periodic narrow-band noise in discharge signal by FFT spectrum minimum entropy deconvolution filtering[J]. High Voltage Engineering, 2017, 43(4):1378-1385.
[11]	LI Shuaibing, CAO Binglei, CUI Yi, et al. Terahertz-based insulation delamination defect inspection of vehicle cable terminals[J]. IEEE Transactions on Transportation Electrification, 2023, 9(1):1765-1774. doi: 10.1109/TTE.2022.3200043
[12]	喇元, 徐阳, 邱昌容, 等. 发电机局部放电在线监测中脉冲型干扰抑制的方法及其应用[J]. 高压电器, 2005, 41(1):16-18.
	LA Yuan, XU Yang, QIU Changrong, et al. A novel approach for noise rejection applied in online partial discharge monitoring of generators[J]. High Voltage Apparatus, 2005, 41(1):16-18.
[13]	谢良聘, 朱德恒. FFT频域分析算法抑制窄带干扰的研究[J]. 高电压技术, 2000, 26(4):6-8.
	XIE Liangpin, ZHU Deheng. Research of spectrum analysis based on FFT for suppressing narrow-band interference in PD signal[J]. High Voltage Engineering, 2000, 26(4):6-8.
[14]	罗新, 牛海清, 胡日亮, 等. 一种改进的用于快速傅里叶变换功率谱中的窄带干扰抑制的方法[J]. 中国电机工程学报, 2013, 33(12):167-175.
	LUO Xin, NIU Haiqing, HU Riliang, et al. A modified method of suppressing narrow-band interference using fast Fourier transform power spectrum[J]. Proceedings of the CSEE, 2013, 33(12):167-175.
[15]	SATISH L, NAZNEEN B. Wavelet-based denoising of partial discharge signals buried in excessive noise and interference[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2003, 10(2):354-367. doi: 10.1109/TDEI.2003.1194122
[16]	MA X, ZHOU C, KEMP I J. Interpretation of wavelet analysis and its application in partial discharge detection[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2002, 9(3):446-457. doi: 10.1109/TDEI.2002.1007709
[17]	LI Shuaibing, CAO Binglei, KANG Yongqiang, et al. Nonintrusive inspection of moisture damp in composited insulation structure based on terahertz technology[J]. IEEE Transactions on Instrumentation and Measurement, 2021, 70:1-10.
[18]	周力行. 变压器局部放电检测中的小波包去噪算法[J]. 高电压技术, 2001, 27(1):19-21.
	ZHOU Lixing. Wavelet packet de-noising arithmetic in PD detecting transformer[J]. High Voltage Engineering, 2001, 27(1):19-21.
[19]	唐炬, 樊雷, 卓然, 等. 用最优谐波小波包变换抑制局部放电混频随机窄带干扰[J]. 中国电机工程学报, 2013, 33(31):193-201.
	TANG Ju, FAN Lei, ZHUO Ran, et al. Suppression of the random narow-band noise with mixed frequencies in partial discharge with the optimal harmonic wavelet packet transform[J]. Proceedings of the CSEE, 2013, 33(31):193-201.
[20]	姚林朋, 郑文栋, 钱勇, 等. 基于集合经验模态分解的局部放电信号的窄带干扰抑制[J]. 电力系统保护与控制, 2011, 39(22):133-139.
	YAO Linpeng, ZHENG Wendong, QIAN Yong, et al. A narrow-band interference suppression method based on EEMD for partial discharge[J]. Power System Protection and Control, 2011, 39(22):133-139.
[21]	任良, 甄龙信, 赵云, 等. 基于SSA-VMD-MCKD的强背景噪声环境下滚动轴承故障诊断[J]. 振动与冲击, 2023, 42(3):217-226.
	REN Liang, ZHEN Longxin, ZHAO Yun, et al. SSA-VMD-MCKD based fault diagnosis of rolling bearings in strong background noise environment[J]. Vibration and Shock, 2023, 42(3):217-226.
[22]	吴易泽, 张旭. 基于集合经验模态分解和奇异谱分析的曲线光顺算法[J]. 计算机集成制造系统, 2020, 26(12):3258-3267. doi: 10.13196/j.cims.2020.12.008
	WU Yize, ZHANG Xu. Curve photoshunting algorithm based on ensemble empirical modal decomposition and singular spectrum analysis[J]. Computer Integrated Manufacturing Systems, 2020, 26(12):3258-3267.

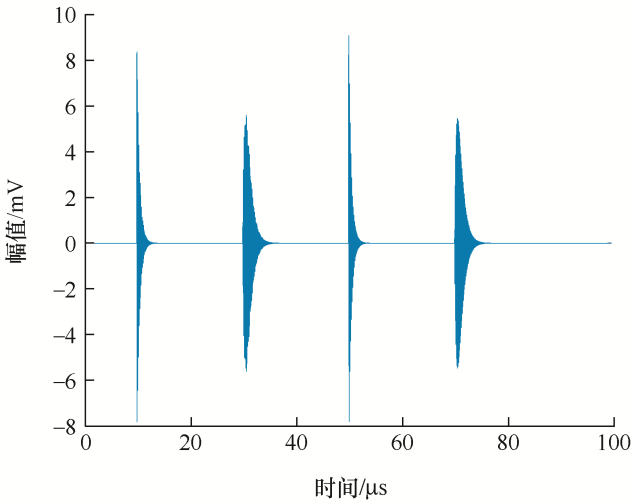

序号	幅值/mV	时间常数/μs	振荡频率/MHz
1	12	0.5	8
2	12	0.5	7
3	30	1	8
4	30	1	10

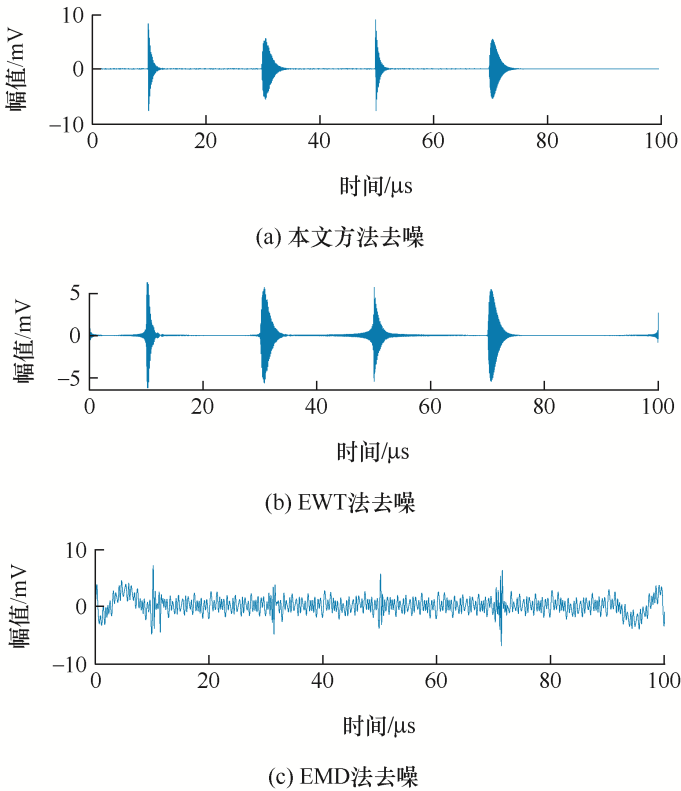

方法	SNR	MSE	NCC
SSA	20.480 6	0.024 39	0.957 8
EMD法	5.936 0	0.762 6	0.646 6
EWT法	10.520 4	0.054 4	0.892 5

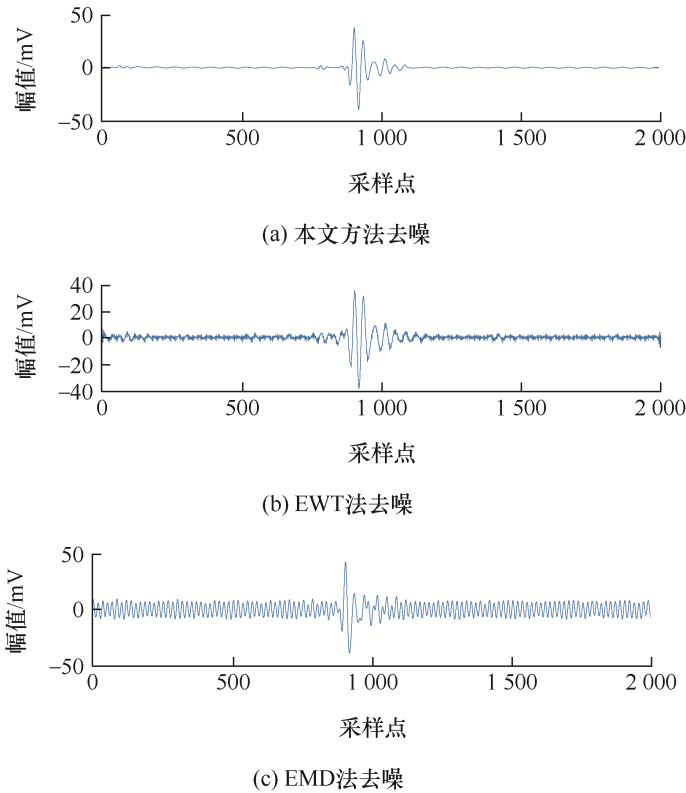

降噪方法	标准差
SSA	18.21
EWT法	16.31
EMD法	12.28
