油浸式有载分接开关的电弧温度场特性仿真研究

doi:10.11985/2023.03.015

电气工程学报 ›› 2023, Vol. 18 ›› Issue (3): 135-144.doi: 10.11985/2023.03.015

• 特邀专栏：电气化交通中的高压绝缘与防护新技术 • 上一篇下一篇

扫码分享

油浸式有载分接开关的电弧温度场特性仿真研究

李帅兵(), 李宗英(), 杨兴祖(), 康永强(), 董海鹰()

兰州交通大学新能源与动力工程学院兰州 730070

收稿日期:2023-04-17 修回日期:2023-05-25 出版日期:2023-09-25 发布日期:2023-10-23
通讯作者: 李帅兵，男，1989年生，博士，副教授。主要研究方向为高压电气设备检测与故障诊断、新能源电力装备状态评估与系统安全。E-mail：shuaibingli@mail.lzjtu.cn
作者简介:李宗英，男，1997年生，硕士研究生。主要研究方向为电力设备的故障诊断与状态监测。E-mail：lizongying1998@163.com
杨兴祖，男，1996年生，硕士研究生。主要研究方向为高压设备故障诊断与监测。E-mail：yangxingzu1121@163.com
康永强，男，1988年生，博士，副教授。主要研究方向为极端环境高压放电与绝缘防护、多物理场耦合建模与数值计算、新能源电力装备状态检测与评估。E-mail：kangyong137@163.com
董海鹰，男，1966年生，博士，教授。主要研究方向为电力系统运行与优化控制、新能源发电技术、能源互联网的建模与智能控制技术、新能源电动汽车动力系统运行控制。E-mail：hydong@mail.lzjtu.cn

Simulation Study on Arc Temperature Field Characteristics of Oil-immersed On-load Tap-changer

LI Shuaibing(), LI Zongying(), YANG Xingzu(), KANG Yongqiang(), DONG Haiying()

School of New Energy and Power Engineering, Lanzhou Jiaotong University, Lanzhou 730070

Received:2023-04-17 Revised:2023-05-25 Online:2023-09-25 Published:2023-10-23

摘要/Abstract

摘要：

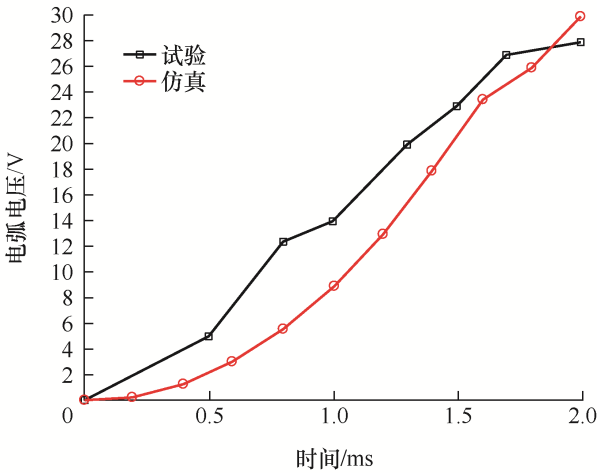

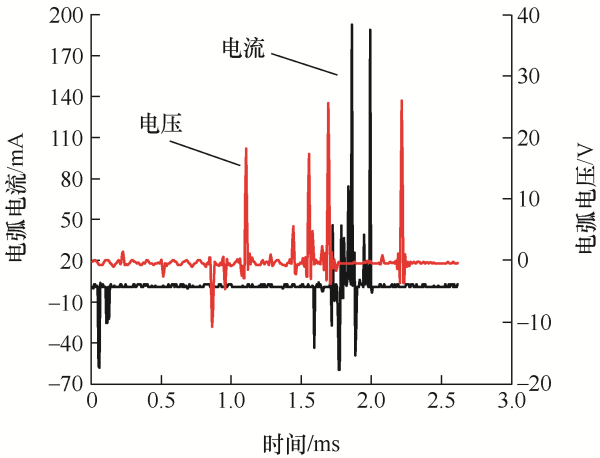

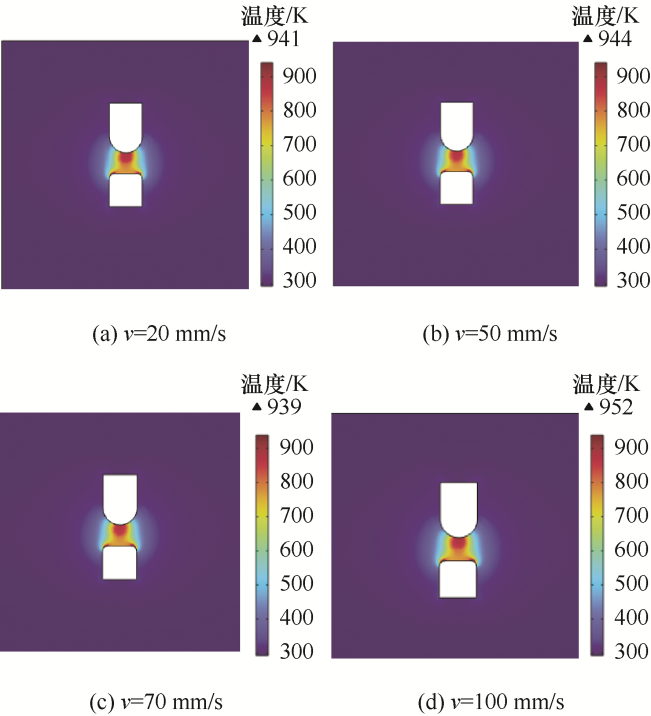

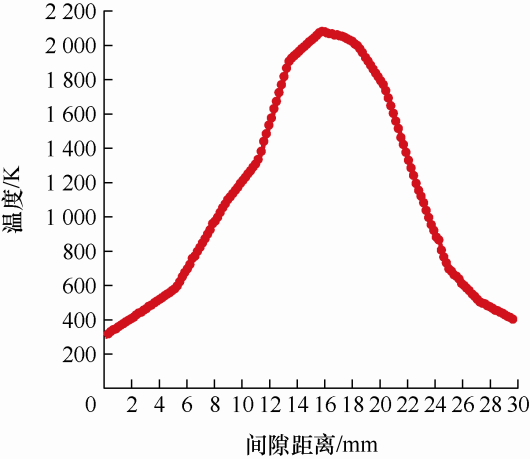

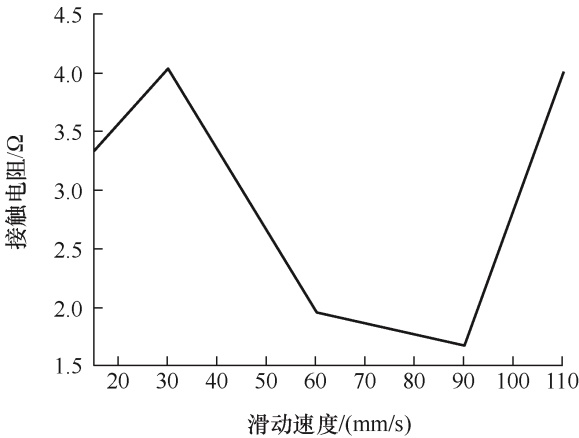

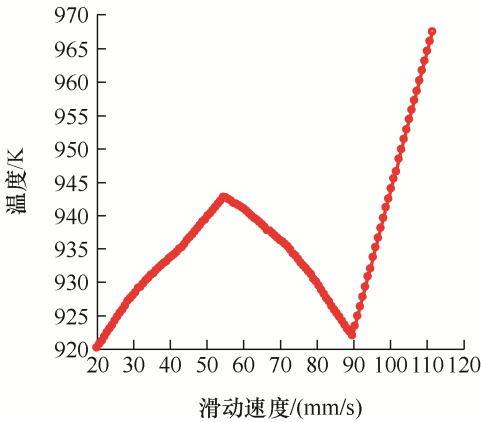

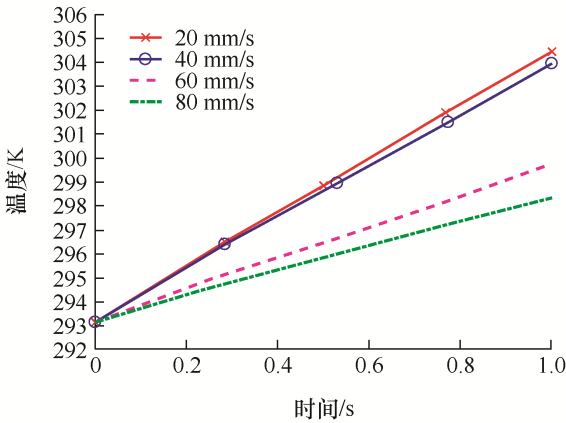

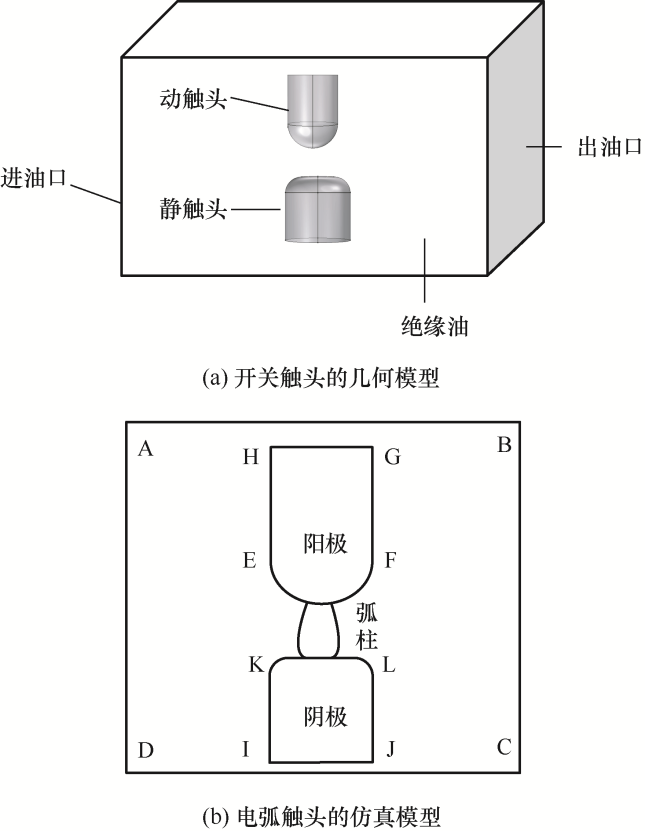

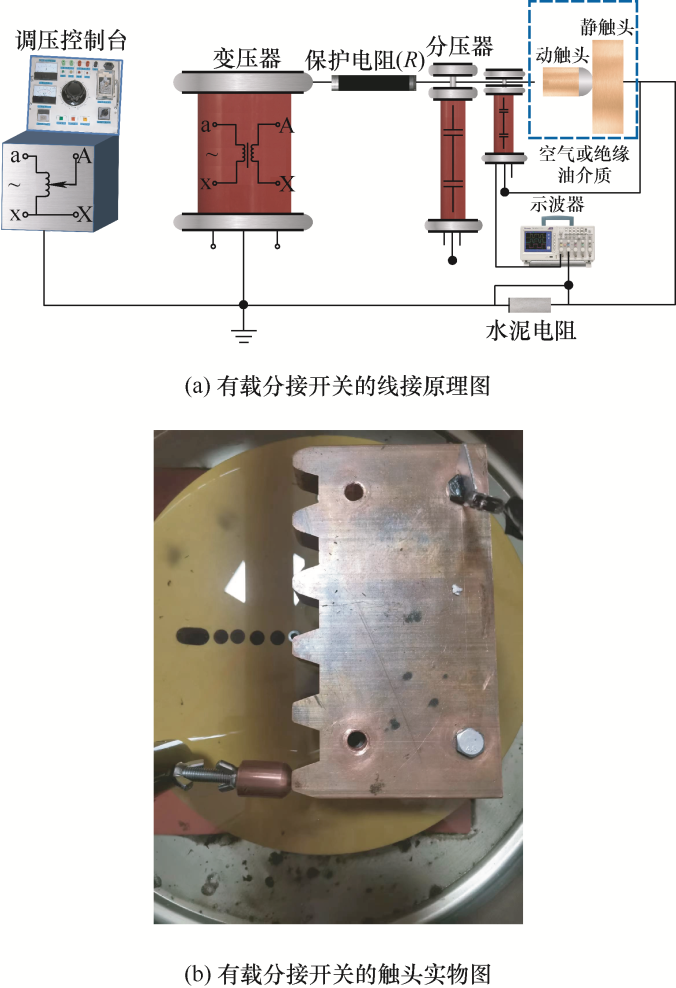

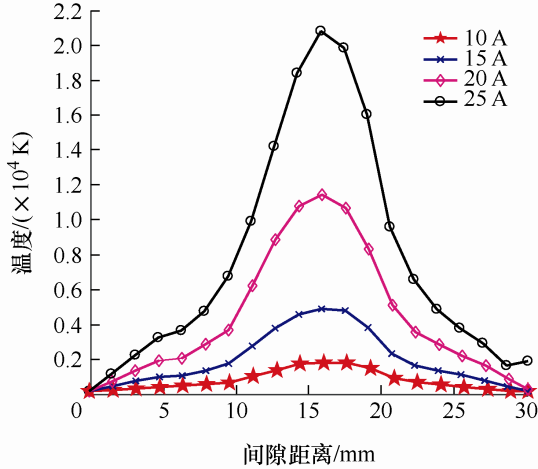

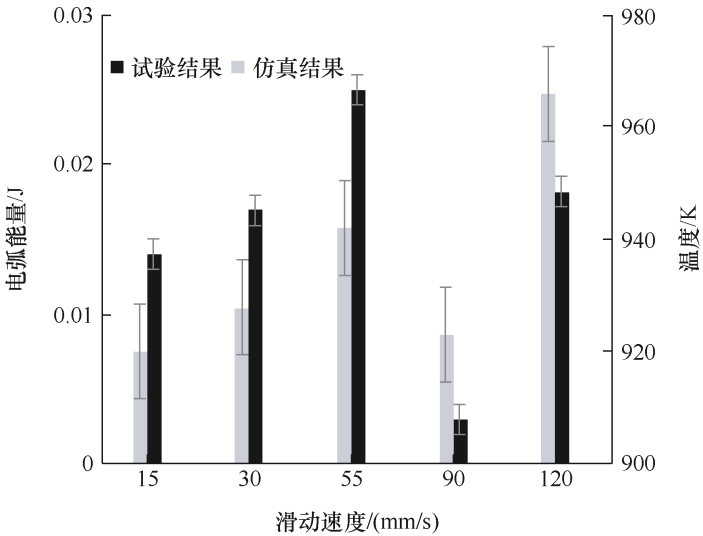

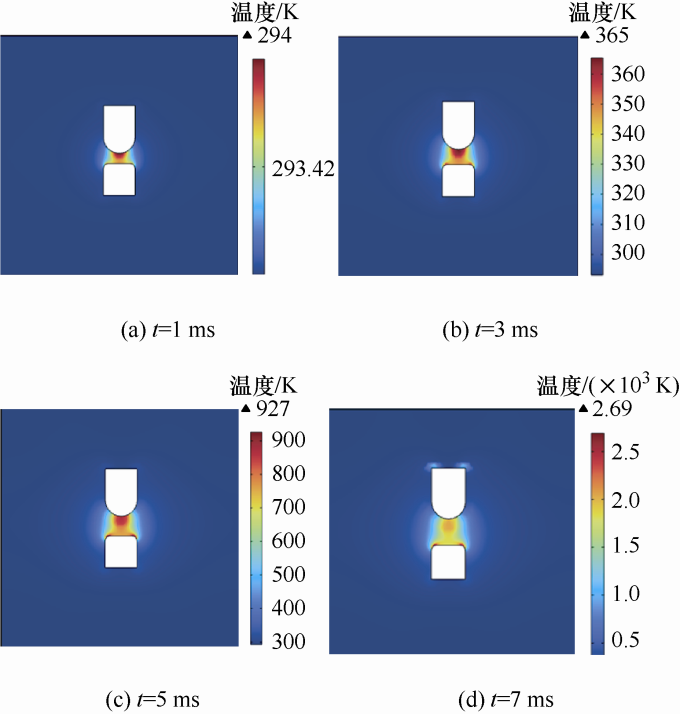

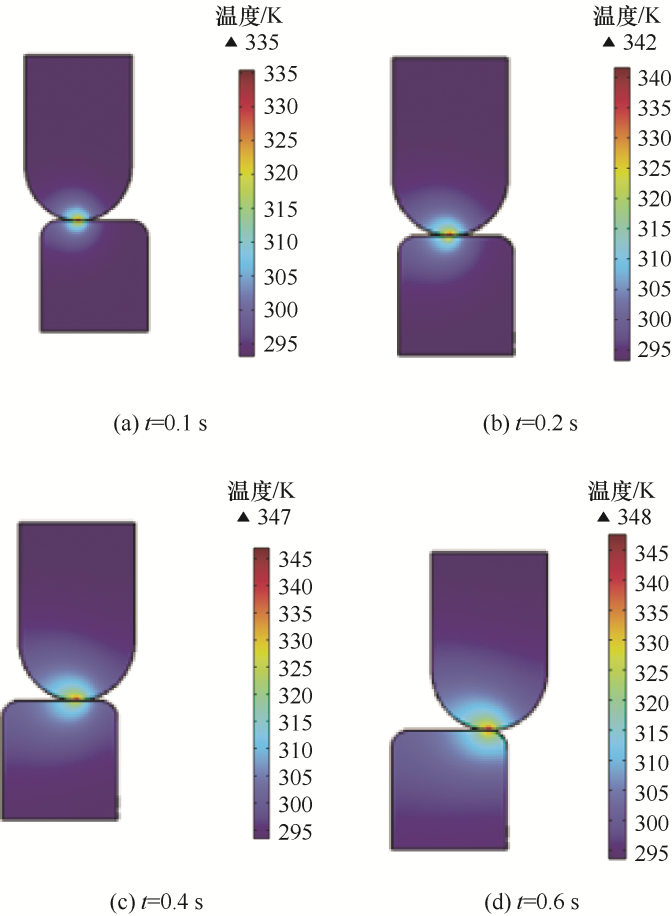

随着新能源的大规模并网，电力系统对电网电压的精细化调控需求不断增加，使得有载分接开关的动作更加频繁，其触头电气磨损严重、故障率逐年上升。为探究有载分接开关的开关触头在绝缘油中的电气磨损情况，对有载分接开关滑动过程中所产生的电弧特性展开研究。基于流体动力学理论，建立有载分接开关的电弧等离子体仿真分析模型，仿真得到电弧的温度分布和有载分接开关触头表面温度分布特性，并在实验室搭建了有载分接开关的载流摩擦磨损试验平台，对触头间的电弧仿真模型进行了试验验证。结果表明，在起弧前，触头表面温度随时间慢慢升高，随滑动速度增大而下降；在起弧过程中，电弧温度极速升高，电流的增大，使电弧能量增大，电弧温度和触头表面温度升高；在滑动速度55 mm/s之前，电弧温度随着滑动速度增大而增大，当滑动速度介于55~100 mm/s时，电弧温度呈先下降后上升的趋势，电弧能量在滑动速度为90 mm/s时达到最小，该发现可为触头机构的优化设计提供参考。

关键词: 有载分接开关, 电弧模型, 电弧温度, 滑动速度, 电气磨损

Abstract:

With the large-scale integration of new energy, the demand for refined regulation of grid voltage in power system is increasing, which makes the action of on-load tap-changer more frequent, and the electrical wear of its contacts is serious and the failure rate is increasing year by year. In order to explore the electrical wear of the switch contacts of the on-load tap-changer in insulating oil, the arc characteristics generated during the sliding process of the on-load tap-changer are studied. Based on the theory of fluid dynamics, the arc plasma simulation analysis model of the on-load tap-changer is established, and the temperature distribution of the arc and the temperature distribution characteristics of the contact surface of the on-load tap-changer are simulated. The current-carrying friction and wear test platform of the on-load tap-changer is built in the laboratory, and the arc simulation model between the contacts is tested and verified. The results show that the surface temperature of the contact increases slowly with time and decreases with the increase of sliding speed before arcing. During the arcing process, the arc temperature increases extremely, the current increases, the arc energy increases, the arc temperature and the contact surface temperature increase. Before the sliding velocity of 55 mm/s, the arc temperature increases with the increase of the sliding speed. When the sliding speed is between 55 mm/s and 100 mm/s, the arc temperature decreases first and then increases, and the arc energy reaches the minimum when the sliding speed is 90 mm/s. The discovery can provide reference for the optimal design of the contact mechanism.

Key words: On-load tap-changer, arc model, arc temperature, sliding velocity, electrical wear

中图分类号:

TM561

李帅兵, 李宗英, 杨兴祖, 康永强, 董海鹰. 油浸式有载分接开关的电弧温度场特性仿真研究[J]. 电气工程学报, 2023, 18(3): 135-144.

LI Shuaibing, LI Zongying, YANG Xingzu, KANG Yongqiang, DONG Haiying. Simulation Study on Arc Temperature Field Characteristics of Oil-immersed On-load Tap-changer[J]. Journal of Electrical Engineering, 2023, 18(3): 135-144.

图/表 15

图1

表1

表2

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

参考文献 31

[1]	曾全昊, 王丰华, 郑一鸣, 等. 基于卷积神经网络的变压器有载分接开关故障识别[J]. 电力系统自动化, 2020, 44(11):144-151.
	ZENG Quanhao, WANG Fenghua, ZHENG Yiming, et al. Fault identification of transformer on-load tap-changer based on convolutional neural network[J]. Automation of Electric Power Systems, 2020, 44(11):144-151.
[2]	ZHANG Yanyan, ZHANG Yongzhen, SONG Chenfei. Arc discharges of a pure carbon strip affected by dynamic contact force during current-carrying sliding[J]. Materials, 2018, 11(5):796. doi: 10.3390/ma11050796
[3]	YANG Zhenghai, ZHANG Yongzhen, ZHAO Fei, et al. Dynamic variation of arc discharge during current-carrying sliding and its effect on directional erosion[J]. Tribology International, 2016, 94:71-76. doi: 10.1016/j.triboint.2015.03.012
[4]	DING Tao, CHEN Guangxiong, SHEN Mingxue, et al. Effect of arc discharge on friction and wear behaviors of stainless steel/copper-impregnated metalized carbon couple under electric current[J]. Advanced Materials Research, 2011, 150:1364-1368.
[5]	JIANG Guoqiang, WANG Zhiyong, CHEN Zhonghua, et al. Research of friction and wear behavior of sliding contacts under strong current conditions[C]// 2010 International Conference on Electrical and Control Engineering, June 25-27,2010,Wuhan,China. IEEE, 2010:5462-5465.
[6]	GUO Fengyi, JIA Wei, CHEN Zhonghua, et al. Experimental research on current-carrying and friction characteristics of sliding electrical contact[C]// 2010 Proceedings of the 56th IEEE Holm Conference on Electrical Contacts, October 4-7,2010,South Carolina,USA. IEEE, 2010:1-6.
[7]	钟传枝. 刚性接触网/受电弓摩擦副载流摩擦磨损性能的试验研究[D]. 成都: 西南交通大学, 2021.
	ZHONG Chuanzhi. Experimental study on current-carrying friction and wear properties of rigid catenary/pantograph friction pair[D]. Chengdu: Southwest Jiaotong University, 2021.
[8]	SCHADE E, SHMELEV D L. Numerical simulation of high-current vacuum arcs with an external axial magnetic field[J]. IEEE Transactions on Plasma Science, 2003, 31(5):890-901. doi: 10.1109/TPS.2003.818436
[9]	郝长金, 尹小兵, 古圳, 等. 基于磁流体动力学模型的弓网电弧温度场仿真[J]. 高压电器, 2016, 52(7):123-129.
	HAO Changjin, YIN Xiaobing, GU Zhen, et al. Simulation of pantograph-catenary arc temperature field based on magnetohydrodynamic model[J]. High Voltage Apparatus, 2016, 52(7):123-129.
[10]	朱光亚, 吴广宁, 高国强, 等. 高速列车静态升降弓电弧的磁流体动力学仿真研究[J]. 高电压技术, 2016, 42(2):642-649.
	ZHU Guangya, WU Guangning, GAO Guoqiang, et al. Magnetohydrodynamics simulation of static pantograph arc of high-speed train[J]. High Voltage Engineering, 2016, 42(2):642-649.
[11]	朱光亚, 吴广宁, 韩伟峰, 等. 高速列车静态升降弓时弓网电弧稳态特性仿真与分析[J]. 铁道学报, 2016, 38(2):42-47.
	ZHU Guangya, WU Guangning, HAN Weifeng, et al. Simulation and analysis of steady-state characteristics of pantograph-catenary arc during static lifting of high-speed train[J]. Journal of the China Railway Society, 2016, 38(2):42-47.
[12]	高国强, 许潘, 魏文赋, 等. 带载工况下降弓电弧磁流体建模分析[J]. 高电压技术, 2019, 45(12):3916-3923.
	GAO Guoqiang, XU Pan, WEI Wenfu, et al. Analysis of magnetic fluid modeling of down-bow arc under load conditions[J]. High Voltage Engineering, 2019, 45(12):3916-3923.
[13]	马云双, 高国强, 朱光亚. 高速列车弓网电弧温度场特性仿真研究[J]. 高电压技术, 2015, 41(11):3597-3603.
	MA Yunshuang, GAO Guoqiang, ZHU Guangya. Simulation study on temperature field characteristics of pantograph-catenary arc of high-speed train[J]. High Voltage Engineering, 2015, 41(11):3597-3603.
[14]	邓雷, 吴细秀, 汪本进, 等. 利用三维有限元法计算复杂结构线圈电感[J]. 控制工程期刊:中英文版, 2013(3):162-170.
	DENG Lei, WU Xixiu, WANG Benjin, et al. Research on the inductance computing of complicated coil by 3D FEM[J]. Scientific Journal of Control Engineering, 2013(3):162-170.
[15]	张玉燕, 程洁冰, 王振春, 等. 高速载流摩擦接触面温度的特性[J]. 高电压技术, 2018, 44(2):640-647.
	ZHANG Yuyan, CHENG Jiebing, WANG Zhenchun, et al. Temperature characteristics of high-speed current-carrying friction contact surface[J]. High Voltage Engineering, 2018, 44(2):640-647.
[16]	朱光亚. 高速列车弓网电弧演化特性及其数值模拟[D]. 成都: 西南交通大学, 2016.
	ZHU Guangya. Evolution characteristics and numerical simulation of pantograph-catenary arc of high-speed train[D]. Chengdu: Southwest Jiaotong University, 2016.
[17]	谷欣. 滑动电接触粗糙表面接触模型及温度特性仿真研究[D]. 阜新: 辽宁工程技术大学, 2020.
	GU Xin. Simulation study on contact model and temperature characteristics of sliding electrical contact rough surface[D]. Fuxin:Liaoning Technical University, 2020.
[18]	宋联美, 张永振, 上官宝. 钨/铜载流摩擦副的电弧烧蚀行为[J]. 机械工程材料, 2018, 42(1):18-22. doi: 10.11973/jxgccl201801004
	SONG Lianmei, ZHANG Yongzhen, SHANGGUAN Bao. Arc erosion behavior of tungsten/copper current-carrying friction pair[J]. Materials for Mechanical Engineering, 2018, 42(1):18-22. doi: 10.11973/jxgccl201801004
[19]	吴积钦. 弓网系统电弧的产生及其影响[J]. 电气化铁道, 2008(2):27-29.
	WU Jiqin. Arc generation in pantograph-catenary system and its influence[J]. Electric Railway, 2008(2):27-29.
[20]	韩伟锋, 高国强, 刘贤汭, 等. 弓网电弧磁流体动力学模型[J]. 铁道学报, 2015, 37(5):21-26.
	HAN Weifeng, GAO Guoqiang, LIU Xianrui, et al. Magnetohydrodynamic model of pantograph-catenary arc[J]. Journal of the China Railway Society, 2015, 37(5):21-26.
[21]	付文明, 武云龙, 刘力, 等. 大电流对碳滑块/铜银合金接触线载流摩擦磨损性能的影响[J]. 润滑与密封, 2017, 42(9):52-56. doi: 10.3969/j.issn.0254-0150.2017.09.011
	FU Wenming, WU Yunlong, LIU Li, et al. Effect of high current on current-carrying friction and wear properties of carbon slider/copper-silver alloy contact wire[J]. Lubrication Engineering, 2017, 42(9):52-56. doi: 10.3969/j.issn.0254-0150.2017.09.011
[22]	郭凤仪, 谷欣, 王智勇, 等. 电弧对弓网系统接触线温度的影响[J]. 辽宁工程技术大学学报, 2020, 39(4):332-337.
	GUO Fengyi, GU Xin, WANG Zhiyong, et al. Effect of arc on contact wire temperature of pantograph-catenary system[J]. Journal of Liaoning Technical University, 2020, 39(4):332-337.
[23]	GUO Fengyi, GU Xin, WANG Zhiyong, et al. Simulation on current density distribution of current-carrying friction pair used in pantograph-catenary system[J]. IEEE Access, 2020, 8:25770-25776. doi: 10.1109/Access.6287639
[24]	籍欣欣. 弓网电弧动态特性的实验研究[D]. 阜新: 辽宁工程技术大学, 2019.
	JI Xinxin. Experimental study on dynamic characteristics of pantograph-catenary arc[D]. Fuxin:Liaoning Technical University, 2019.
[25]	籍欣欣, 王智勇, 方志朋. 降雨环境下弓网电弧动态特性研究[J]. 电子测量与仪器学报, 2019, 33(1):47-53.
	JI Xinxin, WANG Zhiyong, FANG Zhipeng. Research on dynamic characteristics of pantograph-catenary arc under rainfall environment[J]. Journal of Electronic Measurement and Instruments, 2019, 33(1):47-53.
[26]	许岩. 四种刚性接触网/受电弓摩擦副电滑动摩擦磨损性能的试验研究[D]. 成都: 西南交通大学, 2021.
	XU Yan. Experimental study on electric sliding friction and wear properties of four rigid catenary/pantograph friction pairs[D]. Chengdu: Southwest Jiaotong University, 2021.
[27]	HU Yanqing, CHEN Guangxiong, GAO Guoqiang, et al. Study on material transfer in the process of contact strips rubbing against a contact wire with electric current[J]. Proceedings of the Institution of Mechanical Engineers,Part J:Journal of Engineering Tribology, 2016, 230(2):202-211. doi: 10.1177/1350650115595055
[28]	刘耀银, 陈旭坤, 万玉苏, 等. 高速列车弓网电弧模型及其电气特性仿真研究[J]. 高压电器, 2017, 53(11):39-45.
	LIU Yaoyin, CHEN Xukun, WAN Yusu, et al. Research on pantograph-catenary arc model of high-speed train and its electrical characteristics simulation[J]. High Voltage Apparatus, 2017, 53(11):39-45.
[29]	李聪慧, 张燕燕, 曾泽祥, 等. 载流摩擦磨损研究进展[J]. 润滑与密封, 2022, 47(7):153-167. doi: 10.3969/j.issn.0254-0150.2022.07.022
	LI Conghui, ZHANG Yanyan, ZENG Zexiang, et al. Current-carrying friction and wear research progress[J]. Lubrication Engineering, 2022, 47(7):153-167. doi: 10.3969/j.issn.0254-0150.2022.07.022
[30]	吴杰, 高国强, 魏文赋, 等. 弓网系统滑动电接触特性[J]. 高电压技术, 2015, 41(11):3635-3641.
	WU Jie, GAO Guoqiang, WEI Wenfu, et al. Sliding electrical contact characteristics of pantograph catenary system[J]. High Voltage Engineering, 2015, 41(11):3635-3641.
[31]	刘贤汭, 吴杰, 魏文赋, 等. 高速铁路弓网接触电动力特性[J]. 高电压技术, 2018, 44(11):3770-3776.
	LIU Xianrui, WU Jie, WEI Wenfu, et al. High-speed railway pantograph-catenary contact electrodynamic characteristics[J]. High Voltage Engineering, 2018, 44(11):3770-3776.

材料类型	相对磁导率	电导率/(S/m)	相对介电常数
铜	1	5.99×10⁷	1
绝缘油	1	3×10^-13	2.2

参数	拟合公式
动力粘度$\mu $	$\mu (T)=0.084\ 67-0.000\ 4T+5e\text{xp}(-7{{T}^{2}})$
恒压热容${{C}_{\text{p}}}$	${{C}_{\text{p}}}(T)=807.163+3.58T$
流体密度$\rho $	$\rho (T)=1\ 098.72-0.712T$
导热系数$k$	$k(T)=0.159-7.101e\text{xp(}-5T\text{)}$
