四开关Buck-Boost变换器研究综述*

doi:10.11985/2023.02.006

摘要/Abstract

摘要：

直流微电网因其结构复杂、功能多样，对系统中变换器的性能有较高要求。四开关Buck-Boost变换器具有宽范围电压变换、输入输出同极性、功率双向传输等优势，近年来得到国内外学者的广泛关注，被应用于直流微电网中的新能源发电、储能等单元。通过分析该变换器的工作原理与典型控制策略，对变换器研究中现存关键问题，模式切换与效率优化进行归纳总结。针对模式切换问题，从模式切换时死区机理出发，基于多模式控制策略，分析了模式平滑切换的典型控制方法。针对效率优化问题，归纳了影响变换器效率的关键因素，并从硬开关与软开关两个方面分析阐述了常见的效率优化方法。最后，对四开关Buck-Boost变换器的现有研究工作进行了总结与展望，为该领域的进一步研究和发展提供了理论指导。

关键词: 四开关Buck-Boost变换器, 多模式控制, 模式切换, 效率优化

Abstract:

Due to its complex structure and diverse functions, DC microgrid has higher requirements on the performance of converters in the system. The four-switch Buck-Boost converter has many advantages, such as wide range of voltage conversion, input and output polarity, power bidirectional transmission and so on. Thus, it has been widely concerned in recent years, and has been used in new energy power generation and energy storage unit of DC microgrid. The working principle and typical control strategy of the converter are analyzed and described, the key problems, including the mode switching and the efficiency optimization, are summarized. Specifically, focusing on the problem of mode switching, the dead-zone mechanism is studied, and some typical optimization methods for smooth-mode switching are analyzed based on the multimode control strategy. Then, for the problem of efficiency optimization, the key factors affecting the efficiency of the converter are summarized, and the common efficiency optimization methods are summarized from hard switch and soft switch control. Finally, the main research contents of converters are compared and summarized, which can provide references for the further research and development of this field.

Key words: Four-switch Buck-Boost converter, multimode control, mode switching, efficiency optimization

中图分类号:

TM71

任林涛, 汪飞, 肖杨婷, 丁峰, 徐慧, 余琛琛. 四开关Buck-Boost变换器研究综述^*[J]. 电气工程学报, 2023, 18(2): 52-69.

REN Lintao, WANG Fei, XIAO Yangting, DING Feng, XU Hui, YU Chenchen. Review Research on the Four-switch Buck-Boost Converter[J]. Journal of Electrical Engineering, 2023, 18(2): 52-69.

图/表 34

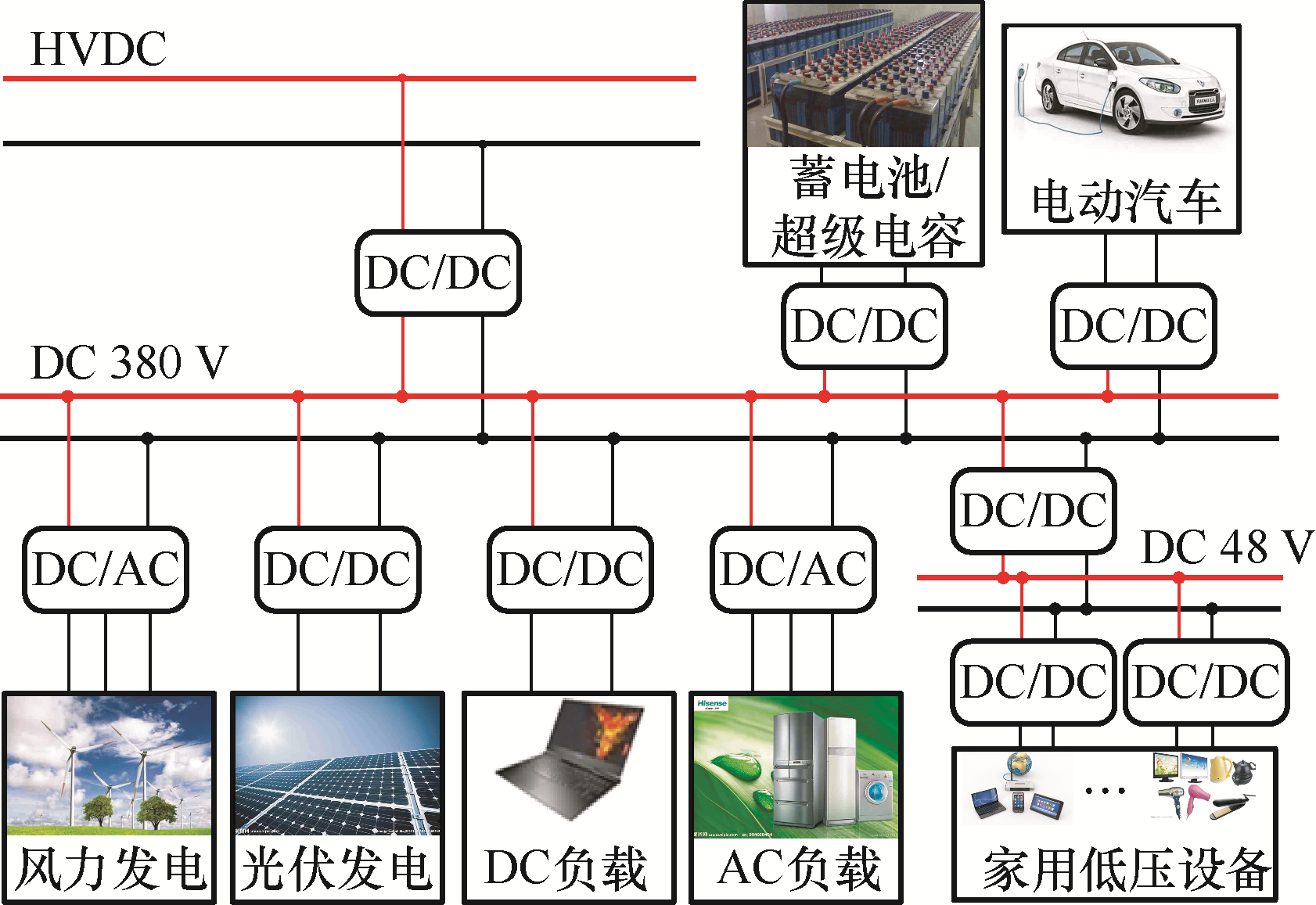

图1

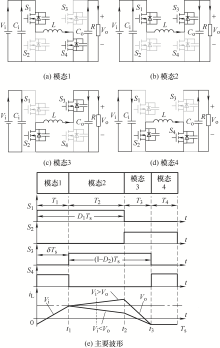

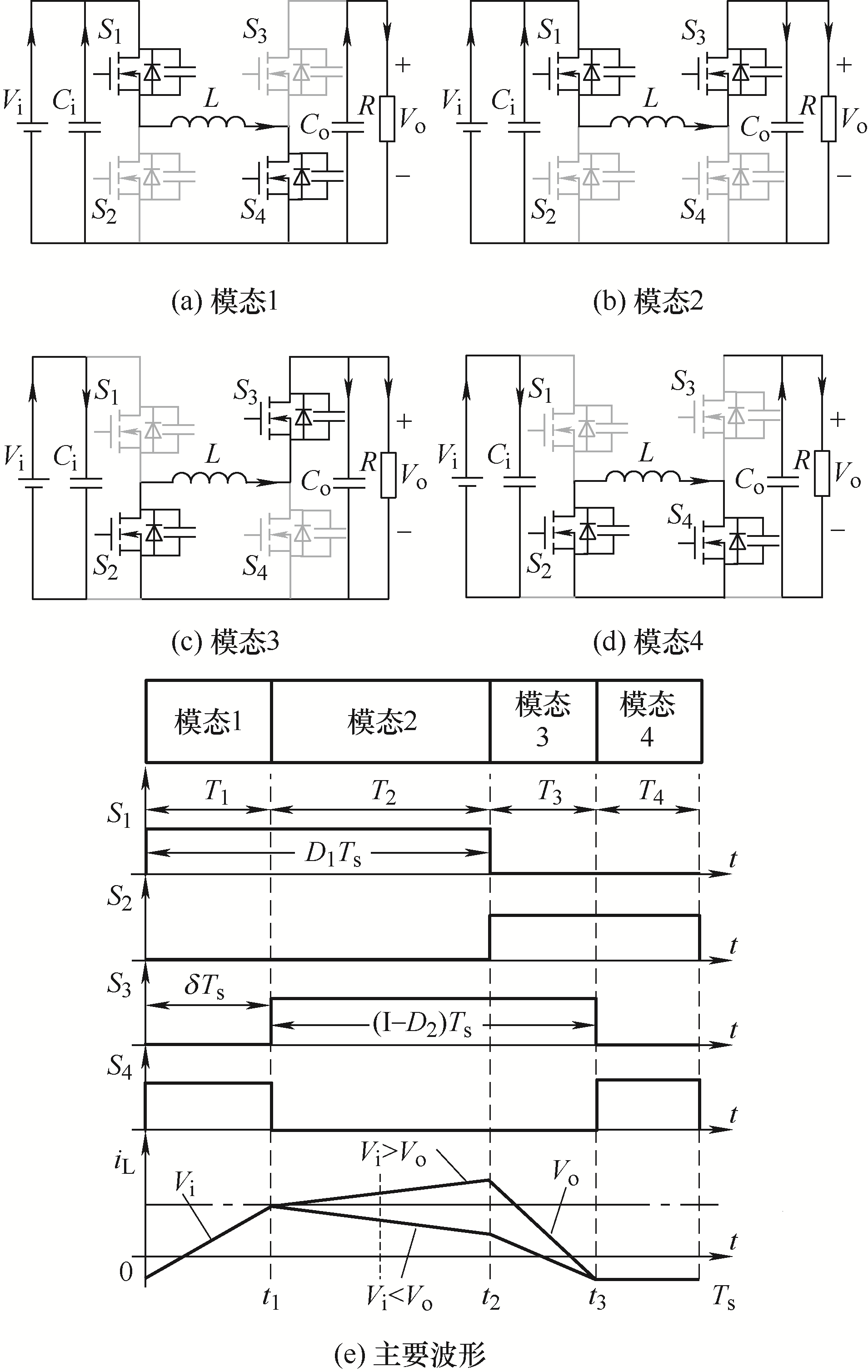

图2

表1

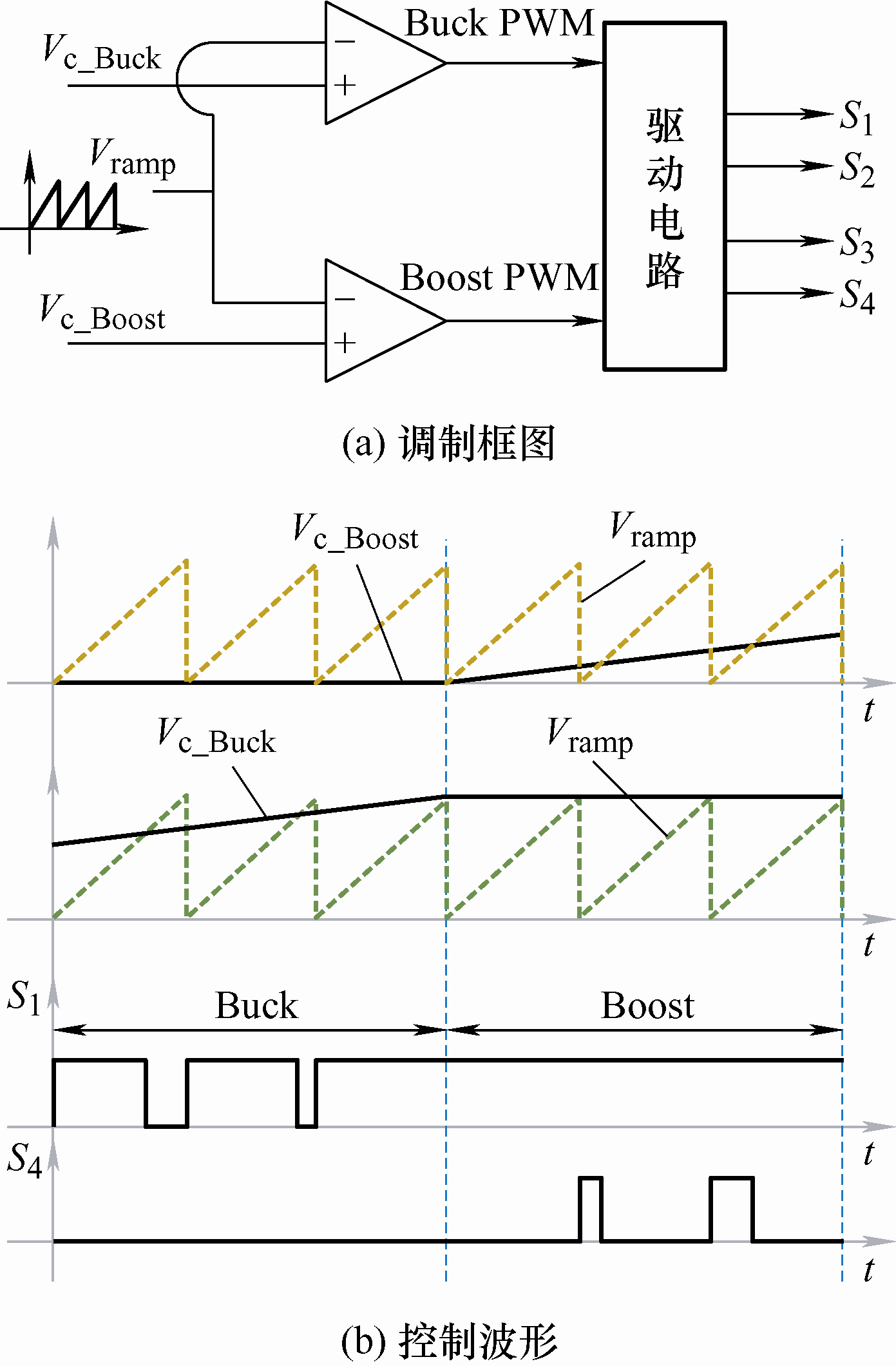

图3

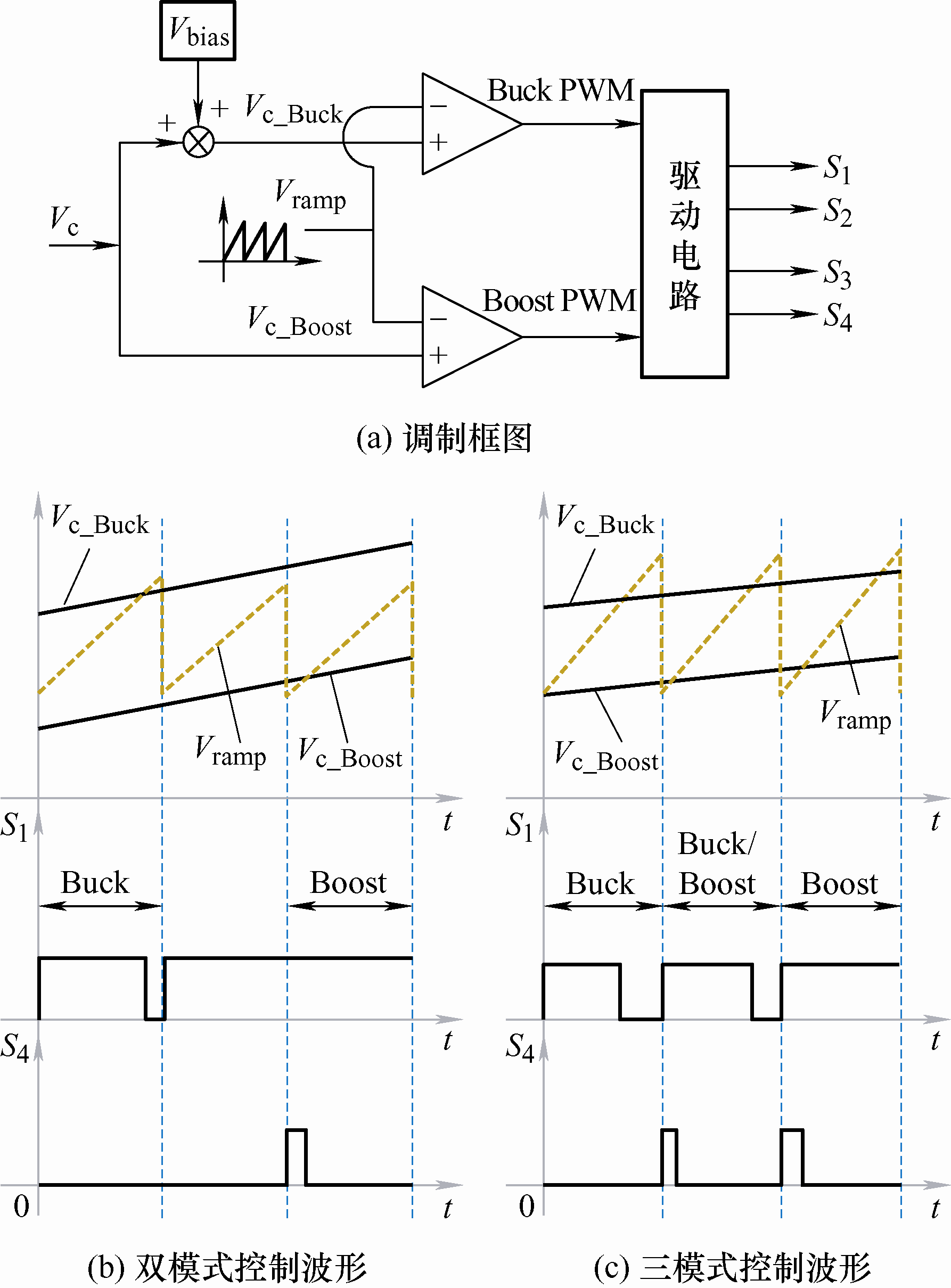

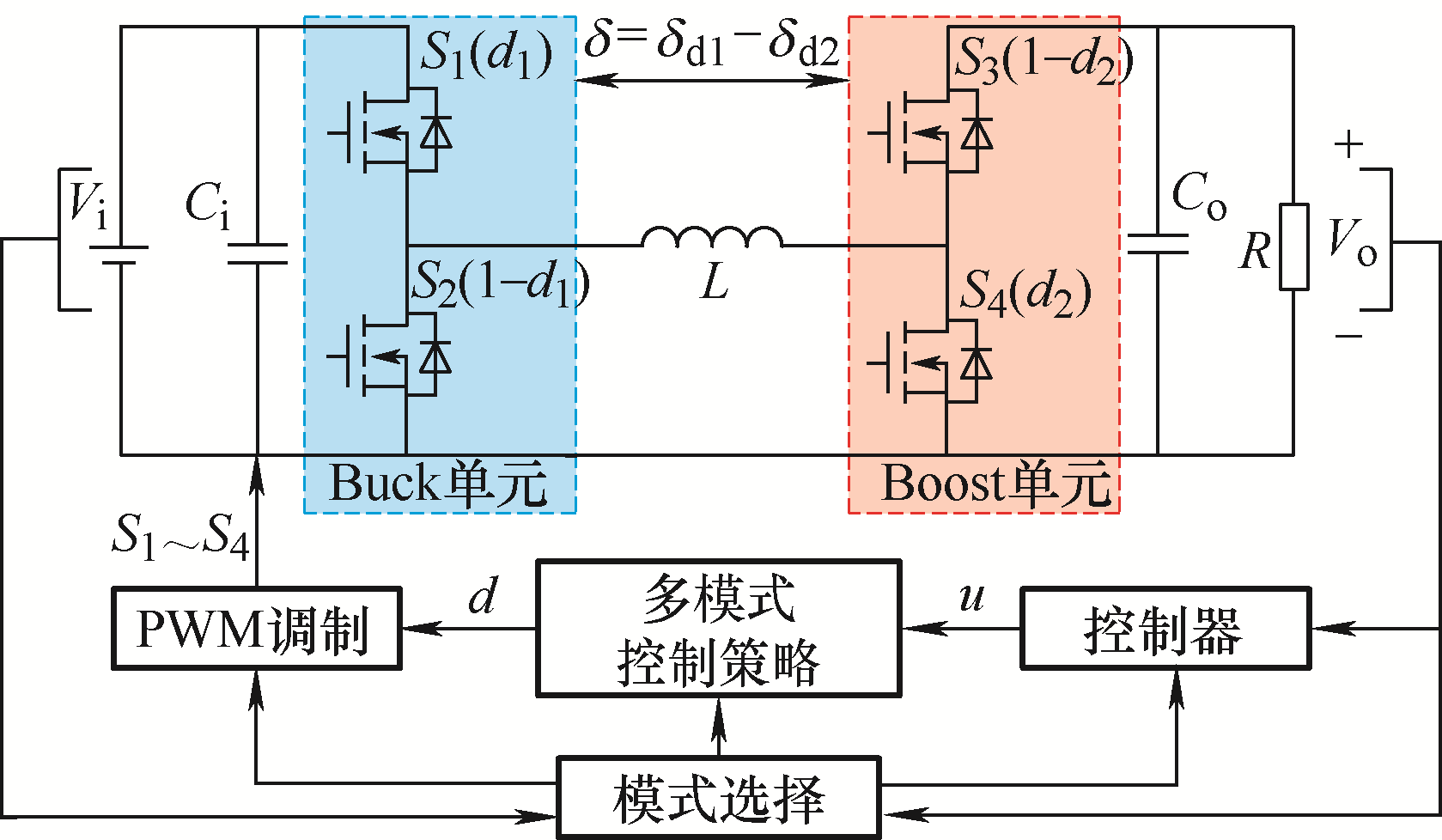

图4

表2

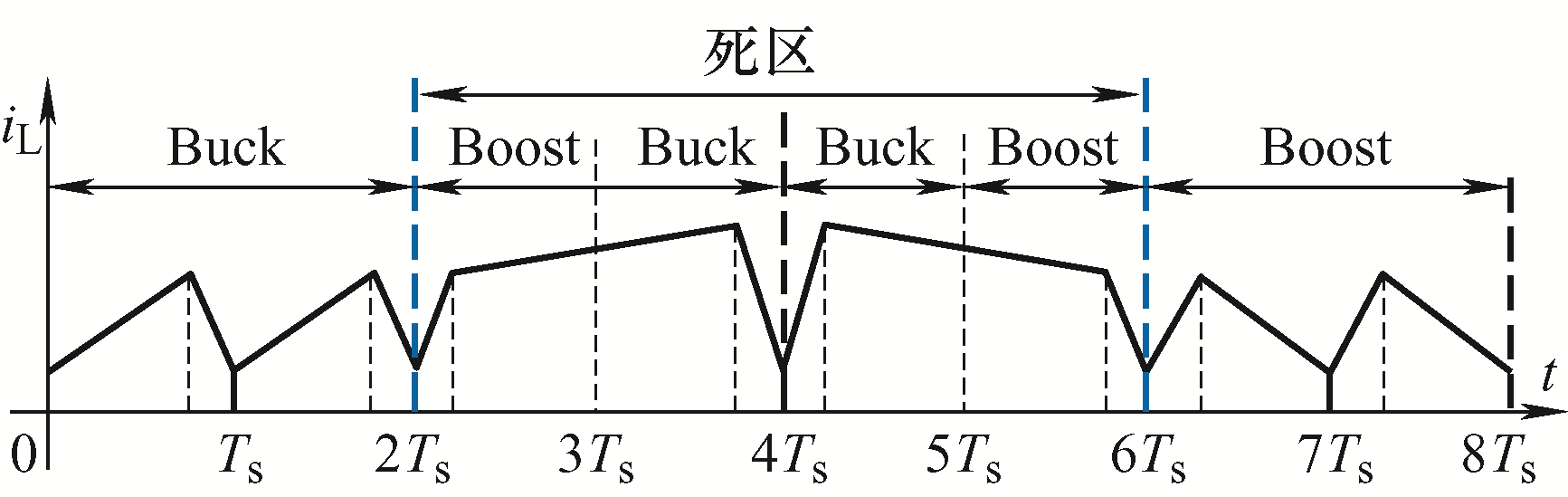

图5

图6

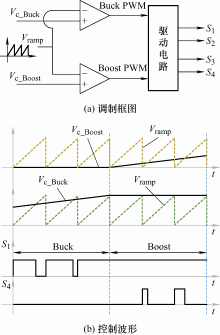

图7

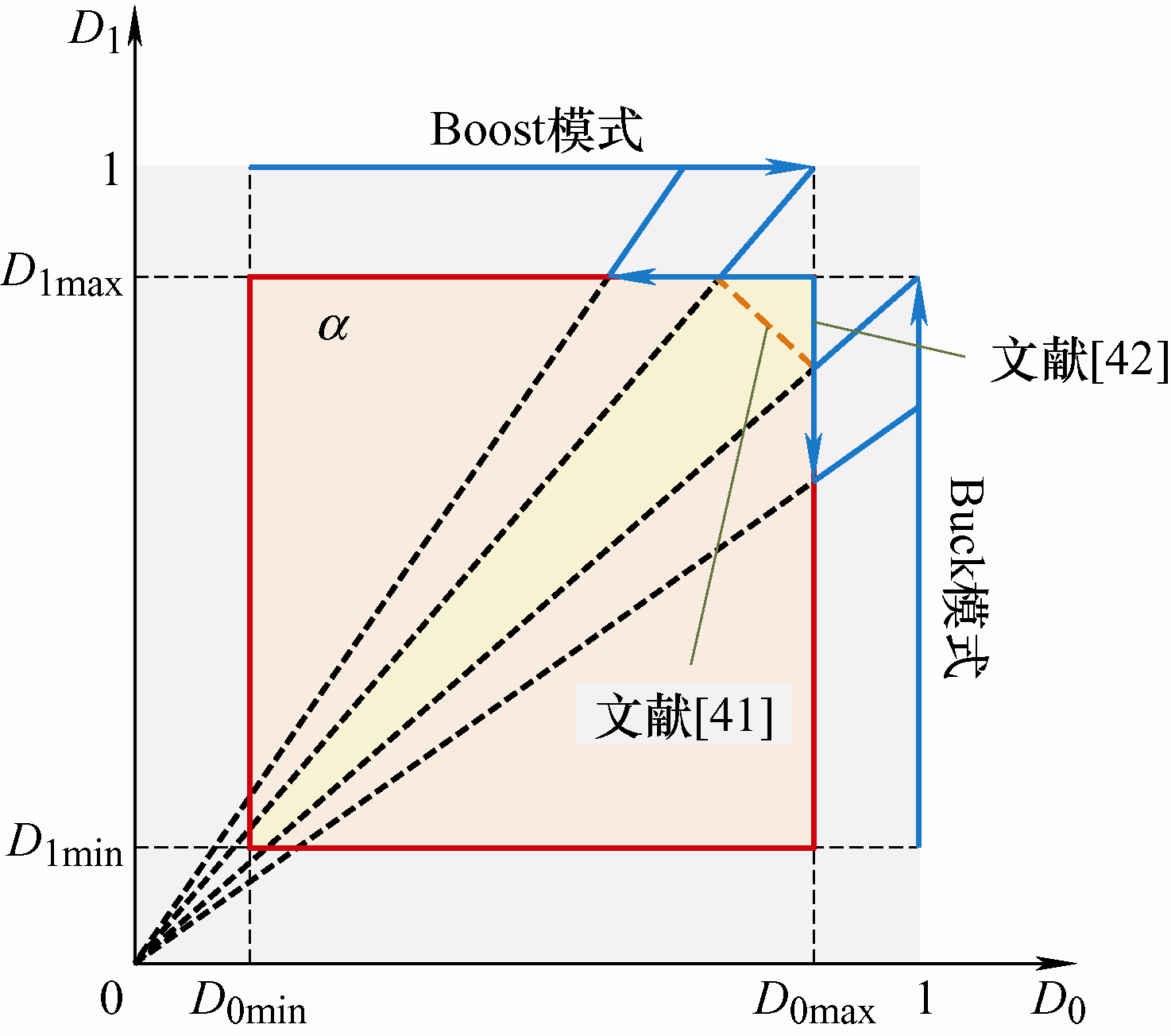

图8

图9

表3

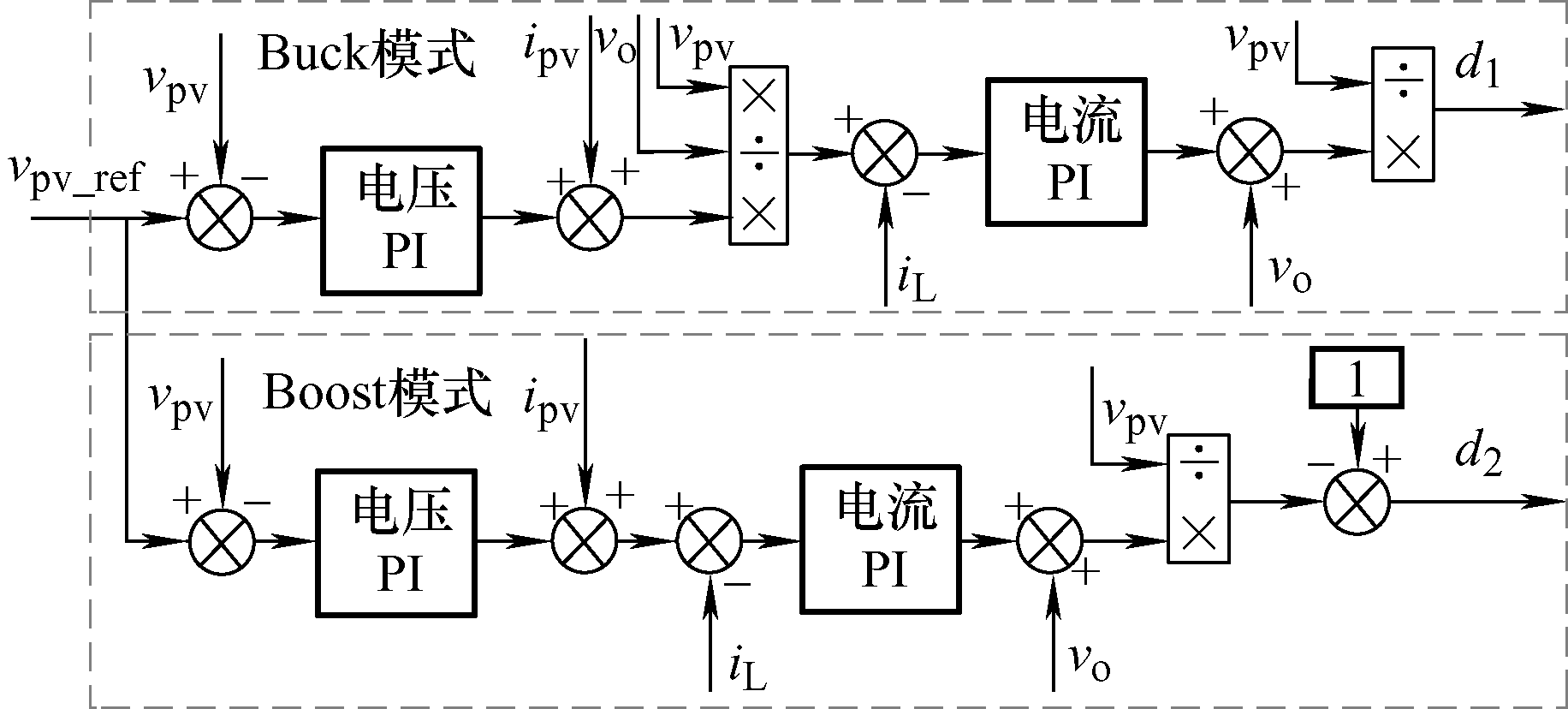

图10

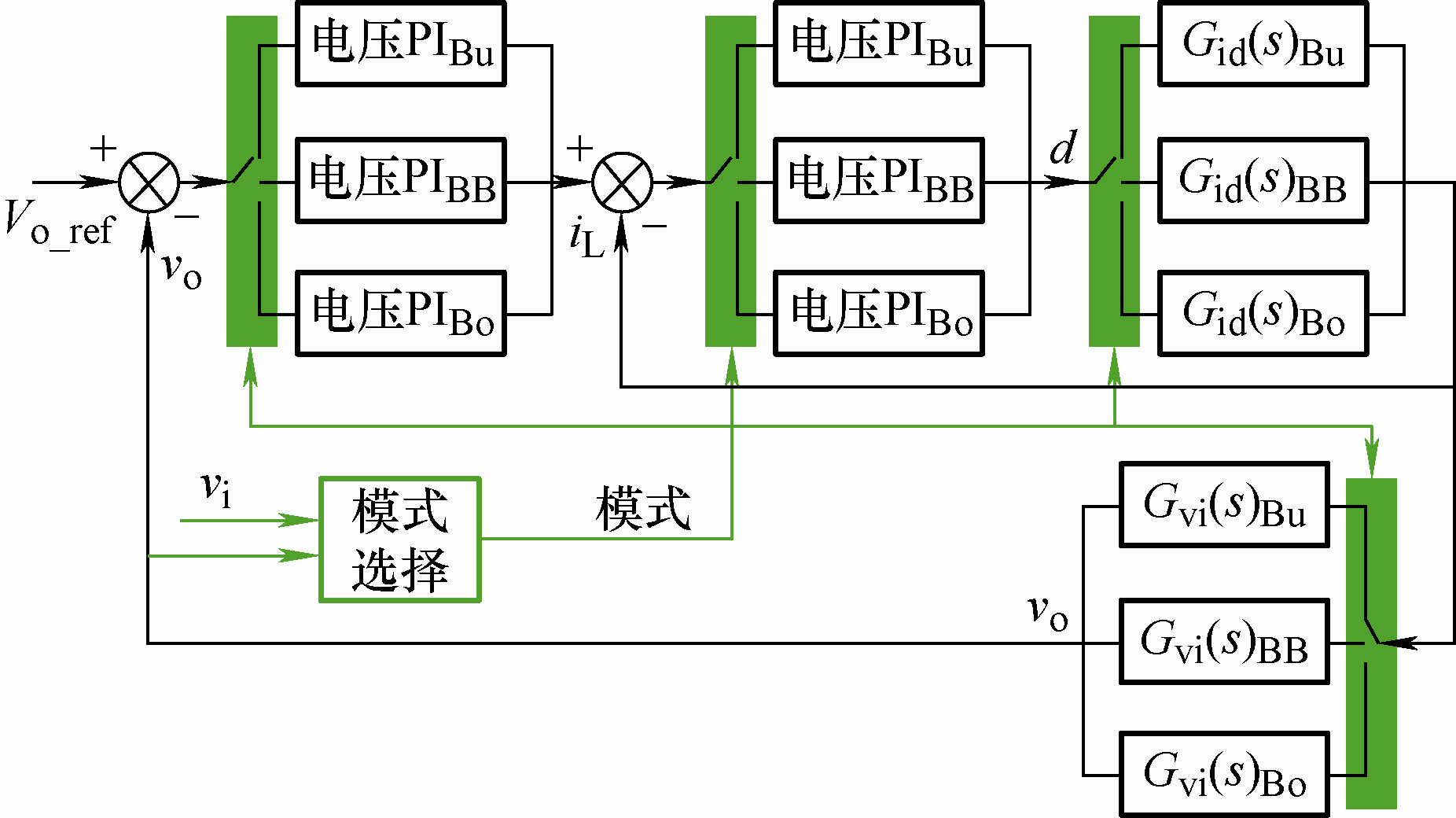

图11

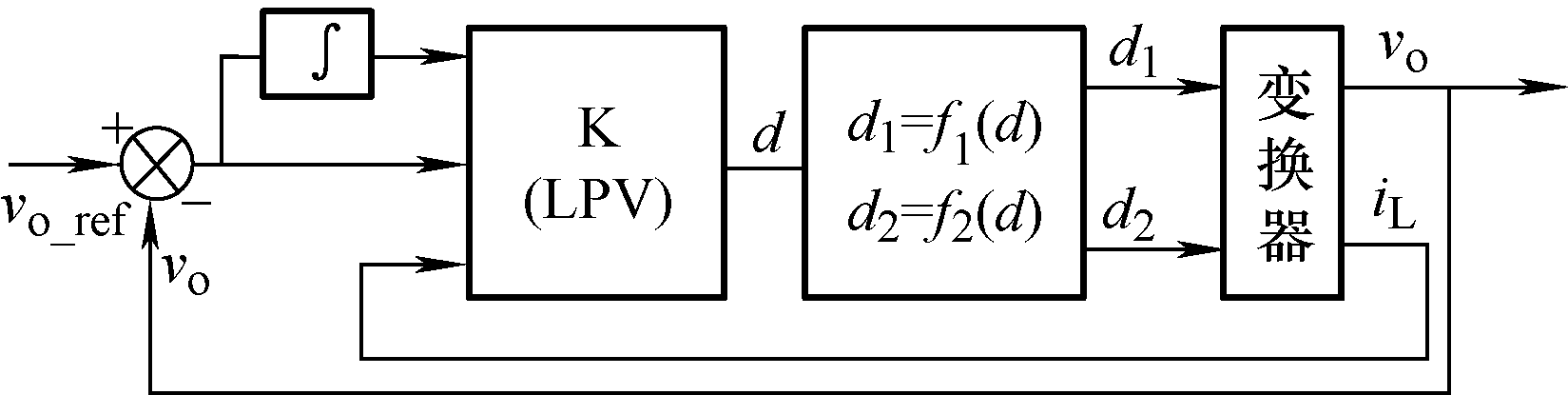

图12

图13

图14

图15

图16

图17

图18

图19

图20

图21

图22

图23

表4

图24

图25

图26

图27

图28

表5

表6

参考文献 69

[1]	徐海亮, 张禹风, 聂飞, 等. 微电网运行控制技术要点及展望[J]. 电气工程学报, 2020, 15(1):1-15.
	XU Hailiang, ZHANG Yufeng, NIE Fei, et al. Key points and prospect of microgrid operation and control technologies[J]. Journal of Electrical Engineering, 2020, 15(1):1-15.
[2]	姚钢, 陈少霞, 王伟峰, 等. 分布式电源接入直流微电网的研究综述[J]. 电器与能效管理技术, 2015(4):1-6.
	YAO Gang, CHEN Shaoxia, WANG Weifeng, et al. Overview of research on DC micro-grid for distributed power access[J]. Electrical & Energy Management Technology, 2015(4):1-6.
[3]	雍静, 徐欣, 曾礼强, 等. 低压直流供电系统研究综述[J]. 中国电机工程学报, 2013, 33(7):42-52.
	YONG Jing, XU Xin, ZENG Liqiang, et al. A review of low voltage DC power distribution system[J]. Proceedings of the CSEE, 2013, 33(7):42-52.
[4]	DRAGIČEVIĆ T, LU X N, VASQUEZ J C, et al. DC microgrids—Part II:A review of power architectures,applications,and standardization issues[J]. IEEE Transactions on Power Electronics, 2016, 31(5):3528-3549. doi: 10.1109/TPEL.2015.2464277
[5]	QIU Z X, SUN K. A photovoltaic generation system based on wide voltage-gain DC-DC converter and differential power processors for DC microgrids[J]. Chinese Journal of Electrical Engineering, 2017, 3(1):84-95.
[6]	QIN Y X, LI S N, HUI S Y. Topology-transition control for wide-input-voltage-range efficiency improvement and fast current regulation in automotive LED applications[J]. IEEE Transactions on Industrial Electronics, 2017, 64(7):5883-5893. doi: 10.1109/TIE.2017.2686304
[7]	CARICCHI F, CRESCIMBINI F, NAPOLI A D. 20 kW water-cooled prototype of a buck-boost bidirectional DC-DC converter topology for electrical vehicle motor drives[C]// Proceedings of 1995 IEEE Applied Power Electronics Conference and Exposition, March 05-09, 1995,Dallas,TX,USA. IEEE, 1995, 2:887-892.
[8]	任小永, 唐钊, 阮新波, 等. 一种新颖的四开关Buck-Boost变换器[J]. 中国电机工程学报, 2008, 28(21):15-19.
	REN Xiaoyong, TANG Zhao, RUAN Xinbo, et al. A novel four switch Buck-Boost converter[J]. Proceedings of the CSEE, 2008, 28(21):15-19.
[9]	ORELLANA M, PETIBON S, ESTIBALS B, et al. Four switch buck-boost converter for photovoltaic DC-DC power applications[C]// IECON 2010-36th Annual Conference on IEEE Industrial Electronics Society, November 07-10,2010,Glendale,AZ,USA. IEEE, 2010:469-474.
[10]	KHAN M A, AHMED A, HUSAIN I, et al. Performance analysis of bidirectional DC-DC converters for electric vehicles[J]. IEEE Transactions on Industry Applications, 2015, 51(4):3442-3452. doi: 10.1109/TIA.2015.2388862
[11]	WANG L Y, WU X B, LOU J N. A multi-mode four-switch buck-boost DC/DC converter[C]// 2009 Asia-Pacific Power and Energy Engineering Conference, March 27-31,2009,Wuhan,China. IEEE, 2009:1-4.
[12]	LEE H S, YUN J J. High-efficiency bidirectional buck-boost converter for photovoltaic and energy storage systems in a smart grid[J]. IEEE Transactions on Power Electronics, 2019, 34(5):4316-4328. doi: 10.1109/TPEL.63
[13]	梁永亮, 吴跃斌, 马钊, 等. 新一代低压直流供用电系统在“新基建”中的应用技术分析及发展展望[J]. 中国电机工程学报, 2021, 41(1):13-24.
	LIANG Yongliang, WU Yuebin, MA Zhao, et al. Application and development prospect of new generation of LVDC supply and utilization system in “new infrastructure”[J]. Proceedings of the CSEE, 2021, 41(1):13-24.
[14]	WAFFLER S, KOLAR J W. A novel low-loss modulation strategy for high-power bi-directional buck+boost converters[C]// 2007 7th International Conference on Power Electronics, October 22-26,2007,Daegu,South Korea. IEEE, 2007:889-894.
[15]	CHEN C W, CHEN K H, CHEN Y M. Modeling and controller design of an autonomous PV module for DMPPT PV systems[J]. IEEE Transactions on Power Electronics, 2014, 29(9):4723-4732. doi: 10.1109/TPEL.2013.2287752
[16]	HUANG P C, WU W Q, HO H H, et al. Hybrid buck-boost feedforward and reduced average inductor current techniques in fast line transient and high-efficiency buck-boost converter[J]. IEEE Transactions on Power Electronics, 2010, 25(3):719-730. doi: 10.1109/TPEL.2009.2031803
[17]	张斐, 许建平, 杨平, 等. 两开关伪连续导电模式Buck-Boost功率因数校正变换器[J]. 中国电机工程学报, 2012, 32(9):56-64.
	ZHANG Fei, XU Jianping, YANG Ping, et al. Two-switch pseudo continuous conduction mode Buck-Boost power factor correction converter[J]. Proceedings of the CSEE, 2012, 32(9):56-64.
[18]	CHEN J J, SHEN P N, HWANG Y S. A high-efficiency positive buck-boost converter with mode-select circuit and feed-forward techniques[J]. IEEE Transactions on Power Electronics, 2012, 28(9):4240-4247. doi: 10.1109/TPEL.2012.2223718
[19]	REN X Y, RUAN X B, QIAN H, et al. Three-mode dual-frequency two-edge modulation scheme for four-switch buck-boost converter[J]. IEEE Transactions on Power Electronics, 2008, 24(2):499-509. doi: 10.1109/TPEL.2008.2005578
[20]	SAHU B, RINCON-MORA G A. A low voltage,dynamic,noninverting,synchronous buck-boost converter for portable applications[J]. Transactions on Power Electronics, 2004, 19(2):443-452. doi: 10.1109/TPEL.2003.823196
[21]	肖华锋, 谢少军. 用于光伏并网的交错型双管Buck-Boost变换器[J]. 中国电机工程学报, 2010, 30(21):7-12.
	XIAO Huafeng, XIE Shaojun. An interleaving double-switch buck-boost converter for PV grid-connected inverter[J]. Proceedings of the CSEE, 2010, 30(21):7-12.
[22]	WEISSBACH R S, TORRES K W. A noninverting buck-boost converter with reduced components using a microcontroller[C]// Proceedings. IEEE SoutheastCon 2001,April 01,2001,Clemson,SC,USA. IEEE, 2001:79-84.
[23]	GABORIAULT M, NOTMAN A. A high efficiency,noninverting,buck-boost DC-DC converter[C]// Nineteenth Annual IEEE Applied Power Electronics Conference and Exposition,2004. APEC’ 04,February 22-26,2004,Anaheim,CA,USA. IEEE, 2004, 3:1411-1415.
[24]	RAJARSHI P, MAKSIMOVIC D. Analysis of PWM nonlinearity in non-inverting buck-boost power converters[C]// 2008 IEEE Power Electronics Specialists Conference, June 15-19,2008,Rhodes,Greece. IEEE, 2008:3741-3747.
[25]	任小永, 阮新波, 李明秋, 等. 双沿调制的四开关Buck-Boost 变换器[J]. 中国电机工程学报, 2009, 29(12):16-23.
	REN Xiaoyong, RUAN Xinbo, LI Mingqiu, et al. Dual edge modulated four-switch Buck-Boost converter[J]. Proceedings of the CSEE, 2009, 29(12):16-23.
[26]	RAJARSHI P, MAKSIMOVIC D. Smooth transition and ripple reduction in 4-switch non-inverting buck-boost power converter for WCDMA RF power amplifier[C]// 2008 IEEE International Symposium on Circuits and Systems, May 18-21,2008,Seattle,WA,USA. IEEE, 2008:3266-3269.
[27]	贾磊磊, 孙孝峰, 郑智文, 等. 消除非反向Buck-Boost变换器运行死区的充放电控制策略[J]. 中国电机工程学报, 2020, 40(10):3270-3280.
	JIA Leilei, SUN Xiaofeng, ZHENG Zhiwen, et al. Charge and discharge control strategy for eliminating the operational dead zone of noninverting Buck-Boost converter[J]. Proceedings of the CSEE, 2020, 40(10):3270-3280.
[28]	RESTREPO C, KONJEDIC T, CALVENTE J, et al. Hysteretic transition method for avoiding the dead-zone effect and subharmonics in a noninverting buck-boost converter[J]. IEEE Transactions on Power Electronics, 2015, 30(6):3418-3430. doi: 10.1109/TPEL.2014.2333736
[29]	WANG Y, LAN J Y, HUANG X, et al. An improved single-mode control strategy based on four-switch buck-boost converter[C]// 2020 IEEE Applied Power Electronics Conference and Exposition, March 15-19,2020,New Orleans,LA,USA. IEEE, 2020:320-325.
[30]	TSAI C H, TSAI Y S, LIU H C. A stable mode-transition technique for a digitally controlled non-inverting Buck-Boost DC-DC converter[J]. IEEE Transactions on Industrial Electronics, 2015, 62(1):475-483. doi: 10.1109/TIE.2014.2327565
[31]	TSAI Y Y, TSAI Y S, TSAI C W, et al. Digital noninverting-Buck-Boost converter with enhanced duty-cycle-overlap control[J]. IEEE Transactions on Circuits and Systems II:Express Briefs, 2017, 64(1):41-45. doi: 10.1109/TCSII.2016.2546881
[32]	JONES D C, ERICKSON R W. A nonlinear state machine for dead zone avoidance and mitigation in a synchronous noninverting Buck-Boost converter[J]. IEEE Transactions on Power Electronics, 2013, 28(1):467-480. doi: 10.1109/TPEL.2012.2198924
[33]	CHO Y K, LEE K C. Noninverting Buck-Boost DC-DC converter using a duobinary-encoded single-bit a high efficiency modulator[J]. IEEE Transactions on Power Electronics, 2020, 35(1):484-495. doi: 10.1109/TPEL.63
[34]	HUANG P C, WU W Q, HO H H, et al. High efficiency and smooth transition buck-boost converter for extending battery life in portable devices[C]// 2009 IEEE Energy Conversion Congress and Exposition, September 20-24,2009,San Jose,CA,USA. IEEE, 2009:2869-2872.
[35]	MA J J, ZHU M, ZHANG J W, et al. Improved asynchronous voltage regulation strategy of non-inverting Buck-Boost converter for renewable energy integration[C]// 2015 IEEE 2nd International Future Energy Electronics Conference, November 01-04,2015,Taipei,Taiwan,China. IEEE, 2015:1-5.
[36]	CALLEGARO L, CIOBOTARU M, PAGANO D J, et al. A simple smooth transition technique for the noninverting Buck-Boost converter[J]. IEEE Transactions on Power Electronics, 2018, 33(6):4906-4915. doi: 10.1109/TPEL.2017.2731974
[37]	ZHANG N, BATTERNALLY S, LIM K C, et al. Analysis of the non-inverting buck-boost converter with four-mode control method[C]// 2017 43rd Annual Conference of the IEEE Industrial Electronics Society,October 29-November 01,2017,Beijing,China. IEEE, 2017:876-881.
[38]	ZHANG N, ZHANG G D, SEE K W. Systematic derivation of dead-zone elimination strategies for the noninverting synchronous buck-boost converter[J]. IEEE Transactions on Power Electronic, 2018, 33(4):3497-3508. doi: 10.1109/TPEL.63
[39]	JIA L L, SUN X F, ZHENG Z W, et al. Multimode smooth switching strategy for eliminating the operational dead zone in noninverting buck-boost converter[J]. IEEE Transactions on Power Electronics, 2020, 35(3):3106-3113. doi: 10.1109/TPEL.63
[40]	AKHILESH K, LAKSHMINARASAMMA N. Dead-zone free control scheme for H-bridge buck-boost converter[J]. IEEE Transactions on Industry Applications, 2020, 56(6):6619-6629. doi: 10.1109/TIA.28
[41]	MA J J, ZHU M, LI X Y, et al. Bumpless transfer of non-inverting buck boost converter among multiple working modes[C]// 2018 IEEE Applied Power Electronics Conference and Exposition, March 04-08,2018,San Antonio,TX,USA. IEEE, 2018:1909-1914.
[42]	WENG X, ZHAO Z M, CHEN K N, et al. A nonlinear control method for bumpless mode transition in noninverting buck-boost converter[J]. IEEE Transactions on Power Electronics, 2021, 36(2):2166-2178. doi: 10.1109/TPEL.63
[43]	KIM K D, LEE H M, HONG S W, et al. A noninverting buck-boost converter with state-based current control for Li-ion battery management in mobile applications[J]. IEEE Transactions on Industrial Electronics, 2019, 66(12): 9623-9627. doi: 10.1109/TIE.41
[44]	HONG X E, WU J F, WEI C L. 98.1%-efficiency hysteretic-current-mode noninverting Buck-Boost DC-DC converter with smooth mode transition[J]. IEEE Transactions on Power Electronics, 2017, 32(3):2008-2017. doi: 10.1109/TPEL.2016.2567484
[45]	AHARON I, KUPERMAN A, SHMILOVITZ D. Analysis of dual-carrier modulator for bidirectional noninverting Buck-Boost converter[J]. IEEE Transactions on Power Electronics, 2015, 30(2):840-848. doi: 10.1109/TPEL.2014.2315993
[46]	王菁月, 裴忠晨, 刘闯, 等. 面向低压直流配电网的双降压/升压型柔性互联开关[J]. 电力自动化设备, 2021, 41(5):247-253.
	WANG Jingyue, PEI Zhongchen, LIU Chuang, et al. Dual Buck/Boost flexible interconnected switch for low voltage DC distribution network[J]. Electric Power Automation Equipment, 2021, 41(5):247-253.
[47]	LEE Y J, KHALIGH A, EMADI A. A compensation technique for smooth transitions in a noninverting Buck-Boost converter[J]. IEEE Transactions on Power Electronics, 2009, 24(4):1002-1015. doi: 10.1109/TPEL.2008.2010044
[48]	WEI C L, CHEN C H, WU K C, et al. Design of an average-current-mode noninverting Buck-Boost DC-DC converter with reduced switching and conduction losses[J]. IEEE Transactions on Power Electronics, 2012, 27(12):4934-4943. doi: 10.1109/TPEL.2012.2193144
[49]	姚川, 阮新波, 曹伟杰, 等. 双管Buck-Boost变换器的输入电压前馈控制策略[J]. 中国电机工程学报, 2013, 33(21):36-44.
	YAO Chuan, RUAN Xinbo, CAO Weijie, et al. An input voltage feedforward control strategy for two-switch Buck-Boost DC-DC converters[J]. Proceedings of the CSEE, 2013, 33(21):36-44.
[50]	LIU P J, CHANG C W. CCM noninverting Buck-Boost converter with fast duty-cycle calculation control for line transient improvement[J]. IEEE Transactions on Power Electronics, 2018, 33(6):5097-5107. doi: 10.1109/TPEL.63
[51]	杨翔宇, 肖先勇, 马俊鹏, 等. 基于电感电流反馈的双向DC-DC变换器下垂控制[J]. 中国电机工程学报, 2020, 40(8):2638-2647.
	YANG Xiangyu, XIAO Xianyong, MA Junpeng, et al. Droop control of bi-directional DC-DC converters based on inductive current feedback[J]. Proceedings of the CSEE, 2020, 40(8):2638-2647.
[52]	XU Q W, VAFAMAND N, CHEN L L, et al. Review on advanced control technologies for bidirectional DC/DC converters in DC microgrids[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2021, 9(2): 1205-1221. doi: 10.1109/JESTPE.6245517
[53]	LEVRON Y, SHMILOVITZ D. Sliding mode control of photovoltaic module integrated buck-boost converters[C]// 2012 15th International Power Electronics and Motion Control Conference, September 04-06,2012,Novi Sad,Serbia. IEEE, 2012:LS3a-2.1-1-LS3a-2.1-6.
[54]	ATES E, TEKGUN B, ABLAY G. Sliding mode control of a switched reluctance motor drive with four-switch bi-directional DC-DC converter for torque ripple minimization[C]// 2020 International Conference on Smart Energy Systems and Technologies, September 07-09,2020,Istanbul,Turkey. IEEE, 2020:1-6.
[55]	LI X, LIU Y S, XUE Y S. Four-switch buck-boost converter based on model predictive control with smooth mode transition capability[J]. IEEE Transactions on Industrial Electronics, 2021, 68(10):9058-9069. doi: 10.1109/TIE.2020.3028809
[56]	吴岩, 王玮, 曾国宏, 等. 四开关Buck-Boost变换器的多模式模型预测控制策略[J]. 电工技术学报, 2022, 37(10):2572-2583.
	WU Yan, WANG Wei, ZENG Guohong, et al. Multi-mode model predictive control strategy for the four-switch Buck-Boost converter[J]. Transactions of China Electrotechnical Society, 2022, 37(10):2572-2583.
[57]	CALLEGARO L, CIOBOTARU M, PAGANO D J, et al. Feedback linearization control in photovoltaic module integrated converters[J]. IEEE Transactions on Power Electronics, 2019, 34(7):6876-6889. doi: 10.1109/TPEL.63
[58]	MA J J, ZHU M, LI Y W, et al. Dynamic analysis of multimode buck-boost converter:An LPV system model point of view[J]. IEEE Transactions on Power Electronics, 2021, 36(7):8539-8551. doi: 10.1109/TPEL.63
[59]	MA J J, ZHU M, LI G H, et al. Concept of unified mode control for non-inverting Buck-Boost converter[C]// 2017 IEEE 3rd International Future Energy Electronics Conference and ECCE Asia, June 03-07,2017,Kaohsiung,Taiwan,China. IEEE, 2017:1235-1240.
[60]	MA J J, ZHU M, CHEN Y J, et al. LPV-based cascade control for three mode non-inverting buck-boost converter[C]// 2019 IEEE 4th International Future Energy Electronics Conference, November 25-28,2019, Singapore. IEEE, 2019:1-6.
[61]	MA J J, ZHU M, HE G Q, et al. Breaking performance limit of asynchronous control for non-inverting buck boost converter[C]// ECON 2017-43rd Annual Conference of the IEEE Industrial Electronics Society,October 29-November 01,2017,Beijing,China. IEEE, 2017:928-933.
[62]	KIM D H, LEE B K. An enhanced control algorithm for improving the light-load efficiency of noninverting synchronous buck-boost converters[J]. IEEE Transactions on Power Electronics, 2016, 31(5):3395-3399. doi: 10.1109/TPEL.2015.2500622
[63]	JONES D C, ERICKSON R W. Buck-Boost converter efficiency maximization via a nonlinear digital control mapping for adaptive effective switching frequency[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2013, 1(3):153-165. doi: 10.1109/JESTPE.2013.2277852
[64]	ZHANG Y, CHENG X F, YIN C L. A soft-switching non-inverting buck-boost converter with efficiency and performance improvement[J]. IEEE Transactions on Power Electronics, 2019, 34(12):11526-11530. doi: 10.1109/TPEL.63
[65]	YUN H, DONG M, JIAN Y, et al. Application of soft-switching technology in four switch Buck-Boost circuit[C]// 2017 12th IEEE Conference on Industrial Electronics and Applications, June 18-20,2017,Siem Reap,Cambodia. IEEE, 2017:1675-1679.
[66]	WAFFLER S, KOLAR J W. A novel low-loss modulation strategy for high-power bidirectional buck+boost converters[J]. IEEE Transactions on Power Electronics, 2009, 24(6):1589-1599. doi: 10.1109/TPEL.2009.2015881
[67]	ZHOU Z J, LI H Y, WU X K. A constant frequency ZVS control system for the four-switch buck-boost DC-DC converter with reduced inductor current[J]. IEEE Transactions on Power Electronics, 2019, 34(7):5996-6003. doi: 10.1109/TPEL.63
[68]	LIU Q, QIAN Q S, REN B W, et al. A new modulation strategy for four-switch buck-boost converter with reduced freewheeling current[C]// 2020 IEEE Applied Power Electronics Conference and Exposition, March 15-19,2020,New Orleans,LA,USA. IEEE, 2020:2104-2108.
[69]	LIU Q, QIAN Q, ZHENG M, et al. An improved quadrangle control method for four-switch buck-boost converter with reduced loss and decoupling strategy[J]. IEEE Transactions on Power Electronics, 2021, 36(9):10827-10841. doi: 10.1109/TPEL.2021.3064074

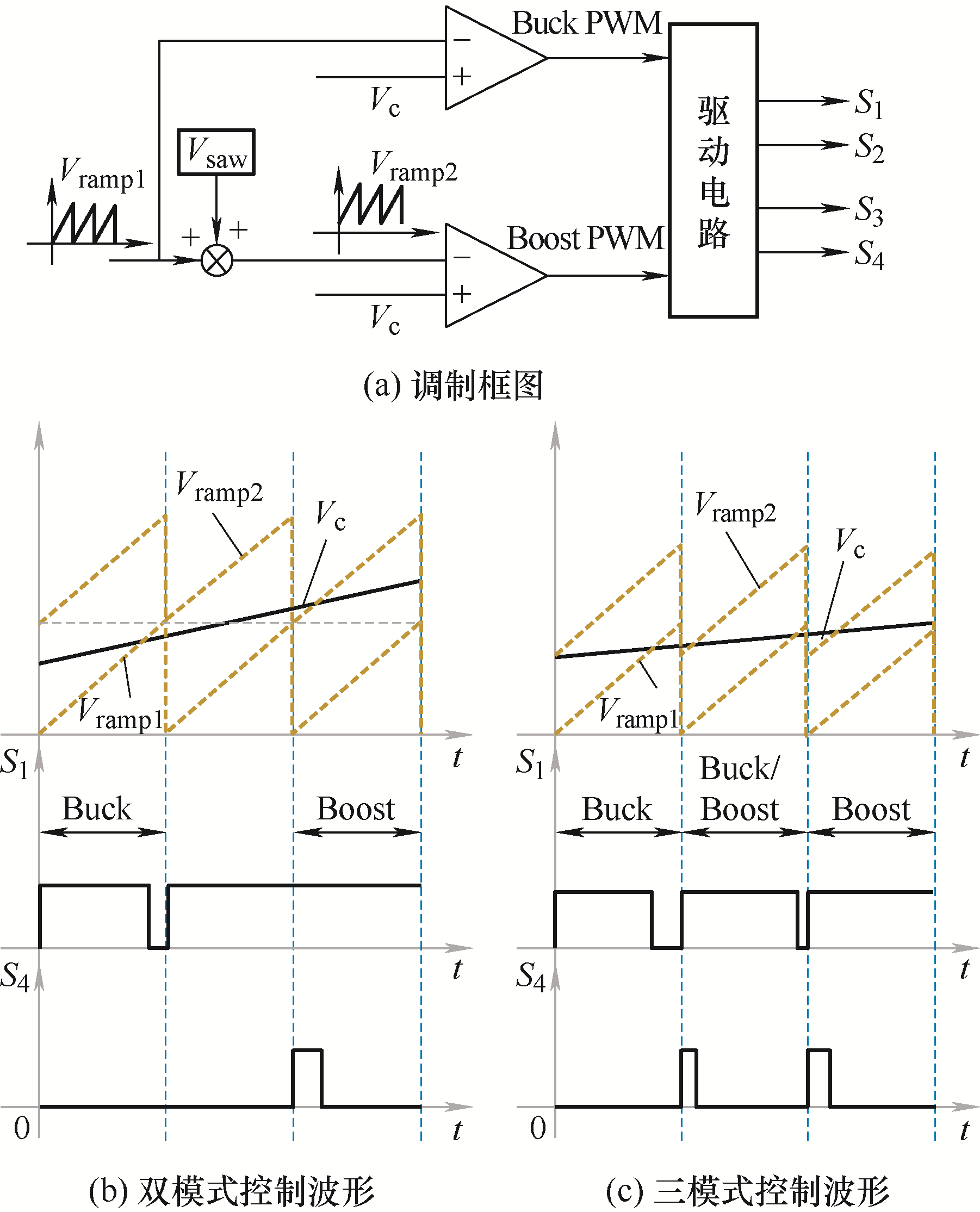

控制方法	工作模式	电压关系	d₁	d₂	M
单模式	—	—	D	D	D/(1－D)

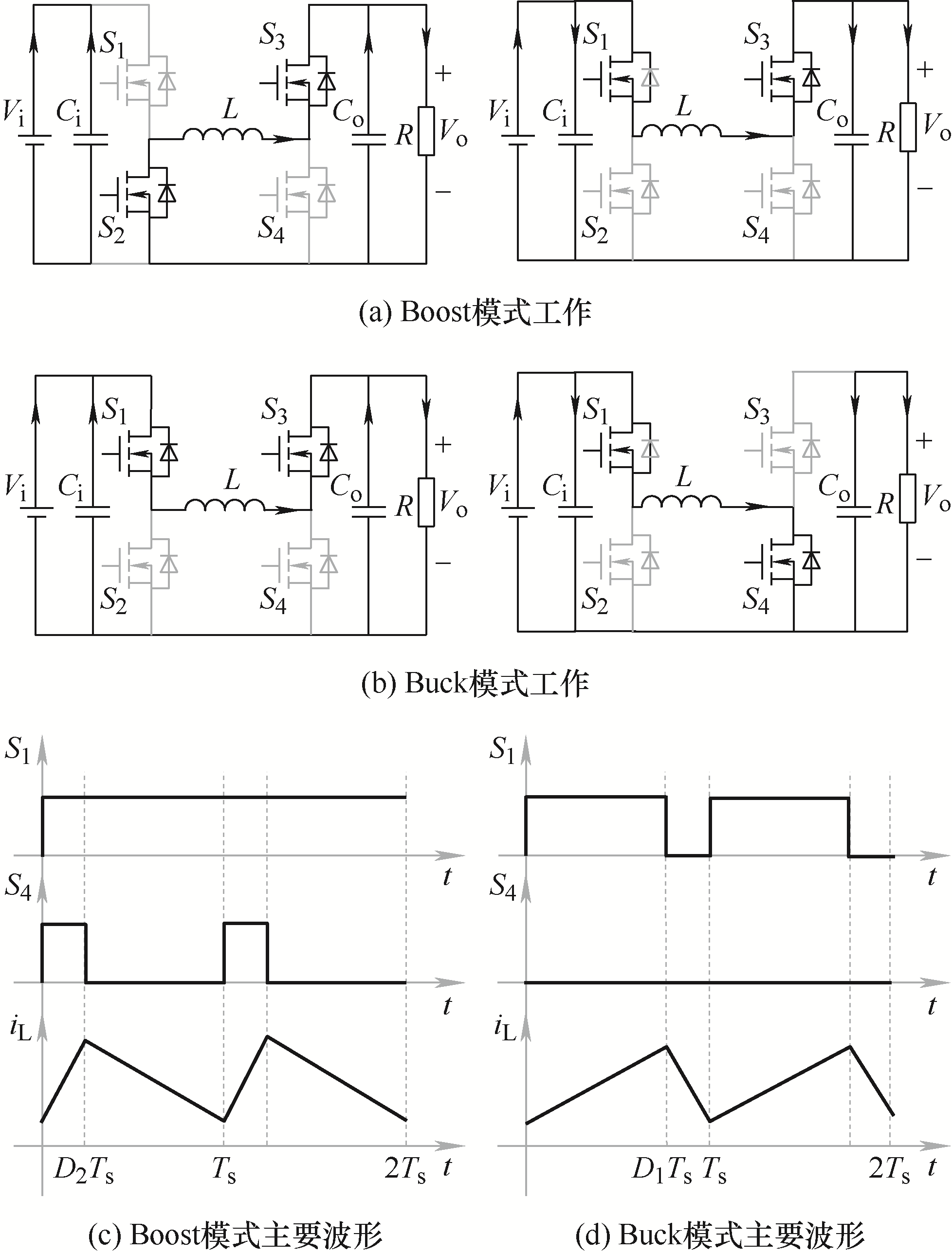

双模式	Buck模式	V_i>V_o	D₁	0	D₁
双模式	Boost模式	V_i≤V_o	1	D₂	1/(1－D₂)
三模式	Buck模式	V_i>V_o	D₁	0	D₁
	Buck/Boost模式	V_i≈V_o	D₁	D₂	D₁/(1－D₂)
	Boost模式	V_i<V_o	1	D₂	1/(1－D₂)

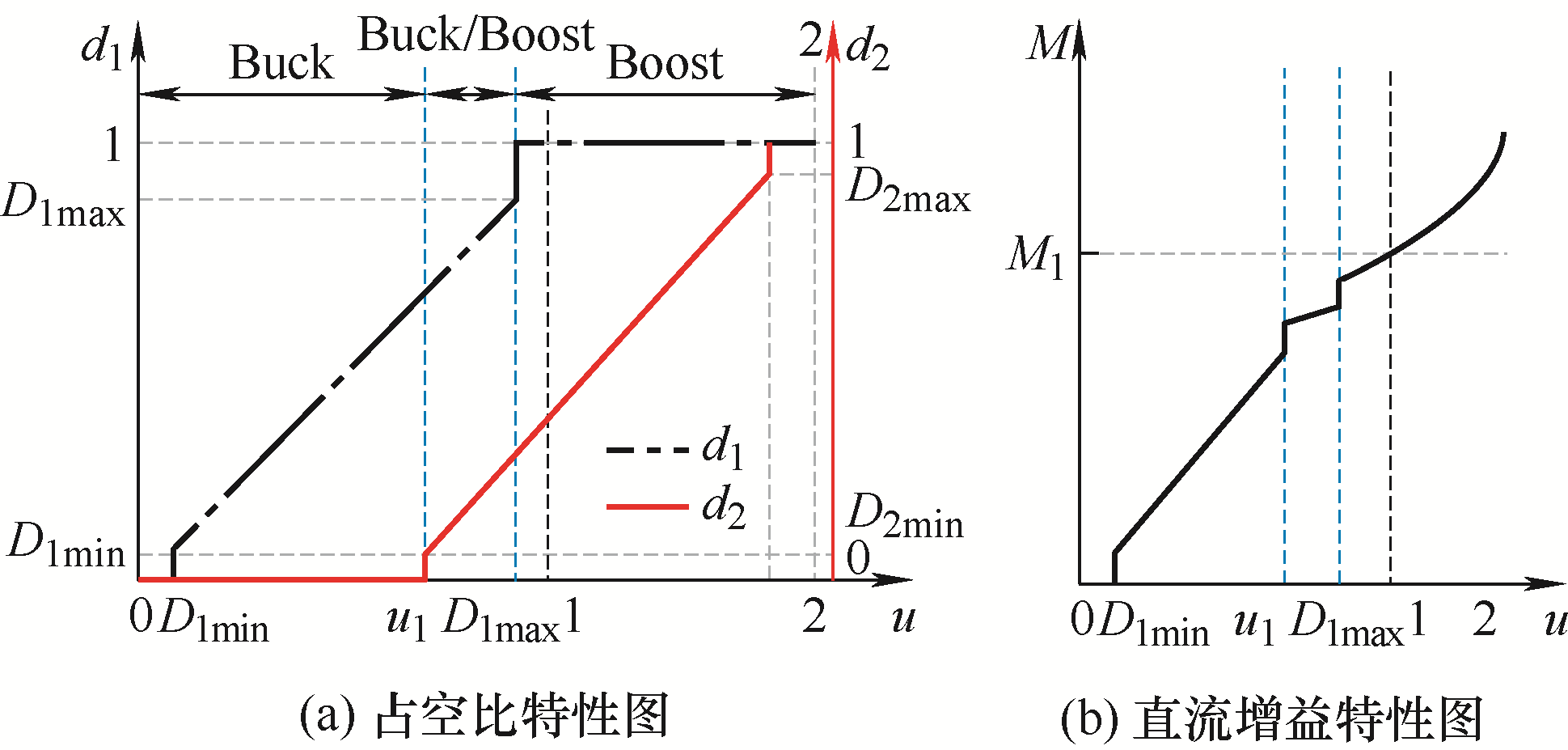

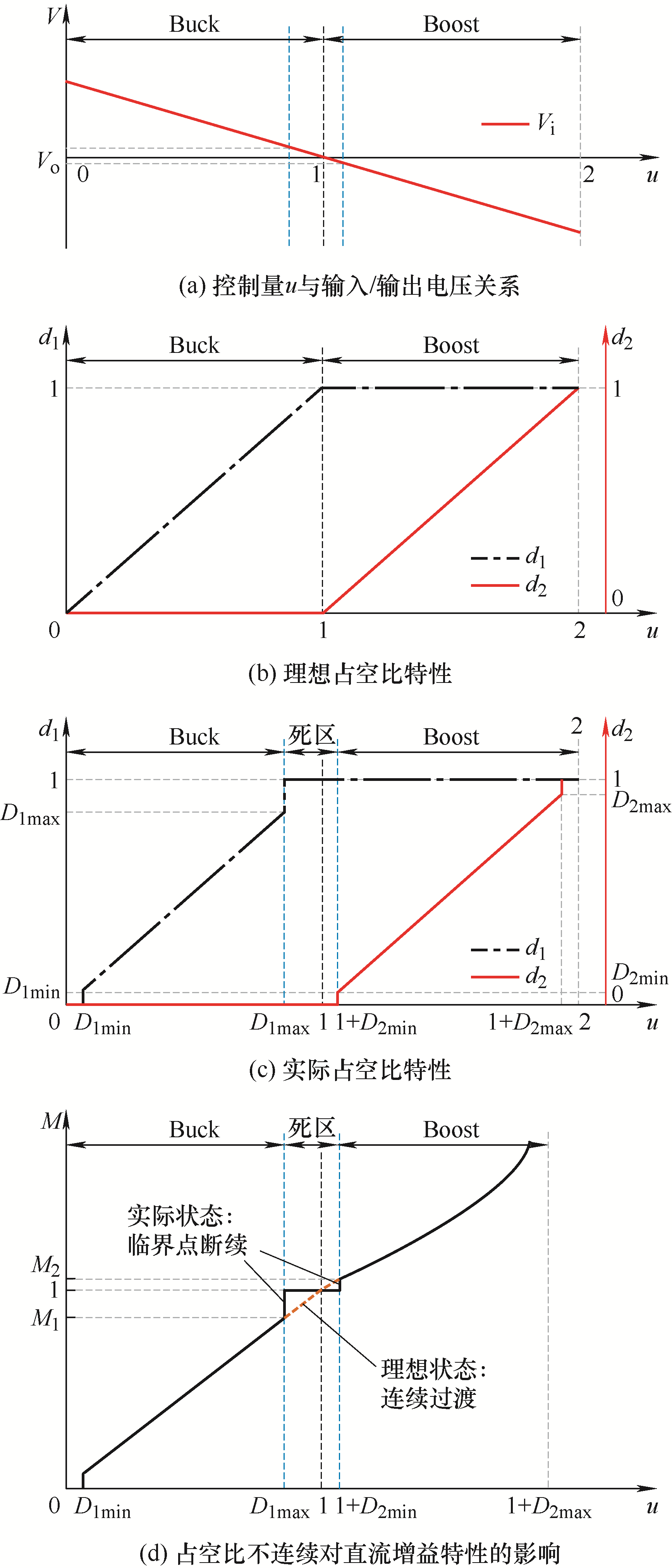

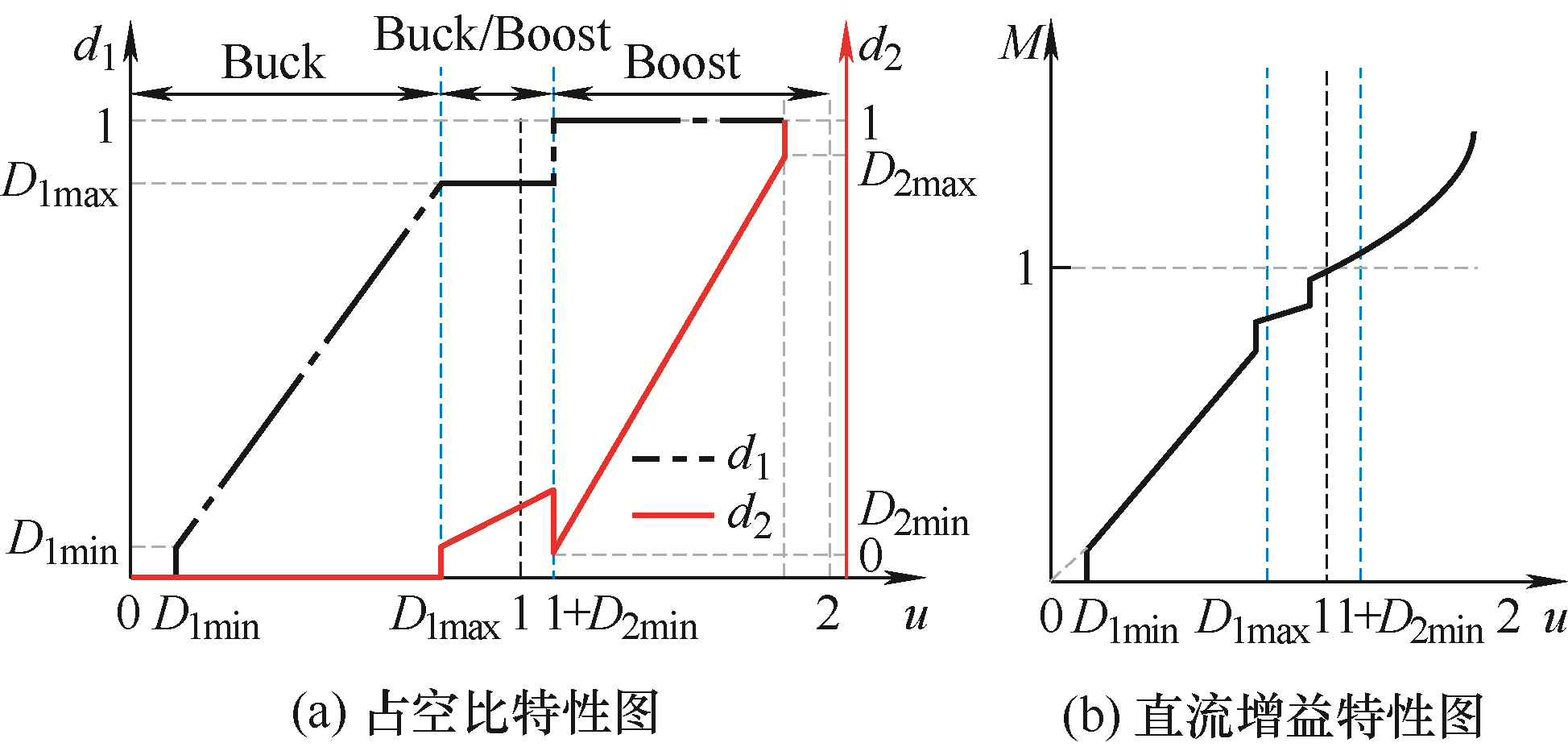

理想u	实际u	电压关系	工作状态	M
0<u<1	D_1min≤u<D_1max	V_i>V_o	Buck 模式	u
u=1	D_1max≤u≤1+D_2min	V_i≈V_o	模式切换	1
1<u<2	1+D_2min<u≤1+D_2max	V_i<V_o	Boost 模式	1/(2－u)

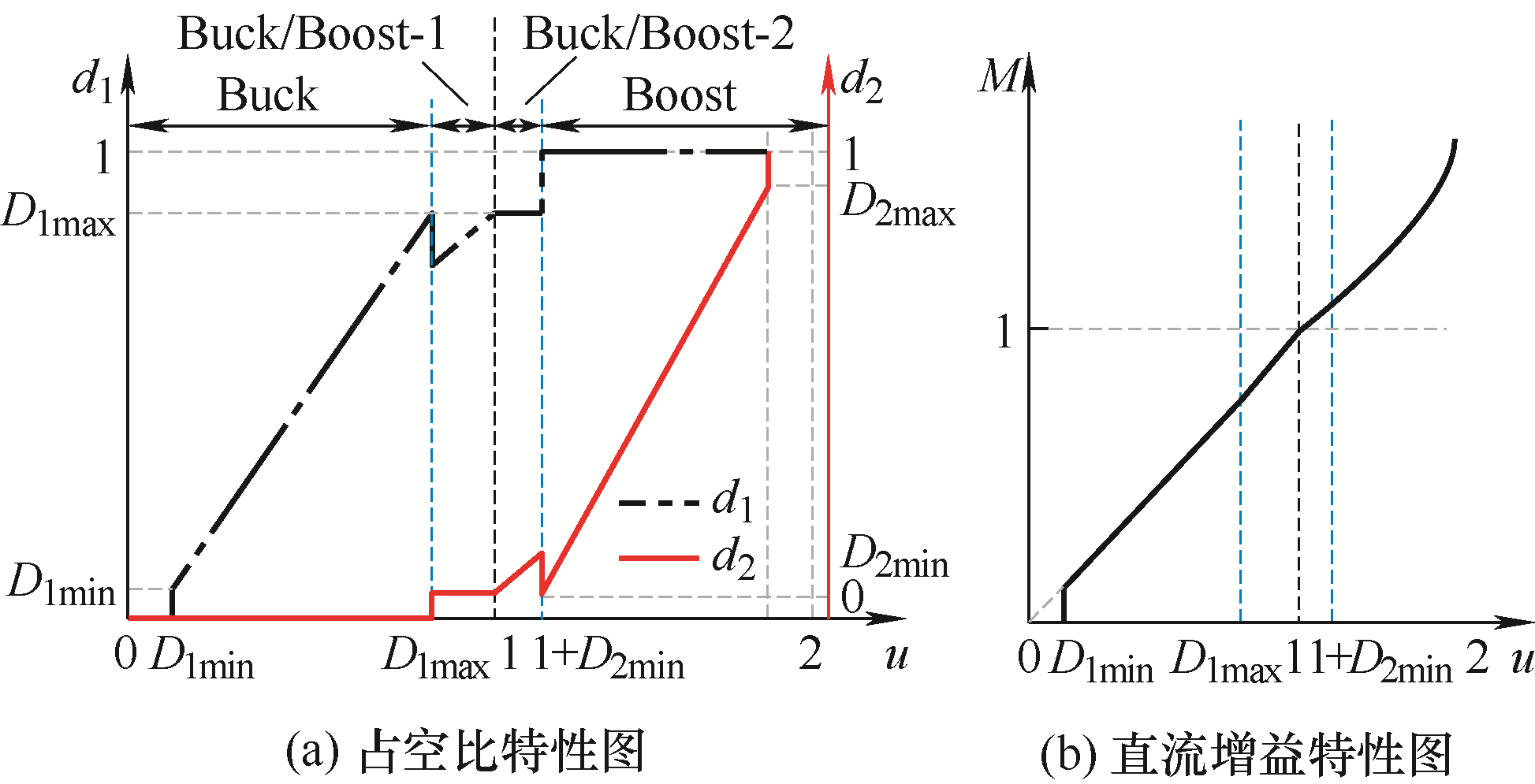

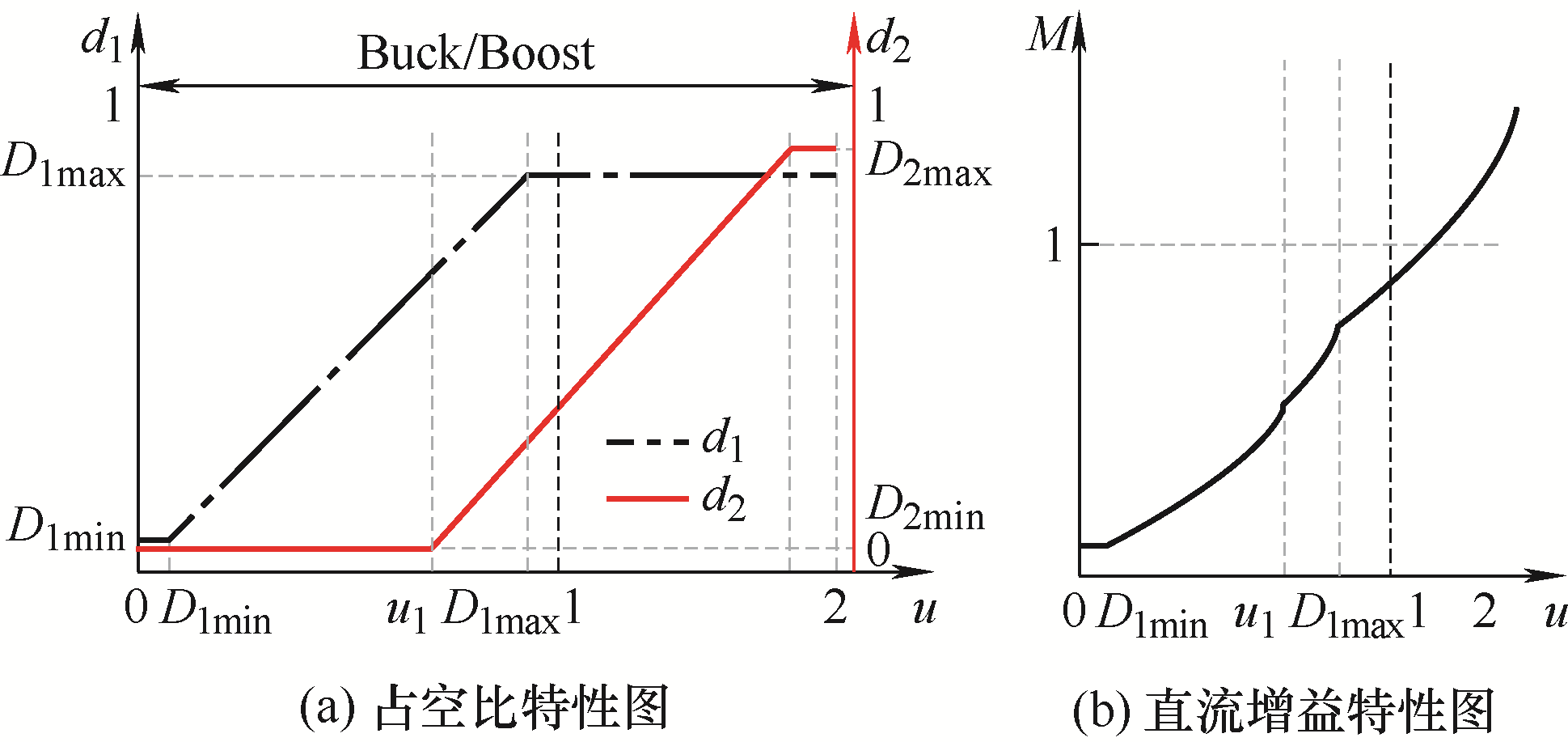

工作模式	实际u	d₁	d₂	M
Buck模式	D_1min≤u<D_1max	D₁	0	D₁
Buck/Boost-1模式	D_1max≤u<1	D₁	D_2min	D₁/(1－D_2min)
Buck/Boost-2模式	1≤u≤1+D_2min	D_1max	D₂	D_1max/(1－D₂)
Boost模式	1+D_2min<u≤1+D_2max	1	D₂	1/(1－D₂)

控制方法					优点	不足	参考文献
线性控制	电压型控制		输出电压单环控制		控制方式简单，操作容易	动态性能不足	[26]

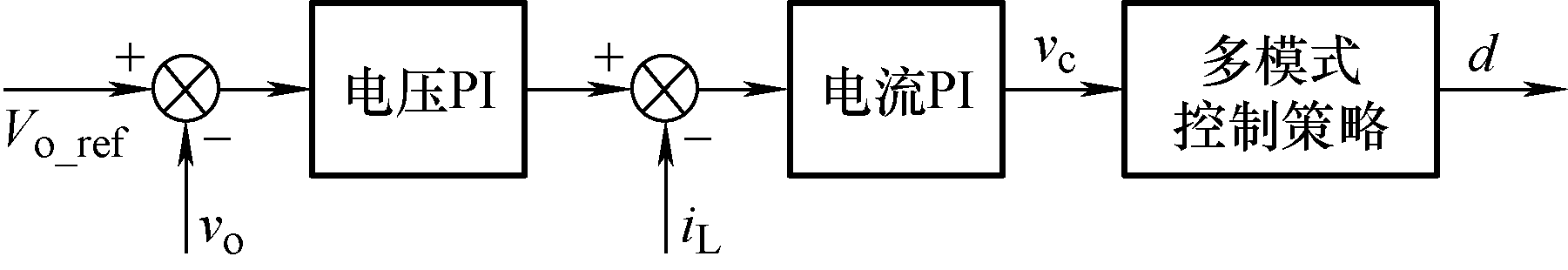

	电流型控制		平均电感电流双环控制		动态响应速度提高	操作复杂，成本增加	[48]
	前馈控制	输入电压前馈	动态载波生产		输入暂态响应能力提高	实现方式复杂	[16]

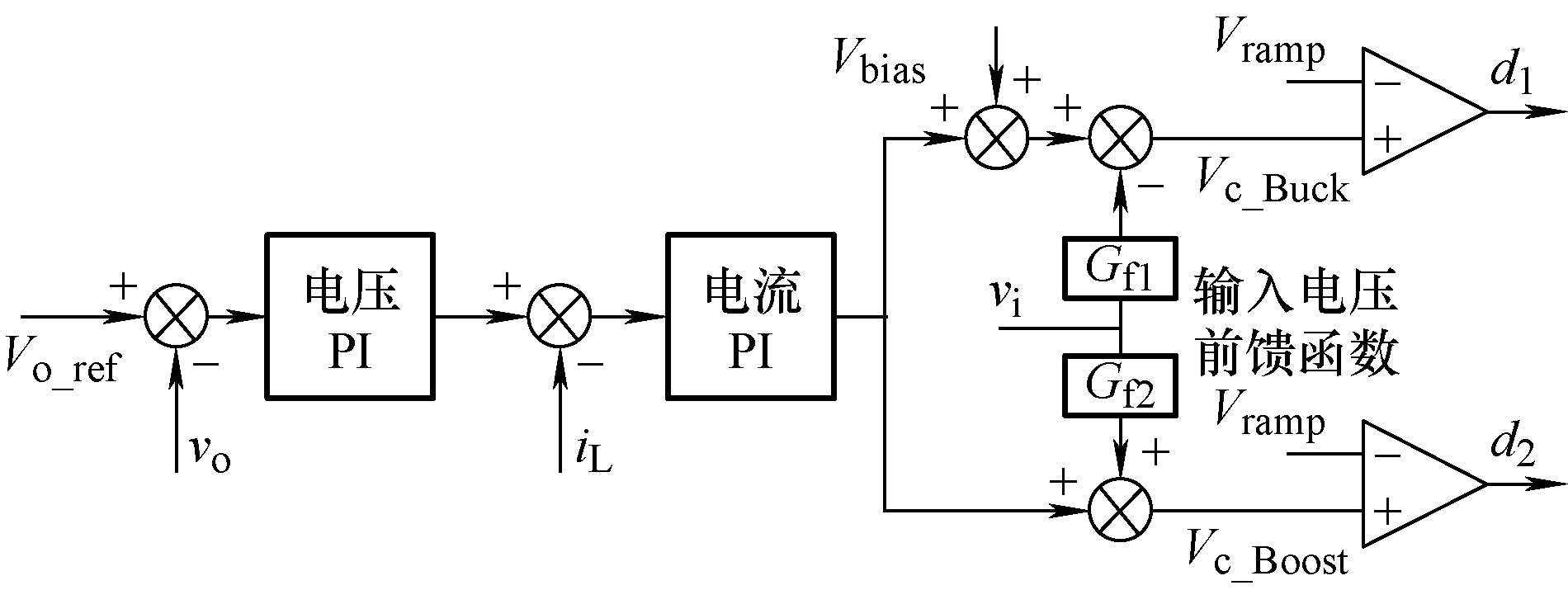

			输入电压前馈函数		实现方式简单	多模式控制理论分析不足	[49]
			快速占空比计算		实时跟踪输入电压变化，提高响应精度	对计算资源有一定要求	[50]
		电感电流前馈			补偿模式切换电感电流，实现平滑过渡	成本增加，建模复杂	[51]

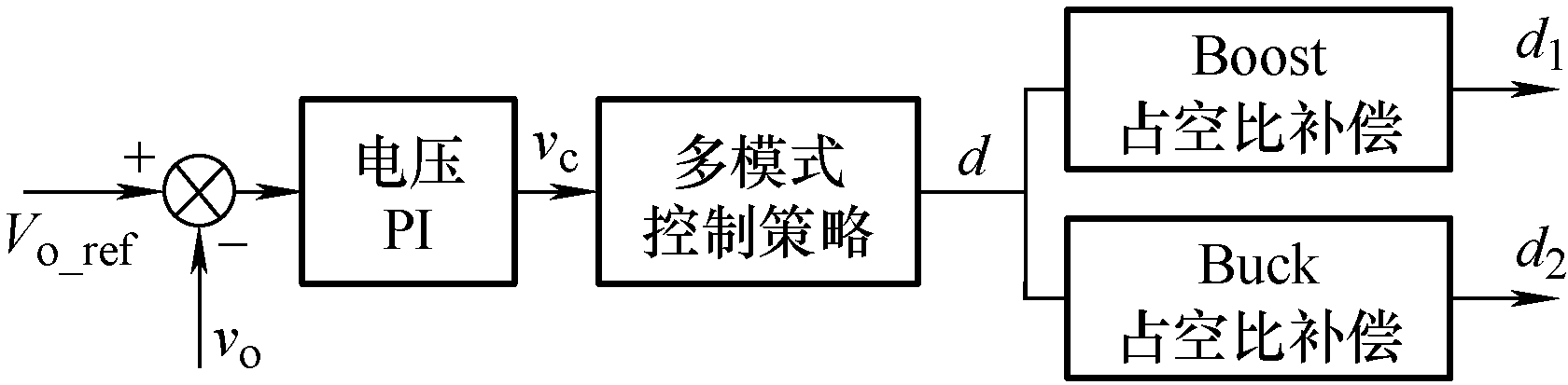

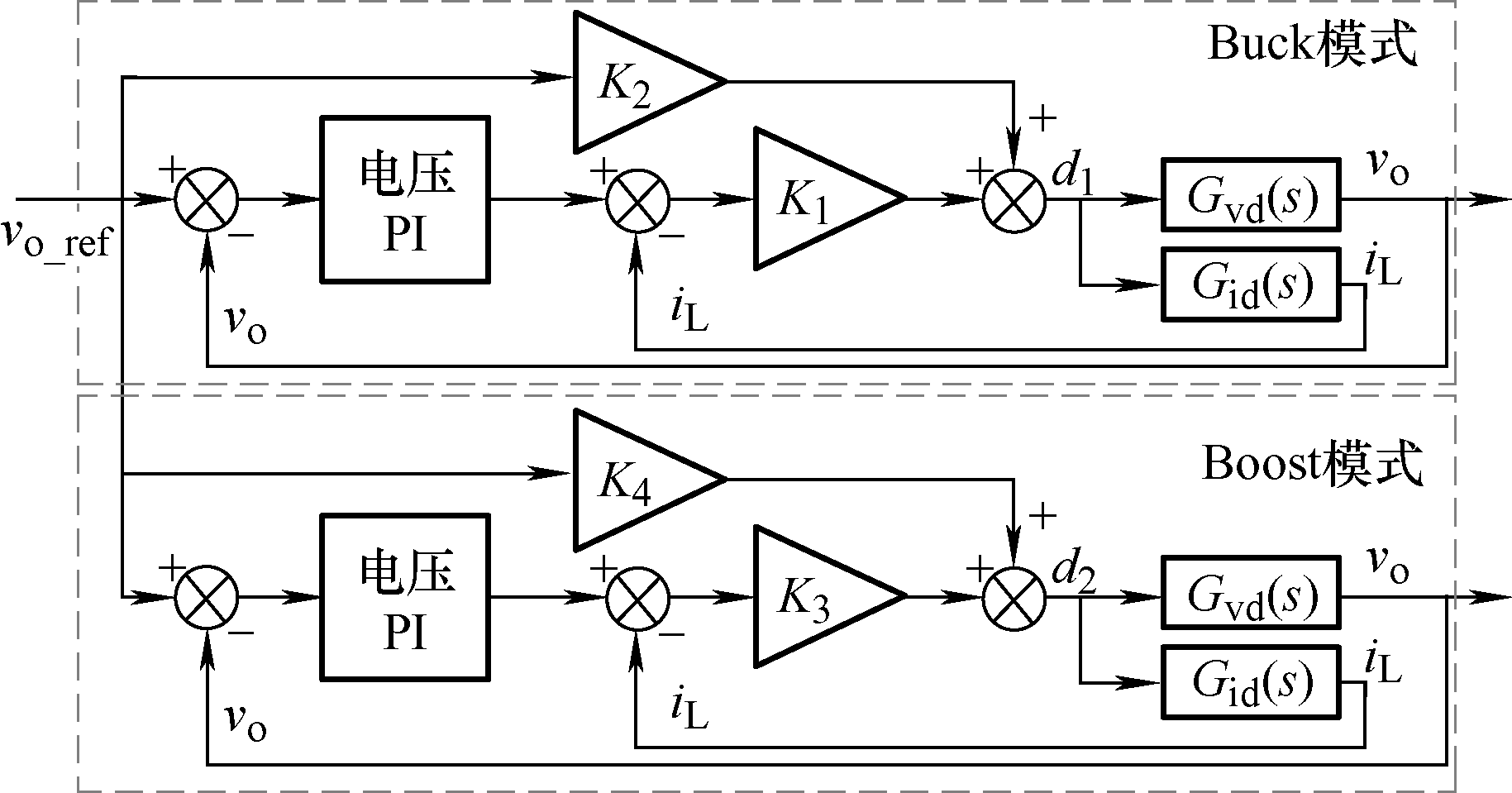

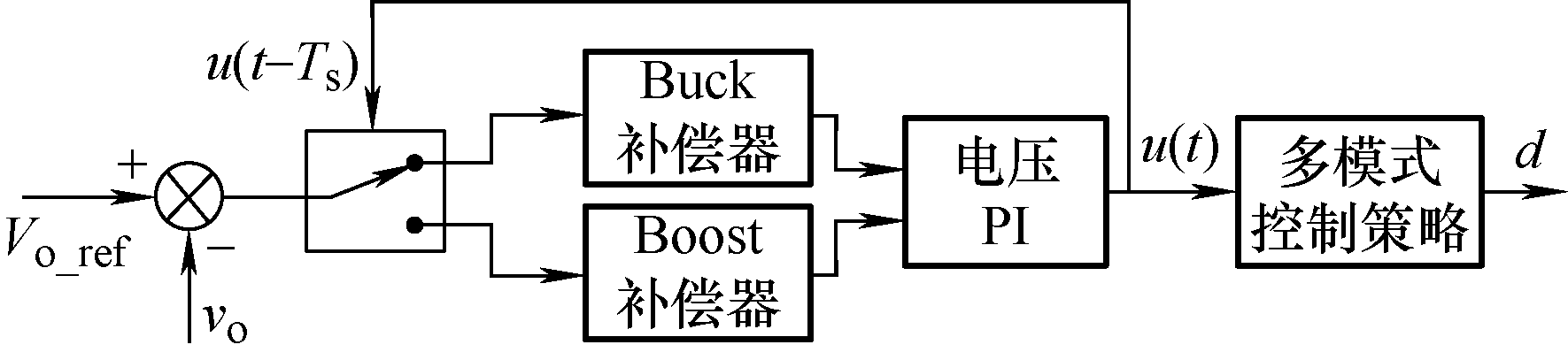

	自适应控制		模式占空比补偿控制		分模式补偿，控制精度提高	补偿器设计复杂	[47]
	自适应控制		级联多模式控制		分多种模式设计控制器，控制精度提高	环节冗余	[41]

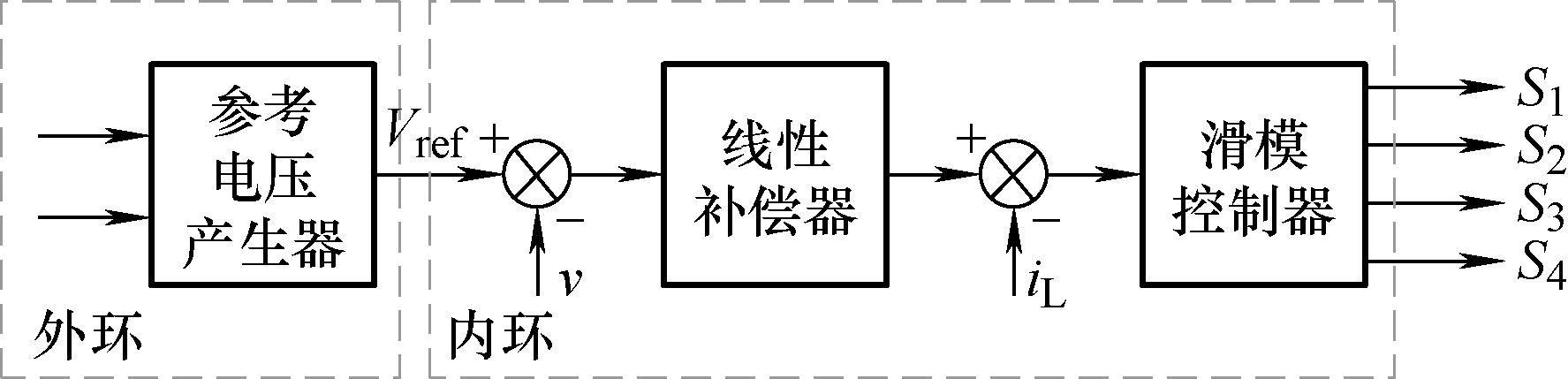

非线性控制	滑模控制				系统稳定性和动态响应较优	滑动面方程设计复杂	[53]

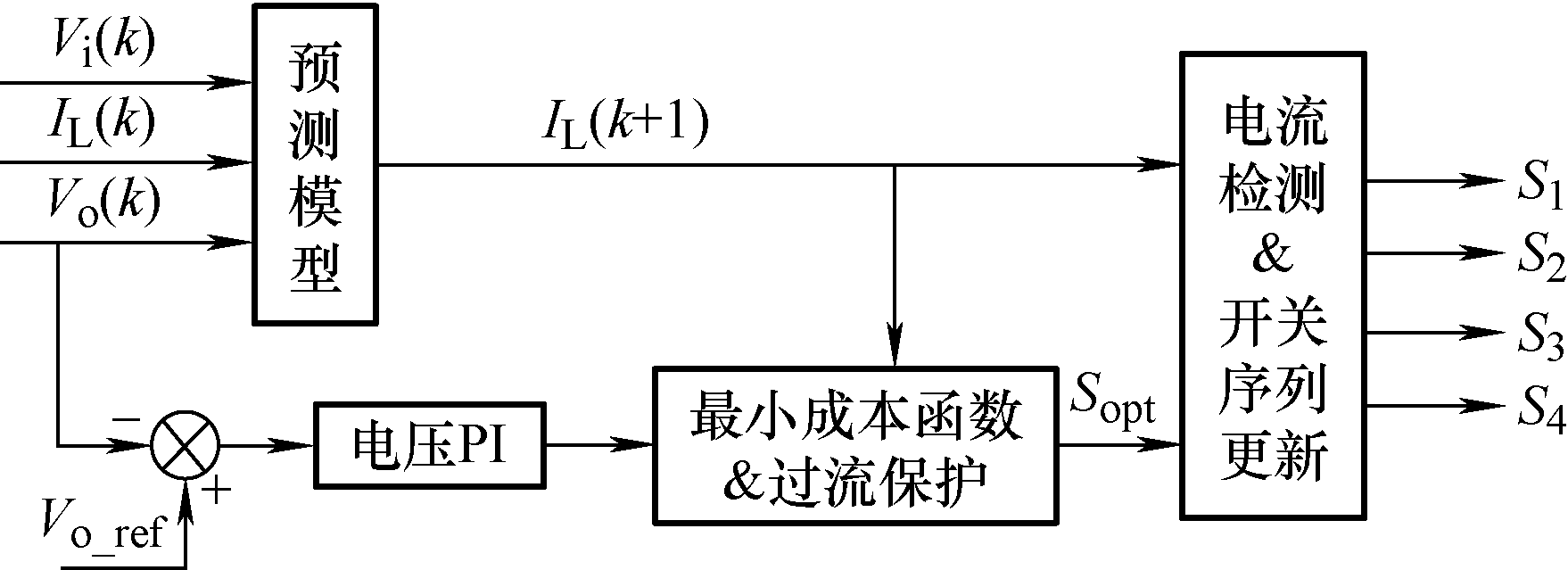

	模型预测控制				简化控制结构，具有良好的暂态响应能力	成本函数需要合理选取	[55]
	非线性模型设计		基于反馈线性化的非线性控制		面对扰动因素，快速响应	建模过程依赖对无源器件的精准控制	[57]
			电感电流非线性前馈控制		扩宽变换器稳定工作范围，提高变换器工作的稳定性	设计环节计算复杂	[42]
			大信号建模	统一模式控制	进行模式的实时选择，暂态响应能力较优	模型的建立需要理论支撑	[59]
				无扰切换控制			[41]
				动态模式选择			[61]

控制方法		优点	不足	参考文献

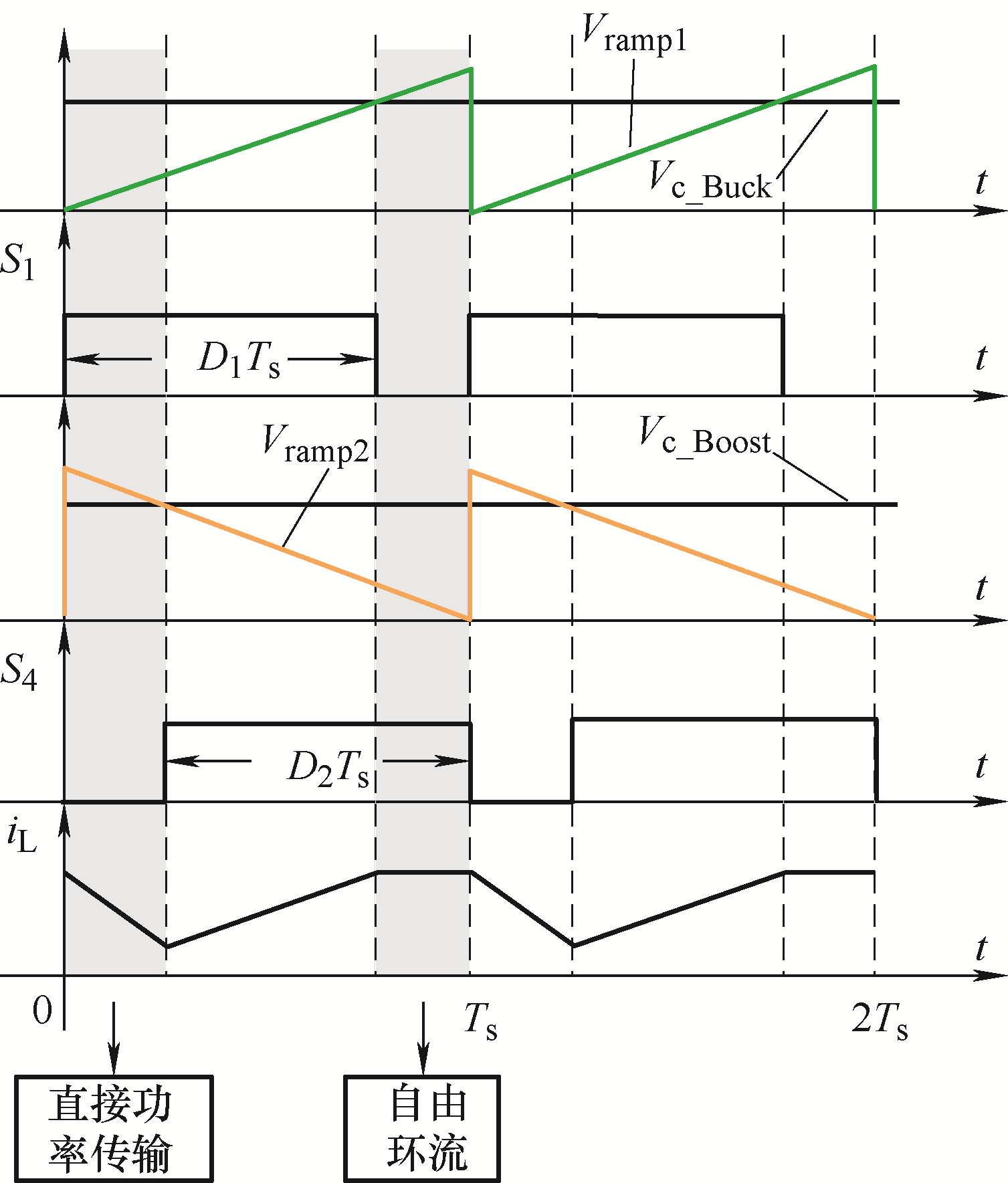

硬开关	双沿调制控制	降低电感电流纹波	削弱能量传输效率	[25]
	电感电流控制	减小平均电感电流	对电感电流检测精度与实时性要求高	[16]
	变频控制	减小开关损耗	控制复杂性增加	[63]

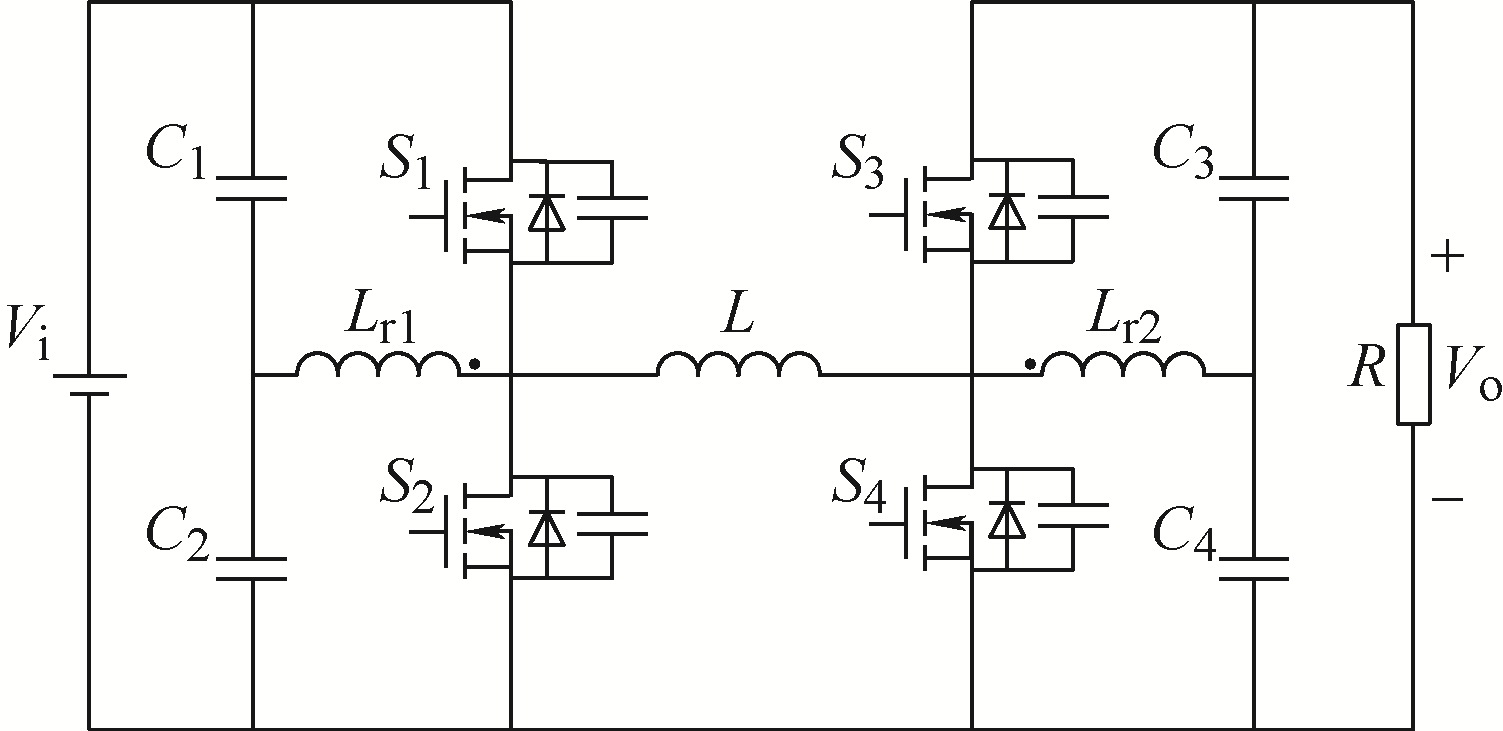

软开关	增加耦合电感或附加支路	提高效率，减小开关损耗	成本增加，体积增加	[64]

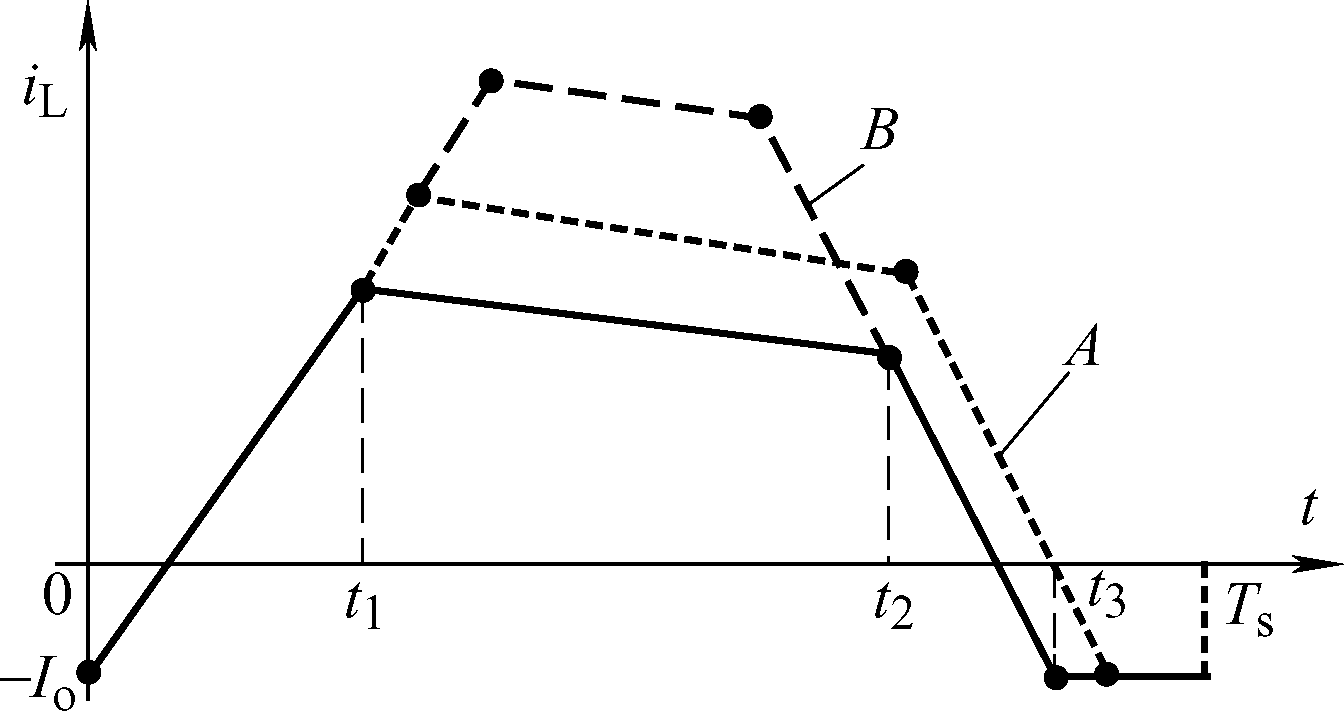

软开关	四边形电感电流控制	效率大大提高	电感电流模型计算复杂，计算资源大	[66]
